200 Вт 300 400 500
725 190,36 ₽ - 943 408,73 ₽
Китай 200 Вт 300 400 YAG Автоматическая Лазерная сварочная машина лазерная для ремонта термос чашка вакуума.
- Категория: >>>
- Поставщик: XT Ouke Laser (Shenzhen) Technology Co. Ltd.
Сохранить в закладки 1600860142681:
Описание и отзывы
Характеристики
1. Adopt Germany imported metal cavity, corrosion resistance, high temperature
resistance, The cavity lifetime is 8-10 years,xenon lamp lifetime is more than
8 million times.
resistance, The cavity lifetime is 8-10 years,xenon lamp lifetime is more than
8 million times.
2.Uses the world's most advanced automatic shading system to eliminate eye irritation
during working hours
during working hours
3. 10X microscope magnification, cross-cursor knowledge, and automatic light shading
with high-speed liquid crystal light valve. The protective gas output in synchronization with the laser will ensure the appearance
of solder joints and the solder joints will not oxidize and discolor
4. The display adopts 7-inch LED screen, which can realize the free conversion in English
and Chinese, and can be connected with the international market;
CCD monitoring system can be installed
and Chinese, and can be connected with the international market;
CCD monitoring system can be installed
5.Large welding depth, firm and beautiful appearance, full melting, no traces, no bulges
or dents
or dents
6.Small heat-affected zone, won’t cause deformation of the mold
Machine scope
Widely used in die-casting molds, plastic molds, aluminum beryllium copper molds, small
and medium-sized molds, extra large molds, sand holes, cracks, chipping angle and wear edging, sealing edges and other minor parts of the repair.
The applicable base materials include: various die steel, stainless steel, beryllium copper,
precious metal, extremely hard material, chain, jewelry, electronic components, sensors,
precision machinery, communication, connectors, data lines, crafts, etc.
*After placing an order, the delivery lead time is usually within 10 working days
Model | OPT-CMW-200 to OPT-CMW-500 |
Laser power | 200W 300W 400W 500W |
Welding depth | 0.1~3mm |
Laser wavelength | 1064nm |
Energy | 100J 110J 120J 140J |
Impulse Pulse width | 0.1~20ms |
Laser welding frequency | 0~100HZ |
Consumable | XENON LAMP / FILTER ELEMENT / PROTECT LENS /ARGON |
Cooling system | 1P 2.0P Small3P Big3P |
Rated power | 6kw 8kw 12kw 14kw |
Power required | 220V土10% 220V土10% 380V土10% 380V土10% (50Hz) |
Warranty | 12 months |
Continue working time | 16 hours |

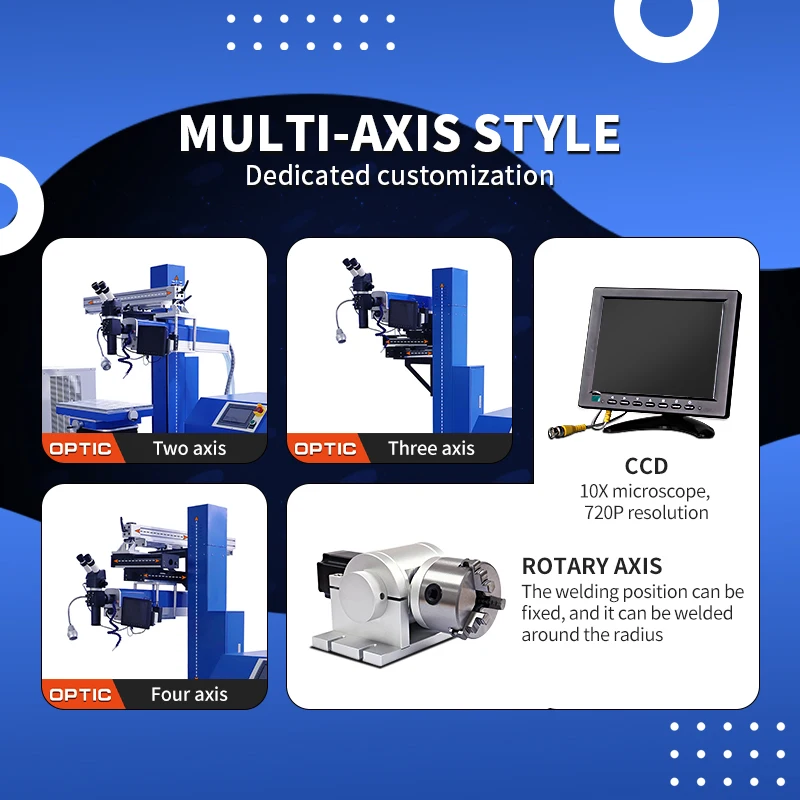

Rotary axis
The welding position can be fixed,
and it can be welded around the
radius
and it can be welded around the
radius
CCD
Observe clearly with a 10X microscope,
720P resolution screen, crosshair
Can help you find the focus easily.
720P resolution screen, crosshair
Can help you find the focus easily.

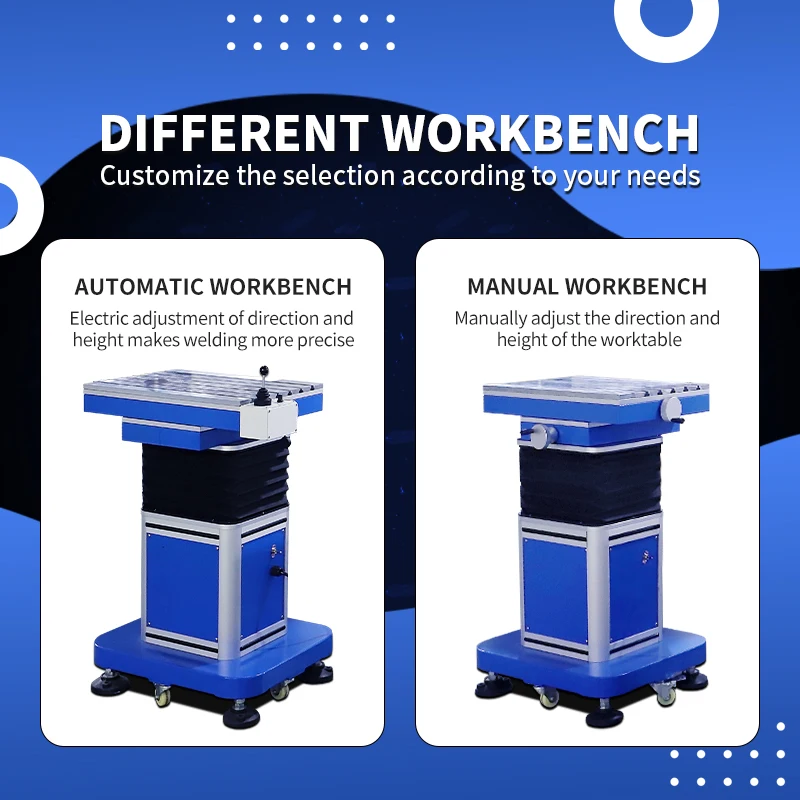

Automatic workbench
Electric adjustment of the direction
and height of the worktable makes
welding more precise
and height of the worktable makes
welding more precise
Manual workbench
Manually adjust the direction and
height of the worktable
height of the worktable
Warranty and after-sales service
1.This machine has a 12-months warranty. You can see the warranty card, service card,
operation video, and user manual on this machine.
2.During the warranty period, if any part is damaged, we will provide you with new parts
for free, and the freight will be borne by us (you will never be required to return old
parts, and some manufacturers will require customers to return damaged parts)
for free, and the freight will be borne by us (you will never be required to return old
parts, and some manufacturers will require customers to return damaged parts)
3.Even if your machine is out of warranty period, if you encounter any problems, you can
call our service center or contact your sales staff. We will help you solve the problem
within 12 hours. We have a team of after-sales engineers in English, Japanese, and
Russian, and we can provide support services that small factories cannot provide.
WHY CHOOSE US
Optical Technology (Shenzhen) Co., Ltd. is a comprehensive enterprise integrating R&D, design and
production.
Product laser automation equipment manufacturer. Our products include laser cutting machines, marking
machines, laser welding machines, laser engraving machines and non-standard automation equipment.
Our company has a group of high-level optical, electronic and precision mechanical researchers, and has world-class optical and microelectronic test equipment, advanced quality, management system, improve the efficiency of the manufacturing test process, and create excellent quality.
Our commitment is to focus on product quality and customer service through research and continuous improvement of technical level, development, standardization, and scientific management.
Optical Technology (Shenzhen) Co., Ltd. has won a good reputation in Germany,
the United States, Japan, the United Kingdom, Russia, Malaysia and other countries.
Optical Technology (Shenzhen) Co., Ltd. has established a long-term friendly cooperative relationship
with domestic laser research institutes. Over the years, our products have been exported to more than
one hundred countries and regions.
FAQ
1.What is the machine warranty and after sale service?
We will provide instruction videos and operation manuals to help you operate the machine. During covid19, we can provide whatsapp videos and WeChat online videos teach you how to use the machine step by step.
The machine has 12 months of after-sales service. During the warranty period, if there is any quality problem with the machine, we will replace with new parts and send it to you by express. Our freight. If there is any problem with the quality of the machine more than 12 months warranty, our after sales service team will help you solve it within 8 hours.
2. Is this machine has quickly-wear part?
The machine has 12 months of after-sales service. During the warranty period, if there is any quality problem with the machine, we will replace with new parts and send it to you by express. Our freight. If there is any problem with the quality of the machine more than 12 months warranty, our after sales service team will help you solve it within 8 hours.
2. Is this machine has quickly-wear part?
The service life of the boom mould welding machine is more than 100,000 hours, keeping better work
environment. Except for parts that will be damaged, no parts need to be changed.
3. Will the package be damaged during transportation?
environment. Except for parts that will be damaged, no parts need to be changed.
3. Will the package be damaged during transportation?
Our packages take all damage factors into consideration and make sure the product will be in safe
transportation. We have exported to 180 countries worldwide. So transportation won't be problem
for us and customers will definitely receive products in good condition.
transportation. We have exported to 180 countries worldwide. So transportation won't be problem
for us and customers will definitely receive products in good condition.
