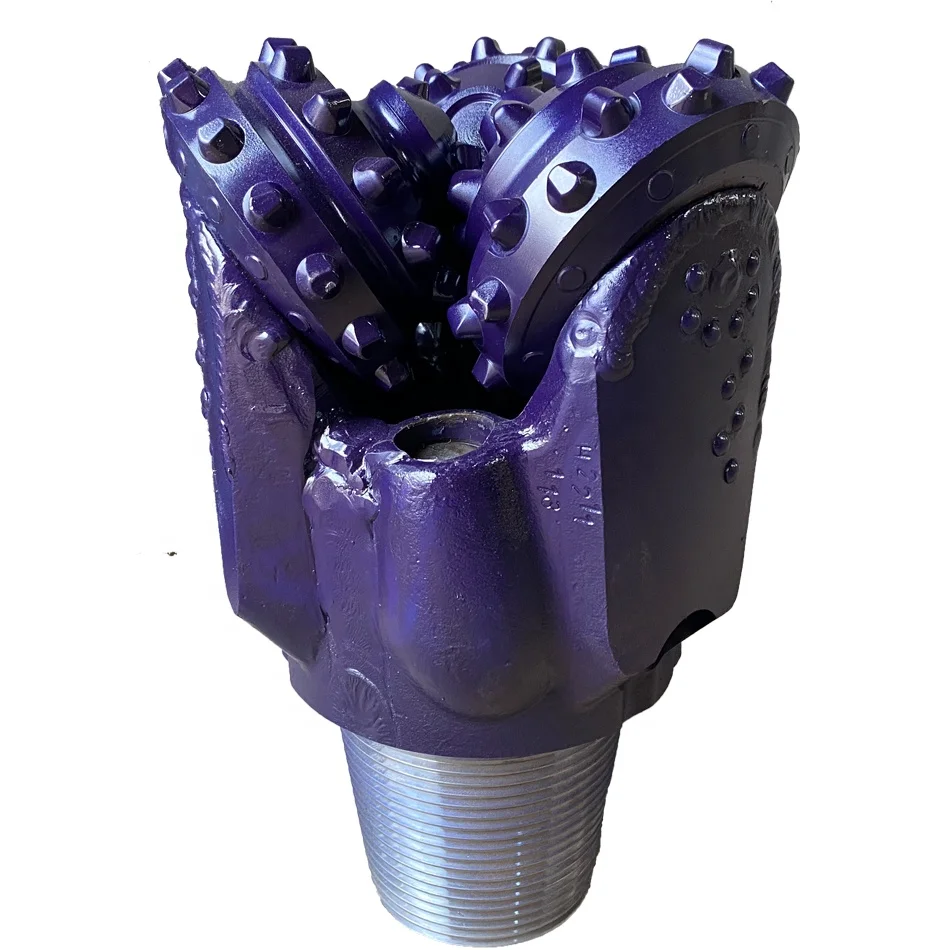

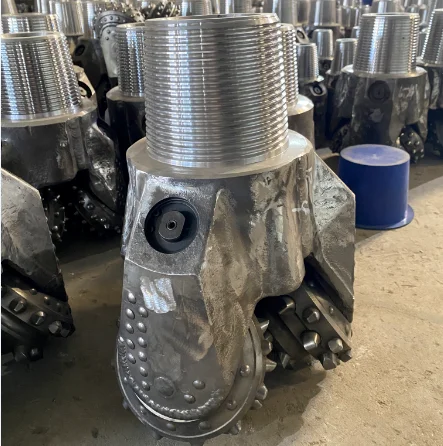

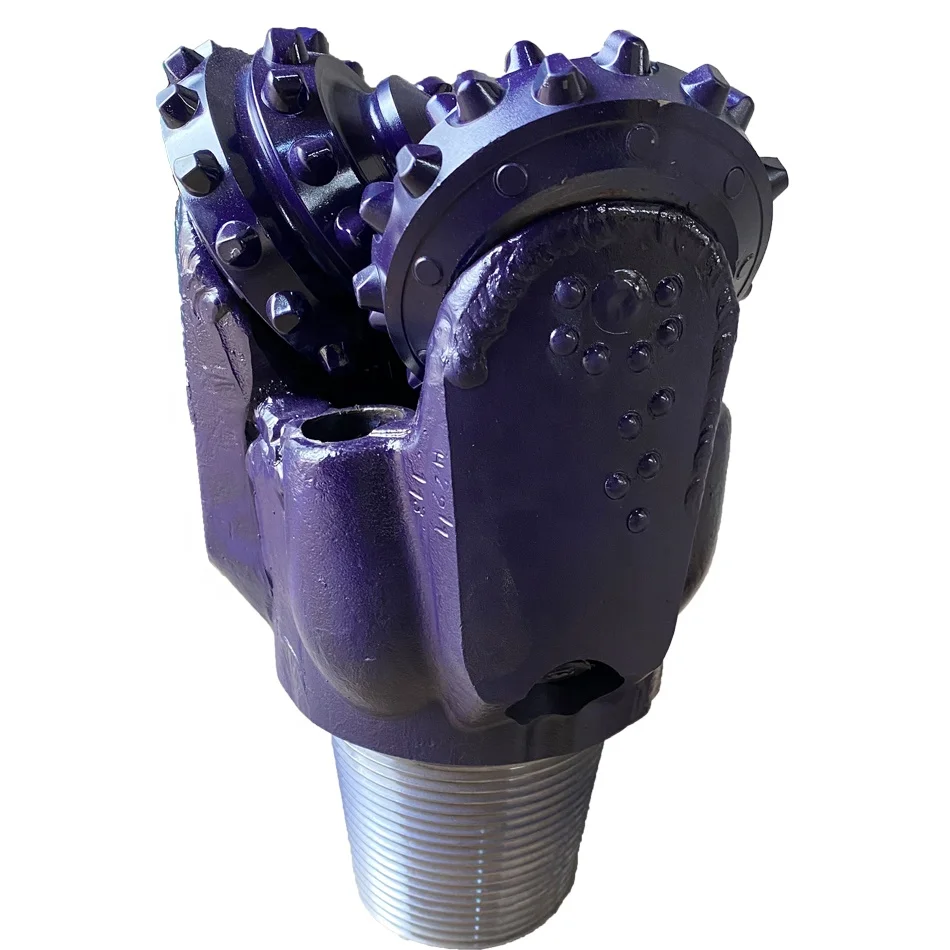

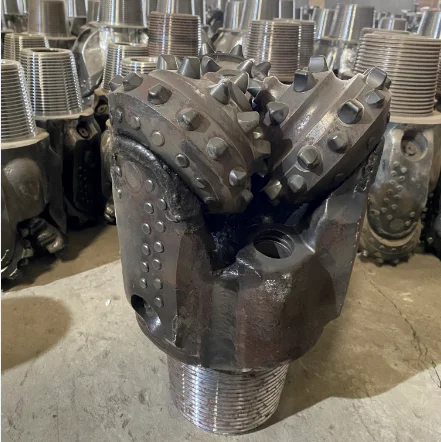

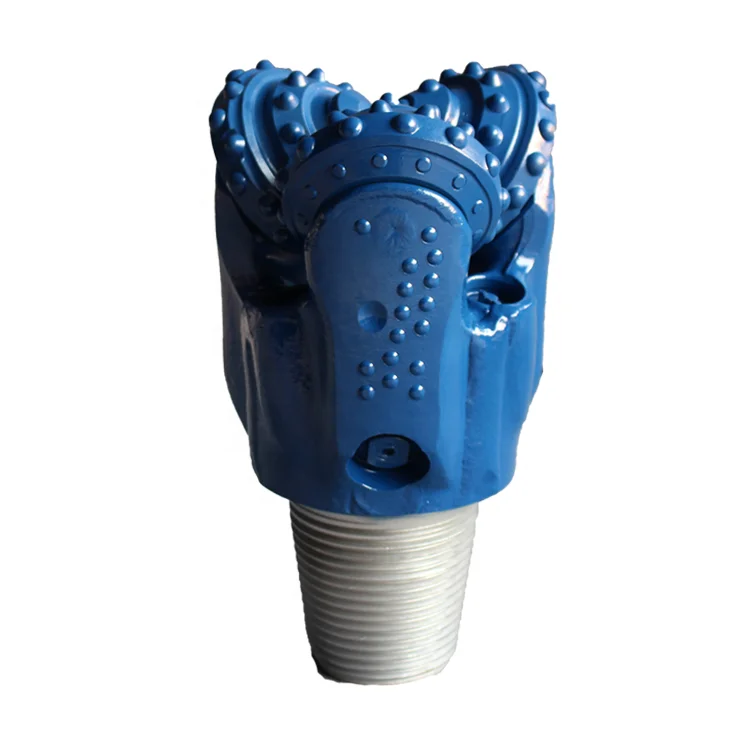

Iadc 617 8 дюймовые вертикальные скважины трехконтурная буровая насадка для нефтяных скважин 250 мм
- Категория: >>>
- Поставщик: Hejian Deris Petroleum Drilling Equipment Co. Ltd.
Сохранить в закладки 1600860484579:
Описание и отзывы
Характеристики
Advantage
Welcome to customized the size and type and so on according to your requirement. We design and produce for you . water oil mining well hard rock drilling tools IADC637 12 1/4" tricone drill bits
Normal size and IADC code bits in stock , timely delivery , Reliable Freight Forwarder
Basical Specification | ||
Size of tricone bit | 8 1/2 " (215.9mm) | |
Connection | 4 1/2"API reg pin | |
IADC CODE | 517 537 637 | |
Bearing type | rubber /metal o-ring journal bearing | |
Operating Parameters | ||
Weight On Bit | 0.35~1.05 KN/mm (bit Dia.) | |
Rotary speed | 110~40 r/min / 220~40 r/min | |
Make up torque | 16.3~21.7 KN.M | |
Formation | Medium formation with high compressive strength ,and high drillability ,such as mudstone, gypsum, salt,soft limestone,etc. | |
customize | produce according to customer’s requirements | |
Monthly production | 100~200 pieces , most of normal size bits in stock | |
Quality Control
In manufacturing, each process goes through an extensive and painstaking testing , quality control is a process that ensures customers receive products free from defects and meet their needs.
1, Raw material selection:To make a good drill bit, it is necessary to select the best material and gate keeping the quality of the material. We purchase the high-quality steel and strictly control the material composition and size, it main includes the detection of the shape, diameter, reamed diameter, length composition, and flaw of the raw material, Tungsten Carbide and Grease are also the best raw materials on the market.Besides, we marked every different piece of materials before transferred to the warehouse.
2, In strict accordance with the ISO9001 international standards for production.
Carefully control every step of the production, complete each of the production process, the production process is including blanking, forging, rough turning, heat treatment,fine turning, quenching, assembling, welding,
painting, then storage. Each working process was full inspected, after the qualification, then move to next working process, which to ensure the 100% qualified rate.
3, Sampling observation, numbered, packing and arrange the shipment.
1, Raw material selection:To make a good drill bit, it is necessary to select the best material and gate keeping the quality of the material. We purchase the high-quality steel and strictly control the material composition and size, it main includes the detection of the shape, diameter, reamed diameter, length composition, and flaw of the raw material, Tungsten Carbide and Grease are also the best raw materials on the market.Besides, we marked every different piece of materials before transferred to the warehouse.
2, In strict accordance with the ISO9001 international standards for production.
Carefully control every step of the production, complete each of the production process, the production process is including blanking, forging, rough turning, heat treatment,fine turning, quenching, assembling, welding,
painting, then storage. Each working process was full inspected, after the qualification, then move to next working process, which to ensure the 100% qualified rate.
3, Sampling observation, numbered, packing and arrange the shipment.
High quality----strictly act according to the ISO9001 standard, and all bits are manufactured according to strict standards, set forth by the American Petroleum Institute (API).
Professional Equipment---- No matter raw material selection, or processing technology are selected is the industry leading
technical equipment.
22 Years History---- From 2000 to 2023, customers are located all over the world and win a good reputation.
Don’t see the bit you are looking for? Give us a call, we can customize any bit to fit your unique circumstances..
Professional Equipment---- No matter raw material selection, or processing technology are selected is the industry leading
technical equipment.
22 Years History---- From 2000 to 2023, customers are located all over the world and win a good reputation.
Don’t see the bit you are looking for? Give us a call, we can customize any bit to fit your unique circumstances..
COMPANY
Hejian Deris Petroleum Drilling Equipment Co., Ltd
♦Advanced technology&Equipment, International standard.
♦R&D center for rock drilling tools, high precision CNC machines, API&ISO Certified.
♦20+ Years & 30 Countries service experience.
♦Optimized solutions for various of requirement.
Hejian Deris Petroleum drilling equipment Co., Ltd was established in 2000, located in Hejian City Junziguan Industrial Park,close to Tianjin Port, Beijing Airport, convenient transportation
Specializing in the production and sales of drilling tools such as Tricone bit, PDC drill bits, Hole opener, roller cone drills,
hammer and hammer bit, drill pipes, drill collars, etc. A professional design, production, inspection and foreign trade sales team has been established. .
♦R&D center for rock drilling tools, high precision CNC machines, API&ISO Certified.
♦20+ Years & 30 Countries service experience.
♦Optimized solutions for various of requirement.
Hejian Deris Petroleum drilling equipment Co., Ltd was established in 2000, located in Hejian City Junziguan Industrial Park,close to Tianjin Port, Beijing Airport, convenient transportation
Specializing in the production and sales of drilling tools such as Tricone bit, PDC drill bits, Hole opener, roller cone drills,
hammer and hammer bit, drill pipes, drill collars, etc. A professional design, production, inspection and foreign trade sales team has been established. .
Application
Medium to Medium-Hard Formation For use in moderately abrasive consolidated formations with compressive strength ranging between
140 – 485 Mpa such as hard limestone, quartzite, granodiorite, and medium grade metamorphic formations Cutting structure: These
bits are characterized by moderately spaced conical inserts with medium projection. This configuration promotes good penetration
rates in medium hard and moderately abrasive formations. Smaller carbide inserts are provided on the gage and inner rows or hard
metal is deposited in the nose area to contain shell erosion and improve performance.
1.Compression Strength: 20,000 – 70,000 psi
2.Drilling Speeds: 60 – 100 rpm
3.Jet Circulation: All sizes
4.Weight on Bit (WOB): 2,500 – 7,000 lbs/in of bit diameterat
Bits thread are manufactured according to API standards.
140 – 485 Mpa such as hard limestone, quartzite, granodiorite, and medium grade metamorphic formations Cutting structure: These
bits are characterized by moderately spaced conical inserts with medium projection. This configuration promotes good penetration
rates in medium hard and moderately abrasive formations. Smaller carbide inserts are provided on the gage and inner rows or hard
metal is deposited in the nose area to contain shell erosion and improve performance.
1.Compression Strength: 20,000 – 70,000 psi
2.Drilling Speeds: 60 – 100 rpm
3.Jet Circulation: All sizes
4.Weight on Bit (WOB): 2,500 – 7,000 lbs/in of bit diameterat
Bits thread are manufactured according to API standards.
IADC code | WOB (KN/mm) | RPM (r/min) | Applicable Formations | |||
437/447/435 | 0.35~0.9 | 240~70 | Very soft formations with low compressive strength and high drillability,such as clay,mudstone,chalk,gypsum,salt,soft limestone, etc. | |||
517/527/515 | 0.35~1.0 | 220~60 | Soft formations with low compressive strength and high drillability,such as mudstone,gypsum,salt,soft limestone, etc. | |||
537/547/535 | 0.45~1.0 | 220~50 | Soft to medium formations with low compressive strength, such as medium, soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds, etc. | |||
617/615 | 0.45~1.1 | 200~50 | Medium hard formation with high compress strength, such as hard shale, limestone, sandstone, dolomite. etc | |||
637/635 | 0.5~1.1 | 180~40 | Hard formations with high compressive strength, such as sandstone, limestone, dolomite ,hard gypsum, marble, etc. | |||
Note: The upper limits of WOB and RPM in above table should not be used simultaneously | ||||||
Products Description

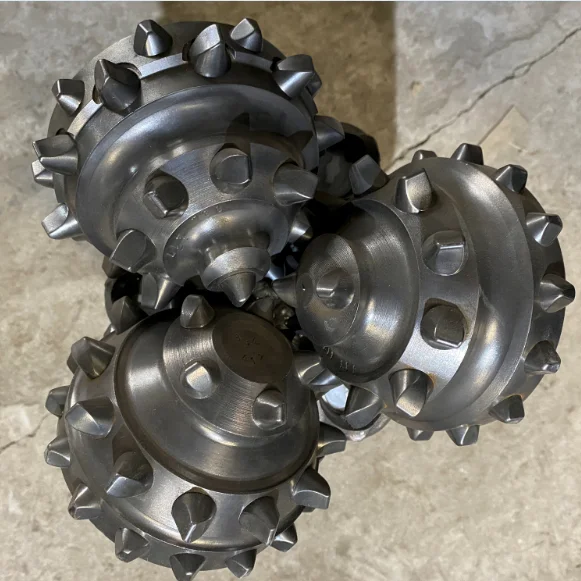

What Is Tricone Drill Bit?
Tricone Drill Bit is an ideal solution from soft to hard rock formations, it is connected with the drill stem and rotates along
with it, and drive cones to pressed on the rock. Each cone rotates round the axis of its leg and three cones simultaneously
revolve around the bit center. The tungsten carbide inserts on the cone shell cause the formation to spall under the weight on bit and the impact load of cone rotating, the debris will be discharged out to hole by compression air. Tricone bits come in several different varieties, and can deal with a wide range of different rock formations. It is important to know the type of formation you are drilling in when selecting a drill bit.The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard formations. The HSN rubber O-ring provides adequate sealing for bearing durability.
with it, and drive cones to pressed on the rock. Each cone rotates round the axis of its leg and three cones simultaneously
revolve around the bit center. The tungsten carbide inserts on the cone shell cause the formation to spall under the weight on bit and the impact load of cone rotating, the debris will be discharged out to hole by compression air. Tricone bits come in several different varieties, and can deal with a wide range of different rock formations. It is important to know the type of formation you are drilling in when selecting a drill bit.The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard formations. The HSN rubber O-ring provides adequate sealing for bearing durability.
Working principle
1) Revolution of drill bit The revolution speed of the drill bit is the rotation speed of the turntable or the
down hole power drilling tool. When the drill bit revolves, the cone also rotates around the axis of the drill bit. The linear
speed of each row of teeth on the cone rotating around the axis of the drill bit is different, and the linear speed of the outer
row of teeth is the largest.
down hole power drilling tool. When the drill bit revolves, the cone also rotates around the axis of the drill bit. The linear
speed of each row of teeth on the cone rotating around the axis of the drill bit is different, and the linear speed of the outer
row of teeth is the largest.
2) Rotation of the drill bit When the drill bit rotates, the counterclockwise rotation of the cone
around the axis of the tooth palm is called auto rotation. The rotation speed of the cone is determined by the revolution speed of the drill bit, and is related to the effect of the teeth on the bottom of the well.
3) Longitudinal vibration (axial vibration) impact crushing of the drill bit The change of the position of the wheel center makes the drill bit reciprocate up and down along the axial direction, which is the longitudinal vibration of the drill bit, which is related to the drill bit structure parameters such as tooth height and tooth spacing and lithology. Soft strata have small amplitudes, while hard strata have large amplitudes. The vibration frequency is proportional to the number of teeth and the speed of the cone.
4) Sliding shear breaking action of drill bit Crushing different types of rock requires different slippage of the drill bit, which
is determined by the structural parameters of the drill bit. In soft formations, bit slippage is large, and in hard formations, it
should be as small as possible or not slipped.
around the axis of the tooth palm is called auto rotation. The rotation speed of the cone is determined by the revolution speed of the drill bit, and is related to the effect of the teeth on the bottom of the well.
3) Longitudinal vibration (axial vibration) impact crushing of the drill bit The change of the position of the wheel center makes the drill bit reciprocate up and down along the axial direction, which is the longitudinal vibration of the drill bit, which is related to the drill bit structure parameters such as tooth height and tooth spacing and lithology. Soft strata have small amplitudes, while hard strata have large amplitudes. The vibration frequency is proportional to the number of teeth and the speed of the cone.
4) Sliding shear breaking action of drill bit Crushing different types of rock requires different slippage of the drill bit, which
is determined by the structural parameters of the drill bit. In soft formations, bit slippage is large, and in hard formations, it
should be as small as possible or not slipped.
Service
1.Pre-sale service: Act as a good adviser and assistant of clients enable them to get rich and generous returns on their
investments .
investments .
1.Select equipment model.
2.Design and manufacture products according to client's special requirement ;
3.Train technical personnel for clients .
2.Services during the sale:
2.Design and manufacture products according to client's special requirement ;
3.Train technical personnel for clients .
2.Services during the sale:
1.Pre-check and accept products ahead of delivery .
2. Help clients to draft solving plans .
3.After-sale services: Provide considerate services to minimize clients' worries.
3.Complete After-sales service,
1.professional engineers available to service machinery at home or oversea.
2. 24 hours technical support by e-mail.
3.Other essential technological service. We are factory direct sales, large inventory, fast delivery, high quality.
2. Help clients to draft solving plans .
3.After-sale services: Provide considerate services to minimize clients' worries.
3.Complete After-sales service,
1.professional engineers available to service machinery at home or oversea.
2. 24 hours technical support by e-mail.
3.Other essential technological service. We are factory direct sales, large inventory, fast delivery, high quality.
Packing and Shiping
Package Type : wooden case ,also be packaged according to customers requirement Transportation : by sea , by air or land transportation . Less than 50kg shipping by courier better Delivery : If we have stock, the delivery time will need about 2~3 working days. In general, common size tricone bits and pdc bit, we have stock.If we have no stock, such as the tci reamer and pdc hole opener, it will be 7-10 working days in total.
FAQ
The information you may like to know before order:1. Does your company have its own factory?
A: Yes , we are local famous company with a professional drill bit manufacturer Deris in China.
2. Are product quality and customer service good?
A: Company tent of Deris: Quality first, after-sales service first. All of our are certified to ISO 9001. We insist : customer supremacy of credibility. Advanced technology and equipment ensuring the quality satisfy international standards.
3 . How about the packing & Delivery?
A: We used high quality export carton container and wooden case in order to ensure that product reaches its destination safely.
4. About lead time and shipping time?
A: The lead time depend on quantity of order. Usually choose seaworthy packing , urgent order or small order are sent by air parcel after received your agreement.
5. How to order our product?
A: Send the inquiry detail item description or with Model number. If there is no packing demand we take it as shipping. If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a accurate understanding.
6. How can I access your company website?
Our website is : https://hjdrs.en.alibaba.com/
A: Yes , we are local famous company with a professional drill bit manufacturer Deris in China.
2. Are product quality and customer service good?
A: Company tent of Deris: Quality first, after-sales service first. All of our are certified to ISO 9001. We insist : customer supremacy of credibility. Advanced technology and equipment ensuring the quality satisfy international standards.
3 . How about the packing & Delivery?
A: We used high quality export carton container and wooden case in order to ensure that product reaches its destination safely.
4. About lead time and shipping time?
A: The lead time depend on quantity of order. Usually choose seaworthy packing , urgent order or small order are sent by air parcel after received your agreement.
5. How to order our product?
A: Send the inquiry detail item description or with Model number. If there is no packing demand we take it as shipping. If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a accurate understanding.
6. How can I access your company website?
Our website is : https://hjdrs.en.alibaba.com/
Contact
Похожие товары
Китайский буровой наконечник atlas copco OEM
15 336,89 ₽
Китайский megaroc Hard Rock Камень Минин DTH Сверла полые сверла
61 347,53 ₽
Гидравлический мочевого пузыря аккумулирования энергии NXQ-A-0.4L 0,63 L,1.6L,2.5L,4L,6.3L,10L,16L,25,40L, аккумулятор для гидравлической системы
21 601,24 ₽
Запчасти для горнодобывающих машин Оригинальные комплектующие оригинального оборудования оригинальные запасные части для подземного бурения Jumbo
2 160,13 ₽
Скважинный спиральный сверлильный ошейник для скважинного HDD с API
129 607,44 ₽ - 135 007,75 ₽
Трехшарошечное Коническое долото TCI 12 дюймов 1/4 дюйма/трехшарошечное долото/буровое долото для нефтяных скважин
221 412,71 ₽ - 224 652,90 ₽

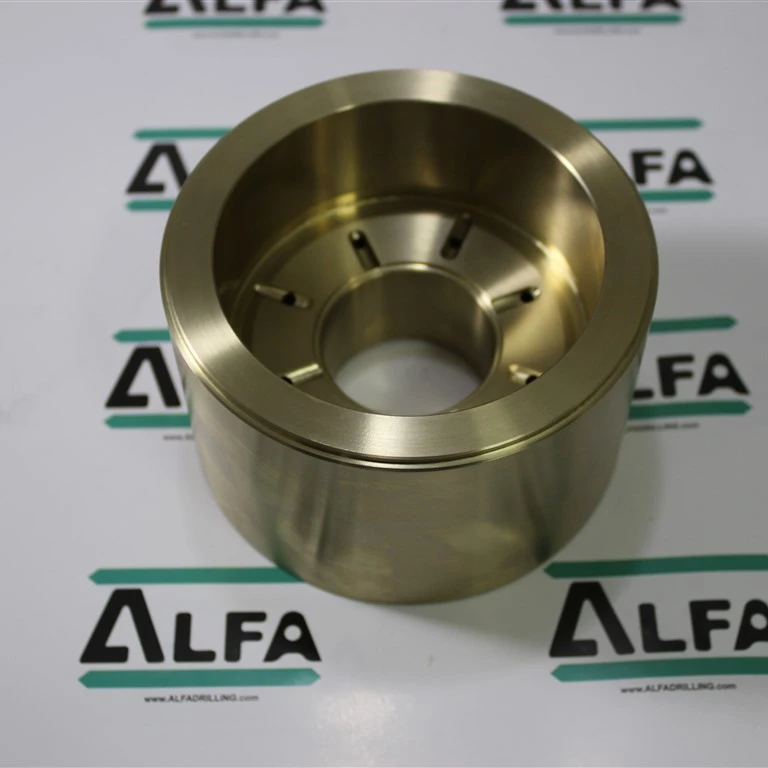

Втулка подшипника DRIFTER 55035604
