Product Description
Characteristics:

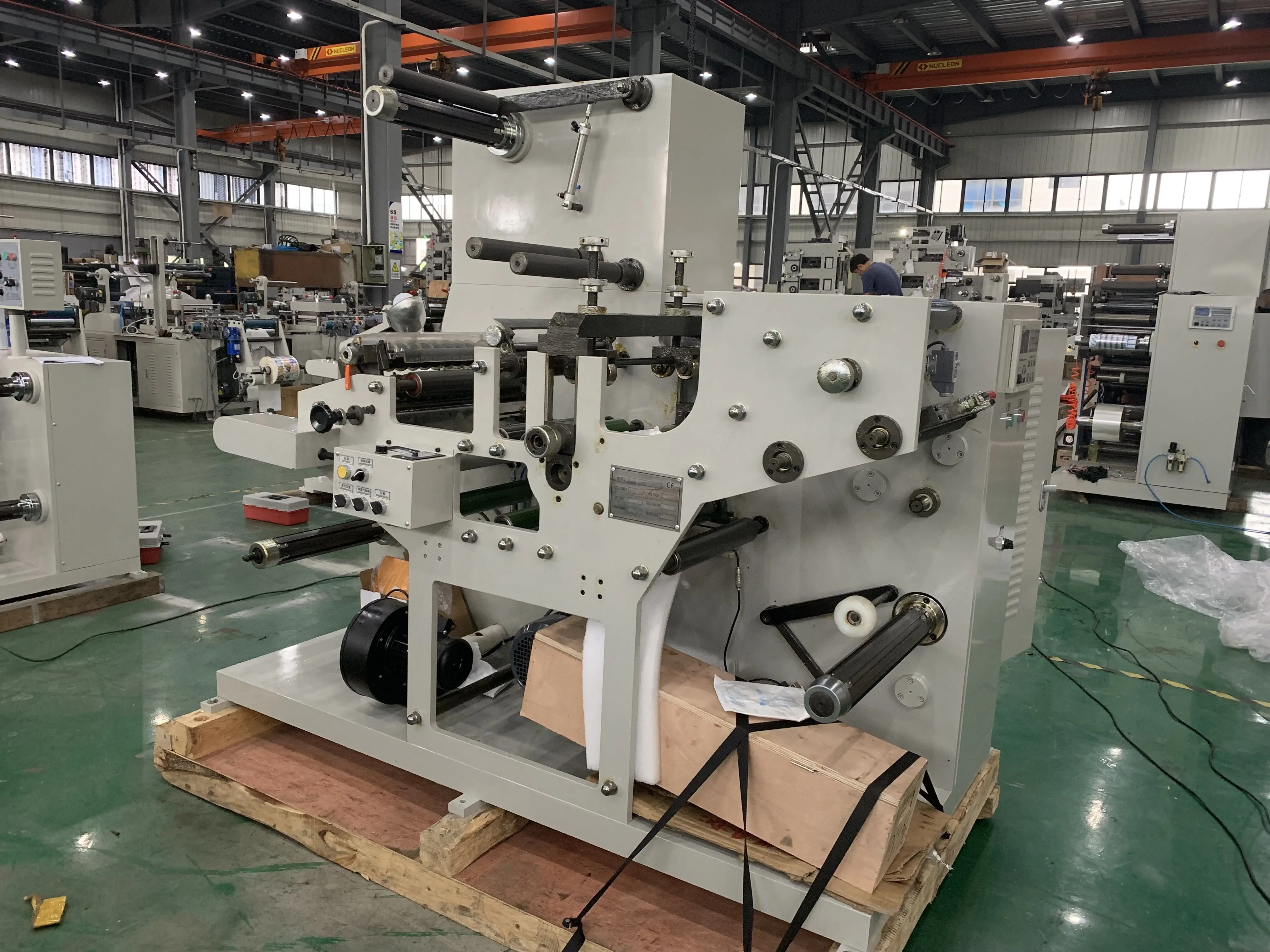

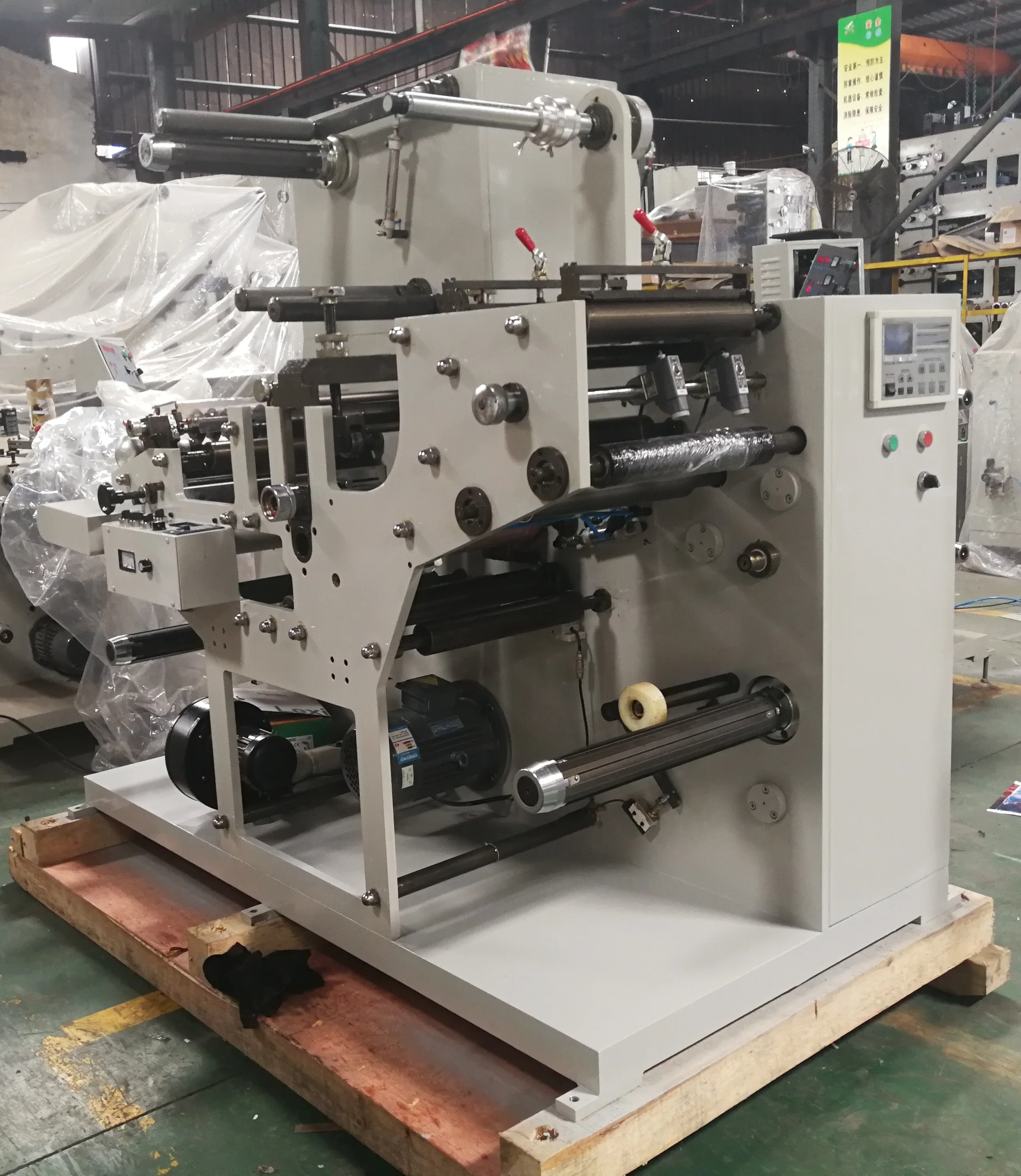

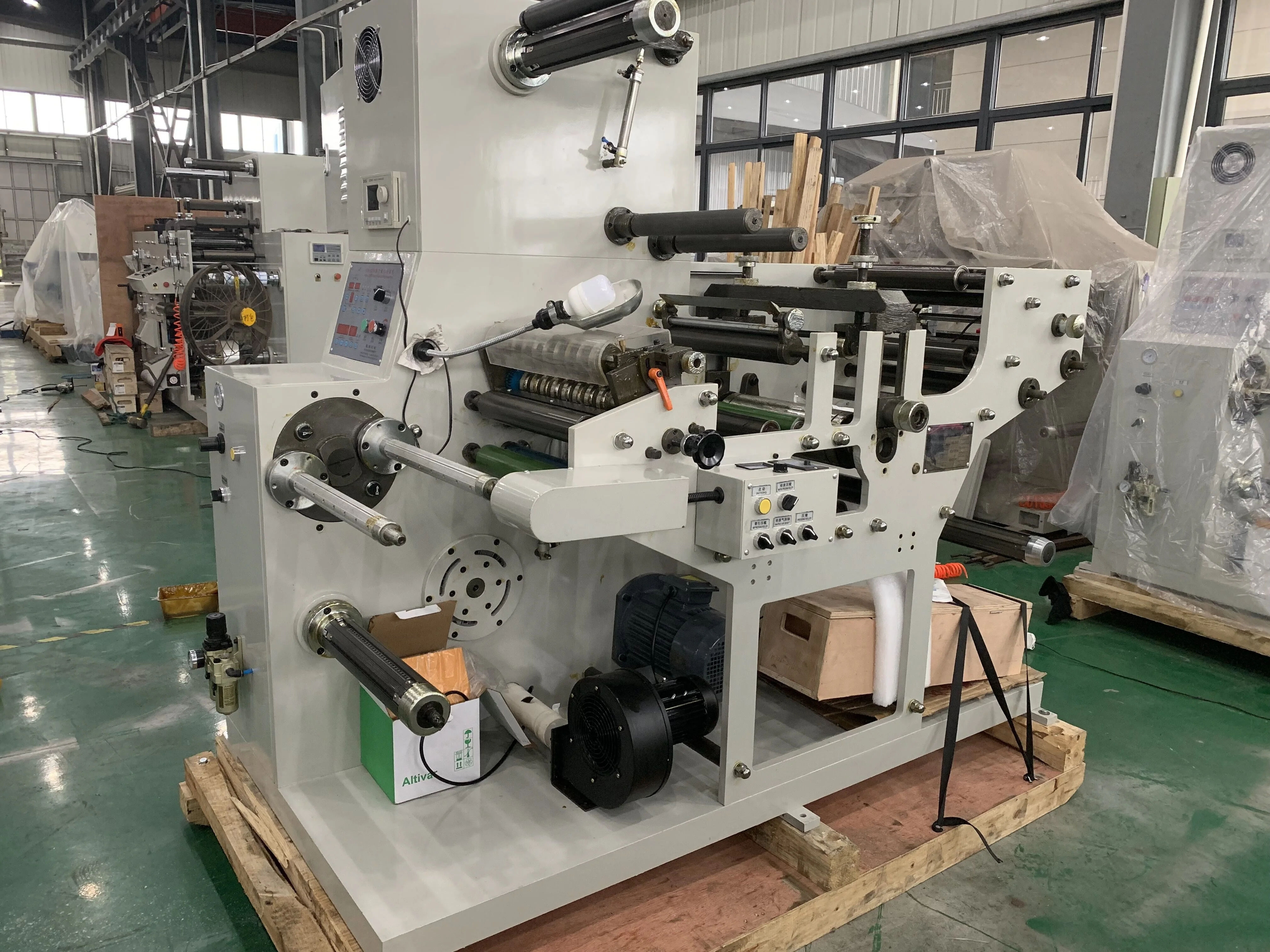

The GP-450YB rotary die-slitting machine is suitable for die cutting and slitting narrow pieces of paper with turret rewinder for small reels. It has meter counter and number counter. The unwinding is controlled by two photoelectric eyes, the structure of the complete machine is compact, fast, with high efficiency, operate the characteristic simply, operate steadily.
Specification
Model | GP-450YB |
Slitting speed | 100m/min |
Max. Web width | 450mm |
Max. Unwinding diameter | 700mm |
Max. Rewinding diameter for big roll | 700mm |
Max. Rewinding diameter for small roll | 200mm |
Max. Waste rewinding diameter | 700mm |
Dimensions | 1800* 1250* 1800mm |
Main motor | 4KW |
Voltage | 380V, 3 phase |
Min. Cutting width | 15mm |
Machine weight | About 1500kgs |
Standard configurations:
1. With one rotary die cutting station.
2. With one matrix rewinder station.
3. With one slitting station.
4. 1pc 3’’ unwinding shaft, auto inflation air shaft.
5. With meter/number counter.
6. With two photoelectric eyes
7. With 8 sets rotary knives.
8. With one 25N.Mmagnetic brake, one 50N.M magnetic clutch.
9. With taper tension controller for both unwinder and rewinder.
10. Machine has blower fan to blow away the trimmed sides
11. The machine has both 2pcs 1.5” air shaft for rewind small reels, and also 1pc 3 inch air shaft for rewind big rolls.
2. With one matrix rewinder station.
3. With one slitting station.
4. 1pc 3’’ unwinding shaft, auto inflation air shaft.
5. With meter/number counter.
6. With two photoelectric eyes
7. With 8 sets rotary knives.
8. With one 25N.Mmagnetic brake, one 50N.M magnetic clutch.
9. With taper tension controller for both unwinder and rewinder.
10. Machine has blower fan to blow away the trimmed sides
11. The machine has both 2pcs 1.5” air shaft for rewind small reels, and also 1pc 3 inch air shaft for rewind big rolls.

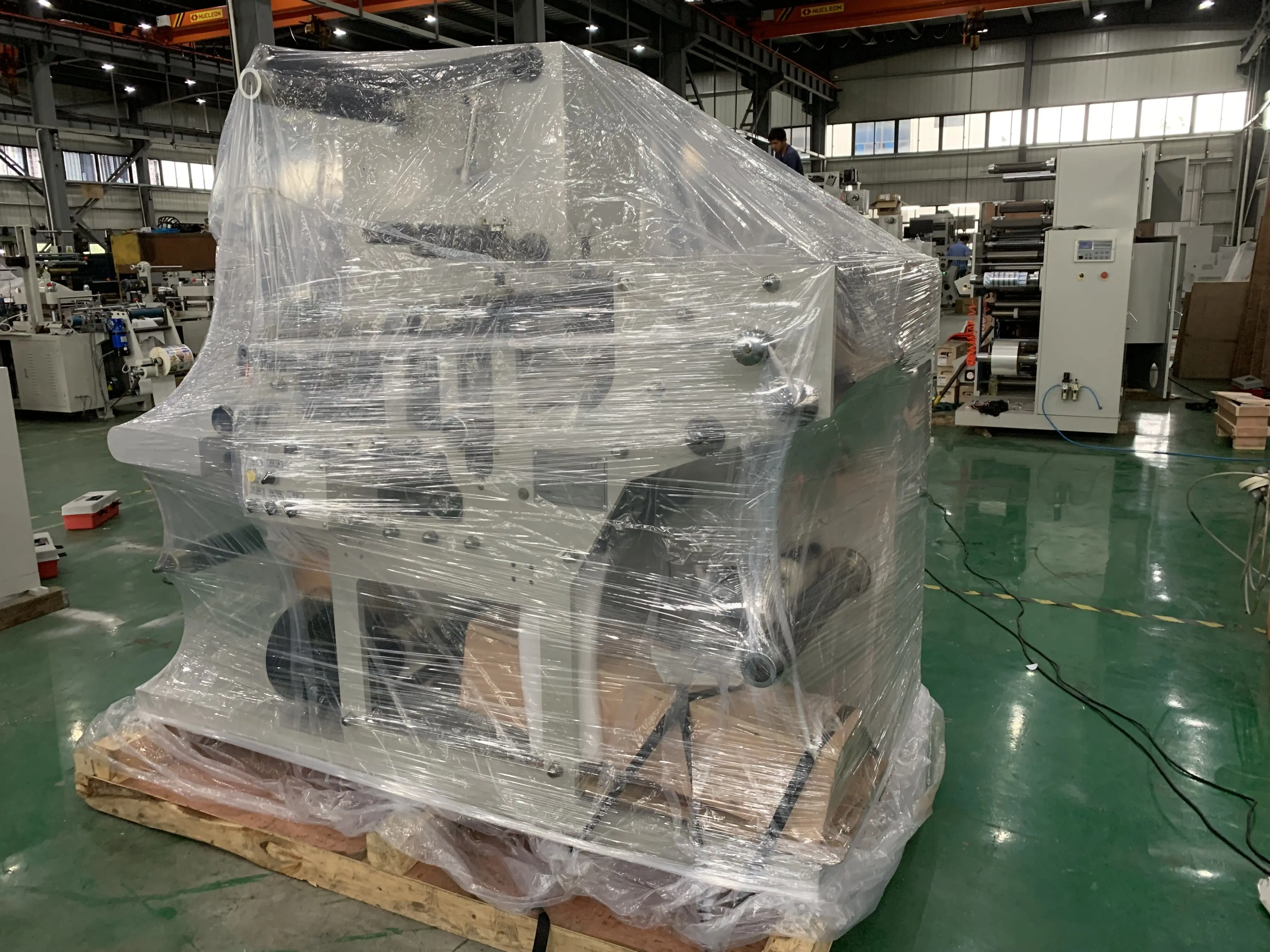

Packing & Delivery
