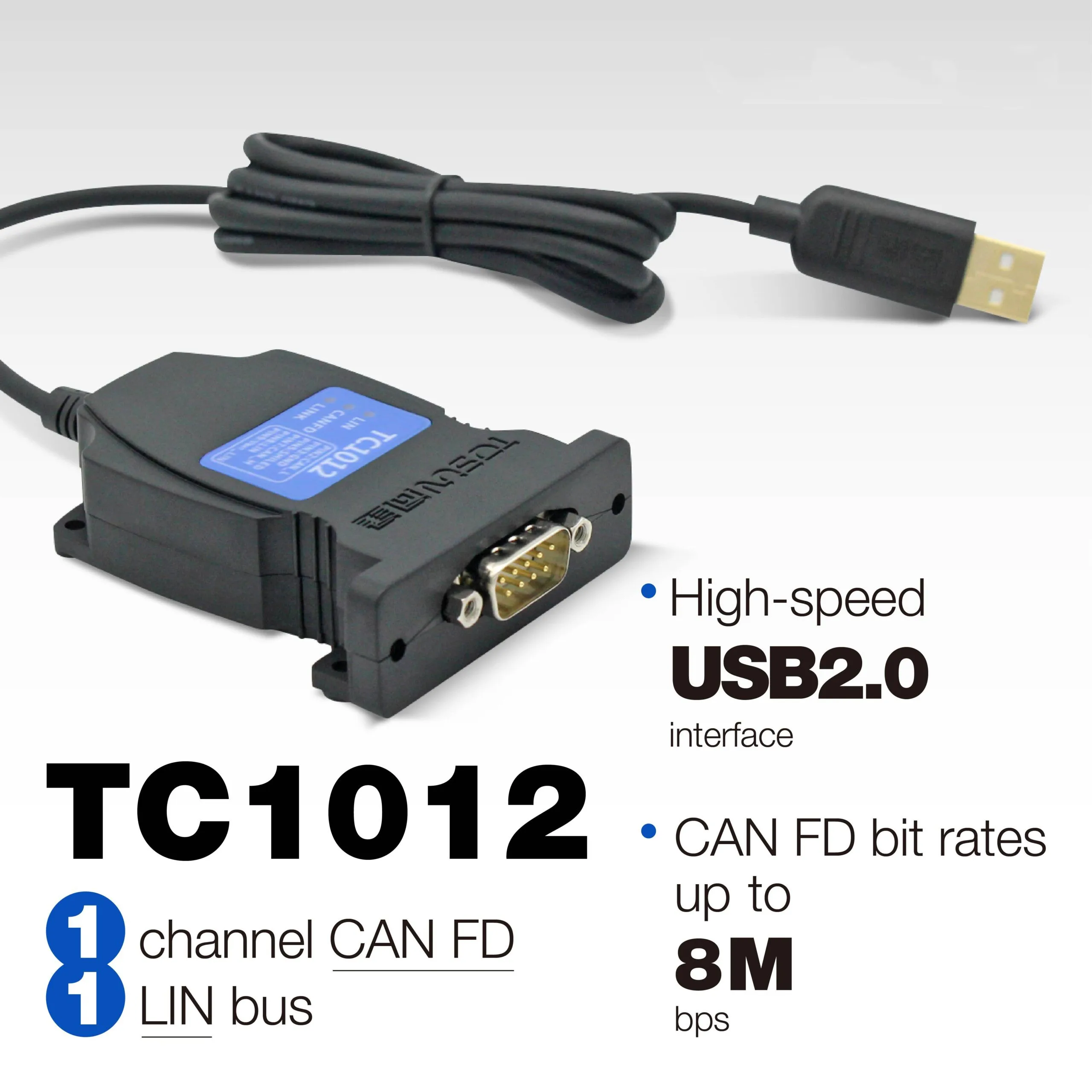

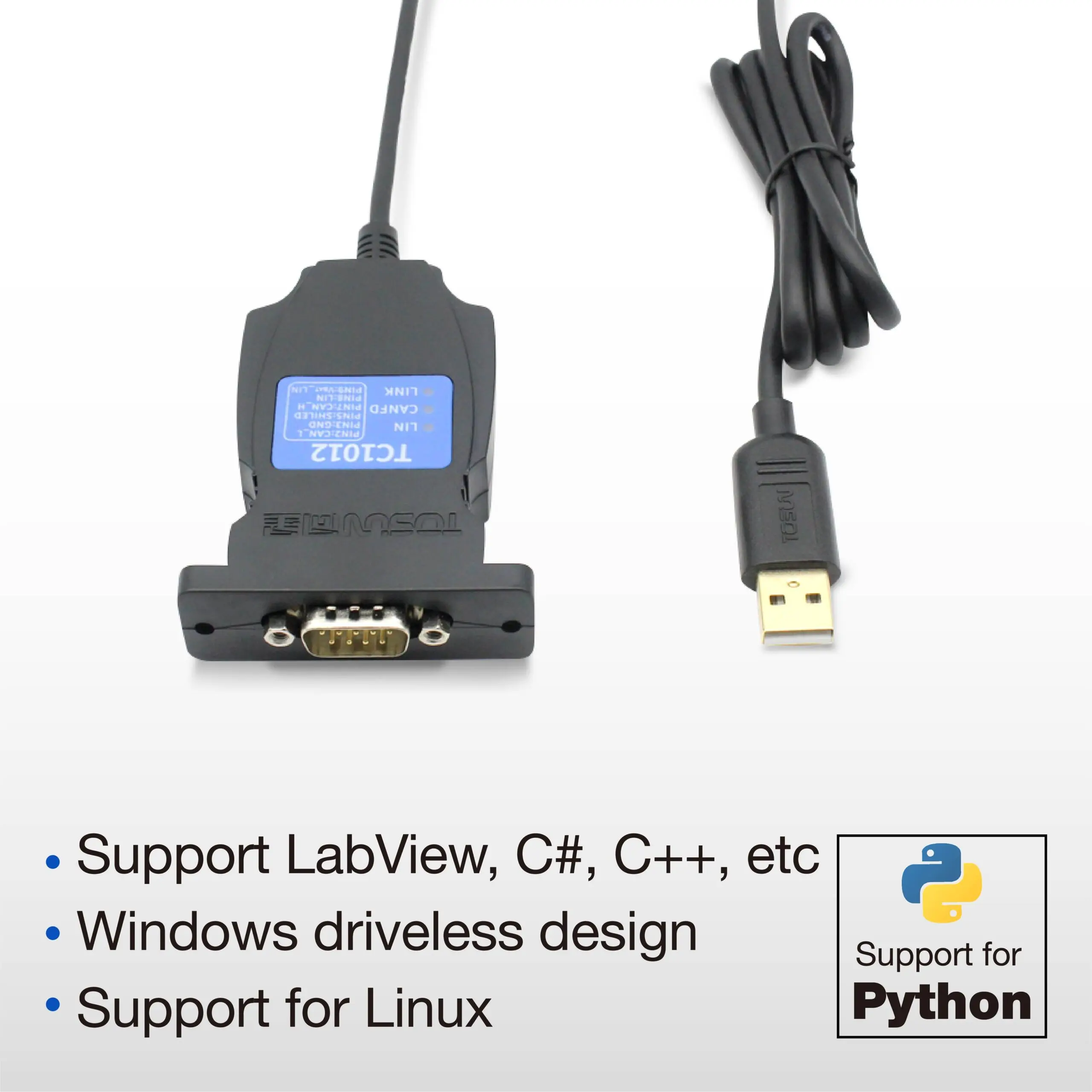

TC1012 High-speed CAN FD/LIN bus Interface for USB CANFD/LIN to USB Adaptor
TC1012 is a portable single channel high-speed CAN (FD) and LIN bus interface for high-speed USB2.0,CAN FD bit rates up to 8Mbit/s and LIN bit
rates 0-20Kbit/s. The driver-free design of Windows system makes the device have excellent system compatibility.
Support TICPSH information security test function.

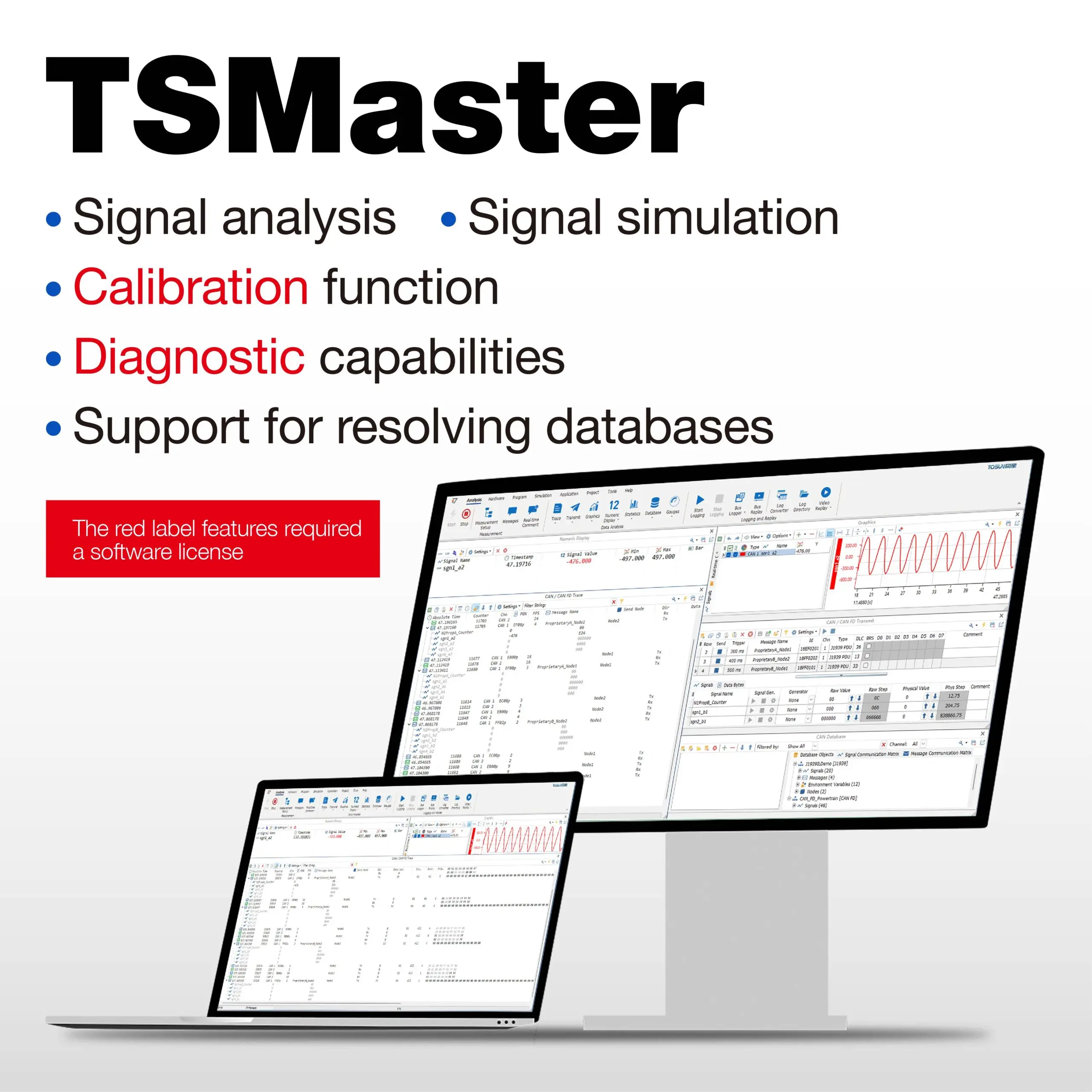

TSMaster software can be used to CAN/LIN bus measurement,logging,replay,RBS,UDS Diagnostics and flashing,CCP/XCP calibration and flashing,support DBC,A2L, LDF,ASC,BLF,ARXML files.
We supply the API for Windows, Linux, which enables the device to be easily integrated into other devices or software systems.
Suitable for R&D, ECU production line, test engineers, after-sales engineers.
TC1012 bus interface can replace Vector.CANoe.

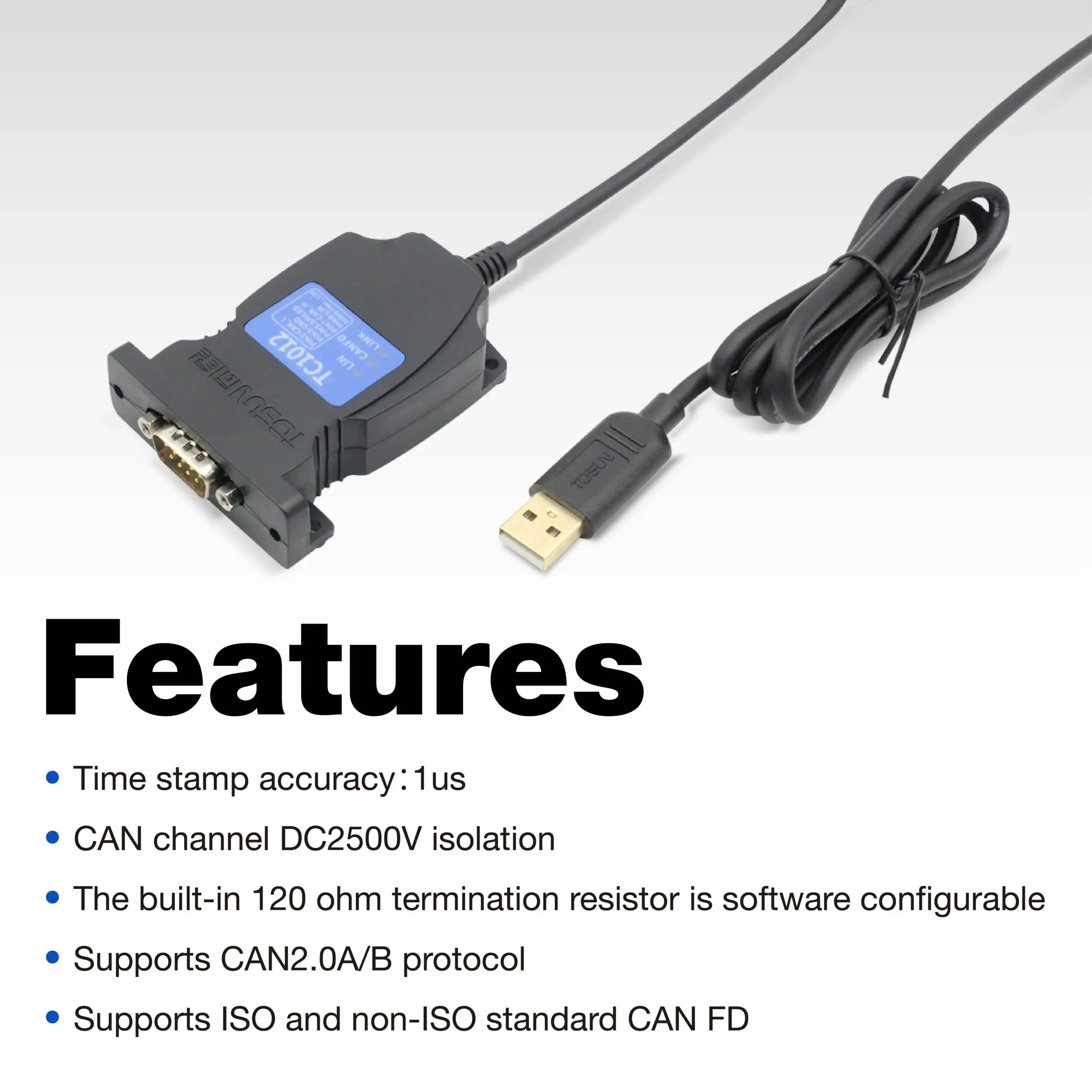

Features:
Time stamp resolution 1 μs, which meets advanced requirements.
High-speed USB 2.0 interface, Windows system drive-free design, with excellent system compatibility.
CAN channel DC2500V isolation.
Automotive grade design, support LDF, dbc file, a2l file, blf file, asc file, arxml file.
LIN bus master and slave nodes are software configurable.
Support BLF format data recording and offline/online playback.
It can support UDS diagnosis and CCP and XCP calibration.
Supports UDS-based Flash Bootloader.
Support information security testing.
Support Windows and Linux secondary development interfaces
Built-in 120 ohm termination resistor is software configurable.
All paid licenses of TSMaster can be loaded.
Services:
PC-based software customization
Device communication interface integration
BootLoader customization
CCP/XCP protocol customization
Customized diagnostic protocols
Function Customization
Production Line Integration
TC1012 network interface
