Ручной насос HSIN613 для калибровки (-95 ~ 600) кПа (-0 095 2 5/4/6)
918,90 $ - 946,50 $
DPI610E PC 13G U0 B0 M Друка ручная калибровка давления (пневматическая; DPI610E PC и
- Категория: Other Pressure Measuring Instruments >>>
- Поставщик: Shenzhen Mepco Technology Co. Ltd.
Сохранить в закладки 1600862046183:
Описание и отзывы
Характеристики
Product Description

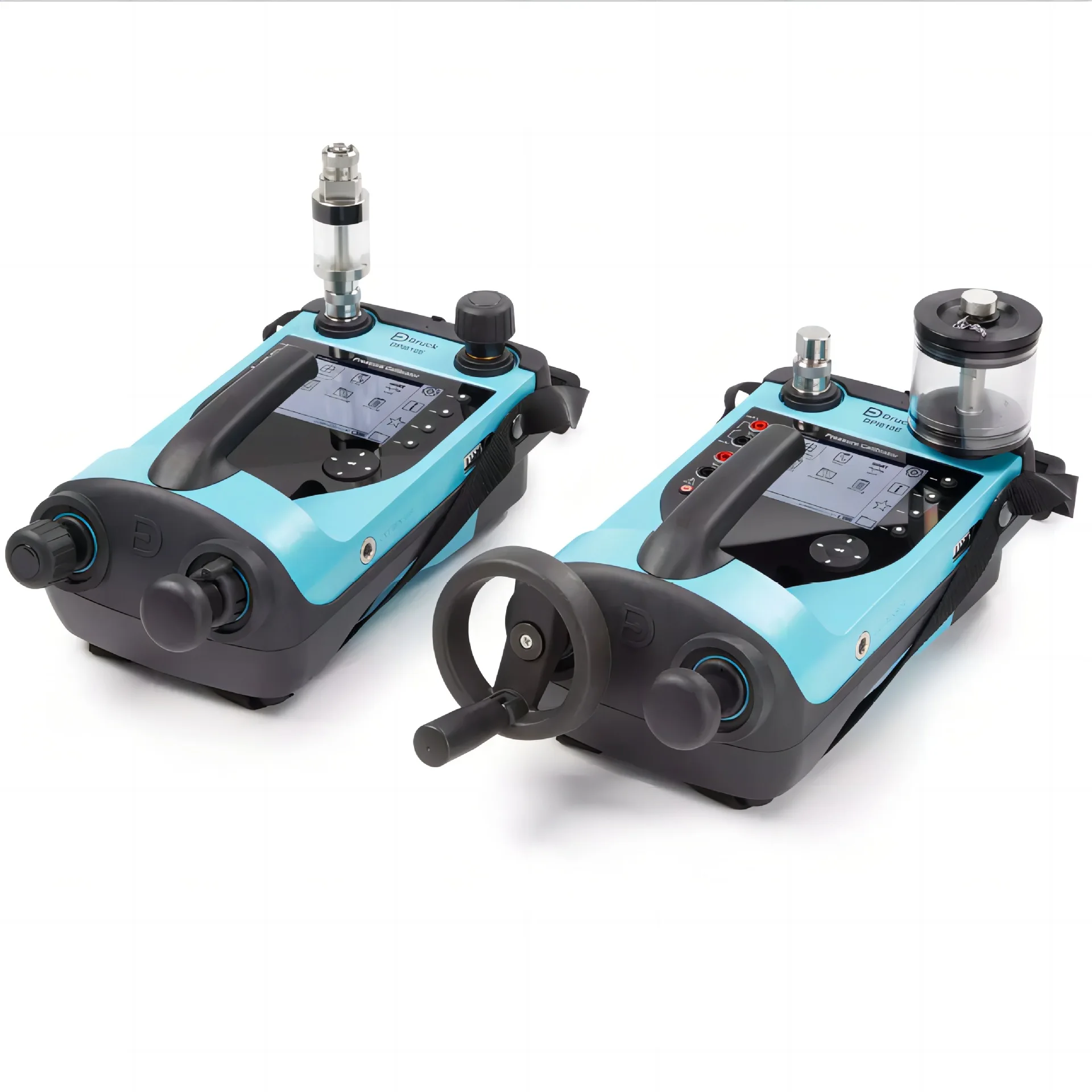

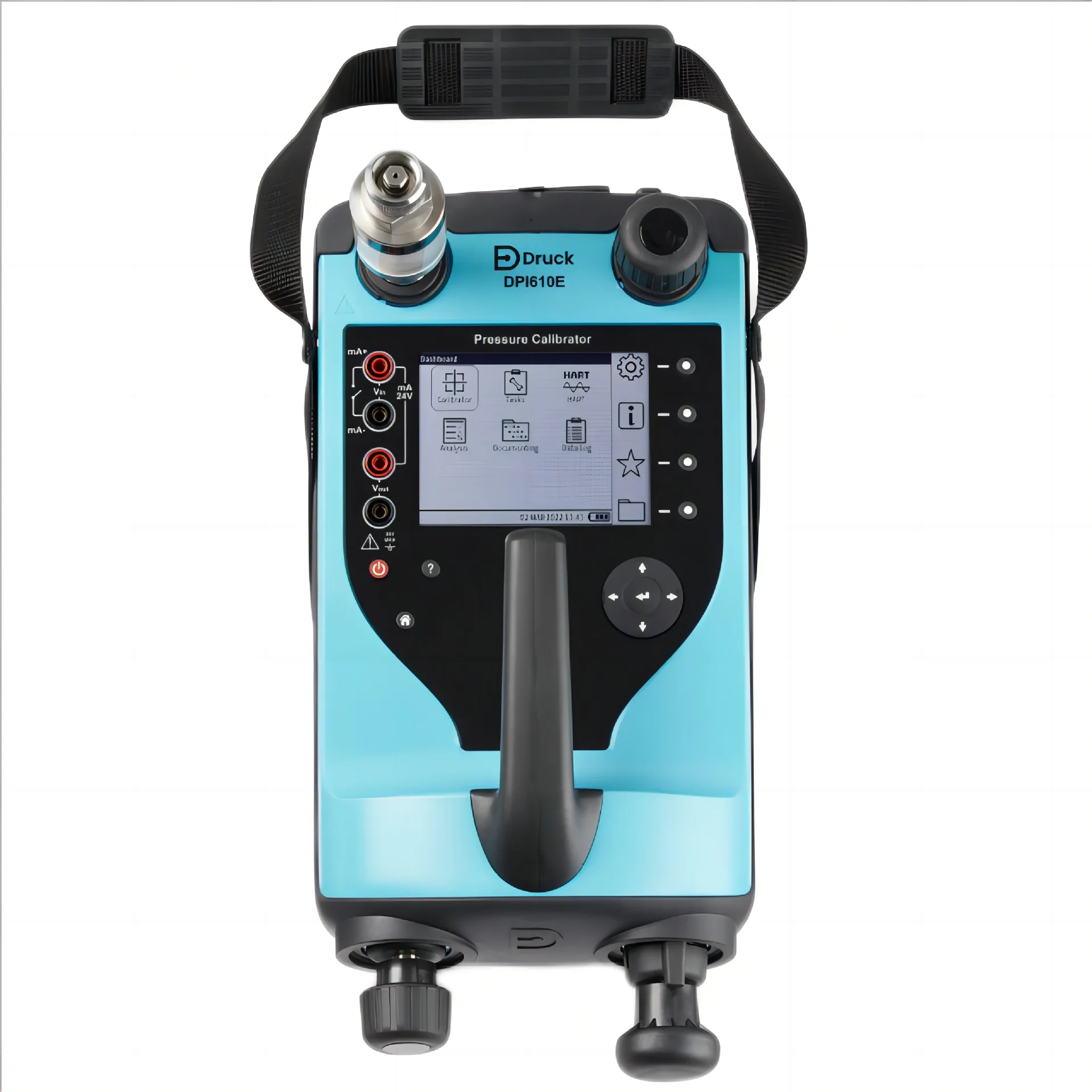

Druck DPI610E - Handheld Pressure Calibration (Pneumatic; DPI610E-PC and SPC)
The item on this page is a product selection tool for pneumatic versions of the DPI610E. These are the DPI610E-PC and DPI610E-SPC. For hydraulic models, please see the other product selection tool on this page.

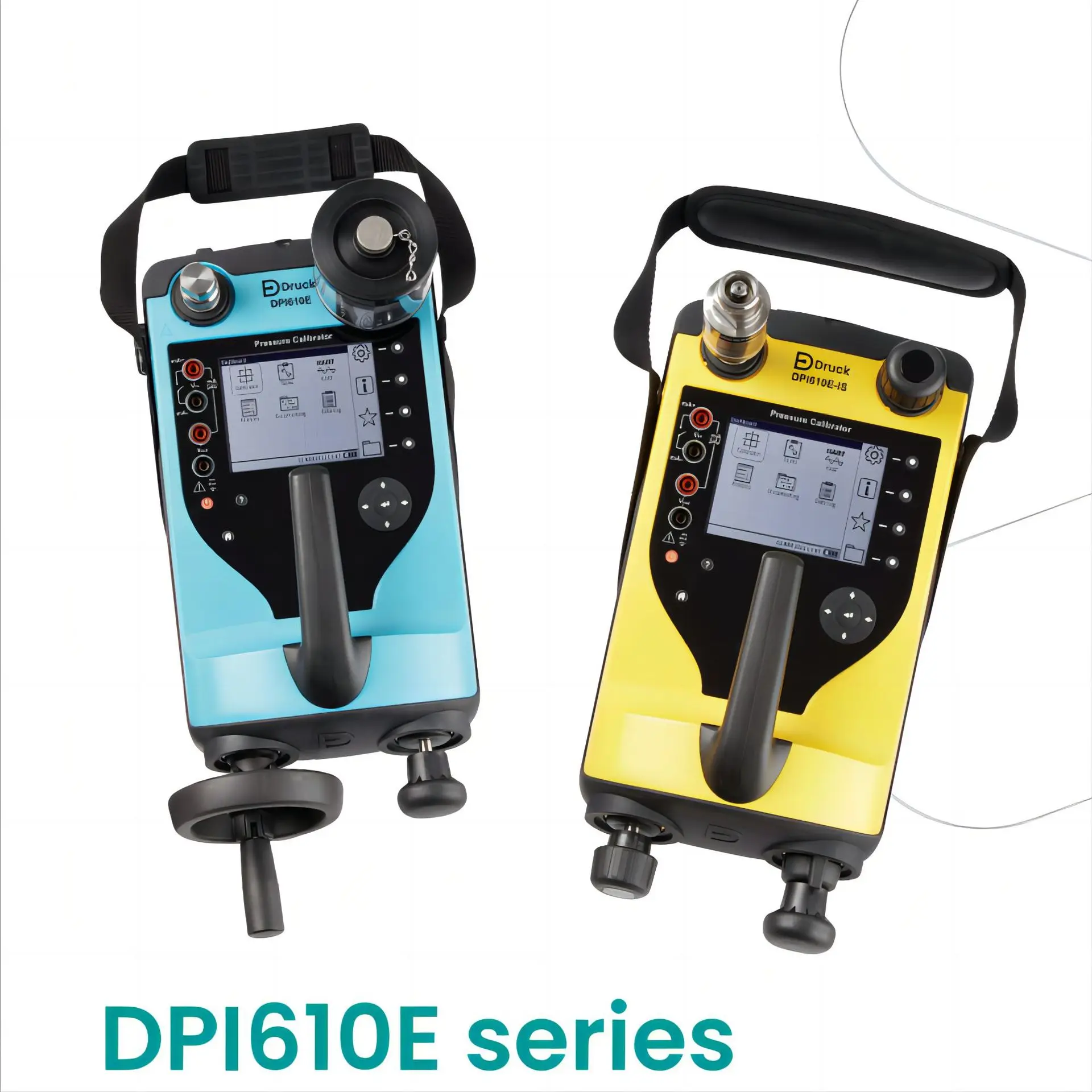

The DPI610E handheld pressure calibrator is the latest and the sixth generation of the DPI600 family.
The DPI610E combines effortless pressure measurement and generation, signal measurement and loop power with significantly improved pump capabilities and a powerful touch and button user interface.
With a robust design, the unit has been engineered for instrument technicians, using input from those working in the field. It is an ideal solution to your test and calibration application.
Pressure connection
The DPI610E provides a tool-less quick-fit connection where finger-tight connections achieve pressure-tight connections at up to
1000 bar.
1000 bar.
Pressure generation
The innovative design of the DPI610E pressure generation system provides significantly easier and more efficient pressure
generation and precise control using carefully selected components.
generation and precise control using carefully selected components.
With the improved pressure generation capabilities, the DPI610E provides higher pressures and higher volume handling with market leading pneumatic pressures from 95% vacuum to 35 bar/500 psi/3.5 MPa. A simple selector lets you switch from vacuum to pressure and with a few stokes of the pump, you can generate the required pressure. Fine adjustment can be made with the built-in volume adjuster and falling pressure calibration points are achieved with the precision-control vent valve.
The pneumatic version has a supplied dirt trap to prevent contamination of both the instrument itself and the system under test
from dirt and debris as well as moisture.
from dirt and debris as well as moisture.
Pneumatic pressure generation range is -0.95 to 35 bar/ 500 psi/3.5 Mpa (gauge).
An internal Pressure Relief Valve vents safely inside the case to protect the internal pressure sensor. The relief pressure is
factory set to be appropriate to the sensor/pressure range ordered.
factory set to be appropriate to the sensor/pressure range ordered.
Hydraulic Version

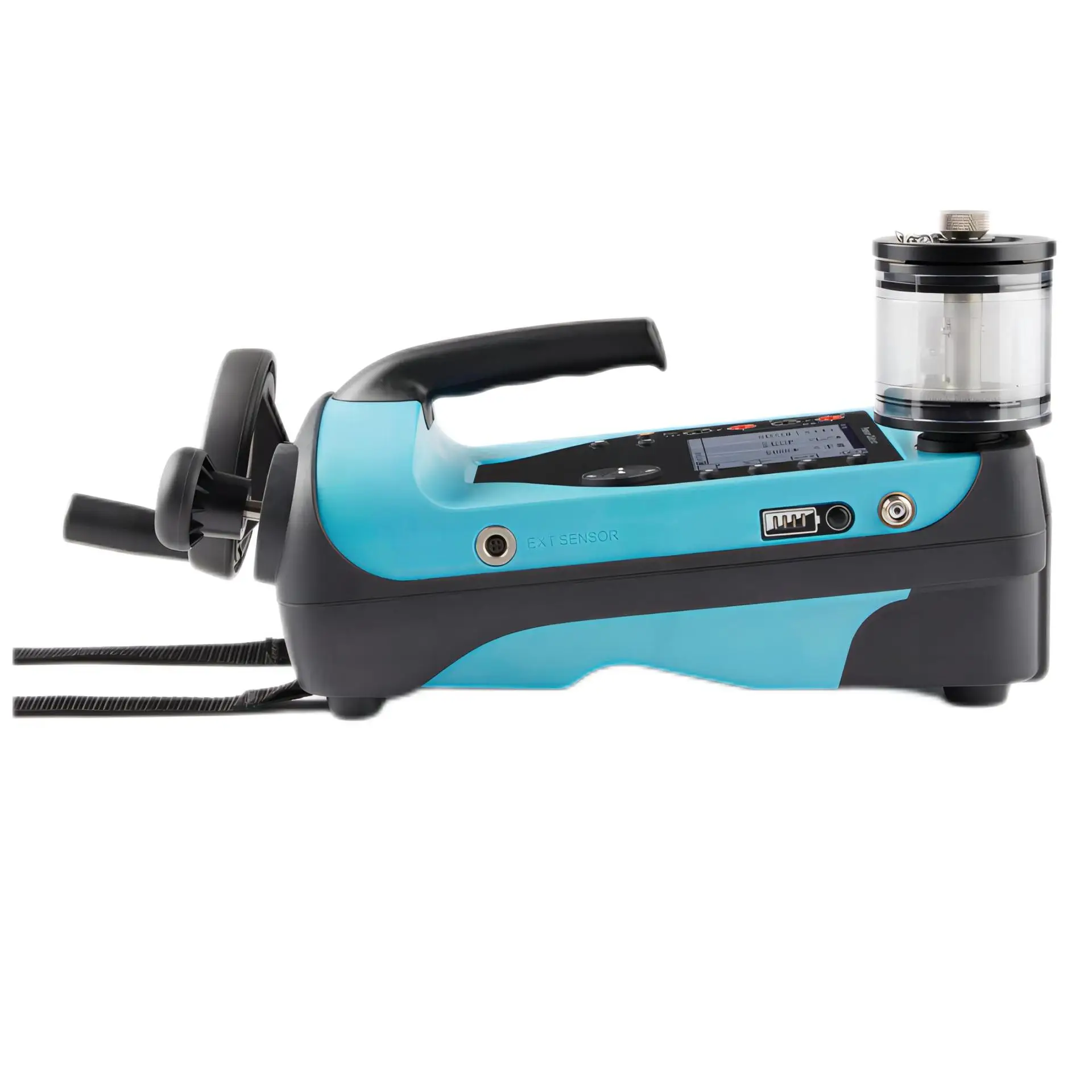

The hydraulic version has an external 100cc reservoir for easy visibility of hydraulic oil or water, a priming pump to expel air from the connected system and an intensifier to quickly and easily generate pressure up to 1000 bar/15000 psi/100 MPa.
* Hydraulic pressure generation range is up to 1000 bar/15000 psi/ 100 Mpa (absolute).
* An internal Pressure Relief Valve vents safely back to the reservoir to protect the internal pressure sensor. The relief
pressure is factory set to be appropriate to the sensor/pressure range ordered.
* An internal Pressure Relief Valve vents safely back to the reservoir to protect the internal pressure sensor. The relief
pressure is factory set to be appropriate to the sensor/pressure range ordered.
Specification
Range code | Pneumatic | Hydraulic |
350 mbar / 5 psi / 35 kPa | 03 | G |
1 bar / 15 psi / 100 kPa | 05 | G |
2 bar / 30 psi / 200 kPa | 07 | G |
3.5 bar / 50 psi / 350 kPa | 08 | G |
7 bar / 100 psi / 700 kPa | 10 | G |
10 bar / 150 psi / 1000 kPa | 11 | G |
20 bar / 300 psi / 2 MPa | 13 | G |
35 bar / 500 psi / 3.5 MPa | 14 | G |
70 bar / 1000 psi / 7 MPa | 16 | - |
100 bar / 1500 psi / 10 MPa | 165 | - |
135 bar / 2000 psi / 13.5 MPa | 17 | - |
200 bar / 3000 psi / 20 MPa | 18 | - |
350 bar / 5000 psi / 35 Mpa | 20 | - |
700 bar / 10000 psi / 70 MPa | 22 | - |
1000 bar / 15000 psi / 100 MPa | 23 | - |
