Sdapo 2020 абсолютно новый сплиттер PS1248G 12V 4A на 4 пары стандартный гигабитный PoE
- Категория: >>>
- Поставщик: Shenzhen Dapo Communication Co. Ltd.
Сохранить в закладки 1600862392868:
Описание и отзывы
Характеристики
Products Description
OverView

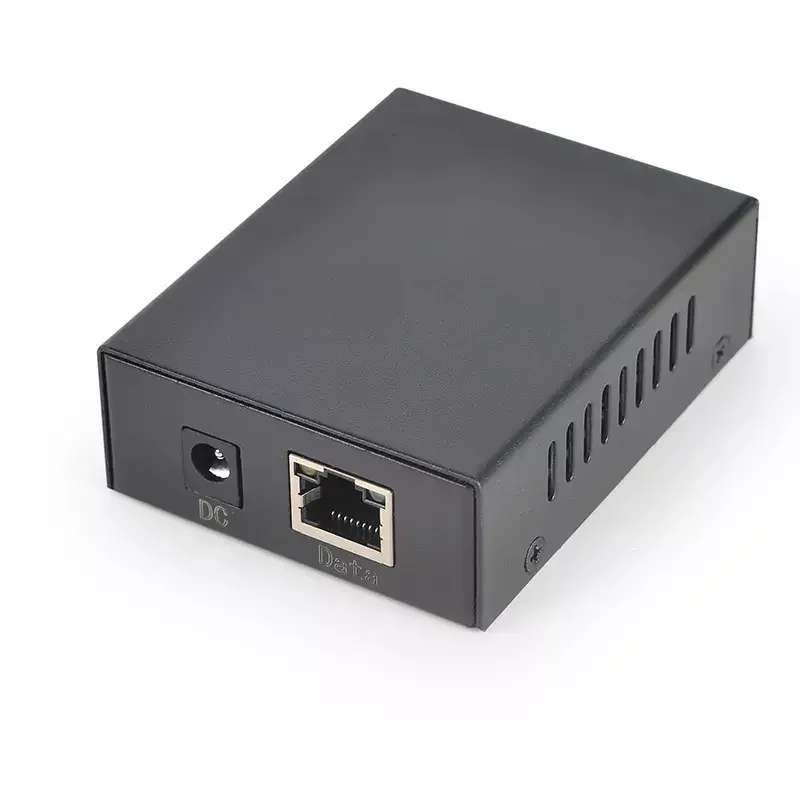

PS1248G 4Pairs High-Power active splitters enable data terminals that were not originally designed to accept power
from the Ethernet, to be powered by Power over Ethernet
midspans. The PDAS- PS1248-4P High Power splitter can
power devices such as WiMAX CPEs, small WiMAX
base-stations, 802.11n Access-Points, Thin- Clients,
PTZ (Pan/Tilt/Zoom) IP Cameras, Video-Phones and more.
High Power Splitter Solution
Many contemporary terminals are designed and deployed without the ability to accept power via their LAN input. Such devices can only accept power through their DC jack while their RJ45 input accepts only data. Moreover, such devices might only accept voltagelevels lower than the PoE standard minimum voltage (44v in IEEE802.3af / 50v in 802.3at). Using the PS1248-4P high power splitter, these terminals immediately become PoE-ready without any modification required on their side. The splitter is identified as a powered device (PD) in front of the powering Midspan and after being detected and powered, it physically splits the data and power streams, arriving over a single cable, into wo separate cords (LAN & DC) which go directly to the data terminal. Voltage regulation is also performed to the level required by the terminal .
PS1248G 4Pairs High-Power active splitters enable data terminals that were not originally designed to accept power
from the Ethernet, to be powered by Power over Ethernet
midspans. The PDAS- PS1248-4P High Power splitter can
power devices such as WiMAX CPEs, small WiMAX
base-stations, 802.11n Access-Points, Thin- Clients,
PTZ (Pan/Tilt/Zoom) IP Cameras, Video-Phones and more.
High Power Splitter Solution
Many contemporary terminals are designed and deployed without the ability to accept power via their LAN input. Such devices can only accept power through their DC jack while their RJ45 input accepts only data. Moreover, such devices might only accept voltagelevels lower than the PoE standard minimum voltage (44v in IEEE802.3af / 50v in 802.3at). Using the PS1248-4P high power splitter, these terminals immediately become PoE-ready without any modification required on their side. The splitter is identified as a powered device (PD) in front of the powering Midspan and after being detected and powered, it physically splits the data and power streams, arriving over a single cable, into wo separate cords (LAN & DC) which go directly to the data terminal. Voltage regulation is also performed to the level required by the terminal .

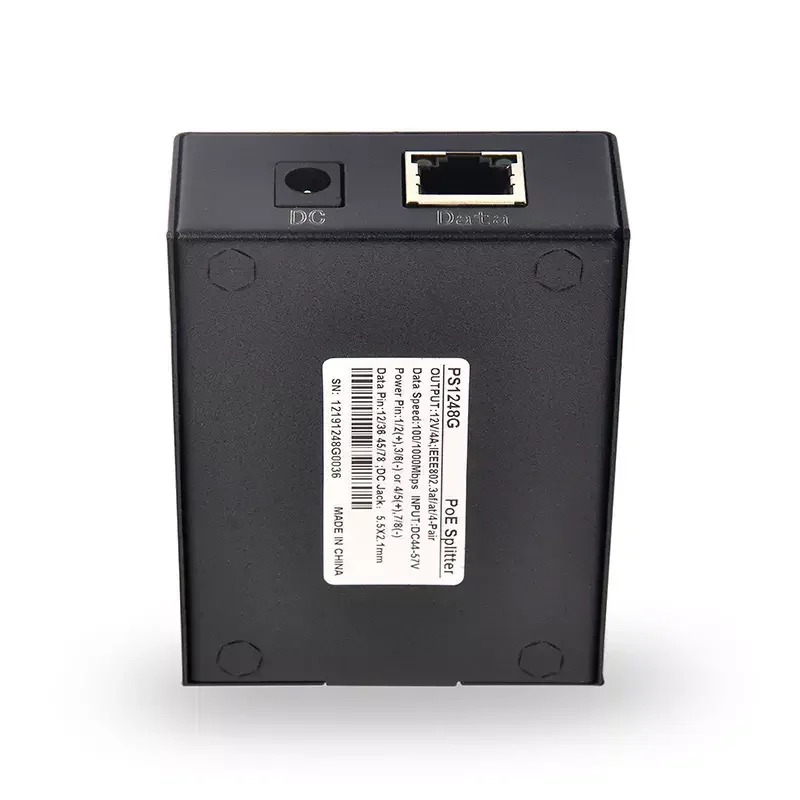

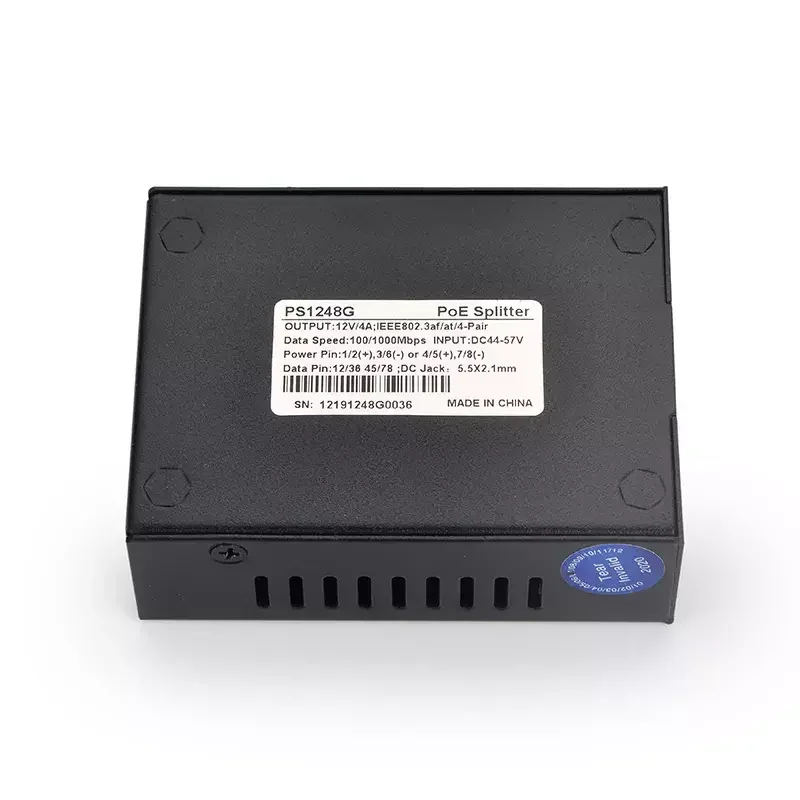

1.TechnicalSpecifications
Connectors: 2 x RJ-45, shielded, EIA 568A and 568B DC Jacks On unit: 5.5X2.1mm
Data Rate: 10/100/1000
Electrical Pin Assignment & Polarity: 3/6 (+),1/2 (-) and 4/5 (+),7/8 (-)
Input voltage: 44 - 57 Vdc
Input power: 60W max
Output power: 51W max
Output Current: 4.2A@12V
Dimensions & Weight: mm (H) x mm (W) x mm (D)
200 gram
Indicators :Output Power Indicators: Green LED Environmental Operating Temp: -20 to 40°C
Storage Temp: -30 to 70°C
Operating Humidity: 10% to 90%, non-condensing
Storage Humidity: 5% to 95%, non-condensing
Electromagnetic Emissions FCC Part 15 Class A
& Immunity EN60950
Warranty :1-year
Connectors: 2 x RJ-45, shielded, EIA 568A and 568B DC Jacks On unit: 5.5X2.1mm
Data Rate: 10/100/1000
Electrical Pin Assignment & Polarity: 3/6 (+),1/2 (-) and 4/5 (+),7/8 (-)
Input voltage: 44 - 57 Vdc
Input power: 60W max
Output power: 51W max
Output Current: 4.2A@12V
Dimensions & Weight: mm (H) x mm (W) x mm (D)
200 gram
Indicators :Output Power Indicators: Green LED Environmental Operating Temp: -20 to 40°C
Storage Temp: -30 to 70°C
Operating Humidity: 10% to 90%, non-condensing
Storage Humidity: 5% to 95%, non-condensing
Electromagnetic Emissions FCC Part 15 Class A
& Immunity EN60950
Warranty :1-year
This PS1248G only work with our PSE60G can reach 12V4A .others all work 12V2A
The PSE60G link is here
Hot Products
Company Profile
Our Certificate
Our Exhibition
Our Advantages
Payment & Shipping
FAQ
Похожие товары
Sunlace, нетканое полотно, волнистое кухонное использование, одноразовый нетканый материал, оптовая продажа, кухонная ткань из спанлейса, нетканое полотно
5,80 $
1503618860 дисковый клапан в сборе 1503666600 Двигатель HONDA GX390 QXE4 1503700000 охлаждающая труба 1503778260 регулятор 1503778360 комплект
Высококачественный роскошный деревянный брезентовый уличный садовый пляжный солнцезащитный зонт в стиле бохо белый винтажный пляжный зонт с бахромой и кисточками
20,00 $ - 60,00 $

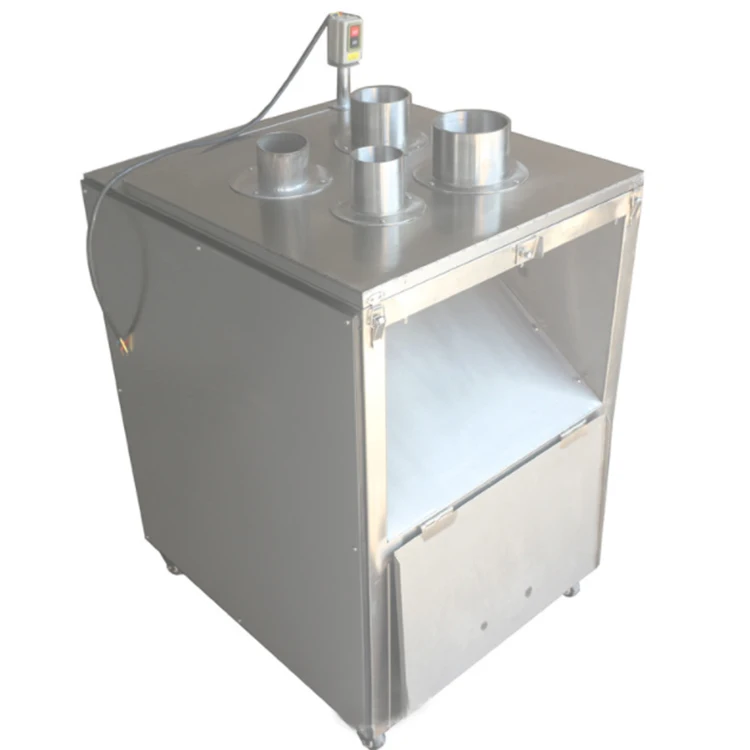

Заводская линия по производству сушеных банановых чипсов, машина для резки банановых хлопьев, оборудование для обработки бананов
