Лидер продаж, светодиодный контроллер SPI TTL DMX WS2811 TM512 USC512 RGB RGBW
2 913,25 ₽ - 3 344,84 ₽

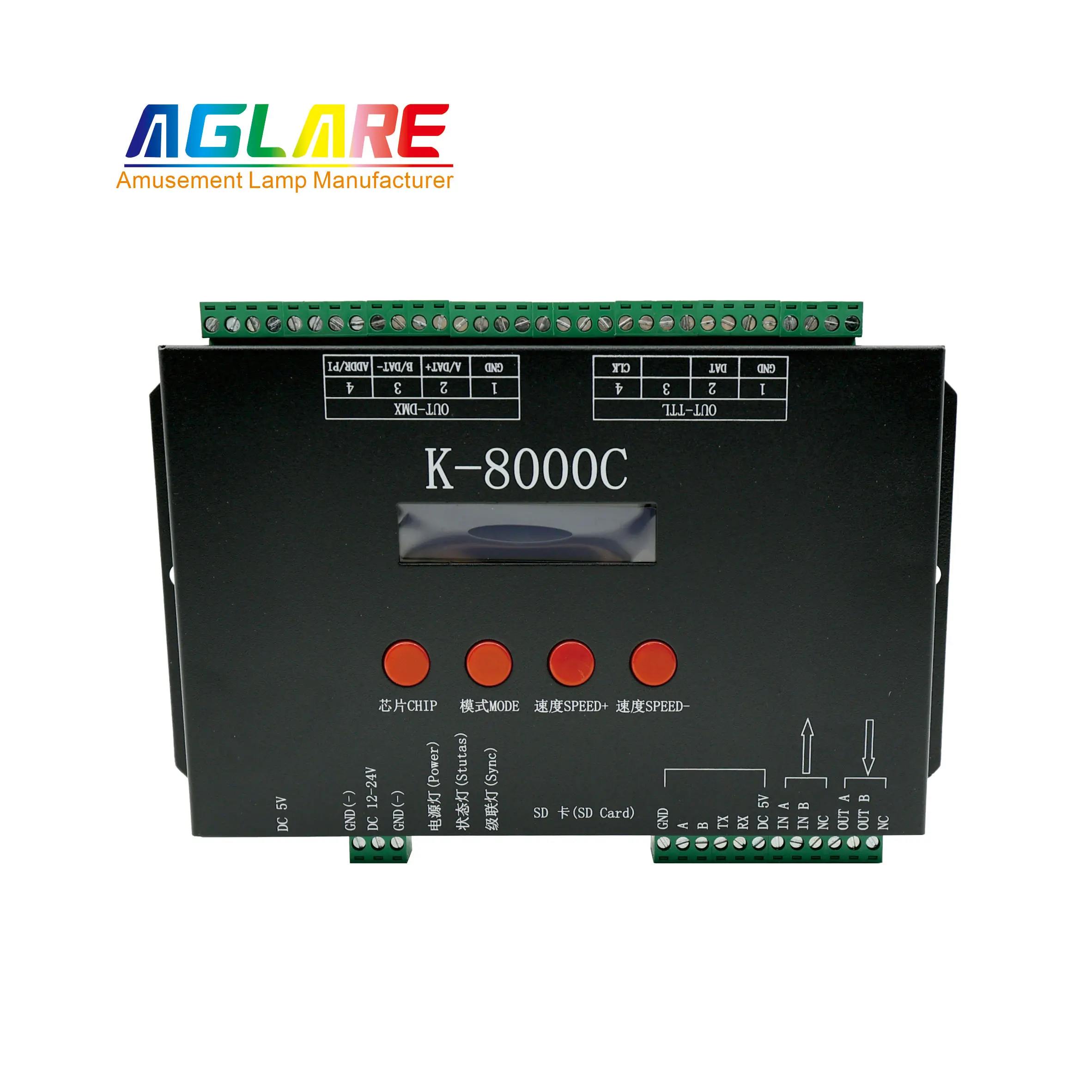

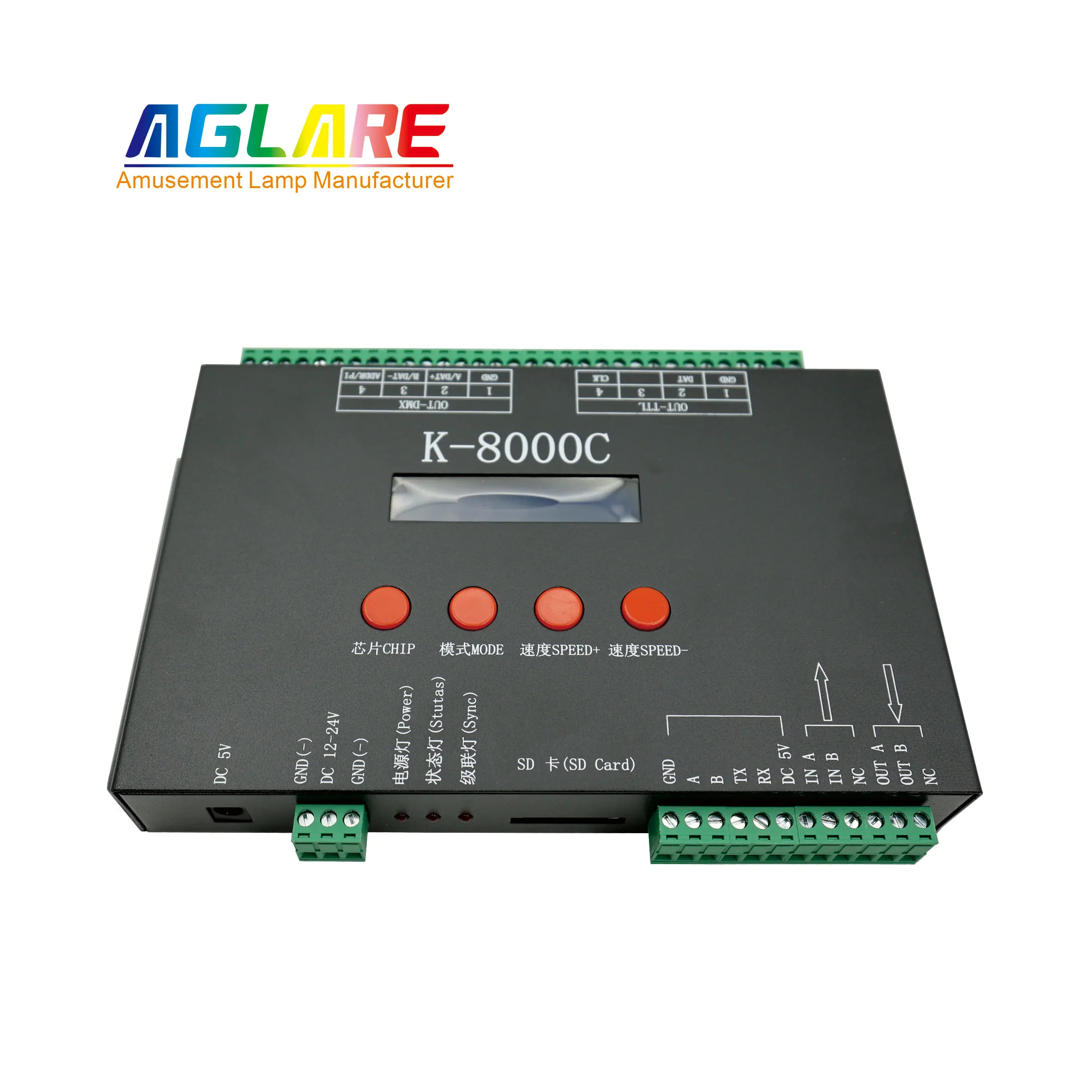

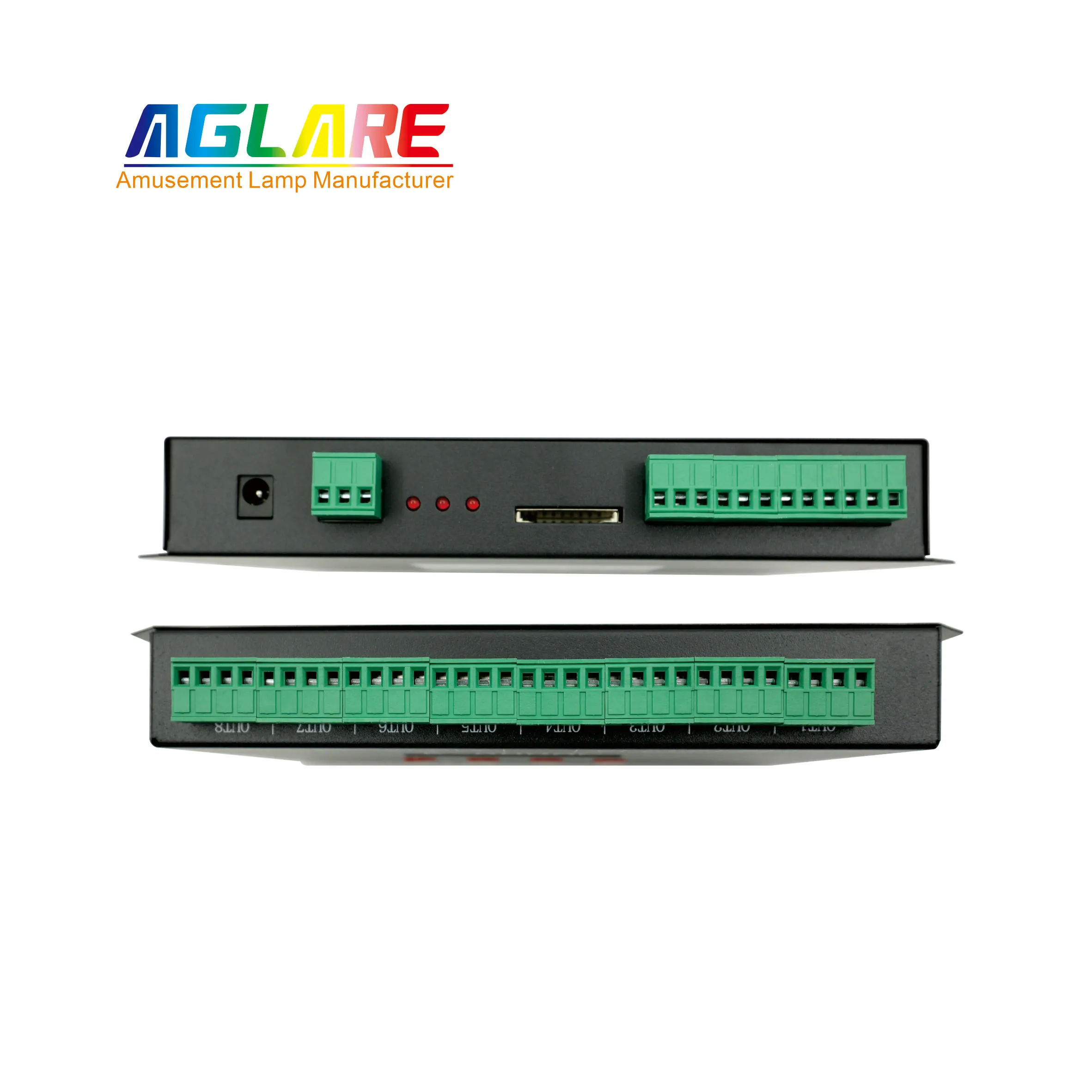

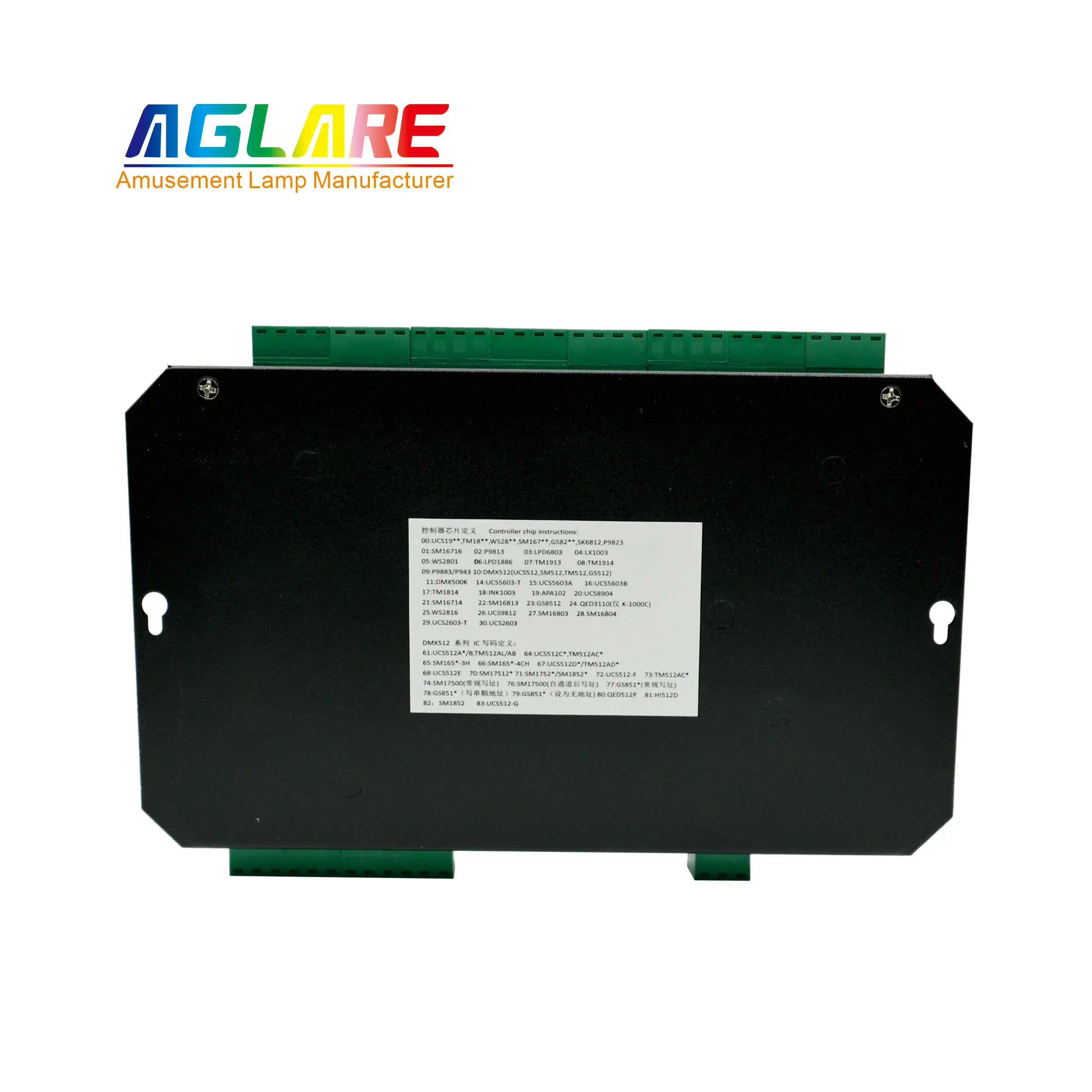

K 8000C SD карта 8 портов Макс. 8192 пикселей
- Категория: >>>
- Поставщик: Shenzhen Aglare Lighting Co. Ltd.
Сохранить в закладки 1600862402438:
Описание и отзывы
Характеристики
Product Description
Specification
item | value |
Warranty(Year) | 1-Year |
Product Weight（kg） | 0.8 |
Place of Origin | China |
Brand Name | aglare |
Type | MANUAL SWITCH |
Product name | LED Dimmer Controller |
Application | DMX Lighting Solution |
Voltage | DC 5V or DC 12-24V input |
Usage | RGB RGBW RGBWW LED Strips |
Output signal | SPI (TTL) Digital Signal |
Working temperature | 20C - +75C |
Format | FAT or FAT32 |
Storage file | *.led |
Capacity | 128MB-32GB |
Type | SD card |
Features of K-8000C system
1. Support 32-65536 level grayscale, correcting with software Gamma.
2. Support various point, line and area light sources, various rules and special-shaped processing.
3. Support 8 output ports, each can carry a maximum of 512/1024 lamps (DMX lamps with a maximum of
512 pixels take three channels as an example).
4. The play content can be stored in SD card, which can store up to 32 effect files. The SD card capacity supports 128MB-32GB.
5. The controller can be used alone or in cascade. The cascade adopts the photoelectric isolation method, featuring anti-interference and better stability. The cascade distance between two controllers can reach 150m by using pure copper power cord of 0.5 mm2.
6. The controller with a loaded chip can be locked in the software with the loaded IC, or can be not locked and adjust the controller's "CHIP" button to select the loaded IC, which is more flexible and convenient.
7. The IC controller for DMX lamps has its own address writing function; in addition, with our 2016 LedEdit-K V3.26 software or above version, you can set the one-key address writing function.
8. Support 4-channel (RGBW) pixels or single-channel pixels for loading lamps.
9. The built-in effect of the controller supports three channels (RGB) and four channels (RGBW).
10. The controller supports MODBUS third-party control.
11. Support enhanced TTL and 485 differential (DMX) signal output.
12. The controller has 22 test effects and DMX512 channel test function.
Note:
2. Support various point, line and area light sources, various rules and special-shaped processing.
3. Support 8 output ports, each can carry a maximum of 512/1024 lamps (DMX lamps with a maximum of
512 pixels take three channels as an example).
4. The play content can be stored in SD card, which can store up to 32 effect files. The SD card capacity supports 128MB-32GB.
5. The controller can be used alone or in cascade. The cascade adopts the photoelectric isolation method, featuring anti-interference and better stability. The cascade distance between two controllers can reach 150m by using pure copper power cord of 0.5 mm2.
6. The controller with a loaded chip can be locked in the software with the loaded IC, or can be not locked and adjust the controller's "CHIP" button to select the loaded IC, which is more flexible and convenient.
7. The IC controller for DMX lamps has its own address writing function; in addition, with our 2016 LedEdit-K V3.26 software or above version, you can set the one-key address writing function.
8. Support 4-channel (RGBW) pixels or single-channel pixels for loading lamps.
9. The built-in effect of the controller supports three channels (RGB) and four channels (RGBW).
10. The controller supports MODBUS third-party control.
11. Support enhanced TTL and 485 differential (DMX) signal output.
12. The controller has 22 test effects and DMX512 channel test function.
Note:
1. The speed of 512 pixels of lamps on the controller can reach 30 frames/second, the speed of 768 pixels can reach 25 frames/second, and the speed of 1024 pixels can reach 22 frames/second
(The above parameters take the IC data of 1903 protocol as an example, and the data may be different for different ICs)
2. A maximum of 512 pixels of international standard DMX512 (1990 protocol) can be loaded.When the load is the international standard 170 pixels, the speed can reach 30 frames/second, the speed of 340 pixels is about 20 frames/second, and the speed of 512 pixels is about 12 frames/second.
3. If timing (holidays) play, Beidou WiFi synchronization and console channel distributor functions are required, please contact the sales personnel or the technical support personnel for details
(The above parameters take the IC data of 1903 protocol as an example, and the data may be different for different ICs)
2. A maximum of 512 pixels of international standard DMX512 (1990 protocol) can be loaded.When the load is the international standard 170 pixels, the speed can reach 30 frames/second, the speed of 340 pixels is about 20 frames/second, and the speed of 512 pixels is about 12 frames/second.
3. If timing (holidays) play, Beidou WiFi synchronization and console channel distributor functions are required, please contact the sales personnel or the technical support personnel for details
Company Profile
Established in 2005, Shenzhen Aglare Lighting Co., Ltd. is an integrated enterprise with R & D design, independent production and sales. Our main products are S M D LED and outdoor decorative lighting products. Our company has two factories in Shenzhen, China and Zhongshan, China. The annual production capacity of S M D L E D is 100000 K, and the annual production capacity of lamps and lanterns is 6000 K, which can fully guarantee the timely delivery of customers.
Our R&D team is divided into electronic department and structural department, which are engaged in the design and development of product electrical performance and the design innovation of product appearance structure respectively. Because it is our own R&D team, we can complete the customer's demand for product improvement in a more timely manner.
Our company has one product invention patent, 20 utility model patents and 15 appearance patents, and more than 30 new models are opened every year. In terms of quality control, we produce every product in strict accordance with the management system of I S O 9 0 0 1. Because S M D L E D is produced independently, the consistency of brightness and color of S M D L E D light source, the main material of lamps, is guaranteed.
Our company has an after-sales service team to solve customers' problems in time to ensure the double guarantee of products and services.
FAQ
Q1. How is your company?
We have more than 18 years experience in outdoor lighting and entertainment lighting.
Company size : 2000 square meters 3 electronic engineers, 5 QC workers.15 salers for now ,we located in Longhua Shenzhen City.
Q2. What are the advantages of Aglare Lighting and its items?
1. Aglare Lighting is one of professional amusement led light and RGB led flood light manufacturers.
2. We already had world wide customer and most of them located in Euro , North America , Mexico
3. We had18 years experience with the pixel LED and a sales team.
Q3. How do I know your company reliable ?
1. Our company verified by Alibaba group.
2. We had famous customer who distributing our products world wide (can be introduce).
3. contact a with our salesman for provide a cooperated customer's contact information who close to your city or country,use Skype ID video chat with our salesman to show you our factory, office etc...
Q4. Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Can you design a animation before we do business ?
We have a animation and program designer in company , even if we dont had business before we will be happy to do a animation design or program file for you and it will be free.It's a part of business to help someone built something.
We have more than 18 years experience in outdoor lighting and entertainment lighting.
Company size : 2000 square meters 3 electronic engineers, 5 QC workers.15 salers for now ,we located in Longhua Shenzhen City.
Q2. What are the advantages of Aglare Lighting and its items?
1. Aglare Lighting is one of professional amusement led light and RGB led flood light manufacturers.
2. We already had world wide customer and most of them located in Euro , North America , Mexico
3. We had18 years experience with the pixel LED and a sales team.
Q3. How do I know your company reliable ?
1. Our company verified by Alibaba group.
2. We had famous customer who distributing our products world wide (can be introduce).
3. contact a with our salesman for provide a cooperated customer's contact information who close to your city or country,use Skype ID video chat with our salesman to show you our factory, office etc...
Q4. Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Can you design a animation before we do business ?
We have a animation and program designer in company , even if we dont had business before we will be happy to do a animation design or program file for you and it will be free.It's a part of business to help someone built something.
Похожие товары
Мини-усилитель сигнала для 3-контактного WS2812B WS2811 SK6812 адресуемый Dream Color Pixel светодиодные полосы
Усилитель сигнала светодиодного диммера один канал PWM 5V 12V 24V 30A ручной переключатель светодиодный Усилитель мощности регулятор яркости
214,72 ₽ - 269,75 ₽
Высоковольтный 220 вольт светодиодный диммер переключатель 3 канала Rgb Triac диммер
Rgb диммер переключатель для светодиодных ламп rgb контроллер rf 8key 2,4G беспроводной сенсорный экран 12v 24v 5050 3528 tuya rgb контроллер

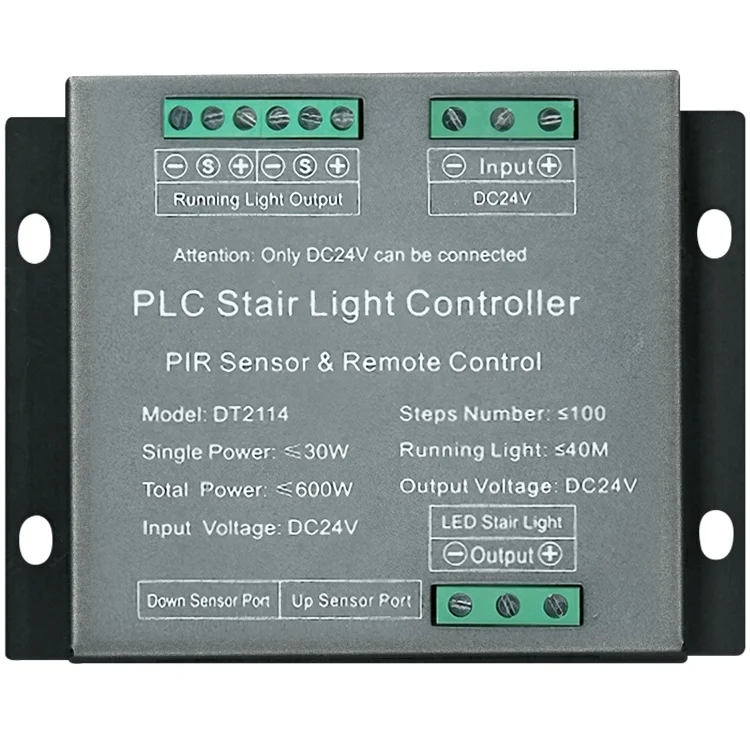

Умная система управления освещением автоматический контроллер лестничного освещения с датчиком PIR RGB светодиодный контроллер лестницы
4 963,30 ₽ - 5 934,38 ₽
Смарт-датчик движения
11 868,76 ₽ - 14 134,62 ₽

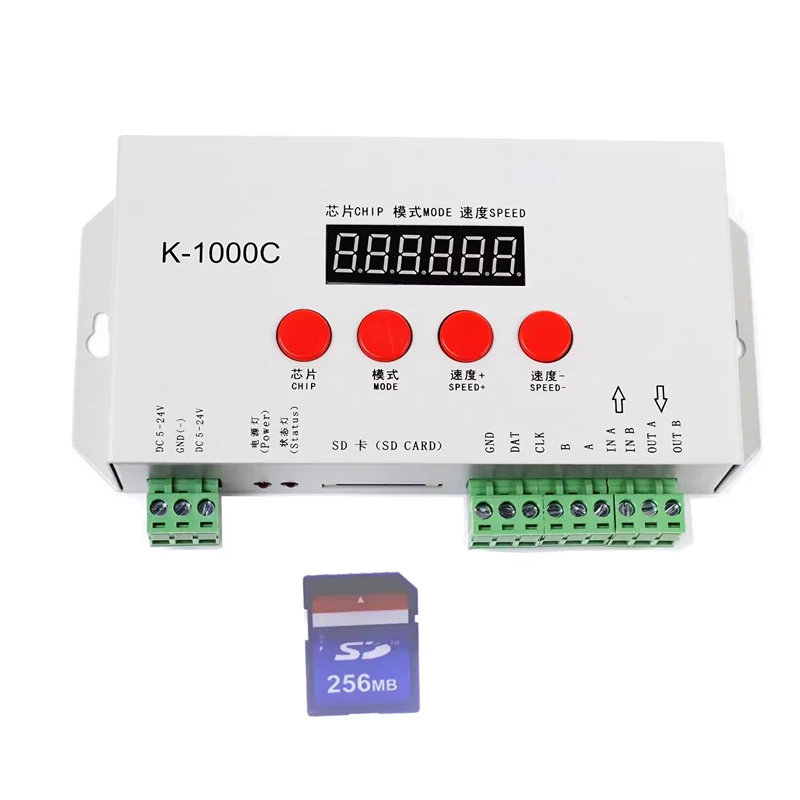

K1000C SD карта RGB Программируемый пиксельный светодиодный контроллер полноцветный DMX контроллер для RGB RGBW светодиодный свет
