Products Description

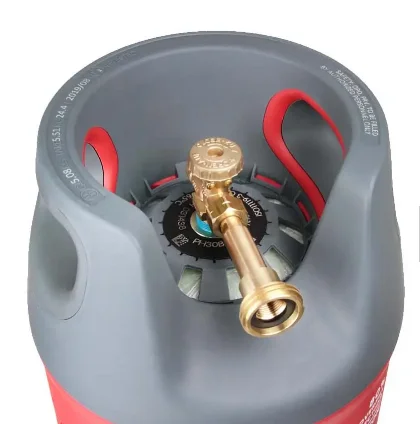

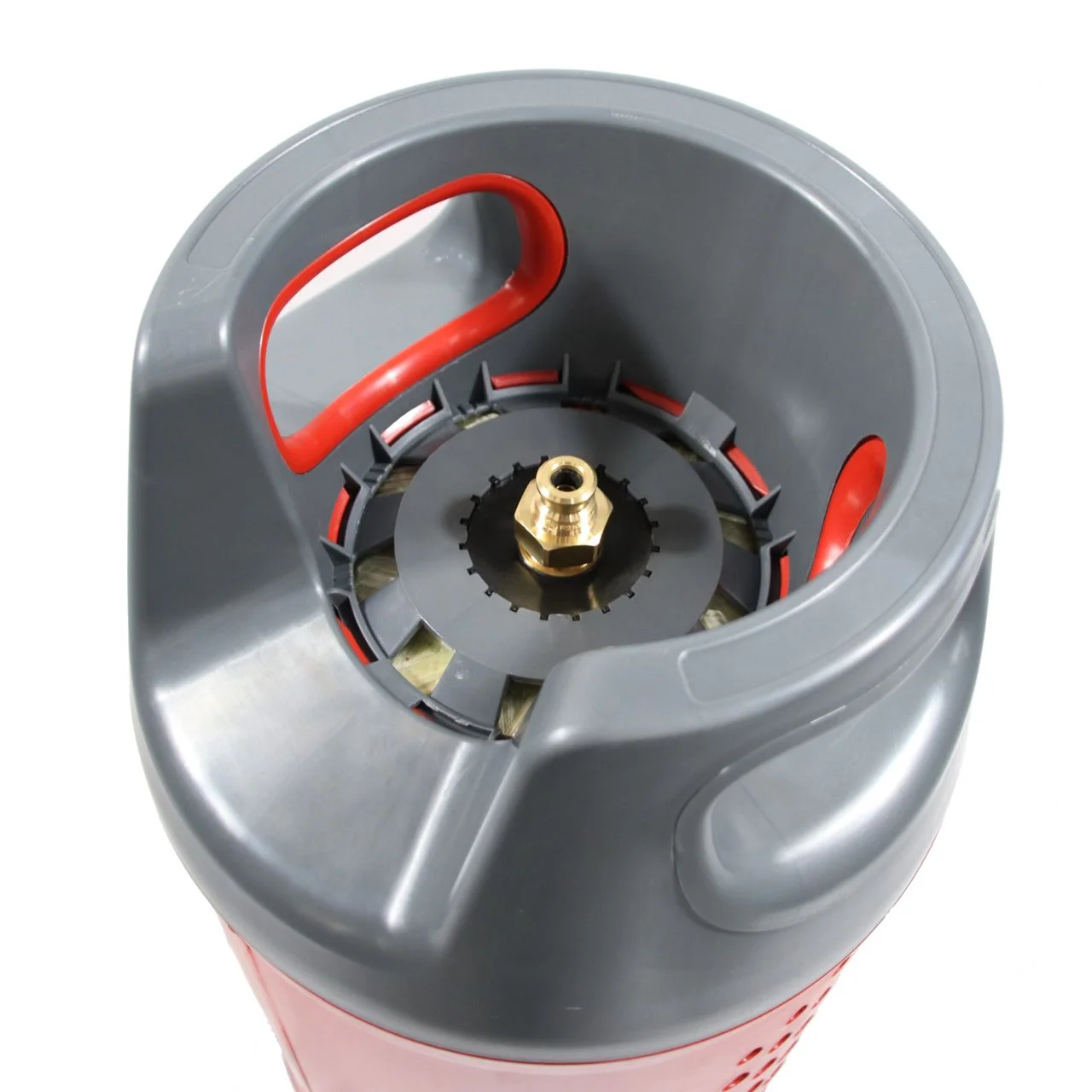

Composite LPG cylinder
333
Standard | ISO11119-3 | ||||||
Working pressure | 20bar | ||||||
Testing pressure | 30bar | ||||||
Medium | LPG | ||||||
Materials | Composite Material, HDPE+glass fiber | ||||||
Diameter（mm） | 321mm | ||||||
Volume（L） | 30.5L | ||||||
Length（mm） | 677mm | ||||||
Weight（kg） | 12.5KG | ||||||
-Appearance and retentivity
The Composite LPG cylinders are produced by high anti-corrosion material, which will not loose due to rust. The appearance color will always maintain fresh
-Visible liquid level
Due to the cylinder body is semitransparent, the users can easily supervise the LPG content inside from the visible liquid level
-Light and portable
The weight of composite LPG cylinder is only 40% of the traditional metal cylinder, and the ergonomically designed soft handle makes it portable for both adults and children
-High level safety
The cylinder liner is made of HDPE, which has high corrosion resistance to LPG, atmosphere and aqueous solution containing sulfur. It will not explose due to the corrosion
-Long life and easy inspection
The first and second periodical inspection of the composite LPG cylinder is 5 years, and the third periodical inspection is 10 years, which greatly extends the service life of the product
The Composite LPG cylinders are produced by high anti-corrosion material, which will not loose due to rust. The appearance color will always maintain fresh
-Visible liquid level
Due to the cylinder body is semitransparent, the users can easily supervise the LPG content inside from the visible liquid level
-Light and portable
The weight of composite LPG cylinder is only 40% of the traditional metal cylinder, and the ergonomically designed soft handle makes it portable for both adults and children
-High level safety
The cylinder liner is made of HDPE, which has high corrosion resistance to LPG, atmosphere and aqueous solution containing sulfur. It will not explose due to the corrosion
-Long life and easy inspection
The first and second periodical inspection of the composite LPG cylinder is 5 years, and the third periodical inspection is 10 years, which greatly extends the service life of the product
Our Advantages
-Glass fiber
We choose a kind of special wrapping fiber with good invasion, high gelatinization and no balling-up
-Epoxy resin
We choose a kind of special wrapping fiber with good invasion, high gelatinization and no balling-up
-Epoxy resin
The epoxy resin we choose has advantages of lower curing temperature, quicker curing speed, longer service life and lower price
-HDPE
High-density Polyethylene, has the advantage of wide range of sources and cheap. It can be used as liner material to revent the gas leakage, also can be used as external wear-resistant material
Production and testing

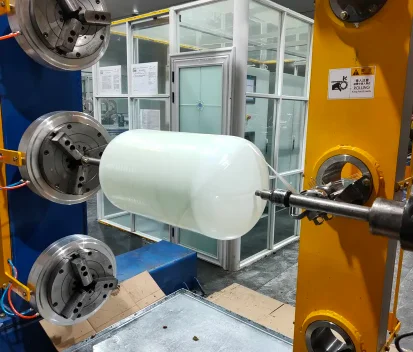

Filament winding

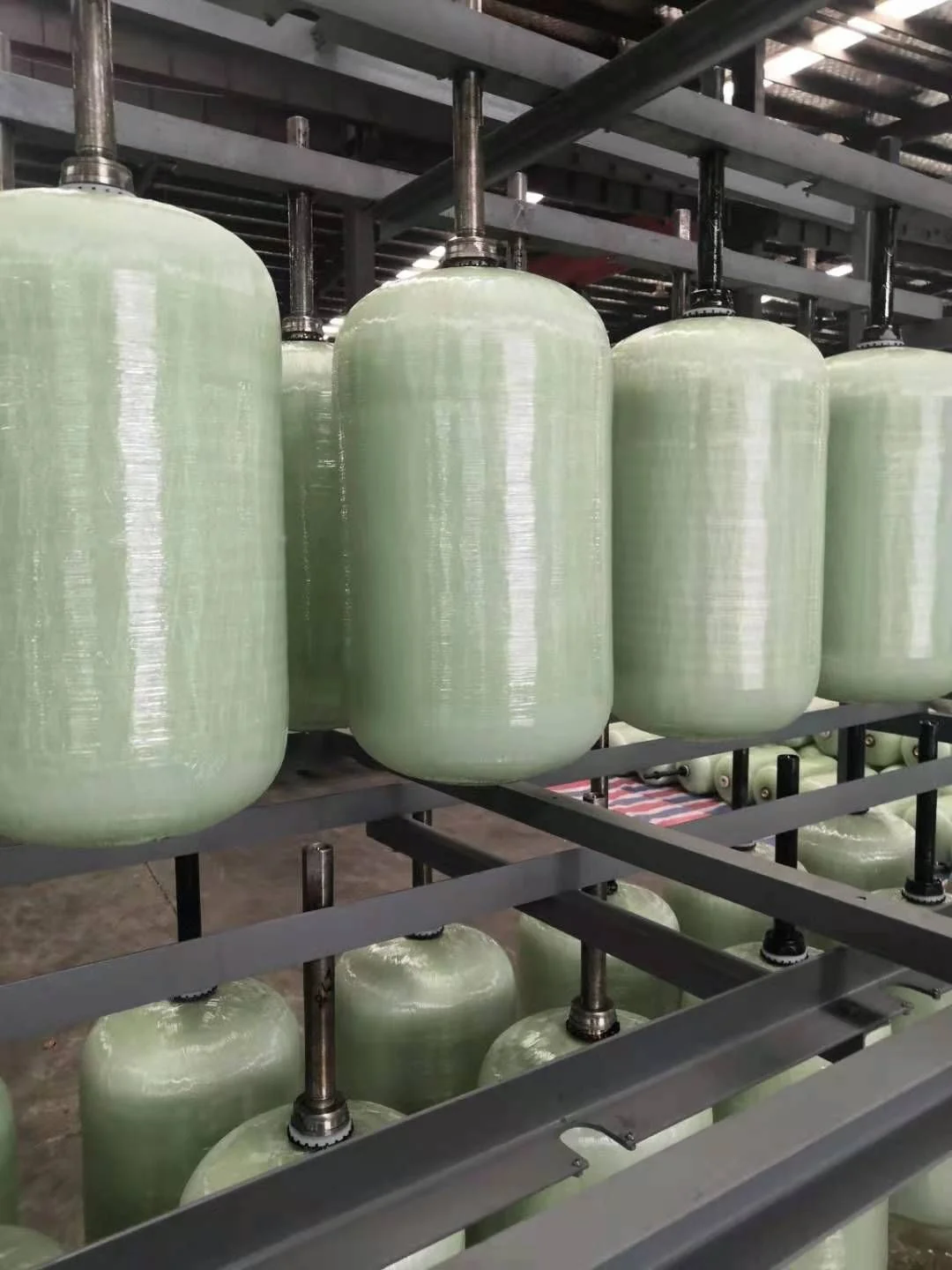

Heat threatment
Valve installation
Air tightness test

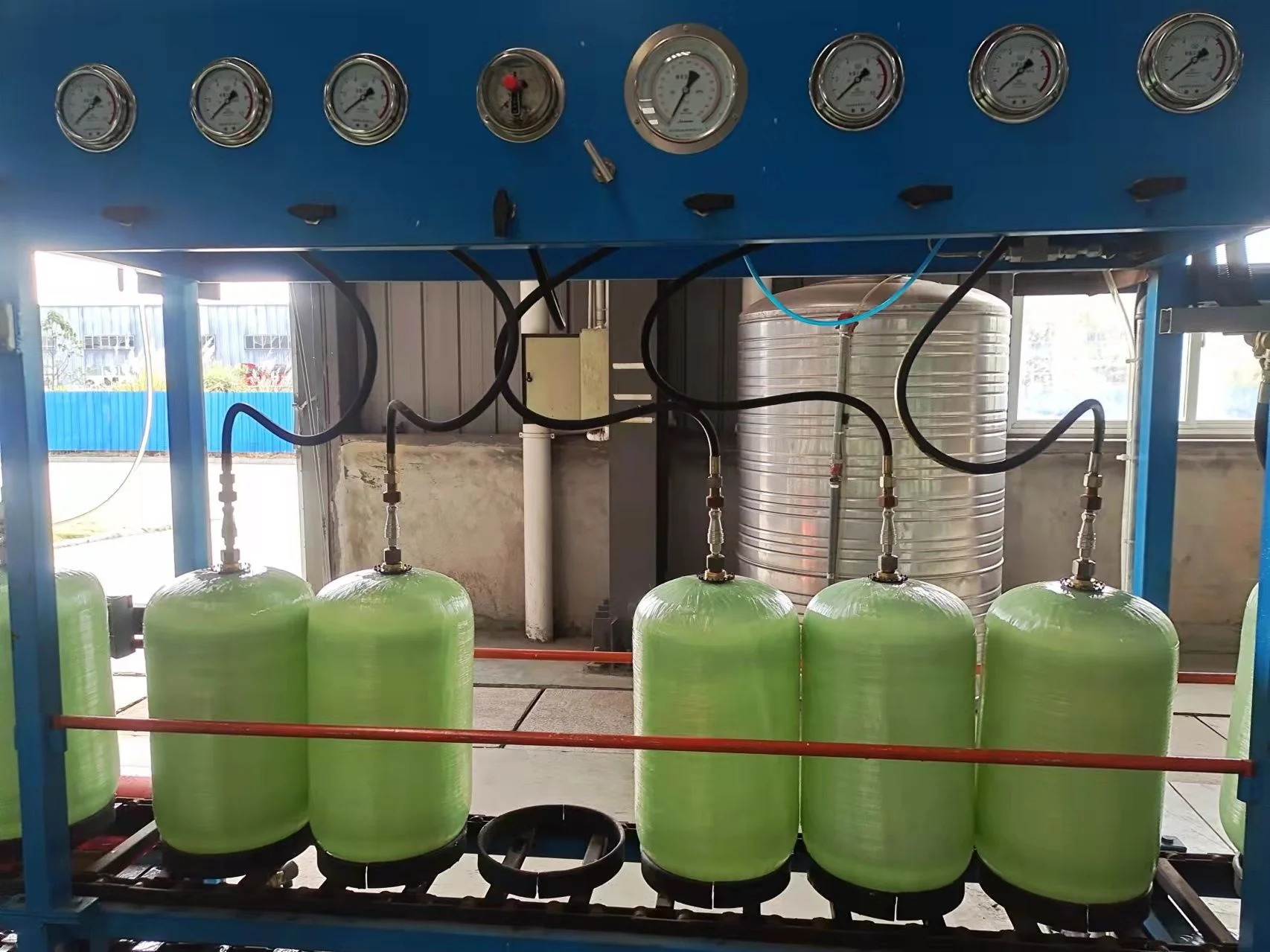

Hydrostatic test
Finished product
Fatigue Test
Bursting Test
Heat Treatment
Logistics and Packaging
We can provide a series of package and logistics solutions according to the customer’s requirements, to ensure our goods reach our customers on time and safely
FAQ
*Q1: Are you manufacturer or trade company? | ||||||||
*A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 10 years. Our company brand is “HY”. | ||||||||
*Q2: What is your daily production capacity? | ||||||||
*A2: Our production capacity everyday is 800~1000 units. | ||||||||
*Q3: What is your delivery time? | ||||||||
*A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials. | ||||||||
*Q4: What certificates do you have? | ||||||||
*A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval. | ||||||||
*Q5: Do you accept OEM production? | ||||||||
*A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia,DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality. | ||||||||
*Q6: Can you provide samples to us? | ||||||||
*A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly. | ||||||||
*Q7: Can youcustomize the products? | ||||||||
*A7: Yes, we can provide you with various customized products. For example, your company brand/logo,different accessories and your favorite colors. | ||||||||
