1000 Вт 3000 6000 низкочастотный Гибридный солнечный инвертор встроенный PWM или MPPT 1500 4000 24VDC 48VDC
27 150,15-28 281,40 ₽
HT 1200 Вт 1400 1600 DC инвертируемый выход переменного тока солнечная панель микро инвертор с VDE CE IEC FC ROHS для солнечной электростанции
- Категория: >>>
- Поставщик: Shenzhen Infinite Power Technology Co. LtdShenzhen Ltd
Сохранить в закладки 1600864253209:
Описание и отзывы
Характеристики

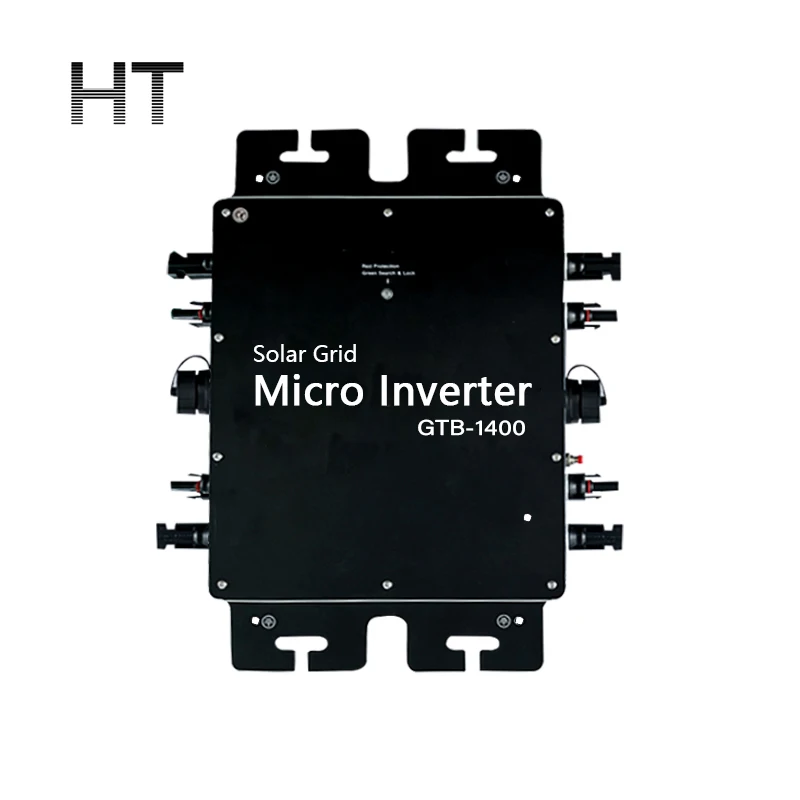

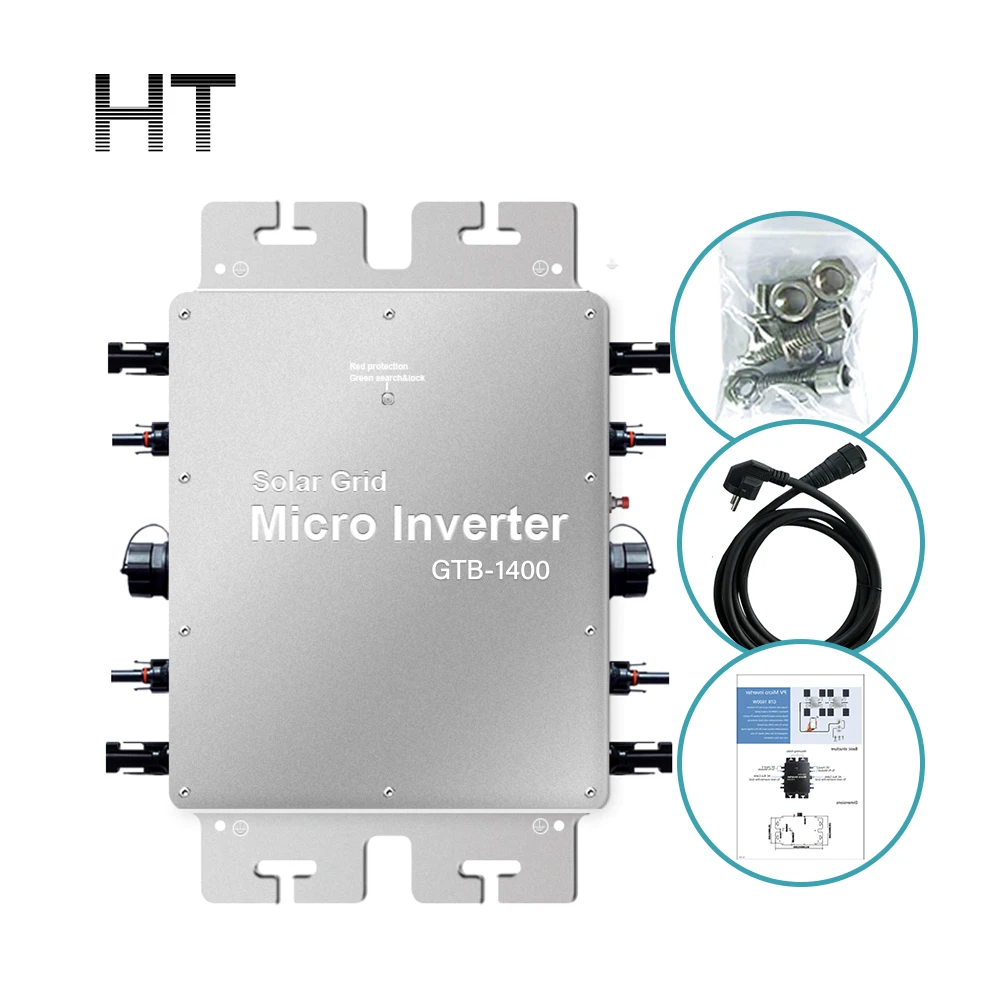

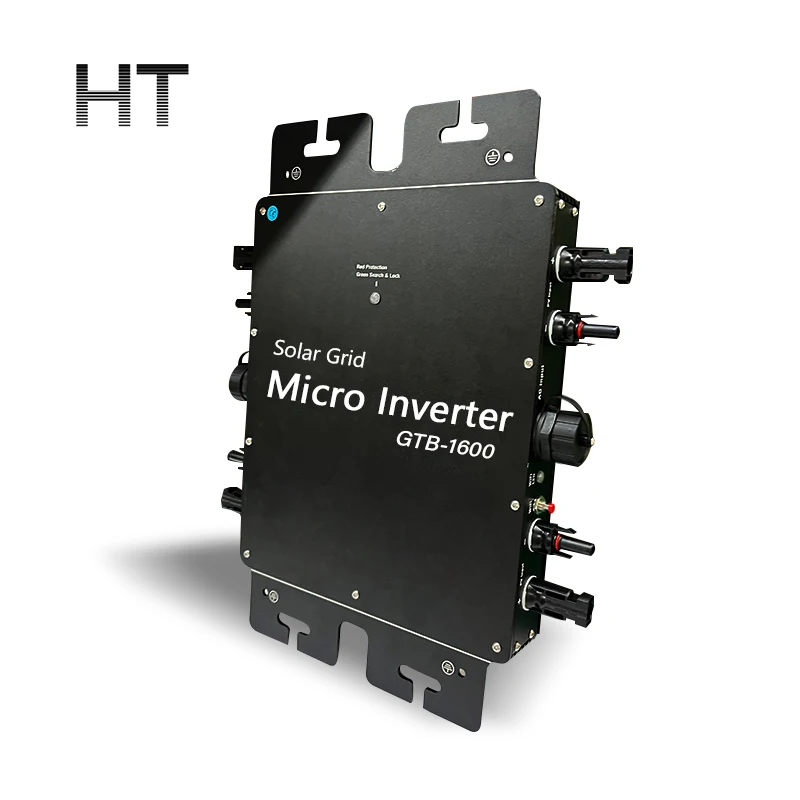

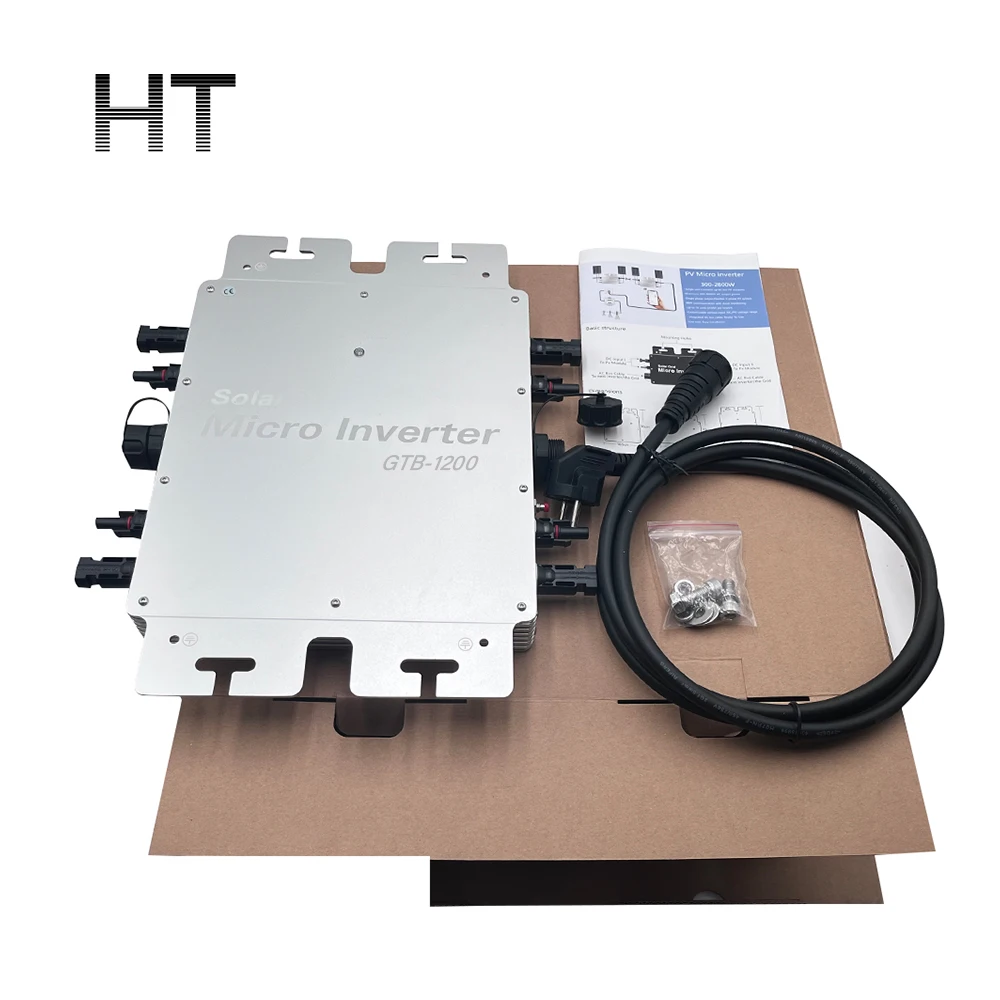

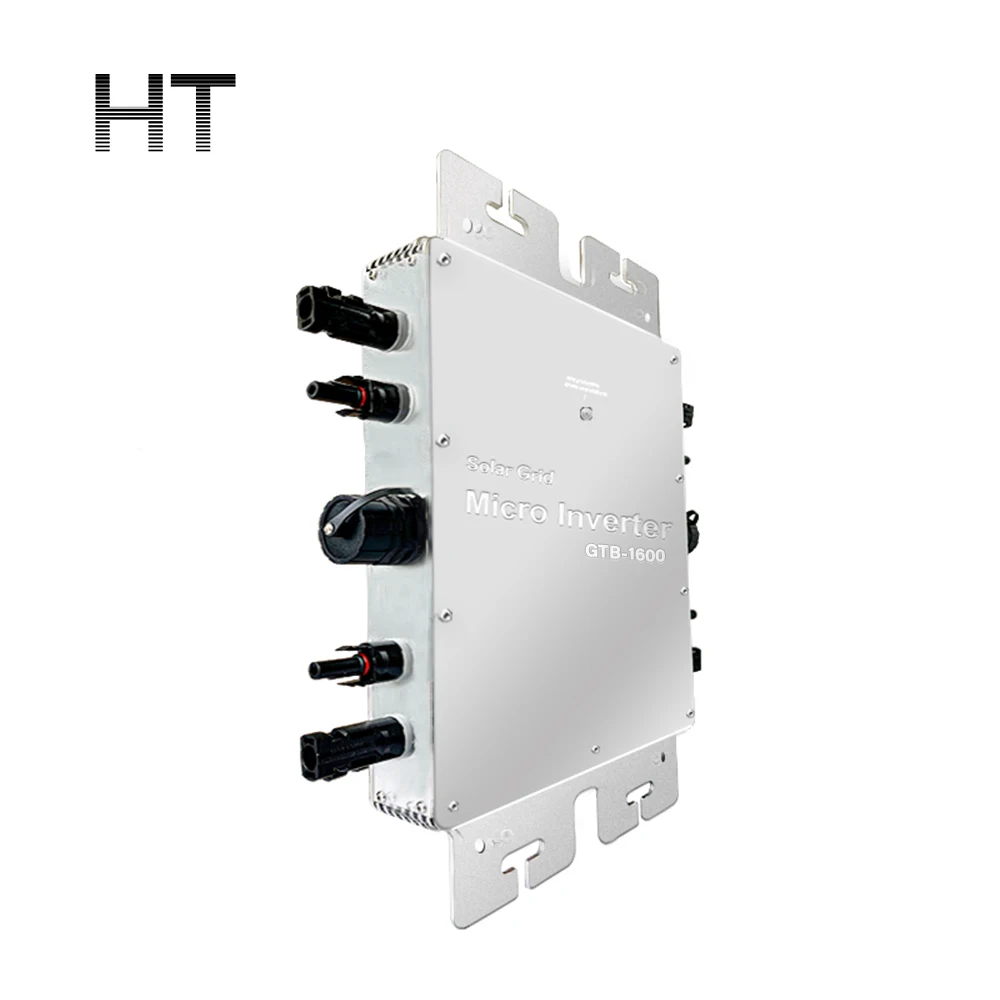

HT 1200W 1400W 1600W DC Invert AC Output Solar Panel Micro Inverter With VDE CE IEC FC ROHS for Micro Solar Power Plant
Product Name | Micro Inverter |
Input DC voltage： | 16V-50V |
Input Power : | 1200w 1400w 1600w |
Output AC voltage： | 110/220V |
Output frequency： | 48-60HZ |
MPPT tracking voltage: | 25-35v |
Communication method: | Bluetooth/WiFi tuya |
Number of Input MC4 Connector | 4 Sets |
Max Input/Output Power | 1200W;1400W;1600W |
MPPT Efficiency | 99.5% |
Weight | 5KG |
Waterproof Grade | IP66 |
About this item
* MPPT Technology: Precise maximum power point tracking. MPPT algorithm can optimize the power collection from solar panels. It accurately captures and collects sunlight, and locks in the maximum output power points, significantly increasing over 25% of the power generation. With the monitoring system, it can help you monitor the power generation efficiency of the power station and reduce workforce expenses.
* High Performance: Reverse power transmission. With efficient reverse power transmission technology, the power transmission rate up to 99.9%. Full digital control can be achieved by using intelligent soft switching technology and built-in MCU for charging modules; Introducing high-frequency switching power supply and SPWM control technology. It features strong anti-interference ability, fast calculation speed, a high degree of intelligence, high control precision, and excellent output waveform.
* Protective & Reliable: IP65 waterproof design and aluminum alloy material can effectively prevent rainwater erosion on the surface. It provides electrical isolation, more reliable to use. It offers multiple protection functions, such as over-current protection, short circuit protection, low-voltage protection, over high voltage protection.
* Easy Operation: Lightweight and easy to install, many inverters can be stacked arbitrarily to form a single-phase parallel
stacking system. Almost no maintenance work is required, clean the dust on the photovoltaic panel occasionally.
* Sustainable Use: This grid-tie micro-inverter can convert DC power generated by solar panels into AC power. Our solar inverter provides sustainable energy and brings excellent environmental benefits.
* High Performance: Reverse power transmission. With efficient reverse power transmission technology, the power transmission rate up to 99.9%. Full digital control can be achieved by using intelligent soft switching technology and built-in MCU for charging modules; Introducing high-frequency switching power supply and SPWM control technology. It features strong anti-interference ability, fast calculation speed, a high degree of intelligence, high control precision, and excellent output waveform.
* Protective & Reliable: IP65 waterproof design and aluminum alloy material can effectively prevent rainwater erosion on the surface. It provides electrical isolation, more reliable to use. It offers multiple protection functions, such as over-current protection, short circuit protection, low-voltage protection, over high voltage protection.
* Easy Operation: Lightweight and easy to install, many inverters can be stacked arbitrarily to form a single-phase parallel
stacking system. Almost no maintenance work is required, clean the dust on the photovoltaic panel occasionally.
* Sustainable Use: This grid-tie micro-inverter can convert DC power generated by solar panels into AC power. Our solar inverter provides sustainable energy and brings excellent environmental benefits.
High Automation
The robust MPPT algorithm can automatically track the power points and increase the power generation by 25%. With a real-time
monitoring system, it can help you monitor power generation efficiency and reduce workforce expenses.
monitoring system, it can help you monitor power generation efficiency and reduce workforce expenses.
Stable Dual Channel Technology
This inverter adopts the Dual Channel Circuit Technology, which means two photovoltaic panel inputs can share one MPPT system that
keeps the power output and transmission stability. When working, these two channels will never interfere with each other while
tracking the maximum power point, which efficiently makes the power transmission rate up to 99.9%.
keeps the power output and transmission stability. When working, these two channels will never interfere with each other while
tracking the maximum power point, which efficiently makes the power transmission rate up to 99.9%.
Easy To Use
Lightweight and easy to install, many inverters can be stacked arbitrarily to form a single-phase parallel stacking system. It issimple, whether installation or maintenance.
Digital Control
The digital SPWM control technology is characterized by strong anti-interference ability, fast calculation speed, high intelligent
degree, high control precision, and excellent output waveform.
degree, high control precision, and excellent output waveform.
IP66 & Aluminum Material
Introducing IP66 waterproof appearance design and aluminum alloy material, it is safe and reliable. Multiple protection functions
are provided to prolong service life.
are provided to prolong service life.
Wide Usage
It is suitable for various household appliances. It can convert the DC power generated by solar panels into AC power available for household appliances.
1.WHAT TO DO when the smart-app can't find the micro inverter to be added?
3. WHAT TO DO if the SSID of my WiFi network or the password is changed?
Please reconfigure the inverter according to the configuration and use steps.
4. WHAT TO DO if the WiFi status indicator of the inverter goes out, but the device displayed on the
app is not online?
This means that you can connect to the wireless network device, but you can't connect to the cloud server. It means that yourwireless network device can't connect to the Internet. Make sure that your Internet is working properly,
5. The installation site of the inverter is temporarily not equipped with a router and no WiFi signal.
How does App connect the inverter and detect if the inverter is working properly?
You can use an idle smartphone to open the WiFi sharing of mobile phone signal hotspot for
connection, and reconfigure the network connection after installing the router.
6. There are multiple WiFi signals on site. Can we connect with different WiFi signals?
No, the WiFi connected of the micro inverter and the smart phone must be consistent before the network can be configured.
7. Can App configure the micro inverter in different places? Can I view data in different places?
You can't configure the micro inverter in different places, but you can view data in different places.
The inverter uploads the latest status data to the cloud server every minute.
8. After checking that there is no problem, the App still cannot find the micro inverter.
Press and hold the inverter red button for more than 5 seconds to reset the inverter.
After the WiFi indicator flashes again, use App to reconfigure the network.
Check the following points;
Check if the WiFi status indicator of the micro inverter is in the "Blue Flashing" state;
Check if the Bluetooth function of your smart device is turned ON;
Check if the signal of the wireless network is good;
If all this is the case and the inverter is still not found,press the red reset button for more than 5 seconds to reset.After the WiFi indicator light flashes blue again,use "Smart Life"APP to reconfigure the network.
2. WHAT TO DO if I have multiple micro inverters to configure?
Install all micro inverters properly and make them work normally to generate power, and then
operate according to the configuration and use steps. The App can search all inverters to be added at one time and configure themat one time.
2. WHAT TO DO if I have multiple micro inverters to configure?
Install all micro inverters properly and make them work normally to generate power, and then
operate according to the configuration and use steps. The App can search all inverters to be added at one time and configure themat one time.
3. WHAT TO DO if the SSID of my WiFi network or the password is changed?
Please reconfigure the inverter according to the configuration and use steps.
4. WHAT TO DO if the WiFi status indicator of the inverter goes out, but the device displayed on the
app is not online?
This means that you can connect to the wireless network device, but you can't connect to the cloud server. It means that yourwireless network device can't connect to the Internet. Make sure that your Internet is working properly,
5. The installation site of the inverter is temporarily not equipped with a router and no WiFi signal.
How does App connect the inverter and detect if the inverter is working properly?
You can use an idle smartphone to open the WiFi sharing of mobile phone signal hotspot for
connection, and reconfigure the network connection after installing the router.
6. There are multiple WiFi signals on site. Can we connect with different WiFi signals?
No, the WiFi connected of the micro inverter and the smart phone must be consistent before the network can be configured.
7. Can App configure the micro inverter in different places? Can I view data in different places?
You can't configure the micro inverter in different places, but you can view data in different places.
The inverter uploads the latest status data to the cloud server every minute.
8. After checking that there is no problem, the App still cannot find the micro inverter.
Press and hold the inverter red button for more than 5 seconds to reset the inverter.
After the WiFi indicator flashes again, use App to reconfigure the network.
9. WHAT TO DO if I want to monitor the same inverter on two or more smart devices?
You can share the inverter with another phone using the share device feature.
10. Will App data be saved?
Yes, App data will be stored on cloud server. After the network is successfully configured； you can view the data at any time and place.
Yes, App data will be stored on cloud server. After the network is successfully configured； you can view the data at any time and place.
11. The inverter cannot be connected to the app at night?
At night, because the solar panel does not generate power, the micro inverter does not have any power input, so it will offlineand it is impossible to re-configure the network at night.
At night, because the solar panel does not generate power, the micro inverter does not have any power input, so it will offlineand it is impossible to re-configure the network at night.
