Небольшой промышленный водяной охладитель Airstone 6HP для впрыска
- Категория: Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Dongguan Qianwei Mechanical Equipment Technology Limited
Сохранить в закладки 1600864320139:
Описание и отзывы
Характеристики

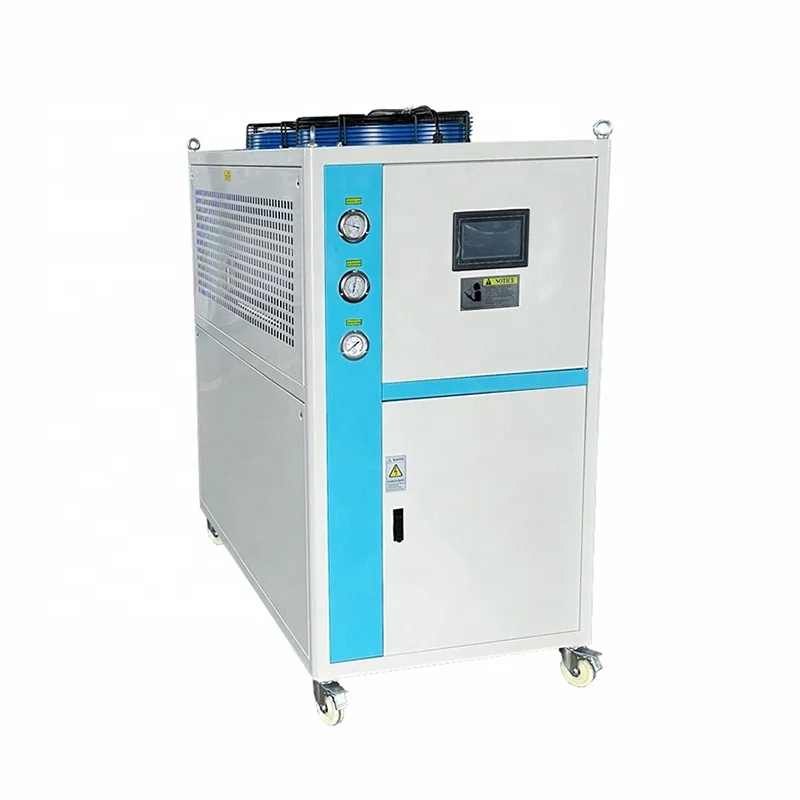

Airstone 6HP Small Water Cooled Industrial Water Chiller For Plastic Injection
FEATURES AT A GLANCE
Water cooling system chiller for injection molding machine
As an industrial water chiller, it has the following features:
1. Our chiller is exported to all over the world, being of high-quality built-in safe protection, with low noise, the
electricity of province is durable.
2. Cooling capacity range: 113.8kw~838kw
3. Normal conditions: Chilled water inlet temperature is 12 degree, outlet temperature is 7 degrees. Cooling water inlet
temperature is 30 degrees, outlet temperature is 35 degrees. But the lowest temperature can be -25 degress.
4. Stardard Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%,Can also be customized according to customers'request
5. The quantity of compressor can be one or two ,each compressor is independent refrigeration system. Each other run
independently.when the one is working ,the other can be working or not.
6. Use PLC microcomputer control from Germany Siemens LCD touch screen, both English and Chinese human-machine interface.
7. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.
8.Our standard refrigerant is R22, but you can choose to use environmental refrigerant such as R407C , R134A or R507.
As an industrial water chiller, it has the following features:
1. Our chiller is exported to all over the world, being of high-quality built-in safe protection, with low noise, the
electricity of province is durable.
2. Cooling capacity range: 113.8kw~838kw
3. Normal conditions: Chilled water inlet temperature is 12 degree, outlet temperature is 7 degrees. Cooling water inlet
temperature is 30 degrees, outlet temperature is 35 degrees. But the lowest temperature can be -25 degress.
4. Stardard Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%,Can also be customized according to customers'request
5. The quantity of compressor can be one or two ,each compressor is independent refrigeration system. Each other run
independently.when the one is working ,the other can be working or not.
6. Use PLC microcomputer control from Germany Siemens LCD touch screen, both English and Chinese human-machine interface.
7. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.
8.Our standard refrigerant is R22, but you can choose to use environmental refrigerant such as R407C , R134A or R507.
PRODUCT SPECIFICATIONS
No | Product Name | Item Name | Specification |
1 | Chiller | Model Number | AS-6HP |
2 | Cooling capacity | KW | 19.18 |
3 | Operating weight | Kcal/h | 16503 |
3 | Voltage | V | 380V 50HZ 3PH |
4 | Control method | Type | Capillary |
5 | Current | A | 5.25 |
Type | Hermetic scroll | ||
8 | Max. torque | Refrigeration input power(KW) | 4.5 |
Type | Scroll | ||
Type | Inline pump | ||
Power (KW) | 0.75 | ||
Lift（meters) | 28 | ||
Capacity(L/min) | 100 | ||
8 | Type | Tube | |
Flow rate(m3/h) | 4.13 | ||
9 | Type | Coiled tube | |
Flow(m3/h) | 3.3 | ||
Water soluble content m3 | 0.058 | ||
10 | Outside size | L*W*H(MM) | 870*550*1000 |
11 | Weight | KGS | 200 |
* Customizable according to client's requirement
Note:
1, the table refrigeration conditions: cold water inlet temperature 20 ºC, cold water temperature 15 ºC, ambient temperature 35 ºC
, the use of ambient temperature not above 35ºC;
2, safe operating range: Chilled water inlet temperature 5-35 ºC;
3, standard power supply: 380V / 3N-50HZ, voltage fluctuation allowed ± 10%, frequency fluctuation ± 2%;
4, In addition to the specifications and requirements, We can provide non-standard products according to customer requirements.
Note:
1, the table refrigeration conditions: cold water inlet temperature 20 ºC, cold water temperature 15 ºC, ambient temperature 35 ºC
, the use of ambient temperature not above 35ºC;
2, safe operating range: Chilled water inlet temperature 5-35 ºC;
3, standard power supply: 380V / 3N-50HZ, voltage fluctuation allowed ± 10%, frequency fluctuation ± 2%;
4, In addition to the specifications and requirements, We can provide non-standard products according to customer requirements.
Hot sale Products
Contact us
COMPANY PROFILE
Airstone compressor located in B district of lianhua industrial park, pingxiang city, jiangxi province, covers an area of more
than 30,000 square meters.
than 30,000 square meters.
The company has more than 300 fixed employees, 50 skilled workers, and 40 sets of large-scale production equipment. The main products are fix speed screw air compressor, variable frequency speed screw compressor, permanent magnet variable frequency screw compressor and two-stage screw air compressor. At the end of 2018, the company joined forces with famous school designers to develop integrated screw compressors with tank and dryer. The pressure range is 0.4mpa- 1.6mpa and the power is 4kw-3 15kw. It can be customized to meet the requirements of different climate buyers in different countries, with the advantage of high cost performance, energy saving and environmental protection, our customers have reached more than 1,000 in the world. The company has always been committed to revitalizing the national industry and building internationally renowned brands to provide users with best service. The most perfect compressed air supply is the mission. With the aim of flow management, first-class technology, first-class products and first-class service, the brand of Airstone will be carried forward.
FAQ
Q1. How about the package for industrial water chiller?

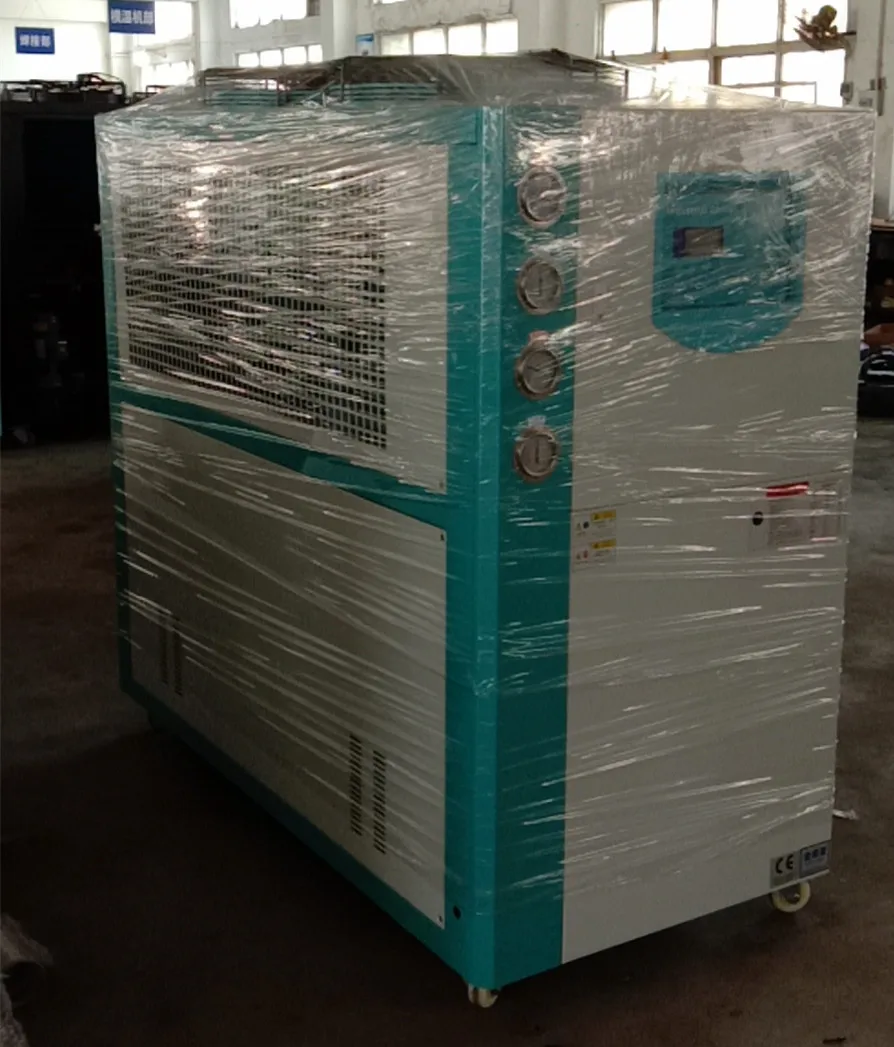

A: Generally, we pack our goods in neutral wooden case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of chiller water cooled payment?
A: 100%T/T in advance, L/C, Paypal and Western Union before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of water chiller delivery?
A: EXW, FOB, CFR, CIF, DDU are available.
Q4. How about your delivery time for industrial water chiller?
A: Generally, it will take 7 to 15 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce chiller water cooled according to the samples
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your industrial water chiller sample policy?
A: We can supply the 5hp water chiller sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your water chiller before delivery?
A: Yes, we have 100% test before delivery, don't worry about the chiller water cooled quality.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in neutral wooden case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of chiller water cooled payment?
A: 100%T/T in advance, L/C, Paypal and Western Union before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of water chiller delivery?
A: EXW, FOB, CFR, CIF, DDU are available.
Q4. How about your delivery time for industrial water chiller?
A: Generally, it will take 7 to 15 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce chiller water cooled according to the samples
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your industrial water chiller sample policy?
A: We can supply the 5hp water chiller sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your water chiller before delivery?
A: Yes, we have 100% test before delivery, don't worry about the chiller water cooled quality.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
