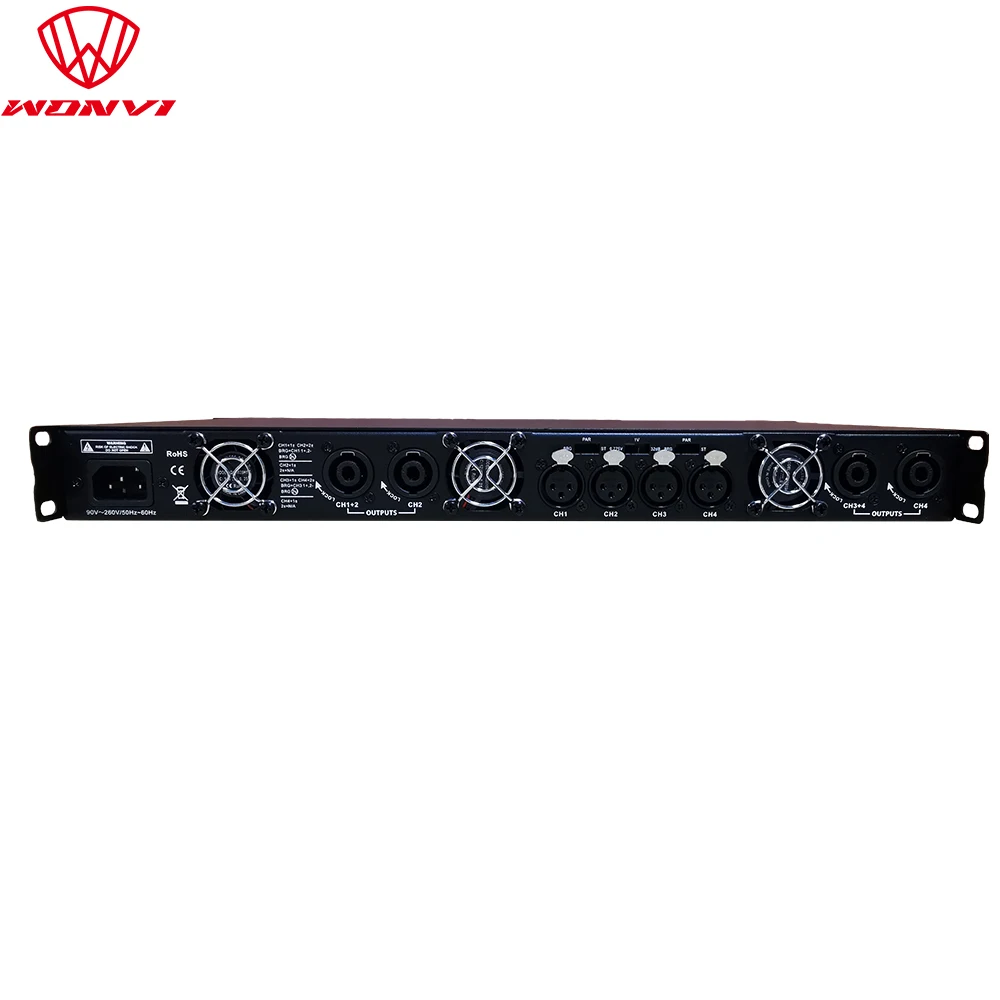

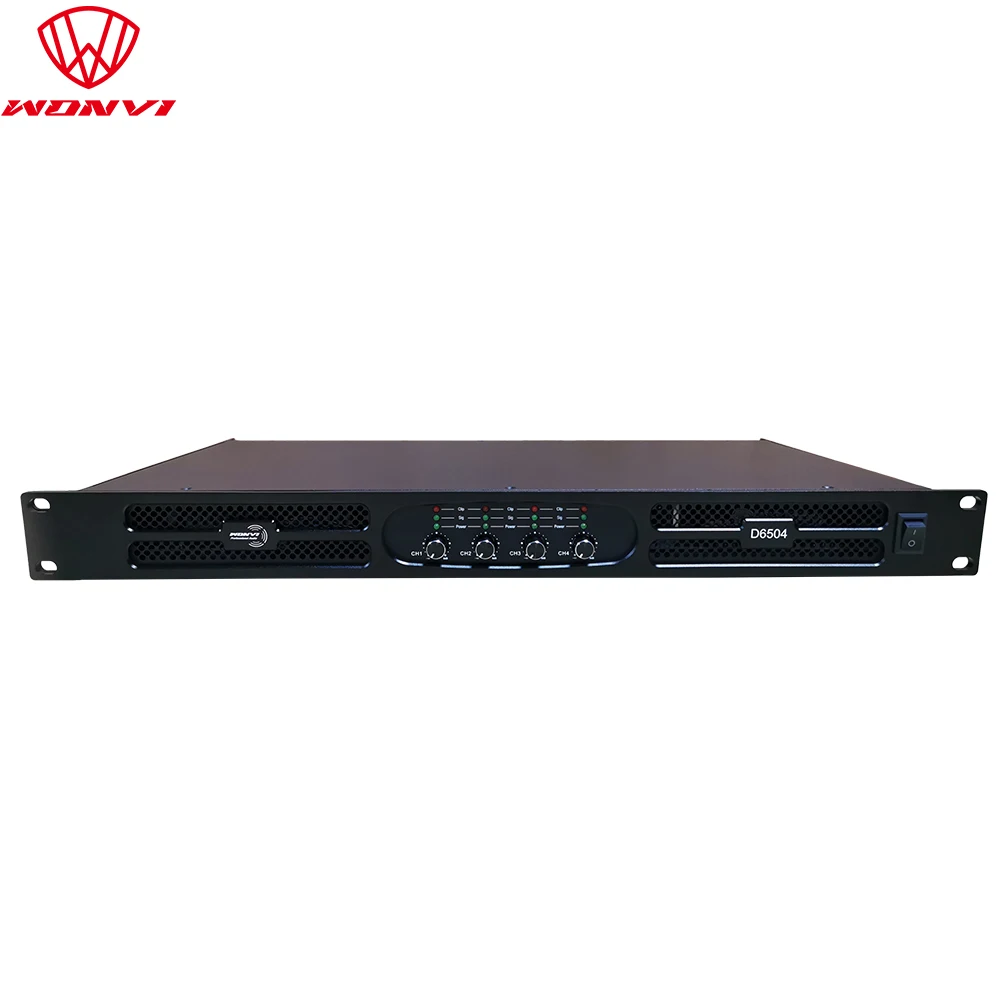

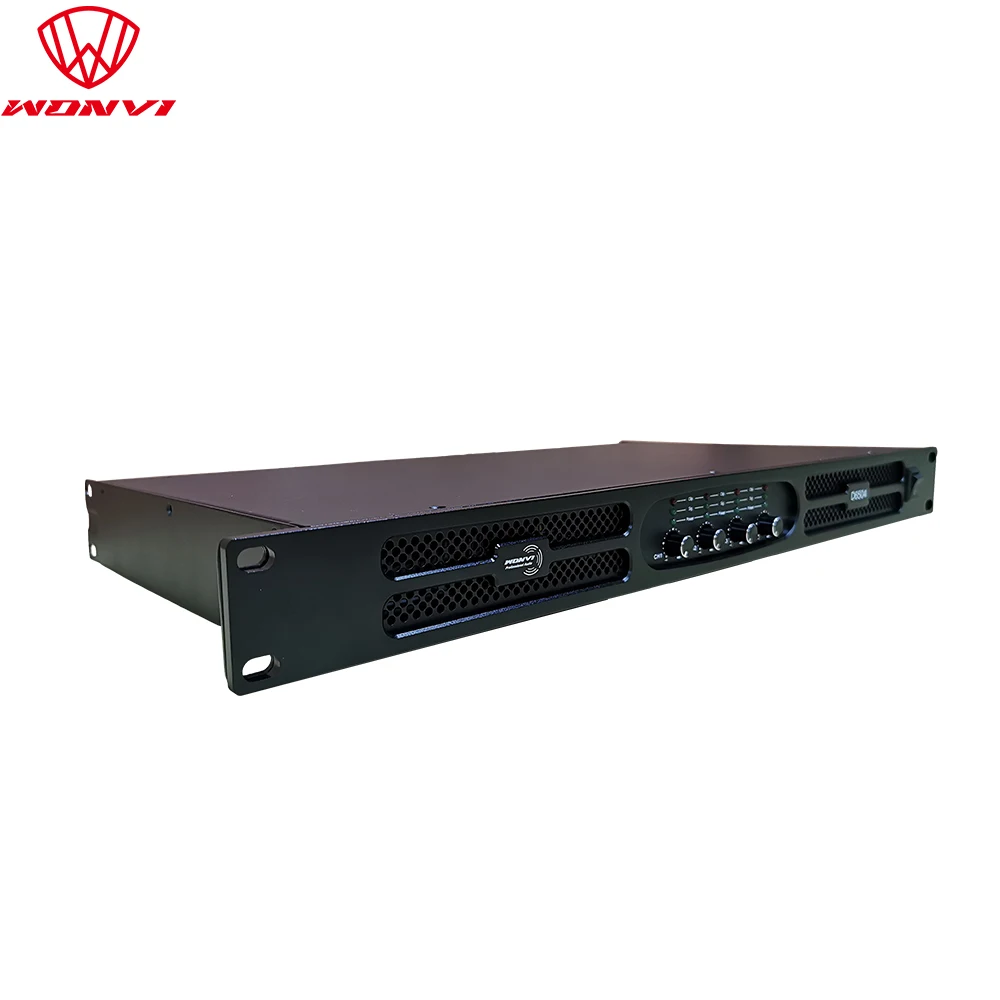

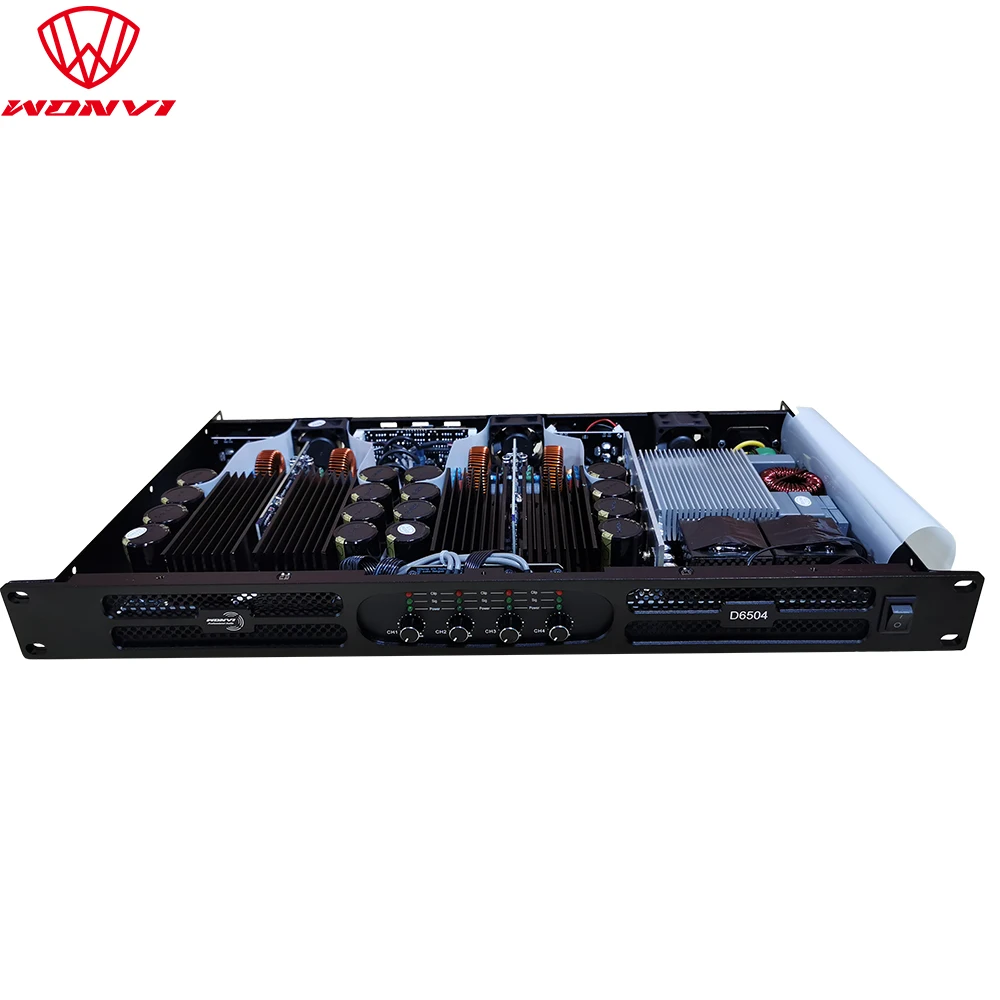

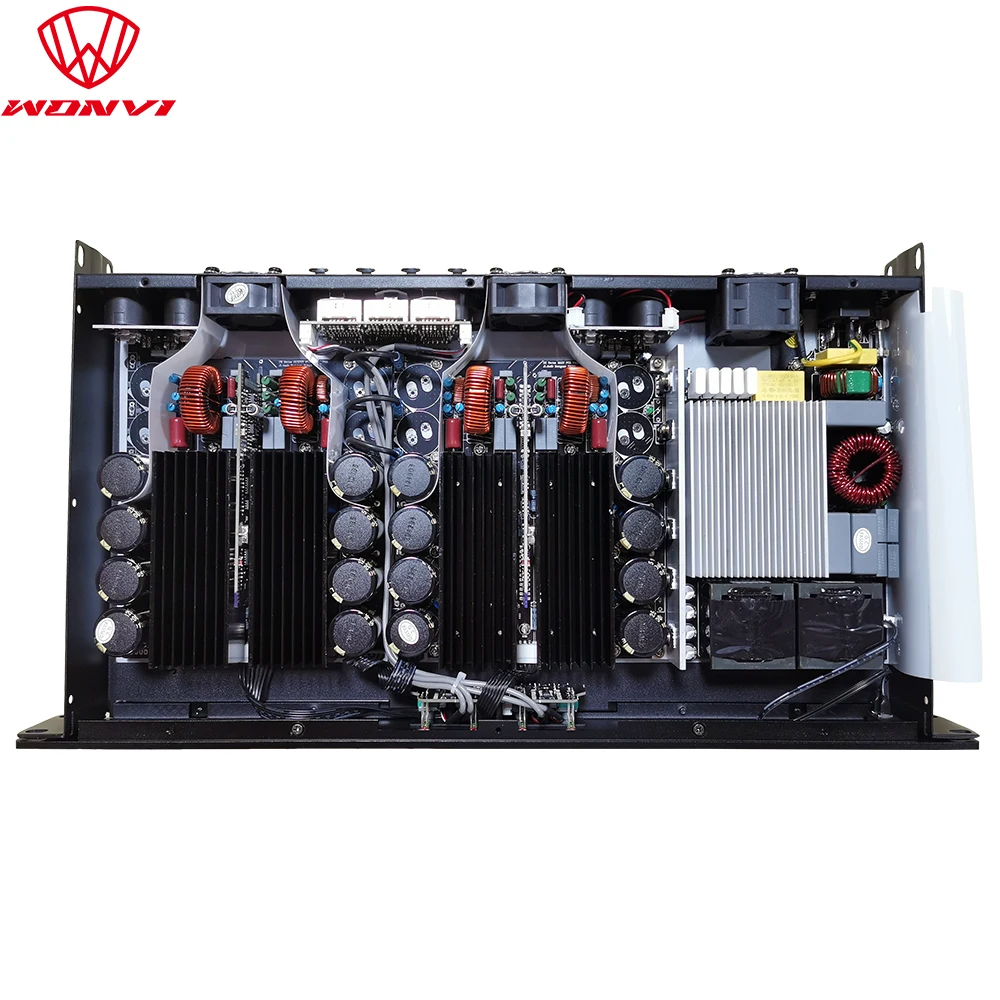

D6504 4 канальный Профессиональный усилитель мощности/цифровой для сабвуфера
- Категория: >>>
- Поставщик: Guangzhou Wonvi Audio Equipment Co. Ltd.
Сохранить в закладки 1600865387289:
Описание и отзывы
Характеристики
Products Description
1U Class D digital power amplifier

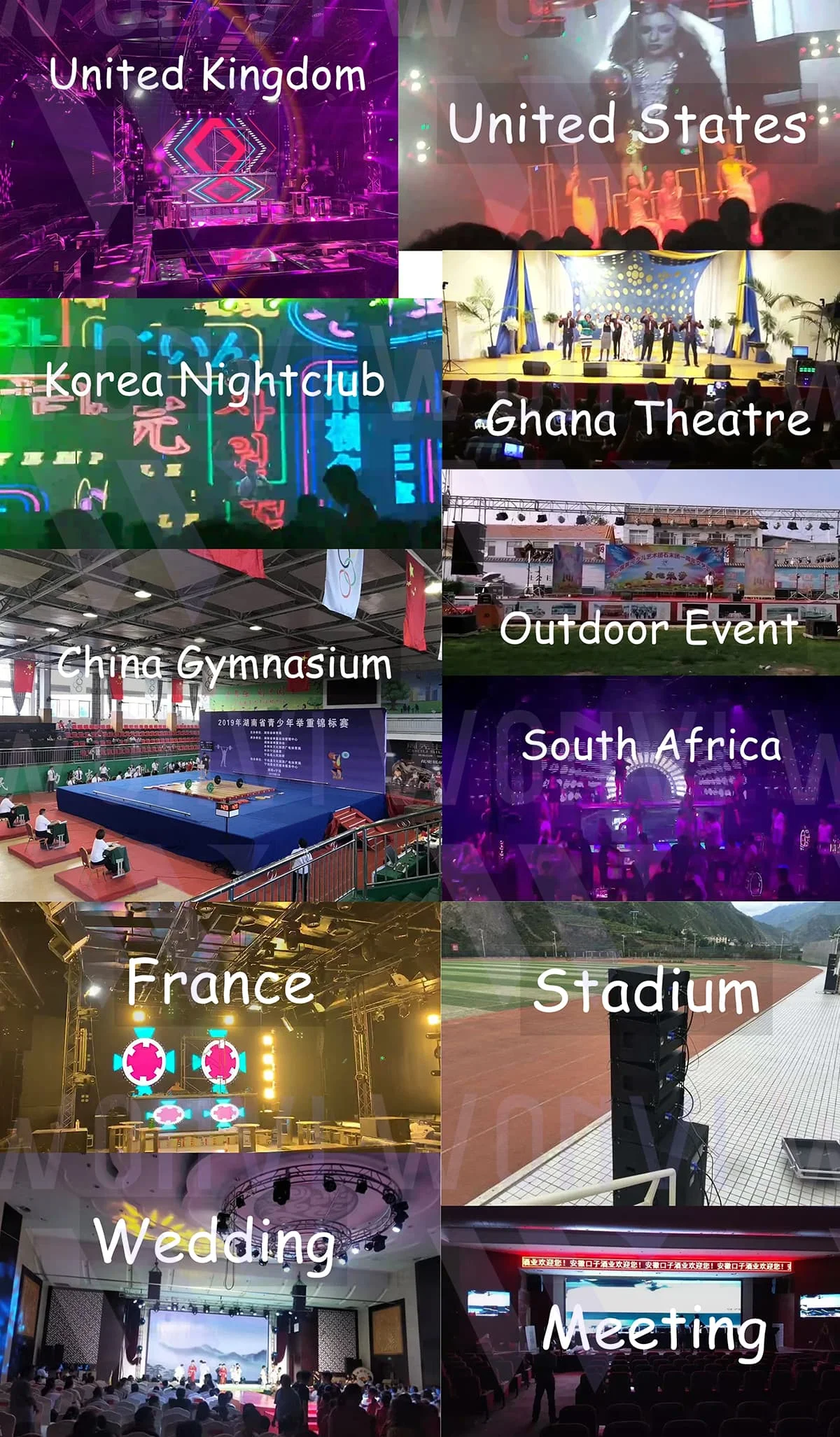

Applications
Mobile performance / portable sound reinforcement
KTV/Bar/Concert Hall
Gymnasium / Arena
Features
1.1U height standard chassis, compact, lightweight and compact
2.Class D power amplifier module with fixed switching frequency
3.Soft Switch LLC Resonant Switching Power Supply Module
4.Active Power Factor Correction (PFC) for stable operation over full voltage (90-264V)
5.Efficient speaker back EMF absorption system
6.Unique peak clipping limiter and ripple elimination network
7.Temperature-controlled variable speed fan, airflow from front to back

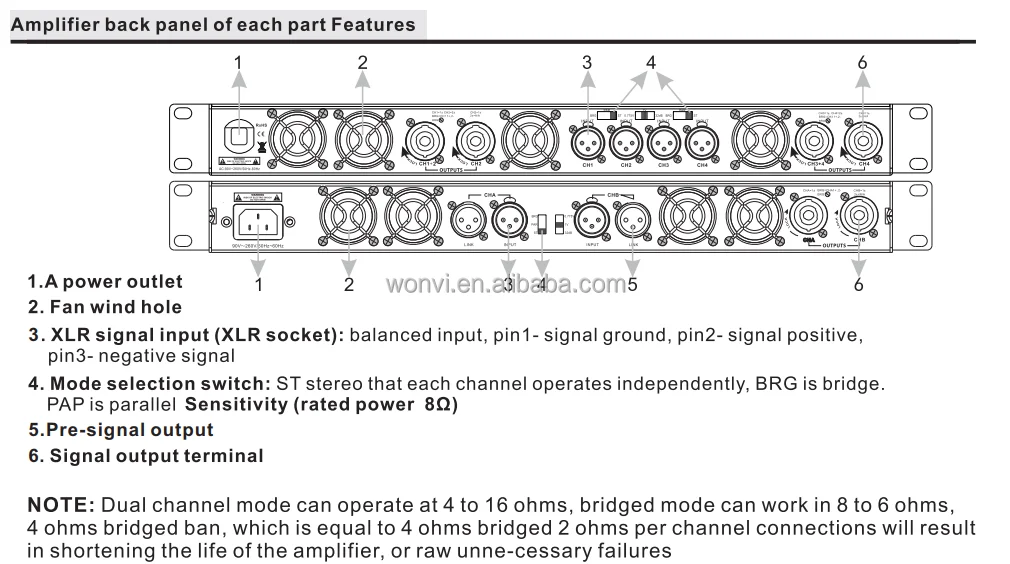

8.Backplane connection mode selection (stereo/parallel/bridge)
9.The back panel is equipped with input sensitivity selection switching (0.775v/1v/32dB)
10.Complete circuit protection, including: soft start, DC, sub audio, high frequency, overheat, short circuit, power on/off mute
12.Low frequency and powerful, very low dive depth, medium and high frequency transparent, clear and pleasant
13.Integrated design of power amplifier module and power module, more than 85% of the devices use automation to ensure product
consistency
Applications
Mobile performance / portable sound reinforcement
KTV/Bar/Concert Hall
Gymnasium / Arena
Features
1.1U height standard chassis, compact, lightweight and compact
2.Class D power amplifier module with fixed switching frequency
3.Soft Switch LLC Resonant Switching Power Supply Module
4.Active Power Factor Correction (PFC) for stable operation over full voltage (90-264V)
5.Efficient speaker back EMF absorption system
6.Unique peak clipping limiter and ripple elimination network
7.Temperature-controlled variable speed fan, airflow from front to back
8.Backplane connection mode selection (stereo/parallel/bridge)
9.The back panel is equipped with input sensitivity selection switching (0.775v/1v/32dB)
10.Complete circuit protection, including: soft start, DC, sub audio, high frequency, overheat, short circuit, power on/off mute
12.Low frequency and powerful, very low dive depth, medium and high frequency transparent, clear and pleasant
13.Integrated design of power amplifier module and power module, more than 85% of the devices use automation to ensure product
consistency

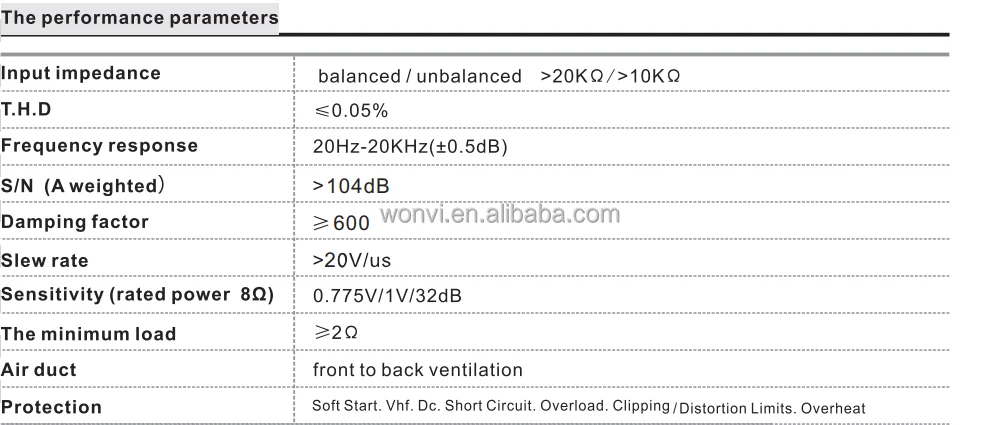

Product Specification
.2 channel
Model | D1002 | D1502 | D1802 | D2402 | D2802 | |
Output power(RMS) Stereo | 8Ω | 2×1000W | 2×1500W | 2×1800W | 2×2400W | 2×2800W |
4Ω | 2×1600W | 2×2400W | 2×3000W | 2×3800W | 2×4500W | |
2Ω | 2×1900W | 2×2900W | 2×3800W | 2×5000W | 2×5500W | |
Output power(RMS) Bridge | 8Ω | 3200W | 4800W | 6000W | 7600W | 9000W |
4Ω | 3800W | 5800W | 7600W | 10000W | N/A |
4 channel
Model | D6504 | D8004 | D1004 | D1504 | D1804 | |
8Ω | 4×650W | 4×800W | 4×1000W | 4×1500W | 4×1800W | |
4Ω | 4×1050W | 4×1300W | 4×1600W | 4×2300W | 4×2800W | |
Output power(RMS) Bridge | 8Ω | 2×2100W | 2×2600W | 2×3200W | 2×4600W | 2×5600W |
Product Display
Related Products
Buyer Feedback
Company Information
FAQ
Q1: What’s your terms of payment?
A1: Payment, 30% downpayment, balance to be paid before shipment.If you have another question, pls feel free to contact us.
Q2: What's your delivery term?
A2: We quote and deliver on the term of FOB Huangpu or Shenzhen (except EXW term for small orders). Of course, CIF, C&F or even door to door is acceptable, so we will check and quote shipping cost additionally.
Q3: How long is the lead time?
A3: Generally 2 weeks. If any urgent orders for projects, we will do our best to expedite the process and deliver faster. But for OEM orders, lead time would be little longer on the first order since we need more time to communicate the requirements and confirm artworks...
Q4: How do you pack my goods to ensure intactness in the course of transportation?
A4: We always take care of our products and pack them properly! For example, we use strong carton box (export carton) stuffing with enough foam bubble and inner boxes for air shipment or express, and optional pallet packing could be used for LCL sea shipment for better protection.
Q5: How about the warranty and after-sales service?
A5: Our warranty is two years, but considering the long transit time to overseas customers, we offer three years warranty. For any problems (non-human induced), we shall provide you free spare parts and instruction for repair.
A1: Payment, 30% downpayment, balance to be paid before shipment.If you have another question, pls feel free to contact us.
Q2: What's your delivery term?
A2: We quote and deliver on the term of FOB Huangpu or Shenzhen (except EXW term for small orders). Of course, CIF, C&F or even door to door is acceptable, so we will check and quote shipping cost additionally.
Q3: How long is the lead time?
A3: Generally 2 weeks. If any urgent orders for projects, we will do our best to expedite the process and deliver faster. But for OEM orders, lead time would be little longer on the first order since we need more time to communicate the requirements and confirm artworks...
Q4: How do you pack my goods to ensure intactness in the course of transportation?
A4: We always take care of our products and pack them properly! For example, we use strong carton box (export carton) stuffing with enough foam bubble and inner boxes for air shipment or express, and optional pallet packing could be used for LCL sea shipment for better protection.
Q5: How about the warranty and after-sales service?
A5: Our warranty is two years, but considering the long transit time to overseas customers, we offer three years warranty. For any problems (non-human induced), we shall provide you free spare parts and instruction for repair.
