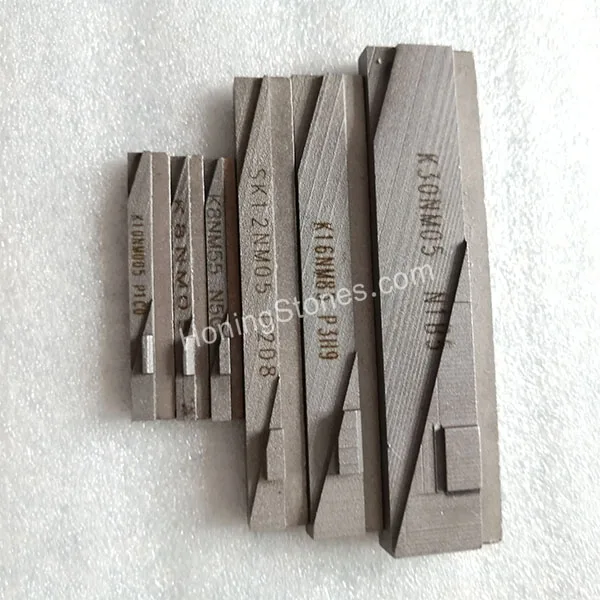

L series K Series P CBN хонинговальные камни для замены

Сохранить в закладки 1600866954087:


Цена:16,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


CBN  Honing Stones Polishing Stones for Engine Cylinder



Product Description


Brief introduction of CBN engine cylinder honing stones polishing stones:


The CBN engine cylinder honing stones polishing stones are made of synthetic diamond and metal powder through process of mixing, pressing, sintering and grinding. High grinding efficiency, small wearing, economic and convenient to use.
Our ability to supply Sunnen honing stones in a variety of grit sizes and bond configurations enables us to hone a variety of materials including hardened tool steels, steels of varying alloys, aluminum, titanium, bronze, brass, cast iron, stainless steel, and ceramics.

Diamond (DM) - Metal bonded excellent for accelerated stock removal and long abrasive life in cast iron, carbide, titanium, silicon carbide, ceramics, glass, graphite and other exotic materials.

Cubic Boron Nitride (CBN, NM) - Metal bonded excellent for accelerated stock removal and long abrasive life in ferrous materials, including Alloy steel, hardened steel, quenched and tempered steel, mild steel and other steel materials


Features:
 Stable cutting ability without clogging, loading and glazing


• Long honing stone life time with short cycle time

• Consistent surface finish without scratch
• Only use CBN and diamond abrasives from Diamond Innovation

• Advanced bonding technoloy with various honing stone's formula suit for different application

 Honing Stones (30).JPG

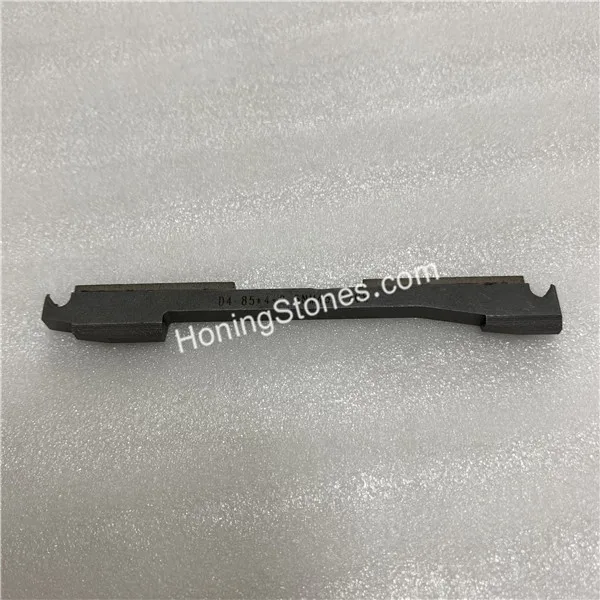

Honing Stones (214).JPG








Specifications of CBN engine cylinder honing stones polishing stones:





















































K Series Honing Stones
Honing UnitK3K4K5K6K8K10K12K16K20AK20AK30
Stone Length1515181932324557636363
Bore Diameter 2.5-33-4 4-5 5-6 6-8 8-9.5 9.5-13 13-16 16-19 19-32 32-40











































B Series Honing Stones
Honing UnitB8B10B12B14B16B20AB20AB30
Stones Length4747607085959595
Bore Diameter6-88-9.59.5-139.5-1313-1616-1919-3232-40














































l Series Honing Stones
Honing UnitL3L4L5L6L8L10L12L16L20
Stone Length25253235575788114114
Bore Diameter1.9-33-44-55-66-88-9.59.5-1313-1616-32

























































General Size
Grit50/6060/7070/8080/100100/120120/140140/170170/200
FEPAD301D251D213D181D151D126D107D91
Grit200/230230/270270/325325/400W40W28W20W14
FEPAD76D64D54D46M63M40M25M16




Images of CBN engine cylinder honing stones polishing stones:

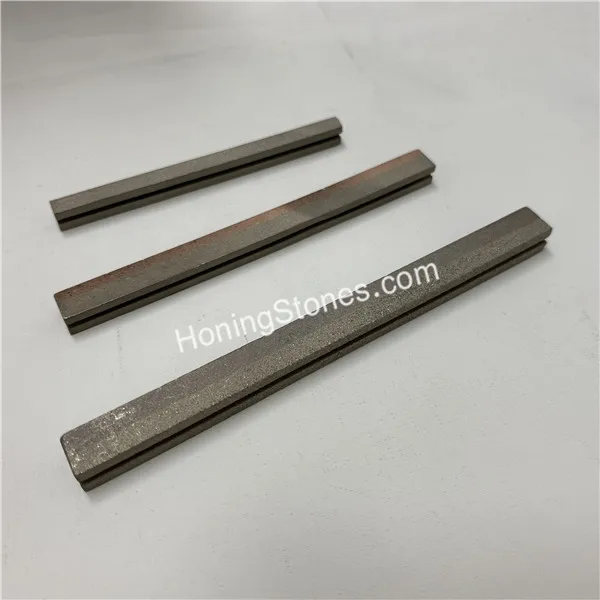

Honing Stones (39).JPG

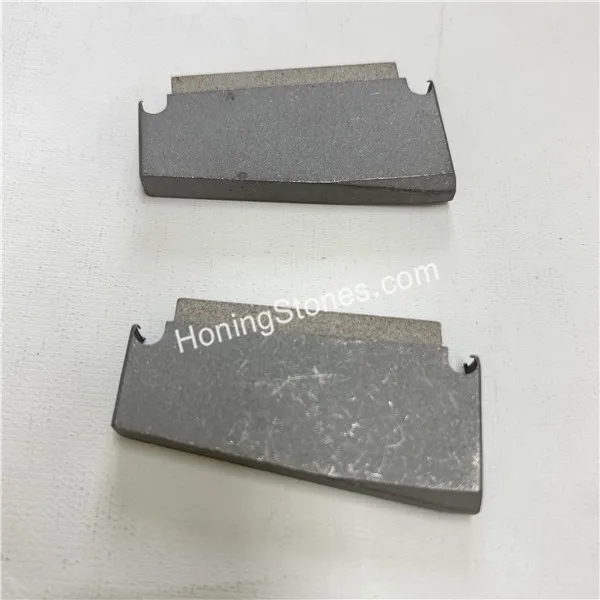

Honing Stones (65).JPG

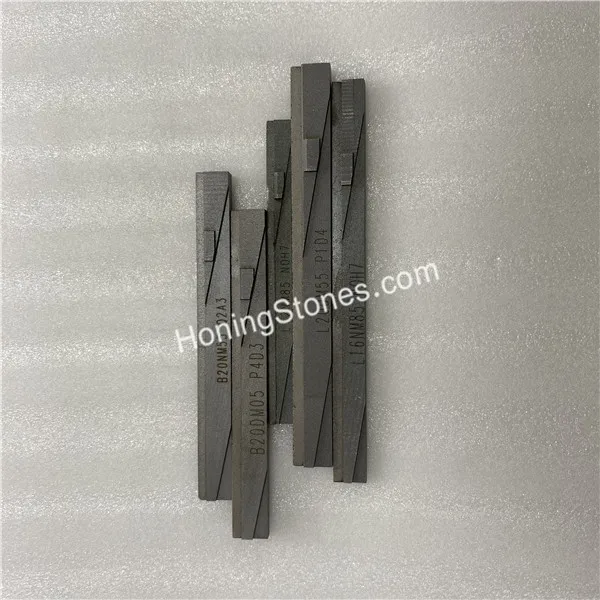

Honing Stones (116).JPG

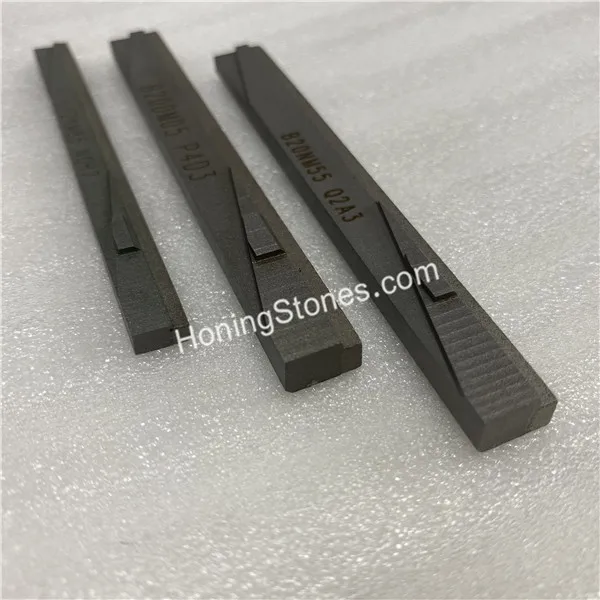

Honing Stones (119).JPG

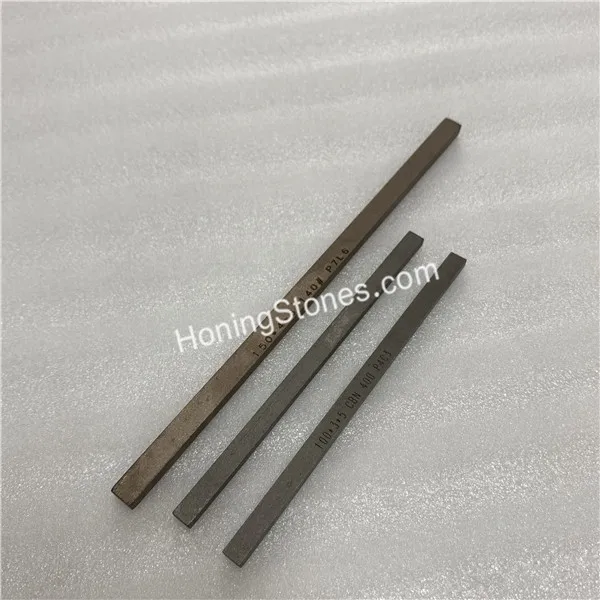

Honing Stones (209).JPG

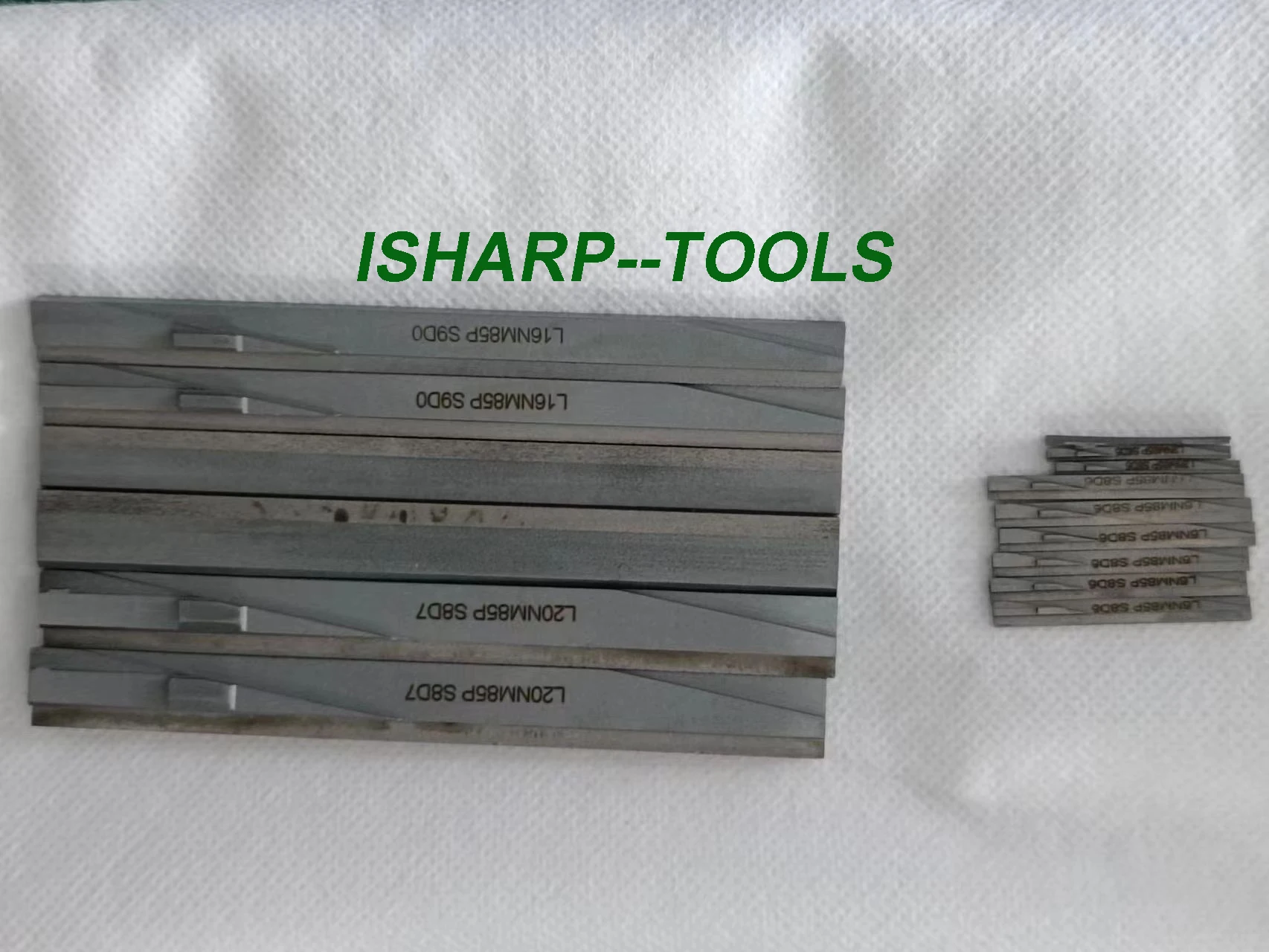

25

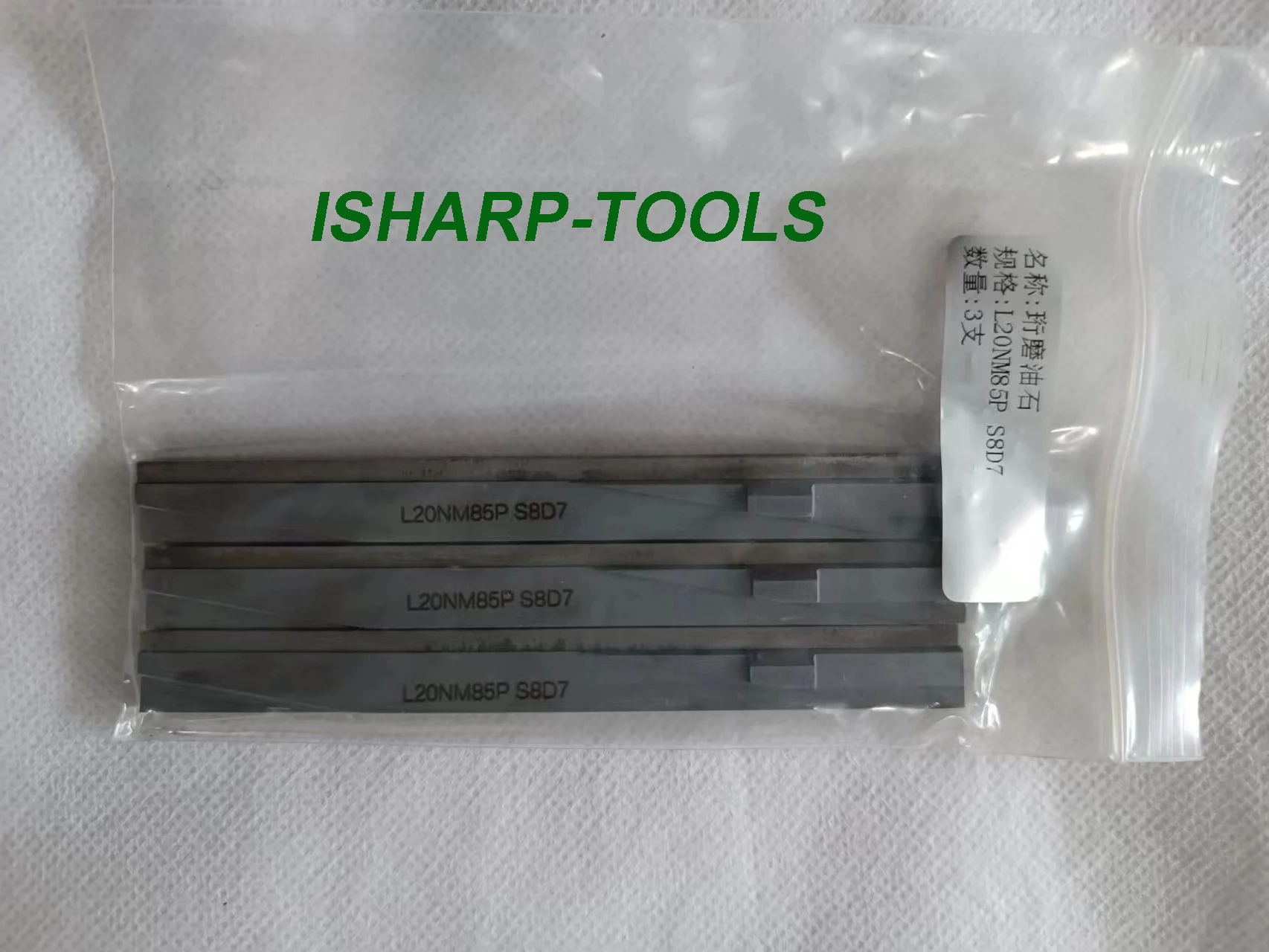

09





Packaging & Shipping


This CBN engine cylinder honing stones polishing stones are packed in white paper first, then in carton, wooden cases.


In each step, the CBN engine cylinder honing stones polishing stones is packed well to ensure safe arrival.


Besides that, sea insurance will be applied for you as once more protection.





Dressing Stone (6).jpg

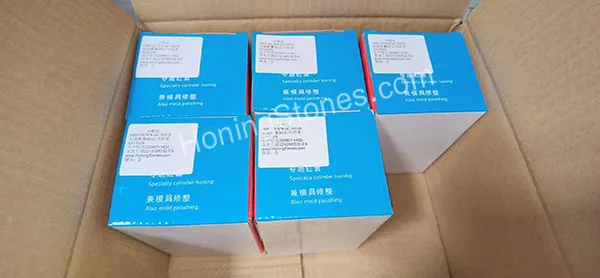

Dressing Stone (7).jpg

Dressing Stone (4).jpg







Company Information


Since 1958, Hong Bao Shi has begun researching and developing abrasive grinding stones. With different formulas, you’ll find ideal abrasive grinding stones for all kinds of working environment like cast iron, tool steel, mold steel, non-ferrous material, EDM and so on.


Especially in the honing application, you’ll find extraordinary performance of abrasive grinding stones with Hong Bao Shi’s advanced technology and top quality materials.


Why not start from the sample checking? What’s more, it’s free!
