Умный пластиковый термоплавкий станок 1500 Вт ppr/брезентовый сварочный аппарат
2 250,00-2 700,00 $
Высокочастотный сварочный аппарат 57 мм
- Категория: >>>
- Поставщик: Dongguan Jingyi High Frequency Machinery Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1600867812774:
Описание и отзывы
Характеристики
Machine Feature
1. Anti-spark electric system
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.
2. Jamming Prevention Device
Equipped with high frequency stabilizer and magnetic leakage suppressor, this device can prevent the leakage of electromagnetic radiation to avoid other electrical instruments jamming such as televisions and radios, etc.
3. Safety Device
When the current over its limit, the overload relay works automatically to protect the oscillation tubes and rectifier. The
frequency deviation caused by mistake is avoided.
4.The Special Mechanical Structure
With a excellent design and structure, the machine can works precisely and intensively.
5.Easy Tuning And Special Protection Circuit
The selectable output power can ensure the stable quality of the product. While the welding process, it could largely reduce the heating time.
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.
2. Jamming Prevention Device
Equipped with high frequency stabilizer and magnetic leakage suppressor, this device can prevent the leakage of electromagnetic radiation to avoid other electrical instruments jamming such as televisions and radios, etc.
3. Safety Device
When the current over its limit, the overload relay works automatically to protect the oscillation tubes and rectifier. The
frequency deviation caused by mistake is avoided.
4.The Special Mechanical Structure
With a excellent design and structure, the machine can works precisely and intensively.
5.Easy Tuning And Special Protection Circuit
The selectable output power can ensure the stable quality of the product. While the welding process, it could largely reduce the heating time.
Specification
Model | JY5000CZP | JY8000CZP | JY10000CZP | ||
Output Power | 5KW | 8KW | 10KW | ||
Voltage | AC 220/380/415/440V 3P 50/60HZ (Customized) | ||||
Input Power | 8.5KVA | 15KVA | 18KVA | ||
Oscillation Frequency | 27.12MHz | 27.12MHz | 27.12MHz | ||
Oscillation Tube | 7T85RB | 7T69RB | E3069 | ||
Anti-spark System | NL-5557 | NL-5557 | NL-5557 | ||
Max Pressure | 200kg | 300kg | 500kg | ||
Gap Of Electrodes | 200mm | 200mm | 200mm | ||
Size Of Upper Electrode | 250*400mm | 300*450mm | 350*500mm | ||
Machine Size | 1200*800*1850mm | 1200*800*1850mm | 1200*800*1850mm | ||
Machine Weight | 300kg | 400kg | 450kg | ||
Application

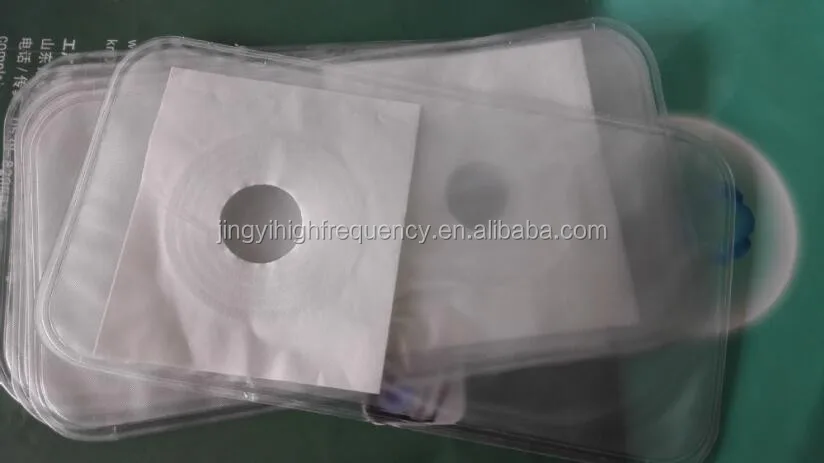

PVC,TPU PU leather, EVA, Foam shoes insole pad, footwear upper, trademarks, raincoat, stickers, PVC stretch ceiling, PVC umbrella,
PVC bag, leather bag, handbag, beach
bag, stationery, nameplate, inflatable toys, waterbed, Double PVC/PET blister package, PVC,PETG,GAG box die, urine bag, blood bag
and other medical bag, etc.
PVC bag, leather bag, handbag, beach
bag, stationery, nameplate, inflatable toys, waterbed, Double PVC/PET blister package, PVC,PETG,GAG box die, urine bag, blood bag
and other medical bag, etc.
Machine Configuration
Oscillation Tube
Good quality Oscillation Tank
5557 Anti-sparking system
Interantional Standard Strong Plywoodcase
Company Profile
FAQ
1. Who are we ?
We are based in Guangdong, China, start from 1991, sell to Domestic Market(15.00%), Southeast Asia(14.00%), North America(12.50%), Eastern Europe(12.00%), Mid East(8.00%), South America(8.00%), Western Europe(8.00%), SouthAsia(6.00%), Southern Europe(5.00%), Central America(4.00%), Oceania(2.50%), Eastern Asia(2.00%), Africa(2.00%), Northern Europe(1.00%). There are total about 51-100 people in our office.
We are based in Guangdong, China, start from 1991, sell to Domestic Market(15.00%), Southeast Asia(14.00%), North America(12.50%), Eastern Europe(12.00%), Mid East(8.00%), South America(8.00%), Western Europe(8.00%), SouthAsia(6.00%), Southern Europe(5.00%), Central America(4.00%), Oceania(2.50%), Eastern Asia(2.00%), Africa(2.00%), Northern Europe(1.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality ?
*Always a pre-production sample before mass production.
*Always final Inspection before shipment.
3. What can you buy from us?
High Frequency Plastic Welding & Cutting Machine, Ultrasonic Welding machine, Hot Air Welding Machine, Hot Press Welding Machine, Seamless Welding Machine and Spare Parts of these Machines.
*Always a pre-production sample before mass production.
*Always final Inspection before shipment.
3. What can you buy from us?
High Frequency Plastic Welding & Cutting Machine, Ultrasonic Welding machine, Hot Air Welding Machine, Hot Press Welding Machine, Seamless Welding Machine and Spare Parts of these Machines.
4. Why should you buy from us not from other suppliers ?
*Since 1991, more than 30 years manufacturing experience.
*6 years Alibaba golden supplier; annual output value USD 5,000,000
*Self-built factory and office building; a leading manufacturer
*10 Technology Research & Development engineers
* 4 Overseas offices
*Since 1991, more than 30 years manufacturing experience.
*6 years Alibaba golden supplier; annual output value USD 5,000,000
*Self-built factory and office building; a leading manufacturer
*10 Technology Research & Development engineers
* 4 Overseas offices
5. What services can we provide ?
*Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
*Accepted Payment Currency: USD,EUR,HKD,CNY;
*Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
*Warranty： 1 Year
*Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
*Accepted Payment Currency: USD,EUR,HKD,CNY;
*Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
*Warranty： 1 Year
*Shippment: Best Shipment Way and Fast Delivery
