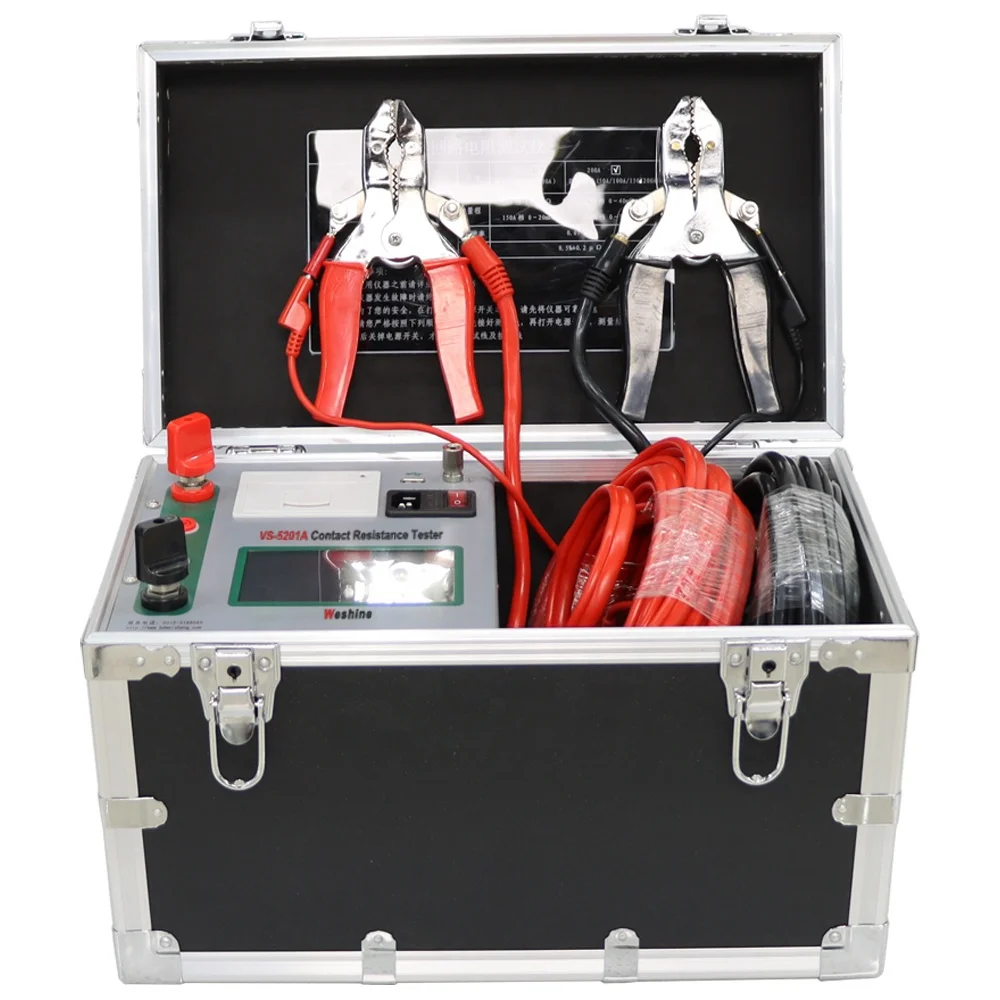

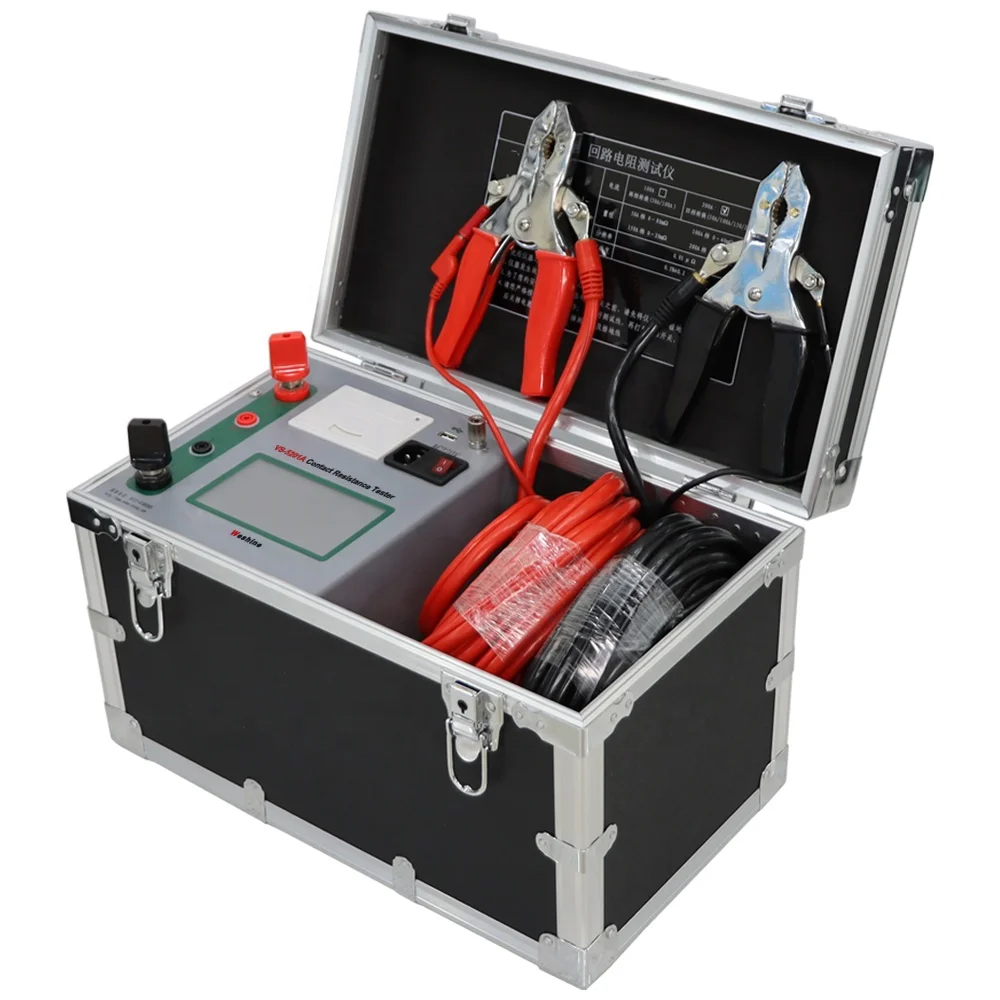

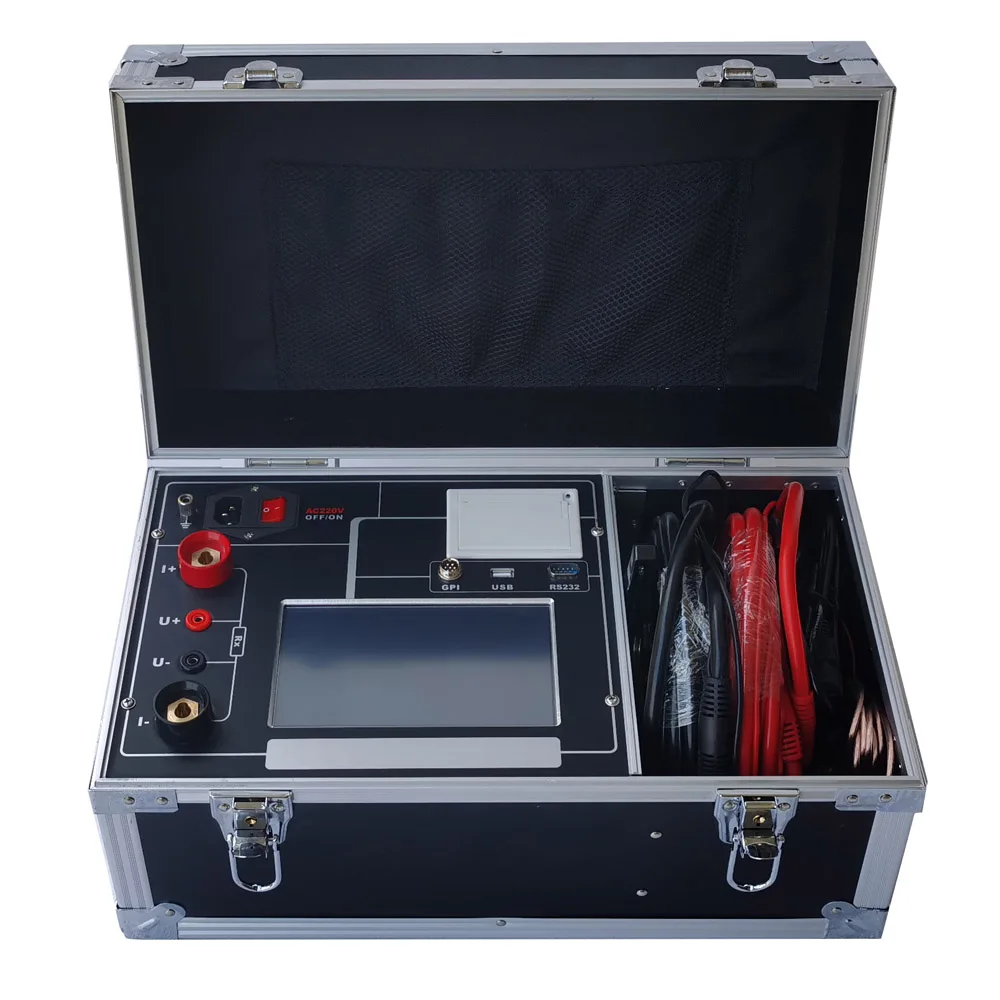

Weshine VS 5201A 200A контактное сопротивление 100A 400A 800A microhm измерения контактного сопротивления 200a

Product details

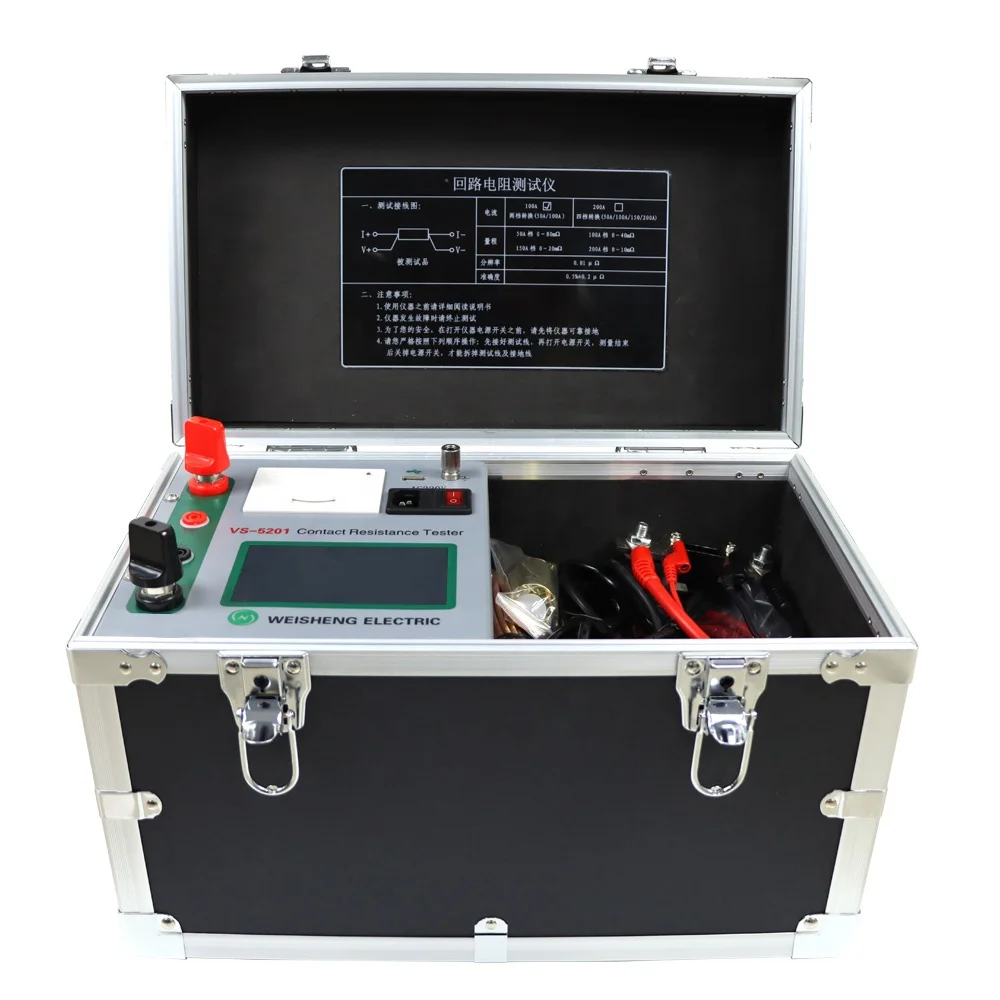

I. Overview for circuit breaker contact resistance tester

    The conductive performance of circuit breaker (hereinafter referred to as switch) conductive circuit plays an important role in ensuring the safe operation of switch. The conductive performance can be reflected by the resistance of conductive circuit. Therefore, IEC standards and manufacturers stipulate that the loop resistance should be measured, and the loop resistance of various types of switches has clear specifications.

    In the past, a double arm bridge was used. Because the voltage and current of the bridge are relatively small, when there are impurities or oxidation on the surface between the moving and static contacts of the switch, the test data will be more dispersed. At the same time, the anti-interference performance of the bridge is poor. Therefore, both GB 50150-91 and DL / T596-1996 stipulate that "DC pressure method is used" and "current is not less than 100 A".

    In order to meet the requirements of regulations, this circuit resistance tester is widely used for measuring the contact resistance and circuit resistance of various electrical switches, and the contact resistance of cables, wires and welds.

II. Features

1. The test current is large, which fully meets the requirements of the national standard for testing contact resistance.

2. High output voltage, wide measuring range, up to 100m Ω.

3. The test current comes from the high-precision 200A switch type constant current power supply, without manual adjustment, so the test is fast and accurate.

4. Using four terminal connection method, the influence of test line resistance on test results is eliminated effectively.

5. The test speed is fast, and the data is displayed in about 3 seconds.

6. It works continuously for a long time and is equipped with overheat protection circuit, so the instrument is reliable and stable.

7. Simple operation, light weight, suitable for field operation.

III. Technical Parameters

1. Test current: 50A, 100A, 200A, 600A

2. Range: 50A 0 ~ 80 m Ω

                100A 0 ~ 50 m Ω

                150A  0~ 20 m Ω

                200A 0 ~ 10 m Ω

                300A 0 ~ 6 m Ω

                600A 0 ~ 3 m Ω

3. Minimum resolution: 0.01 μ Ω

4. Accuracy: 0.5% ± 0.2 μ Ω

5. Output voltage: DC10v

6. Working mode: 100A, 50A continuous, 200A one minute

7. Power supply: AC220 V ± 10% 50 Hz

8. Power consumption: ≤ 2000W (200A type); ≤ 1000W (100a type); ≤ 1000W(100A type);

9. Service temperature: - 20 ℃~ 40 ℃

10. Relative humidity: ≤ 80%, no condensation

11. Weight: 8.5Kg

12. Dimension: 360mm × 235mm × 270mm
