Устройство для коррекции отклонения кромки Galy с инфракрасным датчиком многофункциональная GL 300 системы Epc
- Категория: >>>
- Поставщик: Wuxi Galy Co. Ltd.Wuxi Ltd.
Сохранить в закладки 1600869750815:
Описание и отзывы
Характеристики
Product Overview
AC web guide system GL-300
The automatic control system is a high-performance correction device which uses GL-300 controller to detect signal from the sensor [SG-100(infrared)and other switching value sensors] to control (linear type, center pivot type roller guide and boundary fulcrum type roller guide) movement of AC synchronous motor. In order to give full play to the performance of this device, be sure to read through the instruction manual and save it before using (so as to refer to it when you need).

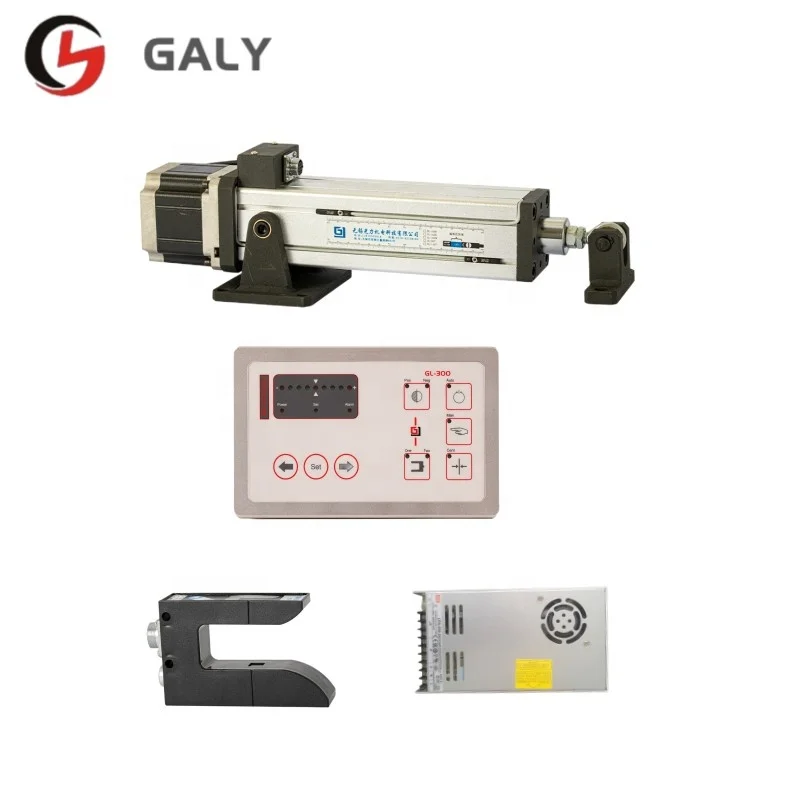

Web guide system Include :
1pc Controller
1pc Sensor
1pc Actuator
1pc Support
2pc Wires

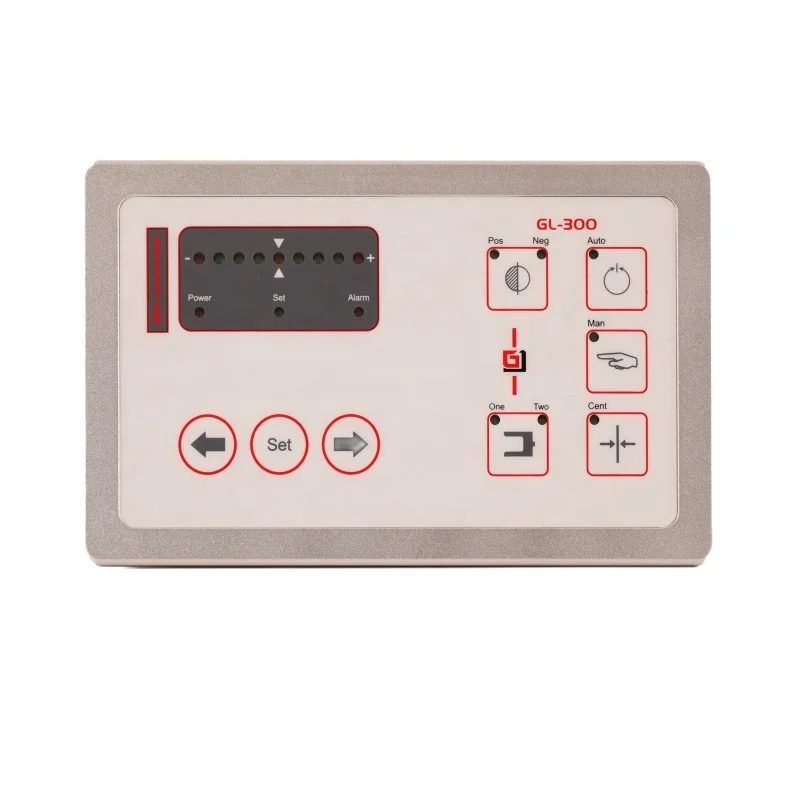

Web Guide Controller
Features :
1.Beautiful and compact appearance, high process level, strong anti-interference ability, strong anti-corrosion ability, simple and convenient installation.
2. modular design, high stability, no vulnerable components and no maintenance.
3. There is no operation knob on the operation interface, and the operation is simple and intuitive by gently touching the
key, which can prevent misoperation.
4. The system is highly integrated, and the set parameters are saved automatically. The control accuracy can reach
0.02mm.
5. Single / dual channel (itlcoms) signal input. 6 remote manual / automatic mode control, limit alarm relay output, drive
current overload protection
2. modular design, high stability, no vulnerable components and no maintenance.
3. There is no operation knob on the operation interface, and the operation is simple and intuitive by gently touching the
key, which can prevent misoperation.
4. The system is highly integrated, and the set parameters are saved automatically. The control accuracy can reach
0.02mm.
5. Single / dual channel (itlcoms) signal input. 6 remote manual / automatic mode control, limit alarm relay output, drive
current overload protection
Parameters :
Input power | AC220±5% |
Input current | ≥2A |
Output voltage | AC220V |
Output current | Maximum is 2A |
Control mode | Closed loop |
Sensor signal input | Two-channel electrical level to the maximum |
Operating environment | 0℃-40℃(humidity is below 80%RH) |
Installation way | Embedded |
Outline dimension | 156 long ×93 wide×106mm deep |
Weight | About 1kg |

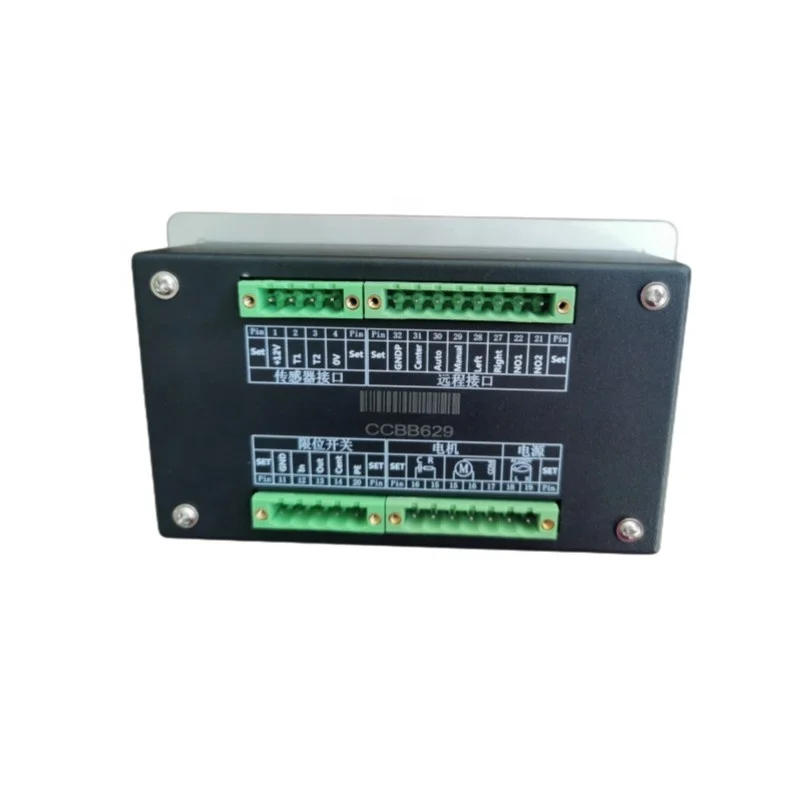

Installation Dimensions and Wire Connections

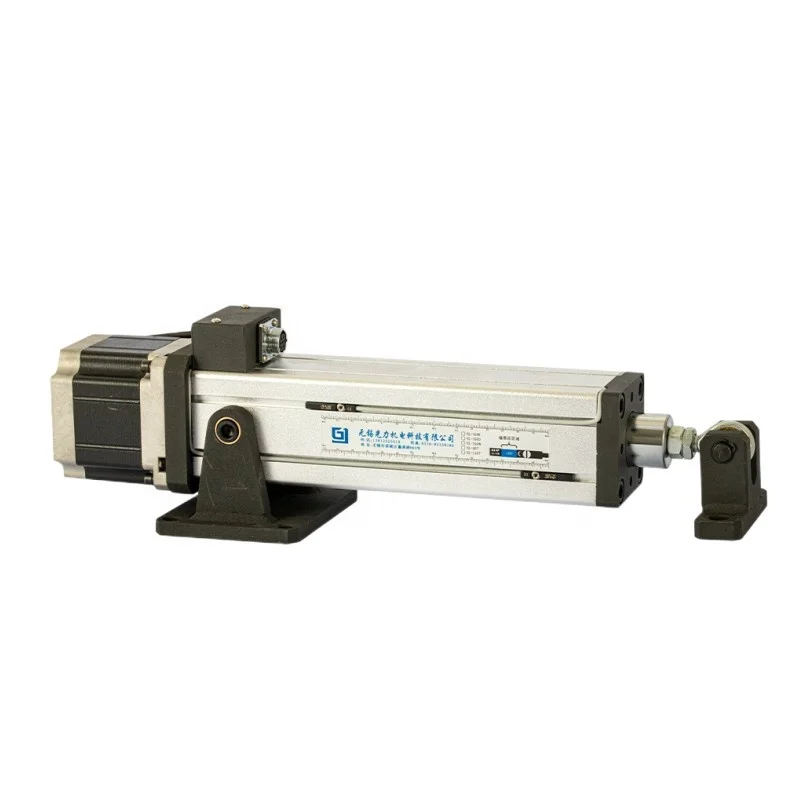

Web Guide Actuator
Parameters:
Linear type driver is divided into two kinds, the specific characteristics and parameters are as follows:
Drive model | Allowable thrust (kg.f) | Allowable weight | Stroke | Actuating Speed | Motor Power | motor | ||||||
(kg) | (mm) | (mm) | ||||||||||
SL-90T | 200 | 2000 | 150 | 12 | AC220V/50Hz | AC synchronous motor | ||||||
SL-110T | 300 | 3000 | 150 | 12 | AC220V/50Hz | |||||||
Attention! The journey of rectification frame must be greater than the range of driver | ||||||||||||
Installation Dimensions
Web Guide Sensor
Web Guide Sensor SG-500 / SG-100
Optional Sensors and Installation Dimensions
Ultrasonic sensor SG-500
Installation Dimensions

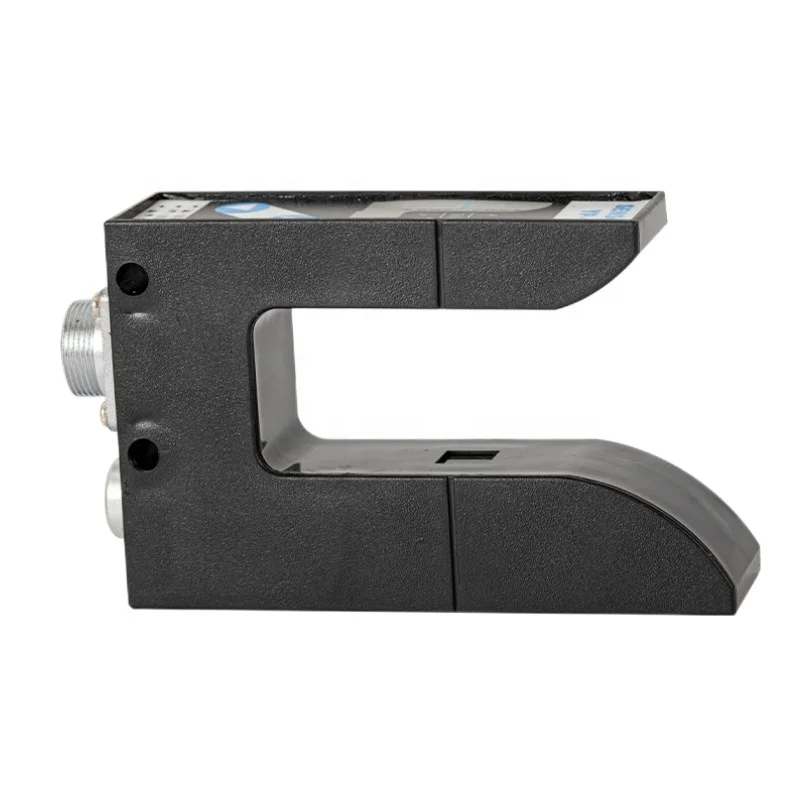

Infrared sensor SG-100
Installation Dimensions
Parameters
Model | SG-500 ultrasonic sensor | SG-100 infrared sensor | SG-30B Diffuse sensor | SG-50B Thru-beam sensor |
Detection mode | For edges | Opposite side | Reflective | Thru-beam |
Detection distance (mm) | 51mm | 30mm | 300mm | 10m |
Detection range (mm) | 0.01 | 0.01 | 0.5 | 0.5 |
Detecting element | ultrasonic | Imported silicon photocell | LED red light | LED red light |
Working voltage | DC10-30V | DC10-30V | DC12-24V | DC12-24V |
Use and characteristics | Ultra-transparent film,narrow film | Ordinary transparent, mesh semi-transparent film, | Black non-reflective and reflective material | Opaque material |
How to choose sensor ?
Coiled Material | Ultrasonic Sensor | Photosensor / Infrared Sensor |
Transparent film | ok | Transparence less than 90% |
Untransparent film | ok | ok |
Paper | ok | ok |
Chaff | ok | ok |
Metal sheet | ok | ok |
Cloth | ok | |
Cloth/permeability materials | ok |
Main Hot Products
Applications
Company Profile
FAQ
Galy Edge Deviation Control System Deviation Correcting Device with Infrared sensor Multi function Epc System GL-300
1. What parts are included of one whole set?Web guide controller, web guide sensor, web guide actuator, support, wire, switching power supply.
2. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell
usin your email, so that we can regard your inquiry priority.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Usually we have in stock and can ship within 3 days after payment.If it is customized or the quantity is relatively large, it
generally takes 10-15 days to ship.
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
Похожие товары

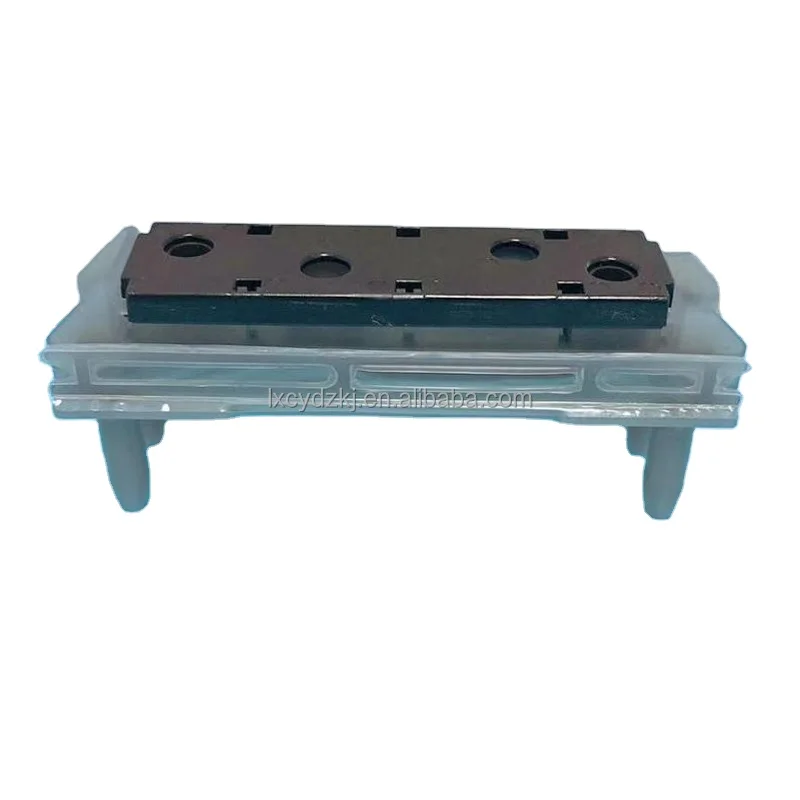

Новый оригинальный струйный принтер Mimaki GEN демпфер адаптер в сборе MP-M014497 UJF3042FX UJF 3042 MP-M01110
58,00-85,00 $

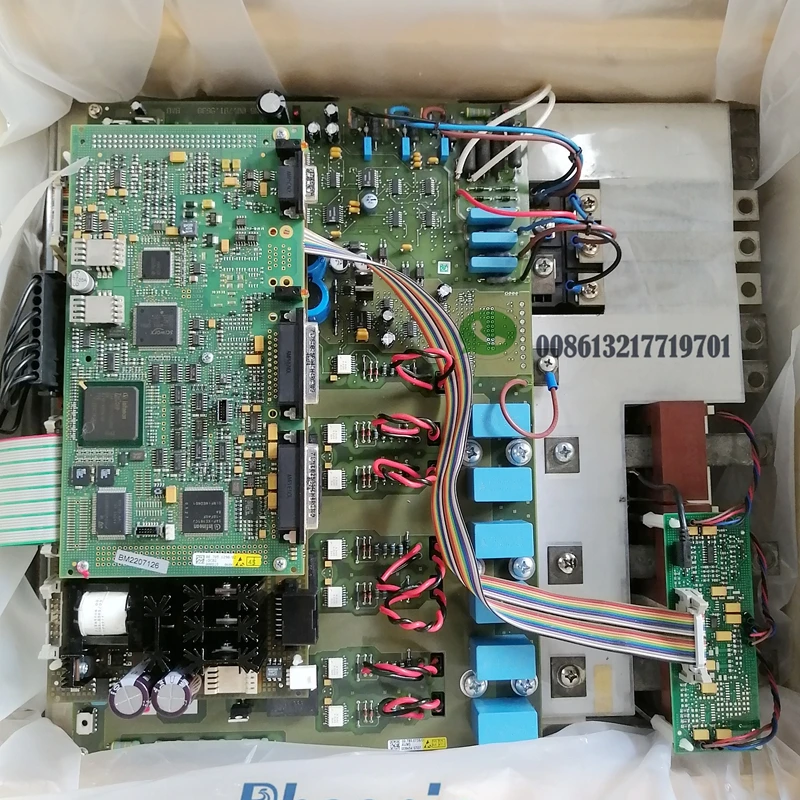

Оригинальный б/у основной контроллер MDPS55 00.785.1196 00.785.0726 AVM5 00.785.1290 VDCB2 подходит для печатной машины Heidelberg

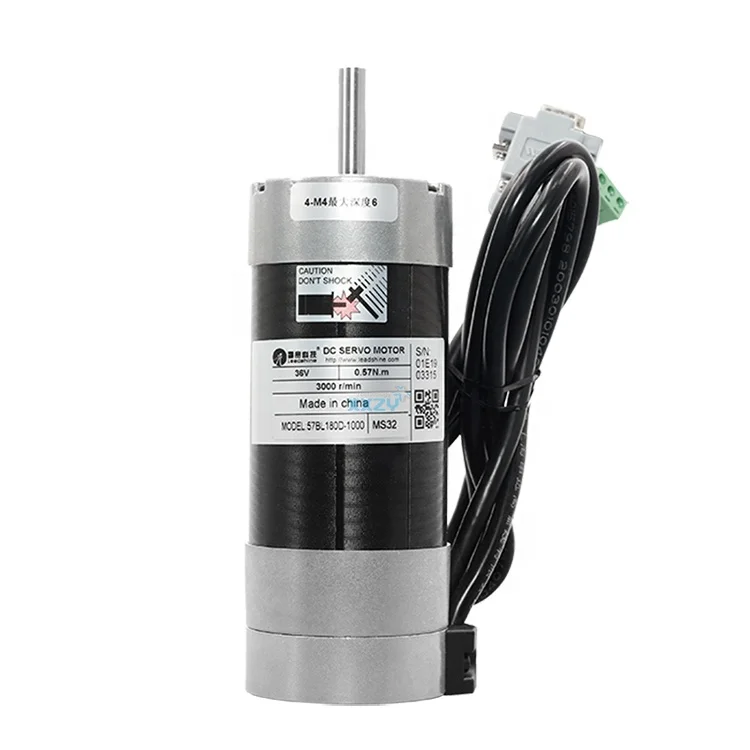

Оригинальный Серводвигатель Leadshine 57BL180D-1000 DC 36 в 3000 об/мин для струйного принтера Allwin Human Yaselan серводвигатель
95,00-97,60 $

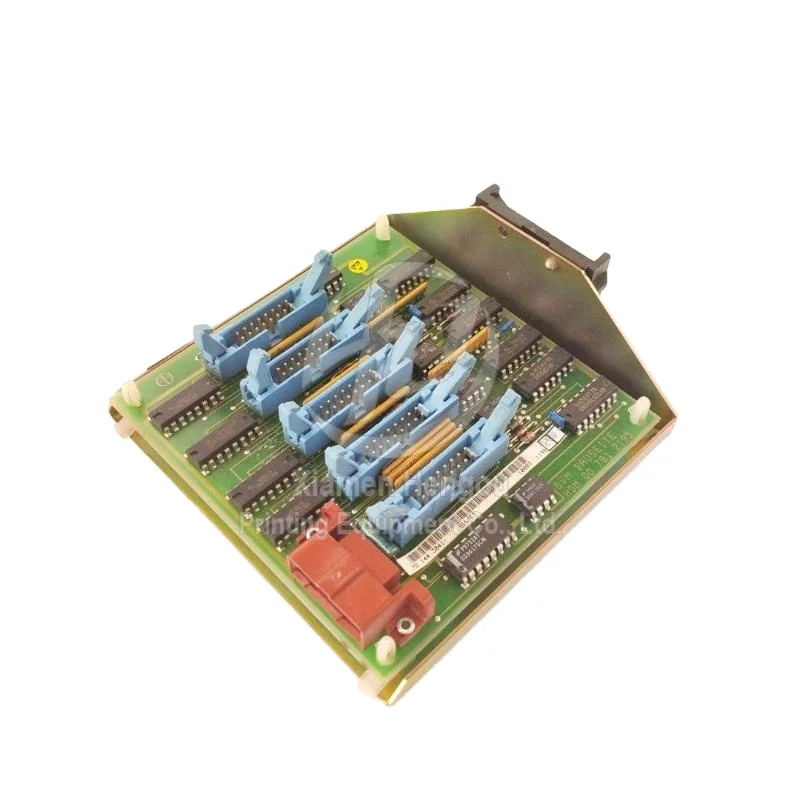

SVM board M2.144.3041 00.781.2195 92% новая Оригинальная хорошая работа для SM 52 офсетная печатная машина запасные части

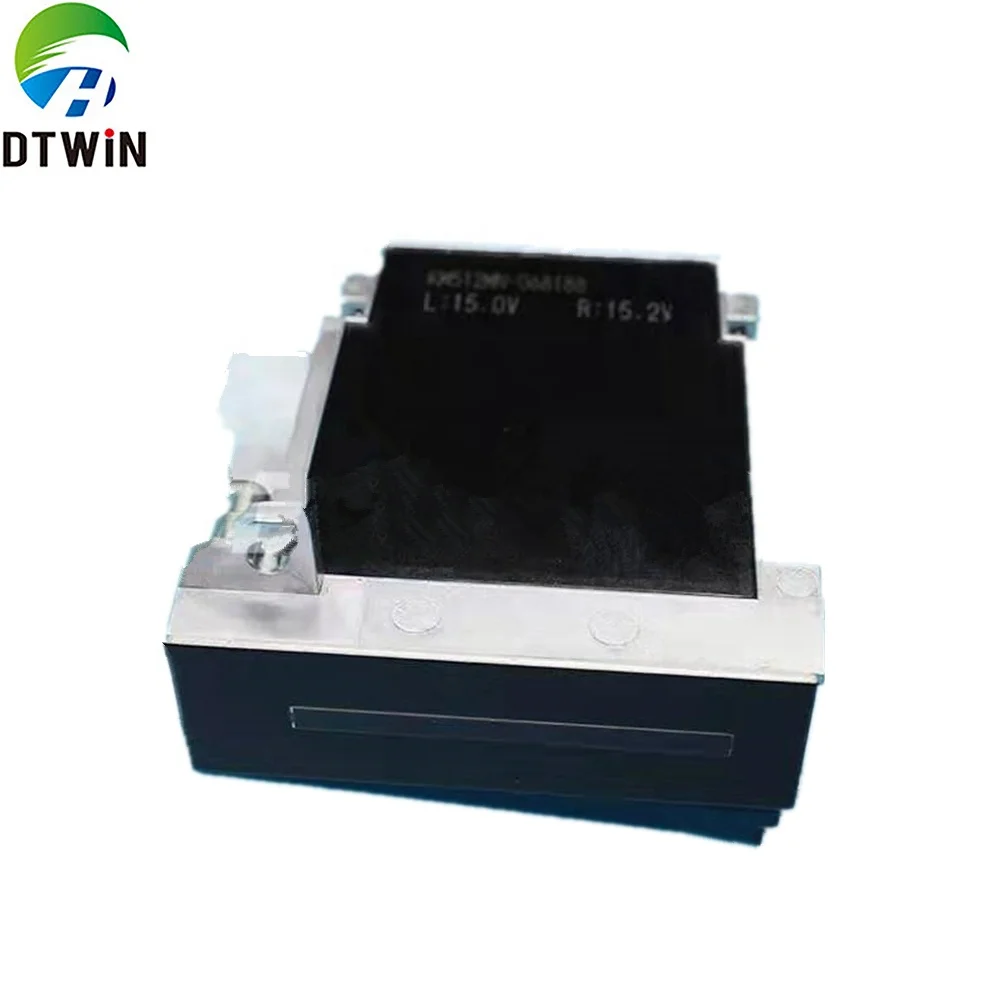

Печатающая головка Liyu PZ 3204 KM 512MN
750,00-810,00 $

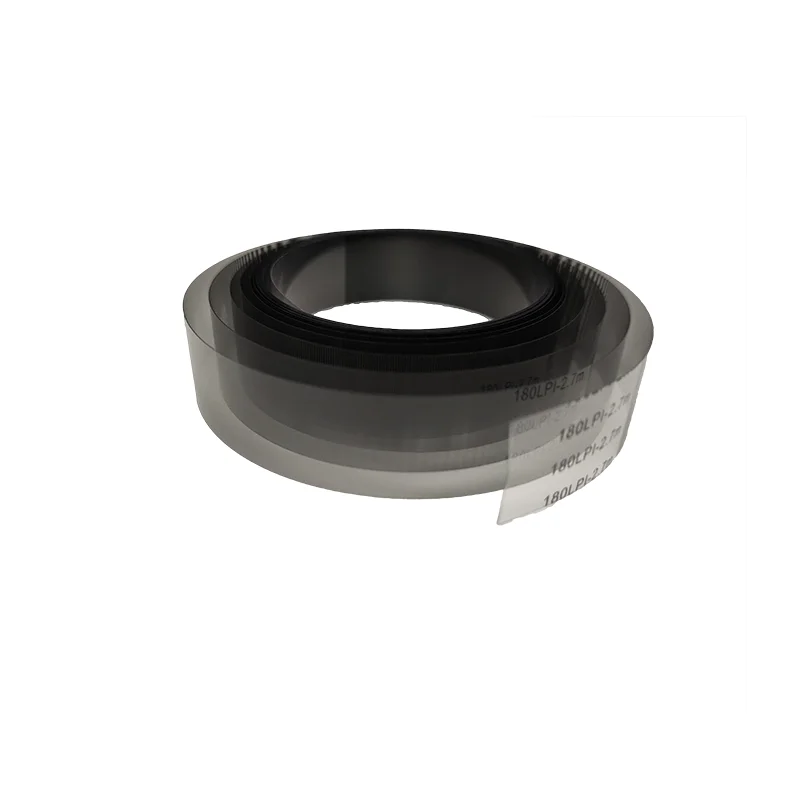

Кодер растровых полосок принтера для dtf
20,00-25,00 $

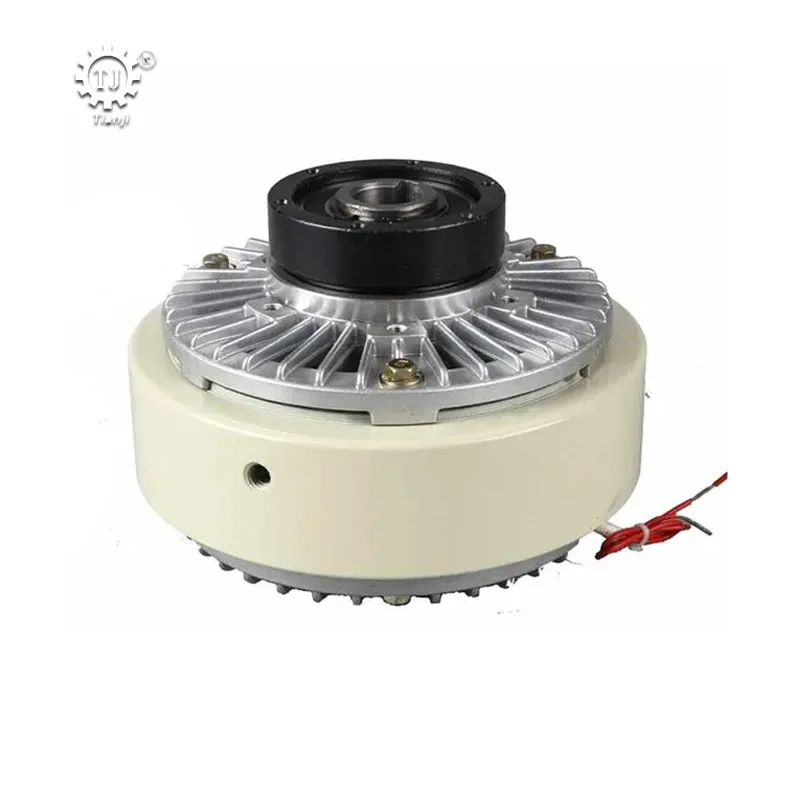

Лидер продаж новый двухвальный Магнитный порошковый тормоз сцепления для офсетной печатной машины
