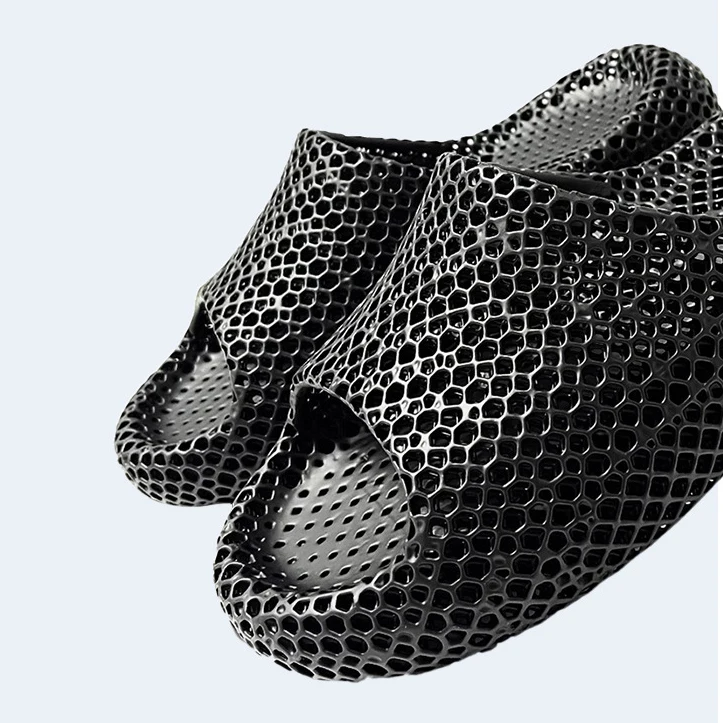

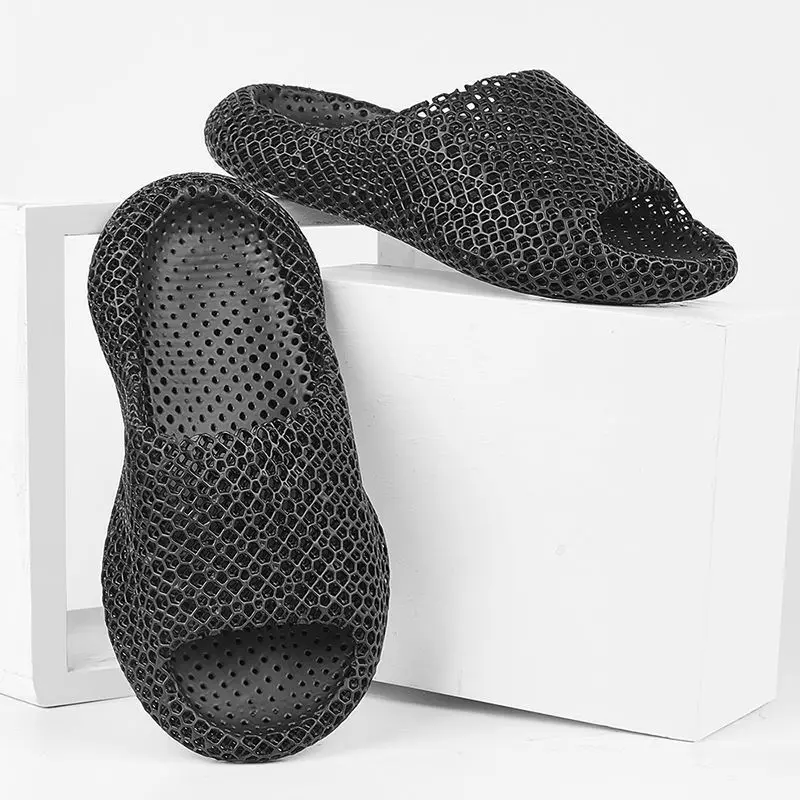

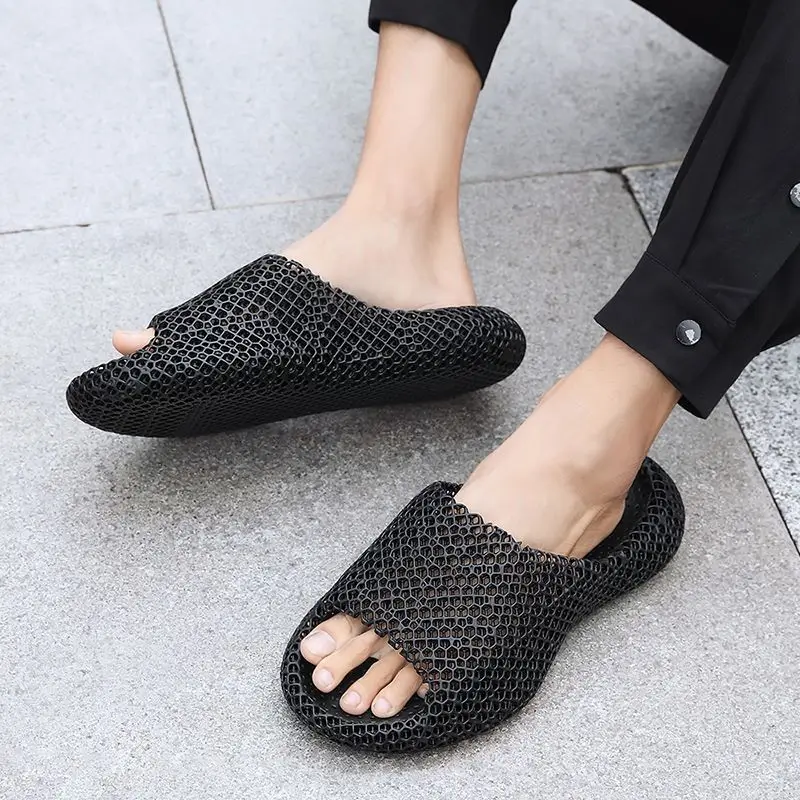

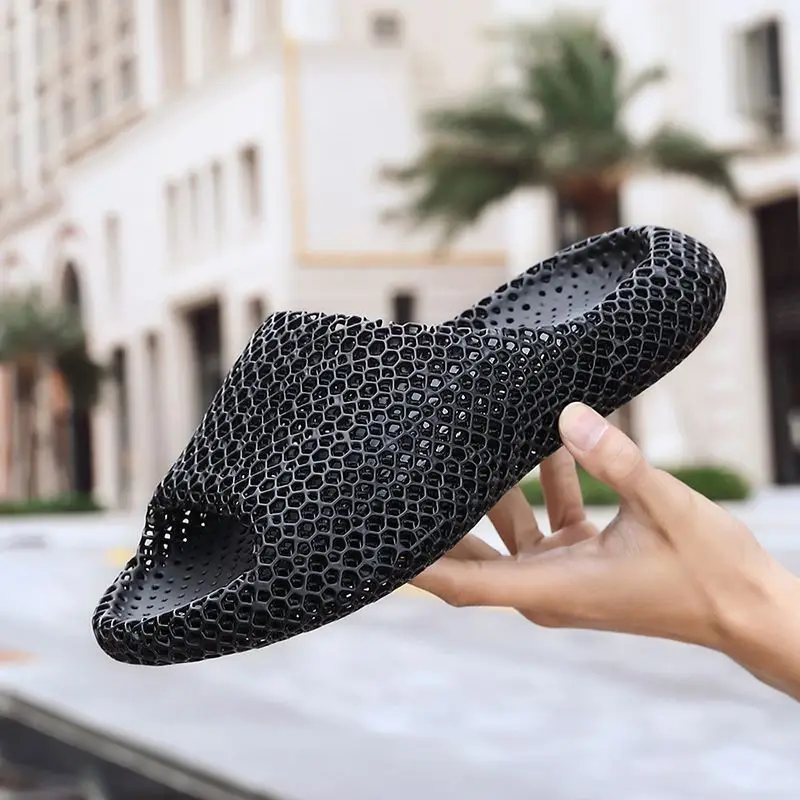

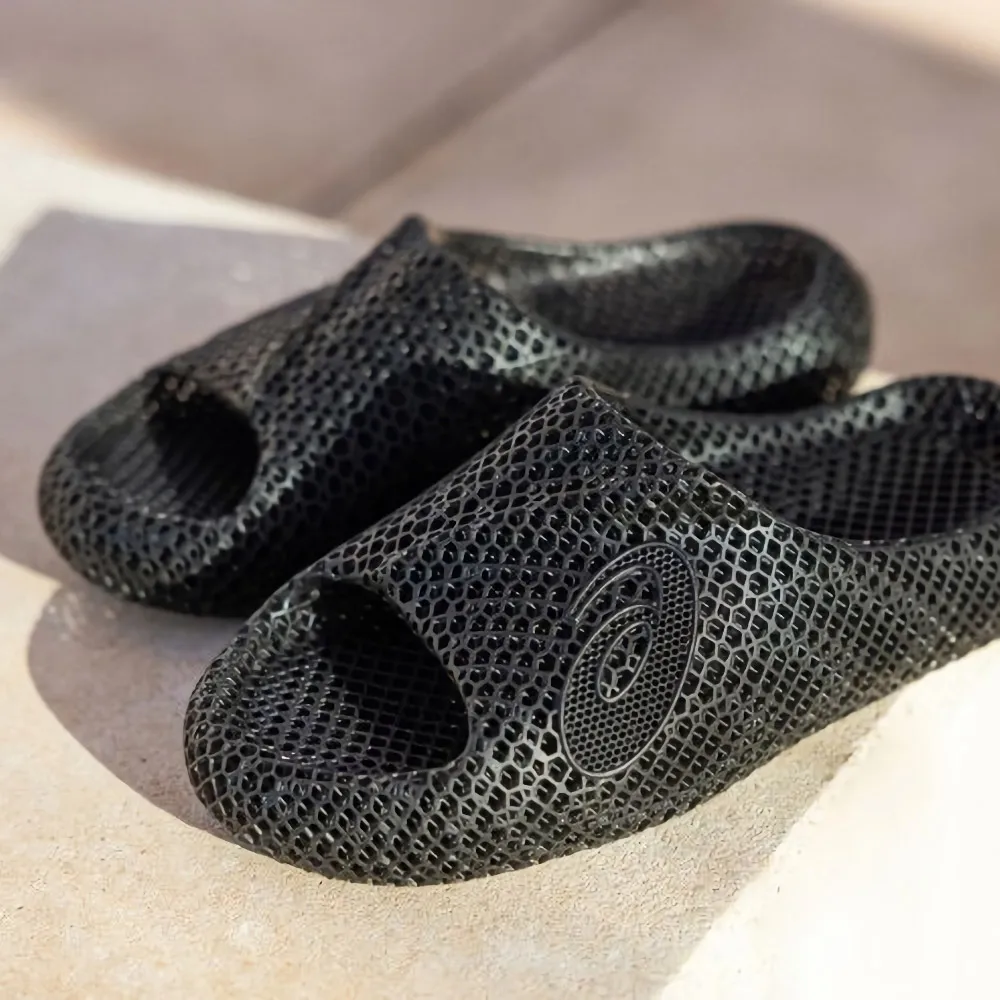

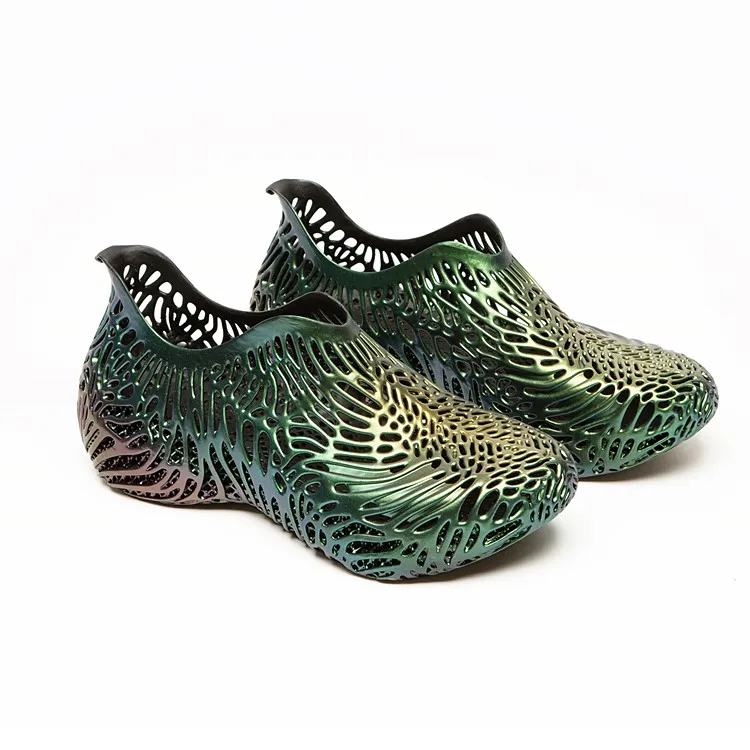

Удобная спортивная обувь с 3D-принтом
95,50-136,40 $
3D печать поставщик/модные босоногие туфли Кроссовки Тапочки 3d сервис
- Категория: >>>
- Поставщик: Anqing Wayne Hand Model Technology Co. Ltd.Anqing Ltd.
Сохранить в закладки 1600869771848:
Описание и отзывы
Характеристики
SLA 3D printing creates highly precise parts with a smooth surface texture.
Mostly used to build prototypes that depict the final product with high visual accuracy.
Concept Models: The speed, accuracy, and great surface finish of SLA parts lets product developers create physical snapshots of their designs through the iterative process.
Rapid Prototyping: SLA prototyping is a fully-functional prototype, with materials that can simulate polypropylene, polycarbonate, ABS, and rigid composites.
Direct Digital Manufacturing: The high accuracy and consistency of SLA makes it an ideal way to build large quantities of discrete or customized parts.
How does SLA work?
Here is how the SLA fabrication process works:
1. The build platform is first positioned in the tank of liquid photopolymer, at a distance of one layer height for the surface of the liquid.
2. Then a UV laser creates the next layer by selectively curing and solidifying the photopolymer resin. The laser beam is focused in the predetermined path using a set of mirrors, called galvo. The whole cross sectional area of the model is scanned, so the produced part is fully solid.
3. When a layer is finished, the platform moves at a safe distance and the sweeper blade re-coats the surface. The process then repeats until the part is complete.
4. After printing, the part is in a green, no-fully-cured state and requires further post processing under UV light if very high mechanical and thermal properties are required.
The liquid resin is solidified through a process called c: during solidification, the monomer carbon chains that compose the liquid resin are activated by the light of the UV laser and become solid, creating strong unbreakable bonds between each other.The photo polymerization process is irreversible and there is no way to convert the SLA parts back to their liquid form: when heated, they will burn instead of melting. This is because the materials that are produced with SLA are made of thermoset polymers, as opposed to the thermoplastics that FDM uses.
Rapid Prototyping: SLA prototyping is a fully-functional prototype, with materials that can simulate polypropylene, polycarbonate, ABS, and rigid composites.
Direct Digital Manufacturing: The high accuracy and consistency of SLA makes it an ideal way to build large quantities of discrete or customized parts.
How does SLA work?
Here is how the SLA fabrication process works:
1. The build platform is first positioned in the tank of liquid photopolymer, at a distance of one layer height for the surface of the liquid.
2. Then a UV laser creates the next layer by selectively curing and solidifying the photopolymer resin. The laser beam is focused in the predetermined path using a set of mirrors, called galvo. The whole cross sectional area of the model is scanned, so the produced part is fully solid.
3. When a layer is finished, the platform moves at a safe distance and the sweeper blade re-coats the surface. The process then repeats until the part is complete.
4. After printing, the part is in a green, no-fully-cured state and requires further post processing under UV light if very high mechanical and thermal properties are required.
The liquid resin is solidified through a process called c: during solidification, the monomer carbon chains that compose the liquid resin are activated by the light of the UV laser and become solid, creating strong unbreakable bonds between each other.The photo polymerization process is irreversible and there is no way to convert the SLA parts back to their liquid form: when heated, they will burn instead of melting. This is because the materials that are produced with SLA are made of thermoset polymers, as opposed to the thermoplastics that FDM uses.
Material
Material Name | Description | Flexural Strength (MPa/KSI) | Elongation at Break (%) | HDT@0.46 MPa (°C) |
Accura ClearVue | Clear/Translucent, PC-like | 67 MPa/KSI | 7% | 46 °C |
Somos Watershed Black | Black/Dark-Grey, ABS-like | 69 MPa/KSI | 15% | 50 °C |
Somos WaterShed XC 11122 | Clear/Translucent, ABS-like | 69 MPa/KSI | 15% | 50 °C |
Somos EvoLVe 128 | White, ABS-like | 70 MPa/KSI | 11% | 52 °C |
Accura Xtreme Grey | Grey, ABS-like | 71 MPa/KSI | 22% | 62 °C |
Somos ProtoGen 18420 | White, ABS-like | 71 MPa/KSI | 16% | 47 °C |
Somos Taurus | Dark Gray, ABS-like | 74 MPa/KSI | 24% | 62 °C |
Size and Tolerance
Description | Standard Resolution | High Resolution |
Build envelope | 29” x 25” x 21” | 10” x 10” x 10” |
Tolerance, XY Plane | +/- 0.005” for the first inch is typical, plus +/- 0.002” for every inch thereafter. | +/- 0.005” for the first inch is typical, plus +/- 0.002” for every inch thereafter. |
Tolerance, Z Plane | +/- 0.010” for the first inch is typical, plus +/- 0.002” for every inch thereafter. | +/- 0.010” for the first inch is typical, plus +/- 0.002” for every inch thereafter. |
Layer height | 0.004" | 0.002" |
Minimum linear feature size | Under 0.030” are at risk and under 0.020” will not build. | Under 0.020” are at risk and under 0.010” will not build. |
Minimum radial feature size | 0.035" | 0.030" |
Surface Treatment
Applications in Prototype
Applications in Life
Company Profile
WAYNE PROTOTYPE
Wayne Prototype is a specialists at design and engineering company who support you from the concept stage to prototyping and fabrication of the completed product with plastic injection molding. Whether you need prototypes or production parts, we can make them for you on demand in as fast as a day. We are your one-stop manufacturer for accurate, precise, custom 3D printed parts at an affordable price. We print everything from single prototypes to thousands of production-grade parts.
We use the latest additive manufacturing technology to build affordable functional parts in over 20 metals and plastics. WayNe Prototype offers four high-quality 3D printing processes including stereolithography (SLA), direct metal laser sintering(DMLS), HP Multi Jet Fusion (MJF) and selective laser sintering(SLS). Our main goal is to help companies to turn their dream projects into reality. We work very closely with our clients and strive to give them the best services at all times., We use industrial-grade printers such as hp printer, Union-Tech SLA printer, EOS printer and DMLS and more.
We make all projects possible and get your idea valued, designed, tested, prototyped and manufactured in a fast, reliable, easy and supportive way.
You think it, we make it !
Surface Finishes Operation Site
Our Services
What is the average turn around for 3D printed parts?
--Most 3D printed parts can be made the same business day, howevercomplexities, multi-materials, quantity of parts and increase lead times. Shipping time is subject to preferences.
Can you expedite rush orders of custom parts?
--Yes, we can accomodate to rush orders and expedited delivery for your custom parts.
What 3D printing materials and technologies do you offer?
--We can produce parts in FDM, PolyJet, Stereolithography, Origin One (P3 Technologies), and SAF (Powderbed Fusion) technologies.With access to over 50+ different material options.
Is there a minimum order amount required?
--No, there is not.
What type of files do I need to prepare for print?
--Native CAD, STL, 3MF, STEP and IGES.
What objects can you 3D print?
3D printing is being applied in many different areas to manufacture components and end use parts. Some of the countless objects, you can 3D print are:
* Aircraft Bracket
* Pump Impeller
* Sprocket
* End Effector
* Soft Jaws
* Welding Fixture
* CMM Fixture
* Assembly Jig
* Brake Lever
* Metal Bracket
* Stainless Steel Clevis
* Motor Housing
* Engine Block Model
* Oil Pan
* Gear Set
* Spaceship Model
* Vase
* Jewelry
* Water Bottle
Can you expedite rush orders of custom parts?
--Yes, we can accomodate to rush orders and expedited delivery for your custom parts.
What 3D printing materials and technologies do you offer?
--We can produce parts in FDM, PolyJet, Stereolithography, Origin One (P3 Technologies), and SAF (Powderbed Fusion) technologies.With access to over 50+ different material options.
Is there a minimum order amount required?
--No, there is not.
What type of files do I need to prepare for print?
--Native CAD, STL, 3MF, STEP and IGES.
What objects can you 3D print?
3D printing is being applied in many different areas to manufacture components and end use parts. Some of the countless objects, you can 3D print are:
* Aircraft Bracket
* Pump Impeller
* Sprocket
* End Effector
* Soft Jaws
* Welding Fixture
* CMM Fixture
* Assembly Jig
* Brake Lever
* Metal Bracket
* Stainless Steel Clevis
* Motor Housing
* Engine Block Model
* Oil Pan
* Gear Set
* Spaceship Model
* Vase
* Jewelry
* Water Bottle
Похожие товары

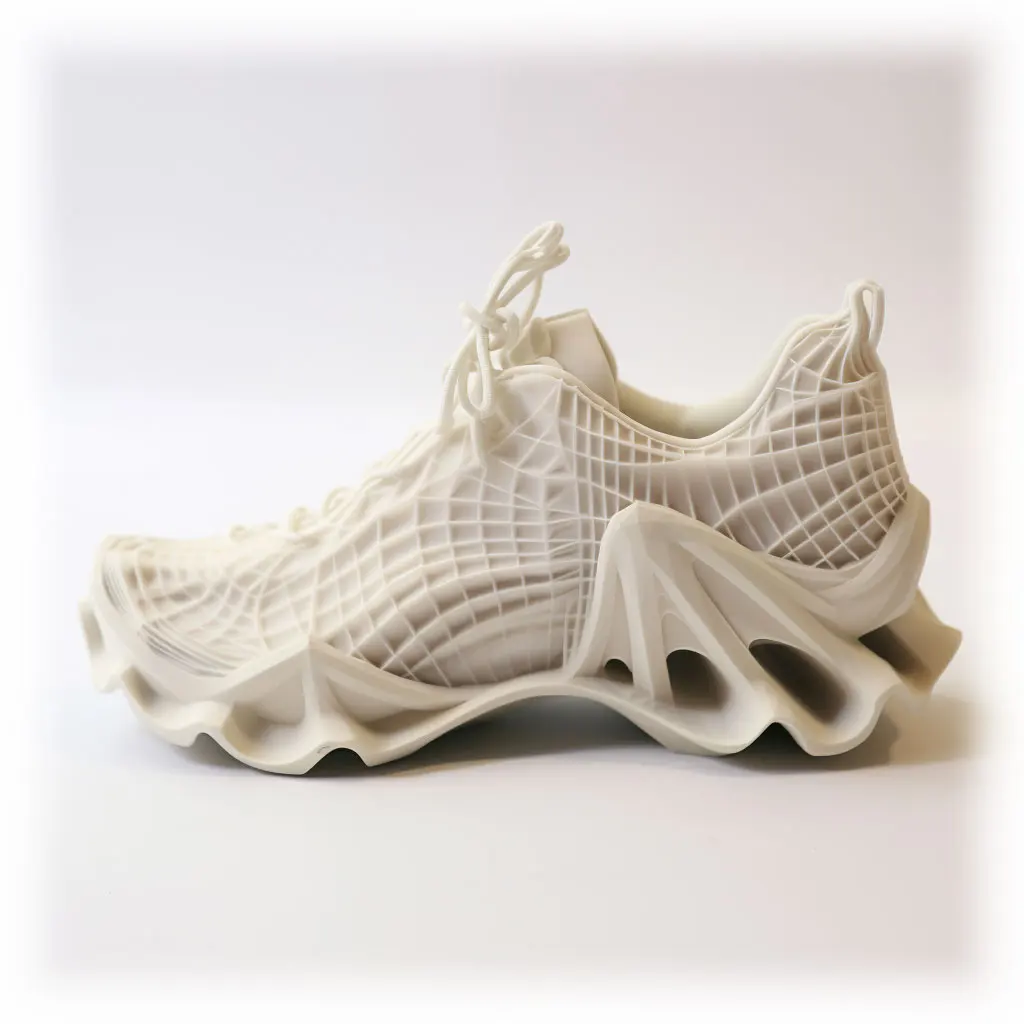

3D печатная обувь под заказ спортивная печать сервис
Высококачественная модель автомобиля нейлоновая смола 3D печать индивидуальная дизайнерская услуга 3D-печати на заказ

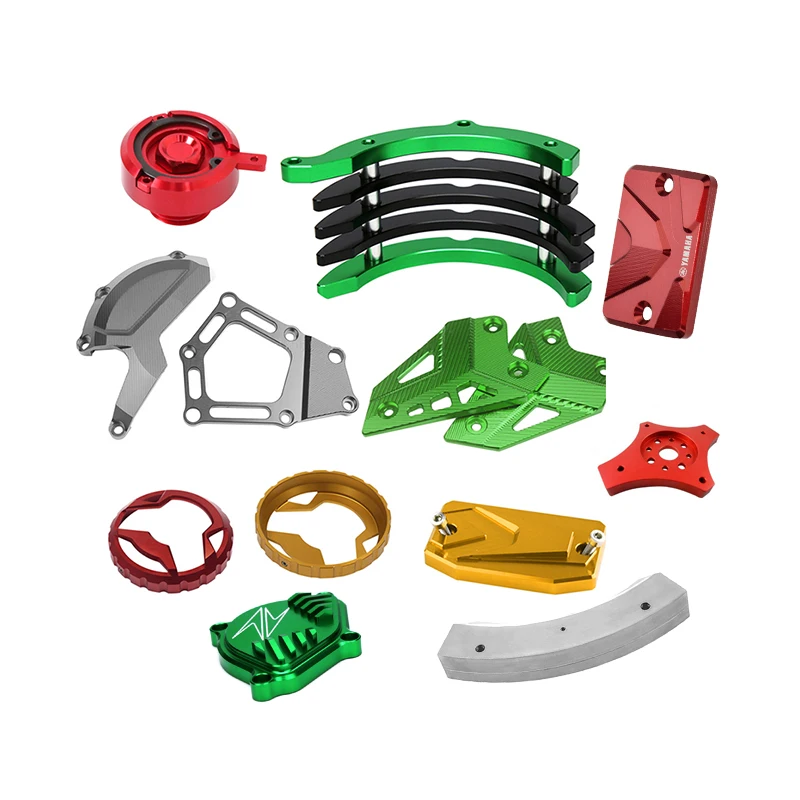

Custom Made Scooter Accessories Titanium 3 Wheel Electric Spare Parts Aluminum Cnc Machining Products
