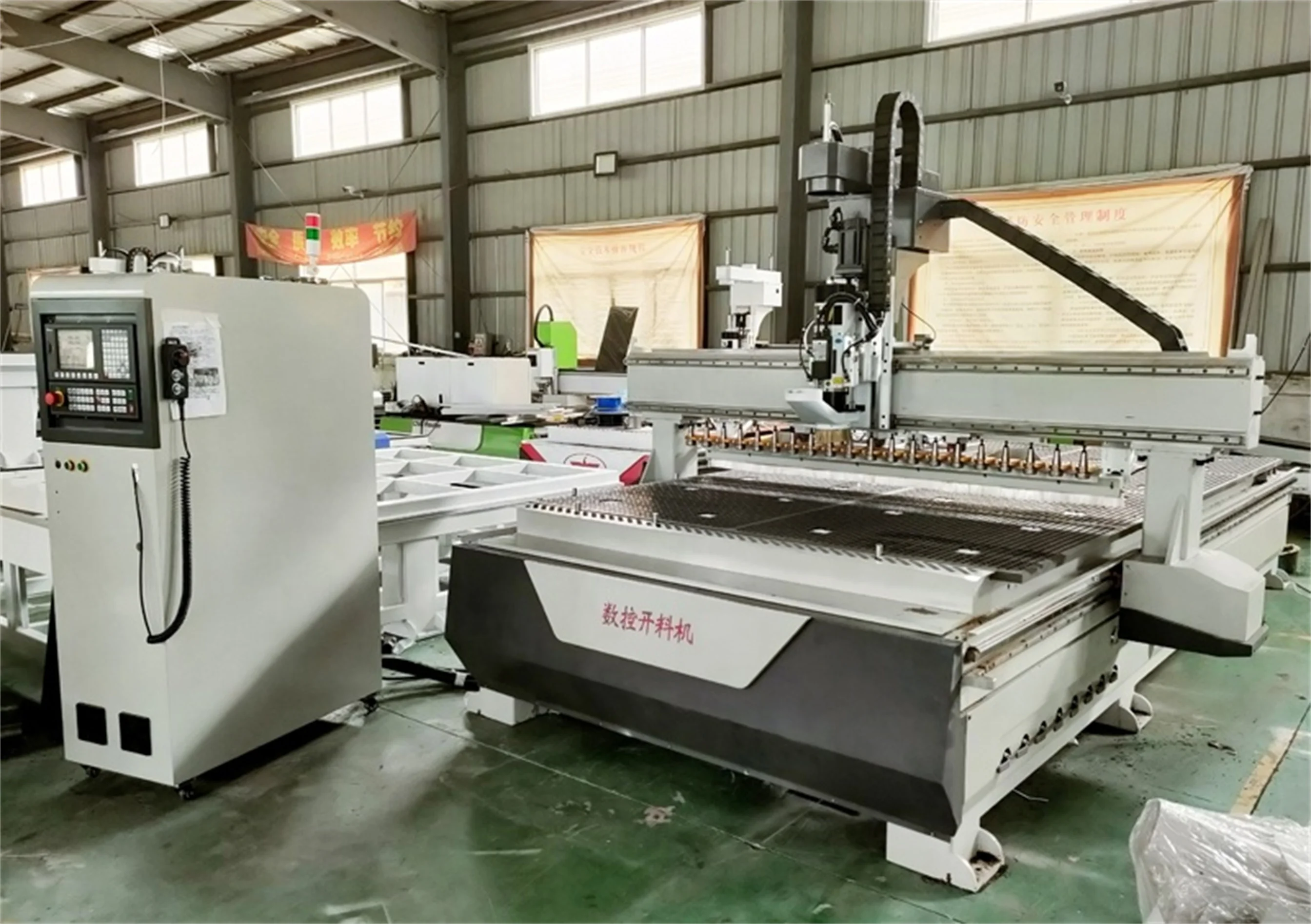

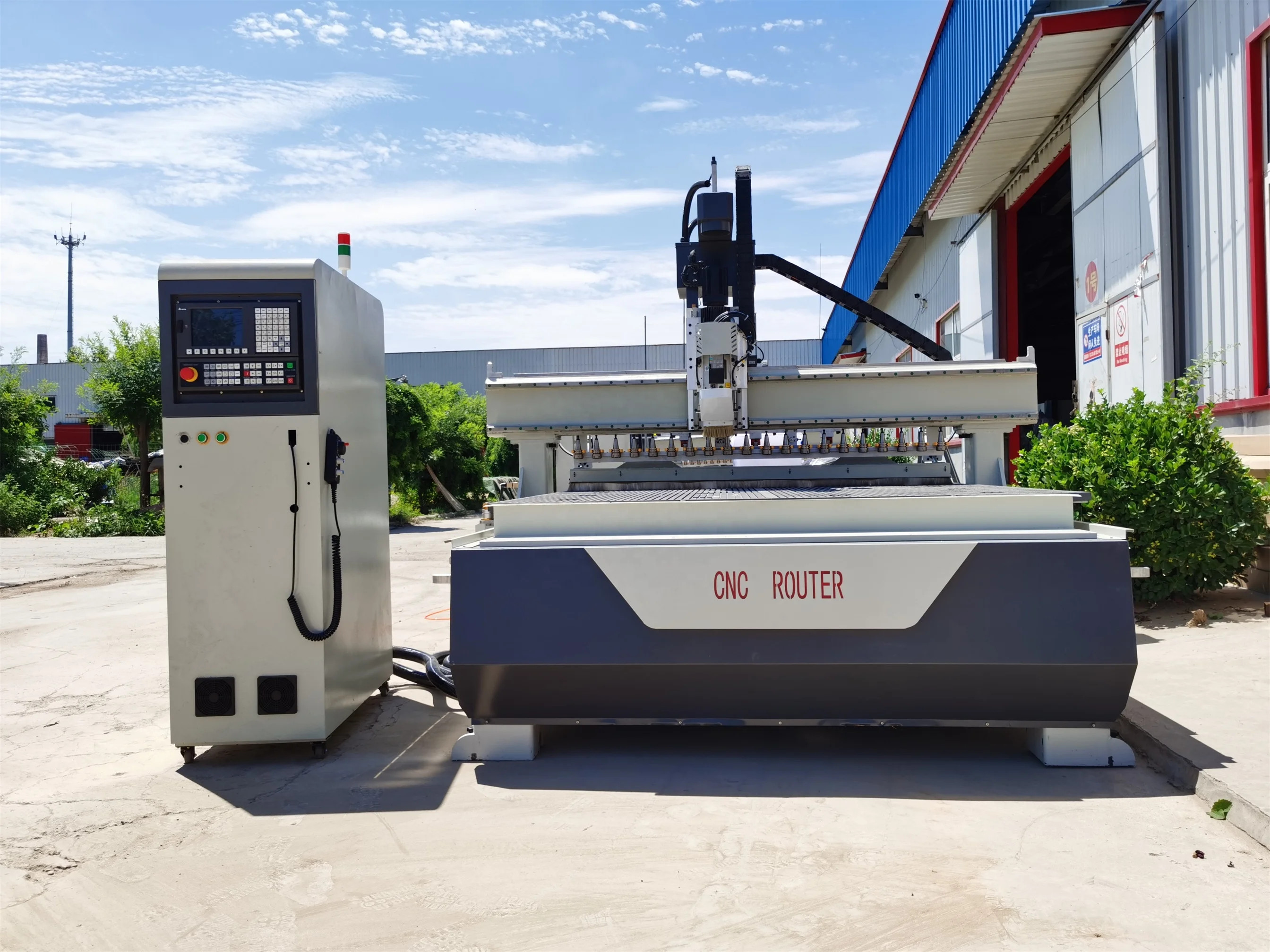

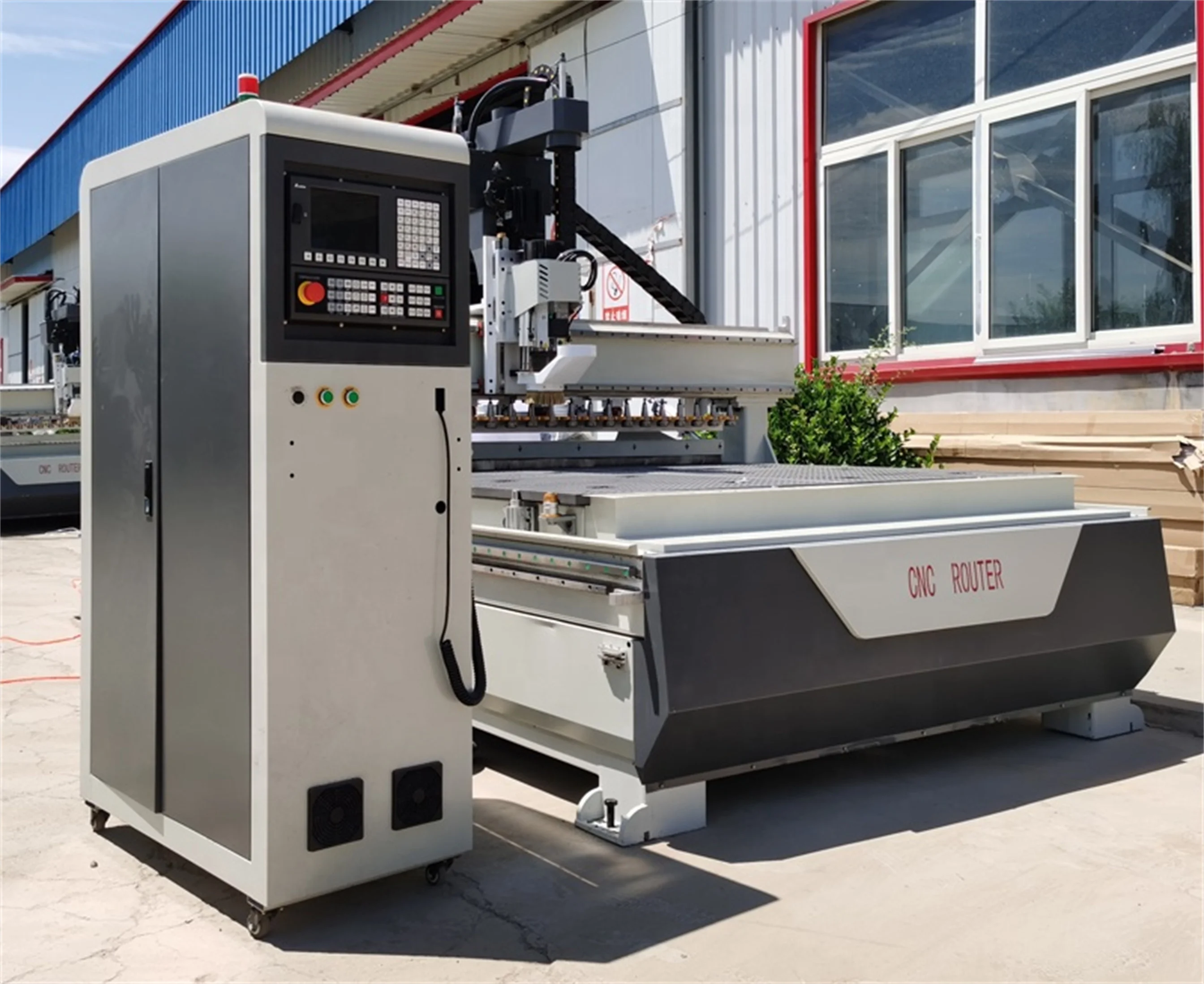

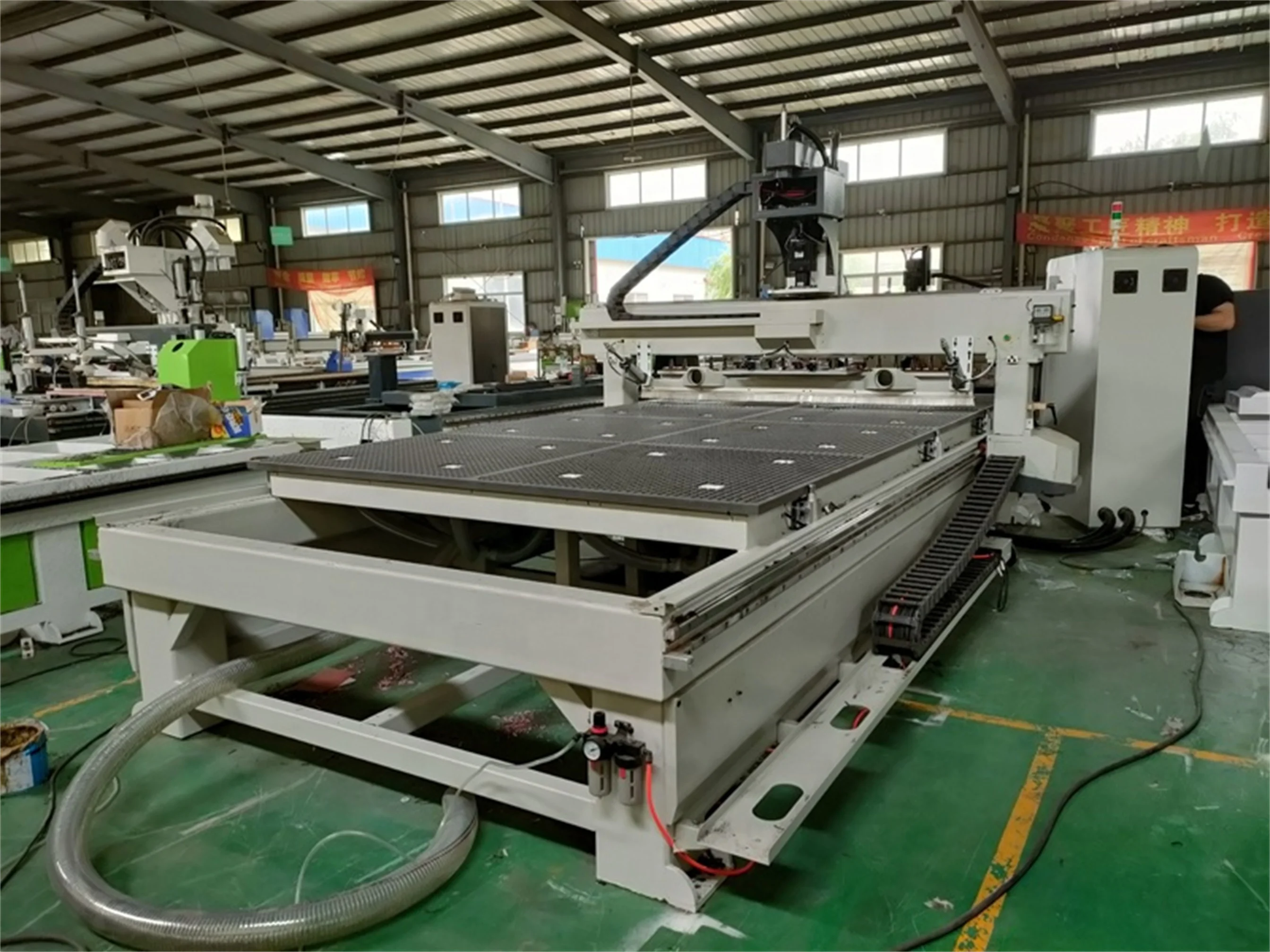

ATC CNC маршрутизатор для автоматической смены инструмента cnc 1325 atc 3 оси
- Категория: >>>
- Поставщик: Jinan Junteng CNC Equipment Co. Ltd.
Сохранить в закладки 1600870578211:
Описание и отзывы
Характеристики
Products Description
Machine Features
1.Stable Structure the overall steel structure welding, the vibration (tempering) aging treatment, long-term use of never deformation.2.Taiwan Synted ,high-performance industrial control system or Shanghai Weihong control panel system,with excellent and stable quality, good maintenance and control of the completion of themulti-level 3D processing, fast and smooth three-dimensional processing, carving and cutting.
3.The linear guide rail adopts imported linear square oroit, double row and four ball slider loadingcapacity, smooth running, keep high accuracy.
4. The machine table with the international leader technology. surface density, deformation,highadsorption capacity, can strongly absorb different materials,convenient,maintenance . automaticlubrication, only need to hand gently press can achieve the whole machine maintenance.
3.The linear guide rail adopts imported linear square oroit, double row and four ball slider loadingcapacity, smooth running, keep high accuracy.
4. The machine table with the international leader technology. surface density, deformation,highadsorption capacity, can strongly absorb different materials,convenient,maintenance . automaticlubrication, only need to hand gently press can achieve the whole machine maintenance.
Model | 1325 | |||||||
XY working area | 1300*2500mm(working area can be customized according to your needs) | |||||||
Z axis | 200mm-300mm（option） | |||||||
Max Cutting Speed | 70m/min | |||||||
Transmission system | XY axis: Germany Herion 1.5MRack and Pinion Z: Germany TBI Ball Screw | |||||||
Guide rail | Taiwan Hiwin 25mm Linear rail | |||||||
Working Table | T slot Vacuum table 6 And T clamp combination | |||||||
Spindle | 9.0kw ATC air cooling spindle | |||||||
Control system | Taiwan SYNTEC control system | |||||||
Drive system | Japan YASKAWA servo motor and driver | |||||||
Air pump | 7.5KW | |||||||
Dust collector | 4KW,double bags | |||||||
Inverter | HPMANT 11KW | |||||||
Spindle Speed | 0-24000rpm/min | |||||||
Max. Rapid Travel Rate | 45000mm/min | |||||||
Max. Working Speed | 30000mm/min | |||||||
Command | G-code | |||||||
Parts are optional, configurations can customize！ | ||||||||
Details Images
Tool sensor
Tool sensor allows easy andaccurate "Z" zero position for single and multiple tool changes through the program.
Vacuum table
The vacuum table has a strong adsorption force and can hold the plate.
Oil injection
Automatic oil lubrication for guide rail and rack after setting time,save labor,easy for maintenance for machine.

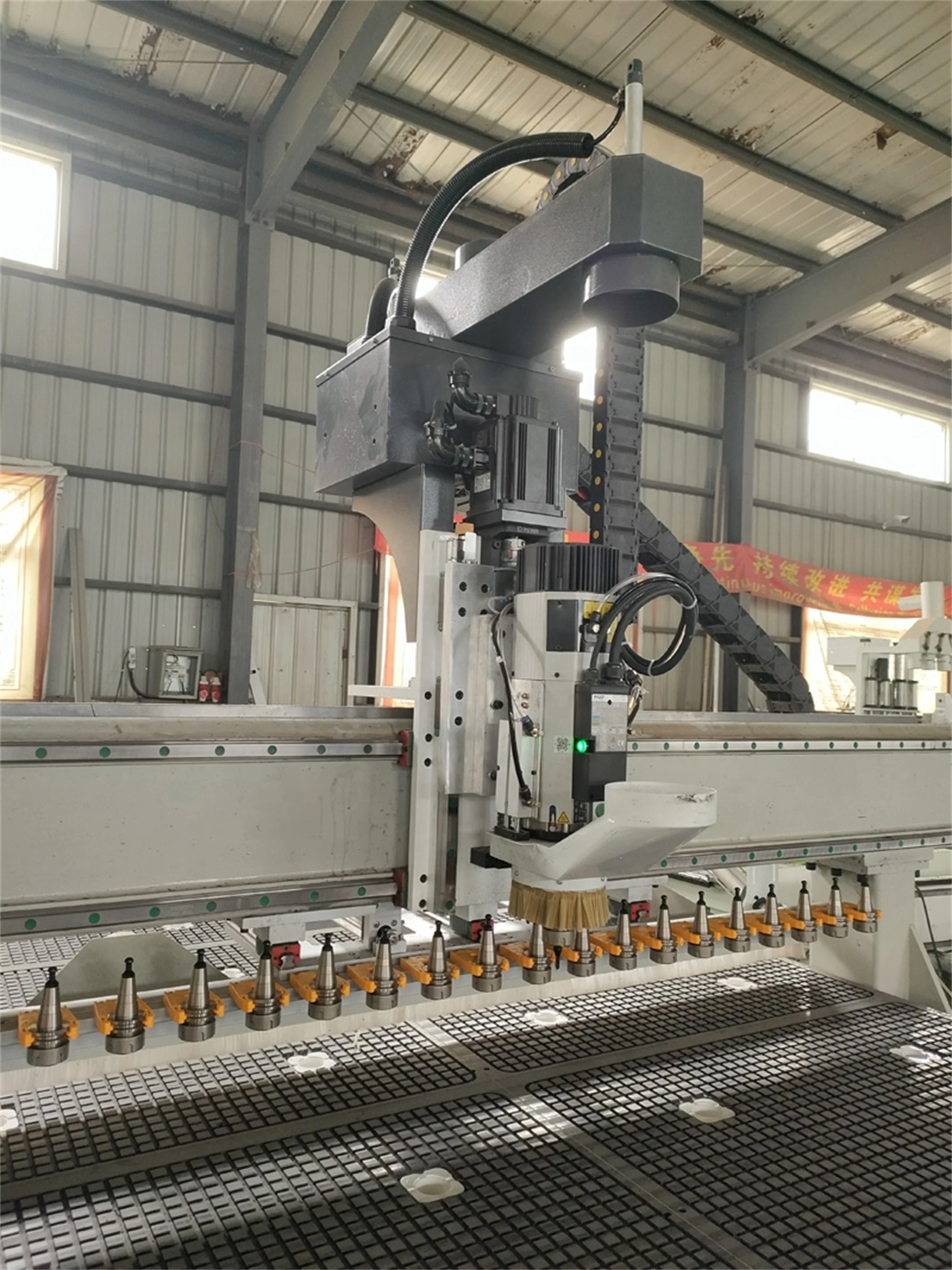

Linear tool magazine
With tool holders*6pcs and tool holder fork*8pcs,effectively improve working efficiency.
Application
ATC CNC woodworking machine tool is specially designed for users with high standards, high requirements and high degree of automation for CNC machine tools.
It is suitable for batch processing of various solid wood, medium density fiberboard, composite board, hard plastic, artificial marble, acrylic and other materials.
It is mainly used for mass production, such as coffins, reliefs, artwork and assembly of wooden toys, furniture inlay art and decoration. Advertising, mold, wooden door, furniture, carpentry building model, marking industry, teaching, enterprises and institutions, etc
It is suitable for batch processing of various solid wood, medium density fiberboard, composite board, hard plastic, artificial marble, acrylic and other materials.
It is mainly used for mass production, such as coffins, reliefs, artwork and assembly of wooden toys, furniture inlay art and decoration. Advertising, mold, wooden door, furniture, carpentry building model, marking industry, teaching, enterprises and institutions, etc
Certifications
Product packaging
Company Profile
Jinan Junteng CNC Equipment Co., Ltd. is a scientific and technological enterprise specialized in the research, development and manufacture of automatic woodworking equipment and laser CNC equipment. After nearly 10 years of development experience, the company has a 36000 square modern chemical plant in the beautiful spring city of Jinan, and has become a reliable and reliable CNC machine manufacturer at home and abroad. Our main products include ATC CNC machining center, 4-axis CNC machining center, high-end customized furniture production line, CNC six-sided drill, CNC machining center, CNC side hole machine, edge banding machine, sliding table saw, film coating machine, polishing machine, optical fiber cutting machine, laser engraving machine, stone CNC machining center, vibrating knife cutting machine, plasma cutting machine, 3D scanner and other woodworking machines. These equipment are used in industry, handicraft and art industries around the world. These include woodworking, metal and stone processing, aluminum manufacturing, mechanical processing, mold manufacturing, etc.
We have a professional sales and technical support team, which can provide customers with high-quality services. All accessories are of domestic and international brands. All our products have been carefully designed, and the pursuit of maximum customer satisfaction is our service tenet. The whole manufacturing process is carefully and systematically controlled to ensure accuracy and quality. Our products have now been sold to more than 80 different countries and have won high praise from customers.
We have a professional sales and technical support team, which can provide customers with high-quality services. All accessories are of domestic and international brands. All our products have been carefully designed, and the pursuit of maximum customer satisfaction is our service tenet. The whole manufacturing process is carefully and systematically controlled to ensure accuracy and quality. Our products have now been sold to more than 80 different countries and have won high praise from customers.
FAQ
1. who are we?
We are based in Shandong, China, start from 2017,sell to Eastern Europe(18.00%),Northern Europe(15.00%),Southeast Asia(10.00%),Southern Europe(10.00%),Eastern Asia(8.00%),South Asia(8.00%),Western Europe(7.00%),North America(6.00%),South America(5.00%),Africa(5.00%),Central America(4.00%),Oceania(2.00%),Mid East(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Router,Laser Machine,Vacuum Laminating Machine/Edge Banding Machine/Wood Polishing Machine,Side Hole Drilling Machine
4. why should you buy from us not from other suppliers?
Jinan chuangdiao 3d CNC has16 years of production experience, 11 years of export experience, can provide hands-on technical support, has an independent research and development team, can provide continuous product and software upgrade and update services.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
We are based in Shandong, China, start from 2017,sell to Eastern Europe(18.00%),Northern Europe(15.00%),Southeast Asia(10.00%),Southern Europe(10.00%),Eastern Asia(8.00%),South Asia(8.00%),Western Europe(7.00%),North America(6.00%),South America(5.00%),Africa(5.00%),Central America(4.00%),Oceania(2.00%),Mid East(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Router,Laser Machine,Vacuum Laminating Machine/Edge Banding Machine/Wood Polishing Machine,Side Hole Drilling Machine
4. why should you buy from us not from other suppliers?
Jinan chuangdiao 3d CNC has16 years of production experience, 11 years of export experience, can provide hands-on technical support, has an independent research and development team, can provide continuous product and software upgrade and update services.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
Похожие товары
Форма для УФ эпоксидной смолы, кронштейн для сотового телефона, глиняная форма для смолы, инструменты для изготовления ювелирных изделий своими руками, держатель для мобильного телефона, подставка, форма
Розовый стиль дерева и металла 2 Двусторонняя бутылка минеральной воды консервной банки Стеллаж для выставки товаров
127,00 $ - 150,00 $

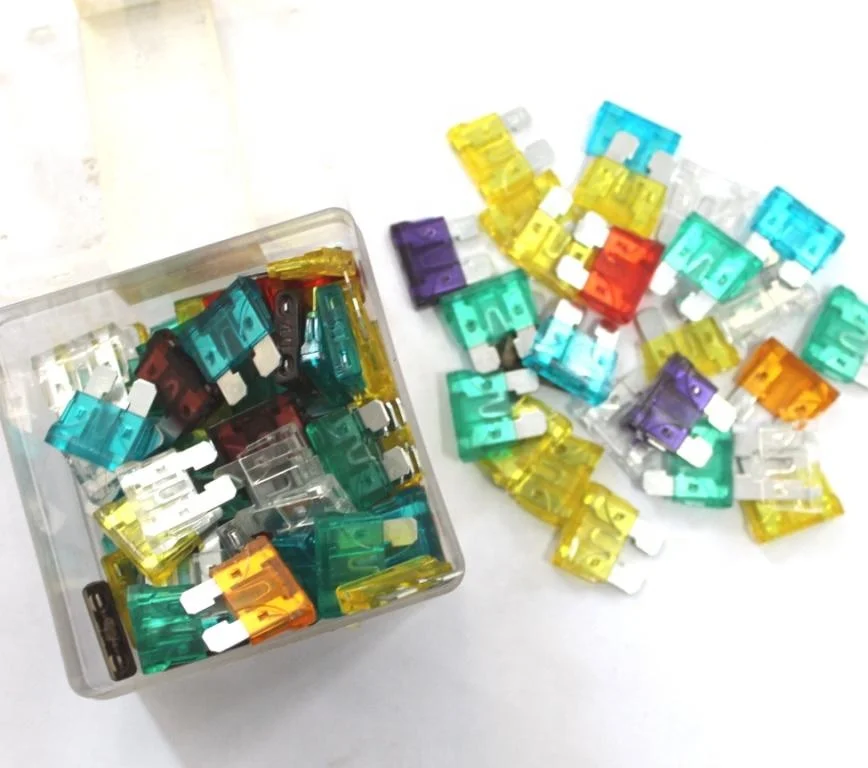

100 шт Автомобильные предохранители 2A 3A 5A 7.5A 10A 15A 20A 25A 30A 35A Amp с коробкой зажим ассортимент автоматический лезвие предохранитель типа комплект Грузовик Авто Предохранитель комплект
0,01 $
Guvivi новые ретро маленькие очки квадратной формы женские панк хип-хоп трендовые женские очки солнцезащитные очки с широкими штанинами для мужчин 2021
1,00 $ - 1,30 $

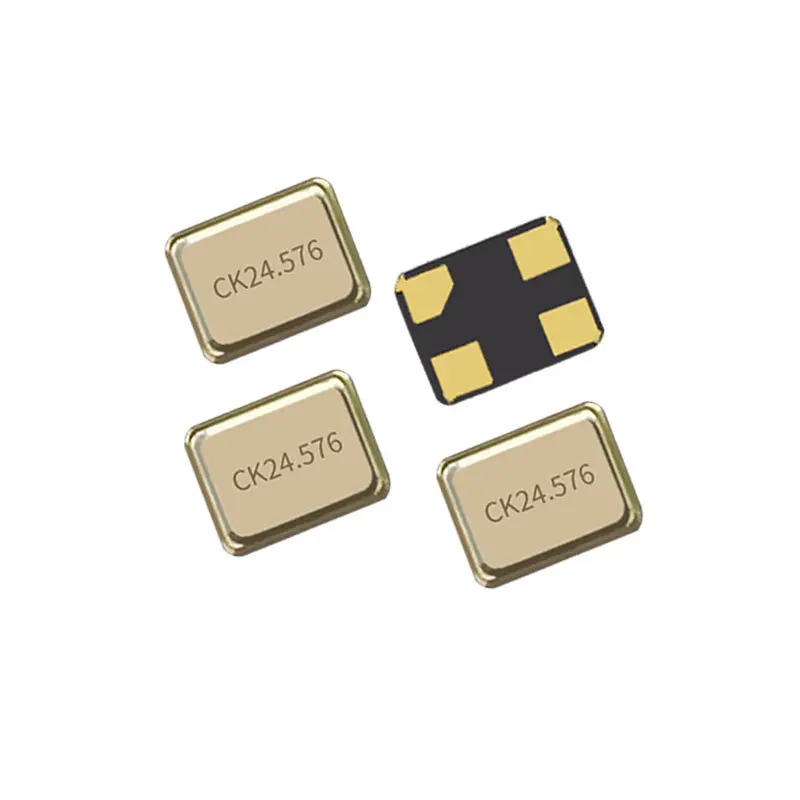

Кварцевый OSC CK24.576 3225 металлический четырехконтактный конденсатор 24,576 МГц, Небольшой Высокоточный пассивный чип-кристалл, генератор CK24.576
0,04 $ - 0,08 $

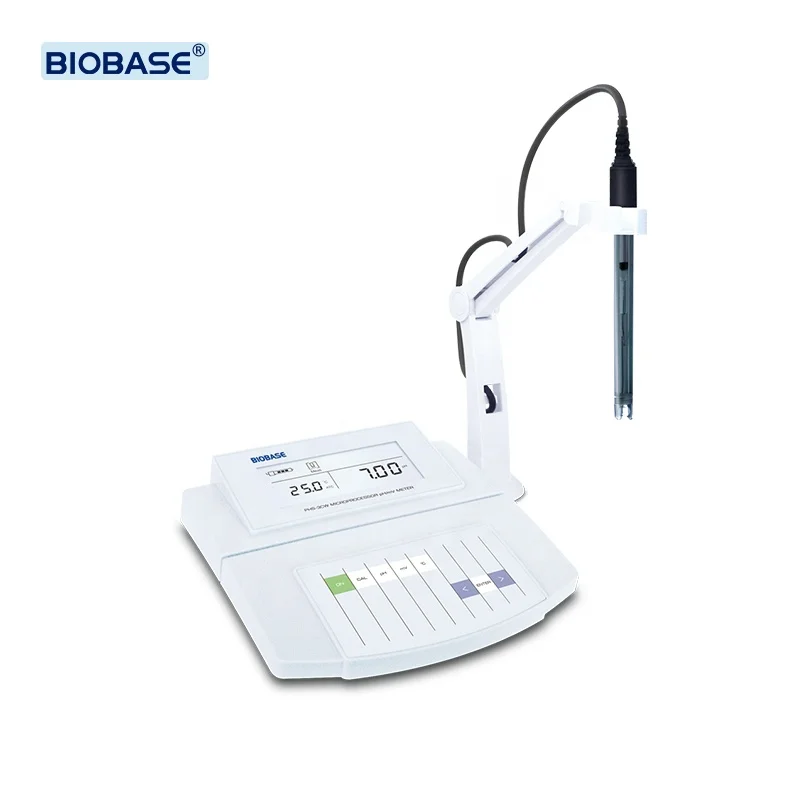

BIOBASE настольный прибор для измерения уровня pH PHS-25CW 0,00 ~ 14.00pH с ЖК-дисплеем автоматического розлива экономичный настольный прибор для измерения уровня pH
