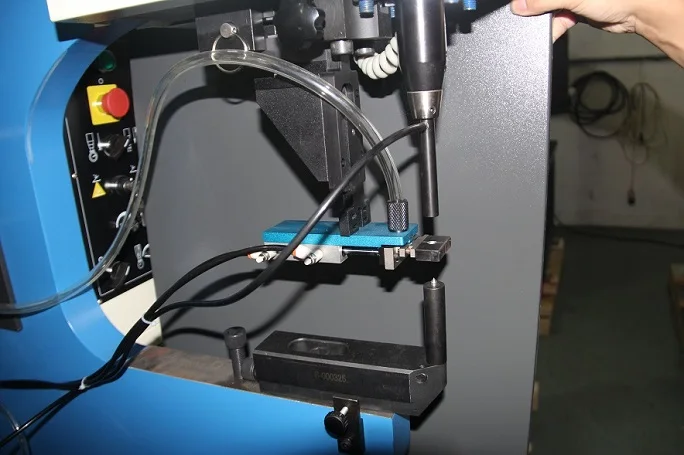

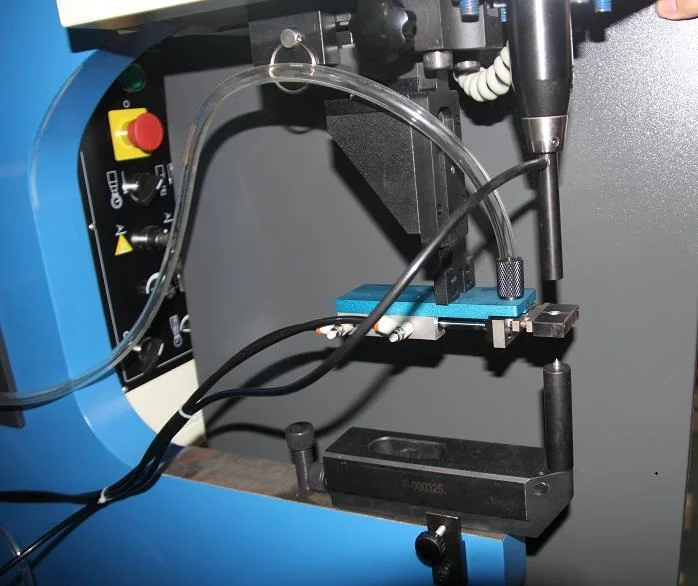

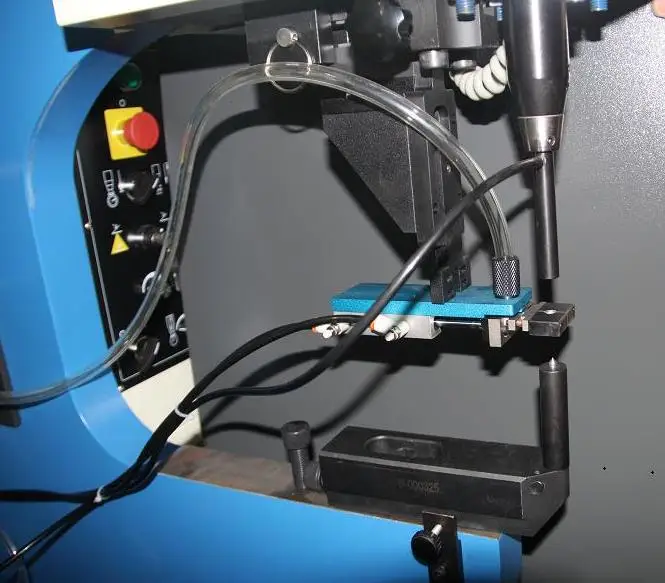

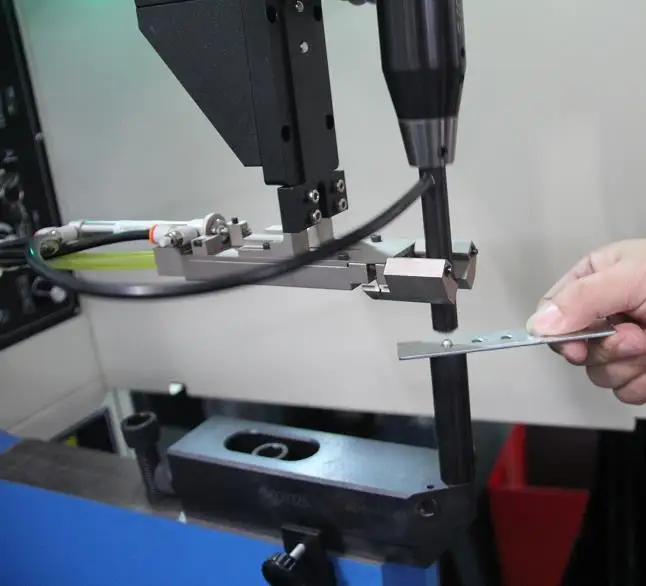

Гидравлическая машина для автоматической подачи клепки 416 618 824 КРЕПЕЖНАЯ МАШИНА вставки прессованных рук

1.Riveting ability (Nut below M10,bolt below M8 and srew below M6 carbon steel material riveting fastener)

2.Turned edge tapping thread (below M6 carbon steel material turned edge tapping thread technology)

3.Convex hull formation(formation arear diameter below 45MM techonlogy

4.No rivet screw conjunction(total thickness below 4.0MM carbon steel material no rivet screw conjunction technology)

5.Pierce out lock rivet conjunction (total thickness below 4.0MM carbon steel material pierce out lock rivet conjunction technology)

Performance parameters

416 Plus Main Feature:

High stiffness, structure, high stability, less deformation, less vibration, high accuracy - Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator - Quick press force setting and repeatability ±1% - Force range MAX 44KN - Throat depth 406 mm - 100% safety system - Energy saving re-design reliability and energy efficiency of a full hydraulic system - Noise reduced to 35db - Possibility to insert M8 nut with the mild steel - Equipped with standard tooling storage - Blue & white color - Standard power supply 1 phase 220v/50hz

618 Plus Main Feature

High stiffness, structure, high stability, less vibration, high accuracy - Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator - Quick press force setting and repeatability ±1% - Ram force range MAX 54KN - Throat depth 458 mm - 100% safety system - Energy saving Re-design reliability and energy efficiency of a full hydraulic system - Optional auto feeding system and clinching joint system - Possibility to insert M10 nut with the mild steel - Blue &white color - Standard power supply 3 phase 380v/50hz

824 Plus Main Feature :

High stiffness, structure, high stability, less vibration, high accuracy - Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator - Quick press force setting and repeatability ±1% - Ram force range MAX 72KN - Throat depth 610 mm - Energy saving Re-design reliability and energy efficiency of a full hydraulic system - 100% safety system - Standard Tooling Protection System - Optional auto feeding system and self -clinch tooling - Possibility to insert M12 nut with the mild steel - Variable dwell time for use stainless steel M8 nut and materials and the others hard materials - Blue &white color - Standard power supply 3 phase 380v/50hz
