2024 BYD Song плюс флагманское издание левый руль Дальность хода 605 км Новый энергетический автомобиль
2 610 728,41 ₽ - 2 720 376,81 ₽

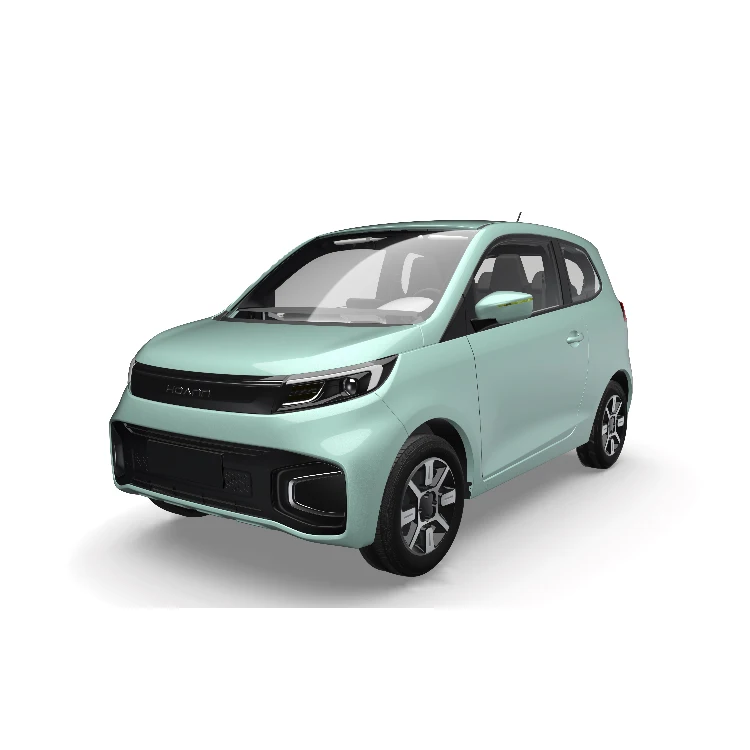

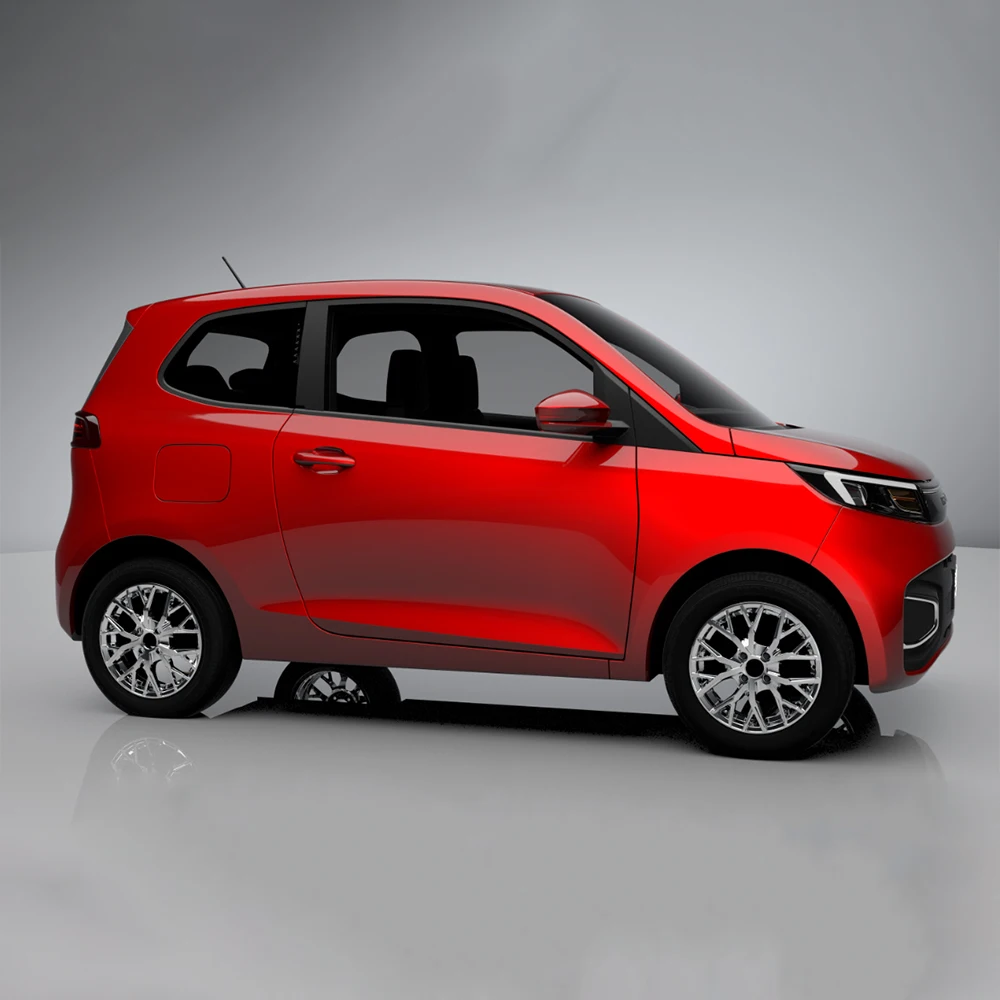

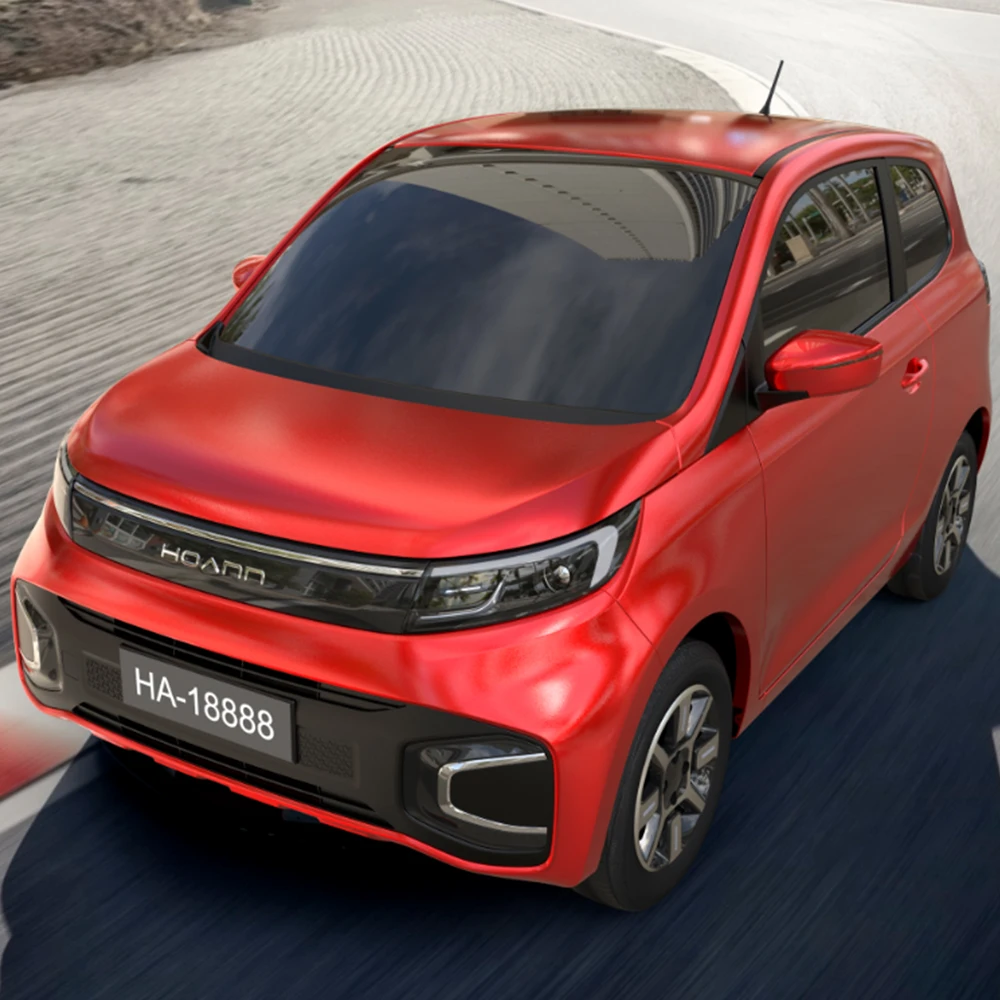

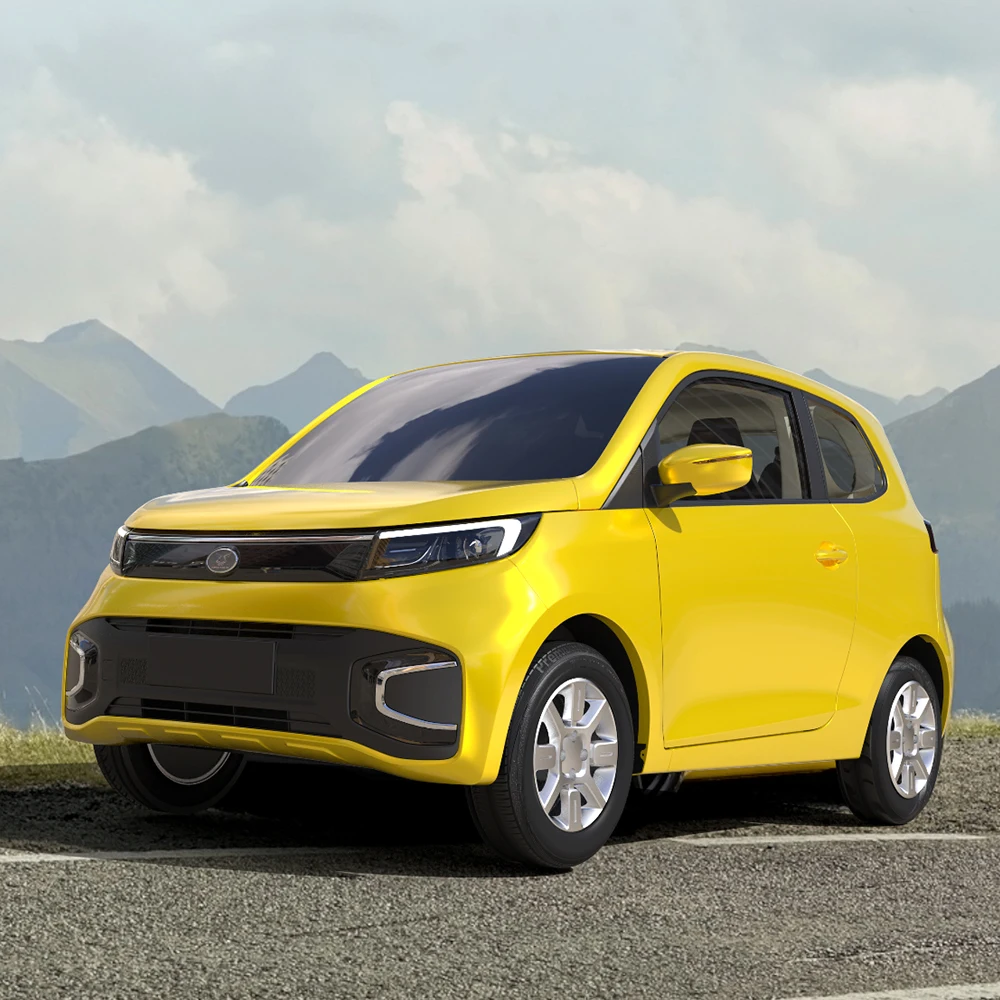

HUAIHAI EK Максимальная скорость 100 км/ч новые энергетические транспортные средства для взрослых электромобиль
- Категория: >>>
- Поставщик: Huaihai Global E-Commerce Co. Ltd.
Сохранить в закладки 1600870647057:
Описание и отзывы
Характеристики
Product Specification
Model | EK | |||
Loading quantity | CBU 3 units /40'HQ | |||
Specifications | ||||
Model code | K01 | K02 | ||
Vehicle structure | 3 doors 4 seats | |||
L*W*H (mm) | 3320*1664*1570 | |||
Curb weight (kg) | 865 | 1065 | ||
Wheelbase (mm) | 2150 | |||
Power System | ||||
Type of motor | PMSM | PMSM | ||
Cooling method | Air-cooling | Air-cooling | ||
Rated/peak motor power (kw) | 13/25 | 13/30 | ||
Max speed (km/h) | 100 | 100 | ||
Battery type | LifePO4 | LifePO4 | ||
Voltage (v) | 112.7 | 336 | ||
Battery capacity (kwh) | 15.214 | 30.24 | ||
Charging time | 6-8h | 8-10h(Quick charging 0.5h 80%) | ||
Range (km) | 160 | 301 | ||
Maximum gradeability (%) | ≥20 | |||
Electric drive system | ||||
Drive form | Rear motor rear driving | Rear motor rear driving | ||
Rear suspension system | Trailing arm non-independent suspension | McPherson independent suspension | ||
Minimum ground clearance (mm) | ≥125 | ≥125 | ||
Tire size | 165/65R15 | |||
Color | Milky coffee color, pearl white, avocado green, peach pink | |||
Our Company
A bird's-eye view of the factory
The company covers an area of 648 acres and has an annual production capacity of 150,000 electric vehicles. It has four major workshops for punching, welding and coating, as well as testing lines, logistics warehousing, road test track and other facilities.
6400 tons five-sequence hydraulic stamping line
Covering an area of 20,736m², the first phase is planned to produce 300,000 vehicles per year, with a production capacity of 80,000 per year fora single shift and 160,000 per year for a double shift, including twoproduction lines of stamping line A and line B; the planned annual production capacity of the second phase is 220,000 vehicles , new mechanical presses and robot automation production lines.
Robotic automatic welding line imported from Japan
Covering an area of 41472m², the first phase plans a maximum annual production capacity of 300,000 vehicles, has built a single shift of 50,000/year, double shifts of 100,000/year, and a maximum production capacity of 150,000/year, using Japanese FANUC robots and Swedish Hexagon high-precision Three coordinates and other advanced equipment.
Dust-free and environmentally friendly painting workshop, Nijas Rotor RTO exhaust gas treatment system in Japan
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Flexible automatic transfer assembly workshop
Covering an area of 62,763 square meters, the first phase is planned to produce 300,000 vehicles per year, Among them, 150,000 vehicles have been built, Production beat:35JPH, Conveyor system adopts U- shaped design Including PBS storage line,front interior line, chassis line, and rear interior line, the entire conveying system realizes the automatic transfer function.
Stamping Die
The body sheet metal of the whole vehicle adopts more than 900 sets of total sequence molds Dimensional accuracy up to 0.1mm.
Checking fixture
* Cubing vehicle all-aluminum alloy assembly inspection tool can realize DTS inspection of all exterior parts and interior DTS inspection of IP door panels.
* 185 sets of single-piece inspection tools for sheet metal parts, to control the qualified rate of stamping single-piece quality .
* 14 sets of inspection tools for welding assembly， Can effectively control the welding progress of the welding assembly.
* 185 sets of single-piece inspection tools for sheet metal parts, to control the qualified rate of stamping single-piece quality .
* 14 sets of inspection tools for welding assembly， Can effectively control the welding progress of the welding assembly.
Sophisticated welding
* The pass rate of vehicle point coordinate accuracy is as high as 95%, and the pass rate of key points is 100%；
* 100% qualified rate of 4000 solder joints in the whole vehicle.
* 100% qualified rate of 4000 solder joints in the whole vehicle.
Accurate detection
* HEXAGON double cantilever laser three-coordinate detector, detection accuracy 0.03mm
* 404 inspection points on the body, 1212 coordinate values, the qualified rate of coordinates is controlled to be ≥95%, and the qualified rate of key points is 100%
* 404 inspection points on the body, 1212 coordinate values, the qualified rate of coordinates is controlled to be ≥95%, and the qualified rate of key points is 100%
Fine protection
* Using water-based environmental protection paint
* Cathodic electrophoresis, metallic paint
* Four protections, paint film thickness greater than 110μm
* Cathodic electrophoresis, metallic paint
* Four protections, paint film thickness greater than 110μm
Precision assembly
* Automated equipment such as automatic gluing machines, tire tightening machines, and combined filling machines can better control the quality and precision of vehicle production.
* BOSCH fixed torque bolt tightening gun ensures accurate and controllable equipment torque.
* BOSCH fixed torque bolt tightening gun ensures accurate and controllable equipment torque.
Rain detection
Spray intensity: front circumference 8-10mm/min, side circumference, rear circumference and top: 4-6mm/min
Rainfall level: heavy rainstorm level
Spray time ：15min
Rainfall level: heavy rainstorm level
Spray time ：15min
Offline detection
Adopt the same model vehicle quality inspection system of the American Furui brand Cadillac production line
Dual-axis brake detection, ABS detection, four-wheel alignment, steering detection, light detection, etc.
Factory product parameters are permanently stored and traceable
Dual-axis brake detection, ABS detection, four-wheel alignment, steering detection, light detection, etc.
Factory product parameters are permanently stored and traceable
Road test
The test track consists of 7 special road surfaces (twisted road, pebble road, Belgian road, circular pothole road, stone road, washboard road, rope road), high- speed road, braking performance road, turning square, wading road, parking ramp, etc. Composed of 12 performance testing road sections such as car ramps.
Each vehicle must pass a complete road test before leaving the factory
Each vehicle must pass a complete road test before leaving the factory
Certifications
Regulatory compliance
The EA model has cooperated with a certain car and obtained the announcement (the 350th batch), the purchase tax exemption catalogue, the new energy vehicle promotion catalogue, the 3C certificate and the national ring, and the declaration materials are complete;
EA fully complies with the requirements of national automobile standards and regulations.
EA fully complies with the requirements of national automobile standards and regulations.
Our Customers
FAQ
1. Q:Why choose us?
A: We are original manufacture with more than 40 years experience. Our company covers an area of 1.5 square kilometers, owns 10000 staff, 30% of who owns college degree or above. The annual output has over 200,0000 units.
2. Q: Where is your company located? How can I visit there?
A: Our factory is located in Xuzhou City, Jiangsu Province, China. Welcome to visit us. The International airport is shanghai Hongqiao and domestic airport is Xuzhou Guanyin airport. It takes three hours to take high speed train from Shanghai(Beijing) to Xuzhou East Station.
3: What is your main product?
A: Electric tricycle and spare parts, battery, Electric bicycle, electric scooter, motor tricycle and auto car.
4. Q: What's the MOQ?
A: Our MOQ is 50pcs. Sample and LCL shipment accepted, cost higher.
5. Q: What is the payment terms?
A: T/T, L/C at sight.
6. Q: What's the delivery time?
A: It will take about 15-20 days to finish an order. But the exact time is according to actual situation.
7. Where is your sales market?
A: We have exported to India, Bangladesh, Middle east, Eastern Europe, Souther America, Phillipines, Thiland and other 112 countries.
8: What is your shipping terms?
A: EXW, FOB, CNF, CIF.
9. Q: What certificate do you have?
A: We have CCC,ISO14000, OHSA18001 SGS, ISO9001 etc. Also we can apply any certificate if you need if the qty is OK.
10. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. are very welcome.
11. Q: How does your factory carry out quality control?
A: We attach great importance to quality control.Every part of our products has its own QC.
A: We are original manufacture with more than 40 years experience. Our company covers an area of 1.5 square kilometers, owns 10000 staff, 30% of who owns college degree or above. The annual output has over 200,0000 units.
2. Q: Where is your company located? How can I visit there?
A: Our factory is located in Xuzhou City, Jiangsu Province, China. Welcome to visit us. The International airport is shanghai Hongqiao and domestic airport is Xuzhou Guanyin airport. It takes three hours to take high speed train from Shanghai(Beijing) to Xuzhou East Station.
3: What is your main product?
A: Electric tricycle and spare parts, battery, Electric bicycle, electric scooter, motor tricycle and auto car.
4. Q: What's the MOQ?
A: Our MOQ is 50pcs. Sample and LCL shipment accepted, cost higher.
5. Q: What is the payment terms?
A: T/T, L/C at sight.
6. Q: What's the delivery time?
A: It will take about 15-20 days to finish an order. But the exact time is according to actual situation.
7. Where is your sales market?
A: We have exported to India, Bangladesh, Middle east, Eastern Europe, Souther America, Phillipines, Thiland and other 112 countries.
8: What is your shipping terms?
A: EXW, FOB, CNF, CIF.
9. Q: What certificate do you have?
A: We have CCC,ISO14000, OHSA18001 SGS, ISO9001 etc. Also we can apply any certificate if you need if the qty is OK.
10. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. are very welcome.
11. Q: How does your factory carry out quality control?
A: We attach great importance to quality control.Every part of our products has its own QC.
