Новое состояние полностью автоматизированный закрытый PTA Плазменный сварочный аппарат с жесткой облицовкой настраиваемый для облицовки и наплавки
- Категория: >>>
- Поставщик: Shanghai Duomu Industry Co. LtdShanghai Ltd
Сохранить в закладки 1600871188645:
Описание и отзывы
Характеристики
Product Description

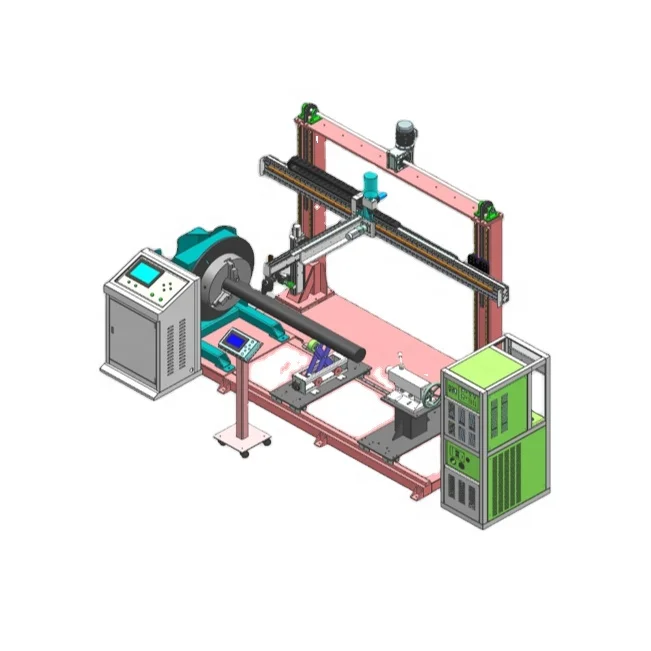

FB-200P closed-pile welding tooling
Equipment features:
✦The mechanical walking structure adopts linear guide rail, precision worm worm reducer and stepping motor to drive walking. The whole machine has small transmission clearance, high rigidity, stable and reliable operation, and convenient integration.The overall closed structure, beautiful, simple.
✦Equipped with lighting, exhaust fan, light shielding mobile protection door, simple operation, the overall structure is beautiful, humanized.
Applicable Products:

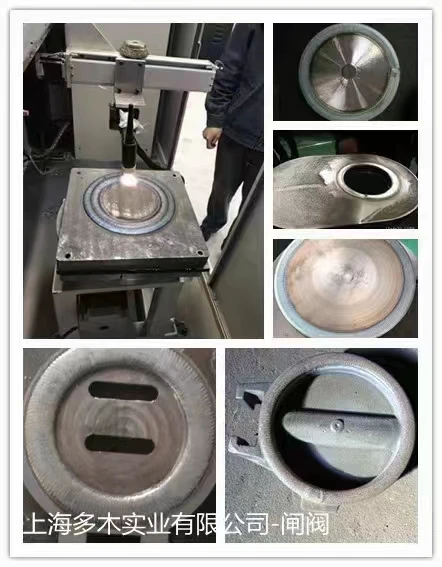

✦Suitable for layer stacking welding and damage surface repair of outer circle, inner hole and end surface of general shaft parts and pipe parts.It can also be used for surface overwelding and repair of disc parts.
✦The mechanical walking structure adopts linear guide rail, precision worm worm reducer and stepping motor to drive walking. The whole machine has small transmission clearance, high rigidity, stable and reliable operation, and convenient integration.The overall closed structure, beautiful, simple.
✦Equipped with lighting, exhaust fan, light shielding mobile protection door, simple operation, the overall structure is beautiful, humanized.
Applicable Products:
✦Suitable for layer stacking welding and damage surface repair of outer circle, inner hole and end surface of general shaft parts and pipe parts.It can also be used for surface overwelding and repair of disc parts.
Configure the project | Model brand | Main parameter description | Configure the project | Model brand | Main parameter description | ||||
Transverse mechanism motor | Research and control step-in motor | Effective travel trip of 1100 mm | Arc pressure tracking | Multi-wood integration | Plus additional 2000 yuan | ||||
Lift column motor | Research and control step-in motor | Effective travel trip of 650 mm | Current communication | 485 Communication | An additional 1,000 yuan is optional | ||||
Spindle rotary motor | Xinjie servo motor | Speed is 0.01 r/min ~5.0r / min | touch screen | Weilun tong | A 7-inch screen with a TK6071IQ | ||||
positioner | HBT-3S | Rated load of 300 KG | navar | Mitsubishi, Japan | The FX-Series PLC | ||||
cam-ring chuck | K11-320C | Clip range25～320 mm | Control panel | Multi-wood manufacturing | Integrated on the device enclosure | ||||
Reference occupation, ground size | Length 2000 mm width 1200 mmHigh height 2200 mm. | ||||||||
Specification
item | value |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2024 |
Warranty of core components | 1 Year |
Core Components | PLC, Plasma surfacing, PTA |
Condition | New |
Place of Origin | China |
Shanghai | |
Brand Name | Duo mu |
Warranty | 1 Year |
Key Selling Points | Famous brand PLC |
Power (kW) | 5000 |
Weight (KG) | 500KG |
Input Voltage | 380V |
Rated Current | 3-500A |
Dimensions | |
Usage | Plasma surfacing |
Product name | FB-200P closed-pile welding tooling |
Function | Plasma cladding |
Color | Customized Color |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2011,sell to Eastern Asia(15.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Mid East(10.00%),North America(9.00%),South Asia(8.00%),Western Europe(7.00%),Southern Europe(6.00%),South America(5.00%),Africa(5.00%),Oceania(5.00%),Central America(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PTA Cladding machine,Plasma welding machine,Welding equipment,Welding machine accessories,S-TIG
4. why should you buy from us not from other suppliers?
Shanghai Duomu Industry Co., Ltd. is an equipment manufacturer engaging in the research, production and sales with high performance, low consumption, and pragmatic aspect.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Shanghai, China, start from 2011,sell to Eastern Asia(15.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Mid East(10.00%),North America(9.00%),South Asia(8.00%),Western Europe(7.00%),Southern Europe(6.00%),South America(5.00%),Africa(5.00%),Oceania(5.00%),Central America(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PTA Cladding machine,Plasma welding machine,Welding equipment,Welding machine accessories,S-TIG
4. why should you buy from us not from other suppliers?
Shanghai Duomu Industry Co., Ltd. is an equipment manufacturer engaging in the research, production and sales with high performance, low consumption, and pragmatic aspect.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
