Product Description

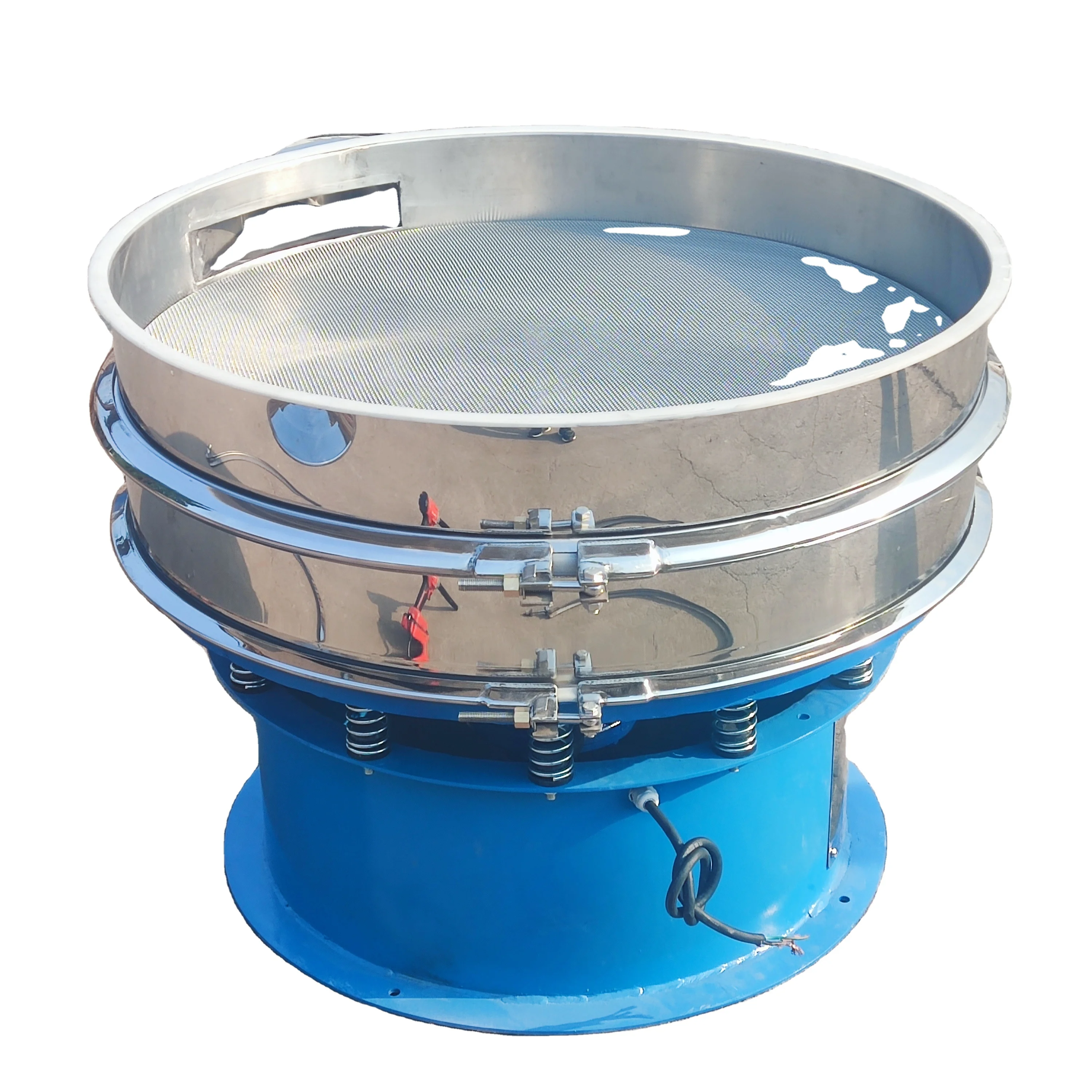

Dazhen DZ series powder vibration sieving machine is widely used in food, medicine, metallurgy, building materials, food, chemical, cement, glass, ceramics, and papermaking industries. In a word, dry and wet materials screening, filtering. It have the advantage of smooth vibration, the vibration force big, stable performance, network speed, light weight, simple operation, easy maintenance, etc.
Machine Structure
![]()
Working Principle
![]()
Technical Parameters
Model
|
DZ-600
|
DZ-800
|
DZ-1000
|
DZ-1200
|
DZ-1500
|
DZ-1800
|
DZ-2000
|
Nominal diameter(mm)
|
Φ600
|
Φ800
|
Φ1000
|
Φ1200
|
Φ1500
|
Φ1800
|
Φ2000
|
Effective screen diameter (mm)
|
Φ540
|
Φ720
|
Φ916
|
Φ1120
|
Φ1420
|
Φ1720
|
Φ1920
|
Effective screen area(m2)
|
0.23
|
0.41
|
0.66
|
0.99
|
1.58
|
2.32
|
2.90
|
Screen mesh
|
2--500 mesh
|
Material size(mm)
|
<Φ10
|
<Φ15
|
<Φ20
|
<Φ30
|
Vibration frequency
|
1500rpm
|
Number of deck
|
1-3
|
Power (KW)
|
Vibrating motor
|
0.55
|
0.75
|
1.1
|
1.5
|
2.2
|
3.0
|
4.0
|
|
Main Features
(1)you can replace rapidly network layer without any tool, using the network layer to 8 layer; (2) the time can be setting under automatic control, can be set 1 to 60 minutes; (3) It applicable to any powder, liquid and granular; (4) screen powder does not float in the sky, spray liquid not disorderly, granule not jump; (5) use mesh 3.5 mesh to 400 mesh.
![]()
![]()
|
Q1. Are you a real factory?
>> A1: Sure, we are a 30 years large factory which TUV certified.
Q2. What information to provide for getting quote?
>> A2: 1. Material name, bulk density, and water content
2. Capacity required___kg/h
3. How many layers?
4. The mesh size for each layer
5. Voltage and frequency
6. Sea port name or address for shipment
Q3. How long for the delivery time?
>> A3: 5-15 working days for general products.
Q4. How long for warranty time?
>> A4: 12 months from the shipping date.
|
