Автоматическая машина для взвешивания и дозирования удобрений
154 704,45 ₽ - 330 036,16 ₽
SS304 прямоугольная ситовая машина для органического компостного
- Категория: >>>
- Поставщик: Xinxiang Karp Machinery Equipment Co. Ltd.
Сохранить в закладки 1600872905387:
Описание и отзывы
Характеристики
Products Description

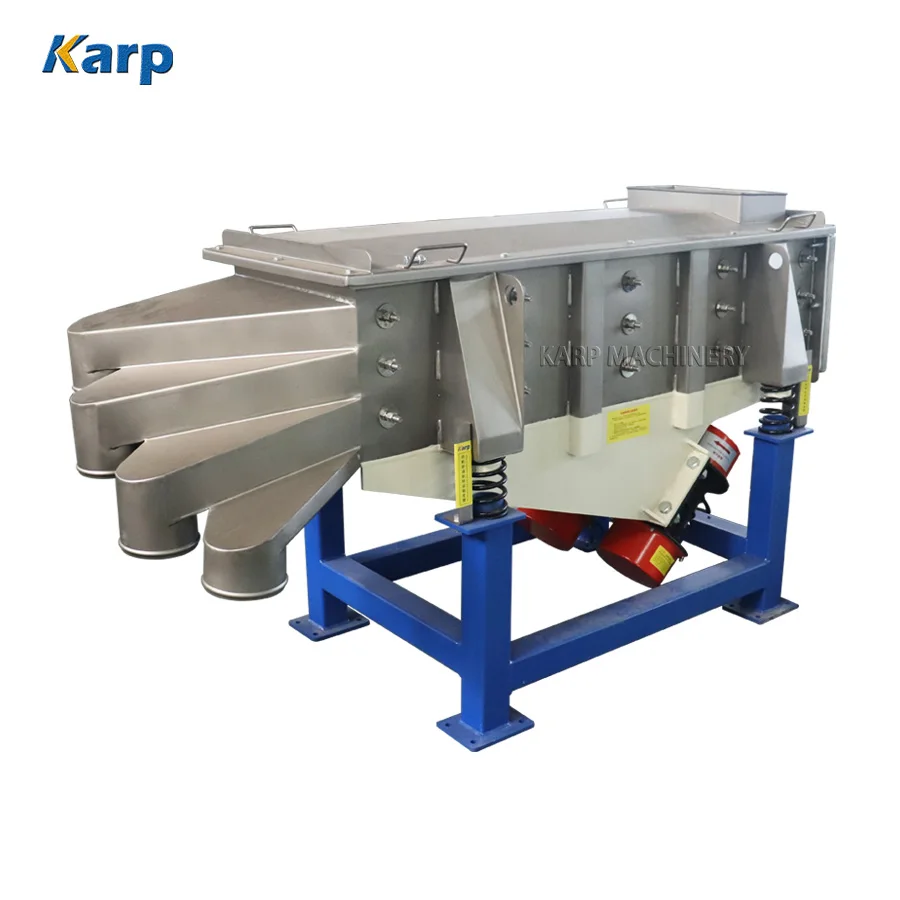

SS304 Rectangular sifter sieve machine for organic compost fertilizer
Brief Introduction
SS304 Rectangular sifter sieve machine for organic compost fertilizer is a commonly used screening device that is mainly used for the screening and classification of powdery and granular materials. It is widely used in industries such as grain, plastics, abrasives, chemicals, building materials, and fertilizers.
SS304 Rectangular sifter sieve machine for organic compost fertilizer is mainly composed of a screen box, screen mesh, two vibration motors, springs and supporting base. It adopts double exciters to drive. When the two exciters rotate synchronously and in reverse direction, the vibration force generated by their eccentric blocks cancels each other out in the direction parallel to the motor axis and stacks into one combined force in the direction perpendicular to the motor axis. Therefore, the motion trajectory of the screening machine is a straight line.
SS304 Rectangular sifter sieve machine for organic compost fertilizer is mainly composed of a screen box, screen mesh, two vibration motors, springs and supporting base. It adopts double exciters to drive. When the two exciters rotate synchronously and in reverse direction, the vibration force generated by their eccentric blocks cancels each other out in the direction parallel to the motor axis and stacks into one combined force in the direction perpendicular to the motor axis. Therefore, the motion trajectory of the screening machine is a straight line.
Structure
Main Features
2. High screening precision, large processing capacity and simple structure.
3. Fully enclosed structure, automatic discharge, more suitable for assembly line operations.
4.Simple structure, easy to clean or replace the mesh, save time and effort.
5. All parts of the screen body are welded by rolled steel plates and profiles (parts are connected by spirals), firm and reliable.
Product Details

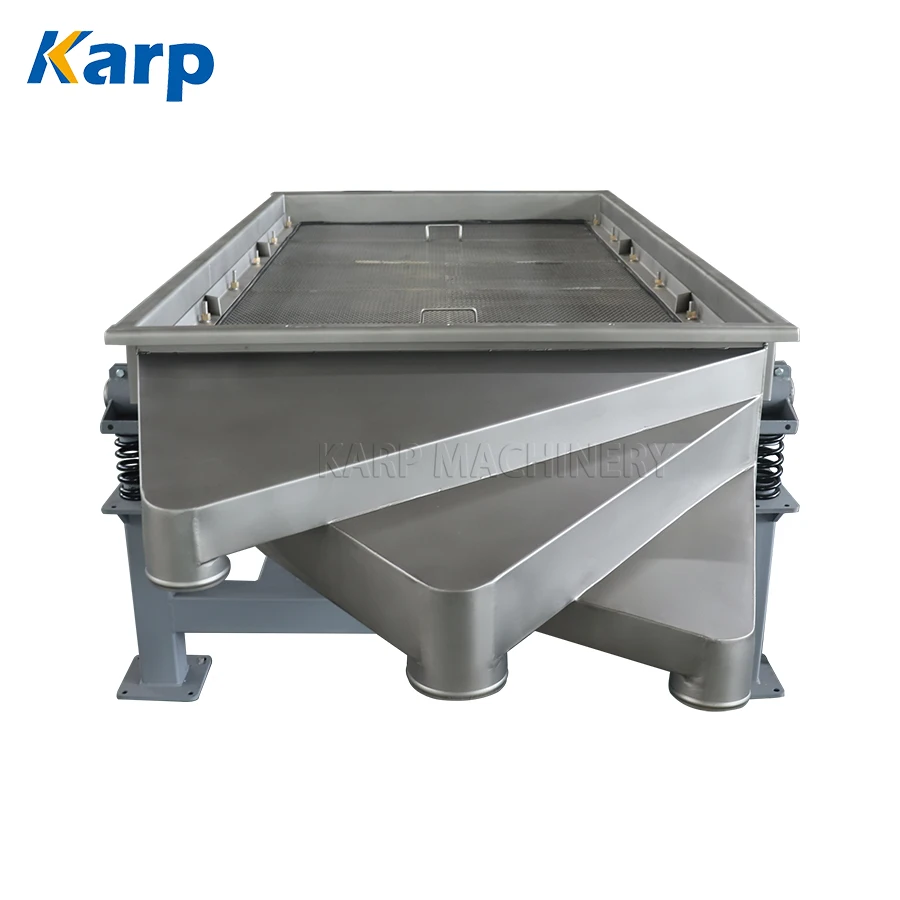

Discharge Port
There are multiple outlets, the shape and direction can be customized.
Can be equipped with observation hole and discharge valve used to control the discharge speed.
Can be equipped with observation hole and discharge valve used to control the discharge speed.

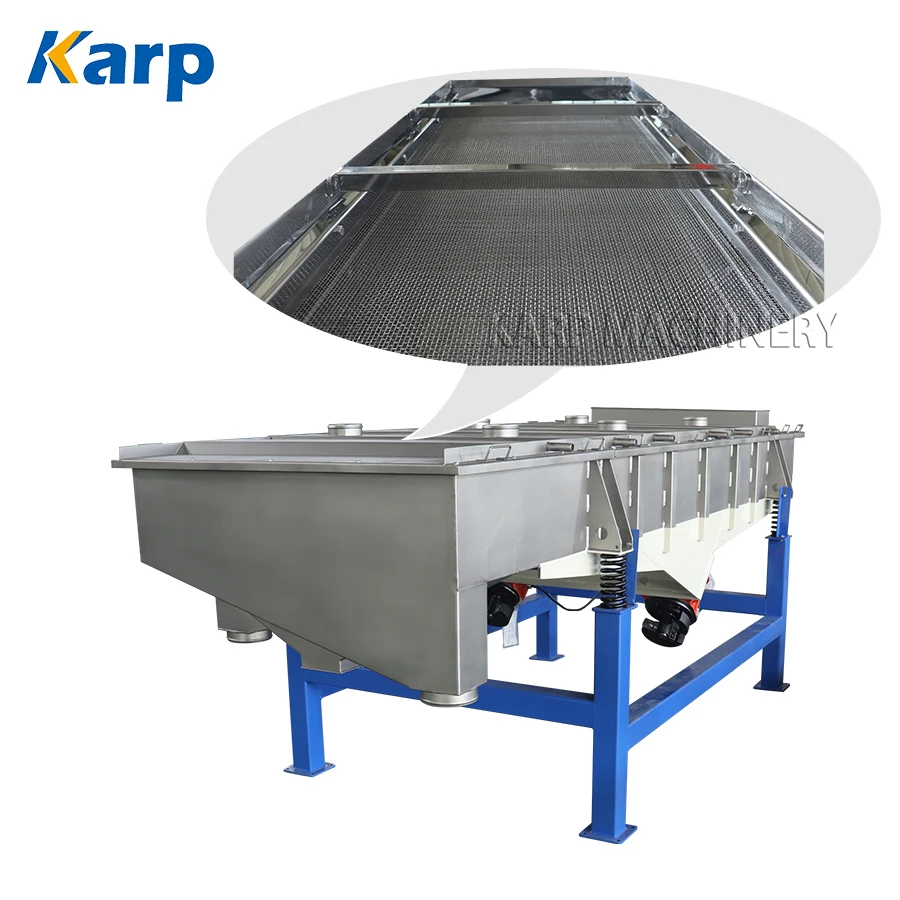

Screen Mesh
The main materials of screen mesh are SS304, SS316, Manganese steel. It has the following advantages:
Corrosion resistance, High temperature resistance, No rust, Clean and hygienic.
Corrosion resistance, High temperature resistance, No rust, Clean and hygienic.
Vibration Motor
Excitation force can be adjusted and voltage can be customized.
OLI-WOLONG Brand (China-Italy joint venture), high efficiency.

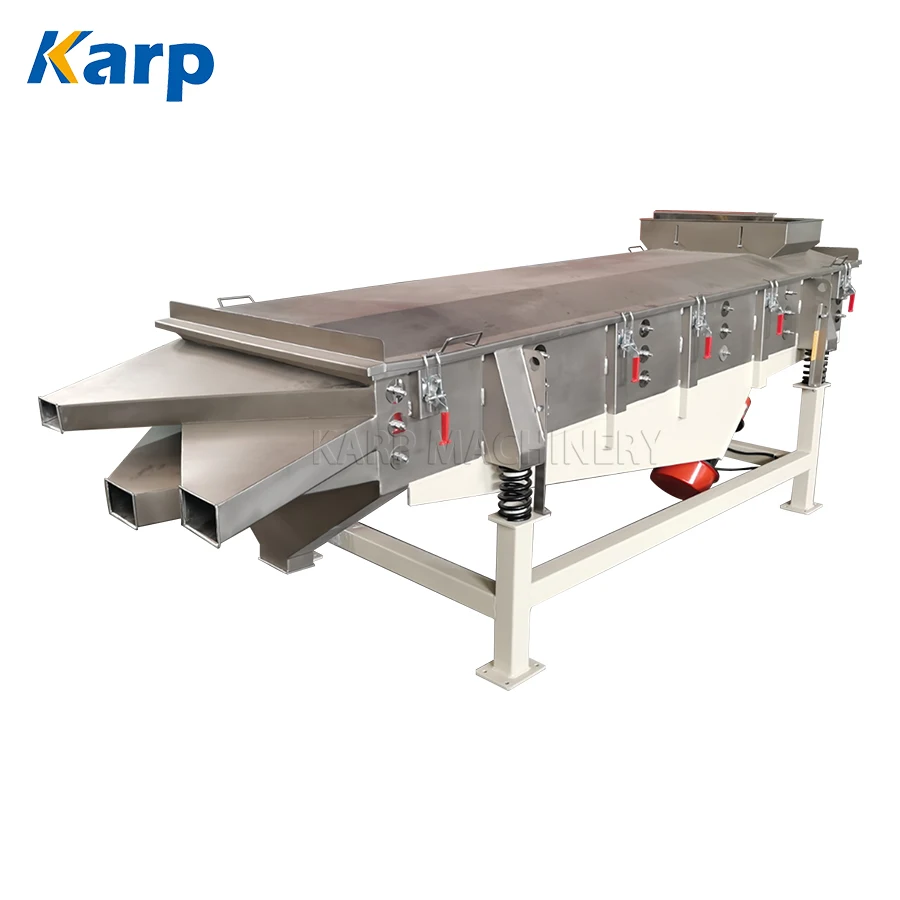

Quick Clamps
The quick clamps offer faster and more convenient operation, tighter sealing, greater durability, and easier cleaning and replacement.

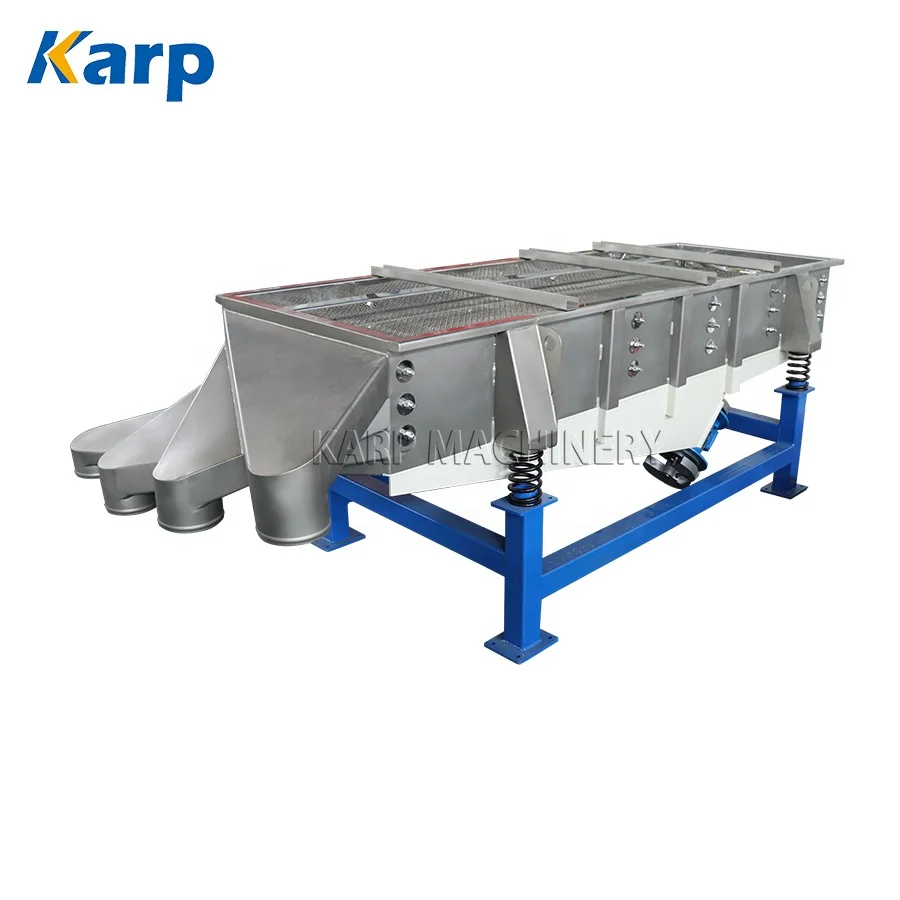

Product Show
The parts in contact with the material are made of stainless steel. Excellent corrosion resistance, hygiene compliance, and durability. It is suitable for various industries such as food, chemicals, and minerals.
The whole machine is made of stainless steel, the surface is polished, and the bottom base wheel is easy to move, labor-saving and convenient.
Can be used with screw conveyor. Material, color, height, mesh size, angle and number of mesh layers can be customized.
Product Application Site
Can be used in food, mining, coal, metallurgy, construction, refractory, chemical, and agricultural industries.
Specification
Model | Screen size (mm) | Layer | Material size (mm) | Vibrating frequency (rmp) | Amplitude (mm) | Power (KW) |
ZS520 | 500×2000 | 1-7 | 0.074-10 | 960r/min | 3-8 | 2×（0.37-0.75） |
ZS525 | 500×2500 | 2×(0.37-0.75） | ||||
ZS1020 | 1000×2000 | 2×（0.55-1.1） | ||||
ZS1025 | 1000×2500 | 2×（1.1-1.5） | ||||
ZS1030 | 1000×3000 | 2×（1.1-1.5） | ||||
ZS1040 | 1000×4000 | 2×（1.5-2.2） | ||||
ZS1230 | 1200×3000 | 2×（0.75-3） | ||||
ZS1530 | 1500×3000 | 2×（1.1-1.5） | ||||
ZS1540 | 1500×4000 | 2×（1.1-1.5） |
Application Fields
1. Chemical industry: resin, paint, cosmetics, paint, herbal powder, etc.
2. Food industry: coffee beans, corn, wheat, salt, peanuts, sesame, etc.
3. Metals and metallurgical mining: charcoal powder, coal, electrolytic copper powder, electromagnetic material, milling powder, refractory material, kaolin, lime, alumina, ground calcium carbonate, quartz sand, etc.
4. Other industries: waste oil, waste water, dyeing and finishing waste water, paper making, additives, activated carbon, etc.
3. Metals and metallurgical mining: charcoal powder, coal, electrolytic copper powder, electromagnetic material, milling powder, refractory material, kaolin, lime, alumina, ground calcium carbonate, quartz sand, etc.
4. Other industries: waste oil, waste water, dyeing and finishing waste water, paper making, additives, activated carbon, etc.
Packing & Delivery
- Packing for SS304 Rectangular sifter sieve machine for organic compost fertilizer.
- Outside package: standard export wood box.
- Inner package: stretch film for machine, accessories in carton.
- Inner package: stretch film for machine, accessories in carton.
Company Profile
Xinxiang KARP Machinery Equipment CO., Ltd is one of leading manufacturers of vibrating screen sifters, conveying machines, feeding machines, elevating machines and related products with 11 years designing and manufacturing experiences.
We are committed to solving all screening and conveying problems of bulk materials. Depending on the quality of the life of the enterprise, we will with professional solutions, high quality products, perfect service to win our customers' identity.
Our main products are vibrating screen, round separator, rectangular separator, drum screen, gyratory screen, tumbler screen, screw conveyor, belt conveyor, scraper conveyor, vibration table, standard laboratory inspection sieve, bucket elevator, vibration elevator, vibration motor, vibrating conveyor, feeding machine and related parts. All of our products are widely used in food, chemical, metallurgy, building materials, mining, environmental protection and other fields.
We warmly welcome friends from all over the world to our company, we are looking forward to sincere cooperation and mutually beneficial development with you.
We warmly welcome friends from all over the world to our company, we are looking forward to sincere cooperation and mutually beneficial development with you.
Exhibition Site
Customer Visit
CE-Certificate
FAQ
1. Can I customize my product？
2. How long is your production time?
A set of equipment takes 3-7 working days, and more than 1 set takes about 15-20 working days.
3. How long is your warranty?
A 13-month warranty ensures you have no worries.
4. What services can you provide?
Accepted Delivery Terms: FOB, CFR, EXW；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, PayPal, Western Union;
Each product undergoes strict quality control before shipping, so please rest assured.
Sure, we have our own R&D department to offer customization service for you.
2. How long is your production time?
A set of equipment takes 3-7 working days, and more than 1 set takes about 15-20 working days.
3. How long is your warranty?
A 13-month warranty ensures you have no worries.
4. What services can you provide?
Accepted Delivery Terms: FOB, CFR, EXW；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, PayPal, Western Union;
Each product undergoes strict quality control before shipping, so please rest assured.
If you are interested, please let us know the following information:
1.Material name: ________
2.Material status: ________
3.Moisture content: ________
4.Layer: ________
5.The mesh size ________ (mm/ mesh) for each layer
6.Capacity(kg/h): ________
7.Machine material: ________
2.Material status: ________
3.Moisture content: ________
4.Layer: ________
5.The mesh size ________ (mm/ mesh) for each layer
6.Capacity(kg/h): ________
7.Machine material: ________
