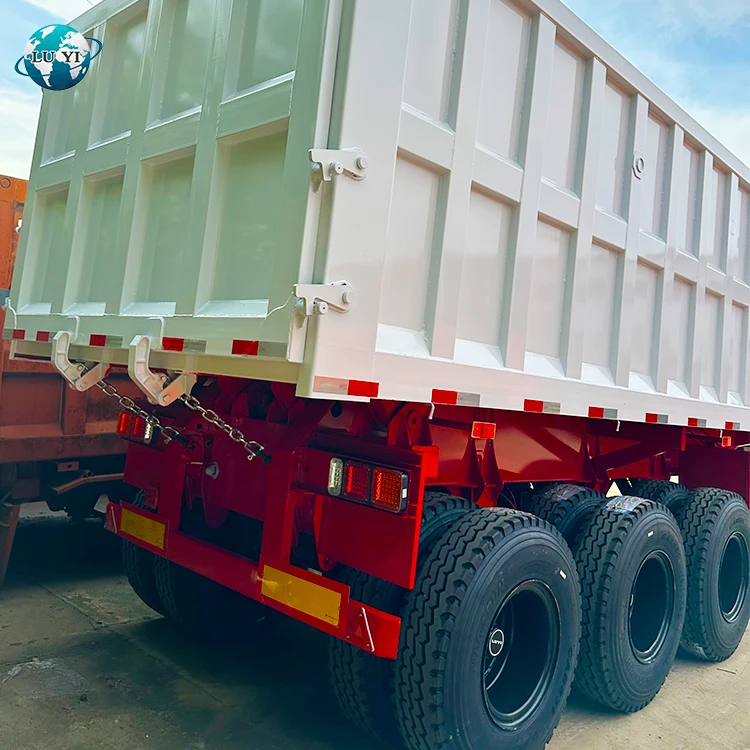

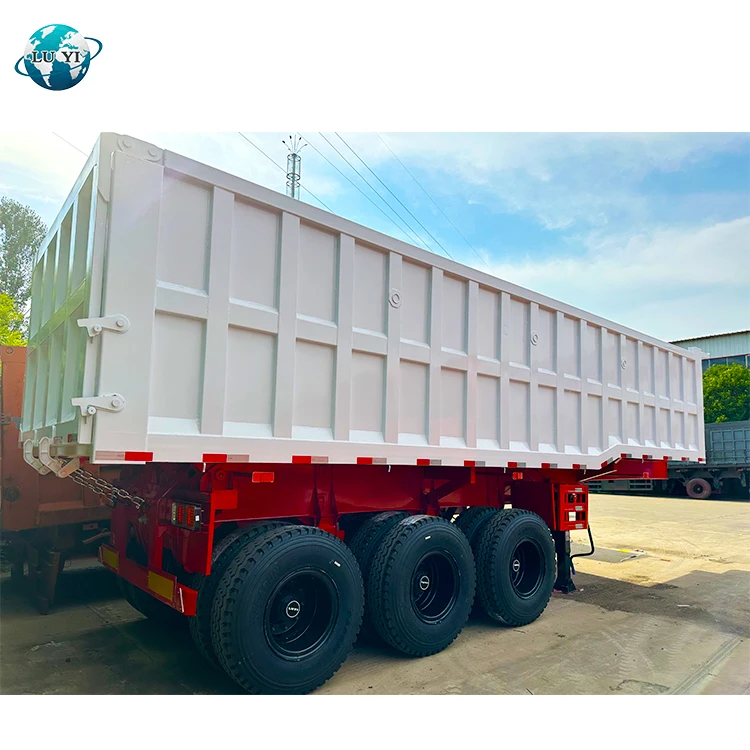

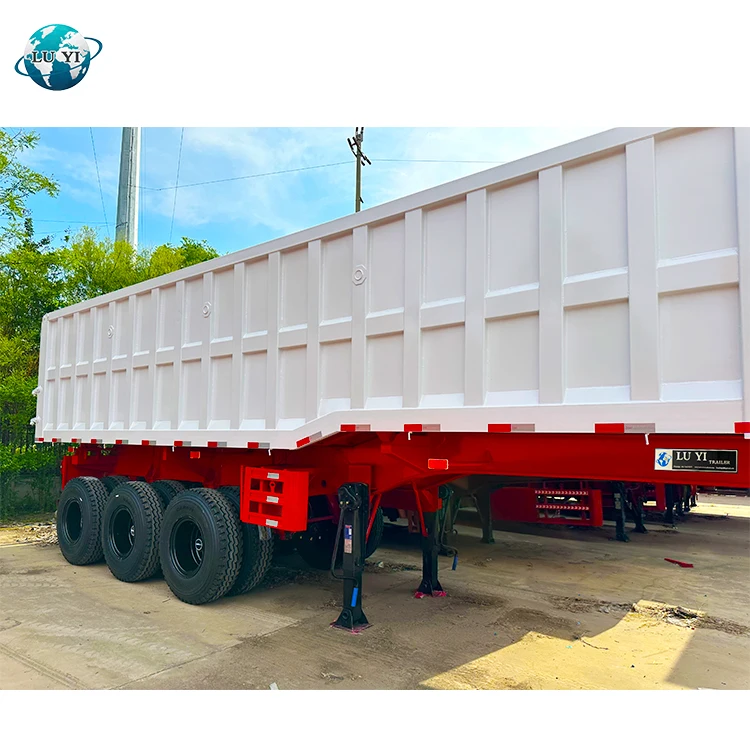

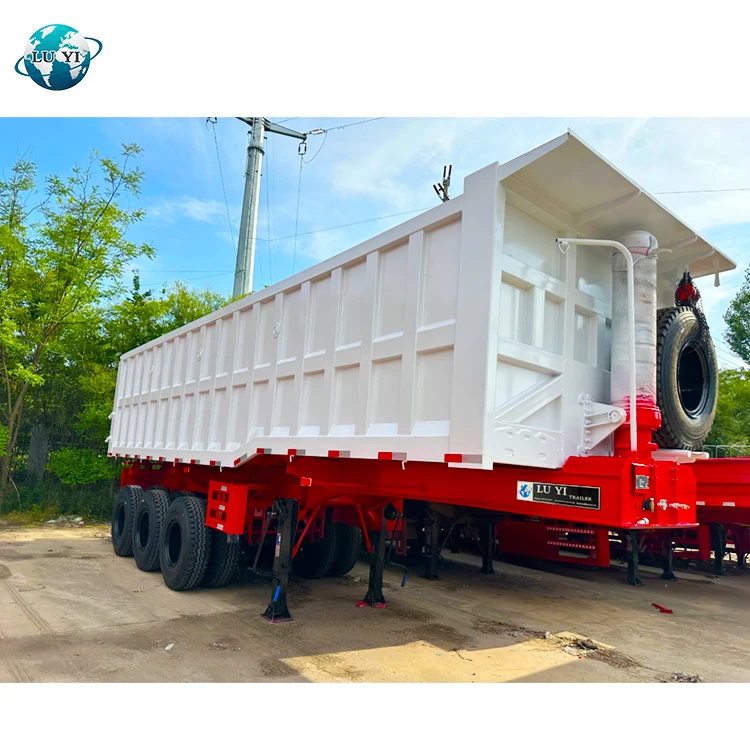

Лидер продаж Сельскохозяйственный самосвал полуприцеп 3 оси 50 100 тонн 45 куб. М.
- Категория: >>>
- Поставщик: Shandong Luyi Vehicle Co. Ltd.
Сохранить в закладки 1600873201058:
Описание и отзывы
Характеристики

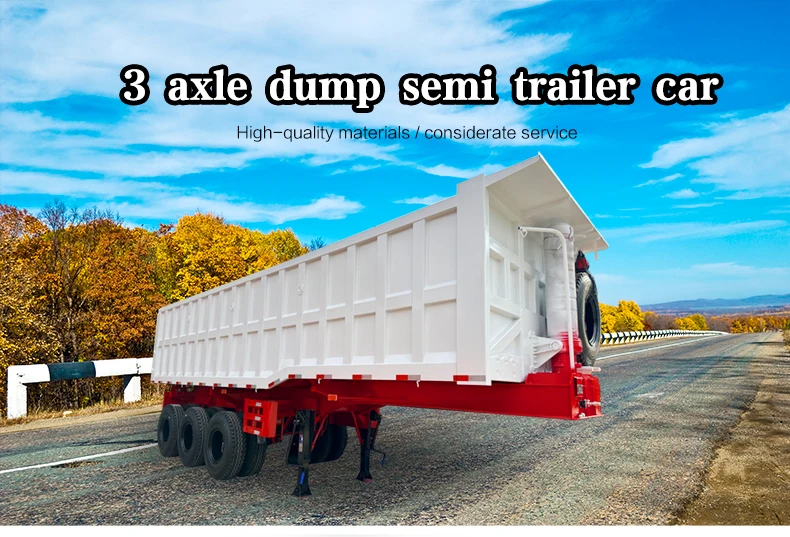

Hot sale Farm Dump semi trailer 3 axles 50 - 100 ton 45 cbm box dumping dump truck trailer
Luyi 3 axles hydraulic dump truck semi trailer are used to load sand, stone, coal ,gravel and other solid building materials or industrial raw materials. dump truck semi trailer are designed to make unloading more easier , save manpower greatly, reduce labor intensity .
LUYI dump truck trailer adopt advanced design concept and high strength steel ,with fully understanding and analysing the transportation environment in different countries.we make it durable when load the sand or small stones or rocks, especially under the off road condition.
Product Description
* Finite element analysis for vehicles to improve product performance.
* Strong loading capacity, 30-100 tons loading range.
* High-strength full-thick steel with a titanium content of 0.98 ‰ to ensure the toughness and strength of beams and frames.
* 42 sturdy rib design to ensure the safety and carrying capacity of the trailer.
* Uniquely designed low-load platform, lower center of gravity and smoother travel

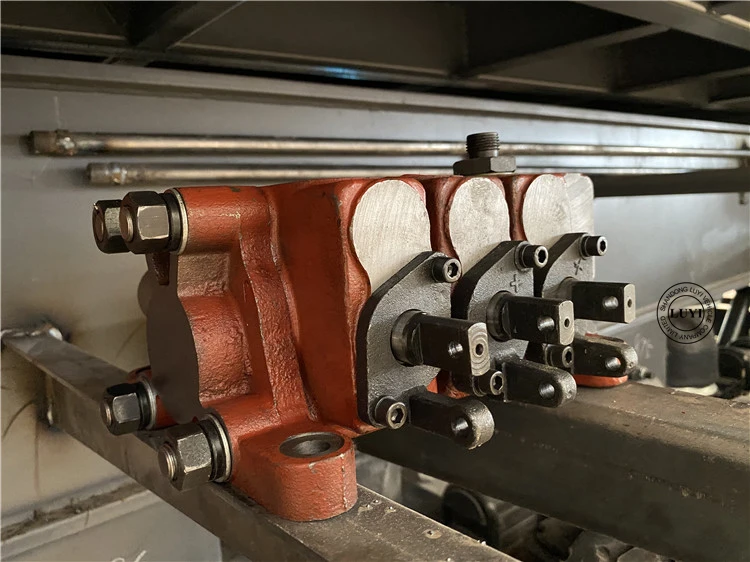

* The hydraulic support system is stable and has a long service life. Haiwo brand.
* Optional rectangular or U-shape
* Strong loading capacity, 30-100 tons loading range.
* High-strength full-thick steel with a titanium content of 0.98 ‰ to ensure the toughness and strength of beams and frames.
* 42 sturdy rib design to ensure the safety and carrying capacity of the trailer.
* Uniquely designed low-load platform, lower center of gravity and smoother travel
* The hydraulic support system is stable and has a long service life. Haiwo brand.
* Optional rectangular or U-shape

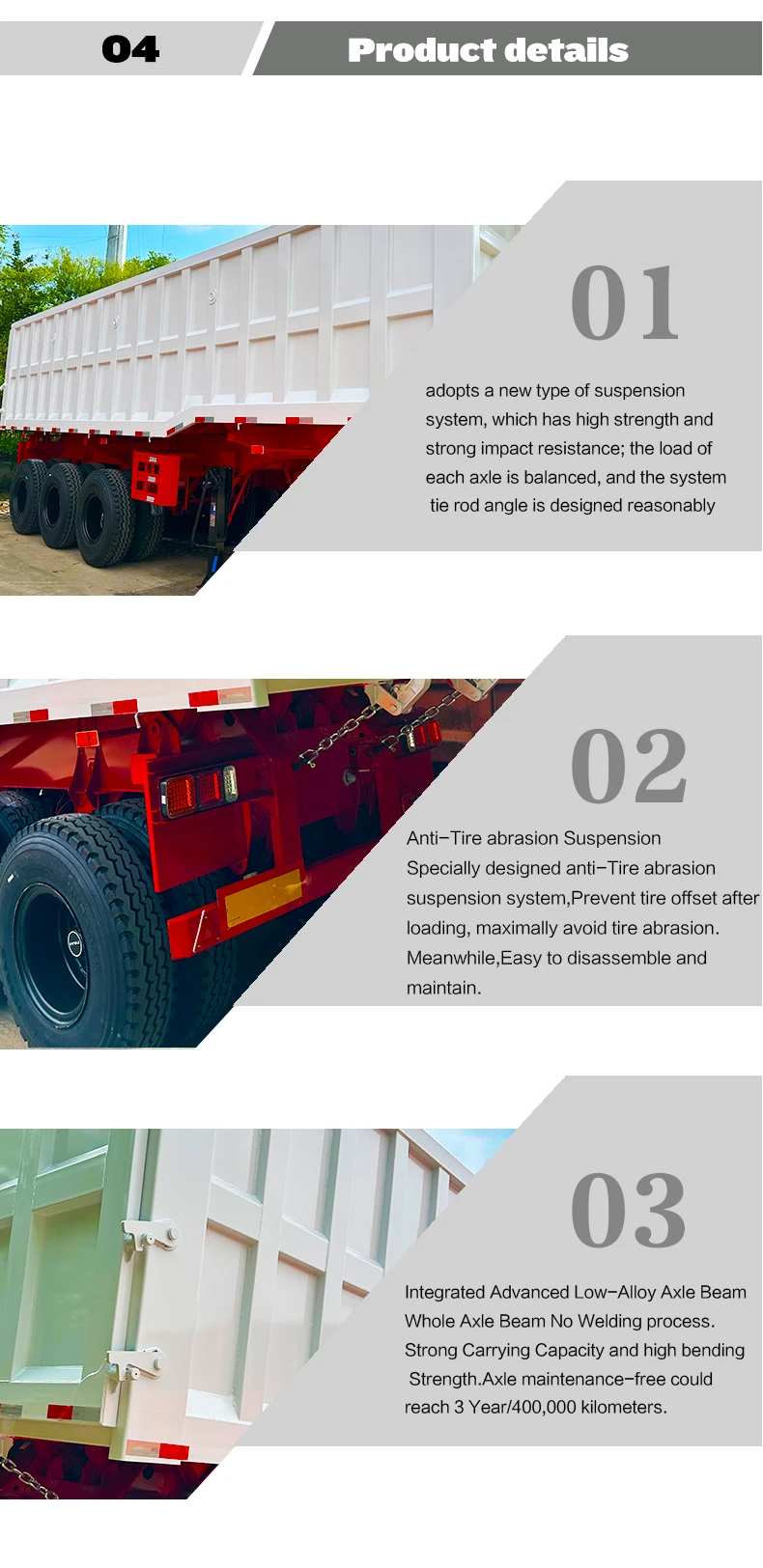

Product Details
LUYI VEHICLE DUMP TRUCK TRAILER FEATURE LIST
Luyi dump trailer can be designed according to different needs of customers, or tell us your different media cargoes, we will design come to you to design the corresponding models, to make your transportation much more economical.
Specification
We look at all distributor and driver's every feeling.To solve their transportation problem and optimize our services in further. We can desigh according to your detail requirement to make your transportation much more economical.
Trailer Model | LUYI Tipper Semi Trailer |
Overall Dimension | 7500-12000*2500*2900-3800mm |
Inner Dimension | 6600-11100*2400*1300-2200mm |
Box Volume | 28-60m3 |
Thickness of plate | Bottom: 4mm/6mm/8mm/10mm/12mm (optional), Side: 3mm/4mm/6mm/8mm/10mm (optional) |
Lifting Type | Front side lifting |
Lifting System | Oil lifting Cylinder |
Tare Weight | 7.85T—11T |
Loading Weight | 40-120T |
Axle | 3/4/5/6 axles, FUWA/BPW/YAHUA brand axle |
Wheelbase(mm) | 6700+1310+1310 or other |

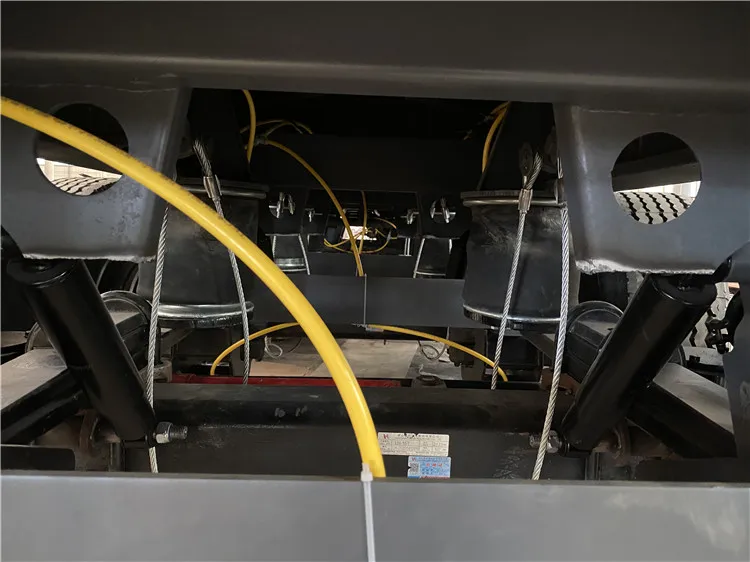

Suspension system | Air, Mechanical or Bogie Suspension with mechanical leaf spring (American or German) |
Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
Height: 450mm-520mm, | |
Frame | upper plate thickness is 16mm-25mm, |
middle plate thickness is 8mm-12mm, | |
down plate thickness is 16mm-25mm; | |
Heavy duty and extra durability designed; | |
Opting for high tensile steel Q345B welded by | |
automatic Submerged-Arc processes Height I beam. | |
Tire Type | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
Rim | 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20 |
Traction Pin | JOST 2" or 3.5" traction pin |
Spare Wheel Bracket | 2 sets(Patent type) |
Tool Box | 2 sets(waterproof type) |
Landing Leg | JOST, FUWA or YAHUA brand 28T |
Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); |
One piece of 45L air tanks | |
Brake air chamber | Six double chamber |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, | |
side lamp etc. | |
One set 6-core standard Cable. | |
Painting | Sandblasting, rust prevention, two primer, two finish |
Packing | Polish with wax before shipping |
Other types
LUYI VEHICLE special vehicle products advanced technology, reliable performance, all parts are used by well-known manufacturers at home and abroad products, in strict accordance with the requirements of the quality system documents for procurement, inspection and use, to ensure good performance of the vehicle.
LUYI VEHICLE adopts advanced manufacturing technology, automatic submerged arc welding of vertical beam, sandblasting of the whole frame, effectively eliminating welding stress, and adopts advanced fixture and technology in the whole production process to ensure the forming and assembly accuracy of the workpiece.
U Type Dump Trailer
2/3/4 Axles
Loading Capacity from 30 to 100 Tons Optional
Customized
Rectangle Type Dump Trailer
2/3/4 Axles
Loading Capacity from 30 to 100 Tons Optional
Customized
LUYI VEHICLE Side Dump Trailer
Application:Coal/Mine/Sand/Stone
LoadingLoading Capacity:30-100 Tons
Axles:3/4 Axles 13/16 Tons
Length*Width*Height:11000mm*2500mm*2800mm
LUYI VEHICLE Tandem Side Dump Trailer
Application:Coal/Mine/Sand/Stone
LoadingAxles:3/4 Axles 13/16 Tons
Cylinder:Ø210 Oil Cylinder
Ø140 Oil Cylinder/Customzied

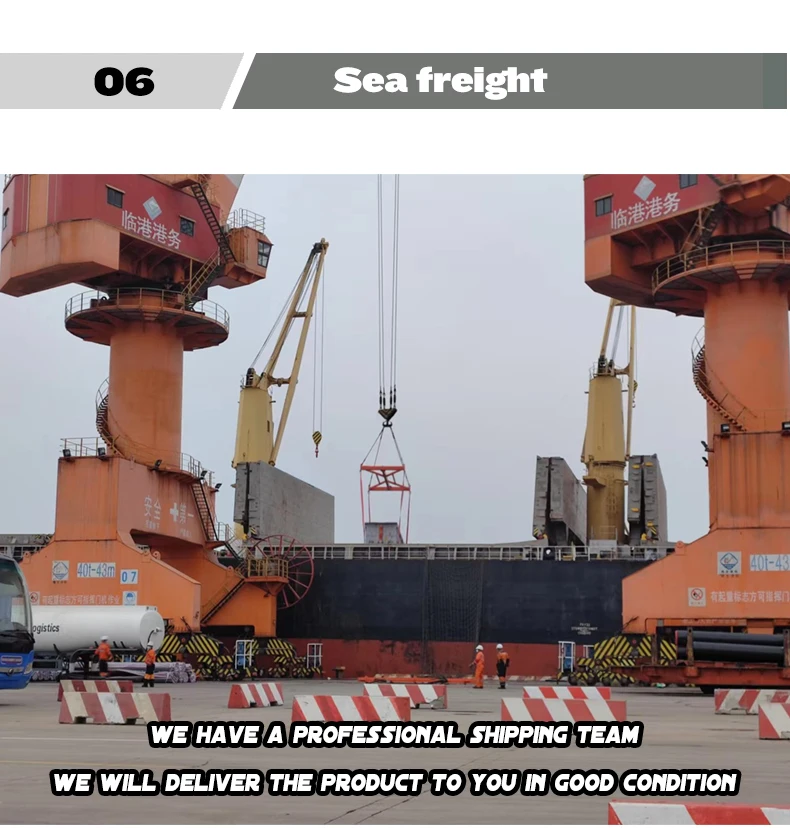

Packing & Shipping
Company Profie
Shandong Luyi Vehicle Co.,Ltd is specialized in the production of various semi trailers : Tipper semi trailer, Low bed semi trailer, Flatbed semi trailer,Van type semi trailer ;Container skeleton trailer , Special equipment transport semi trailer , Fuel tank semi trailer, Cement tank semi trailer and Construction machinery ,spare parts. we can provide professional special customized semi trailer according to different customer’s demand.
Luyi Vehicle researched and designed container dump rack for Australian client in 2018 year, it results in more efficient port transport solution . Luyi Vehicle researched and designed grain transport semi trailer for African client in 2019 year ,and it has successfully exported 280 sets to Africa. Luyi Vehicle all pass authoritative technical appraisal ,reaching world leading level .

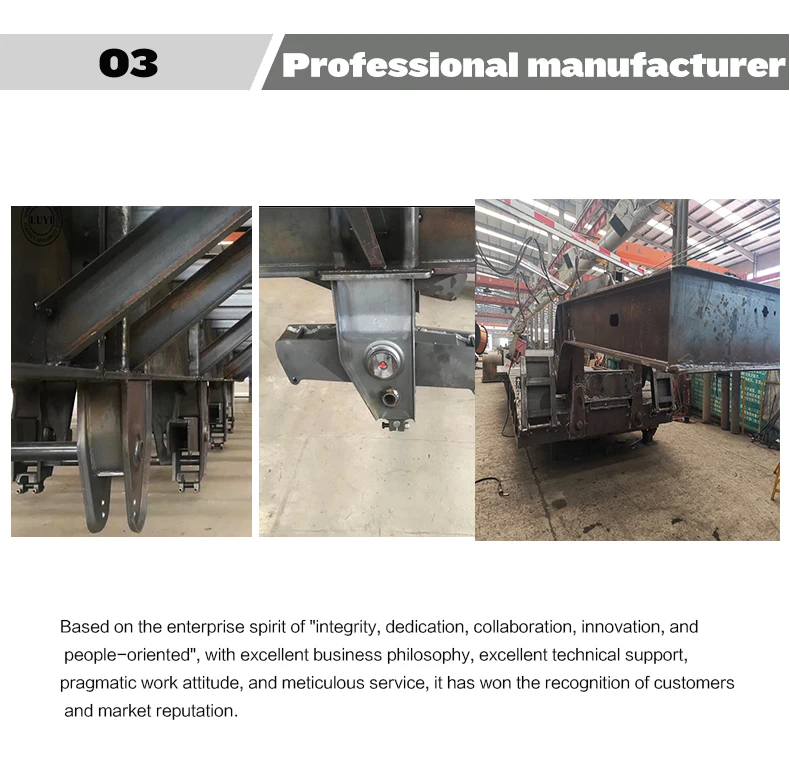

Luyi Vehicle has professional R & D team, international advanced production equipment :plasma underwater cutting machine, Automatic welding ;Large bending machine, Jigsaw machine, Automatic tank welding machine, Shot peening machine ,Spray painting and high-precision testing equipment etc.
Luyi Vehicle series products have been widely exported to more than 80 countries in Africa,Middle East ,Asia ,Eastern Europe,South America ,etc. Luyi Vehicle is committed to being special vehicle manufacturer that has the consumer at the center of everything we do, and providing all types truck trailer,trailer parts and complete System solutions to make your transportation much more economical.
Luyi Vehicle researched and designed container dump rack for Australian client in 2018 year, it results in more efficient port transport solution . Luyi Vehicle researched and designed grain transport semi trailer for African client in 2019 year ,and it has successfully exported 280 sets to Africa. Luyi Vehicle all pass authoritative technical appraisal ,reaching world leading level .
Luyi Vehicle has professional R & D team, international advanced production equipment :plasma underwater cutting machine, Automatic welding ;Large bending machine, Jigsaw machine, Automatic tank welding machine, Shot peening machine ,Spray painting and high-precision testing equipment etc.
Luyi Vehicle series products have been widely exported to more than 80 countries in Africa,Middle East ,Asia ,Eastern Europe,South America ,etc. Luyi Vehicle is committed to being special vehicle manufacturer that has the consumer at the center of everything we do, and providing all types truck trailer,trailer parts and complete System solutions to make your transportation much more economical.
More Products
Container/Cargo Loading
Cargo/Livestock/Wood/Steel Pipe Loading
Cargo Loading
Sand/Stone/Coal/Grain Loading
Cargo/Coal/Wood Loading
Tractor/Heavy Equipment Loading
Fuel/Water/Bitumen/Chemical Loading
Cement/Powder/Grain Loading
Container Self Loading
Heavy Duty Cargo/Equipment Loading
Length Cargo/Wind Blade Loading
Heavy Duty Cargo/Equipment Loading
Service
1.12months for main parts (engine, axle, body and beam, etc)
2. Technical Support by phone Whatsapp or email around the clock
3. Lifelong Parts Supports
4.The good faith management is our philosophy, and welcome visits our company at any time
5.According to your order, we provide suitable trailer.
6.We also provide rational packing and shipping program , let shipment save money and security. Just trust us, you will get a satisfactory answer.
2. Technical Support by phone Whatsapp or email around the clock
3. Lifelong Parts Supports
4.The good faith management is our philosophy, and welcome visits our company at any time
5.According to your order, we provide suitable trailer.
6.We also provide rational packing and shipping program , let shipment save money and security. Just trust us, you will get a satisfactory answer.
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | ||||||||
MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | ||||||
SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | ||||||||
KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | ||||||||
BALANCE ARM | 3 MONTHS | ||||||||||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | ||||||||
BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | ||||||
BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | ||||||||
AIR RESERVOIR | 6 MONTHS | ||||||||||
ITEM NAME | WARRANTY | ||||||||||
OTHERS | LEAF SPRING | 3 MONTHS | |||||||||
BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | ||||||||||
EMERGENCY RELAY VALVE | 3 MONTHS | ||||||||||
Похожие товары

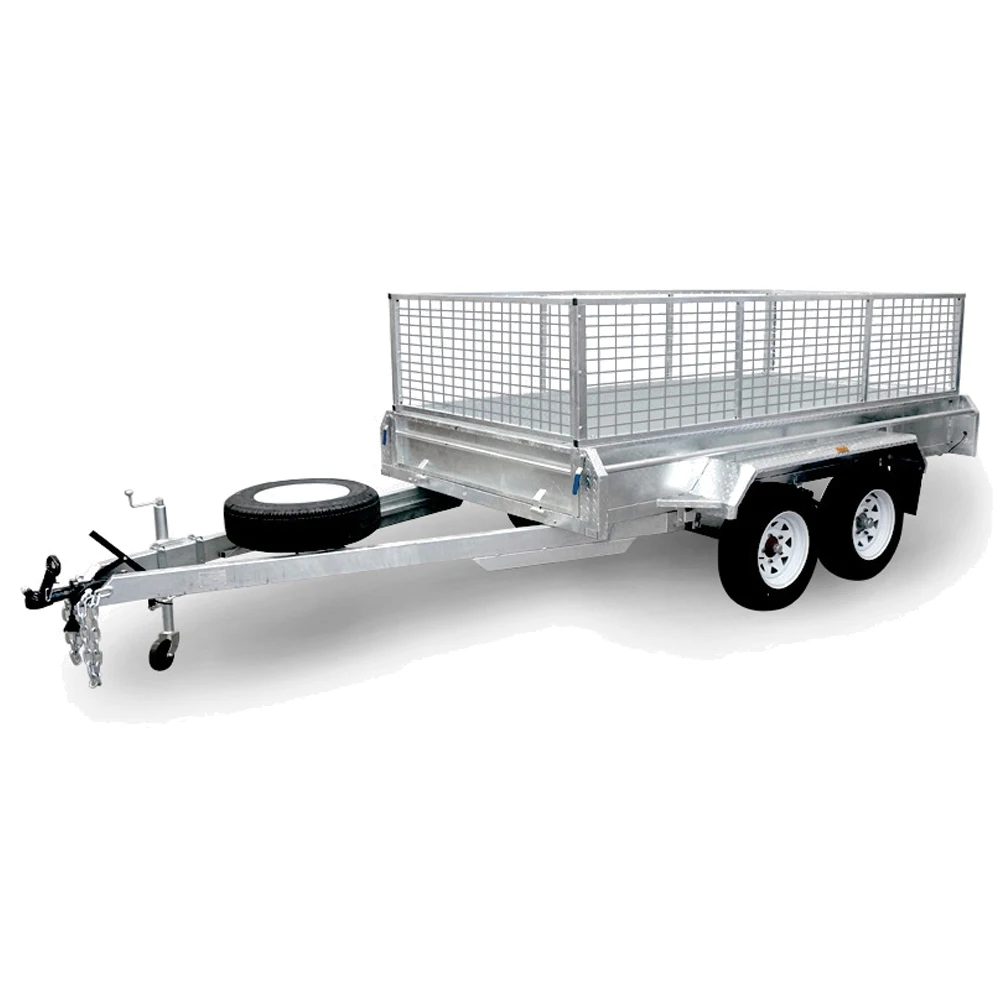

8x5 Тандемная Двухосная коробка прицеп оцинкованный автомобильный прицеп с 600/900 мм клеткой
125 287,20 ₽ - 140 408,06 ₽
Китай, 2, 3, 4 оси, сверхмощный грузовой двухэтажный Автомобильный Автомобиль, прицепы, автомобильный прицеп, полуприцеп
864 049,60 ₽ - 1 188 068,20 ₽
Горячая продажа 8x5 оцинкованная полностью сварная коробка прицеп клетка прицеп тандемный прицеп
125 287,20 ₽ - 140 408,06 ₽
Высококачественный высокопрочный транспортный 3-осевой контейнер для мальчиков, 40 футов 60 тонн
1 274 473,16 ₽ - 1 458 083,70 ₽
Dawo 3 оси 4 оси 80 тонн 20 футов 40 футов 45 футов бортовой полуприцеп б/у грузовик прицеп для продажи
518 429,76 ₽ - 626 435,96 ₽
Не нужно ждать! Не нужно ждать! 4 оси 100 т грузоподъемность низкая кровать прицеп для продажи в наличии
1 782 102,30 ₽

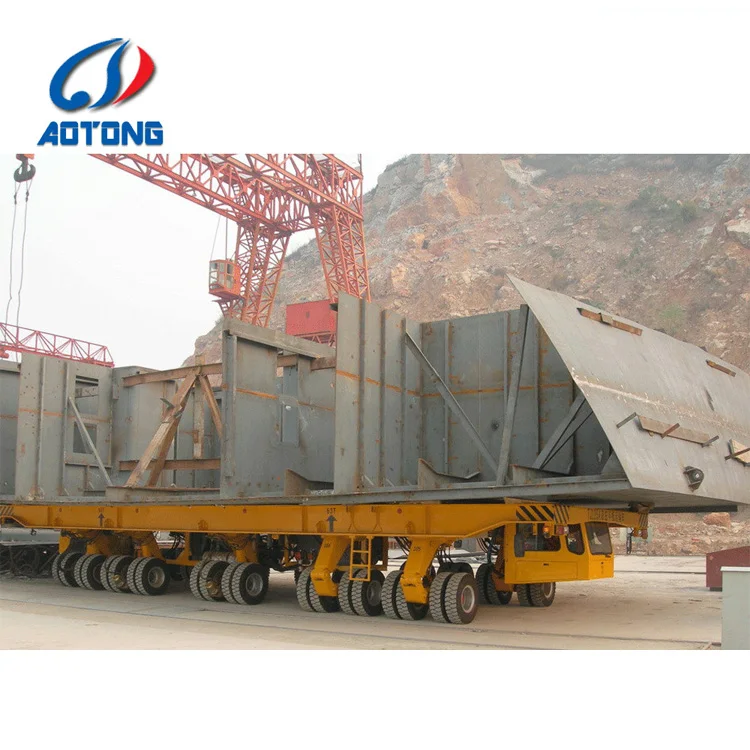

Гидравлический судовой транспортер 500-1000 тонн
