Новый автомобиль Dongfeng Duolika для уборки улиц грузовик воды пылеподавление водяная машина продажи
33 000,00-35 000,00 $
Сохранить в закладки 1600874648358:
Chassis model number | SINOTRUK |

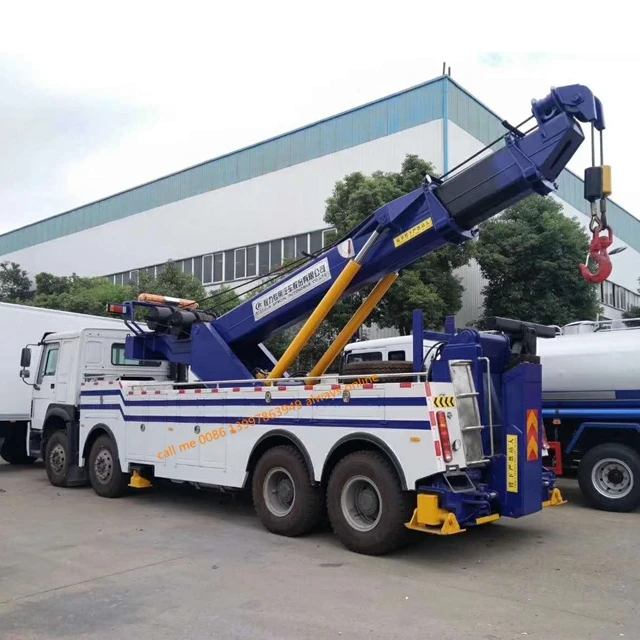

Product name | 8×4 heavy wrecker |
Emission Standard | Euro 5 |
Fuel Type | Diesel |
Vehicle size (reference) | 11200×2550×3470(mm) |
Cab | Sinotruk Howo chassis8X4,LHD, EuroII emission, 1800+4600+1350mm wheelbase, HW76 cab, WP12.400E201 engine (Weichai 400hp), HW19710 gearbox, HW70 power take-off, 9.5T front axle, 16T rear axle, 12.00R20 tires, air conditioner, 400L fuel tank. |

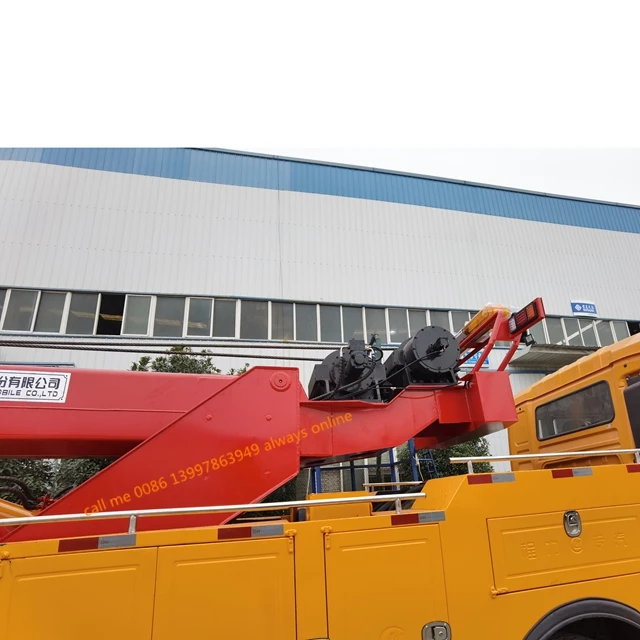

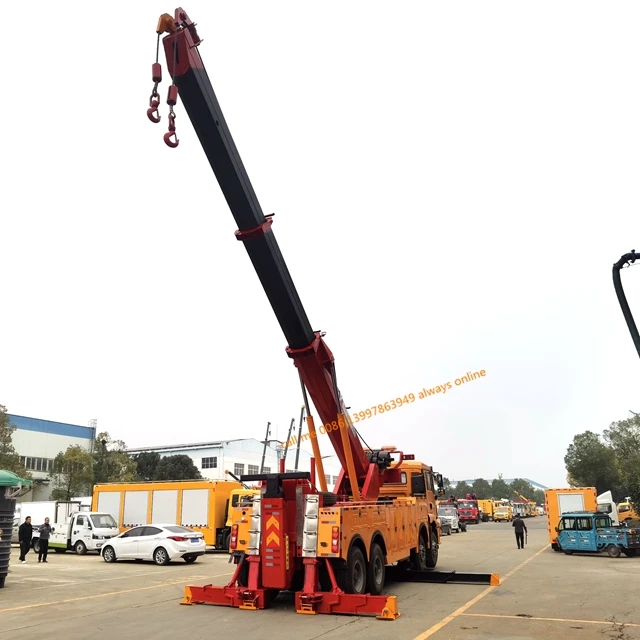

Full-slewing 360°degree swivel boom | 360°degree slewing, three-section boom, two 15-ton winches. Backbracket 25 tons. The jib height is 9 meters, the maximum jib weight at full extension is 7 tons, the rear support arm can lift 20 tons, and the maximum lift at full extension is 10 tons. |
Maximum Lifting Mass (kg) (Maximum static retraction/full extension with support) | 20000/12000 |
Fully extended maximum lifting weight (kg) (Driving retracted maximum/full extension) | 12500/8300 |
The maximum effective length of the support arm (mm) | 3350 |
Telescopic travel of the support arm (mm) | 1650 |
Lifting with load folding angle (0) | -7~16 |
The maximum distance from the fully extended yoke to the ground (mm) | 1835 |
Maximum lifting quality (kg) | 30000 |
Lifting capacity at fully retracted lifting angle of 30° (kg) | 12000 |
Lifting capacity at a fully extended lifting angle of 30° (kg) | 9000 |
Jib basic length (mm) | 5580 |
Cylinder telescopic stroke (mm) | 6000 |
Maximum lifting height (mm) | 12300 |
Maximum operating radius (mm) | 10710 |
Number of boom sections | 3 |
Boom luffing angle (0) | 0~60 |
Rotation angle (0) | 360 continuous rotation |
Wire rope specification | 22-6x25Fi+IWR1870 |
Front outrigger type | Under-mounted H-shaped front outrigger |
Rear outrigger type | L-shaped rear outrigger |
Longitudinal span of front and rear outriggers (mm) | 7760 |
