9000BTU не инверторный увлажнитель воздуха 6 тонн
150,06-163,71 $
Наружный и внутренний кондиционер Midea ac vrf серии v8 18000btu инверторный Тип для офисного здания
- Категория: >>>
- Поставщик: Beijing Midea Overseas Engineering&Technology Co. Ltd.Beijing Ltd.
Сохранить в закладки 1600875094818:
Описание и отзывы
Характеристики

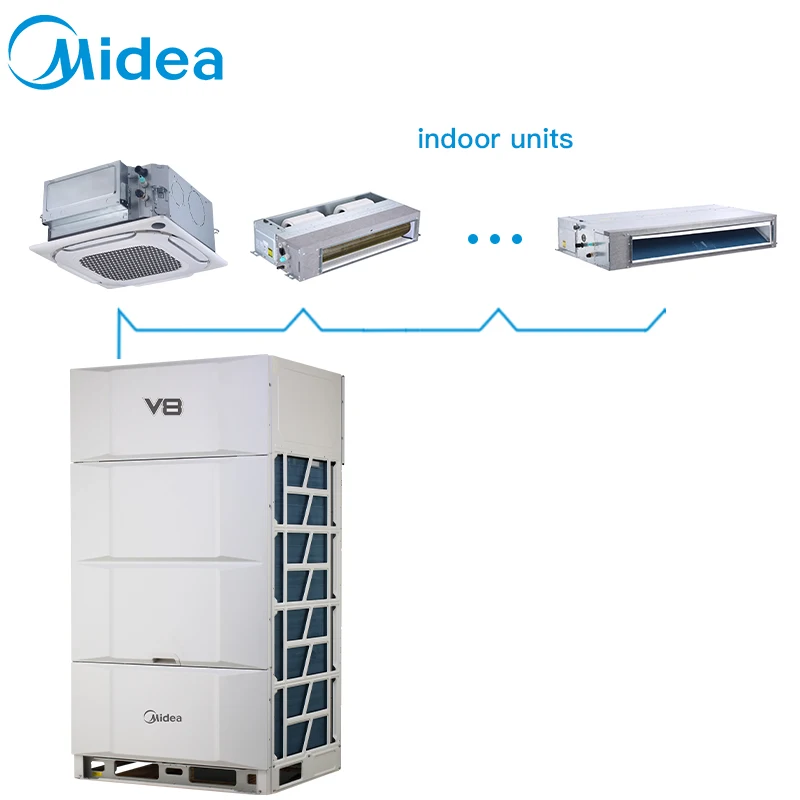

Midea VRF is a powerful system for your next HVAC project if you are looking for cost effective solutions.
Midea HVAC provides one-stop service, including VRF drawing design, model selection, installation material calculation, start up guidance etc, equipment, supplying installation material and other parts directly for your project which makes your VRF projects easier.
Why Choose Us
1.Experience
More than 50 years of overseas HVAC project experience，we have successfully completed hundreds of large-scale HVAC projects and have a deep understanding of global HVAC projects.
2.Professional design
Our professional design team are ready to provide you a AC plan drawing based on your architecture blueprint. in this case, you do not need to find an engineering advisor to design the HVAC layout. Save both time & money for you !
3.Professional selectoion
Based on Midea diversified commercial air conditioning system, we can select the most suitable model for your project according to the drawings.
4.Providing One-Stop Solution of HVAC System
One-stop service helps save cost and time. Generally including air conditioning Indoor units and outdoor units, control system, installing accessories(refrigerant copper pipe, UPVC pipes, rubber insulation, hoist,brackets, communication wire etc), refrigerant tools(vacuum pump, cutter,expansion tools etc), ventilation grill & diffuser etc.
5.Technical Support
HVAC commissioning service can be provided accordingly. Air conditioner project engineers can guide and supervise product installation on site.
6.After-sales service
We have Global After-Sales System with expertise service. Ensure your after-sales worry-free.
How to get a quick quotation?
Information needed by Midea Group’s management system before prepare quotation details for you.
1.Project Drawing, building layout, equipment BOQ.
2.Project name: building name or building type, such as xxx office project, residential house project etc.
3.Expected shipping date of this project.
4.Project type: tender or self-owned.
3.Expected shipping date of this project.
4.Project type: tender or self-owned.
Product Line
Product name | Midea V8 Series VRF System Central Air Conditioner | ||||||
Power Supply | 380-415/3/50(60) | ||||||
Cooling1 | Capacity | 25.2KW-303KW | 86-1033.8KBtu/h | ||||
Power input | 5.3-106.2KW | ||||||
EER | 4.76-2.85KW/KW | ||||||
Heating2 | Capacity | 27KW-330KW | 92.1-1013.4KBtu/h | ||||
Power input | 5.4-104.1KW | ||||||
COP | 5.03-3.23KW/KW | ||||||
Compressors | Type | DC inverter | |||||
Fan motors | Type | DC | |||||
Max.ESP | 0-20 (standard) 20-120 (customized) (Pa) | ||||||
Airflow rate | 12600-87000m3/h | ||||||
Refrigerant | Type | R410A | |||||
Ambient temp | Cooling | -15℃ to 55 ℃ | |||||
Heating | -30 to 30℃ | ||||||
The V8 Series VRF uses a variety of algorithms and self-learning technology to monitor the operation of the equipment through operating parame-ters and timely maintenance, so that the equipment always runs in opti-mal condition throughout its life cycle
HyperLink
Midea original communication bus chip greatly simplifies installation and saves installation cost
HyperLink communication technology supports any wiring pattern rather than just daisy chain
connection, reducing the installation cost and the possibility of incorrect connection. It has
stronger anti-interference ability, achieving communication distance up to 2000m.
connection, reducing the installation cost and the possibility of incorrect connection. It has
stronger anti-interference ability, achieving communication distance up to 2000m.
Arbitrary Topology Communication
In addition to the traditional daisy chain connection, the communication wire supports tree connection, star connection, ring connection and so on. The wring is flexible, which greatly reduces the installation cost and has no possibility of wrong connection on site.
Super Anti-interference Capability
Special waveform restoration technology enhances anti-interference performance for more stable communication.
Flexible Power Supply for Indoor Units
HyerLink 's unique communication method
allows the indoor units to be powered not only
by a uniform power supply, but also by
individual and zone power supplies, making it
particularly suitable for each shop in a large
complex building, which can independently
power on and off its own indoor units.
allows the indoor units to be powered not only
by a uniform power supply, but also by
individual and zone power supplies, making it
particularly suitable for each shop in a large
complex building, which can independently
power on and off its own indoor units.
ShieldBox
IP55 fully enclosed electric control box provides all-round protection for internal electronic
components, greatly improving system RELIABILITY
components, greatly improving system RELIABILITY
Fully enclosed electronic components are isolated from the external environment to protect against
corrosion, sand, humidity, snowstorm and other harsh conditions, and prevent small animals and
insects from entering the chamber. To provide comprehensive protection for internal electronic
devices, improve the overall environmental tolerance.
insects from entering the chamber. To provide comprehensive protection for internal electronic
devices, improve the overall environmental tolerance.
All Microchannel Refrigerant Cooling
All electronic components including inverter
module, filter module and power module are cooled
by specially designed microchannel refrigerant to
ensure that the electronic components work in the
best temperature range.
module, filter module and power module are cooled
by specially designed microchannel refrigerant to
ensure that the electronic components work in the
best temperature range.
PTC Heater
The unique PTC heater, with precise temperature control
sensor, can still ensure that the temperature inside the
chamber is within the normal operating temperature
range of electronic devices even in the low-temperature
environment of -30°C.
sensor, can still ensure that the temperature inside the
chamber is within the normal operating temperature
range of electronic devices even in the low-temperature
environment of -30°C.
Built-in Circulating Fan
The built-in circulating fan accelerates the air flow
inside the chamber, and the heat exchange is more
sufficient to ensure the consistent ambient
temperature inside the chamber.
inside the chamber, and the heat exchange is more
sufficient to ensure the consistent ambient
temperature inside the chamber.
5 High Precision Temperature Sensors
5 high precision temperature sensors are used to
accurately monitor the operation state of electronic
control under various conditions to ensure that the
internal temperature of the chamber is always kept within a stable range.
accurately monitor the operation state of electronic
control under various conditions to ensure that the
internal temperature of the chamber is always kept within a stable range.
SuperSense
The status of the refrigerant is known anywhere throughout the process, ensuring high RELIABILITY
and COMFORT.
and COMFORT.
Up to 19 sensors are distributed throughout the refrigerant system, and the status of the
refrigerant is known anywhere throughout the process, ensuring stable operation. At the same
time, combined with the digital twin technology of the refrigerant system, a virtual sensor can be
created in the event of a physical sensor failure, so that the system does not shut down in the
event of a sensor failure, ensuring comfort.
refrigerant is known anywhere throughout the process, ensuring stable operation. At the same
time, combined with the digital twin technology of the refrigerant system, a virtual sensor can be
created in the event of a physical sensor failure, so that the system does not shut down in the
event of a sensor failure, ensuring comfort.
Complete Sensors
The V8 Series VRF has the industry's most
comprehensive range of 19 condition sensors with
built-in data models for compressors, heat
exchangers, throttling components and more. By
analyzing sensor data in real time, it can sense the
status of the refrigerant anywhere in the system.
comprehensive range of 19 condition sensors with
built-in data models for compressors, heat
exchangers, throttling components and more. By
analyzing sensor data in real time, it can sense the
status of the refrigerant anywhere in the system.
Refrigerant Amount Diagnosis*
Thanks to the complete sensors, the refrigerant running state is clearly visible, so as to accurately diagnose the amount of refrigerant.
In the event of a sensor failure, other sensors can automatically simulate a virtual backup sensor, so that the VRF system can continue to operate without stopping.

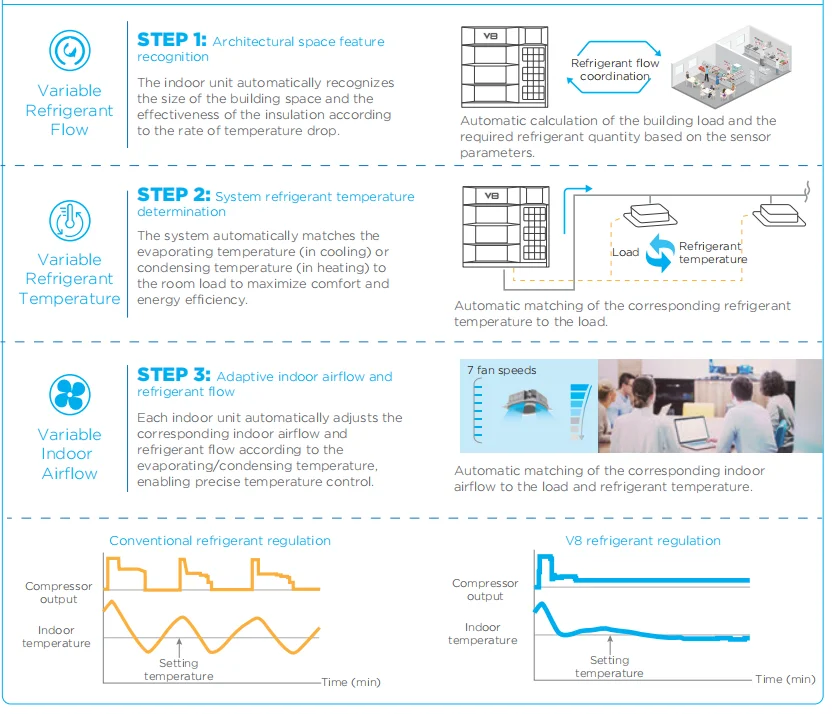

Midea ETA (META) 2.0
META is the abbreviation of Midea Evaporating Temperature Alteration
Further upgraded META technology to maximize ENERGY SAVING.
Further upgraded META technology to maximize ENERGY SAVING.
Built-in professional operation and maintenance algorithm, so that the annual operation energy
efficiency of each set of systems increased by more than 28%.
efficiency of each set of systems increased by more than 28%.
Company Profile
Product Package
Packing Details:
1.VRF Air Conditioning Outdoor Unit: Midea standard pallet package with film covered.
2.Fan Coil Unit / VRF Indoor Unit:Midea standard carton package.
3.For Big Air Conditioning Equpiment such as Air Cooled Chiller,Water Cooled Chiller : pallet.
Leading time: Generally 25-60 days( peak-time and off-time).
2.Fan Coil Unit / VRF Indoor Unit:Midea standard carton package.
3.For Big Air Conditioning Equpiment such as Air Cooled Chiller,Water Cooled Chiller : pallet.
Leading time: Generally 25-60 days( peak-time and off-time).
Contact US
