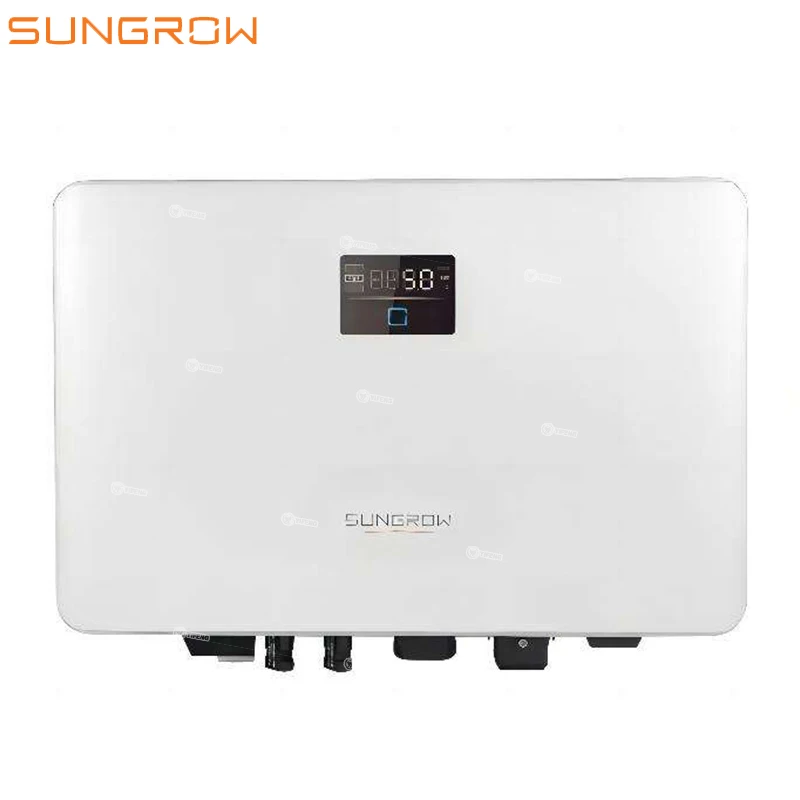

Type designation | SH3.0RS | SH3.6RS | SH4.0RS | SH5.0RS | SH6.0RS | |||||
Input (DC) | ||||||||||
Recommended max. PV input power | 10000 Wp | 10700 Wp | 11000 Wp | 12000 Wp | 13000 Wp | |||||
Max. PV input voltage | 600 V | |||||||||
Min. PV input voltage / Startup input voltage | 40 V / 50 V | |||||||||
Rated PV input voltage | 360 V | |||||||||
MPP voltage range | 40V – 560 V | |||||||||
No. of independent MPP inputs | 2 | |||||||||
No. of PV strings per MPPT | 1 / 1 | |||||||||
Max. PV input current | 32 A (16 A/16 A) | |||||||||
Max. DC short-circuit current | 40 A (20 A/20 A) | |||||||||
Max. current for input connector | 20A | |||||||||
Battery Data | ||||||||||
Battery type | Li-ion battery | |||||||||
Battery voltage | 80V - 460V | |||||||||
Max charge / discharge current | 30A / 30A | |||||||||
Max charge / discharge power | 6600W | |||||||||
Input / Output (AC) | ||||||||||
Max. AC power from grid | 10000 VA | 10700 VA | 11000 VA | 12000 VA | 13000 VA | |||||
Rated AC output power | 3000 W | 3680 W | 4000 W | 5000 W | 6000 W | |||||
Max. AC output apparent power | 3000 VA | 3680 VA | 4000 VA | 5000 VA | 6000 VA | |||||
Max. AC output current | 13.7 A | 16 A | 18.2 A | 22.8 A | 27.3A | |||||
Rated AC voltage | 220 / 230 / 240 V | |||||||||
AC voltage range | 154 V – 276 V | |||||||||
Rated grid frequency | 50 Hz / 60 Hz | |||||||||
Grid frequency range | 45 – 55 Hz / 55 – 65 Hz | |||||||||
Harmonic (THD) | <3 % (of rated power) | |||||||||
Power factor at Rated power / Adjustable power factor | >0.99 at default value at rated power | |||||||||
Feed-in phases / connection phases | 1 / 1 | |||||||||
Efficiency | ||||||||||
Max. efficiency / European efficiency | 97.4 % / 97.0 % | 97.5 % / 97.1 % | 97.6 % / 97.2 % | 97.7 % / 97.3 % | 97.7 % / 97.3 % | |||||
Backup Data (on grid mode) | ||||||||||
Rated output power for backup load | 6000 W | |||||||||
Rated output current for backup load | 27.3 A | |||||||||
Backup Data (off-grid mode) | ||||||||||
Rated voltage | 220 V / 230 V / 240 V (±2 %) | |||||||||
Frequency range | 50 Hz / 60 Hz (±0.2 %) | |||||||||
Output voltage harmonic (THD) | < 2 % | |||||||||
Switch time to emergency mode | < 10 ms | |||||||||
Rated output power | 3000W / 3000VA | 3680W / 3680VA | 4000 W / 4000 VA | 5000W / 5000VA | 6000W / 6000VA | |||||
Peak output power | 8400 VA, 10s |
Protection & Function | ||||||||
Grid monitoring | Yes | |||||||
DC reverse polarity protection | Yes | |||||||
AC short-circuit protection | Yes | |||||||
Leakage current protection | Yes | |||||||
DC switch(solar) | Yes | |||||||
DC fuse(battery) | Yes | |||||||
Surge Protection | DC Type II /AC Type II | |||||||
PID recovery function | Yes | |||||||
Parallel operation on grid port / Max. No of inverters | Master-slave mode / 5 | |||||||
Battery input reverse polarity protection | Yes | |||||||
General Data | ||||||||
Topology (Solar / Battery) | Transformerless / Transformerless | |||||||
Degree of protection | IP65 | |||||||
Dimensions (W * H * D) | 490 * 340 * 170 mm | |||||||
Weight | 18.5 kg | |||||||
Mounting method | Wall-mounting bracket | |||||||
Operating ambient temperature range | -25 ℃ to 60 ℃ | |||||||
Allowable relative humidity range | 0 % – 100 % | |||||||
Cooling method | Natural convection | |||||||
Max. operating altitude | 4000 m | |||||||
Noise emission | < 45dB(A) | |||||||
Display | LED digital display & LED indicator | |||||||
Communication | RS485 / Ethernet / WLAN / CAN | |||||||
DI / DO | DI * 4 / DO * 1 / DRM | |||||||
DC connection type | MC4 (PV) / Sunclix (Battery) | |||||||
AC connection type | Plug and Play | |||||||
Grid compliance | IEC/EN 62109-1, IEC/EN 62109-2, IEC62116, IEC61727, IEC/EN 61000-3-11, IEC/EN 61000-3-12, EN 62477-1, AS/NZS 4777.2:2020, EN 50549-1, CEI 0-21, G98 / G99, UNE 217002:2020, NTS V2 TypeA, C10/26 |
