Профессиональный производитель tdc фланец формовочная машина для воздуховода
- Категория: >>>
- Поставщик: Foshan Liding Technology Co. Ltd.
Сохранить в закладки 1600875921272:
Описание и отзывы
Характеристики
Products Description

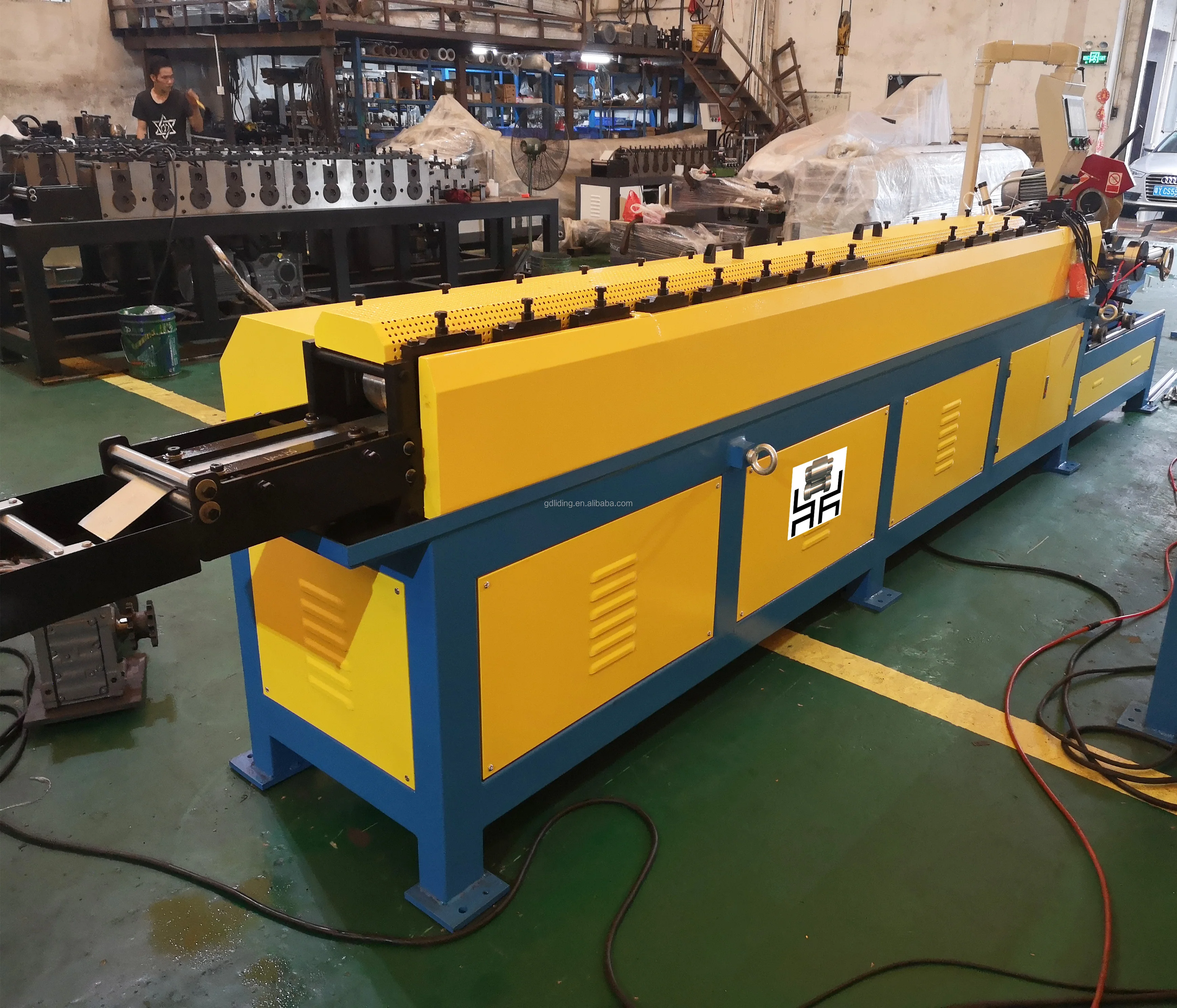

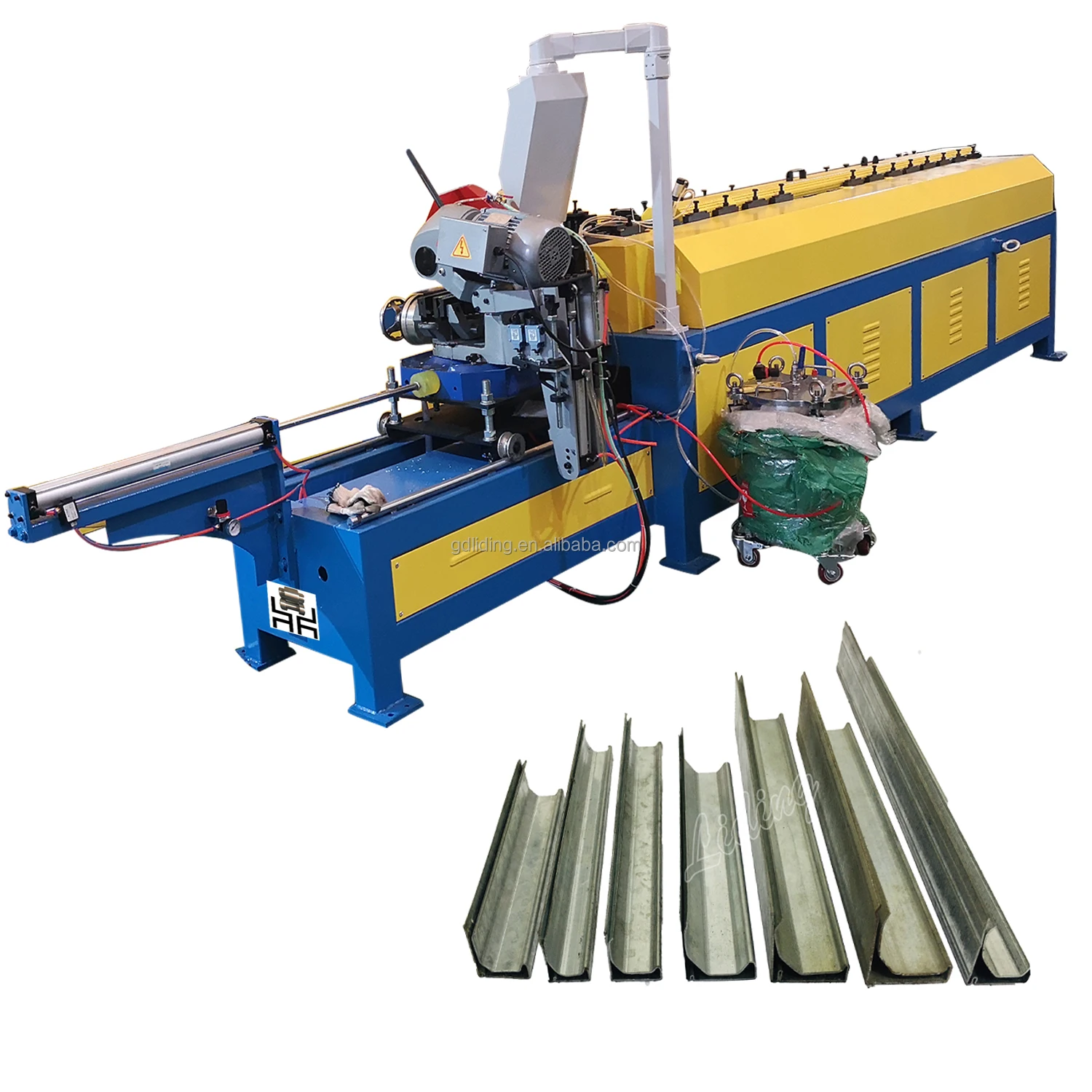

Factory Professional manufacturer tdc machine tdc flange forming machine
Mainly specification：

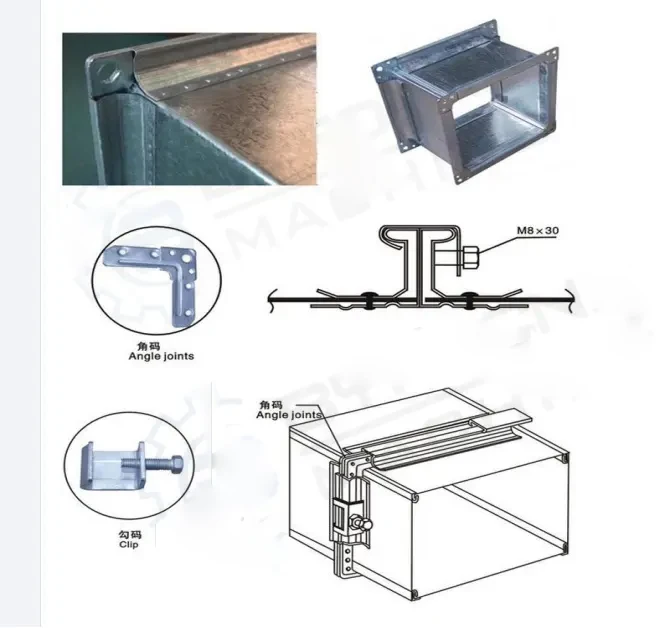

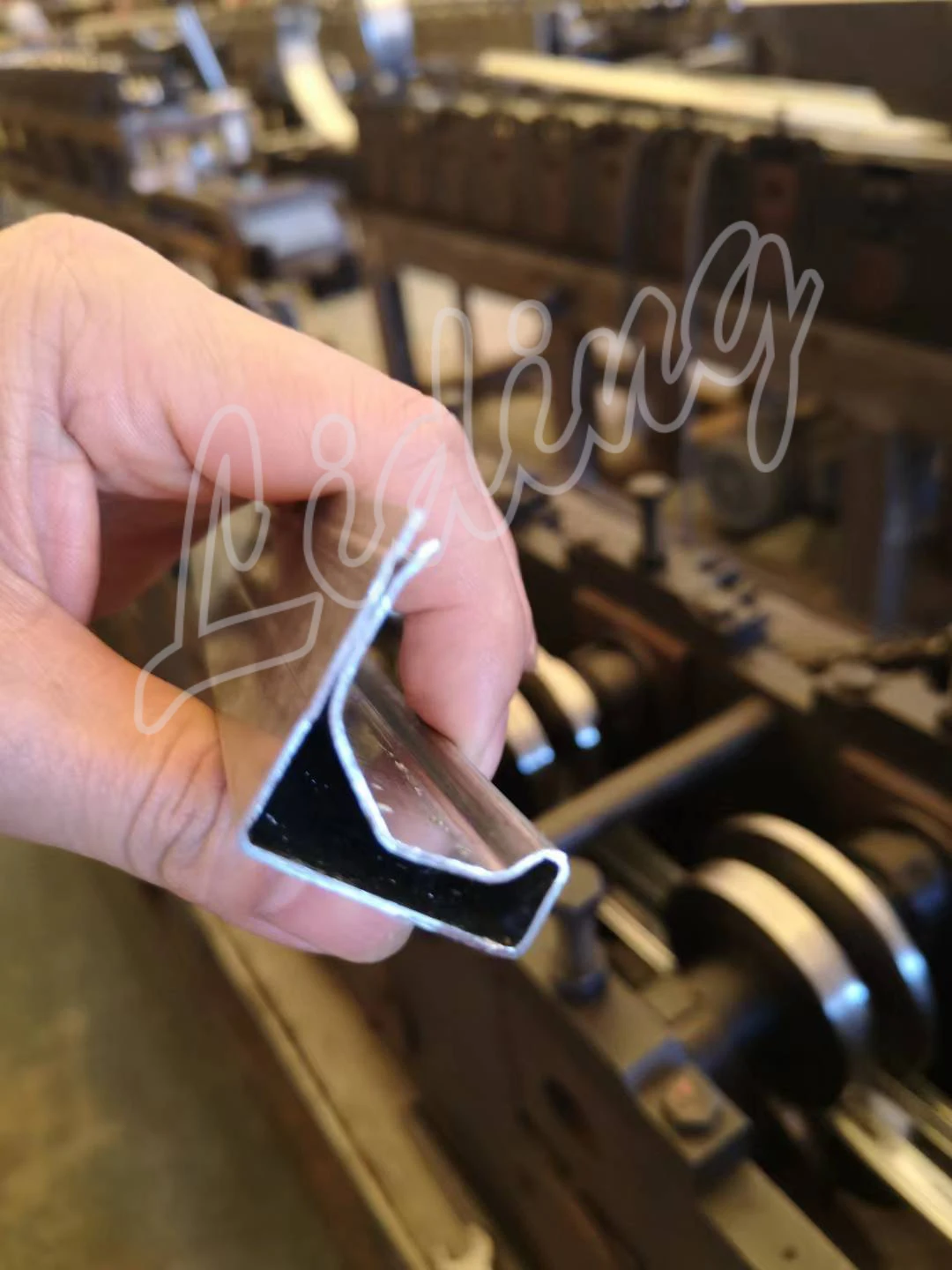

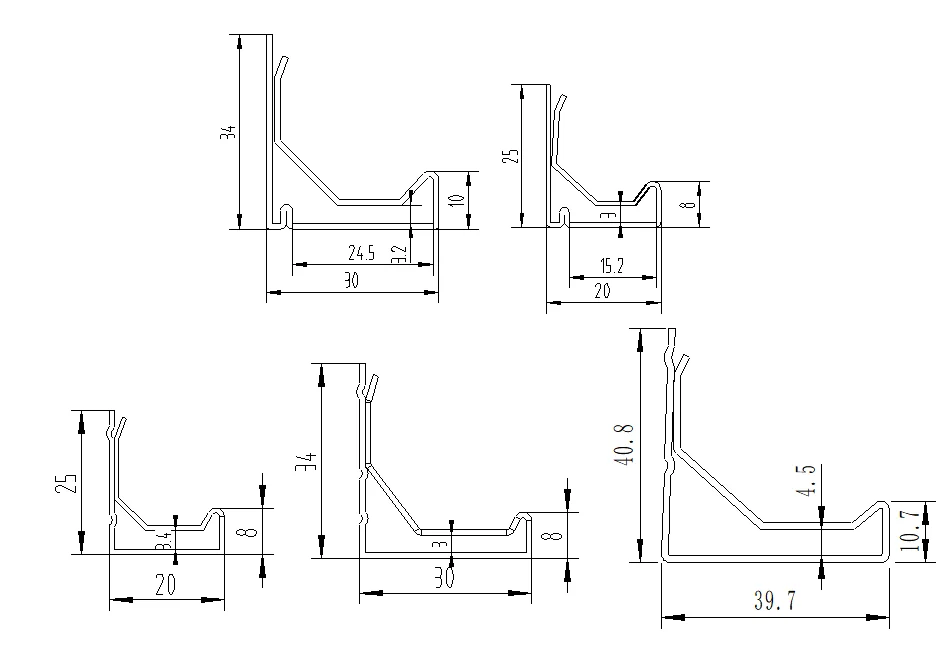

TDC flange roll former is widely used for manufacturing TDC-20mm, TDC-30, TDC-40 wide side on frame flange etc. custom TDC flange profiles can be offered on request. The ship on flange lines can also be equipped with a device for injection of sealing mastic directly during the forming process.TDC flange roll former machine is consisted of decoiler, main forming units and cutting system. The cutting system is automatic cutting with high cutting speed up to 6-10m/min.
TDC flange roll former is widely used for manufacturing TDC-20mm, TDC-30, TDC-40 wide side on frame flange etc. custom TDC flange profiles can be offered on request. The ship on flange lines can also be equipped with a device for injection of sealing mastic directly during the forming process.TDC flange roll former machine is consisted of decoiler, main forming units and cutting system. The cutting system is automatic cutting with high cutting speed up to 6-10m/min.
Product Specifications

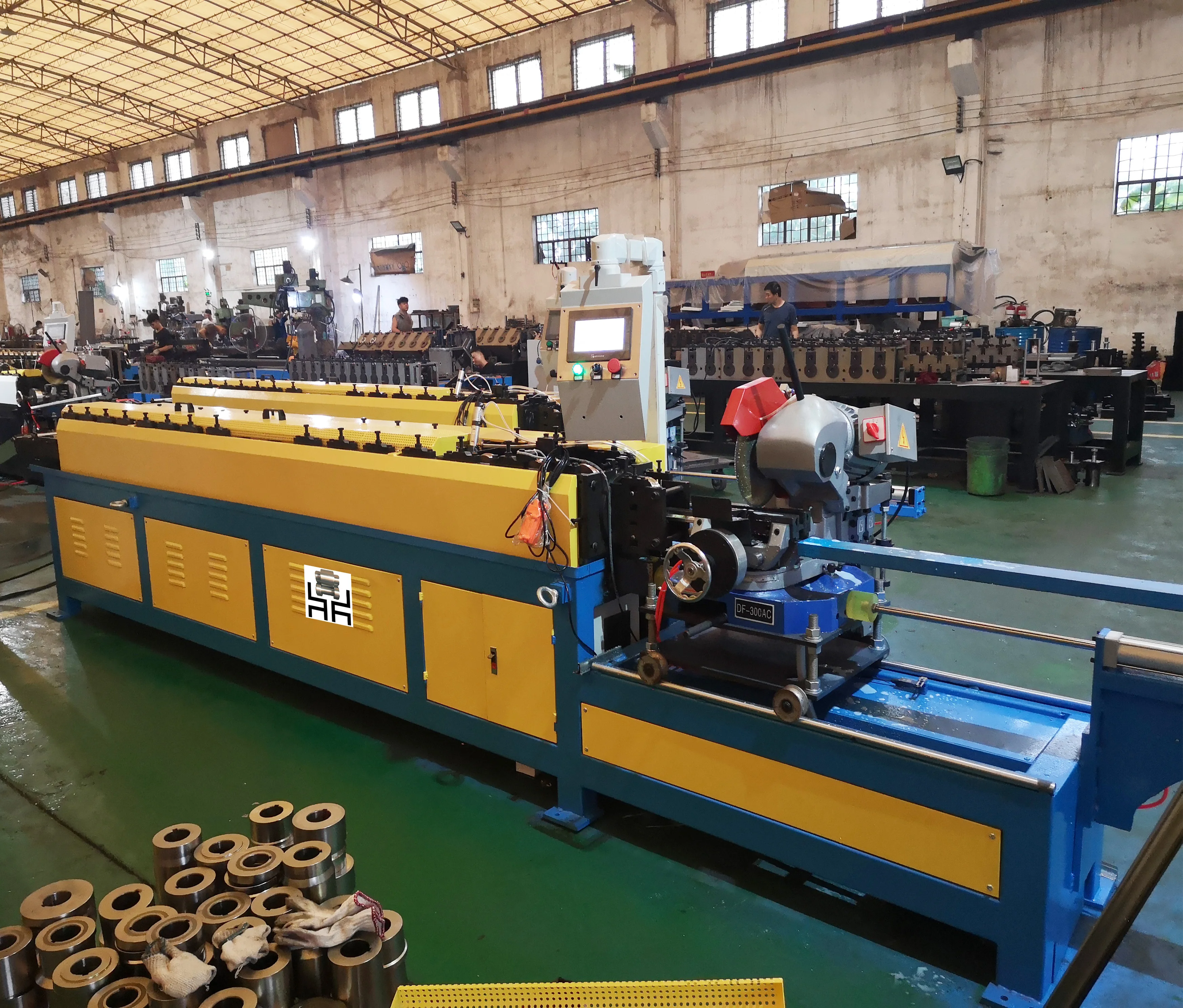

T-30 tdc machine tdc flange forming machine details:
① Feeding material: aluzinc/galvanized steel/colored steel coil or as customer request
② Feeding Thickness : 0.8-1.0mm
③ Productivity: 6-8m/min
④ hydraulic pump station power:2.2kw
⑤ Cutting blade: heat treatment hardness HRC60°-62°
⑥ Forming machine size: approx. L*W*H 7m*0.8m*1.2m
⑦ Machine net weight: approx. 2.5 tons
⑧ Machine table：welded with 100*80 square tube
⑨ Side plate thickness:25mm
⑩ Main motor power:4kw
⑪ Rolling stages:15stages+ 5 rollers for straightening
⑫ Shaft diameter : ￠42mm
⑬ Shaft material：45# steel，quenched and finely ground outer circle
⑭ main bearing material :6207
⑮ Roller material: GCr15 steel
⑯ Control systerm: PLC control system with touch screen
⑰ Roller driven type：Chain and gear transmission
⑱ Voltage: 380V/ 3phase/ 50 Hz
No | Item | Date |
1 | Decoiler | 1 set |
2 | Roll Forming Machine | 1 set |
3 | Circular steel sawing | 1 set |
4 | Run Out Table | 4 m |
5 | PLC controling | PLC control system with touch screen |
Producing process

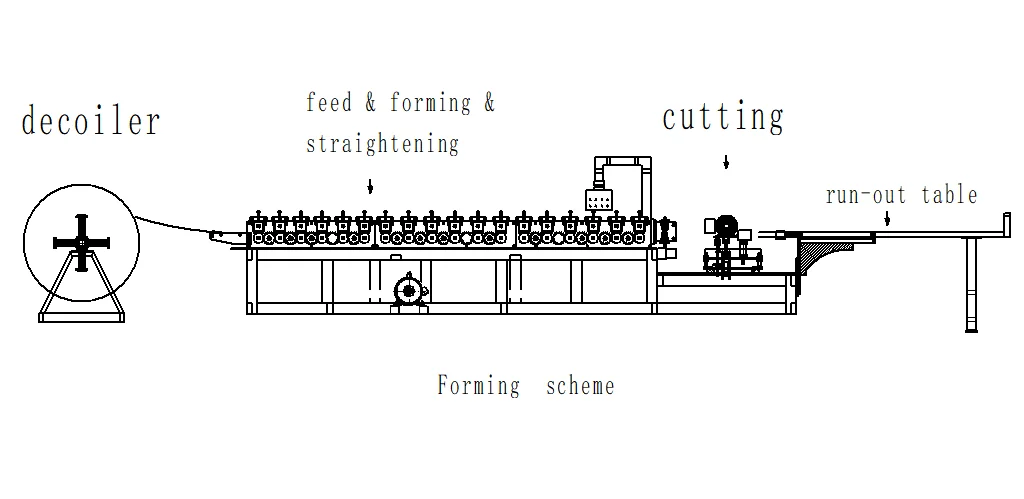

Decoiling → Feeding → Roll forming →Circular steel sawing-off →Run-out table
Details Images
20 years of production experience to provide customers with solutions

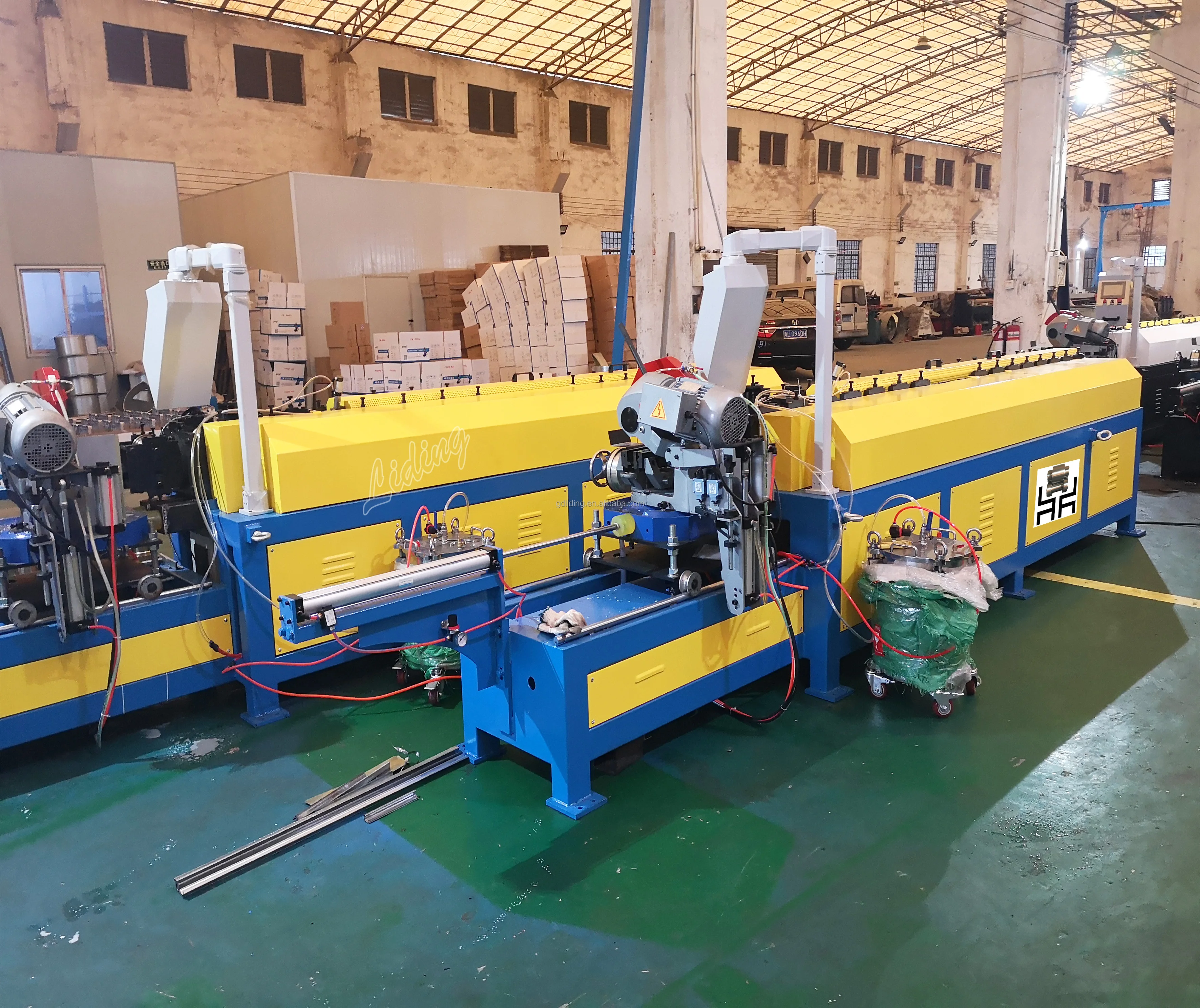

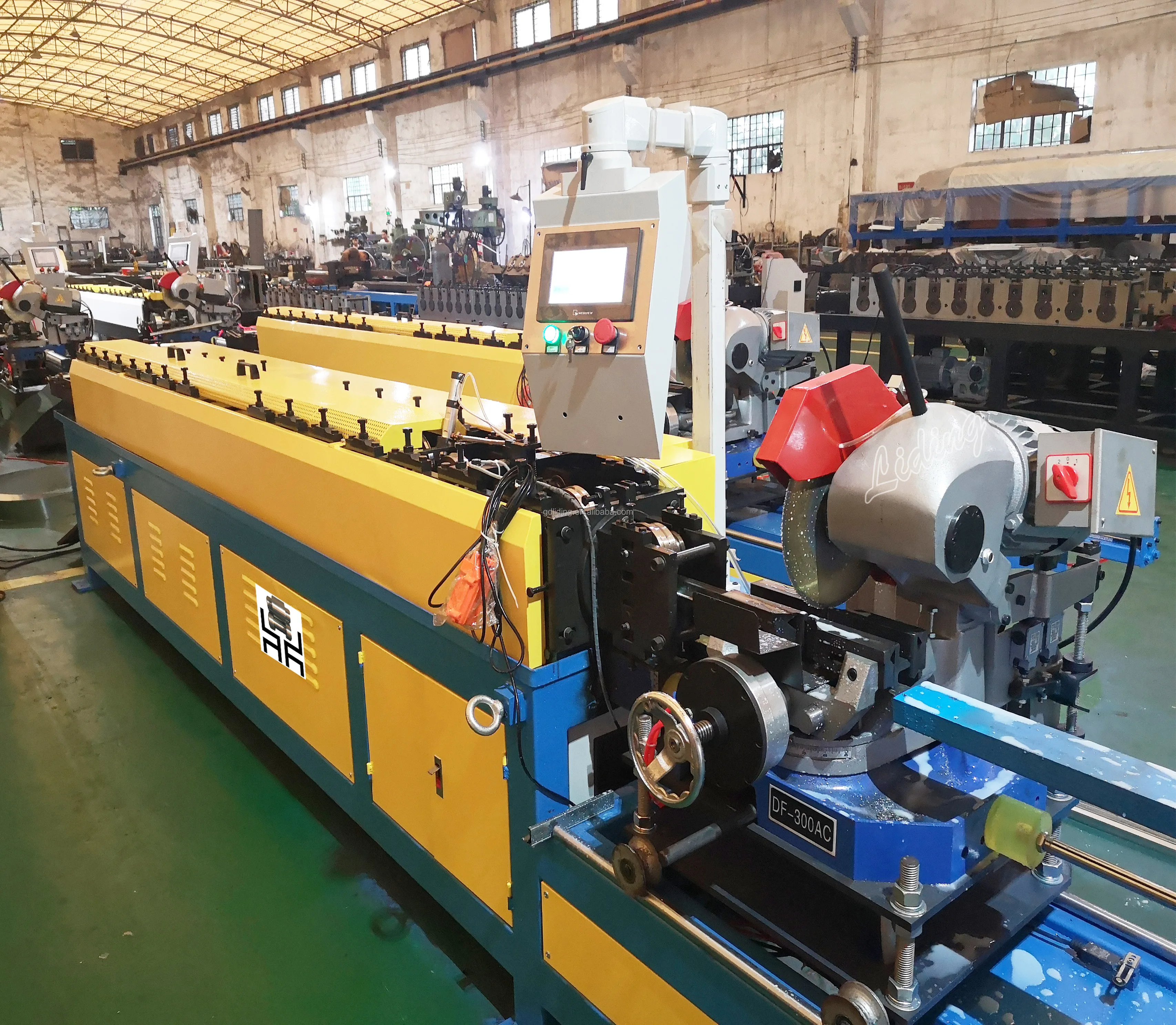

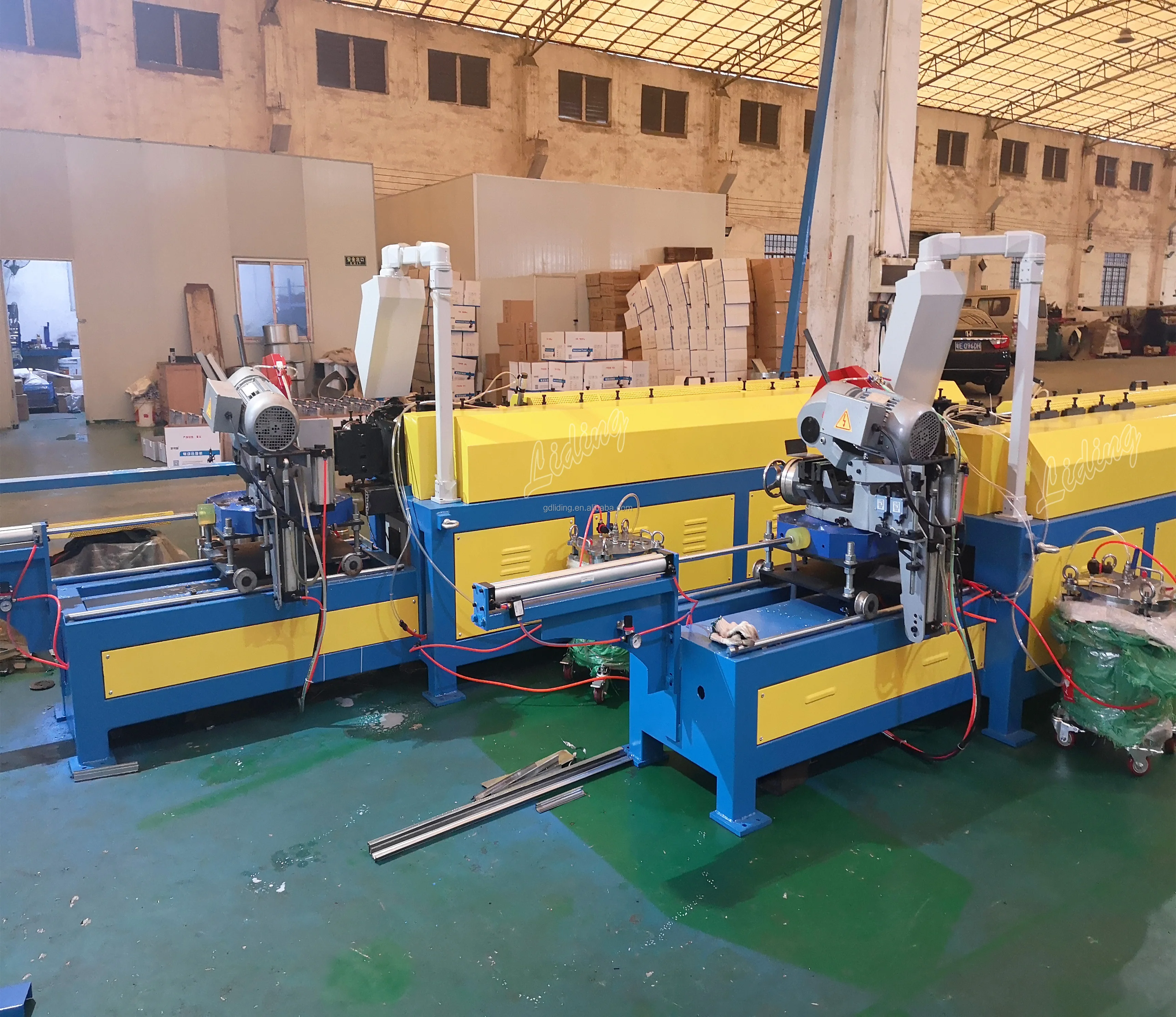

tdc flange production line

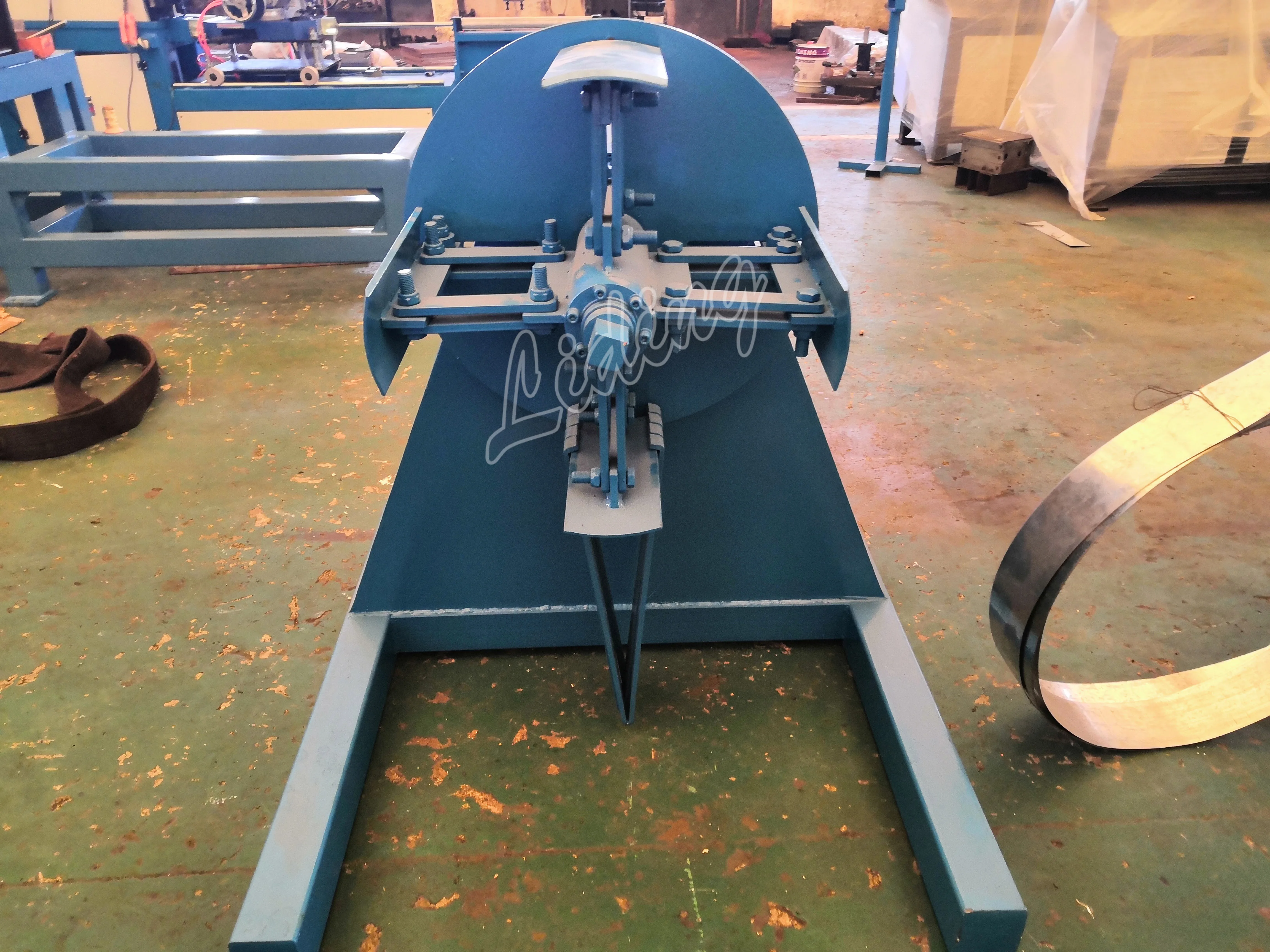

Name: Decoiler
Original: Guangdong,China (mainland)
①Max. width: 200mm
②Inner Diameter ：Ø460mm-520mm
③Max.outside diameter：Ø1300mm
④Max. Loading Capacity: 1Ton
⑤ Adopts manual core expansion
⑥No power transmission, with brake
①Max. width: 200mm
②Inner Diameter ：Ø460mm-520mm
③Max.outside diameter：Ø1300mm
④Max. Loading Capacity: 1Ton
⑤ Adopts manual core expansion
⑥No power transmission, with brake
The guiding position can be adjusted for suitable material feeding.

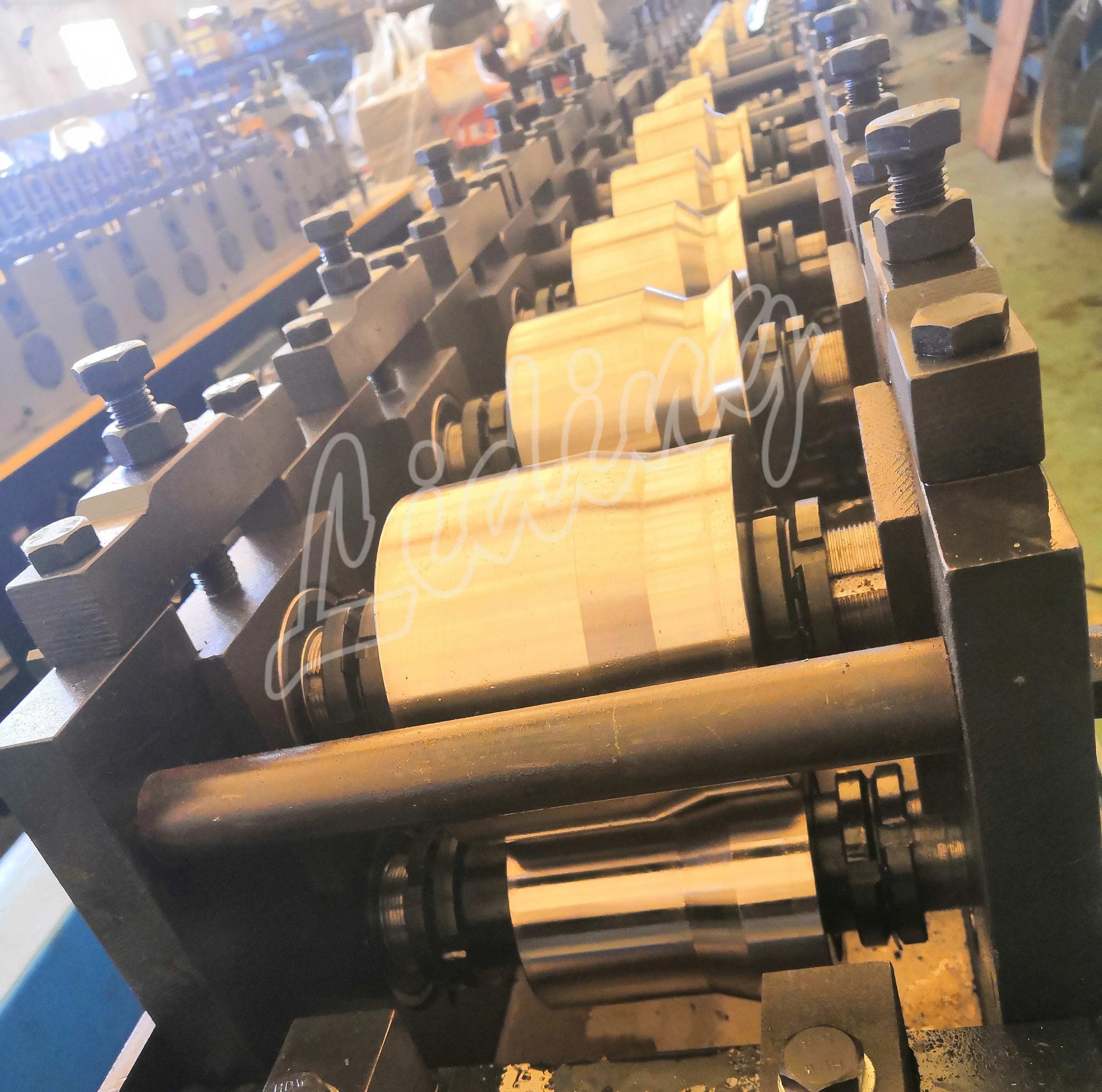

Name:Guilding and roll forming system
Original: Guangdong, China (mainland)
The rollers, shafts and cutters are made by excellent raw material and they are installed by our professional engineers.
The rollers, shafts and cutters are made by excellent raw material and they are installed by our professional engineers.
Name: PLC Control System
Brand:Panasonic plc
Automatic control of quantity and cutting length.Inputting production data on the touch screen (production batch, quantity, length, etc.),it can automatically complete the production.The main electrical parts adopt Schneider and Shihlin products.
The length is measured by the internal secret control encoder。
The electric control box adopts fully sealed ventilation and cooling device.
The length is measured by the internal secret control encoder。
The electric control box adopts fully sealed ventilation and cooling device.

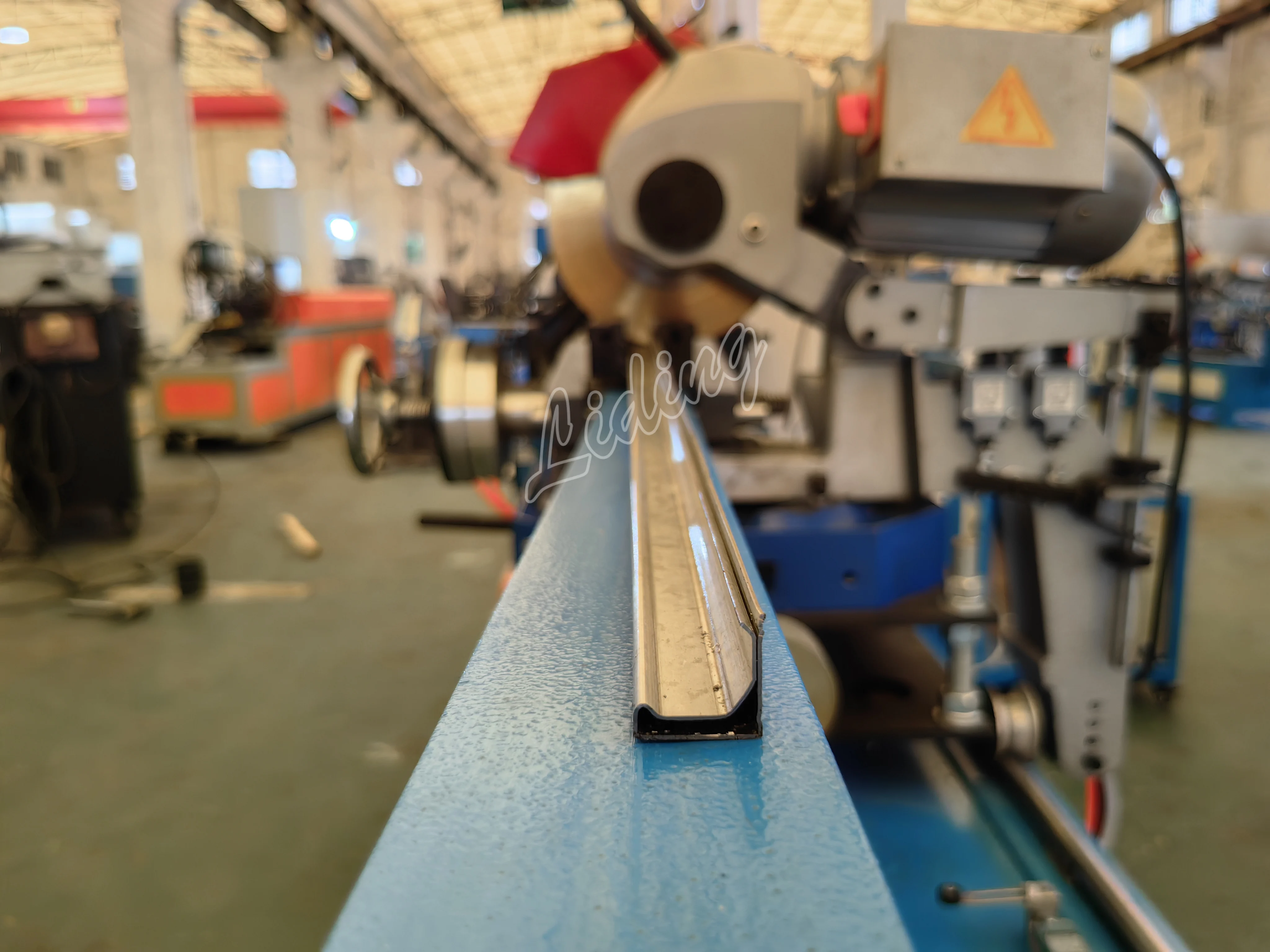

Name:Circular steel sawing and cutting
Original: Guangdong, China (mainland)
①hydraulic motor 2.2KW
②275 circular steel saw blade 1 piece
③ Saw blade Material:
①hydraulic motor 2.2KW
②275 circular steel saw blade 1 piece
③ Saw blade Material:
Treatment hardness HRC60°-62°
④Using online encoder to detect stopping and cutting
④Using online encoder to detect stopping and cutting
After cutting on the support table, we will fix the pneumatic stopper to control the length, so the support table will move together with cutting device

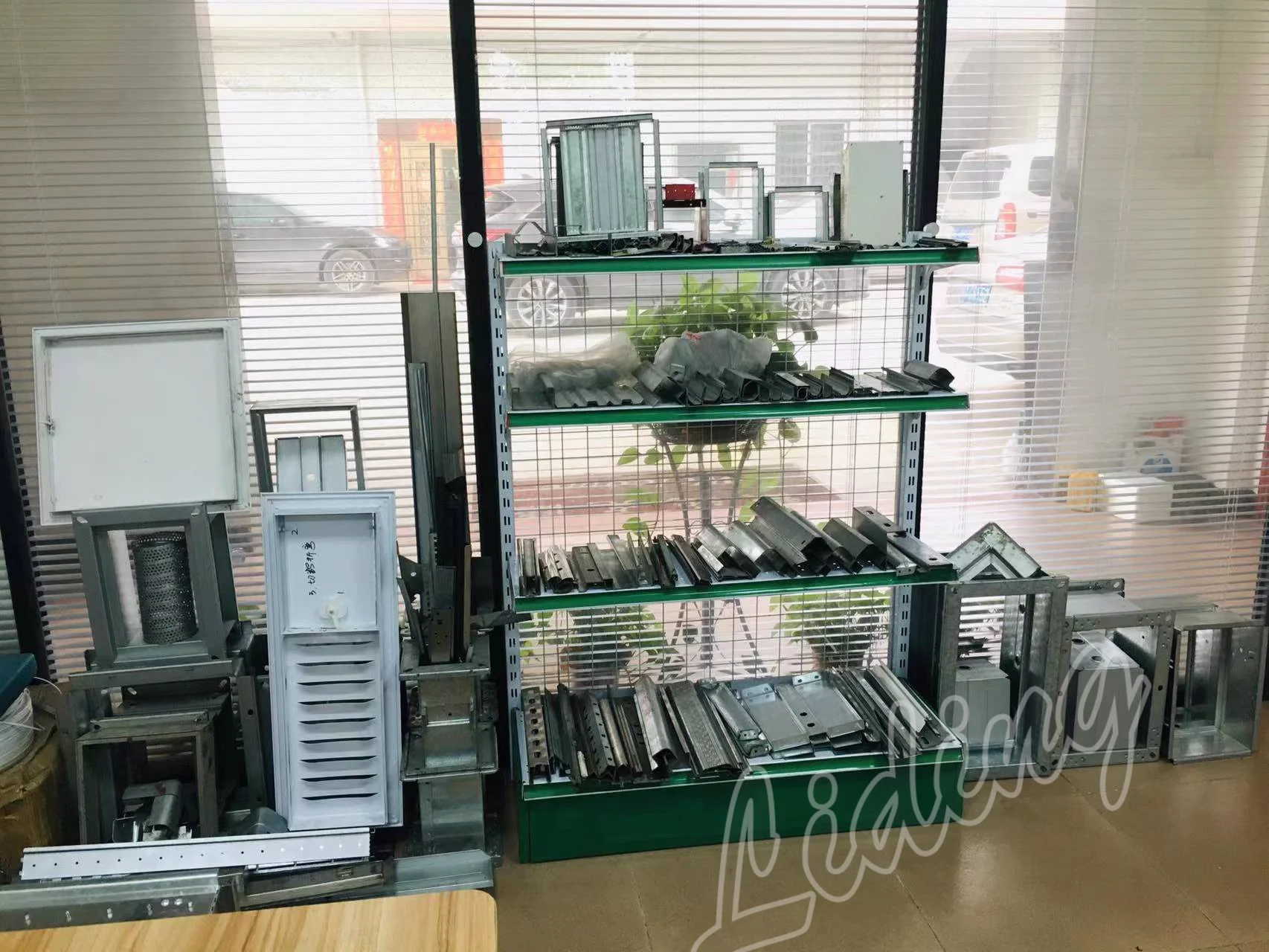

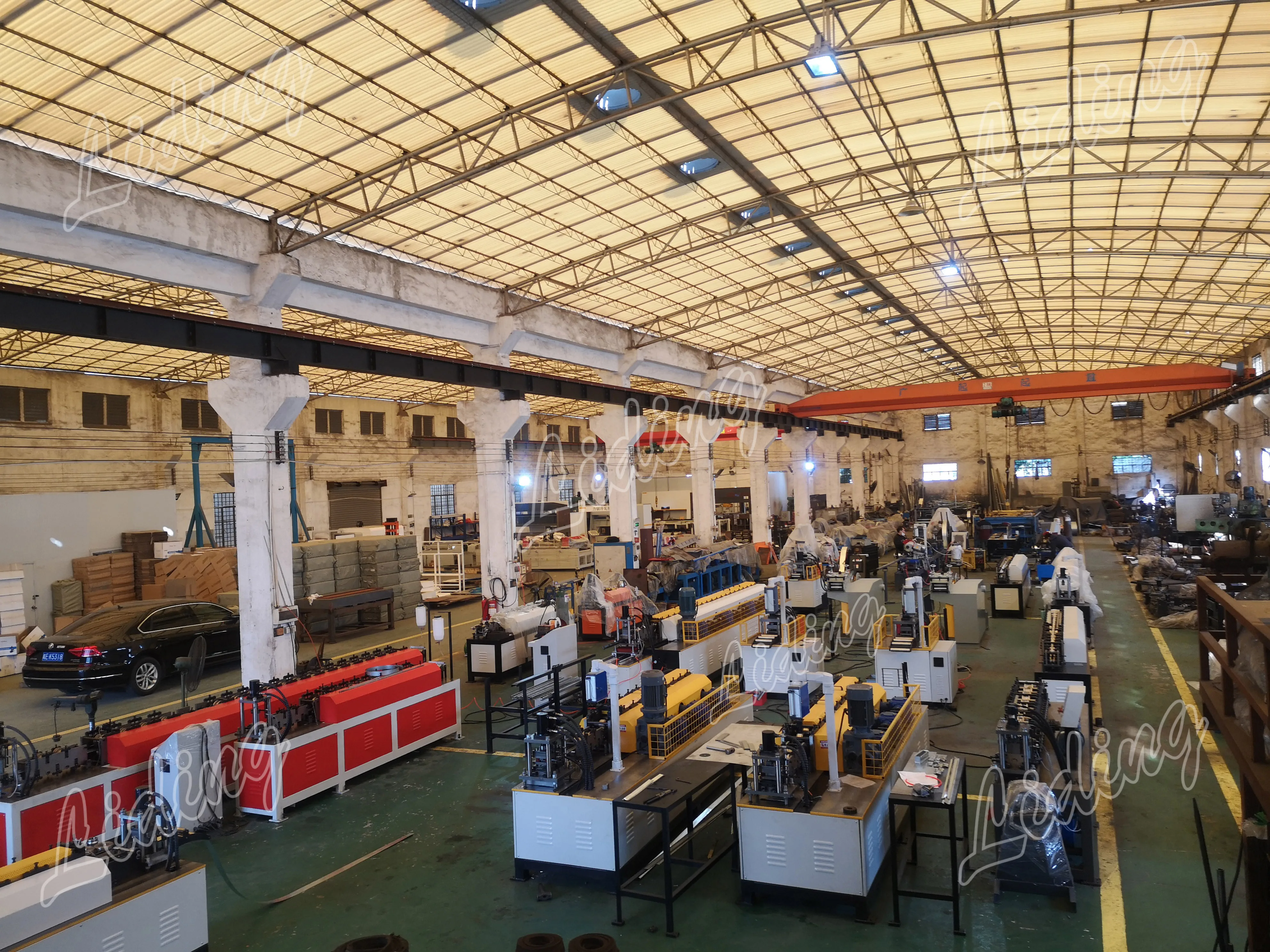

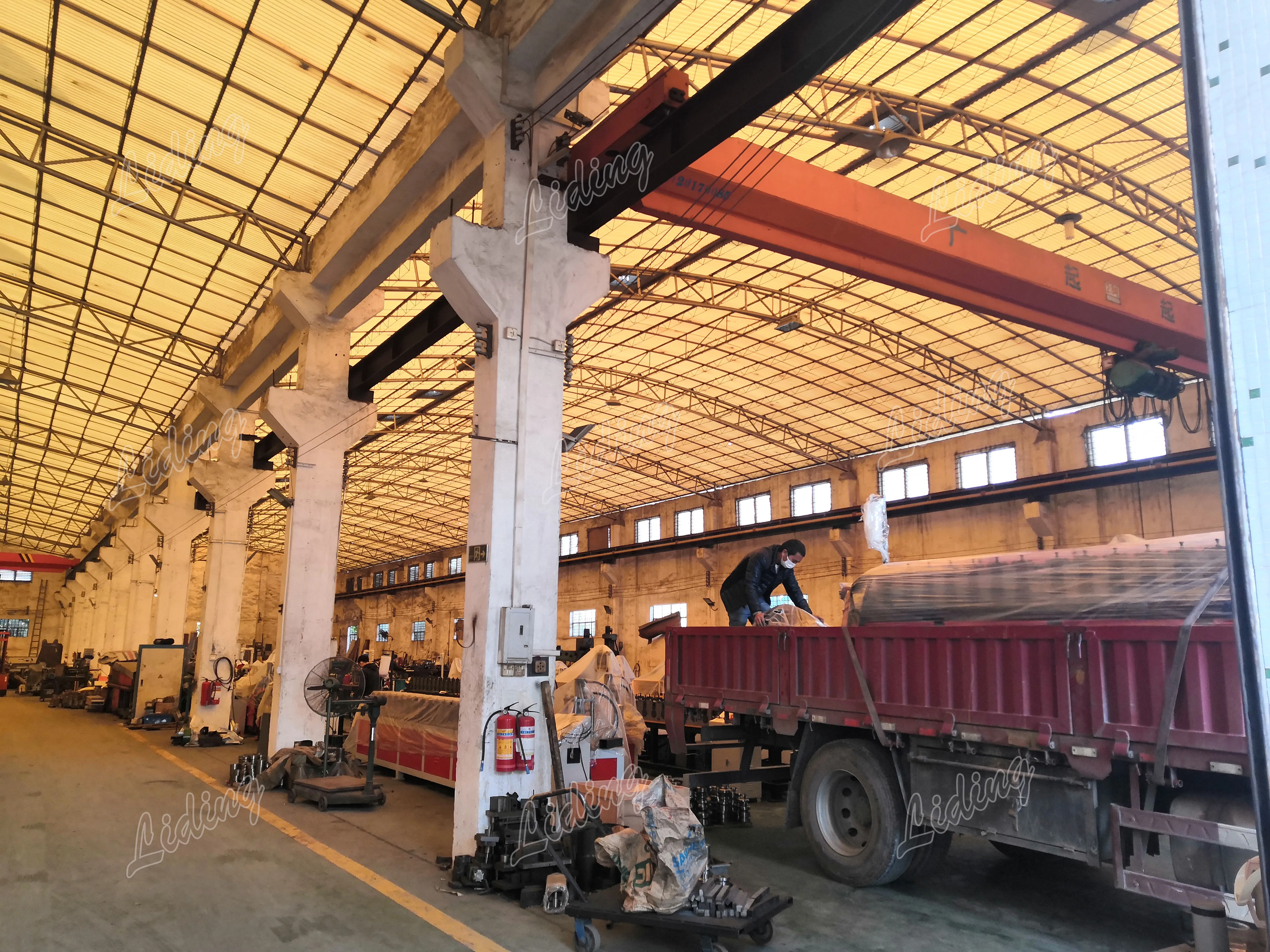

Company Profile

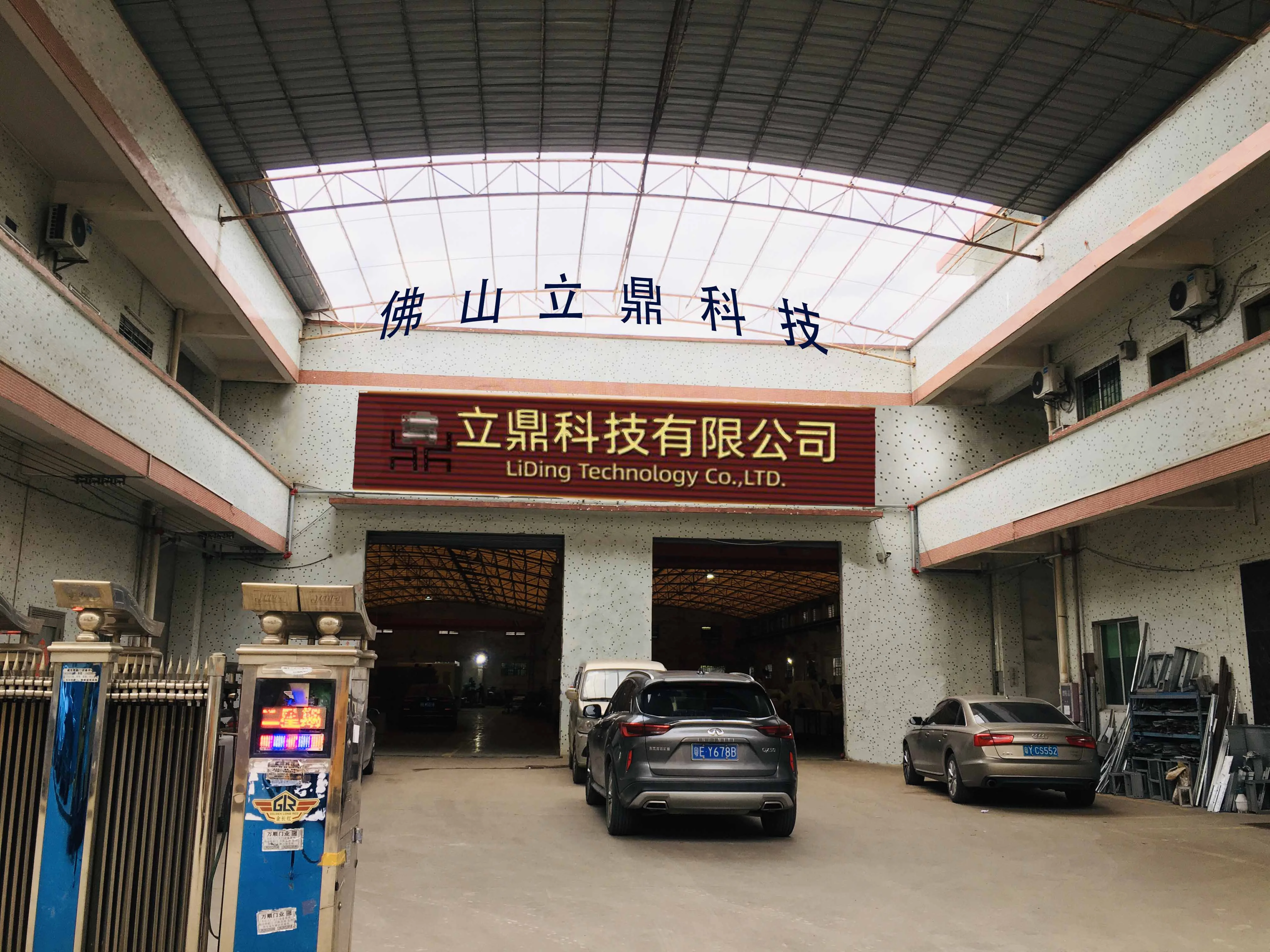

Foshan Liding Machinery Technology Co., Ltd.
is established in 2014 and located in Foshan city which is the industrial center in Guangdong Province, China. Liding integrates scientific research, production and operation as one, specializing in the design and manufacture of cold-forming equipment automatic production lines, such as plug-in TDC flange machine, elliptical pipe machine,spiral duct machine, a variety of shaped cold-forming machinery, etc.

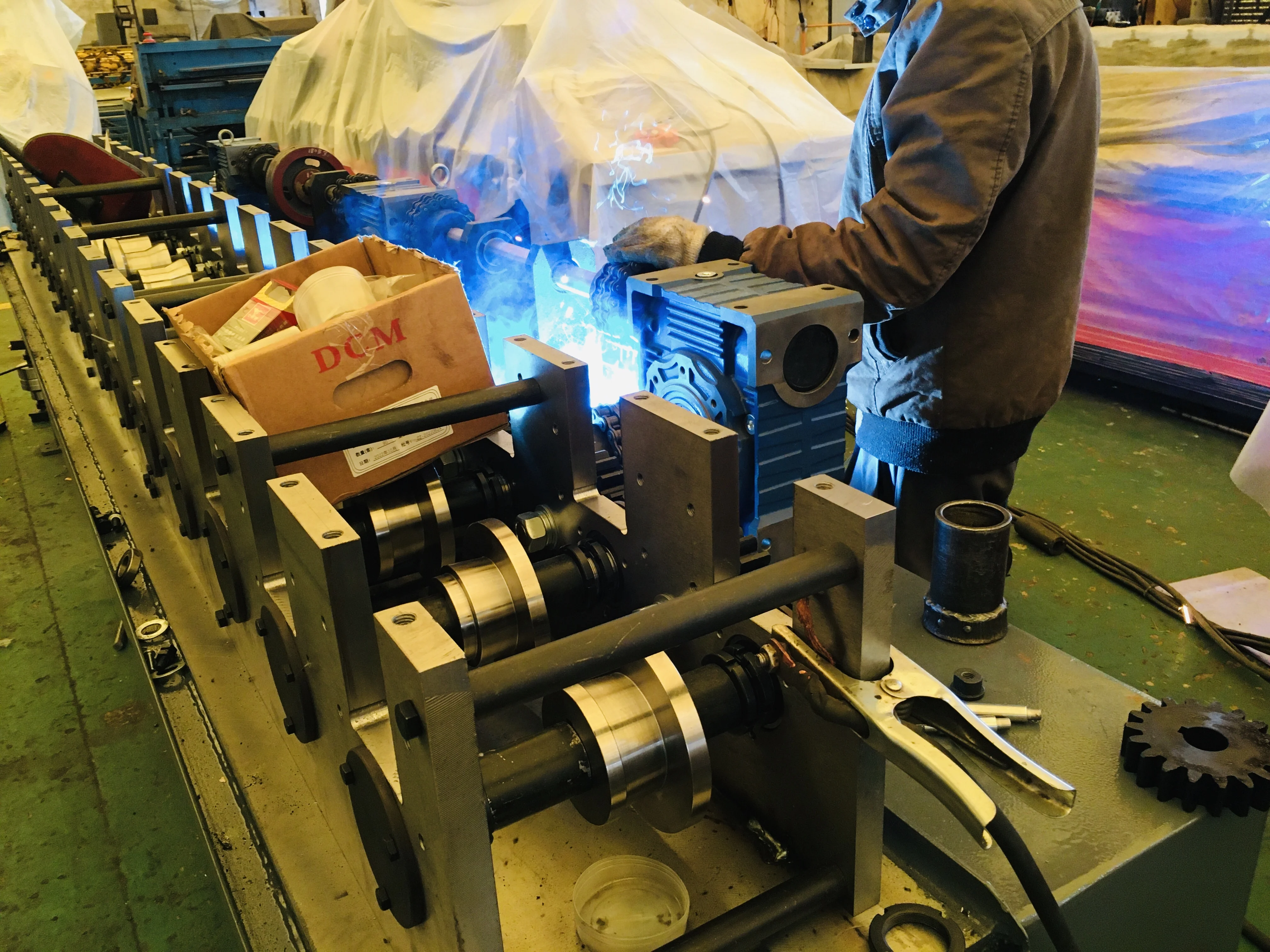

The adoption of high precision CNC processing equipments is laying a foundation of quality-guaranteed machines production. A team of experienced engineers is working with PROE design software system and skilled technicians for machine production and inspection.we pay more attention to develop our technology to meet the market requirement and engaged in supplying the customers with high efficiency,easy operation and best price equipment.
Liding will constantly honor its contracts and preserve its good will, aiming to developing business relations with customers from all over the world, strengthening mutual benefits and cooperation.
Company Advantages
Percentage of 100 technical service support
More than 10 professional R&D team
More than 10 professional R&D team
20 years of professional manufacturing experience in cold roll forming machines
Focus on quality and Quick response to clients

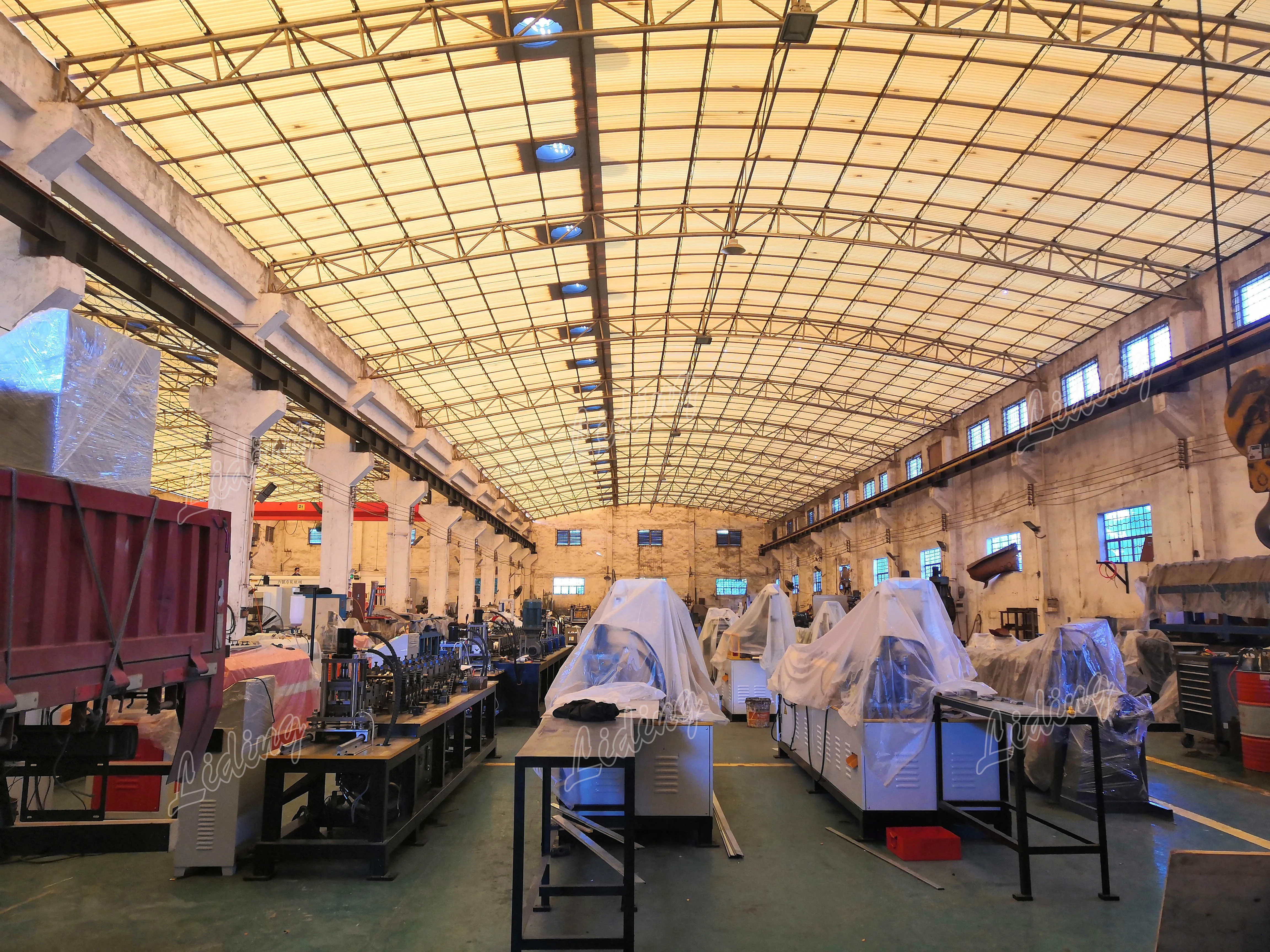

CUSTOMER VISIT
Operation-speed regulation-maintenance-type change. overseas trainer service package teachingspackage meeting 100% Welcome new and old customers to visit the factory and learn more.
Certifications
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point. Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A3: We can provide the technical offer with FOB, CFR, CIF and so on. Please kindly tell the detailed port name for
competitive ocean freight.
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point. Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A3: We can provide the technical offer with FOB, CFR, CIF and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q4.What kind of after-sales service do you have?
A4:①The warranty is 12 months after the client receives the machine. Within the 12 months, we will courier the replacement parts to the client free of charge.
②We offer technical support for the entire life of our machines.
③We Provide Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support.We can send our technicians to install and train the workers in the clients' factories with extra cost if need.
②We offer technical support for the entire life of our machines.
③We Provide Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support.We can send our technicians to install and train the workers in the clients' factories with extra cost if need.
Похожие товары
Гофрированная кровельная прокатная машина 3 2 Mtrs
2 412 264,80 ₽ - 2 467 089,00 ₽
Новый стальной водосточный и дождевой желоб шириной 1220 мм формовочная машина круглая прямоугольная с двигателем для использования на крыше
1 589 901,80 ₽ - 2 138 143,80 ₽
22 ролика ПЛК-контроль контейнер для дома верхний луч машина холодной формовки
4 769 705,40 ₽ - 4 934 178,00 ₽
JCX индивидуальная Однослойная IBR машина для производства металлической плитки трапециевидная листовая
657 890,40 ₽ - 877 187,20 ₽
Машина для формования панелей из полиуретана
25 219 132,00 ₽ - 41 666 392,00 ₽

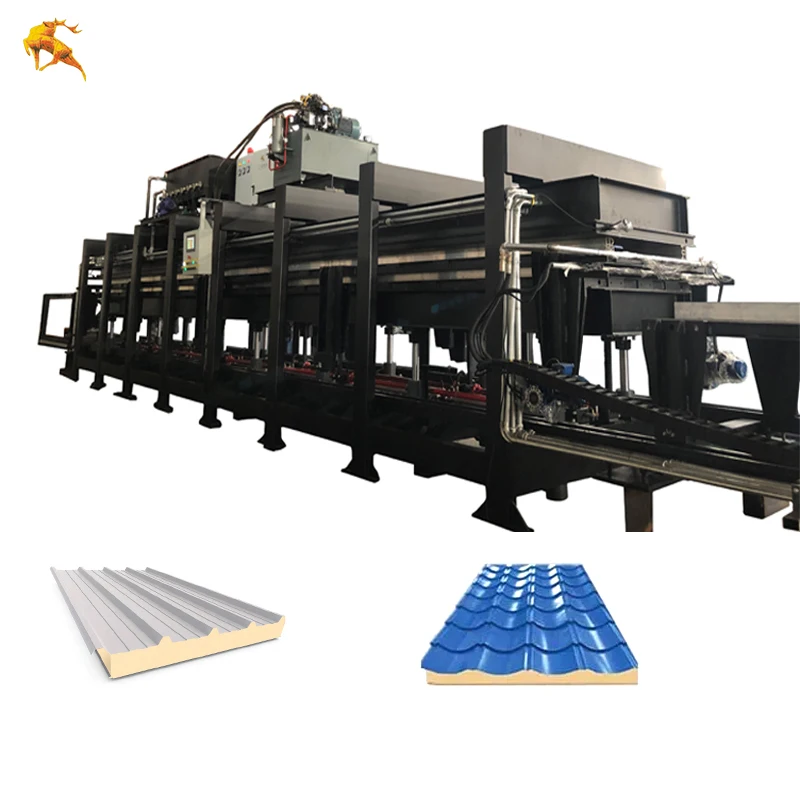

Линия для производства сэндвич-панелей
