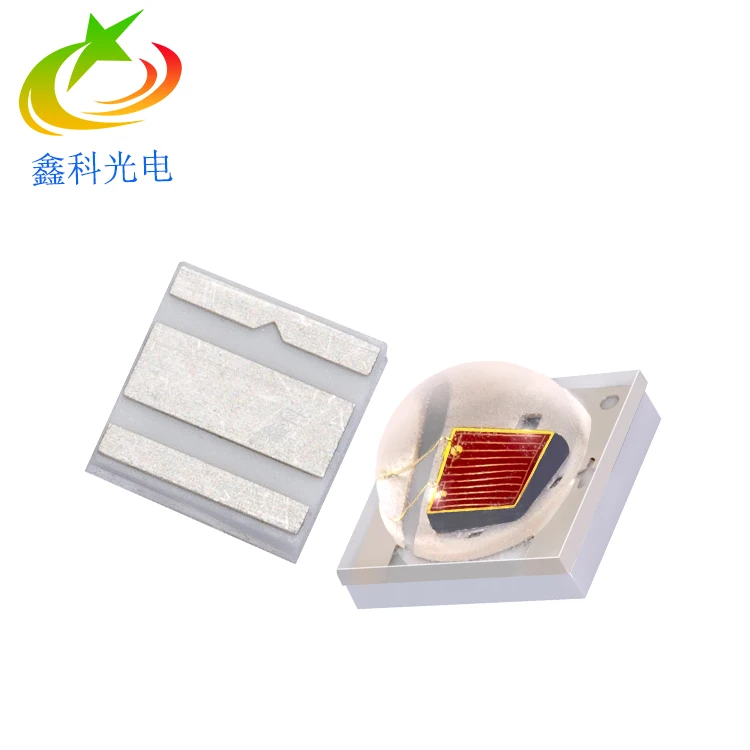

OEM завод инфракрасный продукт Smd светодиодный керамический кронштейн 3535 3 Вт Ir 730 нм 780 810 850 940 1050
- Категория: >>>
- Поставщик: Shenzhen Xinke Photoelectric Technology Co. Ltd.
Сохранить в закладки 1600877029338:
Описание и отзывы
Характеристики
model | Ceramic SMD LED 3535 |
Input Voltage(V) | 1.6V-1.8V |
Warranty(Year) | 3-Year |
Type | SMD LED |
Support Dimmer | yes |
Lighting solutions service | Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation |
Luminous Efficacy(lm/w) | 1-5 |
Lifespan (hours) | 50000 |
Working Time (hours) | 50000 |
Chip Material | sanan or epistar |
Emitting Color | IR |
Luminous Intensity | Customers' Requirements |
Luminous Flux(lm) | 1-5LM |
Optical Attenuation(%) | 1 |
Power | 1W 3W |
Power Dissipation | 1W |
Viewing Angle(°) | 120 |
Color Rendering Index(Ra) | Other |
Color Temperature | IR 810Nm 850Nm 940Nm 1050Nm |
Operating Temperature(℃) | -45-80 |
Storage Temperature(℃) | -45-80 |
Place of Origin | guangdong province.China |
Brand Name | XinKe |
Certification | CE, RoHS |
Chip Brand | Sanan or epistar chip |
Color | IR |
Product name | Smd Led Chip 3535 |
Application | Infrared product |
Voltage | 1.6V-1.8V |
Lifespan | 30000H-50000H |
Current | 350ma 700ma |
Material | Pure Copper Base+gold Wire-99.99% |
Package Type | Anti-static Bag |
Golden wire | 99.99% Pure Golden Wire |
Product Description

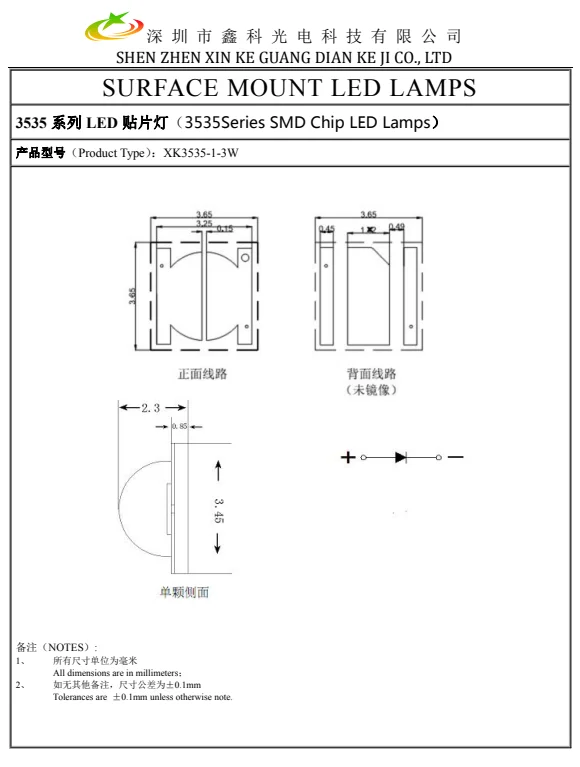

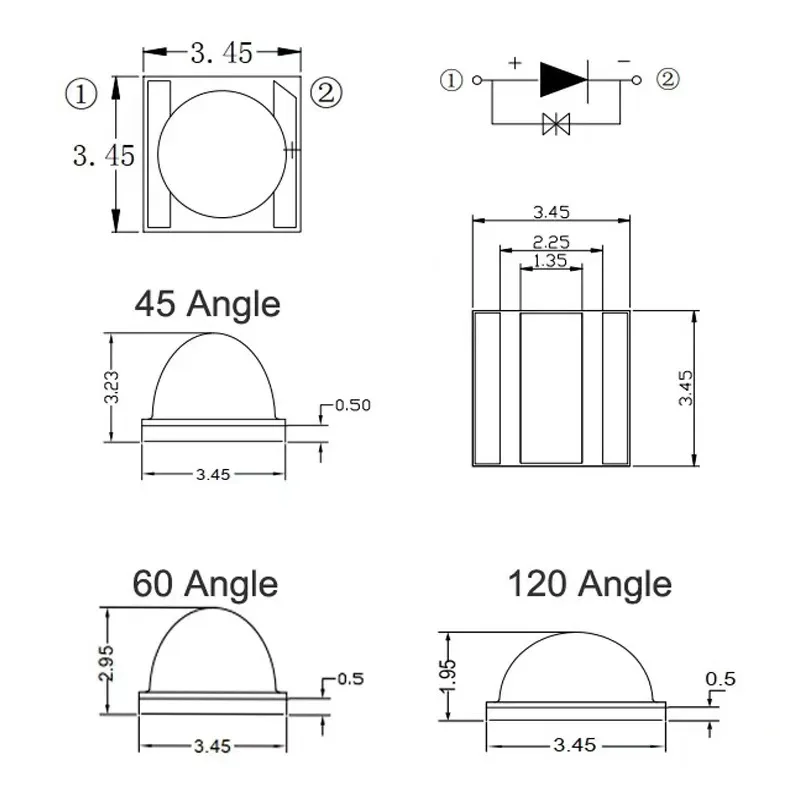

Specification

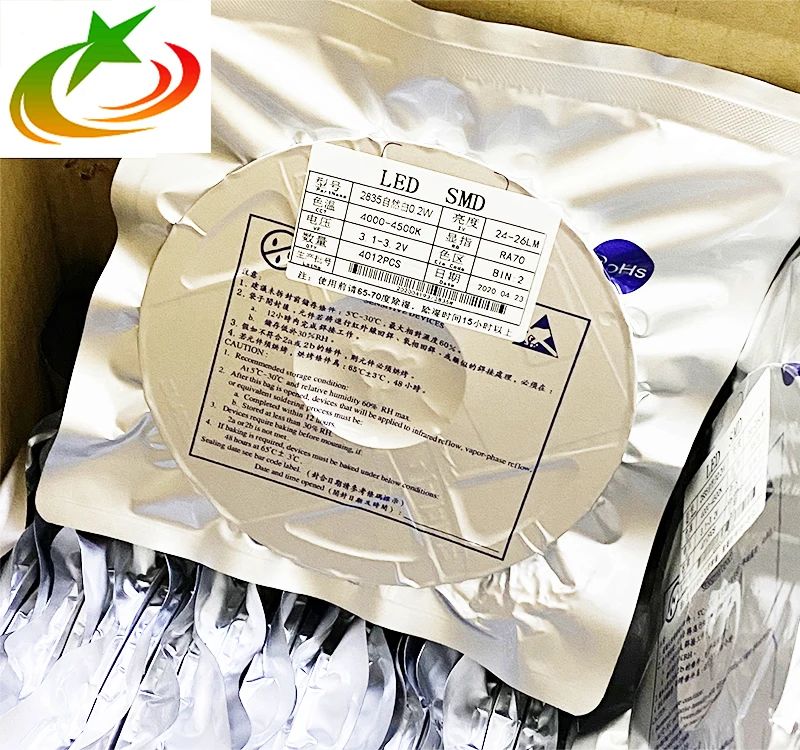

Packing & Delivery
hermetic psckage
Company Profile

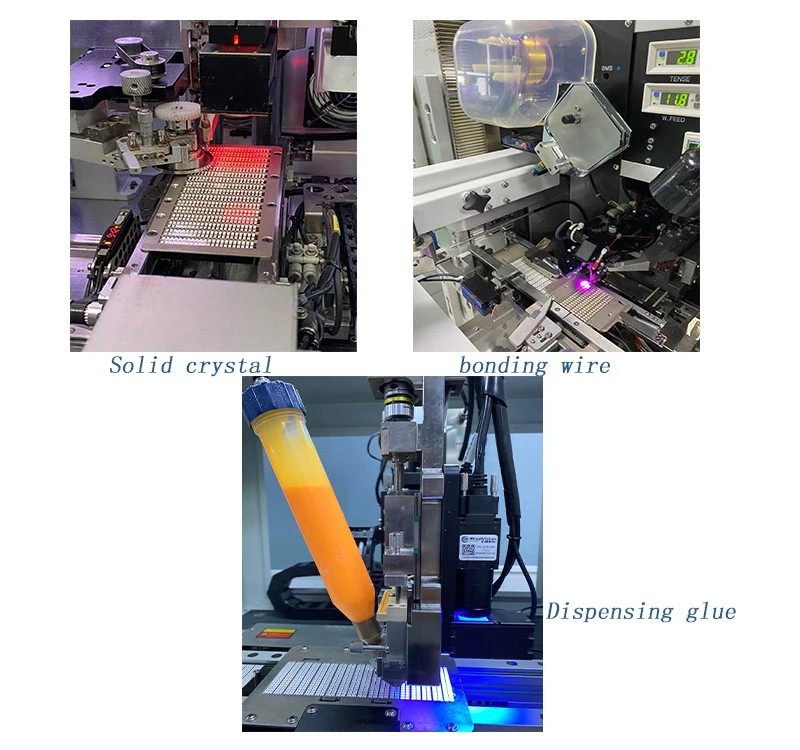

Division I is committed to a set development, production, sales, after-sales service for the integrated global management of LED lighting products to provide sub-braided professional LED light source manufacturers. It adopts imported chip, pure gold wire, red copper bracket, and silicon encapsulation. It has high luminous efficiency and narrow spectrum, good monochrome, high color rendering, green environmental protection, precision constant current, life up to 50000 hours, low attenuation, high brightness, low energy consumption, strong anti-static ability, high brightness, good consistency of light and color, high performance-price ratio, etc. , companies specializing in the production and operation of LED single integrated high-power 1-500W SMD chip 0.1-10W: 5730,5630,2835,3020,3535,5050,5074,4014,3014,3030 EMC, 7020,2016 and other products; It is suitable for LED floodlight, LED miner's lamp, LED fluorescent tube, LED ceiling lamp, LED indoor lighting, LED street lamp and other application lighting products, as well as outdoor advertising board, electronic display screen, traffic signal light, signage, car tail light, LED light emitting module, LCD backlight, LED lighting, LED soft / hard strip, etc. , it is the best choice to replace the traditional lighting source, the color is various: red, yellow, blue, green, white, violet, colorful RGB, ice blue, pink, golden yellow, infrared 850 / 940nm, etc. . Our company has a rich experience in the LED industry management team and technical personnel, and equipped with automatic solid crystal, welding line, glue and other series of advanced production equipment. Perfect quality test and guarantee measures. The company uphold to provide customers with high-quality and efficient LED products, LED lighting solutions and technical support
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Southern Europe(20.00%),Northern Europe(20.00%),Western Europe(20.00%),Eastern Europe(20.00%),North America(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LED SMD2835,LED SMD3030,LED SMD5050,LED SMD5730,LED SMD3535
4. why should you buy from us not from other suppliers?
1. Founded 10 years ago, the company is a global LED light source manufacturer.2. Professional enterprise management team, high work efficiency.4. The company's products have stable quality, high cost performance, long life and low energy consumption.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2015,sell to Southern Europe(20.00%),Northern Europe(20.00%),Western Europe(20.00%),Eastern Europe(20.00%),North America(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LED SMD2835,LED SMD3030,LED SMD5050,LED SMD5730,LED SMD3535
4. why should you buy from us not from other suppliers?
1. Founded 10 years ago, the company is a global LED light source manufacturer.2. Professional enterprise management team, high work efficiency.4. The company's products have stable quality, high cost performance, long life and low energy consumption.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
matters need attention
1.overcurrent protection customers must use resistance to protect, otherwise the drift of the voltage will cause a large change in
the current (occurrence of breakdown phenomenon). When the lamp bead is used, the current must be within the specified range to
avoid the bad caused by excessive current.
1. store
2-1. Do not open the moisture-proof bag before preparing to use the product. Before opening, please check the packing bag for air
leakage, after opening the bag, check the humidity mark card 20% rh whether the mark area from blue to pink. Please contact the
manufacturer or return to the manufacturer for high temperature dehumidification ,(high temperature dehumidification environment
:120 degrees ,6 h) do not handle
2-2. Before opening the package, leds should store temperature less than 30℃, humidity less than 70% rh.. 2-3When the package is
opened, the temperature is below 30℃ and the humidity is below 60% rh, and the opening-to-weld finish is controlled at 4 h..
2-4When the hygroscopic material (silica gel) has subsided or the leds has exceeded the storage time, baking treatment is required
based on the following conditions :60±5℃/24 hours.
Price description :
1. The above price is only the product price does not include freight.
2. the above price is the standard price of the product, the actual price please ask the seller.
3. the price of the above products is 1 k, please contact the seller for more than 10 k.
1.overcurrent protection customers must use resistance to protect, otherwise the drift of the voltage will cause a large change in
the current (occurrence of breakdown phenomenon). When the lamp bead is used, the current must be within the specified range to
avoid the bad caused by excessive current.
1. store
2-1. Do not open the moisture-proof bag before preparing to use the product. Before opening, please check the packing bag for air
leakage, after opening the bag, check the humidity mark card 20% rh whether the mark area from blue to pink. Please contact the
manufacturer or return to the manufacturer for high temperature dehumidification ,(high temperature dehumidification environment
:120 degrees ,6 h) do not handle
2-2. Before opening the package, leds should store temperature less than 30℃, humidity less than 70% rh.. 2-3When the package is
opened, the temperature is below 30℃ and the humidity is below 60% rh, and the opening-to-weld finish is controlled at 4 h..
2-4When the hygroscopic material (silica gel) has subsided or the leds has exceeded the storage time, baking treatment is required
based on the following conditions :60±5℃/24 hours.
Price description :
1. The above price is only the product price does not include freight.
2. the above price is the standard price of the product, the actual price please ask the seller.
3. the price of the above products is 1 k, please contact the seller for more than 10 k.
Похожие товары

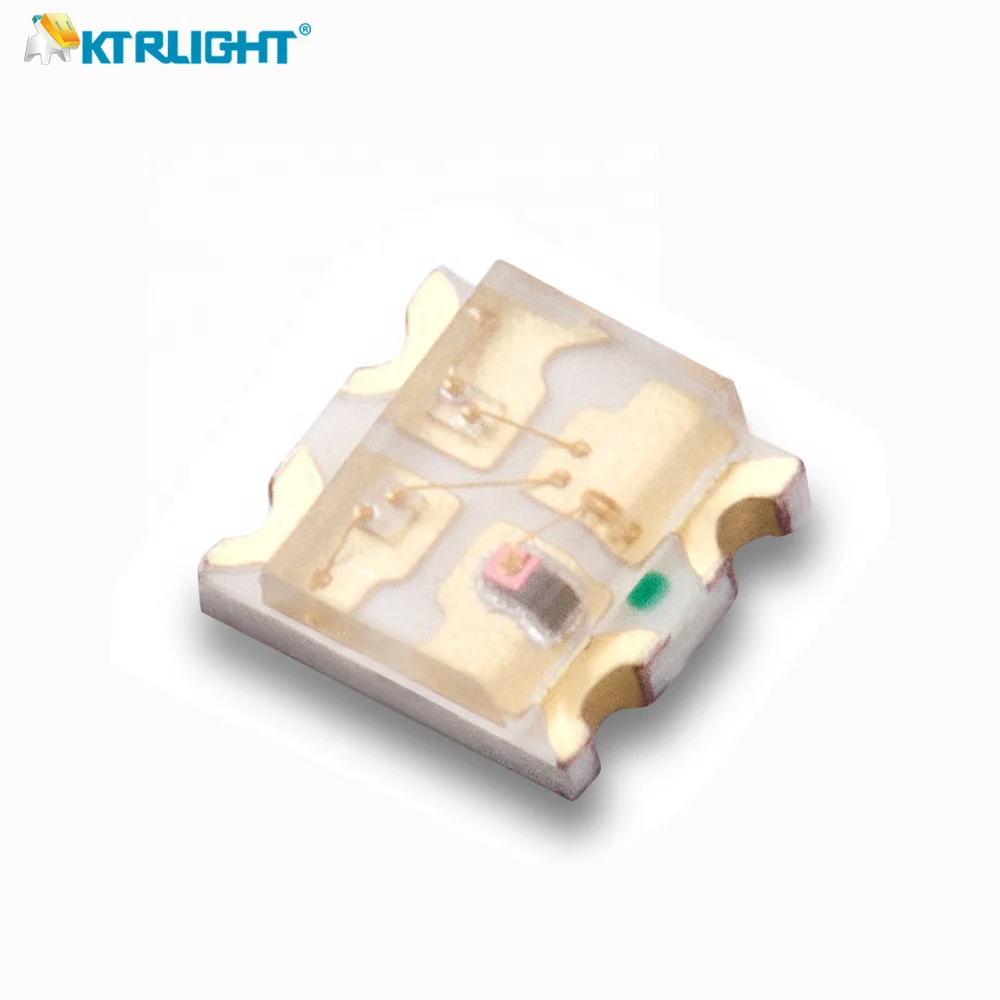

KTRLIGHT RTS горячая Распродажа smd led 1615 0,2 Вт общий катод smd 0603 rgb 1615 rgb smd led полноцветные светодиодные лампы
