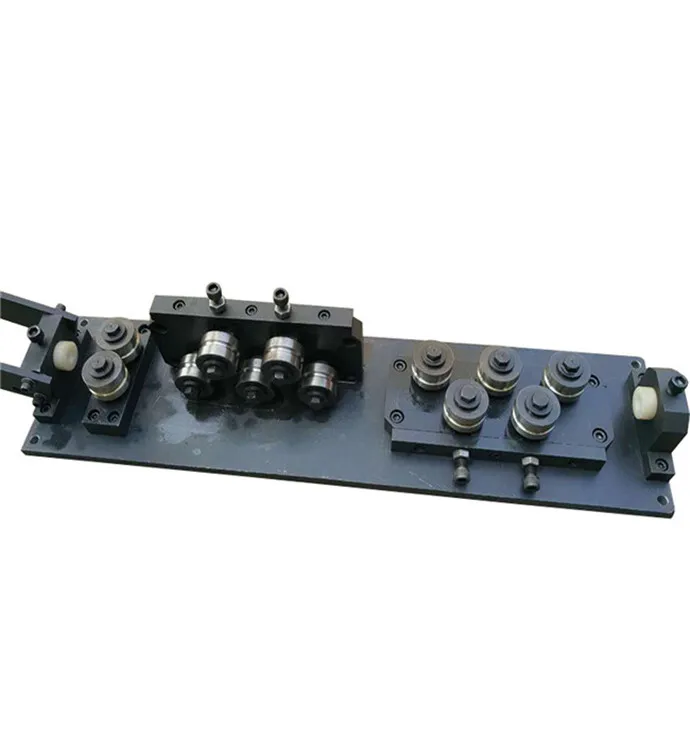

Простая правильная машина для металлической проволоки разматыватель в выправляющий аппарат модель CL-200
2 500,00 $ - 2 800,00 $
Ручное управление высокоэффективный и экономичный 4 роликовый станок для выравнивания перфорированных листов шириной 800
- Категория: Metal Straightening Machinery >>>
- Поставщик: Rsm Machinery Co. Ltd.
Сохранить в закладки 1600878065611:
Описание и отзывы
Характеристики
Product Features
• Suitable for all kind of Steel, Aluminum, copper, stainless steel, mesh sheet, laser cut plate, alloy plate and other metal plate workpiece
• Suitable for vehicle metal parts, aviation metal parts, high-speed train parts, chain board, saw blade, stamping parts, sheet metal parts, furniture metal parts and electrical appliances parts fabrication etc.

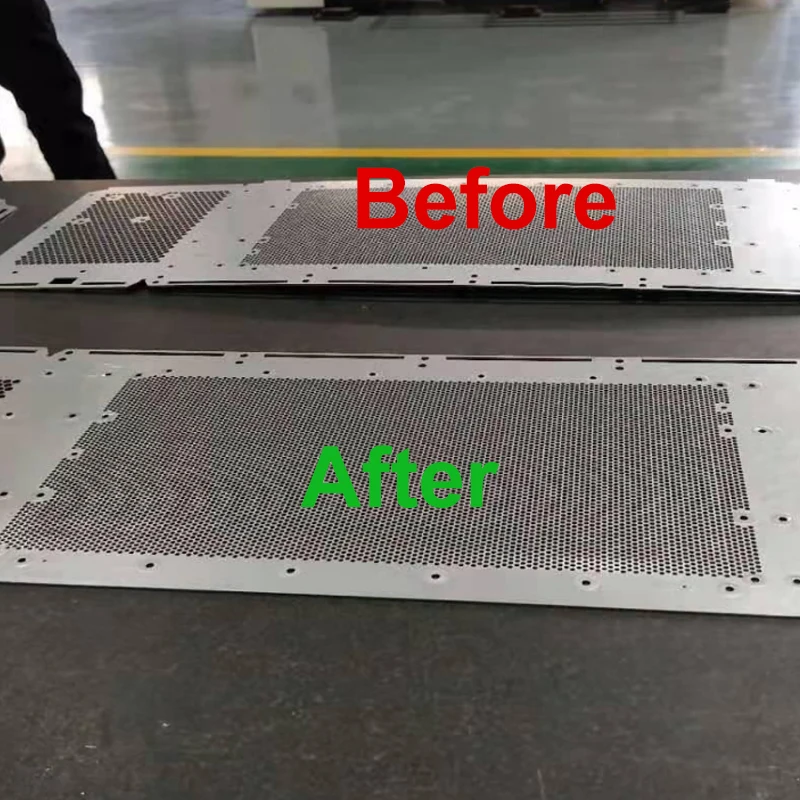

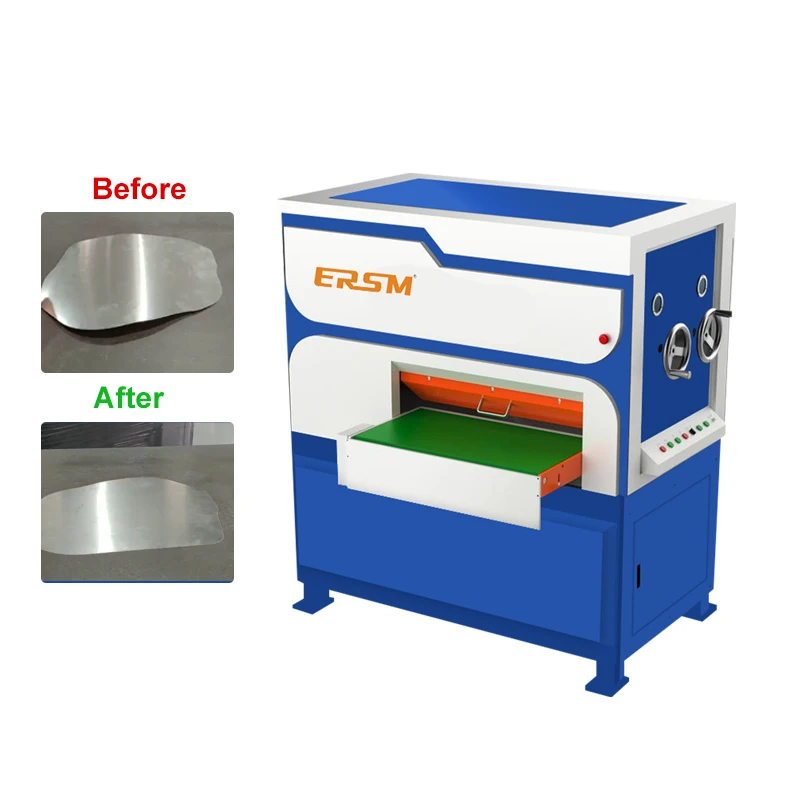

• By balancing internal stress, restoring and improving metal parts flatness, flatness accuracy can reach micron grade, then it can provide qualified work-pieces for next process step of bending, welding etc

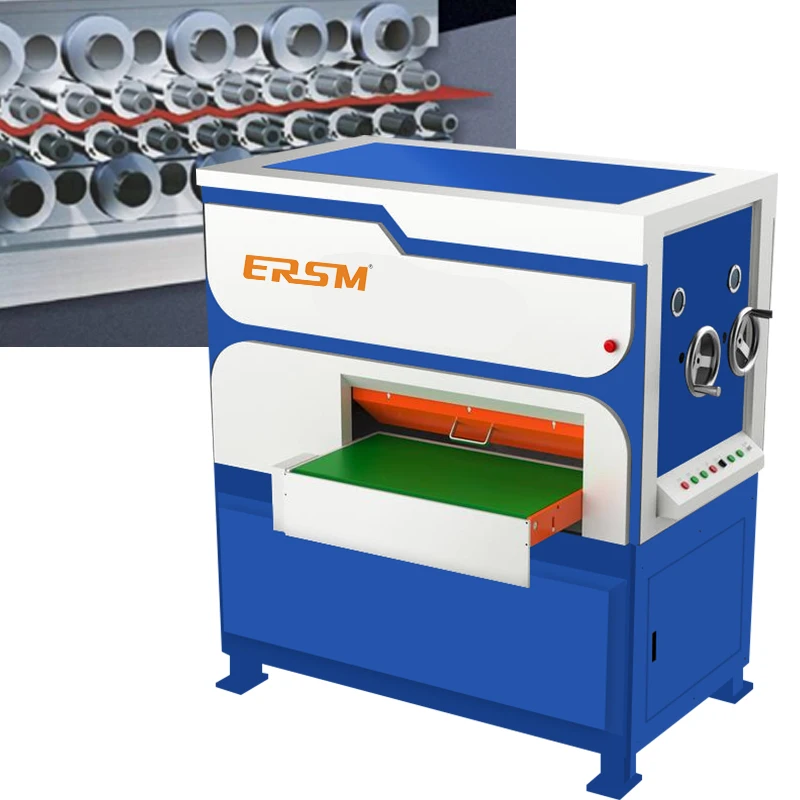

• Roller leveler machine equip with a large number of leveling rollers arranged in multi-layers and a very small spacing between each other, then based on "Bauschinger effect", sheet metal was repeatedly twisted to make metal fiber gradually consistent, eliminate internal stress, restore and improve the flatness
• The stagger arranged support rollers ensure leveling rollers bearing heavy pressure in balance without bending deformation, keeping the whole equipment have enough rigidity. Upper and lower support roller column & upper and lower leveling roller group making up four-high layers structure, ensuring stable, efficient and high-quality leveling performance

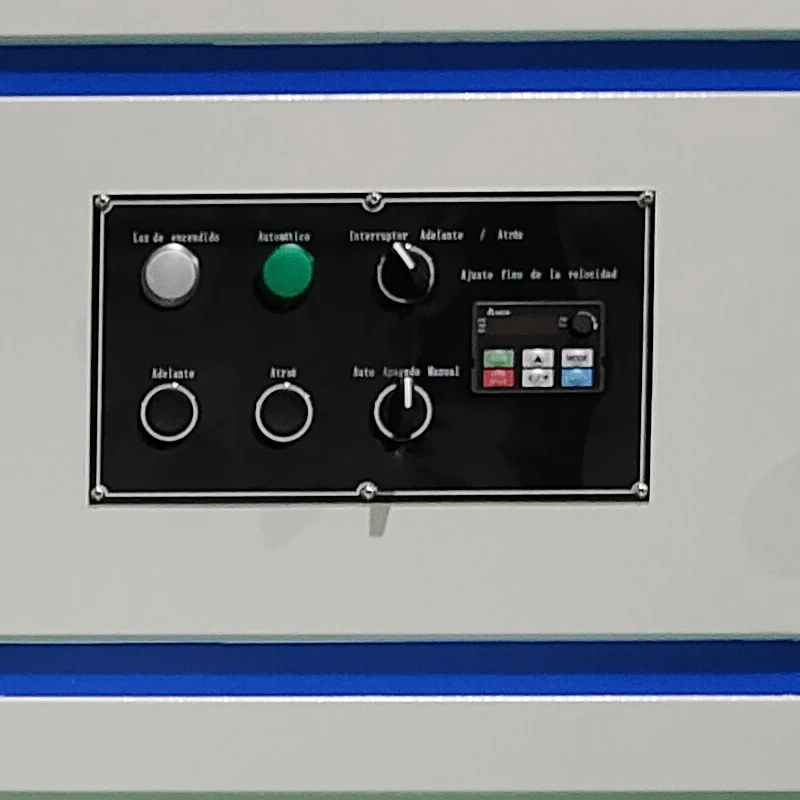

• Manual adjust leveling roller gap: At the guidance of digital display, operator can crank the two hand wheels to adjust leveler’s straightening performance
• Suitable for vehicle metal parts, aviation metal parts, high-speed train parts, chain board, saw blade, stamping parts, sheet metal parts, furniture metal parts and electrical appliances parts fabrication etc.
• By balancing internal stress, restoring and improving metal parts flatness, flatness accuracy can reach micron grade, then it can provide qualified work-pieces for next process step of bending, welding etc
• Roller leveler machine equip with a large number of leveling rollers arranged in multi-layers and a very small spacing between each other, then based on "Bauschinger effect", sheet metal was repeatedly twisted to make metal fiber gradually consistent, eliminate internal stress, restore and improve the flatness
• The stagger arranged support rollers ensure leveling rollers bearing heavy pressure in balance without bending deformation, keeping the whole equipment have enough rigidity. Upper and lower support roller column & upper and lower leveling roller group making up four-high layers structure, ensuring stable, efficient and high-quality leveling performance
• Manual adjust leveling roller gap: At the guidance of digital display, operator can crank the two hand wheels to adjust leveler’s straightening performance
Product Parameter
Model | LM-42-400M | LM-42-600M | LM-42-800M | ||
Max Leveling Width | 400mm | 600mm | 800mm | ||
Roller Diameter | 42mm | 42mm | 42mm | ||
Max Plate Thickness | 3mm | 3mm | 3mm | ||
Leveling Thickness Range | 0.8-3mm | 0.8-3mm | 0.8-3mm | ||
Min Workpiece Size | 10*70mm | 10*70mm | 10*70mm | ||
Leveling Accuracy | 0.05-0.2mm | 0.05-0.2mm | 0.05-0.2mm | ||
Leveling Speed | 0-6m/min | 0-6m/min | 0-6m/min | ||
Leveling Roller Quantity | 19pcs(Upper 9pcs/Lower 10pcs) | 19pcs(Upper 9pcs/Lower 10pcs) | |||
Leveling Roller Gap Adjust Method | Four Points Manual Adjust | ||||
Voltage | AC 3Phase 380V 50HZ(Customizable) | ||||
FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern
Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2. How to choose the right leveler?
You tell us the material, thickness, width, etc. of the sheet metal, and we will recommend it for you.
3.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
4.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
5.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
6.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern
Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2. How to choose the right leveler?
You tell us the material, thickness, width, etc. of the sheet metal, and we will recommend it for you.
3.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
4.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
5.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
6.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.
