Countertop Water Purification Spare Part Household Activated Carbon Gac Cto Powder Cartridge Filter

Water Filter Cartridge

1.1 PP Melt Blown Filter Cartridge

Description

PP Melt Blown Filter Cartridge is constructed of 100 % polypropylene fibers without any chemical glues. The fibers have been carefully spun together to form a true gradient density from outer to inner surface.As the depth fiber and density make the filter cartridge in strong pollutants holding capacity.

It can remove contaminant effectively. Polypropylene fibers are blown continuously on central molded core, which conform with ISO standard requirement.

Applications

• Drinking water treatment

• Electronic industry

• Chemicals and Solvents

Specification

Material of Construction

• Filter Media: Polypropylene

• Core: Polypropylene or not

• Seal Material: Silicone,EDPM,Buna,

Micron Rating: 1µm, 3µm, 5µm, .. 100µm

Dimensions

• Outside diameter: 2.5”,4.5"

• Inside diameter: 28mm or 30mm

• Length: 5", 10", 20", 30", 40"

Recommended Operating Conditions

Ordering

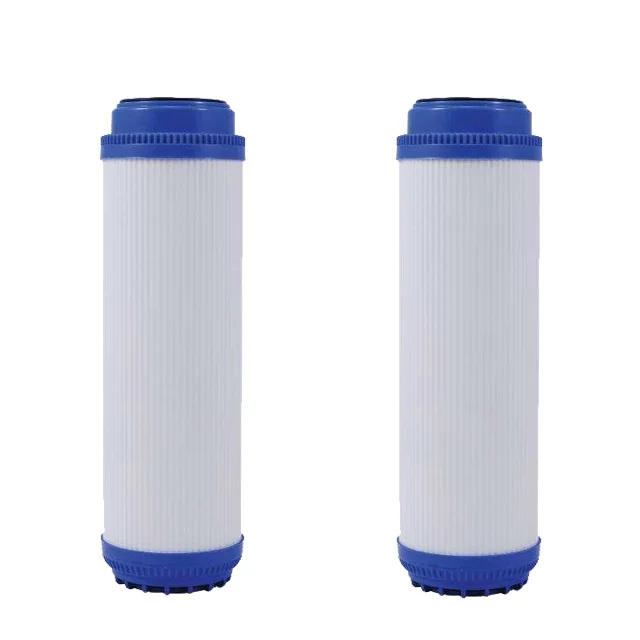

1.2 Granular Activated Carbon Filter Cartridge(GAC)

Description

Granular Activated Carbon Filter Cartridge(GAC) is made

of granular activated carbon media. The removal of

chlorine ,bad taste and organic are effectively.

Applications

• Rain water, Ro treatment

• Drinking water

Specification

Material of Construction

• Filter Media: Coal or Coco-nut

• Expansion pad: Polypropylene

• End cap,casing: Polystyrene

Dimensions

• Inside diameter: 28mm

• Outside diameter: 68mm or 115mm

• Length: 5",10", 20"

Recommended Operating Conditions

Ordering

1.3 Activated Carbon Block Filter Cartridge(CTO)

Description

Activated Carbon Filter Cartridge is extruded and shaped

by activated carbon fines. The material can be coal type or

coco-nut. The function of this cartridge is the removal of

chlorine, bad taste and organic. Ensuring no carbon fines

release and strong adsorptivity.

Applications

• Plating

• Drinking water

• Paints, coatings and plating solutions

Specification

Material of Construction

• Filter Media: Coal or coco-nut

• End cap : Polypropylene

• Netting: Polyethylene

Dimensions

• Inside diameter: 28mm

• Outside diameter: 68mm or 115mm

• Length: 5", 10", 20", 30", 40"

Recommended Operating Conditions

Ordering

1.4 String Wound Filter Cartridge

Description

String Wound Filter Cartridge is made of pp or cotton

or glass fiber which used for filtration in a high dirty

holding. The material is wind on the pp core or stainless

steel core. This kind of filter cartridge can withstand

different condition, which conform with ISO standard

requirement.

Applications

• Pre-filter for drinking water treatment

• electronic industry

• Chemicals and organic Solvents

• Beverage and food

• Plating

• Pharmaceuticals

Specification

Material of Construction

• Filter Media: Polypropylene, cotton or glass fiber

• Core: Polypropylene or stainless steel

• Seal Material: Silicone,EDPM,Buna,, Teflon

Micron Rating:  1µm, 3µm, 5µm, .. 100µm

Dimensions

• Outside diameter: 2.5” (62-65mm),4.5"(110-115mm)

• Inside diameter:28mm or 30mm

• Length: 5", 10", 20", 30", 40"

Recommended Operating Conditions

Ordering

1.5 Resin Filter Cartridge

Description

Resin Filter Cartridge is filled with quality cation resin, which can

soften water and remove the hardness material in the water,

such as calcium, magnesium. The two ends of the cartridges are

padded with special pp layer, which make a higher flow capacity

of the cartridge, without any dirty water coming out. After

installing this new cartridge, pass 5 gallons of tap water through to

flush out any resin particle.

Applications

• Photograph developing

• Plating solution

• Drinking water

Specification

Material of Construction

• Filter Media: Ion Exchange resin

Dimensions

• Outside diameter: 2.5”, 4.5"

• Inside diameter:28mm

• Length: 10", 20"

Recommended Operating Conditions

Ordering

1.6 Polyester Pleated Filter Cartridge

Description

Polyester(PE) Pleated Filter Cartridge is made of pleated

polyester media. The benefits can be summary:

low pressure drop, increased surface life, excellent

contaminant removal.

Applications

• Rain water, Ro treatment

• Food and beverage

• Paints, coatings and plating solutions

• Acid-base liquid

• Chemicals and organic solvents

Specification

Material of Construction

• Filter Media: Polyester, Cellulose,pp

• Core: Polypropylene

• End cap : PU/plastisol

Micron Rating: 1µm ,3µm ,5µm, 10µm,20µm,50µm

Dimensions

• Inside diameter: 28mm

• Outside diameter: 68mm or 115mm

• Length: 9 3/4’’,97/8’’10", 20", 30", 40"

Recommended Operating Conditions

Ordering

1.7 Pleated Filter Cartridge

Description

Pleated Filter Cartridge is made of Polypropylene(PP), Polyvinylidene Fluoride(PVDF), Polyether Sulphore(PES), Nylon-6(N6) or Poly Tetra Fluoroethylene(PTFE). It has a big surface area and good dirt-holding capacity. The body is sweating soldered and no binder or adhesive added. It is widely applied in the production or pure water, medicine, etc.

Applications

• Pre-filtration for RO system

• Solvents, selected acids & lyes, chemical industry

• Semiconductor, Electronic industry ultra-pure water system

• Food and beverage

• Oil and Gas industry

• Pharmaceutics

• Paints, coatings and plating solutions

• Wine, liquor and other alcohol drinks

Specification

Material of Construction

• Filter Media: Polypropylene(PP), Polyvinylidene Fluoride(PVDF), Polyether Sulphore(PES), Nylon-6(N6) or

Poly Tetra Fluoroethylene(PTFE)

• Support : Polypropylene       • Core / Cage / End adaptor: Polypropylene

• Sealing Technology: Thermal bonding No Adhesives

• Seal Material: Silicone, EDPM, Buna, , Teflon, E-FKM

• Filtration Area: 0.5-0.7m2  each 10" length

Micron Rating: 0.1µm, 0.22µm, 0.45µm, 0.65µm,0.80µm, 1µm, 3µm, 5µm, 10µm, 20µm, 50µm

Dimensions:

• Outside diameter: 2.7” (69mm)

• Length: 5", 10", 20", 30", 40"

Recommended Operating Conditions

Ordering

1.8 High Flow Filter Cartridge

Description

High Flow Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and superior flow rates are the main characteristics. All contaminants can be removed efficiently. Our High flow filter cartridge can be replace for PALL ULTIPLEAT ,CUNO 3M,PARKER MEGAFLOW AND PENTAIR AQUALINE FILTERATION SYSTEMS

Applications

• Pre-filtration of RO, Pre-treatment of sea water desalination

• Bottled water, high Fructose, edible oil, soft drinks

• API, solvents, and water filtration in BioPharm market

• Paints and coatings, Petrochemical, Refineries

• Microelectronics

Specification

Material of Construction

• Media: Pleated glass fiber, Pleated PP

• Support layer: Polypropylene

• End adaptor: Glass fiber reinforced Polypropylene

• Seal Material: Silicone, EDPM, Buna

• Micron Rating:  1μm, 4.5μm, 6μm, 10μm,20μm,40μm,70μm,100μm

• Filtration Area: 20 inch: 660LPM, 40inch: 1300LPM, 60inch: 1900LPM

Dimensions

• Outside diameter: 6" (152mm)

• Length: 20inch(525mm), 40inch(1033mm), 60inch(1541mm)

Recommended Operating Conditions

Maximum Operating Temperature:

• Pleated glass fiber: 121°C

• Pleated PP: 82°C

Ordering

1.9 The Other Filter Cartridge

Inline Filter Cartridge, T33 Filter Cartridge, Hollow Fiber Membrane Filter Cartridge, Ceramic Filter Cartridge, Stainless Steel Filter Cartridge, Far-infrared Ray Ball Filter Cartridge, Weak Alkaline Ion Ball Filter Cartridge, Mineral Ball Filter Cartridge, Korean Filter Cartridge, etc.
