Распродажа Высококачественная декантерная центрифуга SUS304 для обезвоживания осадка с непрерывной работой
- Категория: >>>
- Поставщик: Liaoyang Wintech Industrial Co. Ltd.
Сохранить в закладки 1600879837330:
Описание и отзывы
Характеристики
Product Overview
Good sale SUS304 high quality decanter centrifuge for sludge dewatering with continous working
Horizontal screw decanter centrifuge is a kind of spiral discharge settling centrifuge, which is pushes the slag to discharge port at the small end of the drum through the blades on the spiral pusher, and the liquid phase overflows through the overflow hole at the large end of the drum. In order to achieve the purpose of continuous separation.
FEATURES AT A GLANCE
24 hours continuous run
Safety frame
Easy operation
Wide application
Optional type drum
Automatic feeding and discharging
ADVANTAGES:
1. Two motor, two frequency inverter drive system, realize differential speed stepless regulation and energy return.
2.Spiral stoker blades: Surfacing welding tungsten carbide grinding.
3.Drum cone cylinder material outlet: Replaceable wear resistant, corrosion resistant ceramic alloy bushing.
4.Main bearing: Sweden Janpan
5. Main sealing parts: Taiwan SOG, material is Nitrile butadiene rubber
6. Electrical protection: overload, phase loss, torque protection
7. Main and vice inverter use common DC bus, vice motor’s function is generating electricity ( save electricity)
8. PLC remote control optional.
Left elevation
Back elevation
Right elevation
Working Principle
This machine is horizontal spiral discharging settling centrifuge, the main machine has a column-cone bowl, spiral stoker,differential system, bearing seat, base, cover, main motor,vice motor, and electric control chamber. With the high speed rotating of bowl, form strong centrifugal force, making the sludge dehydrate continuously in 24 hours a day.
The main motor through the triangle belt make the bowl rotating, through the planetary gear differential, make the vice motor and spiral differential speed different, realize sludge dewatering and pushing material function, That means differential rotating speed control and torque control. because containing solid rate of sludge may have wave motion, by differential speed control system is the guarantee for speed stability, achieve solid content in sludge is constant, the constant torque control make decanter load in a stable state, the separation effect and flocculation is the best state, so as to ensure the safe operation of the centrifuge.
It has good seal performance (guarantee without material leak in the process of operation), sludge dewatering work in full seal state, makes the environment clean.
APPLICATION SCOPE:
It is widely used in big capacity solid liquid separation or liquid liquid separation: separation and dehydration of industrial and domestic sewage, starch washing, classification and dehydration, dehydration of soybean and wheat protein, fish meal and fish meat, distiller's grains dehydration, purification of fruit juice and pulp fiber, separation and purification of animal and vegetable oils, separation and purification of Coal tar, classification and dehydration of kaolin and graphite, classification and dehydration of dyes and pigments, classification and dehydration of ore slurry and other applications.
PRODUCT SPECIFICATIONS

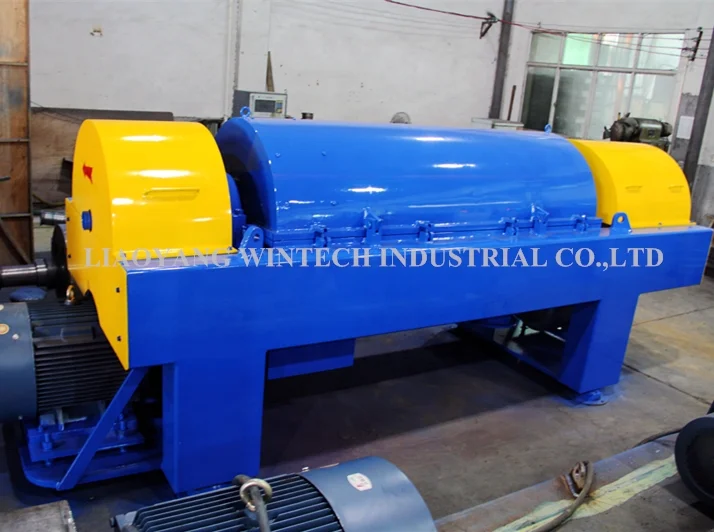

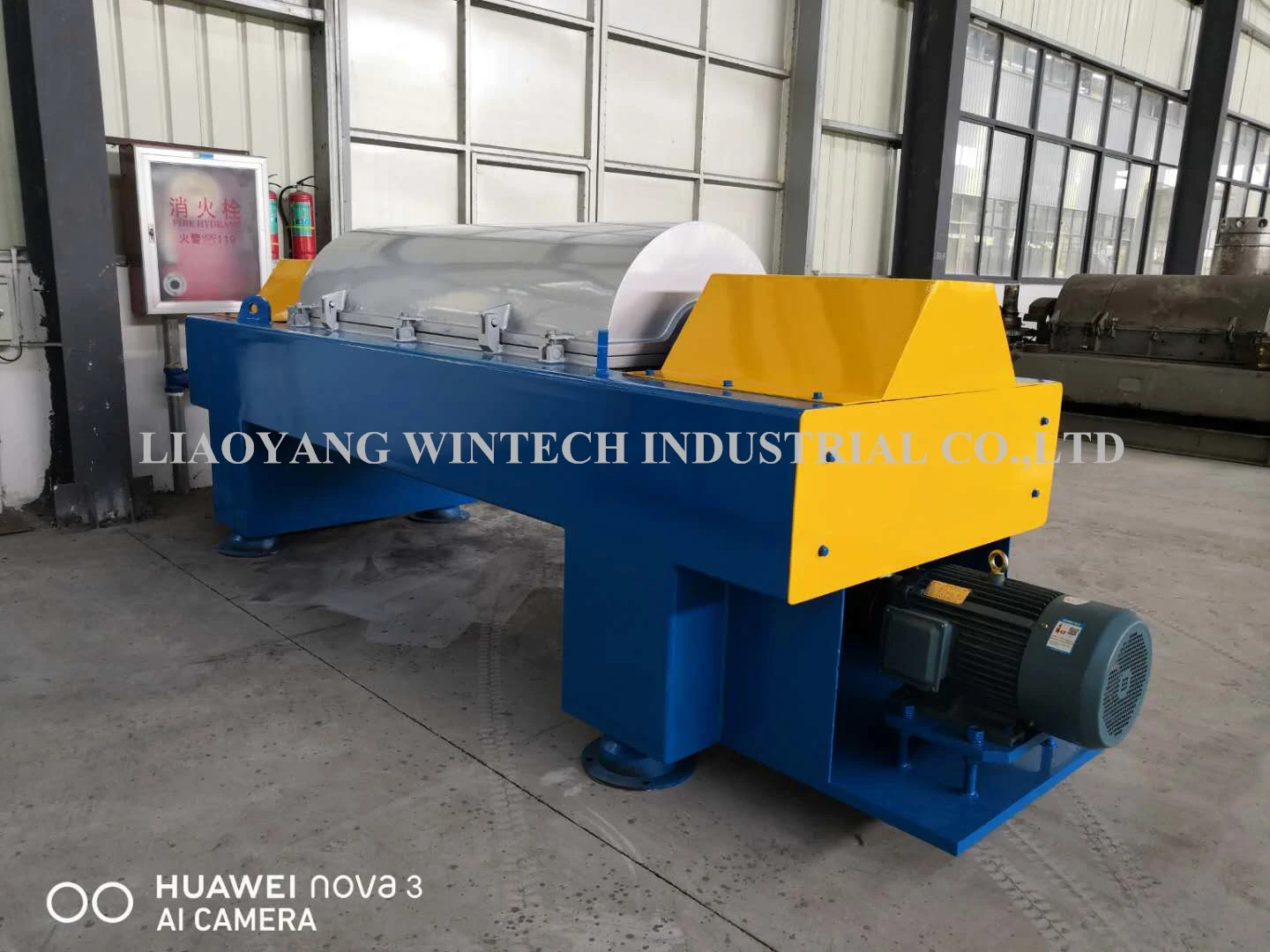

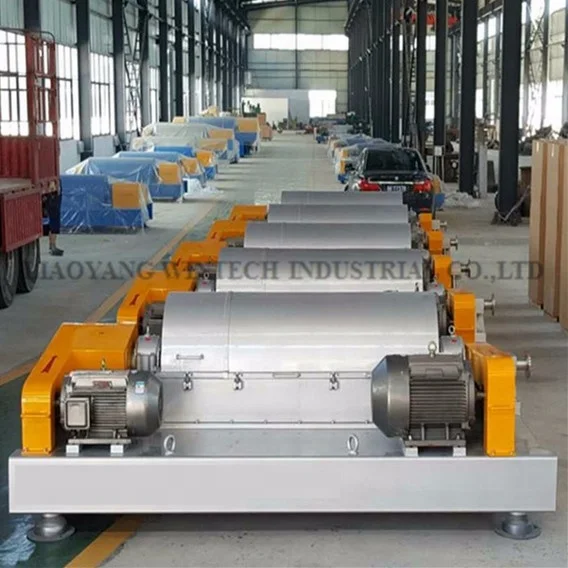

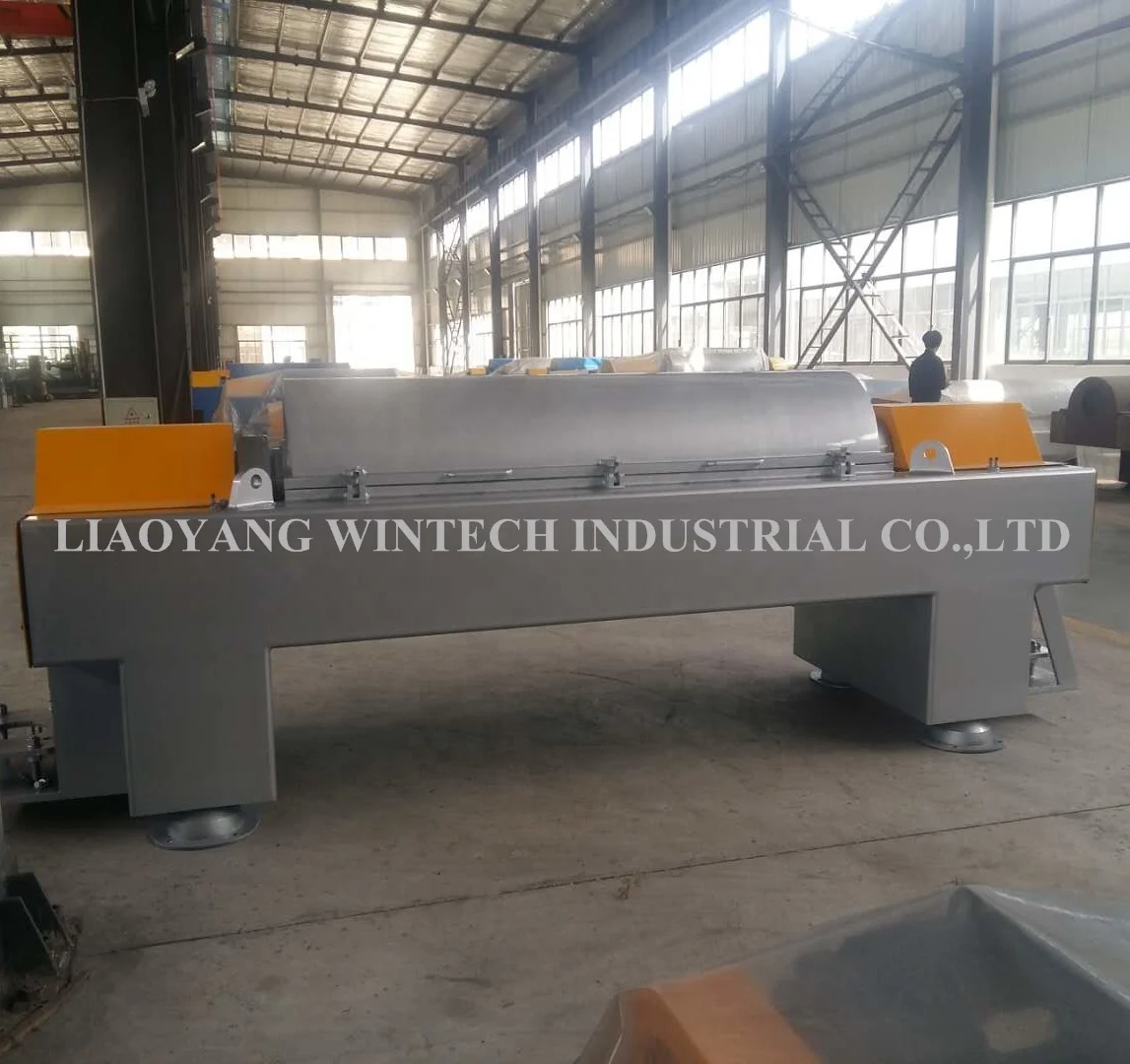

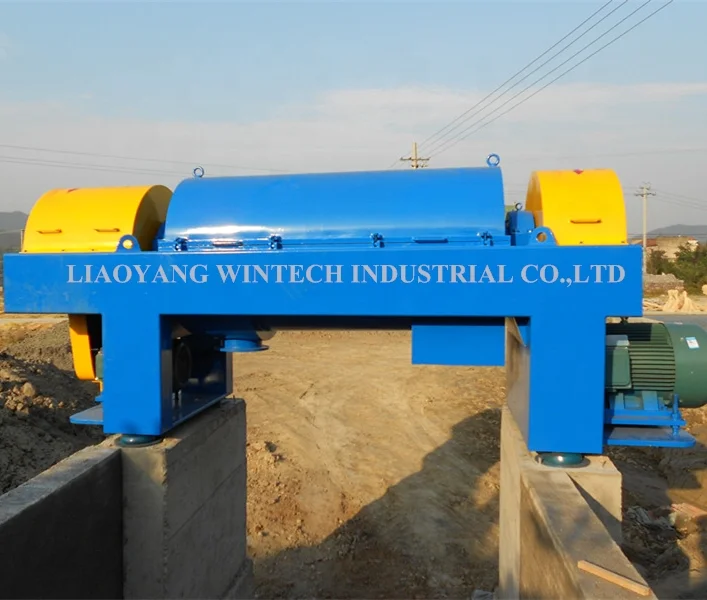

Details Images
COMPANY PROFILE
LIAOYANG WINTECH INDUSTRIAL CO.,LTD takes Centrifuge Equipment and Drying Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machinery.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
SIMILAR PRODUCTS
FAQ
1. What data is required to confirm the model?
(1) Materials to be separated (2) Treatment capacity per hour (3) Solid content
2. What certificates do you have?
We can provide CE, ISO 9001, etc
3. What is the warranty period of the equipment?
Normally 1 year warranty
4. Can we visit your factory?
Sure, we sincerely invite you to visit
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
Sure, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order quantity, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
