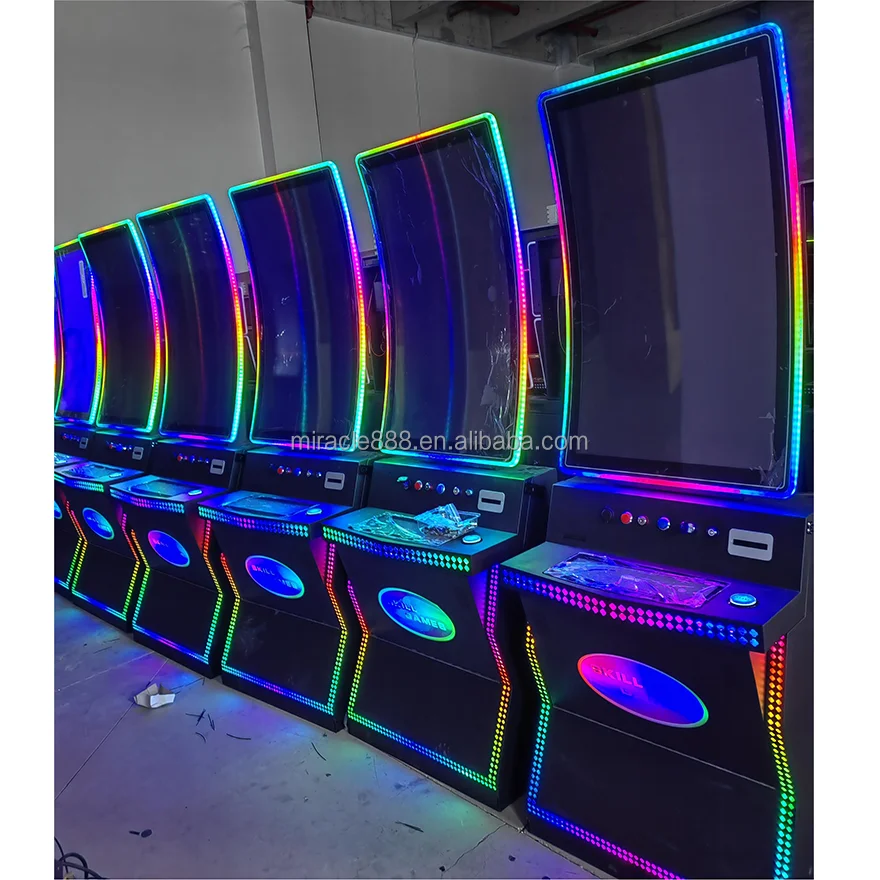

Чудо горячая Распродажа, игровой шкаф для умения, многоигровой игровой 5 в 1, программное обеспечение, настольная машина для умения
73 015,31 ₽ - 81 476,31 ₽
Заводская цена 304 316L нержавеющая сталь угол бар 50*50*5
- Категория: >>>
- Поставщик: Wuxi Anchang Metal Products Co. Ltd.
Сохранить в закладки 1600880157272:
Описание и отзывы
Характеристики
Product Description

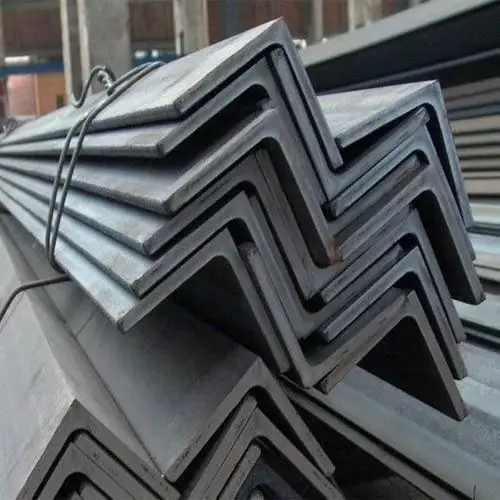

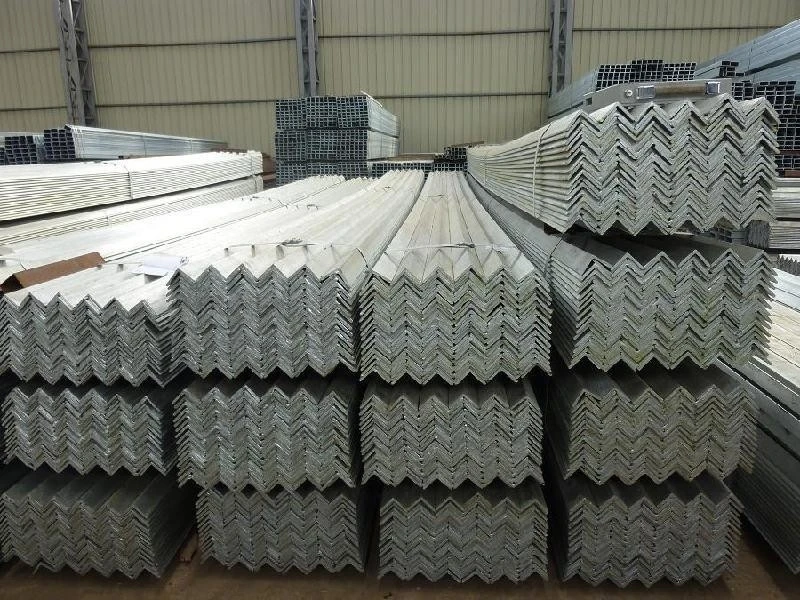

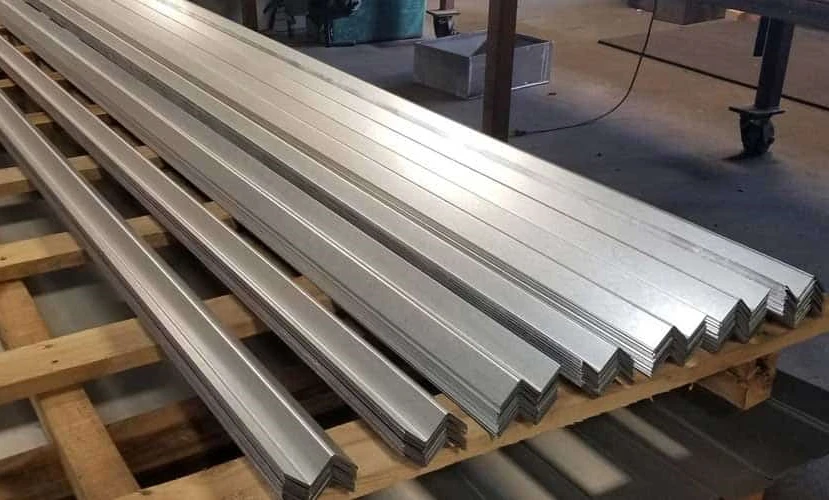

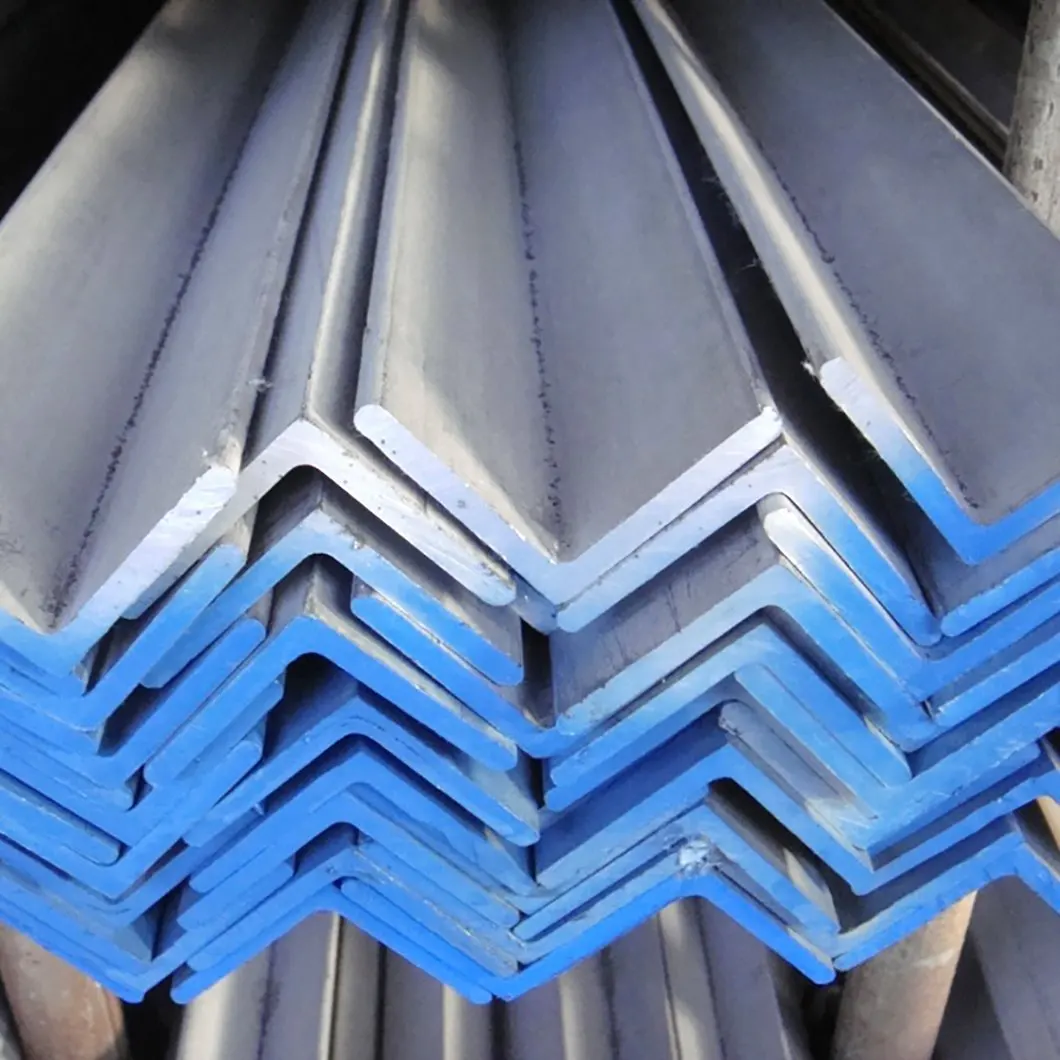

Stainless Steel Angle
Stainless steel angle is a product which has two legs that form a 90 degree angle. It is available in both equal and unequal leg lengths. This product is ideal for structural applications that require strength and durability as the inside radius corner reinforces the shape. The angle also offers exceptional corrosion resistance for environments that are acidic, chemical-heavy, and even freshwater or saltwater saturated.
Benefits of Stainless Steel Angle
* Good corrosion resistance
* Easily machined
* Non-magnetic
* Good strength-to-weight ratio
* Damage resistant
* Excellent long term value
Usage of Stainless Steel Angle
* Aerospace
* Architectural
* Construction
* Chemical
* Food Processing
* Oil & Gas
* Architectural
* Construction
* Chemical
* Food Processing
* Oil & Gas
Material Grade
304 Stainless Steel
AISI 304 stainless steel (UNS S30400) is the most widely used stainless steel, containing 18-20% Cr and 8-10.5% Ni, and also known as 18-8 stainless steel. SS 304 is non-magnetic under annealing conditions, but after cold working (such as stamping, stretching, bending, rolling), part of the austenite structure may be converted into martensite and therefore weakly magnetic. Type 304 has good resistance to atmospheric corrosion and oxidation. The high nickel-chromium alloy content gives it excellent corrosion resistance and is widely used in the food industry as a standard food grade stainless steel.
There are several variants of 304 grade stainless steel, such as ultra-low-carbon version type 304L, nitrogen-containing version 304N, 304H with improved creep performance, and type 302 with higher carbon content.
There are several variants of 304 grade stainless steel, such as ultra-low-carbon version type 304L, nitrogen-containing version 304N, 304H with improved creep performance, and type 302 with higher carbon content.
Applications
AISI 304 stainless steel is widely used in petroleum & chemical industry, metallurgical machinery, aerospace industry, food processing equipment, instruments, household appliances and hardware manufacturing industries.
SS304 material is made into a great many intermediate products such as steel sheet & plate, steel tube & pipe, steel bar & flat, rod & wire, etc.
Final products such as all kinds of kitchen ware, tableware, medical device, machinery and parts, wire mesh, filters, architectural and decorative products, etc.
SS304 material is made into a great many intermediate products such as steel sheet & plate, steel tube & pipe, steel bar & flat, rod & wire, etc.
Final products such as all kinds of kitchen ware, tableware, medical device, machinery and parts, wire mesh, filters, architectural and decorative products, etc.
316 Stainless Steel
AISI 316 stainless steel (UNS S31600) is the second most commonly used austenitic stainless steel. Due to the addition of Molybdenum (Mo), SS 316 has a great improvement in corrosion resistance and certain properties compared to SS304.
316L stainless steel (UNS S31603) is the low carbon version of AISI 316. SS 316 is better than SS 304 in terms of corrosion resistance, heat resistance and certain properties, but the price is higher than AISI 304.
Applications
The main uses of AISI 316 stainless steel are heat exchangers for pulp and paper equipment, dyeing equipment, film processing equipment, pipes, solenoid valves, clamps, spheres, valve bodies, valve seats, nuts, valve stems, flanges, and materials for exterior use in coastal areas, etc. Also used in marine environment and used as food grade stainless steel.
410 Stainless Steel
AISI 410 stainless steel is one of the most commonly used martensitic stainless steels. It contains about 12% Cr and therefore provides moderate corrosion resistance. Unlike austenite such as AISI 304 and AISI 316, martensite such as grade 410 is magnetic and can be hardened by heat treatment like carbon steel and low alloy steel. SS410 has good tensile strength, creep and fatigue strength and other mechanical properties, mainly used in steam turbines, jet engines and gas turbines.
Applications
Applications
Type 410 steel is the basic general-purpose steel used for steam valves, tray valves, pump shafts, turbine blades, bolts and miscellaneous parts that require corrosion resistance and moderate strength up to 540°C (1000°F).
Chemical Composition
Steel Grade | 304 | 310 | 316 | 410 | 430 |
C% (≤) | 0.08 | 0.25 | 0.08 | 0.15 | 0.12 |
Si% (≤) | 1.0 | 1.5 | 1.0 | 1.0 | 1.0 |
Mn% (≤) | 2.0 | 2.0 | 2.0 | 1.0 | 1.0 |
P% (≤) | 0.045 | 0.045 | 0.045 | 0.04 | 0.04 |
S% (≤) | 0.030 | 0.030 | 0.030 | 0.03 | 0.03 |
Cr% | 18-20 | 24-26 | 16-18 | 11.5-13.5 | 16-18 |
Ni% (≤) | 8-11 | 19-22 | 10-14 | 0.75 | 0.75 |
Mo% | -- | -- | 2-3 | -- | -- |
N% (≤) | 0.1 | -- | 0.1 | -- | -- |
Mechanical Properties
Steel Grade | Tensile Strength Mpa (ksi) ≥ | Yield Strength Mpa (ksi) ≥ | Elongation in 50 mm (%) ≥ | Reduction in area (%) |
304 | 515 (75) | 205 (30) | 40 | 50 |
310 | 515 (75) | 205 (30) | 40 | 50 |
316 | 550 | 240 | 60 | 70 |
410 | 480 (70) | 275 (40) | 20 | 45 |
430 | 415 (60) | 207 (30) | 20 | 45 |
Equivalent Material
Country/Region | Standard | Grade | ||||
US | AISI, SAE, ASTM | 304 | 316 | 410 | ||
China | GB/T 1220 | 06Cr19Ni10 | 06Cr17Ni12Mo2 | 1Cr13 | ||
Europe | EN 10088 | X5CrNi18-10 (1.4301) | X5CrNiMo17-12-2 (1.4401) | X12Cr13 (1.4006) | ||
Germany | DIN 17440 | X5CrNi18-10 (1.4301) | X5CrNiMo17-12-2 (1.4401) | X12Cr13 (1.4006) | ||
UK | BS970 :1996 | 304S15 | 316S16 | -- | ||
Russia | -- | -- | 08X17H13M2T | -- | ||
Australia | -- | -- | 316 | -- | ||
Korea | -- | -- | STS316 | -- | ||
India | -- | -- | 04Cr17Ni12Mo2 | -- | ||
Japan | JIS G4304 | SUS304 | SUS316 | SUS410 | ||
ISO | ISO 15510 | X5CrNi18-10 | X5CrNiMo17-12-2 (4401-316-00-1) | X12Cr13 (4006-410-00-I) | ||
Specification
Product Name | Stainless Steel Angle |
Application | Machinery, Food processing equipment, Furniture, Architectural paneling, Railings & trim, etc. |
Material | 201, 202, 304, 316, 430, 201, 304L, 316L, etc. |
Thickness | 0.8mm - 25mm |
Width | 25mm*25mm-200mm*125mm / 50mm*37mm-400mm*104mm |
Length | 1-12m |
Standard | JIS/SUS/GB/DIN/ASTM/AISI/EN |
Surface | 2B, BA, NO.1, NO.4, 8K, HL, Embossing, Satin, Mirror, ect |
Technical | Hot / cold rolled |
Package | By bundles with steel strips or as customer request |
Recommend Products
Company Profile
Detection
Why Choose Us
Packing & Delivery
Q1: Can you provide samples?
A1: Yes, free samples will be provided regarding to your needs. And the delivery cost, which will be returned after the first cooperation, needs to be afforded by the customers.
Q2: What is your delivery time?
A2: Within 7 days after deposit received for in-stock. 15-30 days for products out of stock.
Q3: What is your payment terms?
A3: 30% T/T in advance, the balance before shipment or based on BL copy or LC at sight.
Q4: How can you guarantee the quality?
A4: Confirmed samples before mass production; strict inspection before delivery.
Q5: What is the time of preparing a sample?
A5: 1-3 days.
Q6: What’s your shipping port?
A6: Shanghai, Ningbo, Tianjin or negotiated.
Q7: What’s the package?
A7: Standard export sea worthy package or negotiated.
Q8: Can we visit your factory?
A8: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
Похожие товары

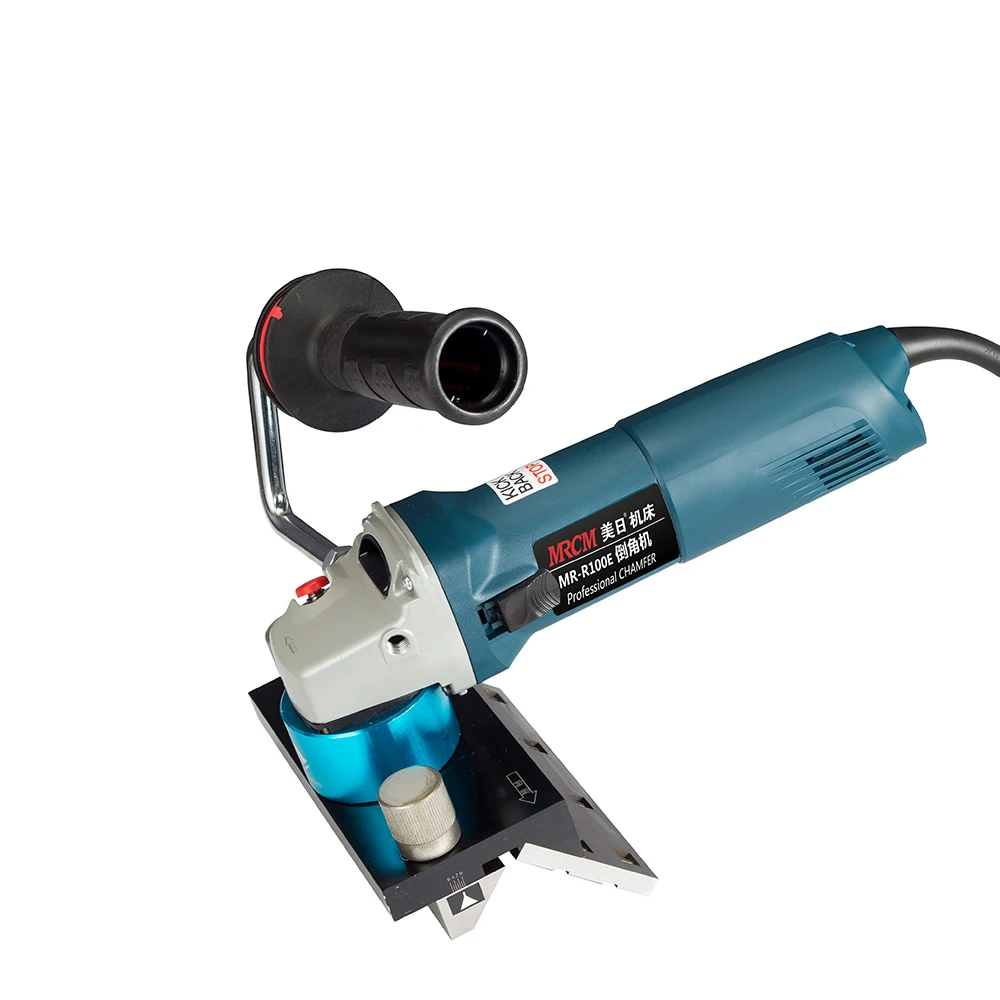

MR- R100E, 220 В, портативная кромкострогальная машина для труб
Деталь для трактора JD JohnDeere, этикетка, наклейка m вариант кукурузы номер детали DX13902
Новый дизайн, перламутровая Инкрустация, лак, чаша из кокосовой скорлупы, лакированные чаши, самый дешевый лак из Вьетнама
0,25 $ - 0,55 $

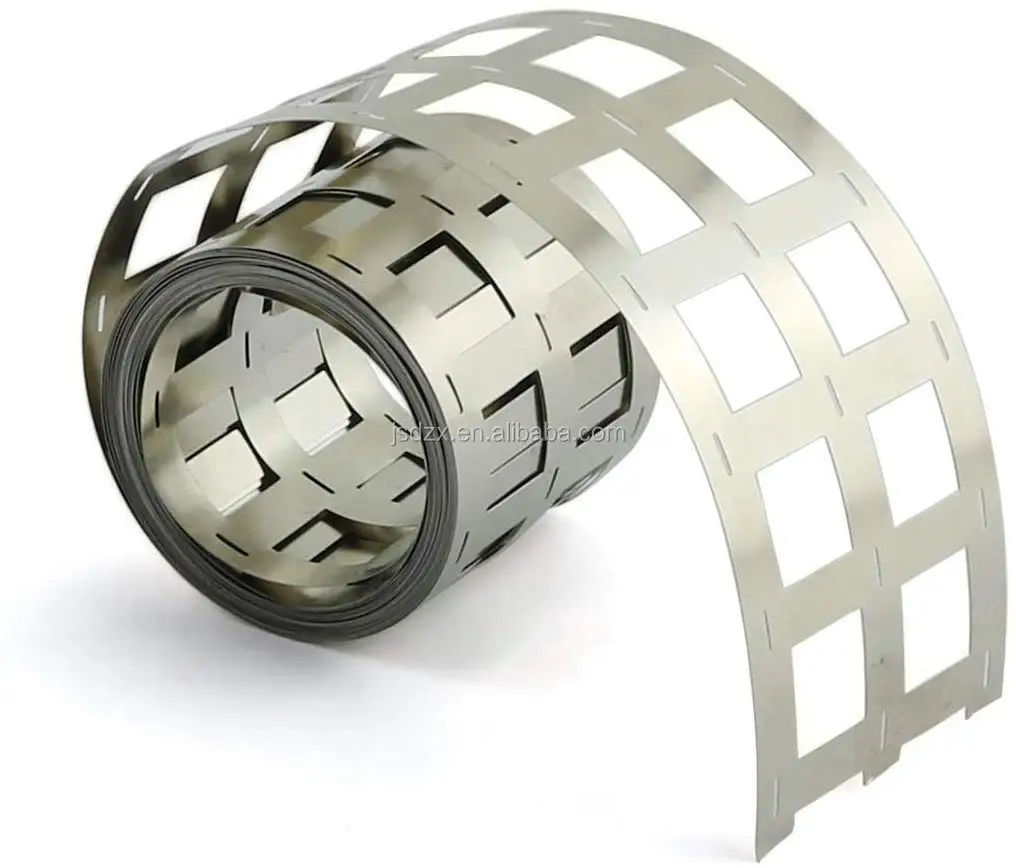

Литиевая батарея 32650 для точечной сварки tab 32650 3P, полоса из чистого никеля, оптом
45,00 $ - 68,00 $

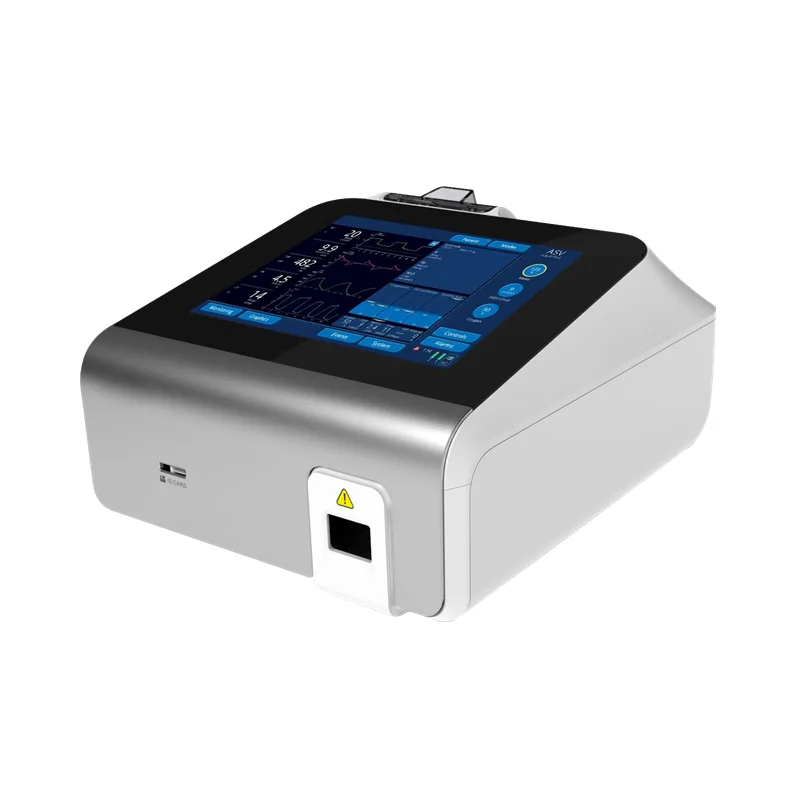

Анализатор прогестерона собак Wondfo тестовый набор реагента YG 102
480,00 $ - 1 100,00 $
Карликовый кавандиш банан-фрукт со сладким вкусным разнообразием

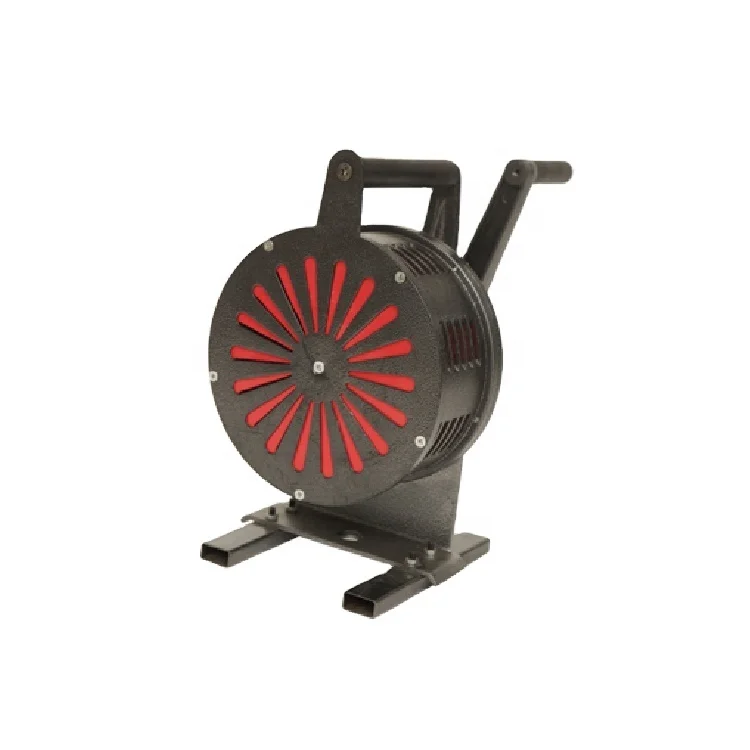

Ручное управление пожарной сирены LK-120A прямые поставки из
