YINGFENG 51 2 В 100 А · ч батарея Smart BMS настенная мощность 200 домашняя 10 кВтч Lifepo4 гибридная сеть
40 612,10-53 055,91 ₽

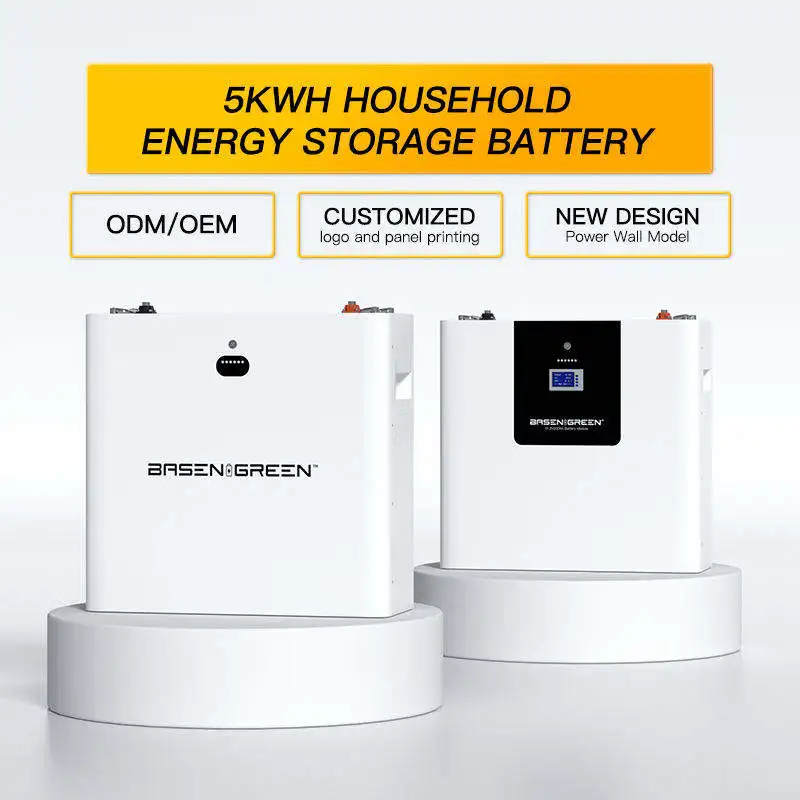

Аккумуляторная батарея Basen Lifepo4 50Ah 100Ah 200Ah 48В настенная солнечная 48 В литиевая
- Категория: >>>
- Поставщик: Shenzhen Basen Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600880201147:
Описание и отзывы
Характеристики
Product Introduction
Model | BR-WM-LV 5 | BR-WM-LV 10 | ||
Main Parameter | ||||
Cell Technology | Lithium-iron Phosphate (LiFePO4) | |||
Nominal Energy | 5kWh | 10kWh | ||
Round-Trip Efficiency | 98% | |||
Scalability | Max. 15 Modules in Parallel | |||

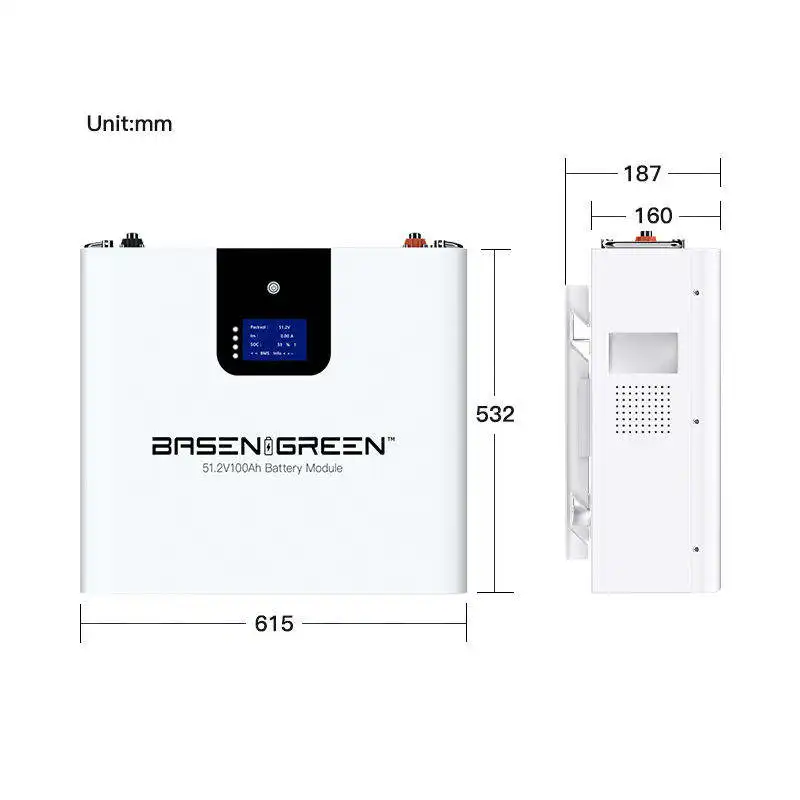

Dimensions(L/W/H) | 615*500*160mm | 615*580*215mm | ||
Weight | 55kg | 55kg | ||
Installation | Indoor | |||
Warranty | 5 Years Product Warranty | |||
10 Years Performance Warranty | ||||
Electrical Parameter | ||||
Nominal Voltage | 51.2V | |||
Nominal Capacity | 100Ah | 200Ah | ||
Max Charge Current | 100A | |||
Max. Cont. Charge Current | 100A | |||
Max Discharge Current | 100A | |||
Max. Cont. Discharge Current | 100A | |||
Operating Voltage Range | 48V~56V | |||
Standard Charge Voltage | 56V±0.5 | |||
Discharge Cut-Offff Voltage | 45V±0.5 | |||
General Parameter | ||||
Cycle Life | ≥6000 Times (80%DoD) | |||
Service Life | 10 Years | |||
Protection Rating | IP55 | |||
Display | SOC Status Indicator(optional), LED Indicator | |||
Communication | RS485, RS232, CAN | |||
Charge Temperature Range | 0C~60C (Under 0C extra heating mechanism) | |||
Discharge Temperature Range | -20C~60C (Under 0Cwork with reduced capacity) | |||
Storage Temperature Range | -40C~55C @ 60%±25% relative humidity | |||

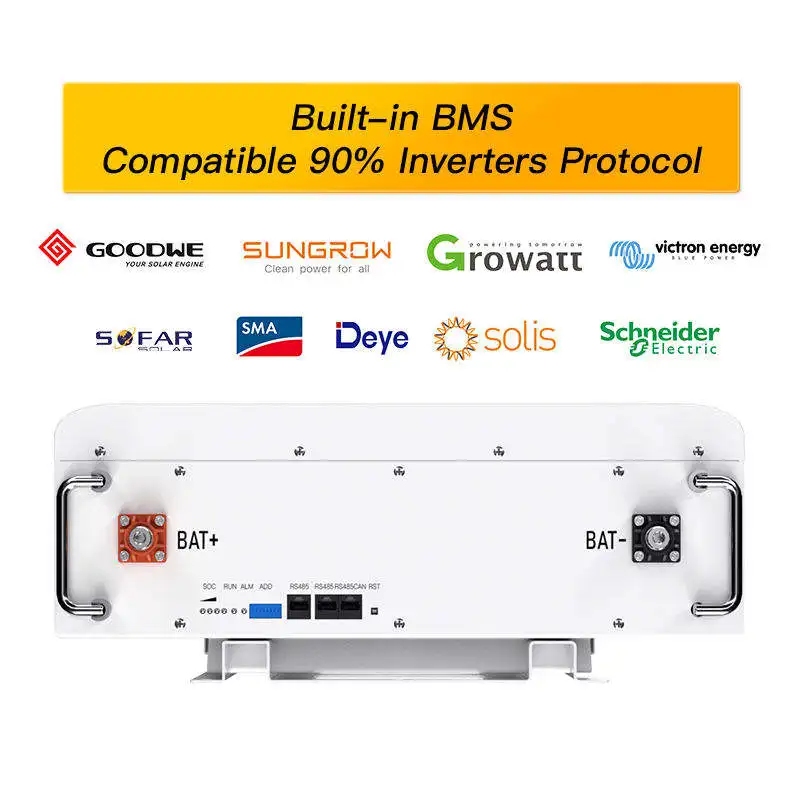

Compatible Inverters | SMA, Victron Energy, Deye, Goodwe, Growatt, Sermatec, etc. | |||
* Compatible tests with difffferent brands of inverter are continuously, updates will be periodically. ** Under specifific test conditions. | ||||
Company Profile
About BASEN
Basen Technology Co., Ltd is a new energy company established in 2013, mainly engaged in LifePO4 batteries, energy storage battery packs, portable power supplies, providing new energy battery products related to home solar energy storage and outdoor electrical power supply responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy tothe world. Basen's products are widely used in home solar energy storage, backup power for communication base stations, UPS systems, RVs, golf carts, forklifts, yachts and other power supply fields.
Since its establishment, Basen adheres to market and customer needs, keeps developing in the new energy industry. Basen has obtained 12 patents, and will be asserted as National High and New Techni-cal Enterprise by the end of 2022." The enterprise has passed ISO9001 Quality management System Certifcation, and our products have obtained UL, CE, UN38.3, MSDS, IEC and other
international certifications. At present, Basen has reached a long-term strategic partnership with thousands of overseas customers in the new energy industry, and has established lots of logistics warehousing bases to efficiently serve customers in North、America, Germany, the United Kingdom, Poland etc. Upholding the mission of " making entrepre-neurship easier", we continue to provide competitive products and reduce the intermediate costs formany foreign entrepreneurs, merchants and retailers in the new
energy industry.
international certifications. At present, Basen has reached a long-term strategic partnership with thousands of overseas customers in the new energy industry, and has established lots of logistics warehousing bases to efficiently serve customers in North、America, Germany, the United Kingdom, Poland etc. Upholding the mission of " making entrepre-neurship easier", we continue to provide competitive products and reduce the intermediate costs formany foreign entrepreneurs, merchants and retailers in the new
energy industry.
Production Ability
Over 5,000 square meters of standardized workshop with 40 skilled workers and spe-cialists; Materials subsidiary capable of fast
delivery time; Auto battery pack production line; ATE testing equipment; Professional testing laboratory.
● QUALITY
Well-established quality and process control system; Strictly compliancewith ISO9001; Fully certified with CE, UL, UN38.3 and ROHS.
● SERVICE
5 years warranty period; 24 hour rapid response; Worry-free aftersales service system.
About logistics
FAQ
Yes, GRADE A + quality. the QR code is intact, Brand new.
2).Are the batteries come with busbars+bolts?
The price come with Bus bars and nuts，One Battery will come with one set bus bar and 2nuts（e.g.,If buy 4pcs battery,we will send
4pcs cells with 4pcs busbars and 8pcs nuts）If need more please contact us online.
3).Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4.)What kind of the package of the cells?
Pack with strong package, each cell into thickness PE foam or bag, then into 5 layers strong carton.
5).How can I place the order?
Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your
shipping informtion to our sales they will creat online order for you.
6).How can I do if I need more help for the order?
You can chat our sales online or send inquiry email,we will respond you ASAP.
7).Do you have oversea warehouse?
Yes, we have 3.2V LiFePO4 cell and 12V battery pack in Germany, Poland, Canada, UK, USA warehouse.
Reminder
DIY battery pack must get the cells balanced (same voltage ) before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detected voltage/resistance/appearance and other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund. Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return. Any return behavior buyers need to be responsible for shipping fee.
1).Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initial capacity,take the test pictures or video to us,we will replace it or give satisfied solution.
2).If any miss or damaged for the shipping.Please contact us firstly, then send us the picture or video to check. In case of loss of cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.
3).These situations not provide return nor refund
2).If any miss or damaged for the shipping.Please contact us firstly, then send us the picture or video to check. In case of loss of cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.
3).These situations not provide return nor refund
a. After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
b. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
Tips:
*These products are prototype batteries without protection board,you need to purchase a match one! You can check our shop and search BMS.
*please consider before taking orders, place order means you have agreed. thank you for your cooperation!
