Product Description







LED light strip adhesive and winding reel machine





This machine is suitable for all kinds of flexible light bar reels and adhesives, such as bare board, semi-tube, full tube, surface glue, waterproof, non-waterproof, COB, etc. LED patch light bar reels and adhesives at the same time.








Main functions


1. LED SMD light strips, all light strips with a width of 0-25mm can be attached with 3M glue simultaneously and synchronize the reels.
2. Waterproof, non-waterproof, semi-sleeved, full-sleeved LED flexible light strips can also be attached with 3M glue simultaneously. and synchronize the reels.


3. The output per hour can reach 1000 m/h after the employees are familiar with it.


4. Save labor, change the original two processes into one process, save one person in the process, and the efficiency of the reel is more than twice that of the previous one


5. According to different packaging requirements of customers, forward rotation and reverse rotation can be carried out (forward rotation: conventionally put the lamp beads outside, reverse rotation: pack the lamp beads inside).


6. The speed is adjustable, and it can be operated according to the machine familiarity of employees.


7. Semi-linked operation control, if the light bar is found to be twisted, it can be stopped at any time through the foot switch to correct it.


8. Effectively improve work efficiency and reduce fatigue caused by repeated movement of workers.





 Specifications of LED light strip adhesive and winding reel machine



































ModelSpecificationPowerNO. of revolutionsvoltageWeightsizeeffectiveness
GRW-AR01common type6W147 rpm220V,50-60HZ8kg450*250*290mm500-600m/h
GRW-AR02High speed type15W300rpm220V,50-60HZ10kg450*250*291mm900-1000m/h

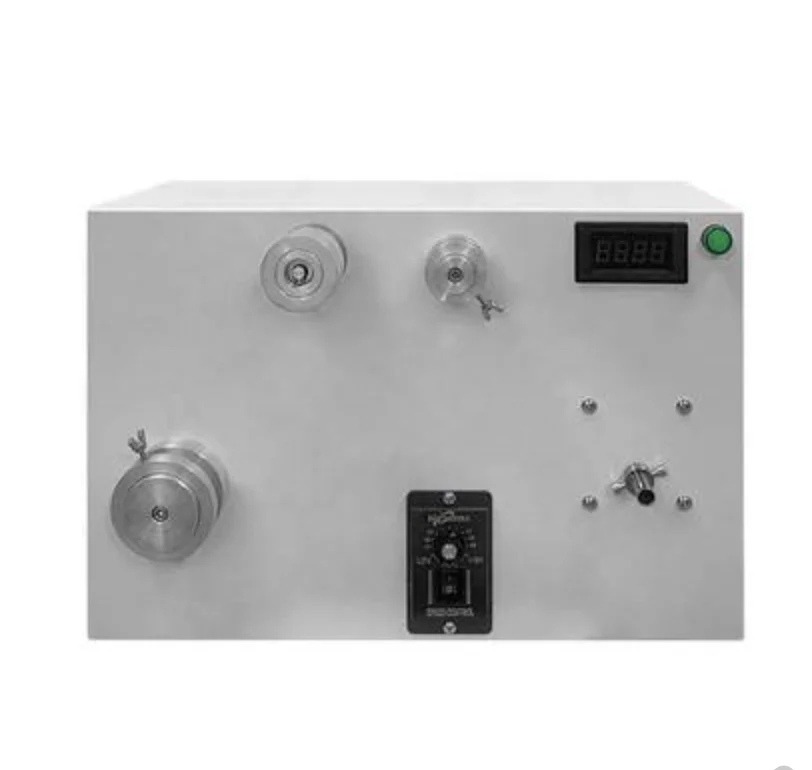

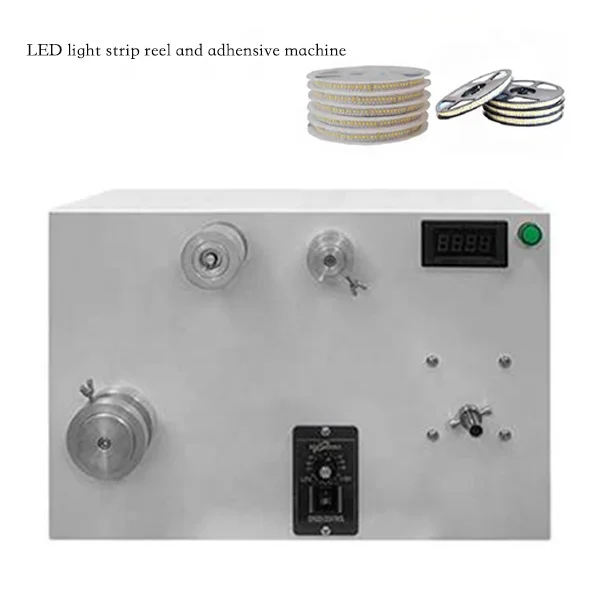

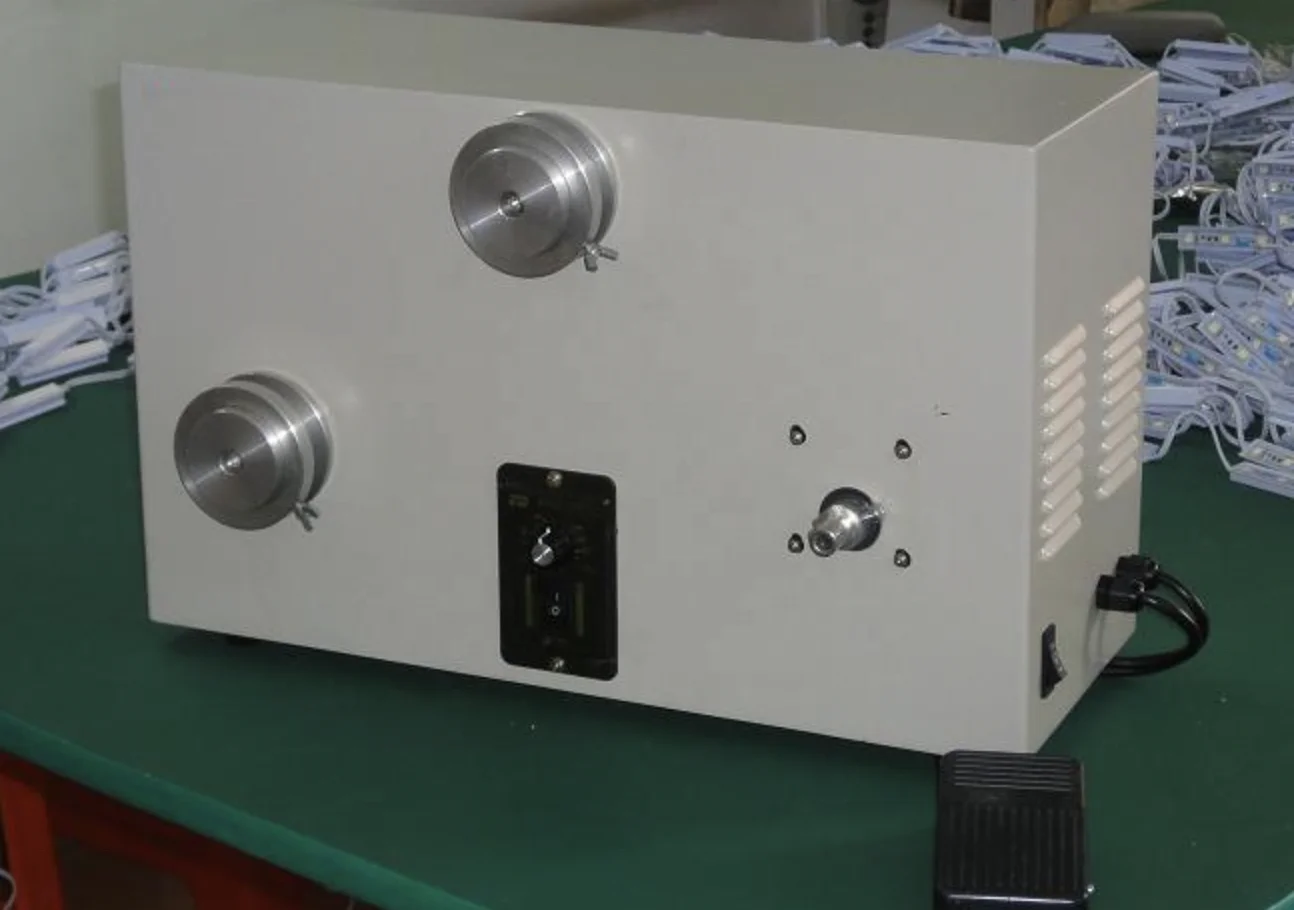

Machine photos:


Strip Reel Machine1.pic.jpg


Strip Reel Machine2.png


Strip Reel Machine3.jpg

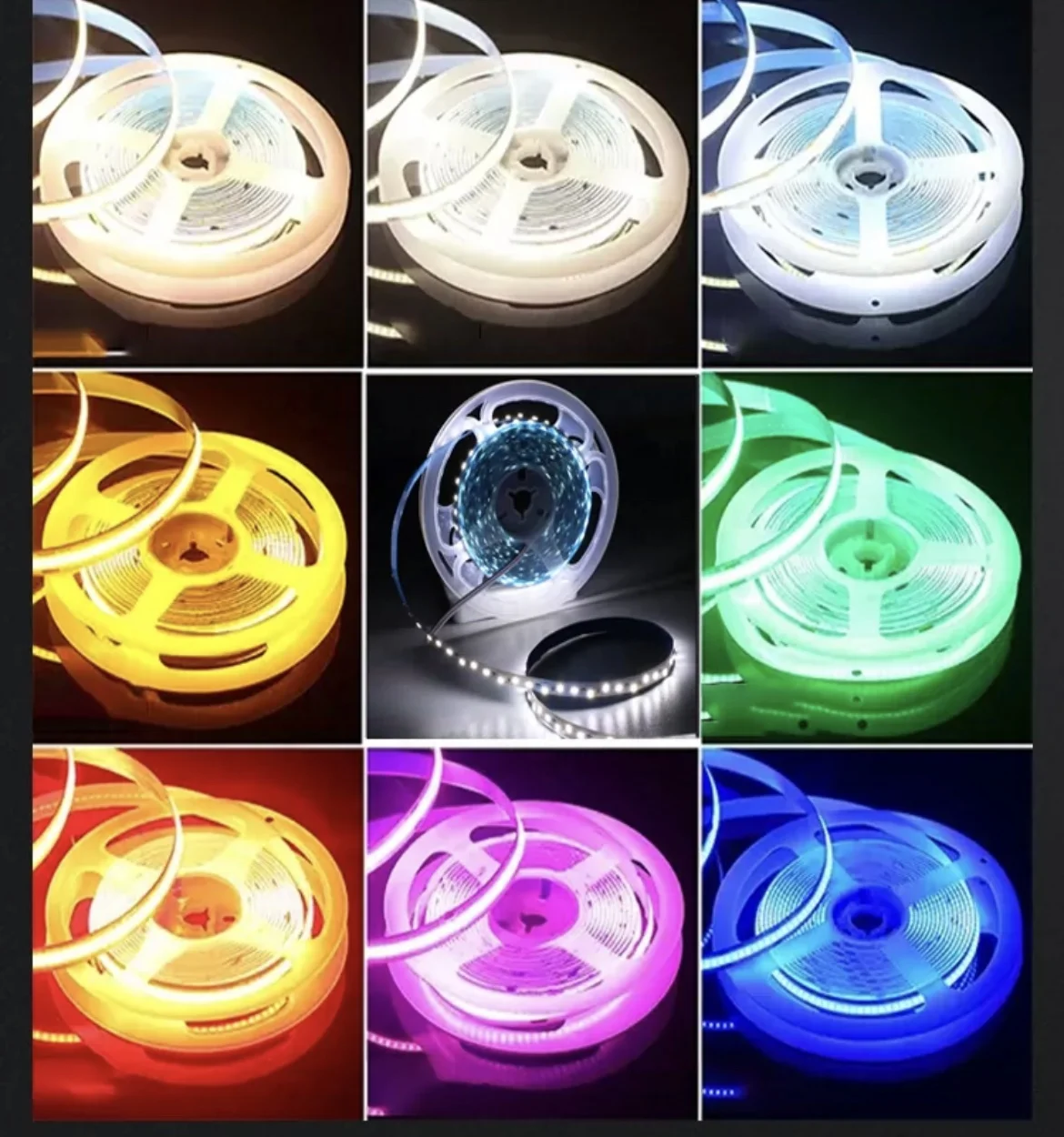

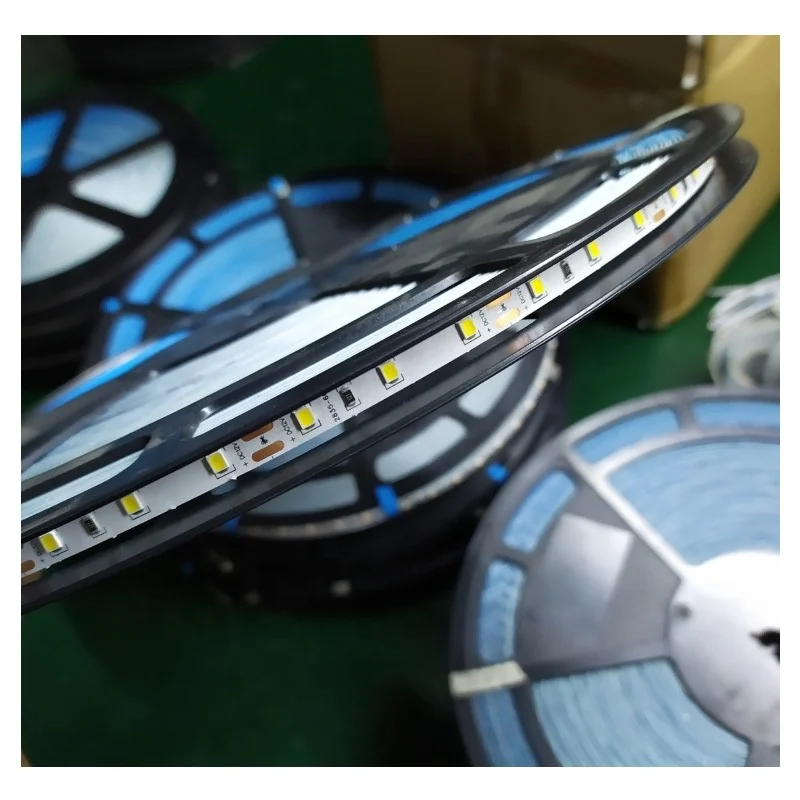

Finished samples:
















Company Information


X ehn co., ltd is a manufacturer, located in Chang’an town, Dongguan city, two plants for two parts – wire processing machine since 2007 and wire terminal series since 2006, which with UL Listed and approved ISO9001 quality management.



E xcept for providing the regular processing machine & wire terminal, we also support customers by opening mold with custom-made service.

H ere comes to 2017, our company began development and production of cord end terminal series in chain,which to be the first supplier in china market. New challenge, but new hope would be.



ow after more than 10 years, GRW is still developing and making innovative products designed to give the world better ways to process wire and test wiring assemblies.











Contact information


If you are interested in LED light strip adhesive and winding reel machine,  please contact me to get a good discount;





Dongguan Xiehui Electronic Equipment Co., Ltd


Contact person: Tina


Email: sales06(at)xehn.net.cn


Whatsapp/Skype:008618024781671


Wechat: Shine_tianT










FAQ


---Is GRW only a trading company ?


No, we are professional manufacturer since 2007.





---Can GRW do OEM service ?


Yes, we can provide OEM service to expand our market.





---How about the warranty ?


GRW machines has 1 year waranty except wearing parts like balde without warranty, other parts are free to change if there is worn-out within 1 year. Technical support is available during  your  daily maintainance.





---About distributor or wholesale annual sales rebate?


GRW provides a very competitive rebate policy for our distributors. For more info ,   please contact us.





---Quality certificates ,market entrance ticket ?


GRW machine got ISO approval and will apply for more certificates in future market demands.





Our Services


---Purchase guidance


If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.


---After Sale Service


Don’t worry, we are here to help.GRW provides full life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!


--- Technical Support


In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. GRW engineers are here for your assistan


---OEM


GRW provides OEM services to our customers
