ZB3A DIN SMS Connect гигиенический пищевой 304 из нержавеющей стали 316L Шоколадный сироп медовый переносной кулачок санитарный роторный лопастной насос
- Категория: >>>
- Поставщик: Wenzhou Youli Machinery Co. Ltd.Wenzhou Ltd.
Сохранить в закладки 1600881346694:
Описание и отзывы
Характеристики
Product Description
Material | Stainless Steel(304 and 316L options) |
Power Source | Electric |
Pressure | Low Pressure |
Structure | Centrifugal Pump |
Outlet Size | 32MM-102MM |
Voltage | 210V-460V |
Power | 0.55KW-30kw, 0.55KW-30KW |
motor | 50/60Hz |
Static seal | silicone rubber, fluorine rubber, PTFE, EPDM |
Speed | 2850/3440 r/min |
Mechanical seal type | Single mechanical sealDouble mechanical sealDry grinding type mechanical seal |
Lift | 10m-60m |
Connection Form | Clamp,thread,flange,DIN,SMS,RJT,3A |
Customization | Available |
Seal Material | C/Sic/TC/TC and Graphite/Sic |
Pump Type | Open Impeller |
Temperature | 120℃/248°F |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
Capacity to produce | 10000PCS/Mouth |
Certification | CE, ISO, our factory has been inspected by leyon and TUV |
MOQ | 1PC |
HS Code | 8413709990 |
Trademark | YOULI |
Application | Food and Beverage Industry, Pharmaceutical industry, Washing and Cleaning, Water Distribution |
Package | Cartons without pallet |
Cartons with pallet | |
Or as buyer's requirements | |
Delivery details | According to the quantities and specifications of each order |
Normal delivery time is from 10 to 15 days after receiving the deposit |
Operating Principle.

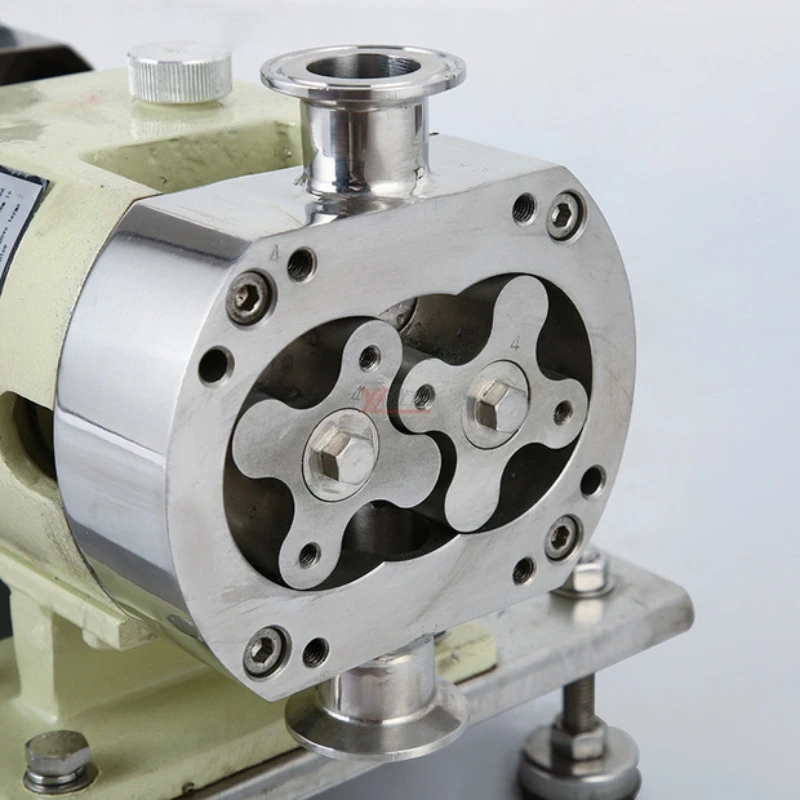

Rotor pump is also named rotary lobe pump, three-lobe pump,sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated，medium(material) is transpor-ted continuously.
Product Appliction
Suitable for water, oil, air and some corrosive liquid etc
Product Paramenters
Related Products
Details Images
Company Profile
Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. With a people-oriented approach, technology as its core, market orientation, and quality as its guarantee, the company is committed to providing better fluid system solutions. Its products have good quality, complete varieties, and are produced strictly in accordance with international standards such as ISO, API, ANSI, BS, DIN, NF, JIS, JP, GB, and JB. The company's main products include ball valves, butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves, exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves, steam traps, balance valves, breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters, pumps, pipe fittings, sight glasses, manholes, pneumatic and electric accessories, fluorine-lined valves, and sanitary valves and fittings.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Service
On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
On After Sales | Free replacement if there is any quality problem |
On Delivery | Never delay delivery time |
On Materials | Ensure material pure |
Ensure material pure | Welcome to order our products |
FAQ
Q: Why would I choose you?
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is
committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is
committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
