Бесшовная машина для запечатывания горячего воздуха для надувного ПВХ продукта
969 833,92 ₽ - 991 875,60 ₽
Полностью автоматический поворотный стол высокочастотный сварочный уплотнитель ПВХ пластиковый
- Категория: >>>
- Поставщик: Guangzhou Looker Packaging Machinery Co. Ltd.
Сохранить в закладки 1600884466498:
Описание и отзывы
Характеристики
Product Description

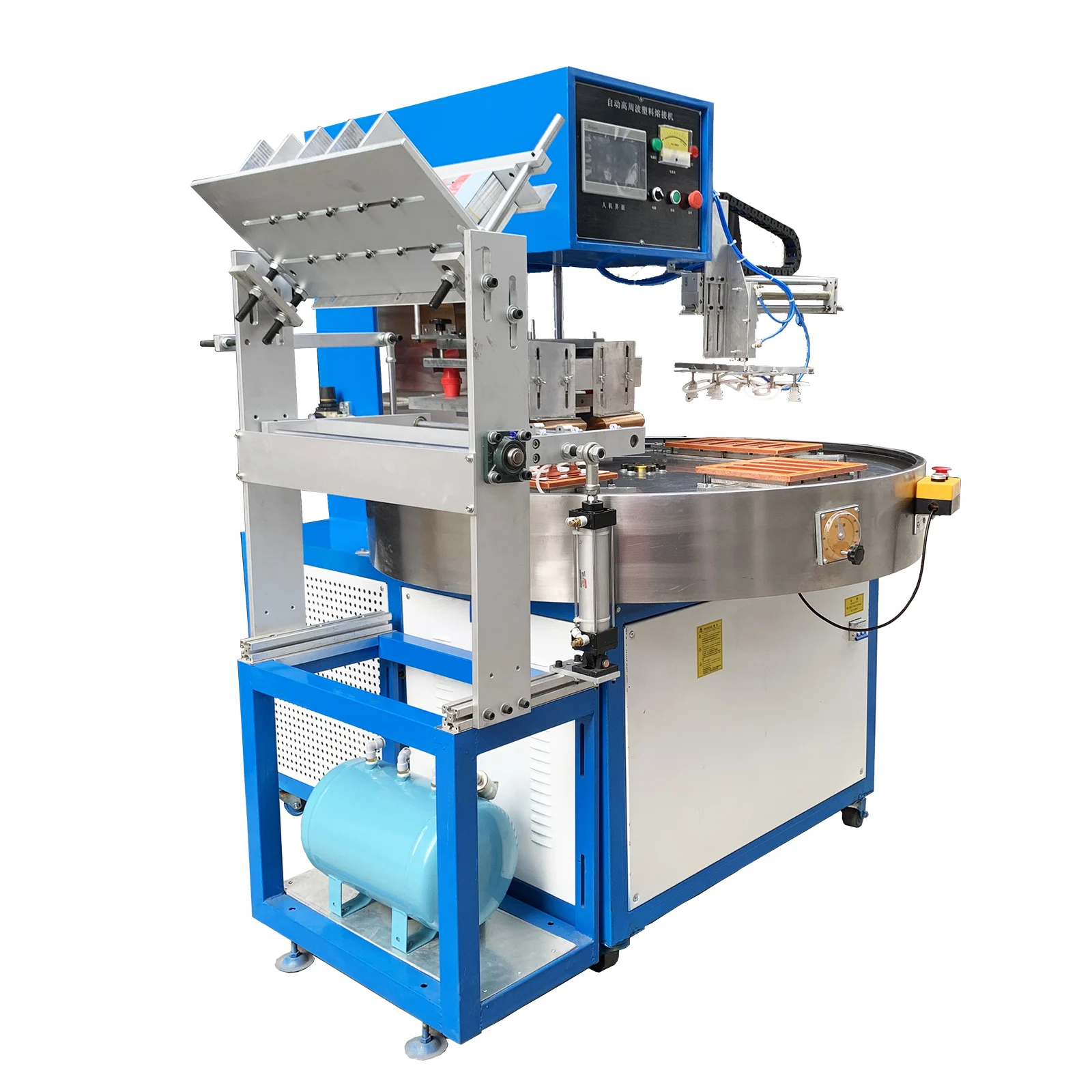

Full automatic high frequency welding machine
Application
It’s suitable for welding Blister&Blister, Blister&Paper card, Paper card&Paper card. Widely used in stationery, toys, electronic products, hardware, cosmetic etc.

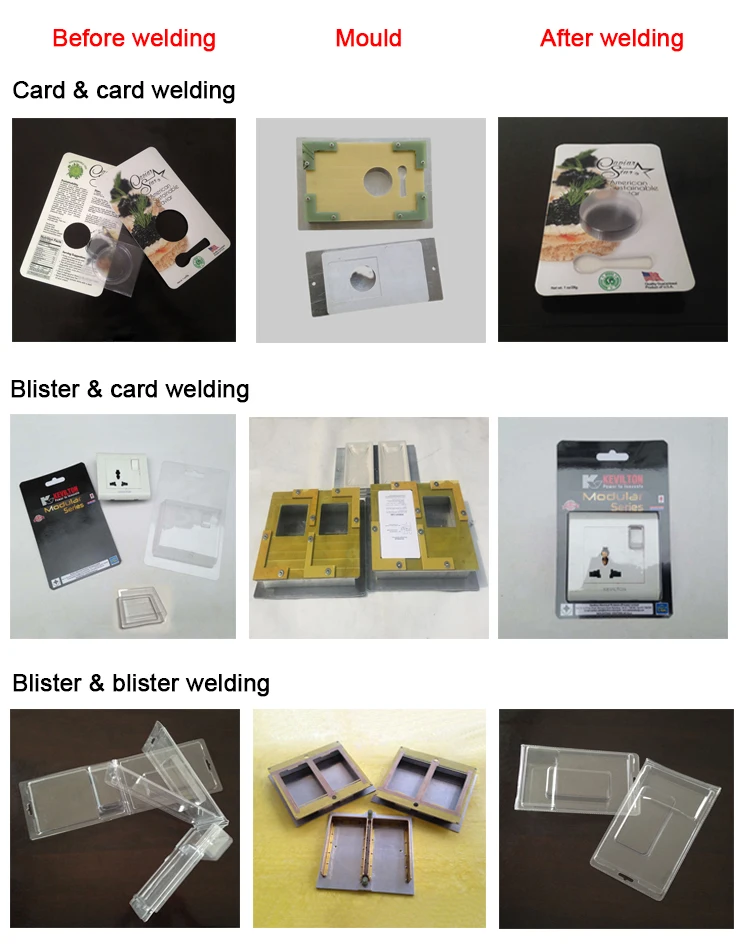

Moulds & Samples:
Machine features:
1. Auto turntable and mechanical arm, which can quickly increase production efficiency.
2. Automatic paper card loading function,save labor cost,stable speed.
3.Using vacuum tubes, the output power is stable and reliable.
4.Sensitive spark over-current protection circuit. Can effectively cut off due to damage to host large current output, suppress sparks.
5.Has a frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum.
6.Manually adjust the mould by the four corners horizontal adjustment, adjust die easily.
7.Can be automatically completed secondary welding process, improve work efficiency.
8. Stepless temperature heating system, make work more efficient.
9.Automatic over-current protection system, increase the service life of vacuum tubes, protect the mould.
2. Automatic paper card loading function,save labor cost,stable speed.
3.Using vacuum tubes, the output power is stable and reliable.
4.Sensitive spark over-current protection circuit. Can effectively cut off due to damage to host large current output, suppress sparks.
5.Has a frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum.
6.Manually adjust the mould by the four corners horizontal adjustment, adjust die easily.
7.Can be automatically completed secondary welding process, improve work efficiency.
8. Stepless temperature heating system, make work more efficient.
9.Automatic over-current protection system, increase the service life of vacuum tubes, protect the mould.
10.International standard industrial band of 27.12 MHz.
Machine parameters:
Model | LK-10000CA |
Power supply | AC380V 50/60Hz |
Output Power | 10KW |
Oscillation frequency | 27.12MHZ |
Working speed | 200-400 times/H |
Rectifier | Silicon Diode |
Oscilallation Tube | E3069 |
Gap of electrodes | 200mm |
Max Welding area | 300*500 mm |
Working table size | ɸ1200mm |

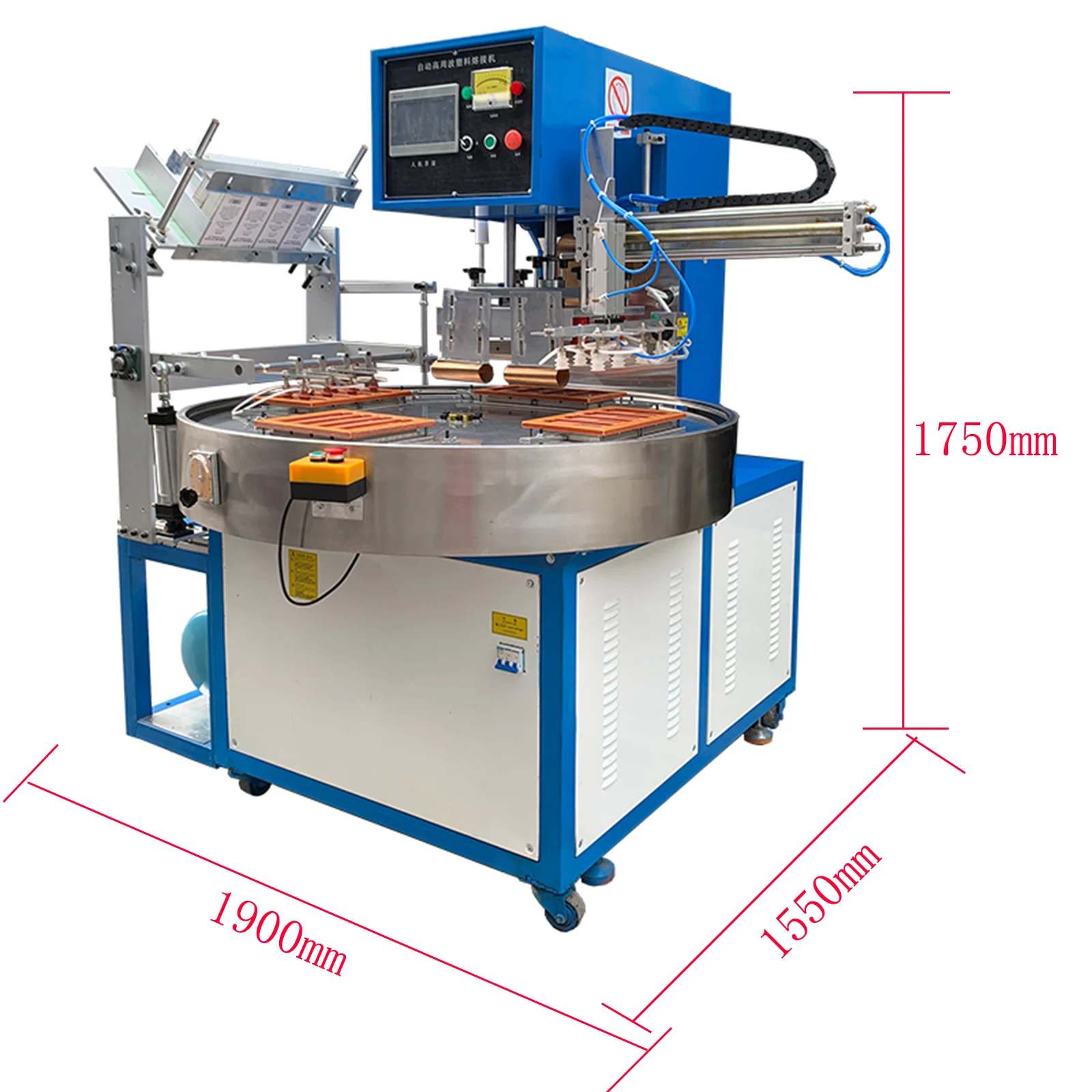

Machine size | 1900*1550*1750mm |
Weight (Net/Gross weight) | 750/850KG |
Machine Details

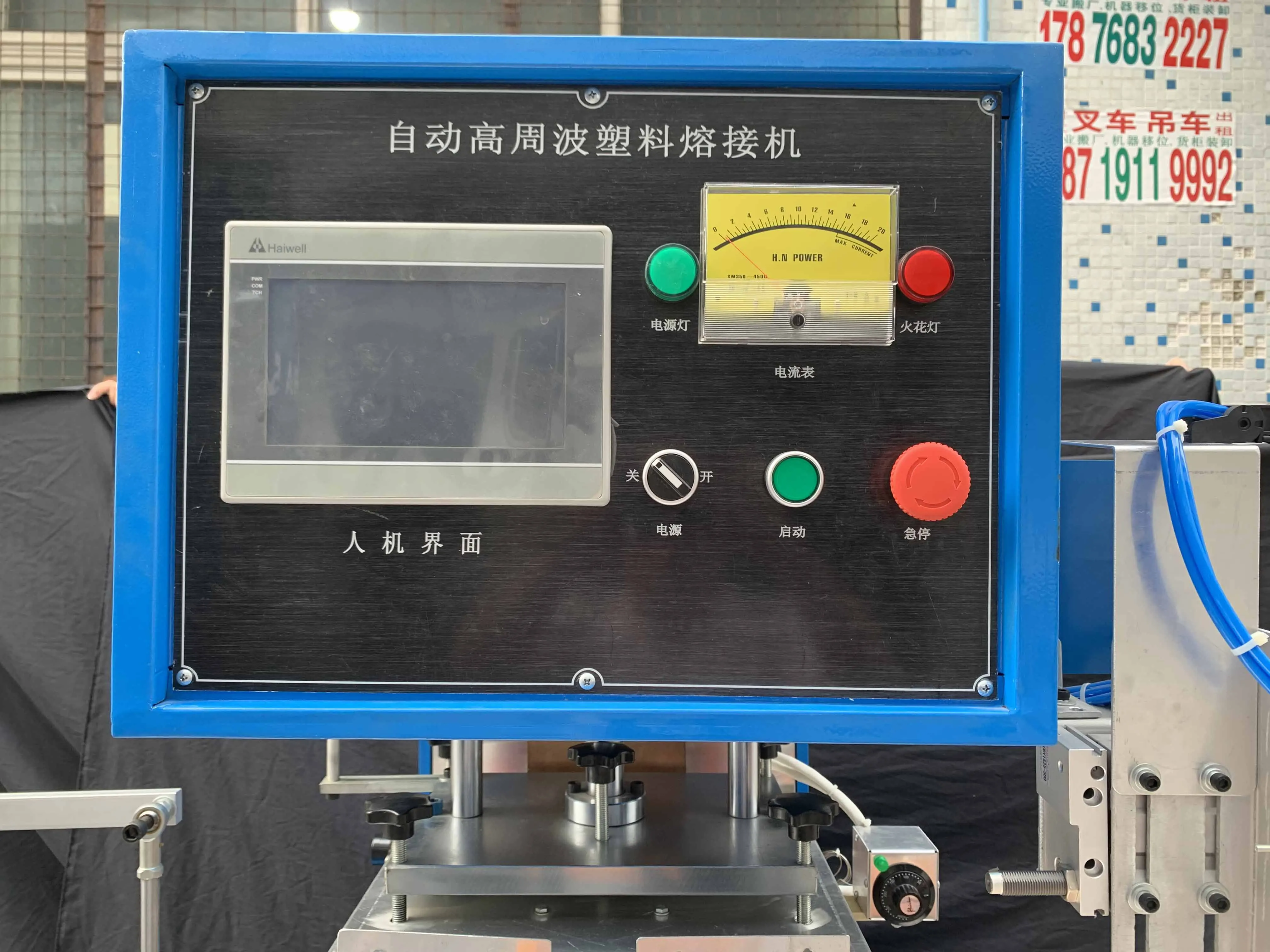

HMI Touch screen
Easy and convenient to operate. All the parameters can be set on the screen, it's visual.
Auto turntable
With 4 working stations.
Working table size: ɸ1200mm.
It is beneficial to improve production efficiency.
It is beneficial to improve production efficiency.
Automatic card feeding device
With automatic paper card loading function, save labor cost, stable speed.
Mechnical arm
The mechanical arm automatically takes out the finished product, which is labor-saving, convenient and efficient.
Divider
Good quality and high precise divider, stable and great performance.
Company & Workshop
Guangzhou Looker Packaging Machinery Co, Ltd established in 2014, Located in Baiyun district of Guangzhou city, about 15 Kilometers away from Guangzhou Baiyun International airport and 19 kilometers away from Canton Fair Exhibition Hall, with developed economy and convenient transportation. • Looker machinery mainly specializes in the production of Ultrasonic Plastic Tube Filling and Sealing Machine, Blister Forming Machine, Ultrasonic Plastic Welding Machine, Blister Sealing Machine, High Frequency Plastic Welding Machine etc. All of the machines are exported all over the world. • "Unity, dedication, innovation and development" is the main spirit of Looker machinery, "Integrity-based, quality first" is our business principles. Looker machinery is committed to offer customers a stable quality product in a reasonable price. Welcome to inquiry or visit us.
Our service
Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service.
1.A step-by-step free English manual and operation video to easily know how to operate the machine.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service.
1.A step-by-step free English manual and operation video to easily know how to operate the machine.
2.Our senior engineers are skillful and fluent in English.They have rich oversea experiences and are vailable to oversea services. Below with some pictures our engineers trained customers how to install and operate the machines.
Packing & Delivery
Our customers
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory and trading, all machine is made by ourself and we can provide customize service according to your
requirements.
Q: How long is your delivery time?
A: Generally it is about 1-3 days if there are machines in stock. or it is about 5-7 days if there are no goods in stock, also
depending on the quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if not broken for man made.
Q: What is your terms of payment?
A: 30% deposit T/T in advance ,balance before shippment.We recommend alibaba payment because it will much better for your money safe.
Q: Is there any assembly instruction after we received the machine?
A: Yes, we have assembly video and operation manual delivered with the machine.If any questions,our senior engineers who are fluent in English will give you instruction anytime.
A:Yes, We are factory and trading, all machine is made by ourself and we can provide customize service according to your
requirements.
Q: How long is your delivery time?
A: Generally it is about 1-3 days if there are machines in stock. or it is about 5-7 days if there are no goods in stock, also
depending on the quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if not broken for man made.
Q: What is your terms of payment?
A: 30% deposit T/T in advance ,balance before shippment.We recommend alibaba payment because it will much better for your money safe.
Q: Is there any assembly instruction after we received the machine?
A: Yes, we have assembly video and operation manual delivered with the machine.If any questions,our senior engineers who are fluent in English will give you instruction anytime.
