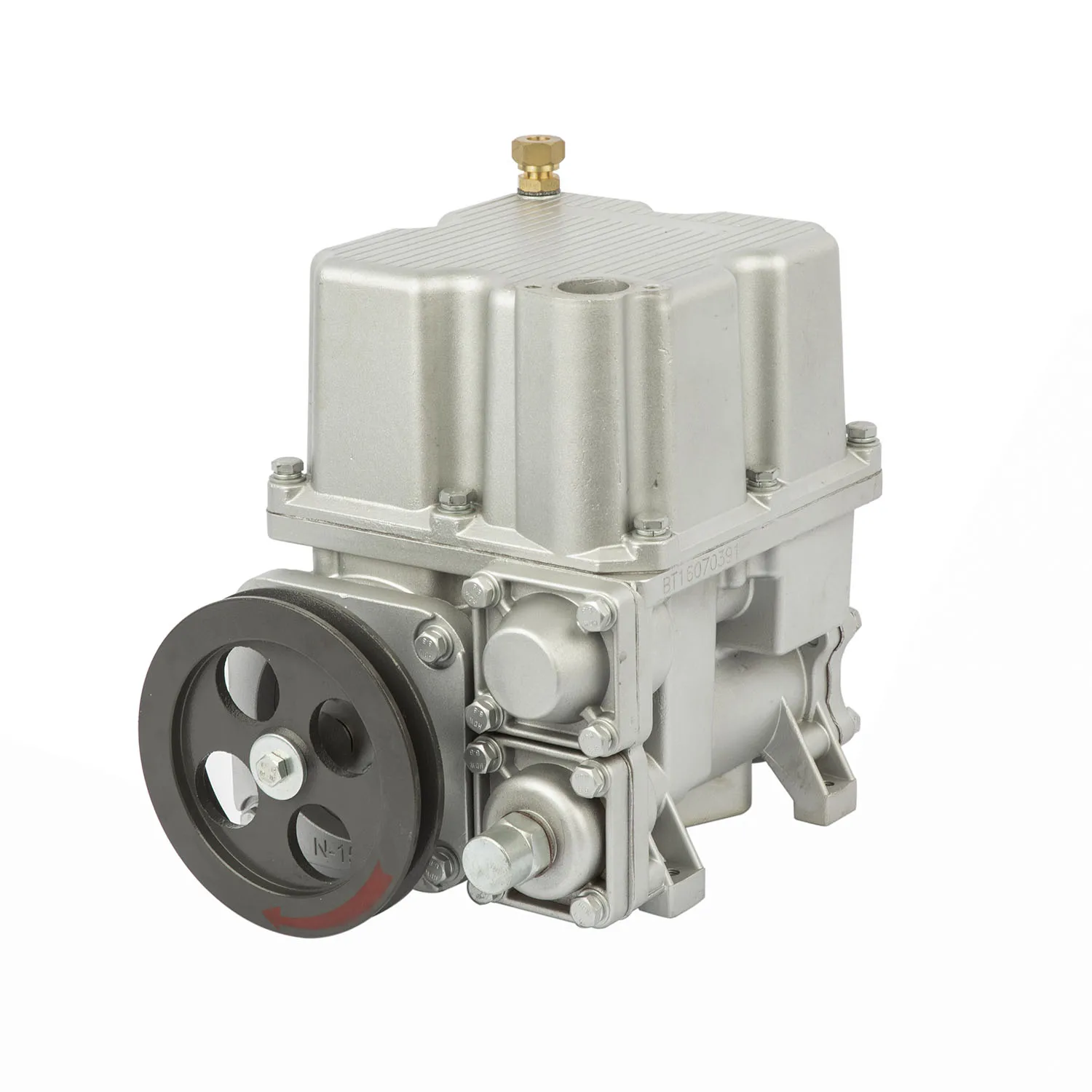

TDW BT-50C насос для топливораздаточной колонки насоса с зубчатой передачей высокое качество высокая скорость
100,00 $ - 110,00 $
8025 вентилятор кондиционера по индивидуальному заказу OEM ODM 80*80*25 мм втулка/двухшарикоподшипник вентилятора и двигателя
- Категория: >>>
- Поставщик: Shenzhen Ambeyond Technology Co. Ltd.
Сохранить в закладки 1600884571036:
Описание и отзывы
Характеристики

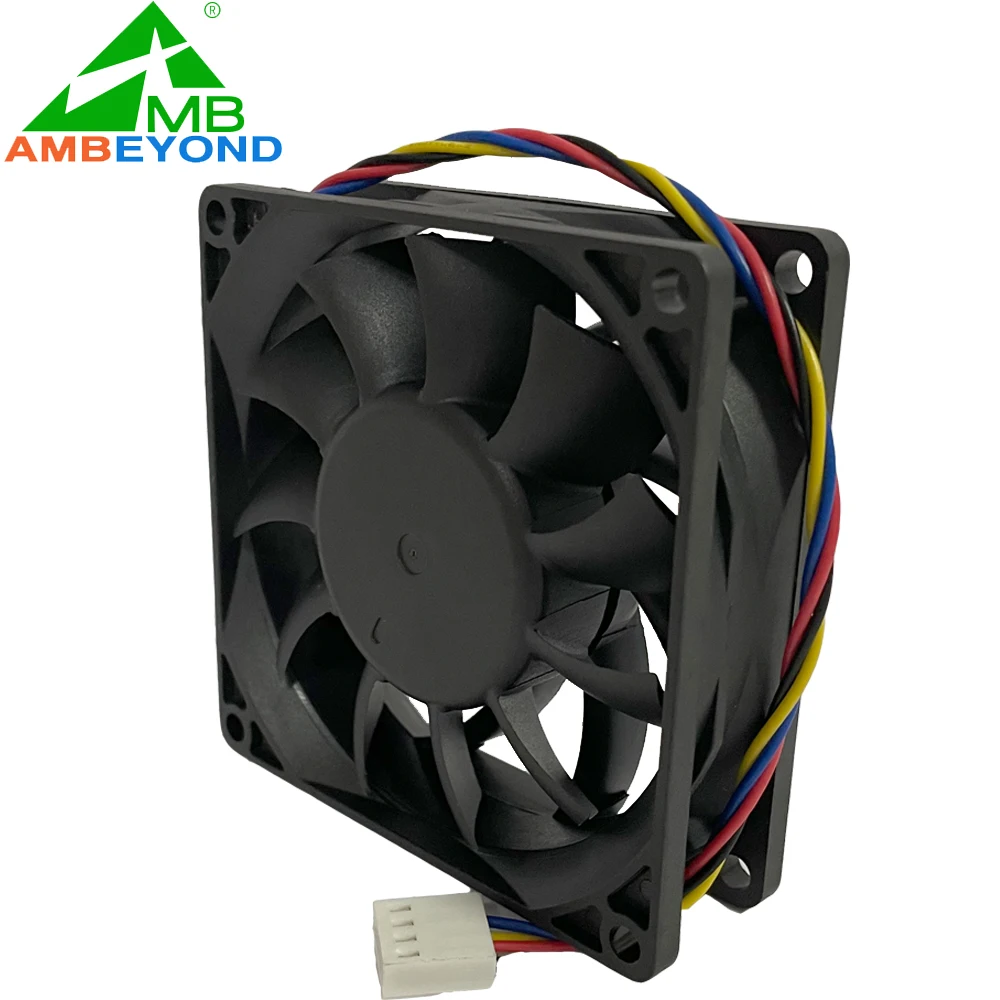

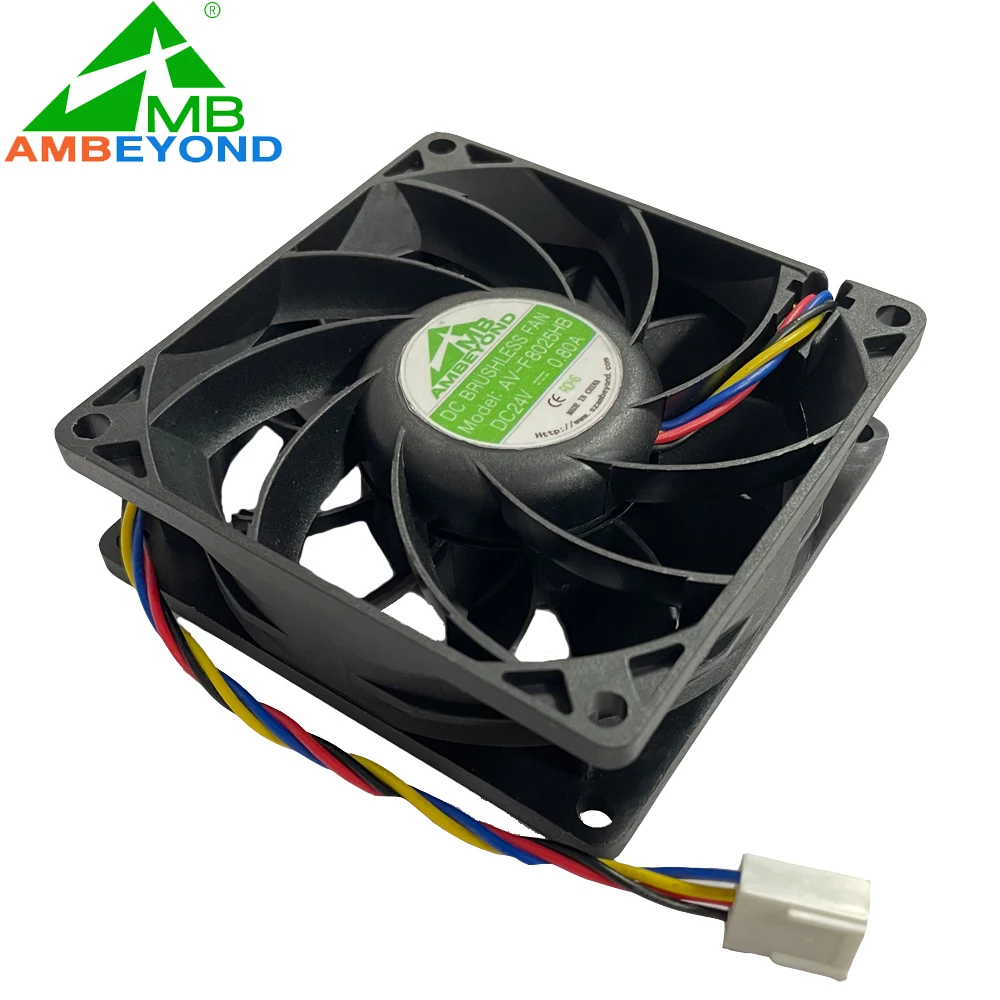

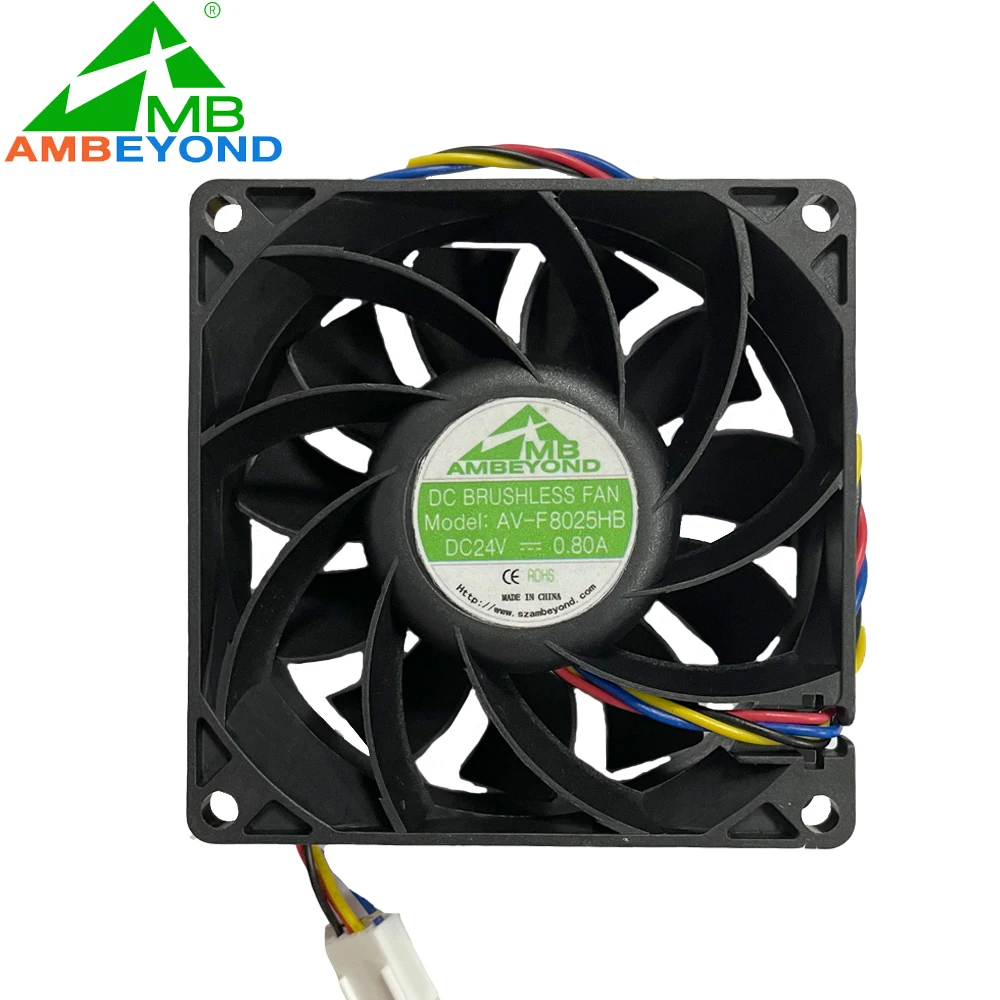

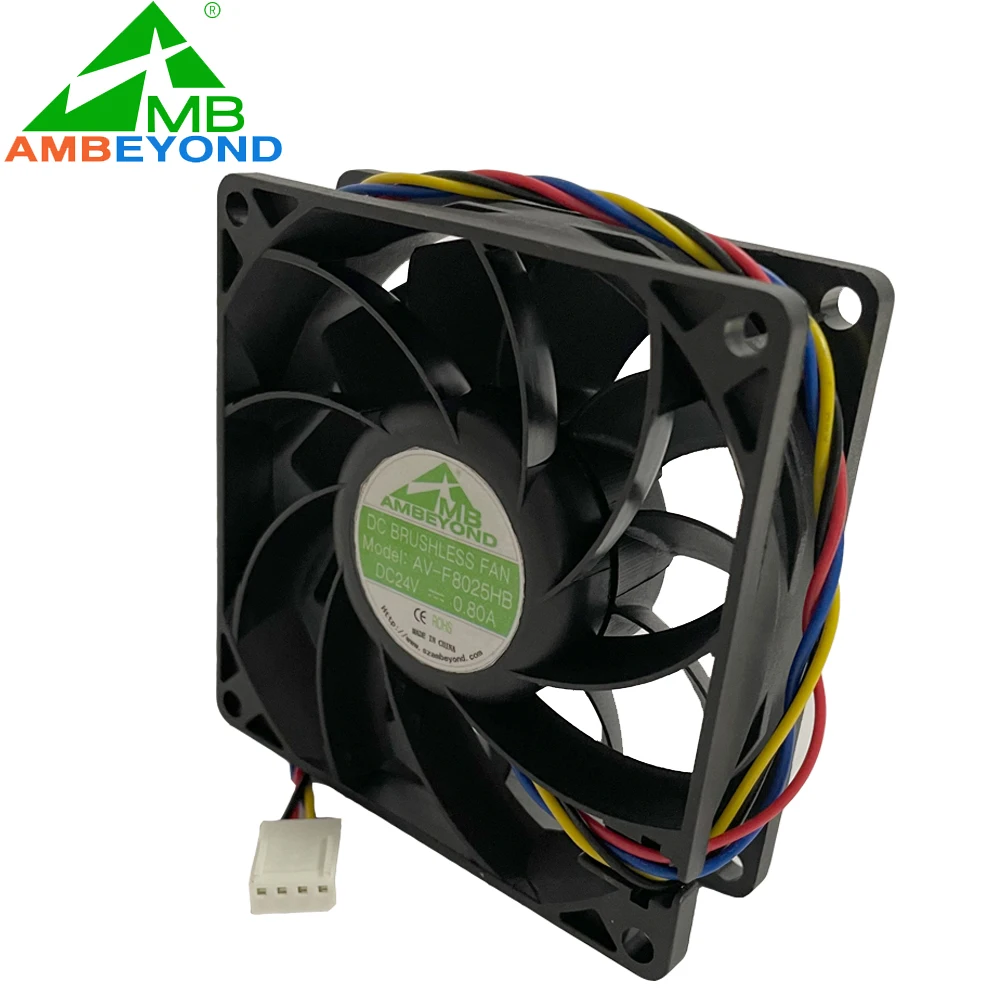

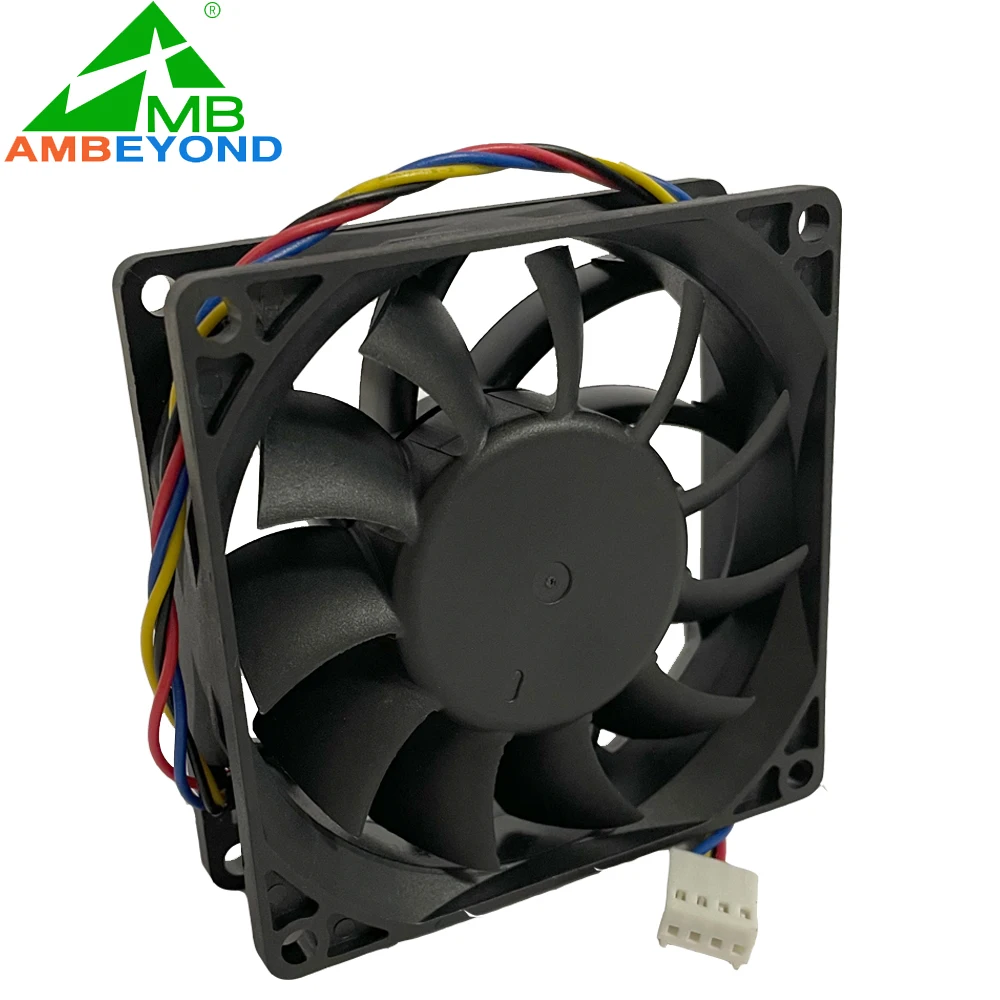

Supercharged Ip65 5v 80x80x25 Pc Computer 8025 12v Cooler Waterproof 24v 6000rpm Axial Flow High Speed 80mm Cooling Dc Fan 80x80
Product Description
Cooling Fan Spec
Normal Performance Specification
1. Category: dc fan 80x80
2. Frame Size: 80x80x25mm, 80mm, 8cm of dc fan 80x80
3. Frame Material: PBT Plastic, UL94V-0
4. Blade: 7 Blades, PBT Plastic, UL94V-0
5. Bearing Type: Dual-Ball Bearing/Sleeve Bearing/Hydraulic bearing
6. Lead Wire: 200±10mm, AWG#26 UL1007 (+)Red (-)Black
7. Motor: 4 Poles DC Brushless Motor
8. Motor Protection: Impedance Protected, Reverse Polarity Protected, Thermal Protected (Auto Restart)
9. Weight: 240G of dc fan 80x80
10. Insulation Standard: Class A of dc fan 80x80
11. Waterproof Level: IP55, IP65, IP68
12. Insulation Resistance: Above 100MΩ, DC500V 60Hz one minute (Between Lead Wire and Frame)
13. Operating Temperature: -10°C~70°C (35%~85%RH)
14. Storage Temperature: -40°C~70°C (35%~85%RH)
15. Life Expectancy: (Dual Ball Bearing) 50000hrs at 25 degree
Life Expectancy: (Sleeve Bearing) 30000hrs at 25 degree
16. Available Function: FG, RD, PWM, Waterproof, Thermal Control, Auto-Restart
18. Application: 1. Home appliance 2. Kitchen 3. Car industry 4. Telecom 5. Medical Equipment 6. UPS Power 7. LED Lighting 8. Computer Case 9. CPU 10. Safty Equipment 11. Office Electrics 12. SUP Power 13. Communication 14. Printing Equipment...
19. OEM Service: Acceptable of dc fan 80x80
20. Sample Service: Sample Can Be Free, but are Suggestsd Paying For Freight.
21. Quality Assurance: 24 Months
22. Item Condition: Brand Original New
| Model | Bearing Type | Rated Voltage /VDC | Current /A | Speed /RPM | Airflow /CFM | Noise /dBA | Weight /g |
| AV-F8025HS/HB | sleeve/two ball | 12V | 0.46 | 6600 | 75.41 | 50.25 | 75 |
| AV-F8025MS/MB | sleeve/two ball | 12V | 0.26 | 5200 | 59.42 | 40.26 | 75 |
| AV-F8025LS/LB | sleeve/two ball | 12V | 0.1 | 3700 | 42.50 | 31.00 | 75 |
| AV-F80258HS/HB24 | sleeve/two ball | 24V | 0.23 | 6600 | 75.41 | 50.25 | 75 |
| AV-F8025MS/MB24 | sleeve/two ball | 24V | 3.36 | 5200 | 59.42 | 40.26 | 75 |
| AV-F8025LS/LB24 | sleeve/two ball | 24V | 1.2 | 3700 | 42.50 | 31.00 | 75 |
| AV-F8025HS/HB48 | sleeve/two ball | 48V | 0.11 | 6600 | 75.41 | 50.25 | 75 |
| AV-F8025MS/MB48 | sleeve/two ball | 48V | 0.07 | 5200 | 59.42 | 40.26 | 75 |
| AV-F8025LS/LB48 | sleeve/two ball | 48V | 0.05 | 4500 | 51.50 | 36.80 | 75 |
High Performance Specification
If you want different performance products (other sizes, higher or lower speed, higher or lower airflow, waterproof, PWM function, customized shaped fans...) welcome to contact us for more details, thanks.
Product Display
Ventilateur Ip65 5v 80x80x25 Pc Computer 8025 12v Cooler Waterproof 24v 4000rpm Axial Flow High Speed 80mm Cooling Dc Fan 80x80
Internal structure:
The stable internal structure determines the fan speed, air volume and noise, fan balance
PBT frame:
Corrosion resistance and aging resistance, can be used for a long time at 120 ℃ high temperature, high insulation, high water absorption rate of only 0/1%, stable performance
High flame retardant fan blade:
Good heat resistance, excellent comprehensive performance, high balance, greater air volume, lower noise
Imported bearings:
The bearings are the core part of the motor, using imported high-density bearings, high efficiency, bottom heat generation, long life time, high noise and reliable quality
Thicker stator:
Stronger magnetic field and faster speed
Terminals:
Original imported terminals, diversified terminals for fan connection, and a variety of cables can also be provided
Application:
1.Mining Machine 2.Humidifer 3.Air Purifier 4.LED Light 5.UPS Power Supply 6.Inverter 7.Cabinet
8.Car Air Inverter 9.BBQ Machine 10.Oven 11.Toy 12.Electric Welder 13.Ultrasound Equipment
14.Pet Package 15.Medical Equipment ......
Company Information
Shenzhen Ambeyond Technology Co., Ltd was established in 1998.
We are professional in designing and developing kind of moulds for AC Cooling Fans, Brushless DC Cooling Fans, EC cooling fans, Plastic Injection Molding and Finished Electronic products assembly for an integrated enterprise.
The main product line of AMBEYOND has AC Fan(6-25cm), DC Fan(2-25cm), EC Fan(2-25cm) and all kinds of Radiator, Plastic Parts, Electronic Wire, Hardware Acessories, etc.
Customers are able to customize all kinds of non-stand Cooling Fan with specific functions, such as temperature cintrol, constant temperature, manual setting, automatic protection, etc.
The company's operation principle: quality oriented,customer first, strive for excellence,share success.
We can provide you with 1. one-stop service 2. trustworthy quality 3. competitive price 4. fast delivery
Our cooling fan advantages:
1.High Airflow:
At the same parameters(voltage, speed or current), using unique materials (fan frame, fan blades, circuit board, etc.), our fan air volume will be greater.
2.Low Noise:
The use of ultra-quiet materials and user-friendly design makes the running fan noise less.
3.long life time:
Three bearing structures including oil, hydraulic and double ball to meet the diverse needs of customers, and the use of bearing materials imported from Japan makes the fan use longer. 4.Diversification/Customization/Various Functions:
In response to different customer needs, we provide customized services intimately, equipped with dedicated R&D personnel, and have sufficient experience in shape design, internal structure analysis, material research, to meet customer needs for large air volume, mute, special products, etc.
Packaging & Shipping
Packing and shipment
Different product models correspond to different packaging sizes.
Our carton is a double-layer carton. There are different partitions or foams in the box according to the product model to avoid product damage during transportation.
According to the product model and quantity, we can provide express, air or sea transportation services.
Express delivery generally uses international express delivery such as DHL, Fedex, TNT, UPS, etc., about 3~4 days, we have stable freight forwarding companies that operate in air and sea transportation.
Freight charges need to be calculated according to product model and quantity, if necessary, please contact me at any time.
Why Choose Us
Brand strength: AMB brand, has cooperated with more than 500 foreign customers, a stable cooling fan supplier of Korean LG.
Honor: Won the title of Shenzhen Innovation Enterprise etc. Ingenuity quality: 16 years of cooling fan production experience, the pursuit of gradual rise in stability,
Technology R&D: Equipped with a dedicated R&D department to meet various customization needs of customers
Intimate service: the staff responds in a timely manner and can communicate anytime, anywhere
1. Good materials to ensure stable quality:
16 years of cooling fan production experience, stable materails of suppliers
2. Long life time, no cutting corners:
Samples can be provided to test, and production line video inspection and factory inspection can be carried out at any time
3. Make better products attentively:
The company's service tenet-quality first, customer first, excellence, sharing successes
4. International certification, reliable quality:
Complete CE ROHS and UL certificates
5. Strict inspection, complete inspection:
Materials incoming inspection, production inspection, regardless of the order quantity will first trial production samples, semi-finished product testing, finished product testing, quality department testing
6. Automatic production, improve efficiency and quality:
The company has a fully automatic production line, high production efficiency.
FAQ
1. Are you a factory?
Yes, we are the professional cooling fan factory.
We can provide cooling fans for you directly.
2. Can I customize cooling fan parameters?
Yes, we can customize cooling fans, size, voltage, current, speed, airflow, PWM, waterproof and etc.
You can tell us anything you want to achieve on the cooling fan.
3. Can we get free samples?
Yes, we can provide free samples at each model.
4. What I can do if I don't reach the MOQ 200pcs?
We can accept small order below 200pcs, just contact us, the price will have no big difference from 200pcs.
5. How about your delivery time? If I need the fans urgently, can you produce for me?
Normal delivery time: 12~15 days.
If you need it urgently, we can follow up this order, maybe 5 days is ok, depend on the materials, but we will try, just contact us with no hesitate.
Our Services
Factory wholesale 20~220mm AC/DC/EC cooling fan, blower fan
Send your Inquiry Details in
the below message box and Click
"Send" Now!
Похожие товары

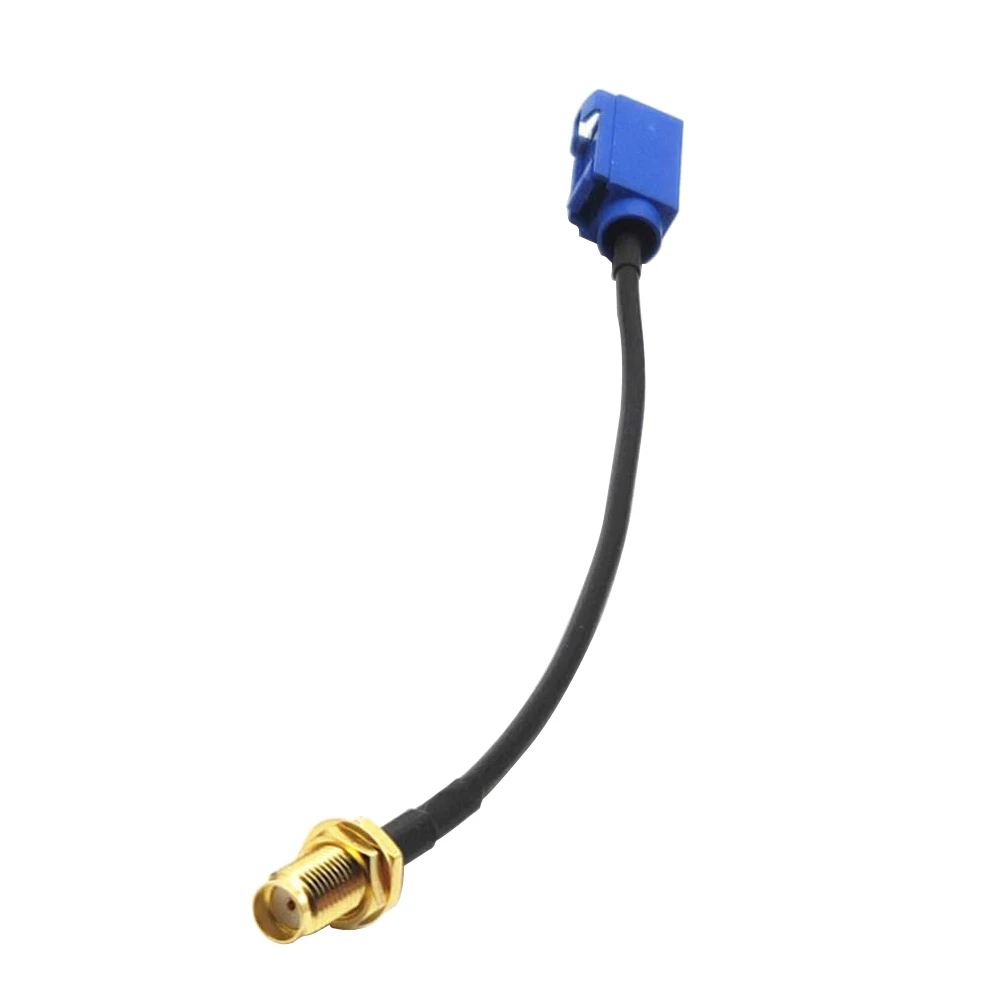

GPS-удлинитель Fakra C гнездовой разъем на гнездо SMA Прямой отрезок RG174 10 см
Dx7 Оригинальный головной демпфер 149582102 по хорошей цене
20,00 $ - 26,00 $
Женская Праздничная
15,00 $ - 18,00 $

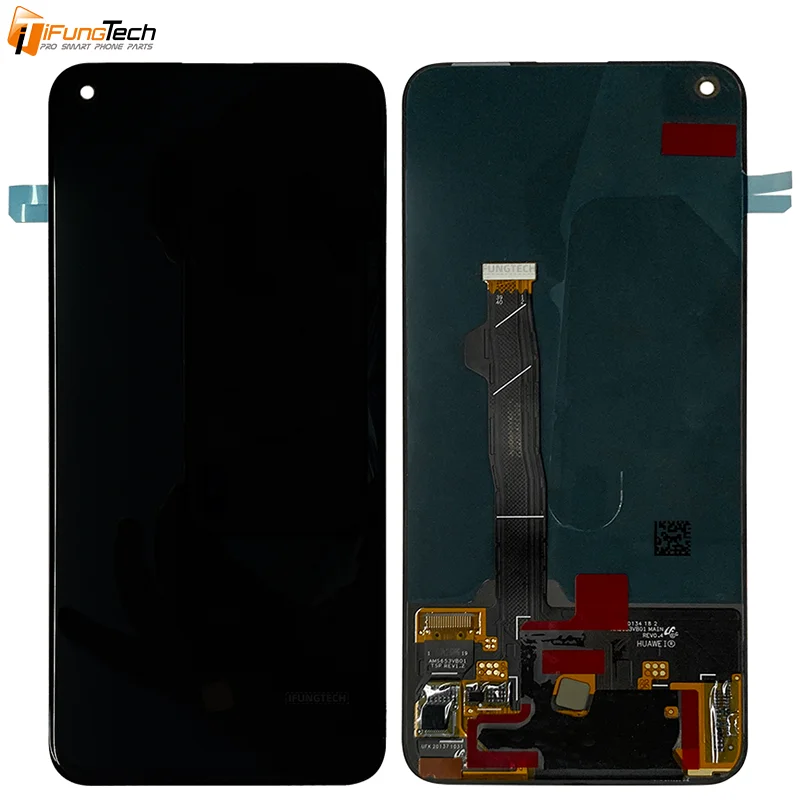

Оригинальный ЖК-дисплей для Huawei Nova 7 5G JEF-AN00 JEF-NX9 ЖК-дисплей, сенсорный экран, запасные части в сборе для Huawei Nova 7 Honor 30 с ЖК-дисплеем

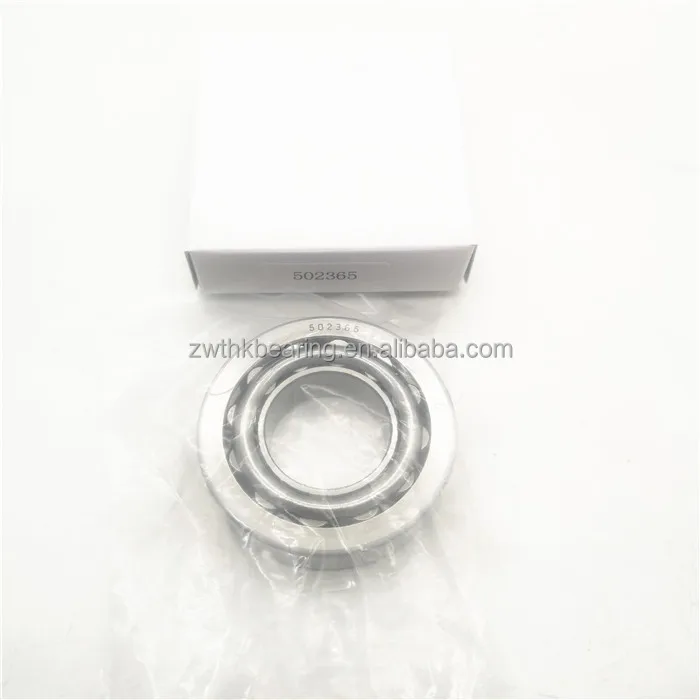

Заводская цена, конический роликовый подшипник 502365, размер подшипника 26,5x55x14,25 мм 502365

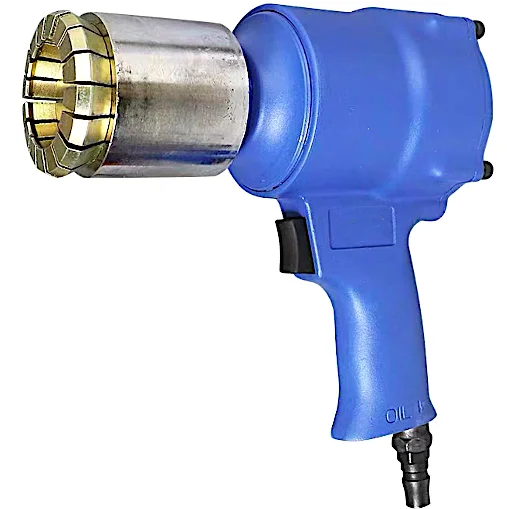

Инструмент для обжима пневматических колпачков TY89135, 35 мм, Пневматически обжимные колпачки 20 л, барабанные уплотнения на пластиковых (HDPE) барабанах разных размеров

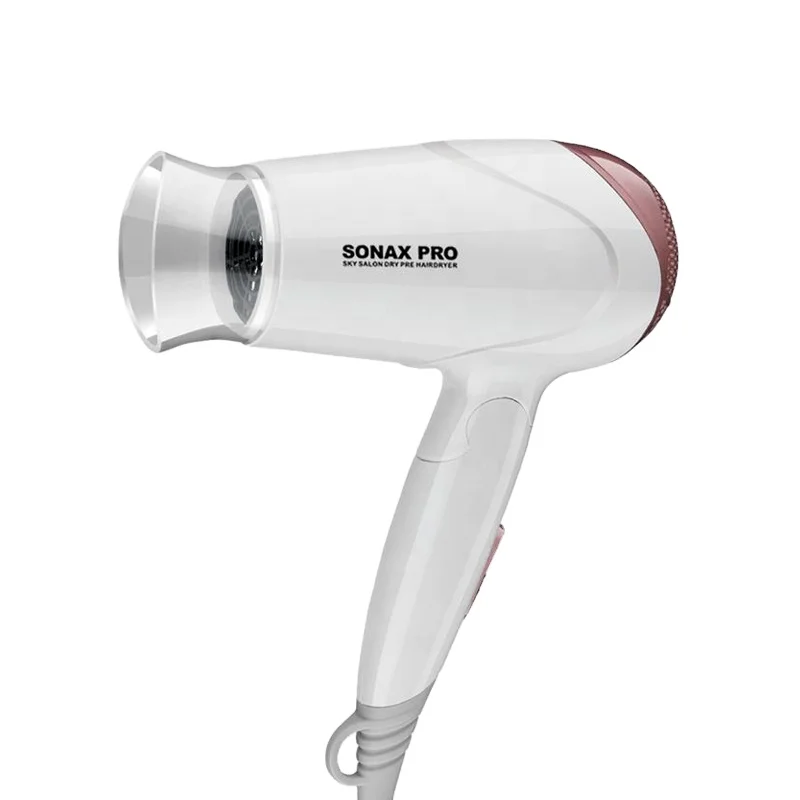

SONAX PRO 6619 фен, салонное оборудование для продажи, перезаряжаемый фен для волос
