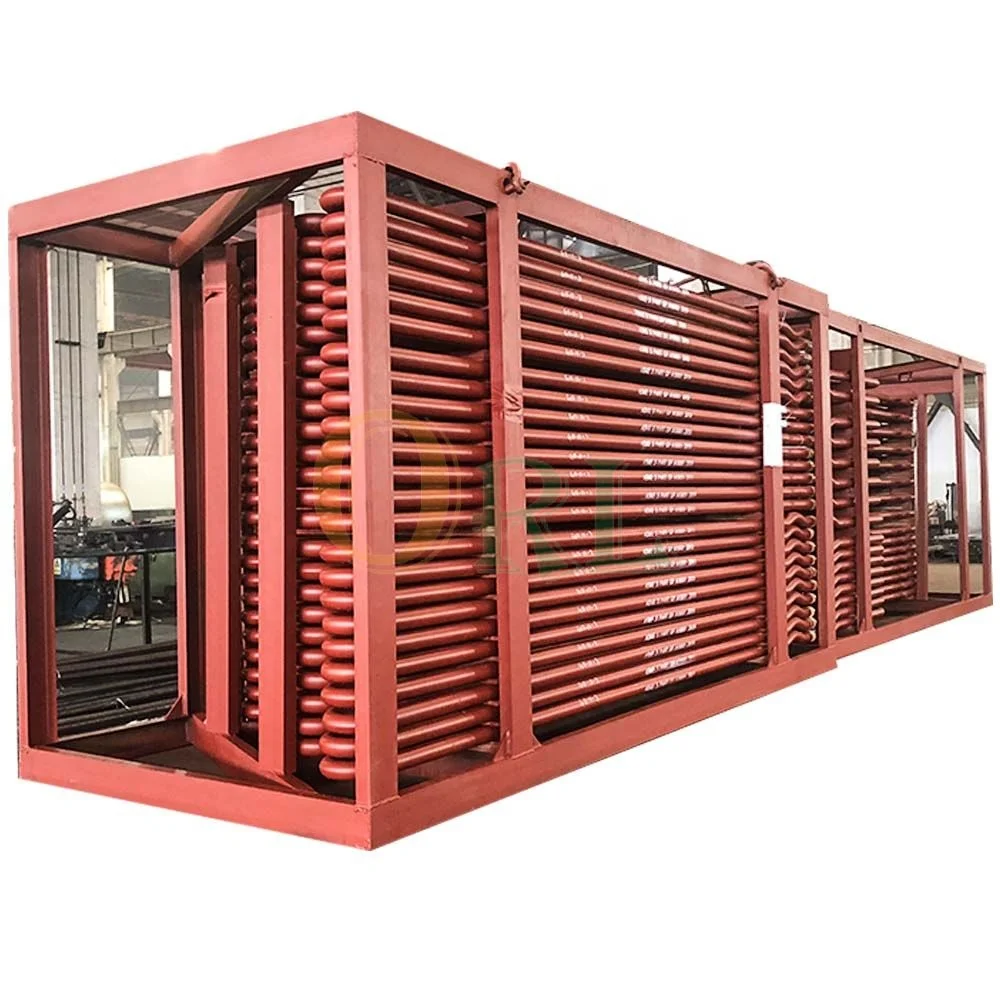

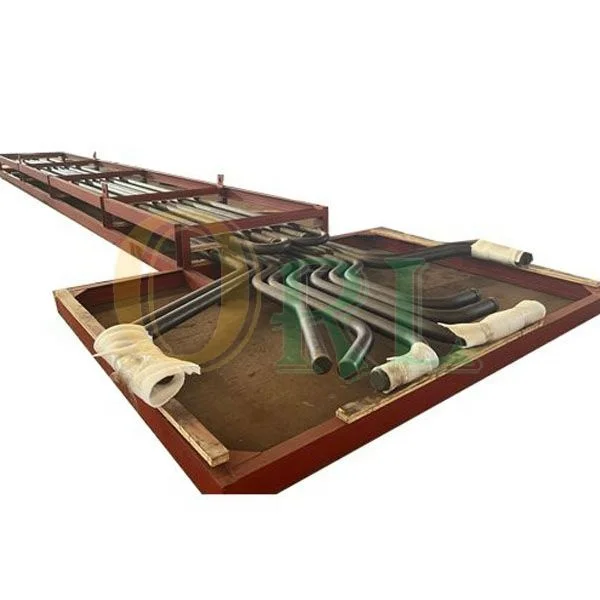

ORL высококачественный пароперегреватель котла
- Категория: >>>
- Поставщик: Suzhou ORL Power Engineering Co. Ltd.
Сохранить в закладки 1600884985582:
Описание и отзывы
Характеристики
Product Description

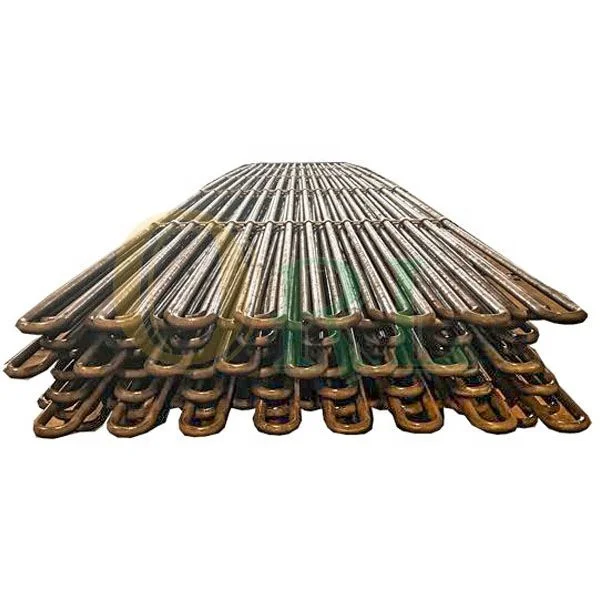

ORL high quality packaged boiler superheater for sale
The Steam Superheater is a coil type heat exchanger which is used to produce superheated steam or to convert the wet steam to dry steam, generated by a boiler. It is different from a boiler in a way that, boiler utilizes both sensible heat as well as latent heat to convert water into steam while superheater utilizes only sensible heat to superheat the steam in order to increase its enthalpy.

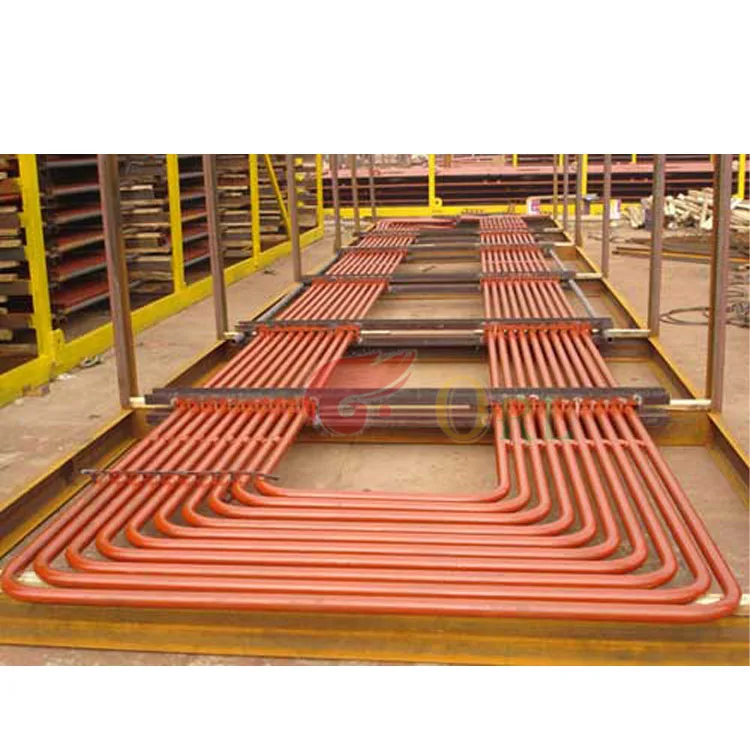

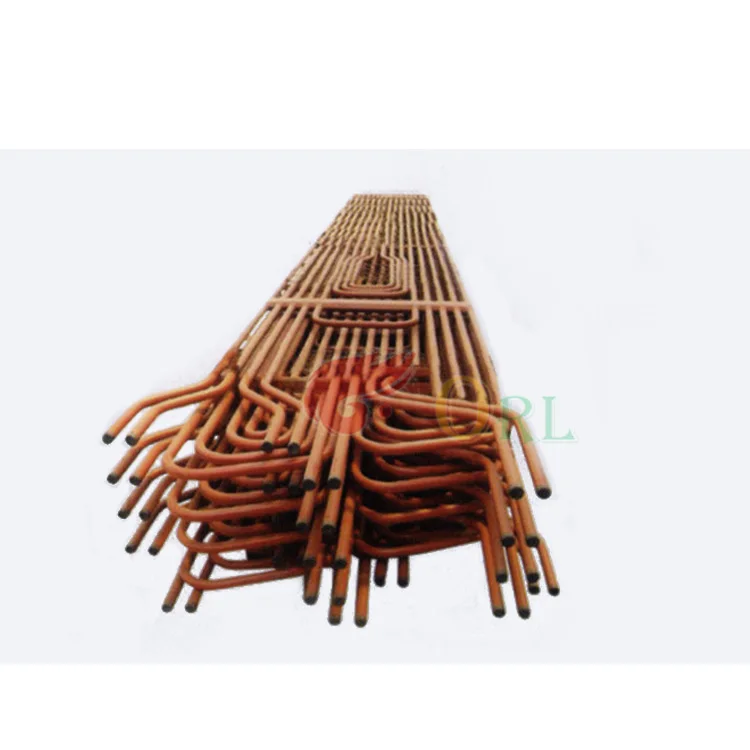

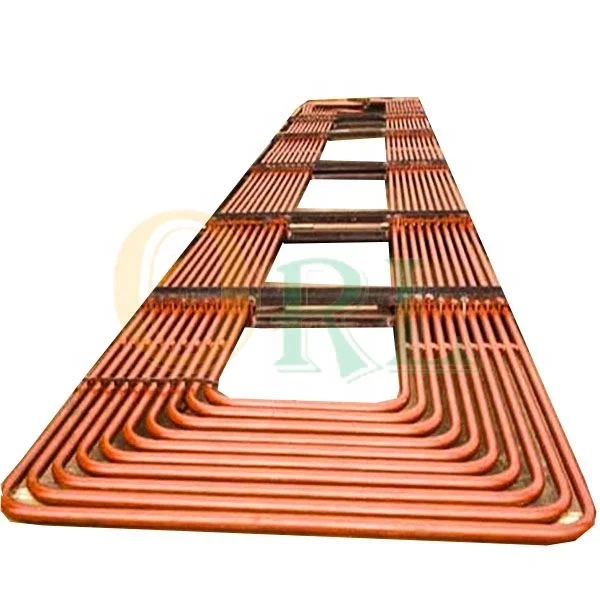

Platen superheater
The platen superheater is composed of steel pipe with outer diameter of 32 ~ 42mm and header, which is generally suspended at the upper part of furnace or furnace outlet. The number of tubes in each screen is generally 15 ~ 30, which is determined according to the required steam flow rate.

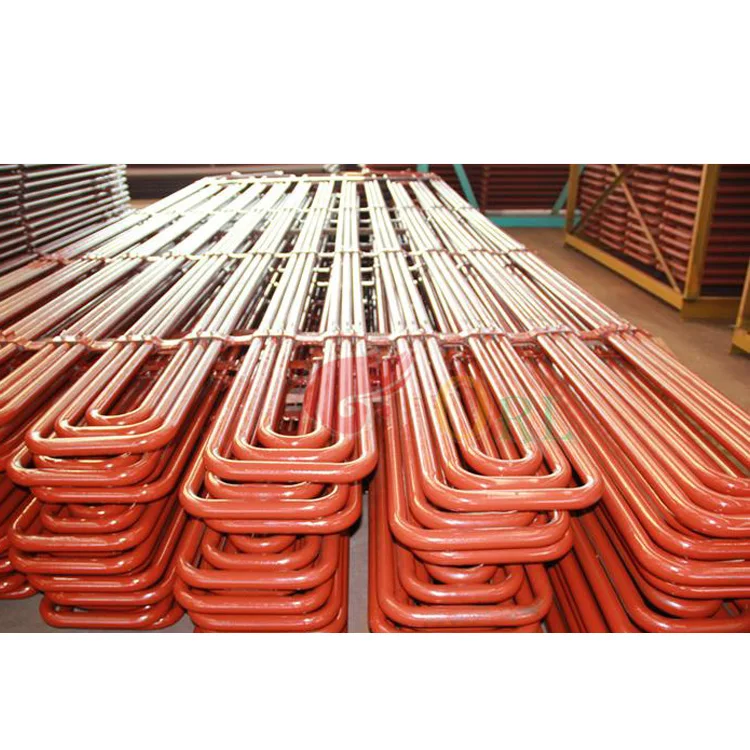

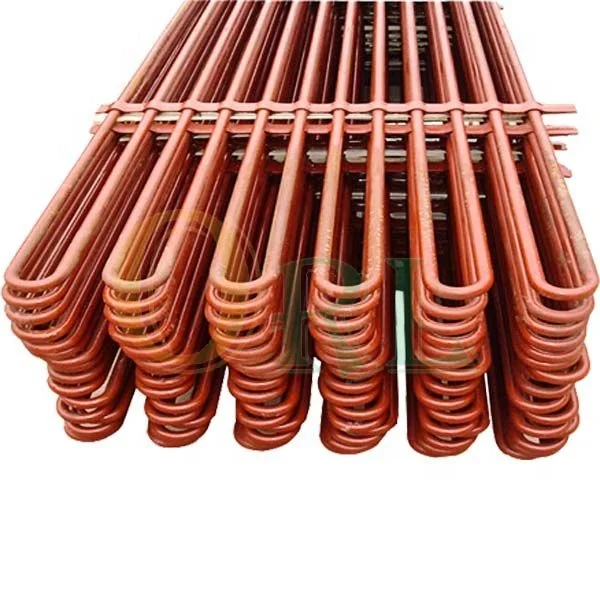

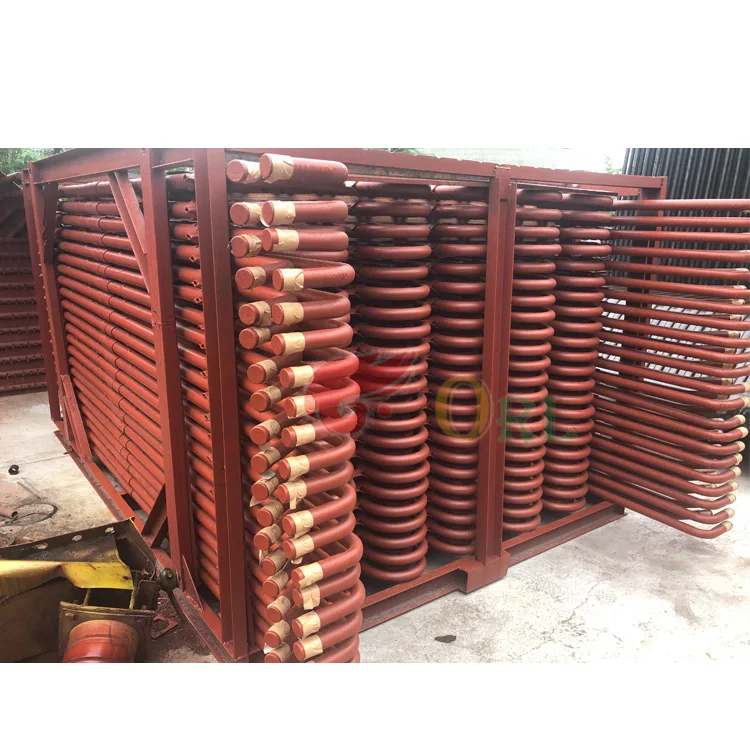

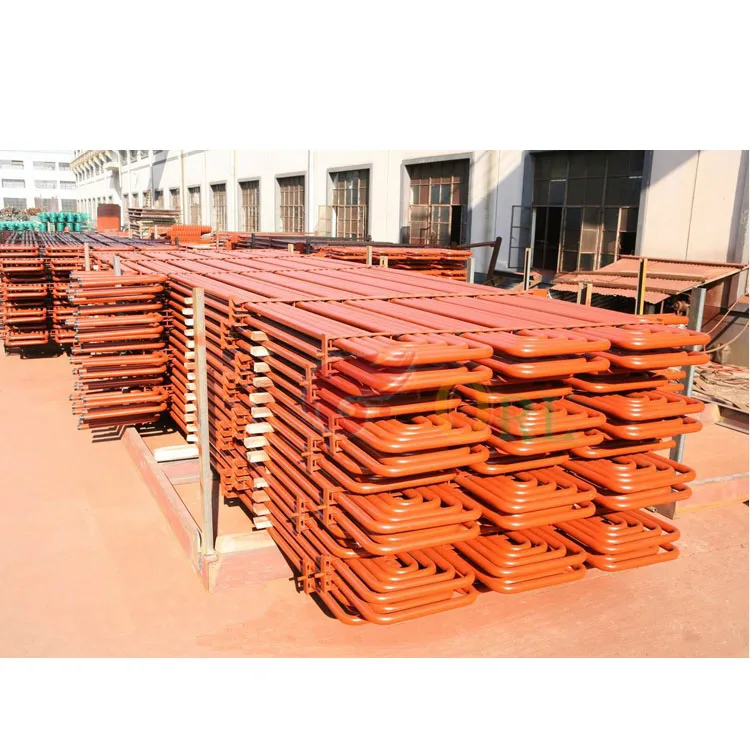

Serpentine Superheater
The outside diameter of the pipe is generally 30-60mm. The convection superheater is the most commonly used, and the serpentine tube type is adopted. It has a relatively dense tube group, which is arranged in the flue of 450-1000 ℃ flue gas temperature, and is subject to the transverse and longitudinal erosion of flue gas. The flue gas mainly transfers heat to the pipe by convection, and some of it absorbs heat by radiation.
Product Paramenters
Description | Boiler superheater |
Material | Alloy steel, Carbon steel etc. |
Material Standard | ASTM, EN or ISO etc. |
Structure Type | Tube Coil |
Dimension | Customized |
Supply Ability | 500 ton per month |
Manufacturing Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Bending tube→Assembly→Inspection →RT→Heat treatment (annealing)→Hydraulic pressure test→Painting→ Packaging |
Thermal Efficiency | Around 95% |
Related Products
Why Choose Us

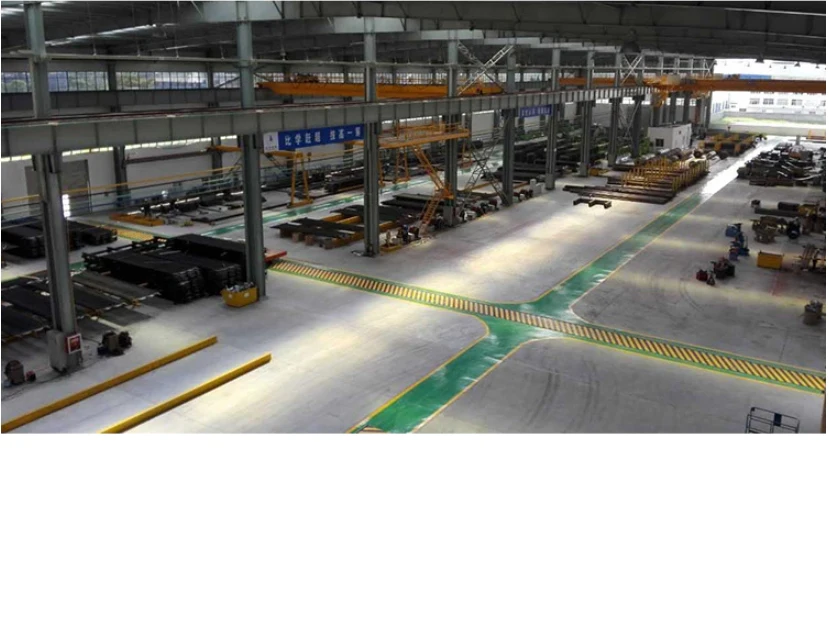

SUZHOU ORL POWER ENGINEERING CO.,LTD

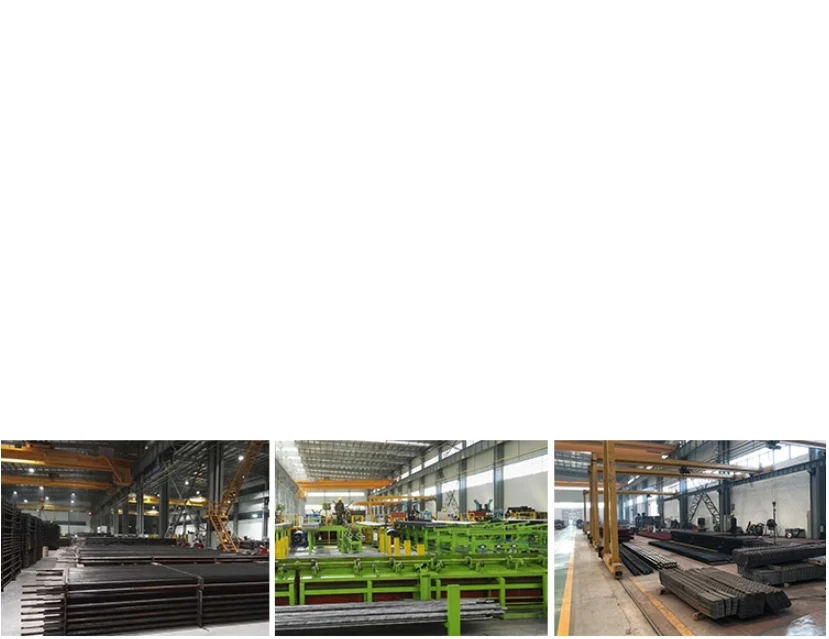

ORL is a leading compamy of manufacturing industrial boilers, power plant boilers and boiler parts(including steam drum,waterwall panel,heater,economizer,evaporator,superheater,H-finned economizer,spirial fin tube,air preheater,fleu etc.)We supply clients with seamless steel tubes/pipes(ASME,EN or BS).
Service
ORL provides our customer with full range of services including boiler design,fabrication,installation and commissioning, boiler maintenance,and supervision at site.Our pruduct and service include design and manufacture industrial boilers,pressure vessels and tanks,and pressure parts for power plant boilers(600MW,or 1000 MW).
Certificates
Verification Certificates of equipments:ISO 9001:2015;ISO4001:2015;ISO45001:2018;CE certificate;CNAS;IAF, etc.

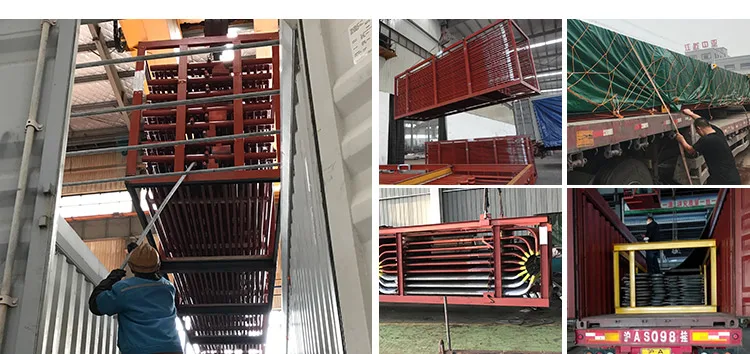

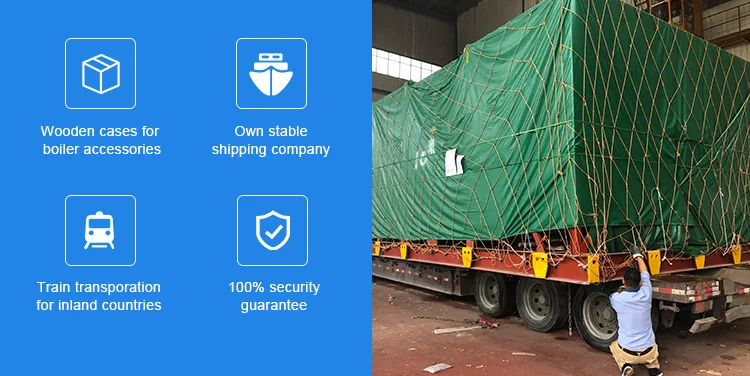

Logistics
For 90% of shipment,we will go by sea,to all main continents such as Middle East,Africa,Oceania and Europe etc.Either by container or RORO/Bulk shipment.
For neighborhood countries of China ,such as Mongolia,Kazzkhstan,Uzbekistan etc.we can ship by road or railway.
Customers
We are a professional manufacturer of industrial boilers inChina.With the scientific progressive conception of rapid
introduction,we make our machinery cover all over the overseas market.We have been producing our goods with mature techniques and first-class quality.
introduction,we make our machinery cover all over the overseas market.We have been producing our goods with mature techniques and first-class quality.
FAQ
Q1:How long is the warranty period?
We provide 18 months warranty for all spare parts(exclude fragile parts).
Q2:How do you control the quality?
1) All ORL machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labour, followed by particular QC
3) All information of our products can be checked in efficient management system.
Q3:What certifications do you have?
All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts.
Q4:What kind of service do you provide?
Before sales:
Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.
After sales:
1. Technical training on according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts;
4. Regular call back or visit customers;
5. On time response to mail and phone calls of your complaints or consultation.
Q5:Are you a factory or trading company, where are you located？
We are a factory, just 130km(2 hours by car) away from Shanghai Airport.We offer pickup service at Shanghai for your visit.
Q2:How do you control the quality?
1) All ORL machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labour, followed by particular QC
3) All information of our products can be checked in efficient management system.
Q3:What certifications do you have?
All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts.
Q4:What kind of service do you provide?
Before sales:
Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.
After sales:
1. Technical training on according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts;
4. Regular call back or visit customers;
5. On time response to mail and phone calls of your complaints or consultation.
Q5:Are you a factory or trading company, where are you located？
We are a factory, just 130km(2 hours by car) away from Shanghai Airport.We offer pickup service at Shanghai for your visit.
