Небольшой гидроэлектрический маховик генератор свободной энергии 3 фазный 100 кг

Introduction Hydraulic Pelton Turbine

Impact hydraulic turbine is a kind of hydraulic prime mover whose working jet center line is tangent to runner pitch circle, and runner blades are composed of a series of double bowl-shaped buckets. According to the arrangement of the main shaft, it is divided into two kinds of horizontal shaft and vertical shaft, no matter which kind of runner is always located in the atmosphere. This type of turbine is suitable for high-head and small-flow hydropower stations.

Pelton Turbine Components

1. Nozzle and Flow Regulating Arrangement (Spear)
Nozzle is used to increase the kinetic energy of the water that is going to strike the buckets or vanes attached to the runner.
The quantity of water that strikes the buckets is controlled by spear. The spear is installed inside the nozzle and regulates the flow of water that is going to strike on the vanes of the runner. A nozzle containing spear is shown in the figure given below.
The spear is a conical needle present in the nozzle. It is operated by a hand wheel or automatically in an axial direction.
When the spear is move backward the rate of flow of water increases and when it is pushed forward the rate of flow of water decreases.

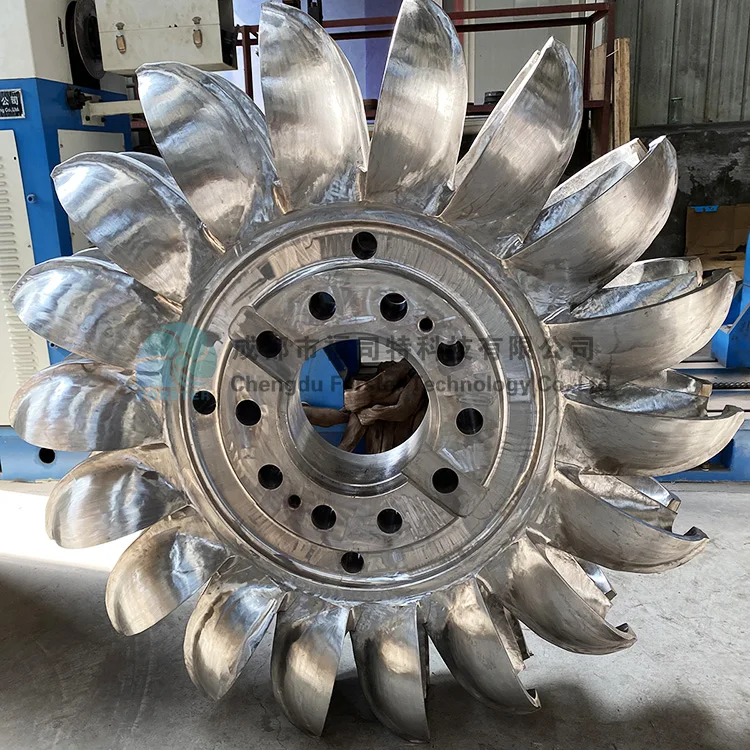

2. Runner and Buckets
Runner is a rotating part of the turbine. It is a circular disc on the periphery of which a number of buckets evenly spaced are fixed.
The buckets are made by two hemispherical bowl joined together. Each buckets have a wall in between two hemispherical bowl called splitter.
The splitter splits the jet of water striking the buckets into two equal parts and the jet of water comes out at the outer edge of the bucket.
The buckets are designed in such a way that the jet of water strike the buckets, deflected through 160 degree to 170 degree.
The buckets of the Pelton turbine are made up of cast iron, cast steel bronze or stainless steel.
3. Casing
It prevents the splashing of the water and helps to discharge the water to the trail race. It also acts as a safeguard in the case of any accident occurs.
Cast iron or fabricated steel plates are used to make the casing of the 1000kw pelton hydro turbine generator.

4. Breaking jet
When the jet of water is completely closed by pushing the spear in forward direction than the amount of water striking the runner becomes zero. But still the runner keeps moving due to the inertia of the runner.
In order to stop the runner in the shortest possible time a small nozzle is provided which directs the jet of water at the back of the vanes. This jet of water used to stop the runner of the turbine is called breaking jet.

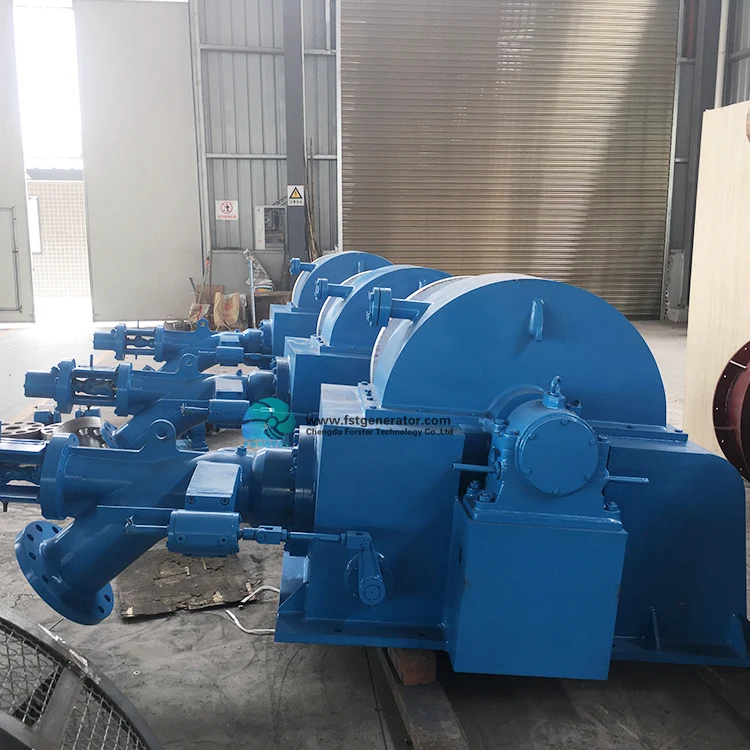

1.The Hydro Turbine

2.The Power Generator

3.The Runner

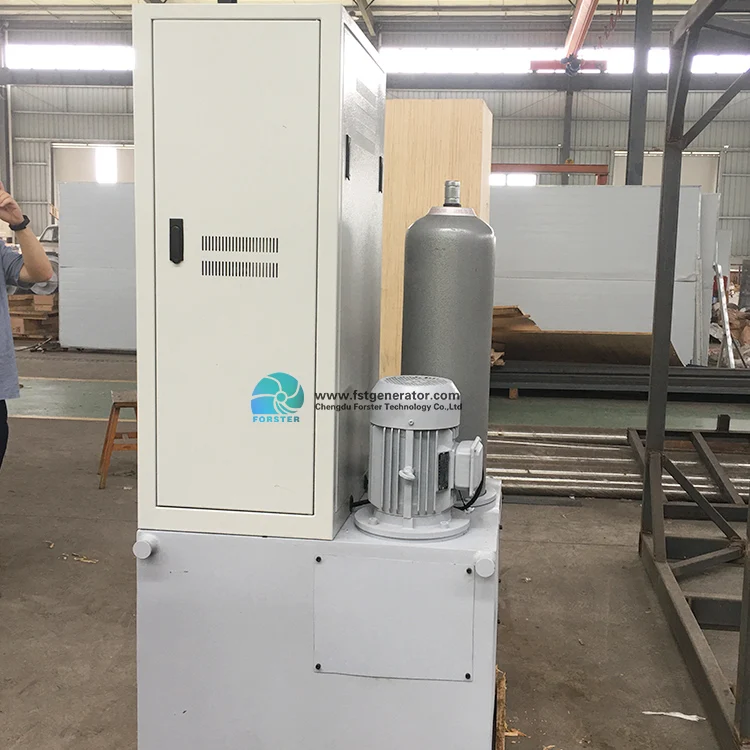

4.High Hydraulic Microcomputer Governor

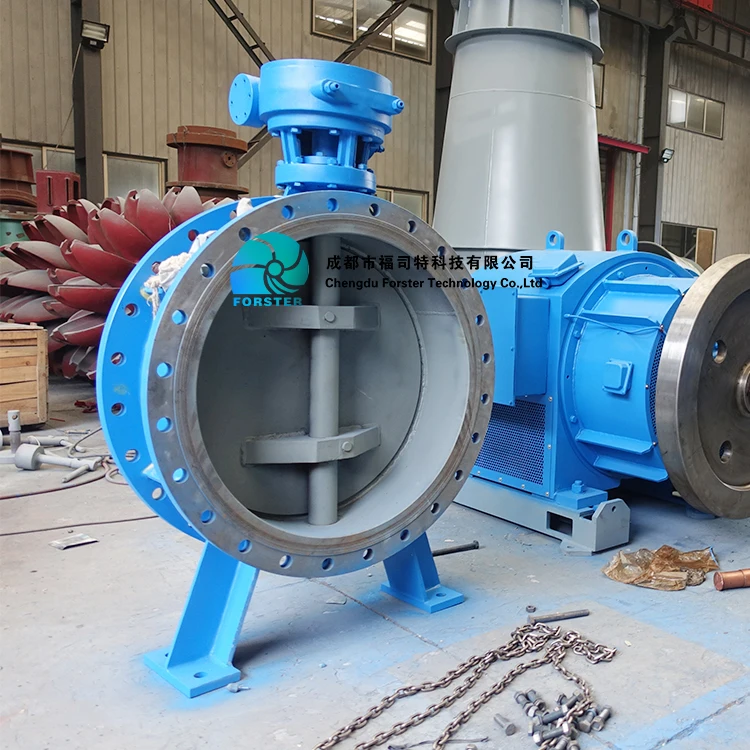

5.Valve

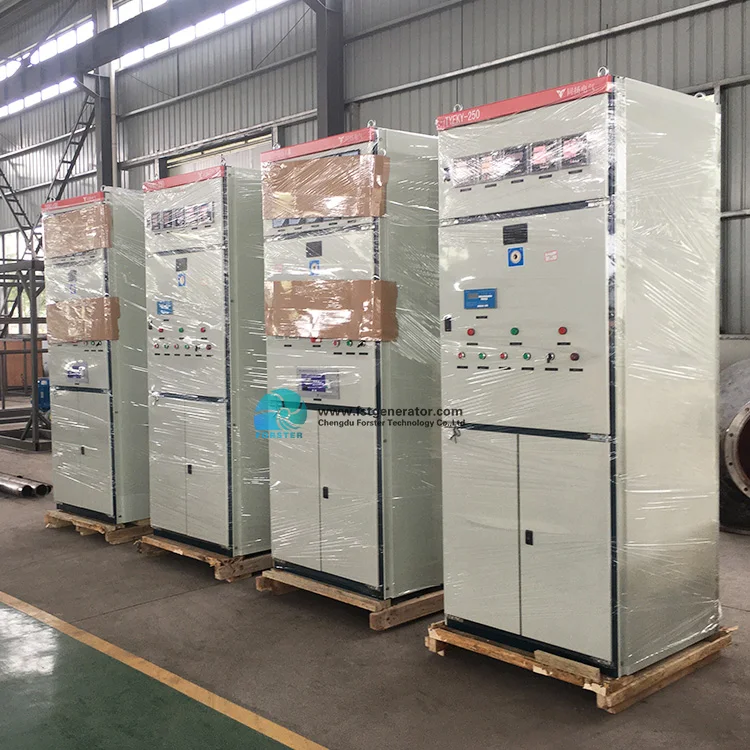

6. 5 In 1 Integrated Control Panel

7.Transformer

Q1, Which turbine should I choose?

 Please tell me the water head, flow rate, frequency, Total power you need

voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

 For this product, our acceptable MOQ is 1 set.

Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.
