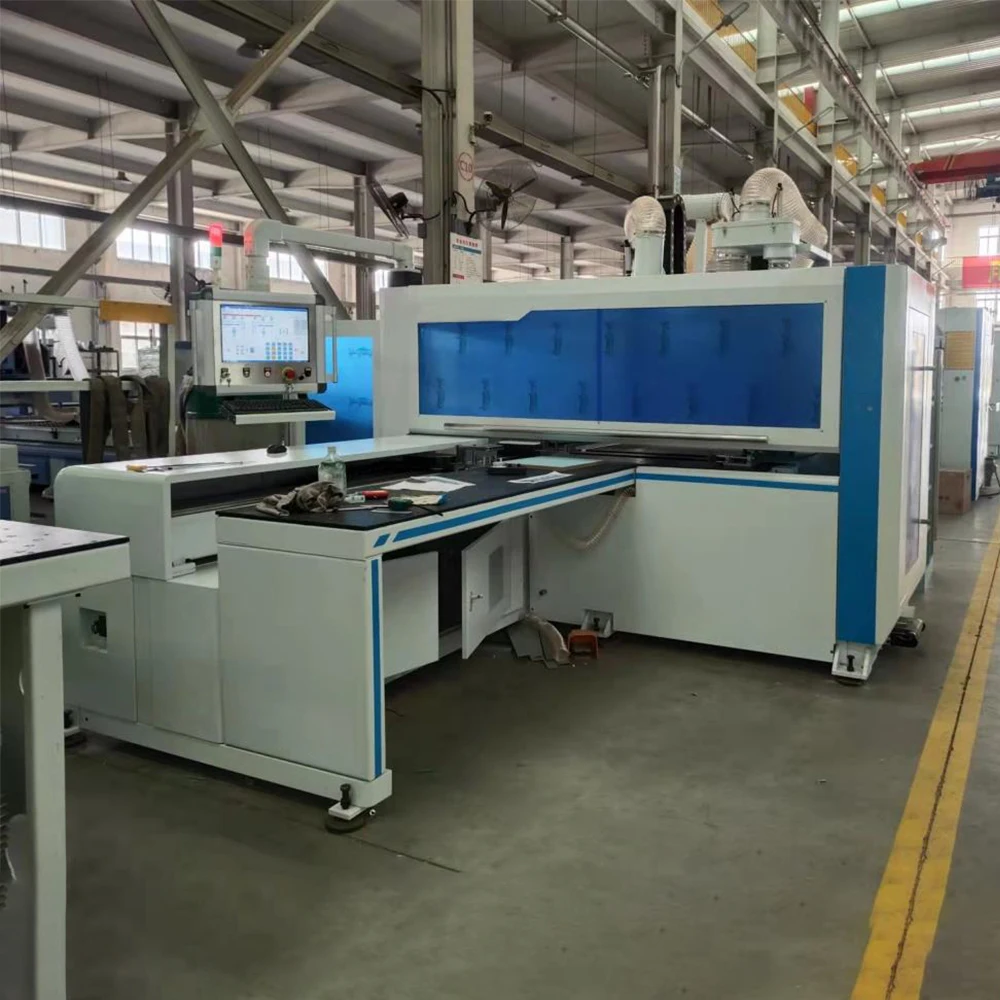

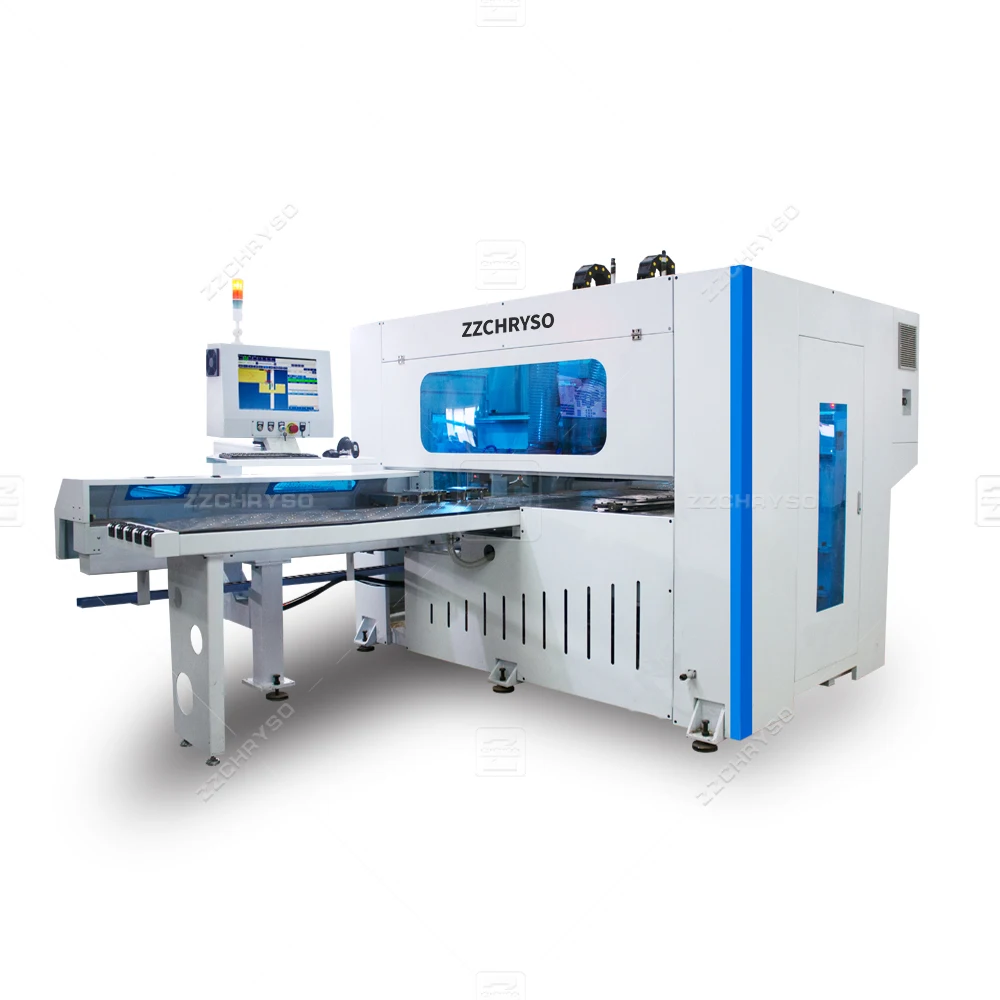

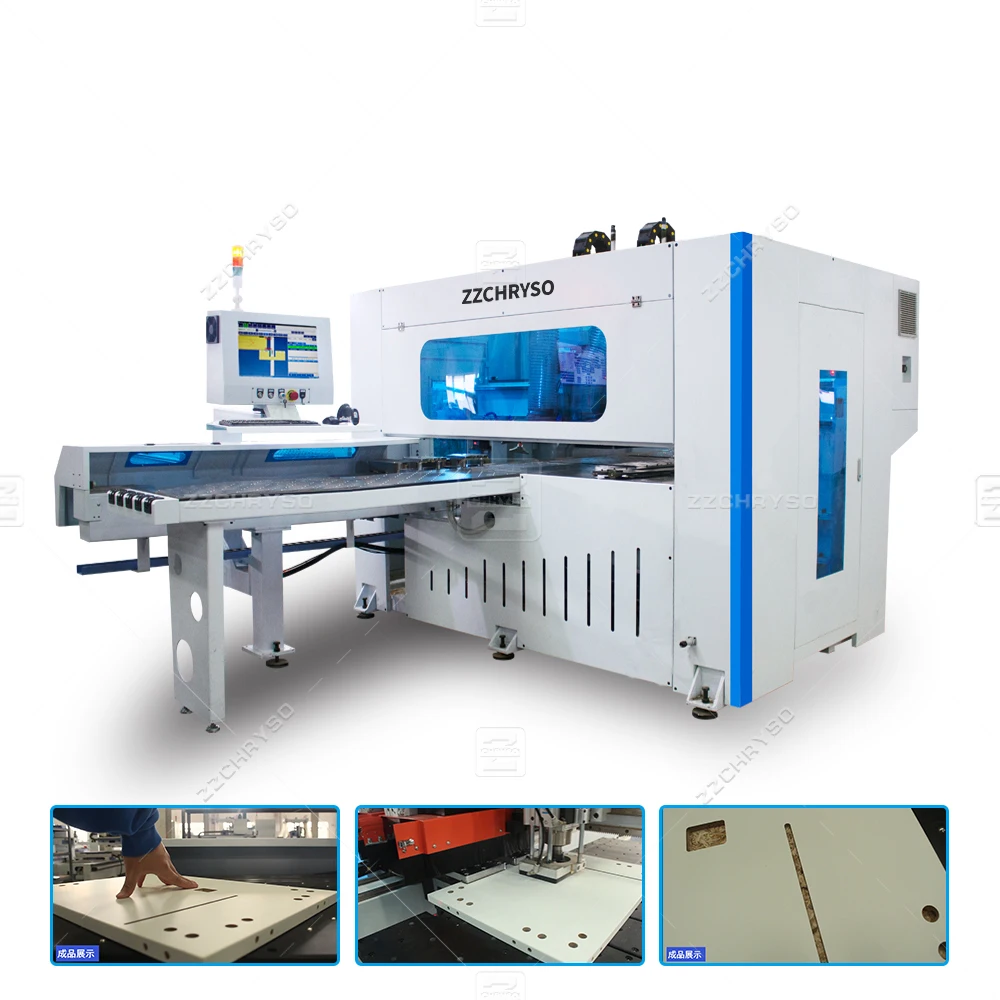

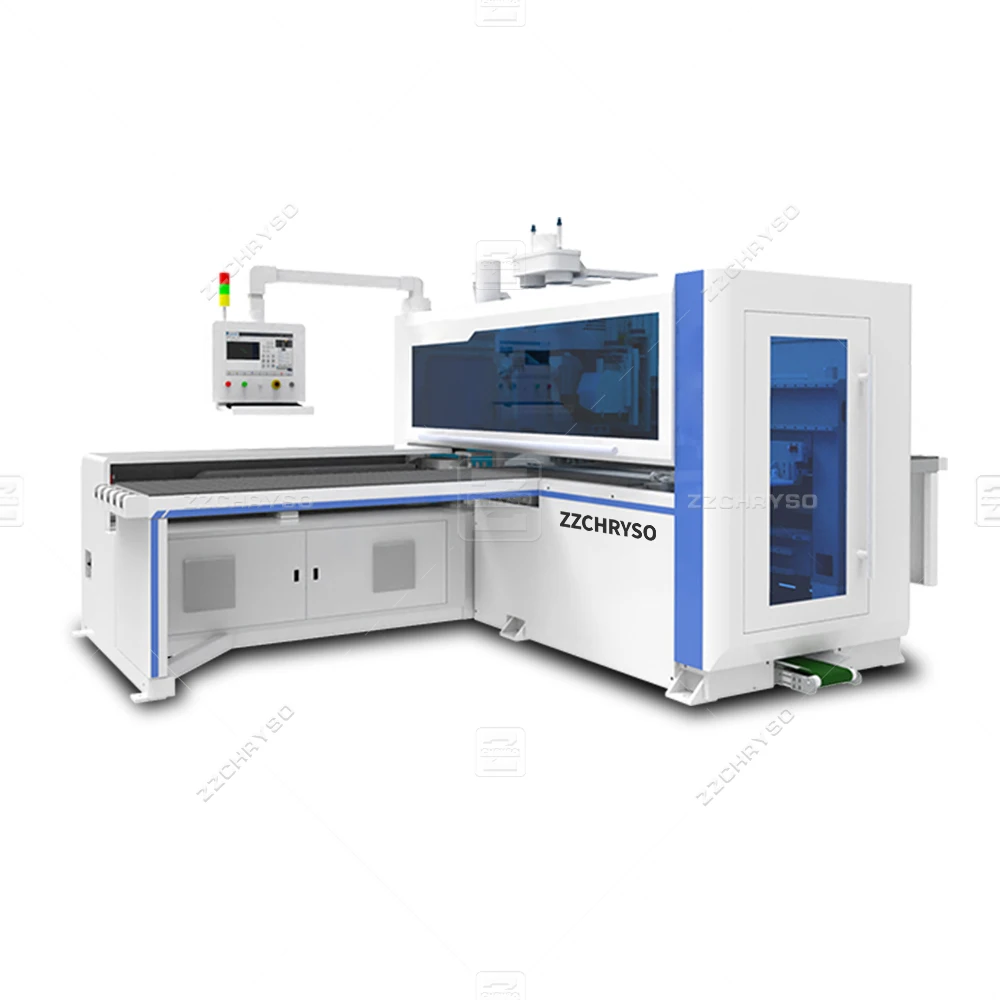

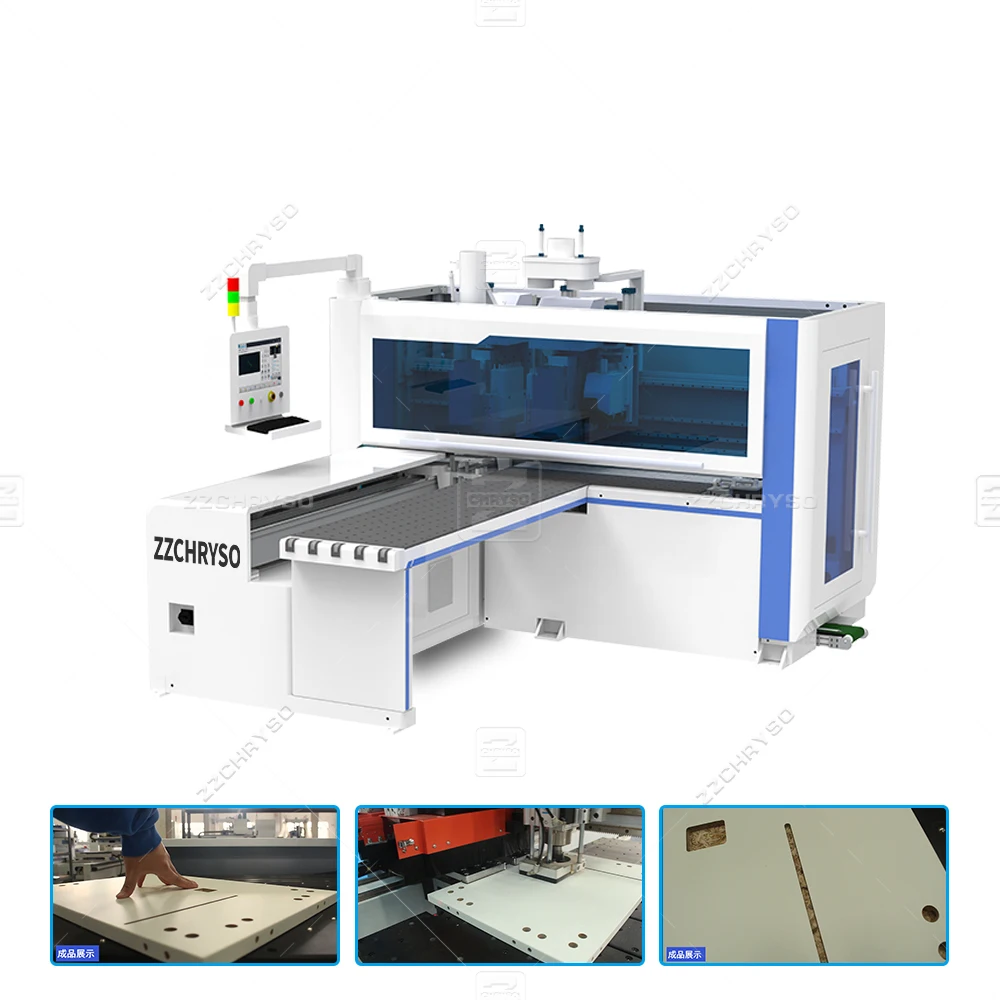

Высокоскоростной шестигранный сверлильный станок с ЧПУ вертикальный по дереву для изготовления кухонной мебели
- Категория: >>>
- Поставщик: Zhengzhou Chryso Machinery Equipment Co. Ltd.
Сохранить в закладки 1600891003399:
Описание и отзывы
Характеристики
Product Description

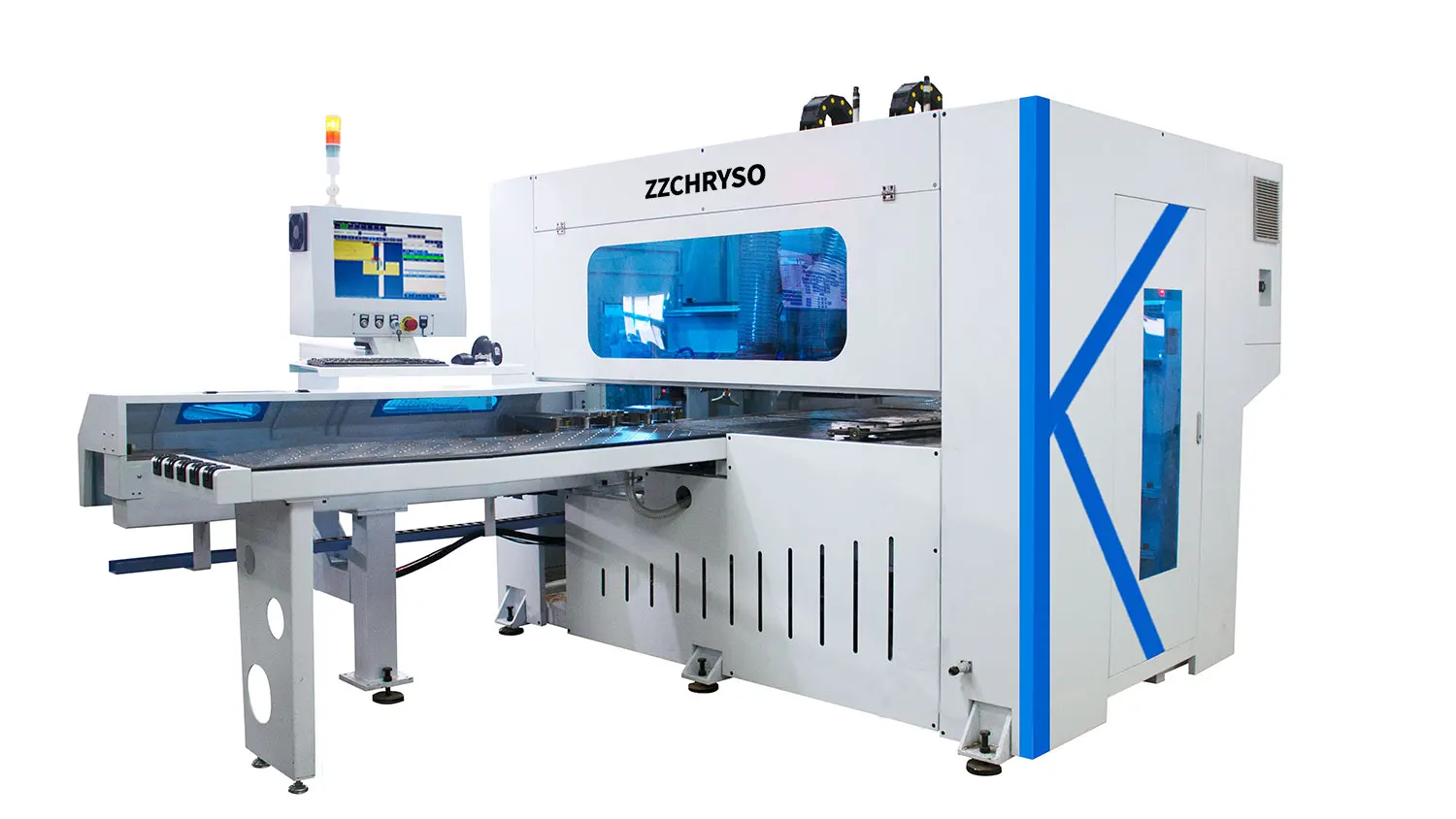

Factory Price 6 Sides CNC Hole Drilling Machine For Furniture Woodworking Machinery Wood Boring Machines For Sale
The CNC six-sided drill is mainly used in the processing applications of horizontal and vertical drilling and grooving of all kinds of man-made panels, solid wood panels and semi-solid wood panels. It is a kind of CNC processing equipment with simple operation and fast drilling processing speed. Slotting, suitable for processing all kinds of combined cabinet panel furniture.
The two Z-axis drill banks can be processed at the same time or independently, which improves the processing efficiency.When a drill bank fails, you can only use the other drill bag for processing.
The two Z-axis drill banks can be processed at the same time or independently, which improves the processing efficiency.When a drill bank fails, you can only use the other drill bag for processing.
6 Sides Wood CNC Hole Drilling Boring Machine Features:
1. The integral beam enhances the strength and precision, and effectively controls the concentricity of the upper and lower milling cutters.
1. The integral beam enhances the strength and precision, and effectively controls the concentricity of the upper and lower milling cutters.
2. The adjustable table top structure ensures the flatness of the table top.
3. The mainstream gripper structure in the market has a stable structure and stronger gripping force. It can grip 9mm-60mm thick and multi-standard plates, which can meet the processing needs of most plates in the market.
4. The integrated conveyor belt integrated with the bed assembly improves the convenience of transportation and saves the customer's landing debugging time.
5. The appearance is upgraded, and the new appearance design makes the whole machine more fashionable and beautiful.
3. The mainstream gripper structure in the market has a stable structure and stronger gripping force. It can grip 9mm-60mm thick and multi-standard plates, which can meet the processing needs of most plates in the market.
4. The integrated conveyor belt integrated with the bed assembly improves the convenience of transportation and saves the customer's landing debugging time.
5. The appearance is upgraded, and the new appearance design makes the whole machine more fashionable and beautiful.
Specification
Item | CRS62Lite | CRS62E | CRS63 | CRS63E |
Workpiece length | 70-2800mm | 70-2800mm | 70-2800mm | 70-2800mm |
Workpiece thickness | 9-60mm | 9-60mm | 9-60mm | 9-60mm |
Workpiece width | 30-1220mm | 30-1220mm | 30-1220mm | 30-1220mm |
Height between table and ground | 880mm | 880mm | 890mm | 890mm |
Spindle Power | 3.5kw*2& | 6kw+3.5kw | 3.5kw*2 | 6kw+3.5kw |
Spindle Speed | 18000rpm | 18000rpm | 18000rpm | 18000rpm |
Inverter power | 3.7kw | 7.5kw | 3.7kw | 7.5kw |
Driving Power | 850w/750w | 850w/750w | 850w/750w | 850w/750w |
Diameter of dust hood | 150mm | 150mm | 150mm | 150mm |
Equipment area | 5440*2280*2200mm | 5440*3150*2200mm | 5440*2900*2200mm | 5440*3500*2200mm |
Total power | 22.5kw | 25.5kw | 25.8kw | 28.8kw |
Machine weight | 3500kg | 3750kg | 4397kg | 4597kg |

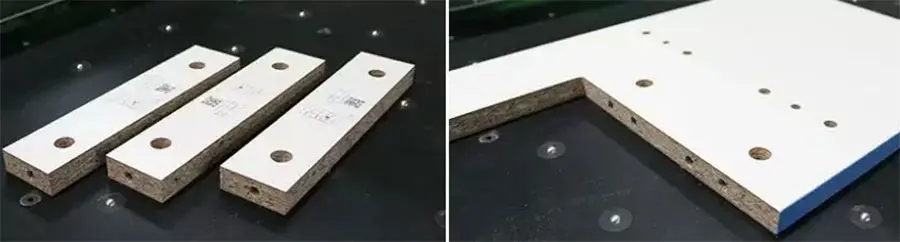

6 Sides Wood CNC Hole Drilling Boring Machine processing data
1. It can process limit plate 70mm*30mm, 2800mm*1220mm.
2. Can process plate thickness 9mm-60mm.
3. It can process punched and grooved limit plate 2800mm*50mm, 200mm*50mm.
4. A 35mm drill can be used to process the hinge hole; a 60mm circle can be processed with a milling cutter.
5. Ensure that when the horizontal hole spacing is greater than 190mm, double drill bags can be processed
at the same time; when the vertical hole spacing is greater than 124mm, double drill bags can be processed at the same time.
6.Groove can be pulled up and down at the same time: process vertically symmetrical through grooves (depth control within 0.3mm)
7.Processing conventional special-shaped plates.
3. It can process punched and grooved limit plate 2800mm*50mm, 200mm*50mm.
4. A 35mm drill can be used to process the hinge hole; a 60mm circle can be processed with a milling cutter.
5. Ensure that when the horizontal hole spacing is greater than 190mm, double drill bags can be processed
at the same time; when the vertical hole spacing is greater than 124mm, double drill bags can be processed at the same time.
6.Groove can be pulled up and down at the same time: process vertically symmetrical through grooves (depth control within 0.3mm)
7.Processing conventional special-shaped plates.
Details Images
Spindle and drilling bank
The upper drilling bank adopts an L-shaped (12V4H) customized layout, and the lower drilling bank adopts a 3*3 row drilling layout,which effectively improves the efficiency of use
Side structure
The front side of the beam is side-by-side, and the side-by-side structure is stronger and more stable under the condition that the effective use length is met.
Gripper structure
The top and bottom are rigid pads + PVC, which improves the gripping force and gripping space. The gripper speed can reach 138m/min, which is smooth and free.
Upper drilling
L-shaped (12V4H) custom layout is adopted, the punching spacing can be minimized, and the punching efficiency can be improved.
Pushing Cylinder
Easy operate
Accrurate position
Firmly fixed
Accrurate position
Firmly fixed
Pneumatic float table,
Move the board lightly on the table without scratching the board.
Sawdust transmission device
Sawdust transmission device to solve the problem of sawdust accumulation and dust.
Cabinet
More compact and beautiful

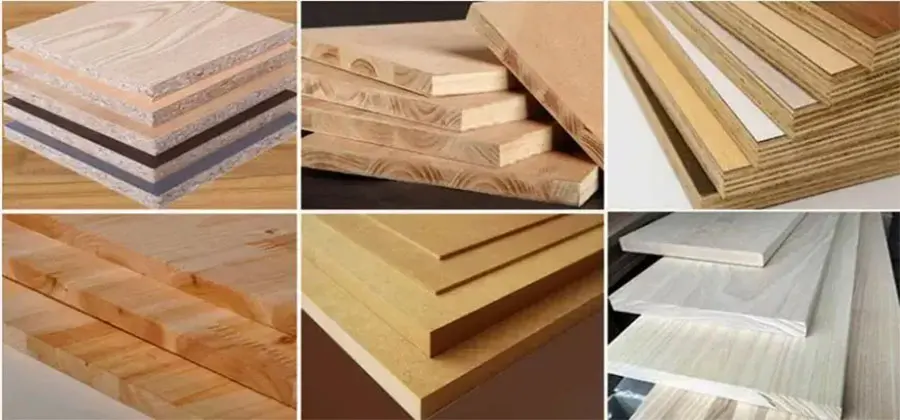

Application
The CNC six-sided drill is mainly used in the processing applications of horizontal and vertical drilling and grooving of all kinds of man-made panels, solid wood panels and semi-solid wood panels. It is a kind of CNC processing equipment with simple operation and fast drilling processing speed. Slotting, suitable for processing all kinds of combined cabinet panel furniture.

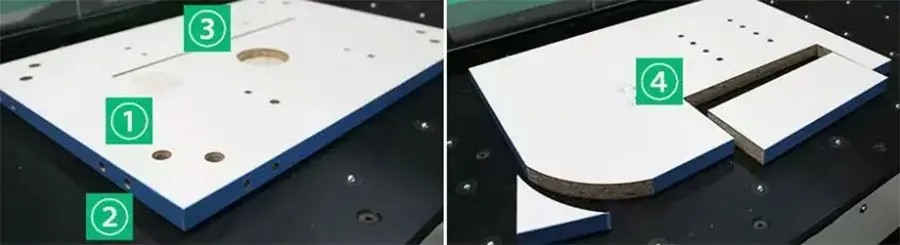

Solution
Multi-sided drilling, front and back grooving, special-shaped cutting
Company Profile
Zhengzhou CHRYSO is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
CHRYSO focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. CHRYSO's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
CHRYSO focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. CHRYSO's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers. "To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China. "
All members of CHRYSO welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
After Sales Service
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
Packing & Delivery
FAQ
Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price
term, we will try our best to meet with your demands.
ZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail /skype/phone / whatsapp /trademanager online service.
ZZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
ZZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price
term, we will try our best to meet with your demands.
ZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail /skype/phone / whatsapp /trademanager online service.
ZZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
ZZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Похожие товары
Уличные водные игры, прочная надувная водная платформа с плавающей док-станцией, лидер продаж
259,00 $ - 330,00 $
Большая поставка топливного фильтра для двигателя бульдозера 1000524630 1000964807 дизельный фильтрующий элемент Лучшая цена
5,00 $

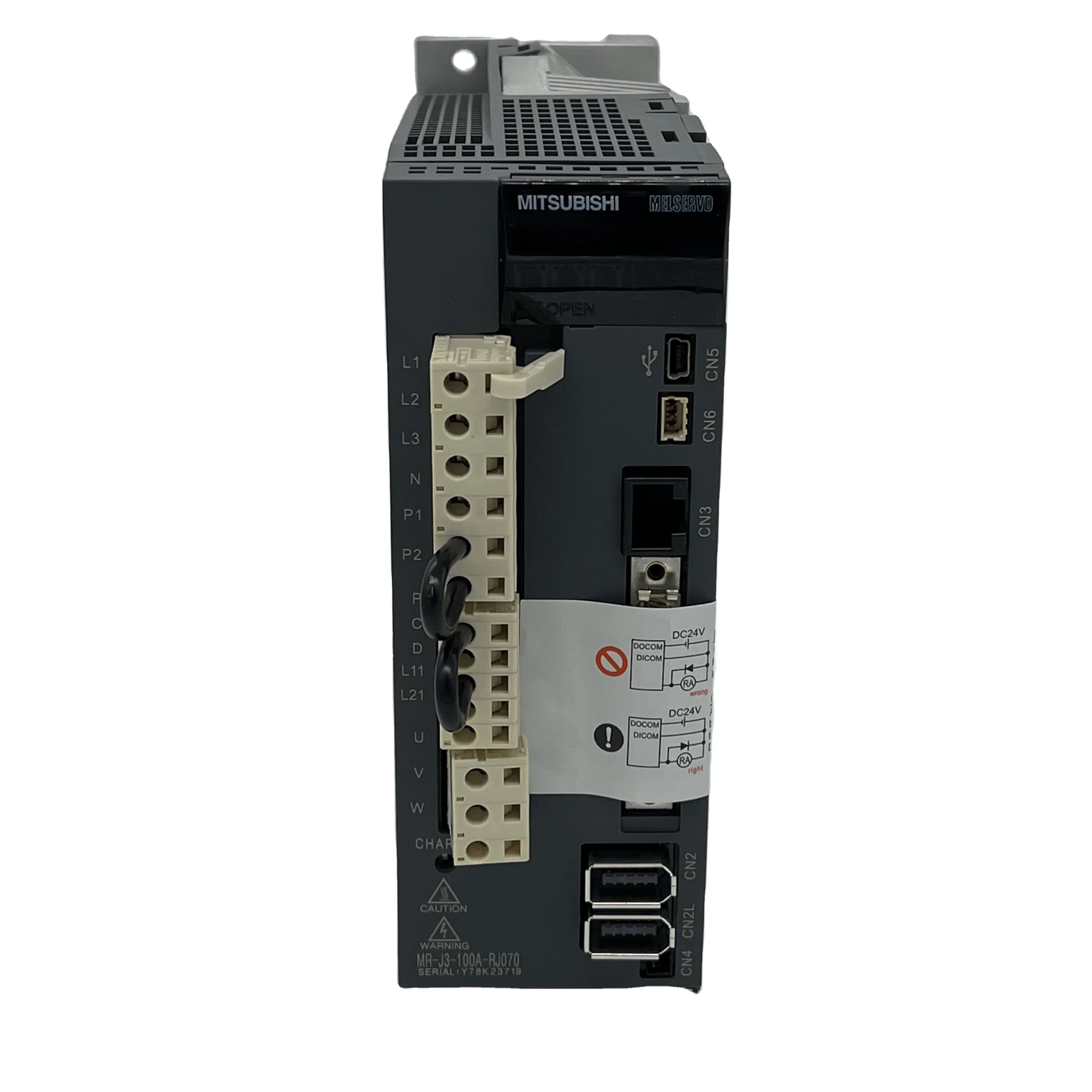

PLC серводвигатель переменного тока драйвера MR-J3-100A-RJ070 для Mitsubishi
400,00 $

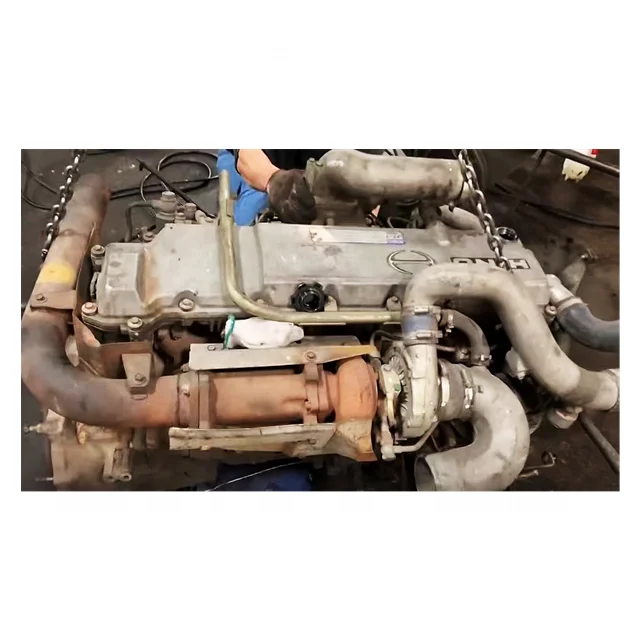

Высокое качество дизельный двигатель J08C в наличии 6 цилиндров Япония б/у двигатели
5 015,00 $ - 5 060,00 $
DVT 2,100 сухой ходовой насос углеродная лопасть
Газовый гриль для барбекю, газовая духовка для барбекю
115,00 $

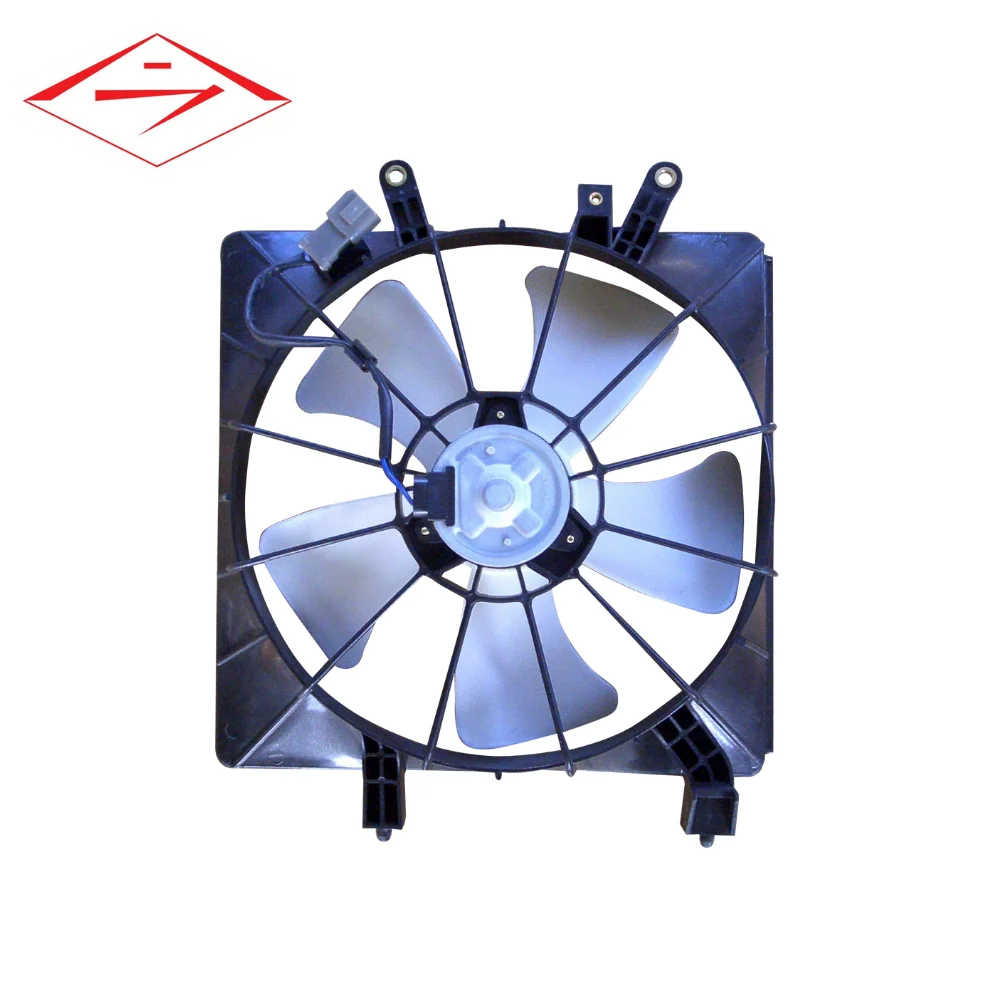

Новый тренд OEM 19015PLC003 для радиатора HONDA
