8 кВт машина для производства высокочастотной ПВХ-крышки с двойной головкой
1 980,00 $
День автоматический высокочастотный сварочный аппарат для медицинской сумки
- Категория: >>>
- Поставщик: Dongguan Jingyi High Frequency Machinery Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1600896096574:
Описание и отзывы
Характеристики
Product Overview

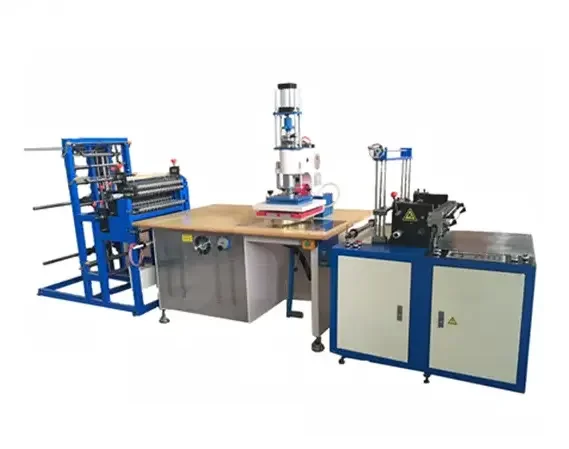

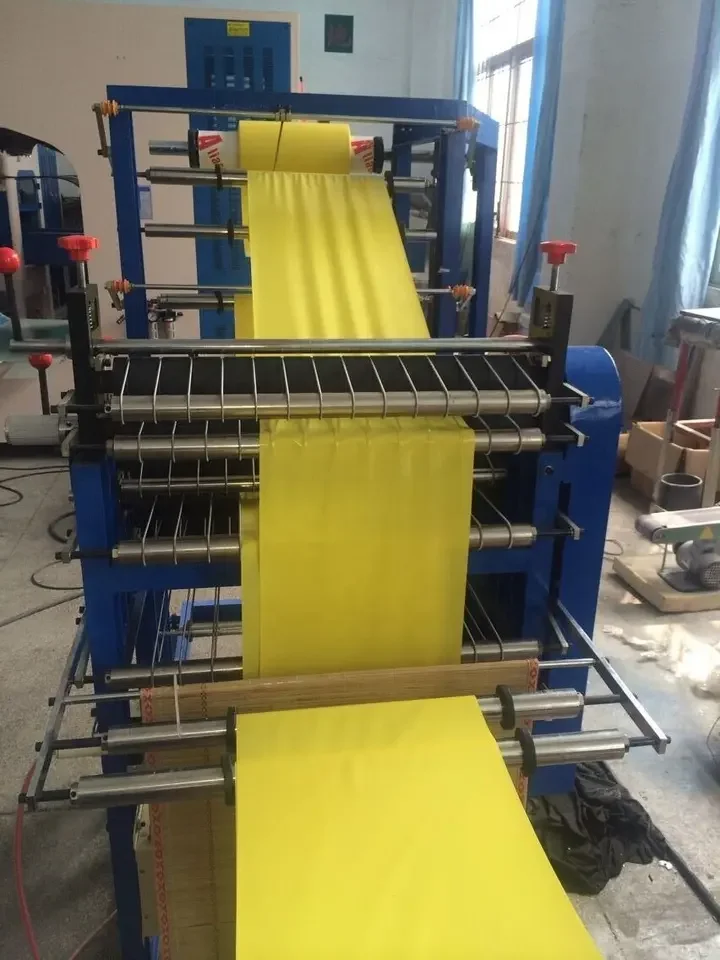

Automatic High Frequency Welding Machine
1. Positioning Accuracy
The machine with high-precision positioning system,can easily fix precise position,the processing quality greatly improved.
2. Anti-spark machine
2. Anti-spark machine
When spark occur,the high sensitiveness spark protect electric system cuts high frequency power immediately to protect mould and material.
3. Digital Man-machine Interface
With easy setting system,our machine can process different kinds of products,with high efficiency and safe peformance.
4. No High-frequency radiation
4. No High-frequency radiation
This machine has good shielding device,all the parameters pass inspection of state departments.
Model | JY5000ZD | JY8000ZD | JY10000ZD | ||
Output Power | 5KW | 8KW | 10KW | ||
Voltage | AC 220/380/415/440V 3P 50/60HZ (Customized) | ||||
Input Power | 8.5KVA | 15KVA | 18KVA | ||
Oscillation Frequency | 27.12MHz | 27.12MHz | 27.12MHz | ||
Oscillation Tube | 7T85RB | 7T69RB | e3069 | ||
Anti-spark System | NL-5557 | NL-5557 | NL-5557 | ||
Max Pressure | 200kg | 300mm | 500kg | ||
Gap Of Electrodes | 100mm | 100mm | 100mm | ||
Size Of Upper Electrode | 350*400mm | 400*450mm | 450*500mm | ||
Size Of Workin g Table | 400*450mm | 450*500mm | 500*550mm | ||
Machine Size | 4500*1300*1600mm | 4500*1300*1600mm | 4500*1300*1600mm | ||
Machine Weight | 900kg | 1200kg | 1250kg | ||
FEATURES AT A GLANCE
Application Ranges:
Applicable to continuous welding of inner page of common stationery,albums,PVC packing bag,PVC flat bag,PVC book cover,PVC card cover,urine bag,blood bag and other medical bag welding and cutting,etc.
Chinese Customer
Spanish Customer
Mexico Customer
Packing & Delivery
We use international standard plywood case pack the machine to protect machine being damaged during shipping period.
Company Profile
Dongguan Jing Yi High Frequency Machinery Co., Ltd. was set up in 1991, and since then we have mainly focused our attention on the production of high frequency electronic equipment with outputs 1,000 units annually. Our products have been very popular throughout the country and overseas. In order to upgrading our products, we have already gotten the certification of ISO9001system qualify in Feb.2004 and obtained two national patents in Augest.2008. We have an outstanding team and there are strong technically enough.Ten senior developers of our team have developed the latest products to meet the needs of the market, Also keeping our company in the leading position.
Our company attaches great importance to future development and after-sales service,all of which
have won the great reputation from customers."To be pecfect ,Customer First, Scientific Management, Keeping Improving for Excellence" is the quality policy of our company. "Complaint-free from Customers" is the main goal we will always strive for.
have won the great reputation from customers."To be pecfect ,Customer First, Scientific Management, Keeping Improving for Excellence" is the quality policy of our company. "Complaint-free from Customers" is the main goal we will always strive for.
Our Customers
We have customers from global market,such as USA,Canada,Europe,Southest Asia,Middle Esat,South Americas,welcome to visit our factory and test our quality machines.
Customer & Feedback
\t\t\t\t\t\t\t\t\tQuality Control \t\t\t\t\t\t\t
FAQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
