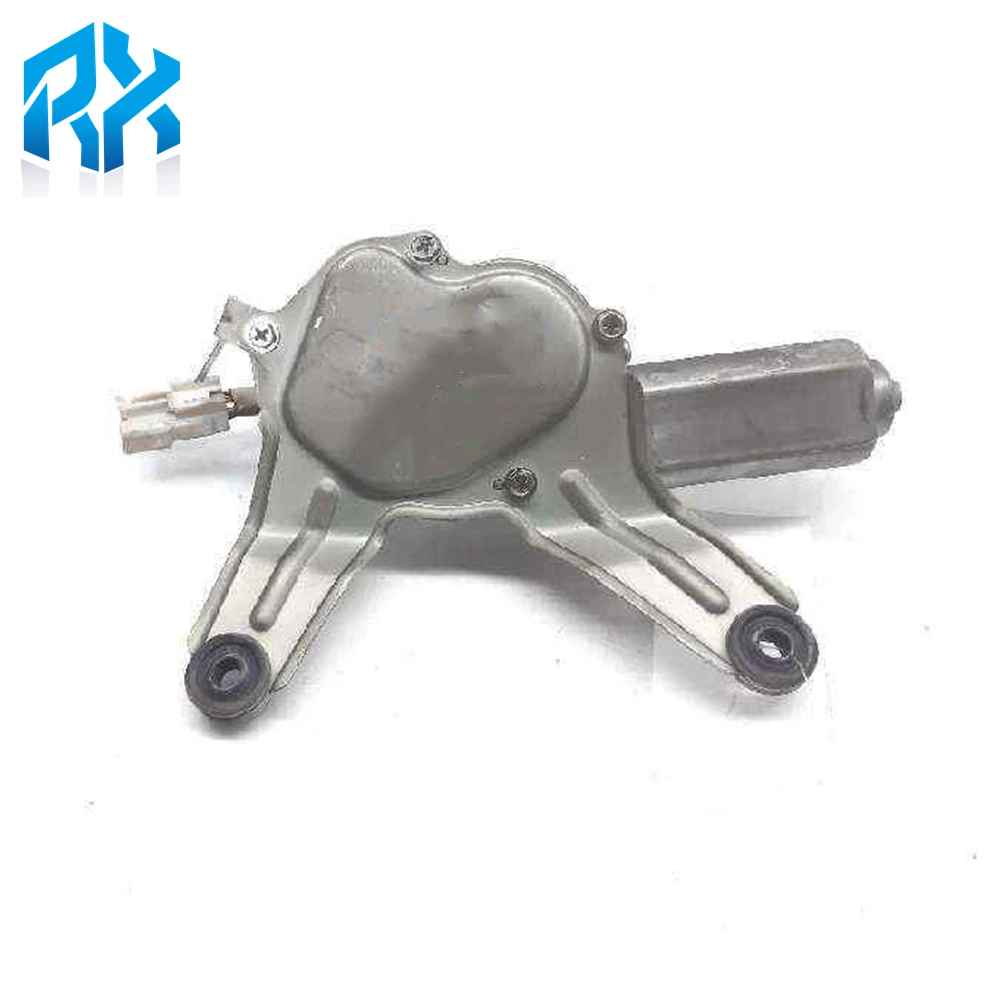

Сцепное соединение двигателя в сборе, детали заднего стеклоочистителя 98700-1C000 для HYUNDAi GETZ / CLICK
41,03 $ - 51,29 $

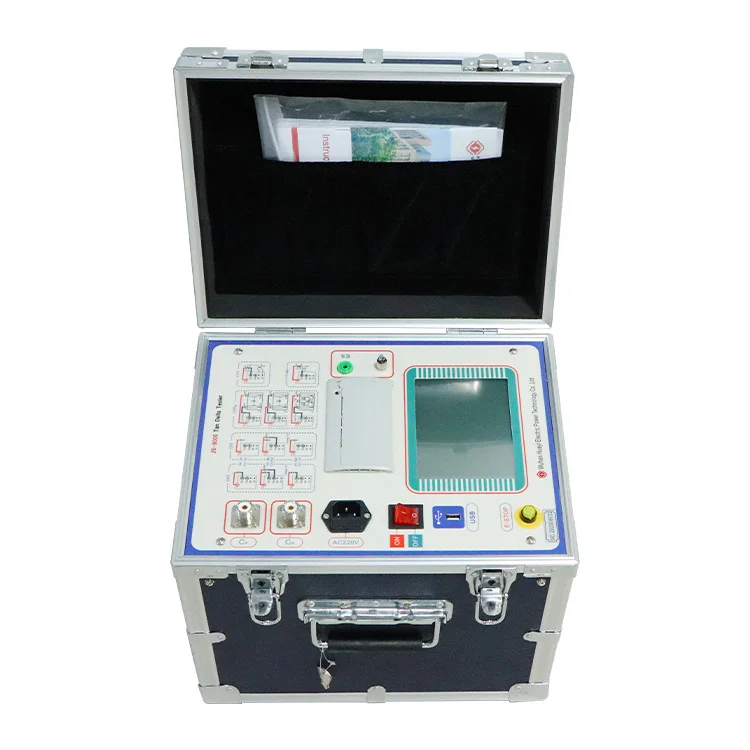

Huayi HV Tan Delta тестер от производителя IPF электрическое испытательное оборудование
- Категория: >>>
- Поставщик: Wuhan Huayi Electric Power Technology Co. Ltd.
Сохранить в закладки 1600896261942:
Описание и отзывы
Характеристики
Product Description
Introduction

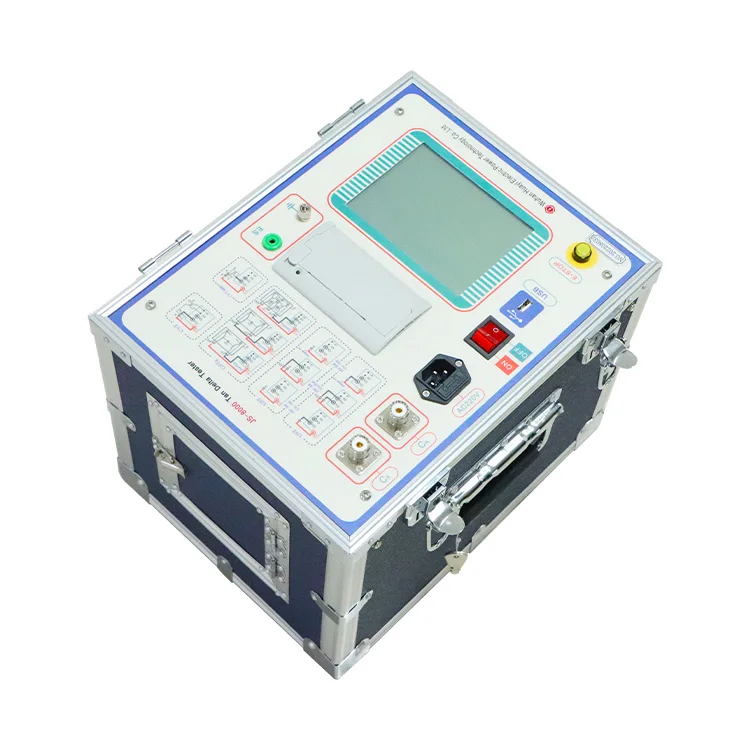

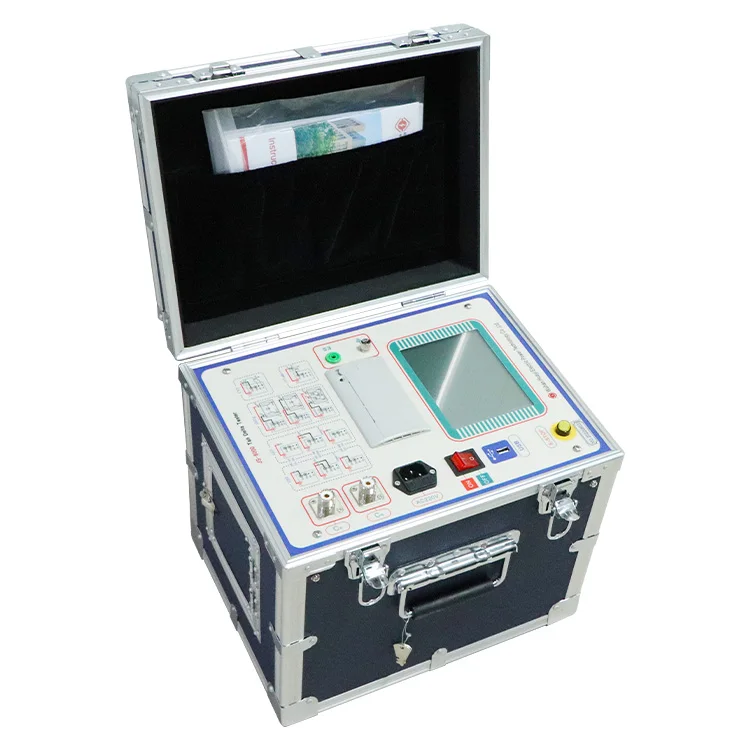

Super Quality IPF Capacitance Tan Delt Tester Full Auto Dielectric Loss Test Kit
Laura whatsapp: +86 15102796928
of insulator on electrical equipment as well as local defects. It is widely used in electrical manufacturing, electrical
equipment installation, handover and preventive tests. It is the most basic way to evaluate the insulation of
electric equipment through measuring the dielectric losses of its transformers, instrument transformers, reactors,
capacitors, bushing and arresters.
Features
1. Big touched screen LCD display：easy to use and no need to train user, only click the screen to finish whole test process
2. High storage capacity：can save 200 group data，results can be saved in chronological order, historical records can be viewed at any time, and can be printed out;
3. data manage：The instrument data can be exported through U disk, and can be viewed and managed on any PC.
4. Multiple test modes：It can test by internal high voltage, external high voltage, internal standard, external standard,
positive connection method, reverse connection method, self-excitation method and other methods；High voltage (> 10kV) medium loss can be made under the condition of external standard external high voltage.
5. CVT test：can test CVT（capacitor voltage transformer）C1/C2 of dielectric loss and capacitance，can test C1/C2 simultaneously. Can also test CVT Variation ratio and voltage Angle difference;
6. no need remove high voltage cable to test CVT： can test CVT dielectric loss and capacitance with no need remove HV cable
7. CVT Reverse connection shielding measuring C0：can test the dielectric loss value and capacitance value of CVT upper C0.
2. High storage capacity：can save 200 group data，results can be saved in chronological order, historical records can be viewed at any time, and can be printed out;
3. data manage：The instrument data can be exported through U disk, and can be viewed and managed on any PC.
4. Multiple test modes：It can test by internal high voltage, external high voltage, internal standard, external standard,
positive connection method, reverse connection method, self-excitation method and other methods；High voltage (> 10kV) medium loss can be made under the condition of external standard external high voltage.
5. CVT test：can test CVT（capacitor voltage transformer）C1/C2 of dielectric loss and capacitance，can test C1/C2 simultaneously. Can also test CVT Variation ratio and voltage Angle difference;
6. no need remove high voltage cable to test CVT： can test CVT dielectric loss and capacitance with no need remove HV cable
7. CVT Reverse connection shielding measuring C0：can test the dielectric loss value and capacitance value of CVT upper C0.
8. high speed sampling signal：The inverter and sampling circuit inside the instrument are all controlled by digital, and the output voltage is continuously adjustable.
9. LCR full auto test：Automatic display inductance, capacitance, resistance measurement, Angle.
10. multiple protection features：such as input voltage fluctuation, high voltage current, output short circuit, power supply fault, overvoltage, overcurrent and temperature, etc., to ensure the safety and reliability of the instrument. also equipped with grounding detection function to ensure that the ungrounded equipment does not allow voltage boost.
9. LCR full auto test：Automatic display inductance, capacitance, resistance measurement, Angle.
10. multiple protection features：such as input voltage fluctuation, high voltage current, output short circuit, power supply fault, overvoltage, overcurrent and temperature, etc., to ensure the safety and reliability of the instrument. also equipped with grounding detection function to ensure that the ungrounded equipment does not allow voltage boost.
Technology Parameters
Work condition | -15℃∽40℃ | RH＜80% | |||
Principle of anti-interference | Variable frequency | ||||
Power supply | AC 220V±10% | Permissible generator | |||
Output high voltage | 0.5KV∽12KV | Every each 0.1kV | |||
Accuracy | 2% | ||||
Max current | 200mA | ||||
Capacitance | 2000VA | ||||
self-excitation power supply | AC 0V∽50V/15A | 50HZ、60HZ single frequency、45HZ/55HZ、47.5HZ/52.5HZ、55HZ/65HZ、57.5HZ/62.5HZ、Automatic double frequency conversion | |||
resolution | tgδ: 0.001% | Cx: 0.001pF | |||
Accuracy | △tgδ:±(reading*1.0%+0.040%) | ||||
△C x :±(reading*1.0%+1.00PF) | |||||
Test range | tgδ | No limitation | |||
C x | 15pF ＜ Cx ＜ 300nF | ||||
10KV | Cx ＜ 60 nF | ||||
5KV | Cx ＜ 150 nF | ||||
1KV | Cx ＜ 300 nF | ||||
CVT test | Cx ＜ 300 nF | ||||
LCR test range | L>20H（2kV） | R>10KΩ（2kV） | |||
LCR test accuracy | 1% | angular resolution | 0.01 | ||
CVT turn ratio range | 10∽10000 | ||||
CVT turn ratio accuracy | 1% | CVT turn ratio resolution | 0.01 | ||
size（host）(mm) | 350（L）×270（W）×270（H） | ||||
size(accessory)(mm) | 350（L）×270（W）×160（H） | ||||
Memory capacity | 200 group Support U disk data storage | ||||
weight（host） | 22.75Kg | ||||
weight（accessory） | 5.25Kg | ||||
JS-H | JS-V | JS-M | JS-R | |
UST mode | √ | √ | √ | √ |
GST mode | √ | √ | √ | √ |
CVT self-excitation mode | √ | √ | √ | √ |
C1/C2 test simultaneously | √ | √ | √ | |
External standard voltage | √ | √ | √ | |
External high voltage | √ | √ | √ | |
CVT turn ratio | √ | √ | √ | |
CVT test | √ | √ | √ | |
UST/GST test simultaneously | √ | √ | √ | |
LCR auto test | √ | √ | ||
Multichannel test | √ | |||
Insulation resistance test | √ | |||
USB connection | √ | √ | √ | |
U disk storage | √ | √ | √ | √ |
Accessory
Serial Number | Name | Amount |
1 | Inter-frequency dielectric loss tester | one |
2 | High voltage output shielded cable | one |
3 | Test input cable | two |
4 | Power line | one |
5 | Ground lead | one |
6 | CVT Line | one |
7 | 5A Fuse (Internal) | four |
8 | Printing paper (50ml) | two |
9 | Specification | one |
10 | Inspection Report | one |
11 | Certification | one |
Products Show
Our Company
Wuhan HUAYI Electric was founded in 2005, located in Wuhan City, China. We are a professional manufacturer of electric testing equipment with over 15 years industry experience, engaged in high voltage tester with high performance, good quality, customized specification and easy operation. ISO qualified factory, strong R&D team and after-sales engineers make us gain good feedback from wide customers. HUAYI is committed to preventative, maintenance, troubleshooting and commissioning all the time. Our products are involved in AC/DC Hipot tester, series resonant test system, transformer tester, relay tester, circuit breaker/switch tester, oil/SF6 tester, cable tester and other electric instruments, widely adapted to electric power, water conservation, oil, railway, mine, chemical.
Production
office
Warehouse
R&D team
Meeting room
show room
Production Line
We are professional manufacturer in China, have own production line and R&D team, providing best price and quality.
Filed Test&Service
Packing & Delivery
Our Certifications
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.What is the mini order quantity?
MOQ: generally 1 unit/piece/set
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union...
4.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
5.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
Похожие товары

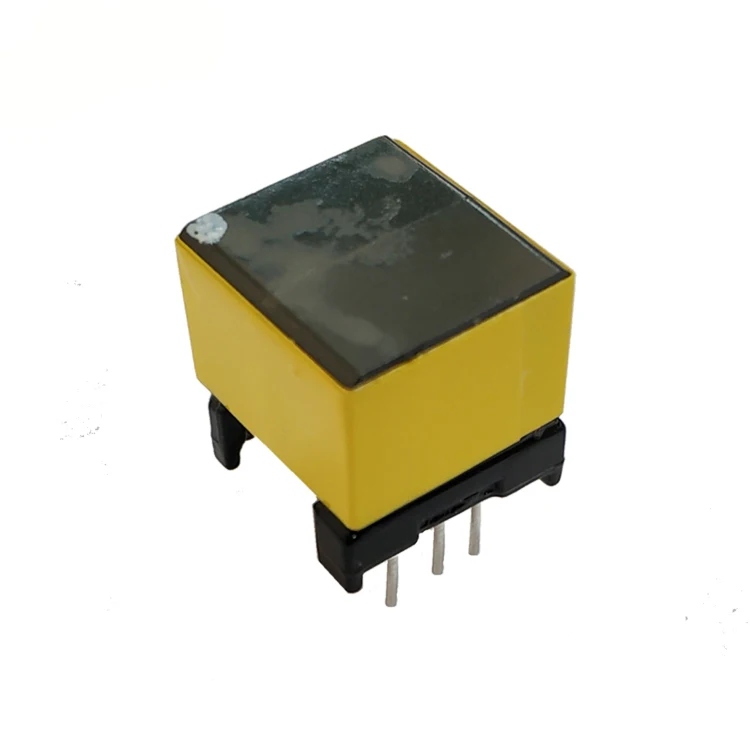

Ep7 24vac 16v 1a переключение 50 Гц зажигание 220 вольт обратный понижающий ферритовый сердечник трансформатор
0,70 $ - 0,80 $

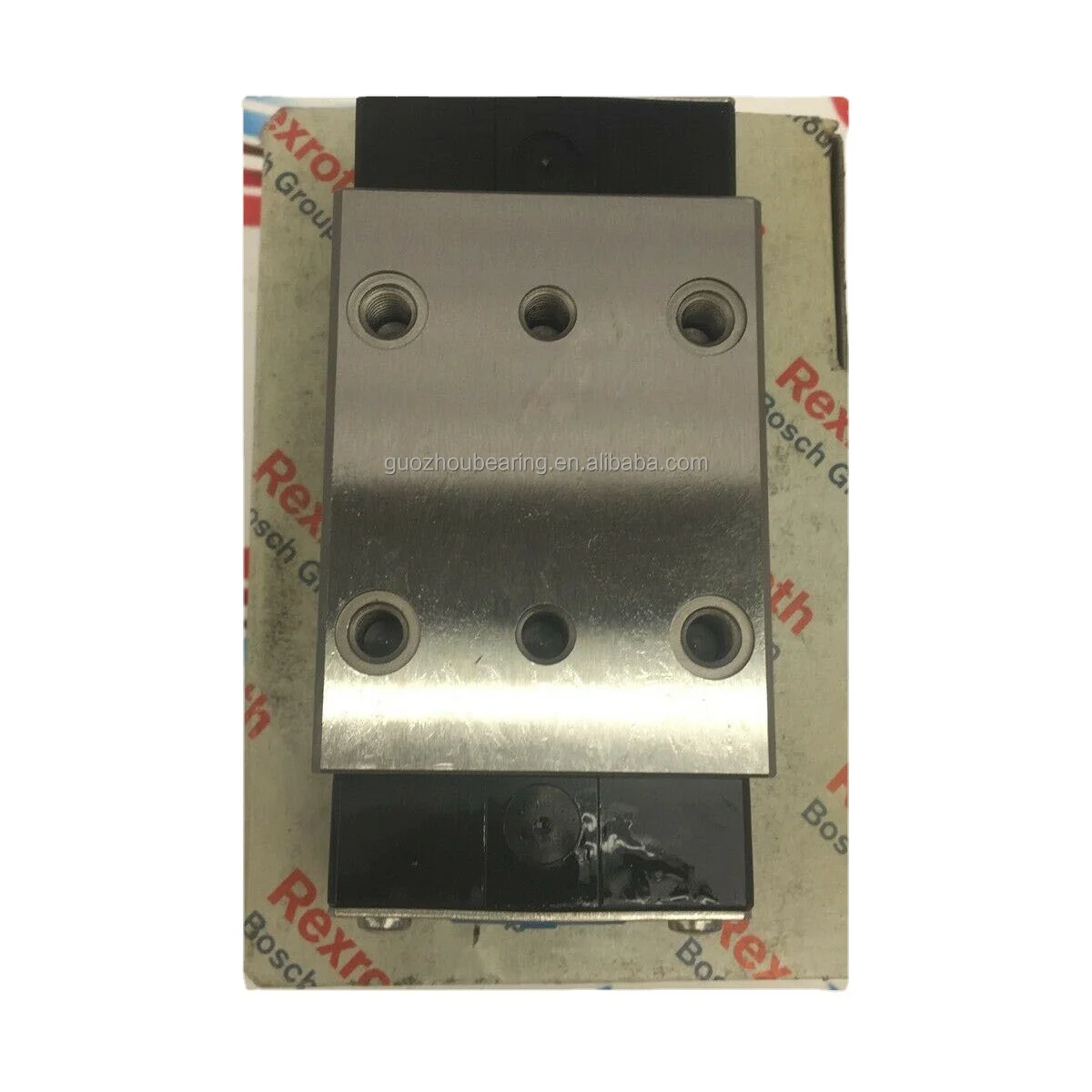

Оригинальный Rexroth линейные направляющие и R182121310 R1821-213-10 линейный подшипник
Североамериканский Хэллоуин подарок вампир барон скульптура из смолы ремесло Хэллоуин украшения
0,46 $ - 0,60 $

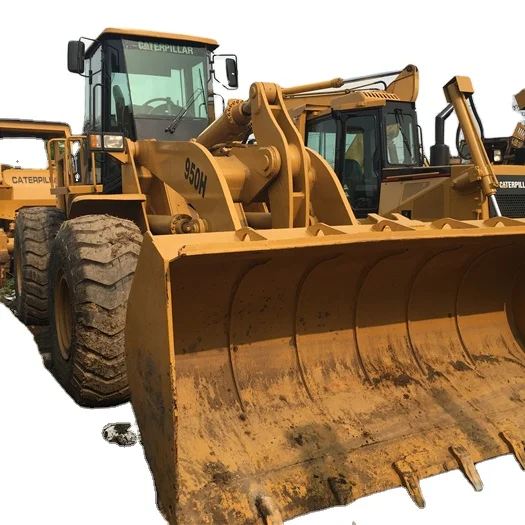

Новинка, колесный погрузчик C AT на 5 тонн, колесный погрузчик 3cbm 950GC 950F 950K 950H

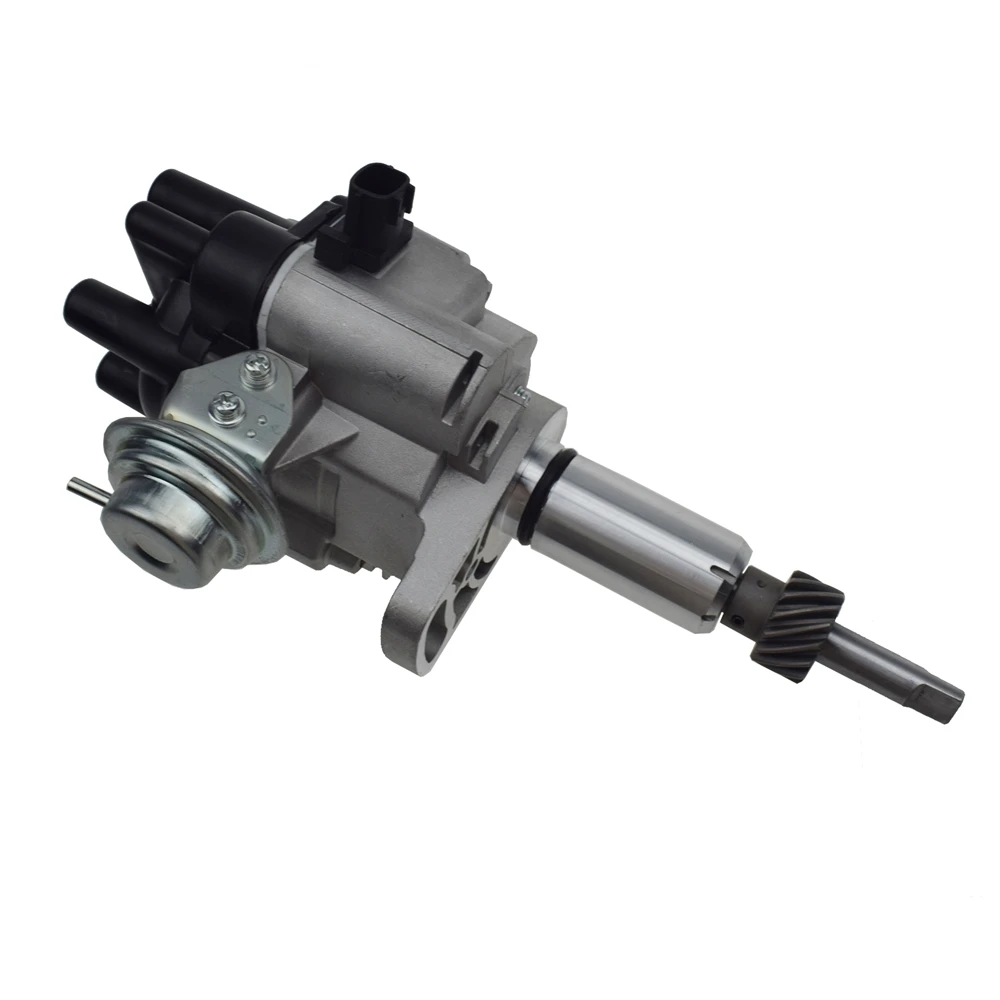

Дистрибьютор в сборе 22100-FU410 для Nissan H20-2 вилочного погрузчика K15 K21 K25
57,02 $ - 67,56 $

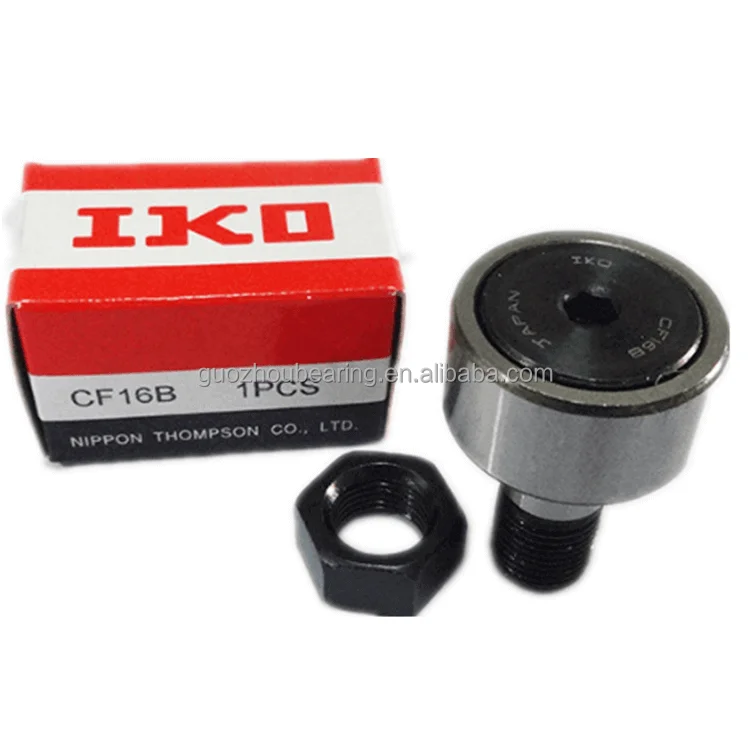

Роликовый подшипник iko CF16B CF16BUU CF16BR CF16BUUR, Япония

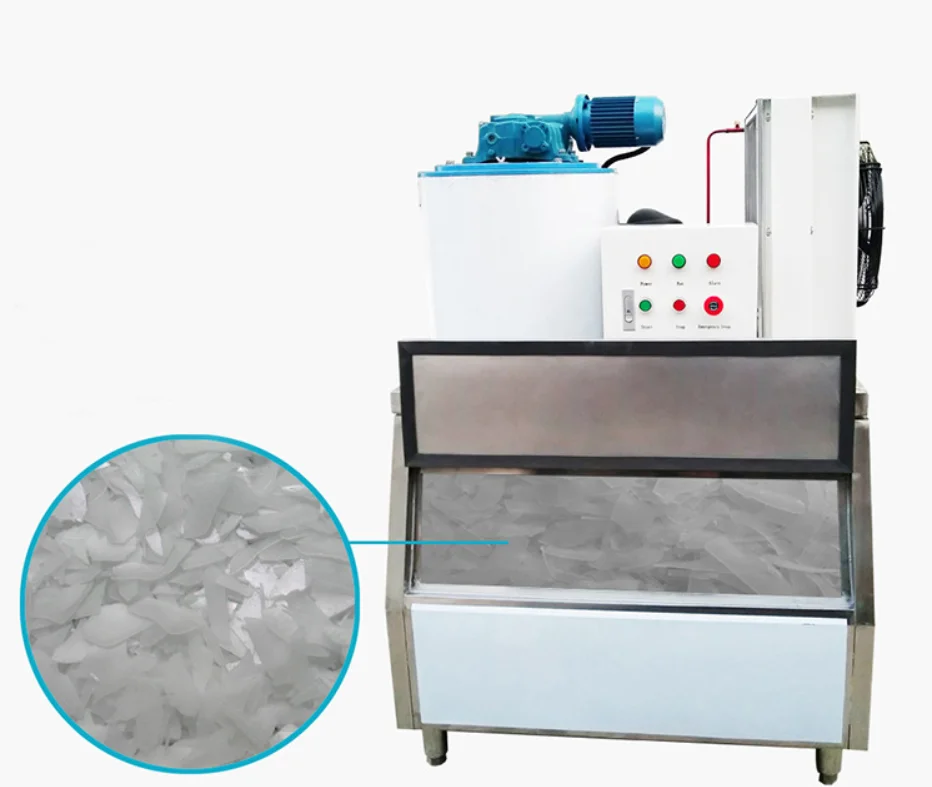

Льдогенератор для соленой воды вместимостью 2 тонны, недорогая машина для производства квадратных кубиков льда
