Мощный ip20 100 Вт 200 300 400 светодиодный драйвер pf 0 95 источник питания 24 В led
1 380,05 ₽ - 1 402,13 ₽
UL ETL CE PF> 0 95 с регулируемой яркостью 0 10 В PWM 30 Вт 60 80 96 100 120 150 200 300 320 светодиодное освещение
- Категория: >>>
- Поставщик: Shenzhen Topway Electronic Technology Co. Ltd.
Сохранить в закладки 1600896344513:
Описание и отзывы
Характеристики
Products Description
Model-No. | Output Voltage | Output range | Watt | PFC | Current Tolerance | Efficiency | |||||
TBW-LFA100 | 28-56V | 5.0-7.5A | 320W | 0.95 | 5% | 92.5% | |||||
Input | AC input: 100-277v Input Frequency:47Hz-63HZ Input inrush current:60A | ||||||||||
Output | No load Voltage： 58(max) Output voltage ripple PK-PK: 10%(max) Output current ripple PK-PK:10%(max) Output Overshoot:+10% Rise Time:200mS Turn-on Delay TIME: 0.8s-1.5s | ||||||||||
PROTECTION FUNCION | Output Over-Voltage Protection: Over voltage recovery Short Circuit Protection：Not damaged with long time short circuit ，short circuit power≤10W Return to normal status when output limit current to get right | ||||||||||
Environment Requirement | Operation Temperature：-40°C to +50°C Storage Temperature: -40°C to +85°C Relative Operation Humidity: 10%RH To 90%RH Relative Storage Humidit: 5%RH To 95%RH | ||||||||||
Safety standards | UL/ETL SAA TUV/CE CQC/CCC | ||||||||||
Products Description
Notes:
1.Note:TBW-LFA320-* series is our company developed LED driver power supply, high power factor, high efficiency, high reliability,high constant current precision, full-featured, a variety of specifications to meet the needs of more customers with different parameters, has a perfect protection function, can ensure the life and reliability of the power supply and lamps.
2.Test Condition :230Vac Input,Full Load,25℃.
3.When adjusting the output current, output power must lower then 320 w power, otherwise it will cause overload and damage.

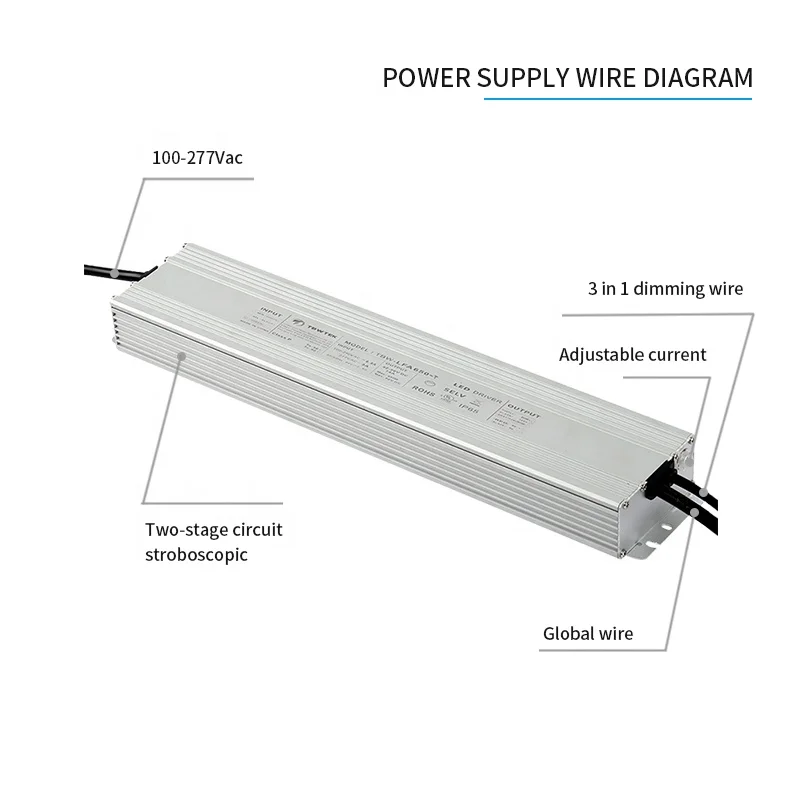

4.Function:3-in-1 dimming function (0-10V, PWM, external resistor, plus DC12V300mA auxiliary source output
Optional letter T \\ D or empty, indicating that the output side to add different optional functions.
Paraments:
1.Item:led driver power supply 320w
2. Model: TBW-LFA320-T/Z/D
3.Input Voltage:100-240VAC/277VAC
4.Output Voltage:28V-56V
5.Output Current:5000-7500mA
6.Output Power:320W
7.Efficiency:92.5%
8.PFC:≥0.95
9.Shell Material:Aluminum
10.Work temperature:-40℃ ~ + 50℃
11.Relative Storage :Humidity:5%RH~95%RH
12.Size:196*67*40mmmm
13..Gross Weight:0.88KG
14.Lifespan: 100,000hours
OEM/ODM could be accpeted
Other Power | ||||||||
UV led power supply: TBW-UV | ||||||||
UV led power supply: TBW-UV-H | ||||||||
Constant Current: TBW-LFA | ||||||||
Constant Voltage: TBW-HYGP | ||||||||
Watts | Model | Input Voltage | Output Voltage | Output Current | PFC | Efficiency |
30W | TBW-LFA301-T | 100-277V | 28-52V | 0.5-0.9A | 0.95 | 87% |
50W | TBW-LFA501-T | 100-277V | 28-52V | 0.8-1.5A | 0.95 | 88% |
60W | TBW-LFA601-T | 100-277V | 28-52V | 1-1.8A | 0.95 | 88% |
80W | TBW-LFA801-T | 100-277V | 28-56V | 1.5-2.3A | 0.95 | 88% |
100W | TBW-LFA100-T | 100-277V | 28-56V | 1.5-2.5A | 0.95 | 89% |
50-80V | 1-1.8A | 0.95 | 89% | |||
TBW-LFA150-T | 100-277V | 28-56V | 2.1-4.2A | 0.95 | 90.5% | |
55-90V | 1.5-2.5A | 0.95 | 91% | |||
200W | TBW-LFA200-T | 100-277V | 28-56V | 3.0-5.6A | 0.95 | 92% |
55-90V | 3.0-5.6A | 92.5% | ||||
100-150V | 1-2A | 93% | ||||
160-220V | 0.6-1.2A | 93% | ||||
100-277V | 28-56V | 3.5-6.7A | 0.95 | 92.5% | ||
28-56V | 2.5-4A | 92.5% | ||||
100-150V | 1.5-2.4A | 93% | ||||
100-150V | 0.8-1.3A | 93% | ||||
320W | 100-277V | 28-56V | 5.0-8A | 0.95 | 93% | |
55-90V | 3-5.5A | 93% | ||||
100-150V | 1.8-3.2A | 93.5% | ||||
100-150V | 1.2-2.1A | 93.5% | ||||
400W | TBW-LFA400-T | 100-277V | 28-56V | 5-8.9A | 0.95 | 94.5% |
500W | TBW-LFA500-T | 100-277V | 28-56V | 6-11.5A | 0.95 | 94.5% |
650W | TBW-LF650-T | 100-277V | 28-56V | 7.5-15A | 0.95 | 94.5% |
730W | TBW-LFA730-T | 100-277V | 28-56V | 8.5-17A | 0.95 | 95% |
800W | TBW-LFA800-T | 100-277V | 28-56V | 9-18A | 0.95 | 95% |
1000W | TBW-LFA1000-T | 185-277V 100-277V | 28-56V | 10-20A | 0.95 | 96% |
1200W | TBW-LFA1200-T | 185-277V | 28-56V | 12.5-25A | 0.95 | 95% |
Recommend Products
Company Profile
Shenzhen Topway Technology Co,ltd, ,established in 2009, is a national high-tech enterprise integrating R&D, manufacturing,and sales of high-power LED Driver. Our products are widely used in domestic and foreign horticulture lighting, outdoor lighting, industrial lighting, landscape lighting, smart lighting, and other fields.
With advanced and efficient management,backed by cutting-edge R&D technology and supported by advanced production and inspection technology, our company is committed to providing specialized and customized led driver solutions for customers in UVLED curing equipment,animal and plant lighting, industrial automation equipment,new energy,5G communication,LED lighting, electric power,rail transportation,ships, aerospace and medical industries to help customers to improve production efficiency and energy efficiency.All led drivers can support WIFI, Bluetooth MESH,power carrier,2.4G, 0-10V, PWM dimming, 485 communication, CAN communication.
In order to ensure product quality and meet the requirements of global customers,Topway strictly follows the latest ISO9001:2015 quality management system, and the company's products are comply with multi-national safety certification and have obtained many certifications including UL, CE, TUV,SAA, KC, BIS and CCC etc.
With accurate and rapid response to market demand, continuous R&D innovation, and excellent product quality, "TBWTEK LED Driver"has always been favored by the market and customers and enjoys the reputation of "Excellent LED Driver Brand". In the future,Topway will always adhere to the vision of "creating an excellent brand of LED Driver,Light up the Word" and committed to provide global customers with high-efficiency, energy-saving, stable and reliable LED Driver and solutions,make outstanding contributions to global energy saving and emission reduction, and a cleaner living environment!
With advanced and efficient management,backed by cutting-edge R&D technology and supported by advanced production and inspection technology, our company is committed to providing specialized and customized led driver solutions for customers in UVLED curing equipment,animal and plant lighting, industrial automation equipment,new energy,5G communication,LED lighting, electric power,rail transportation,ships, aerospace and medical industries to help customers to improve production efficiency and energy efficiency.All led drivers can support WIFI, Bluetooth MESH,power carrier,2.4G, 0-10V, PWM dimming, 485 communication, CAN communication.
In order to ensure product quality and meet the requirements of global customers,Topway strictly follows the latest ISO9001:2015 quality management system, and the company's products are comply with multi-national safety certification and have obtained many certifications including UL, CE, TUV,SAA, KC, BIS and CCC etc.
With accurate and rapid response to market demand, continuous R&D innovation, and excellent product quality, "TBWTEK LED Driver"has always been favored by the market and customers and enjoys the reputation of "Excellent LED Driver Brand". In the future,Topway will always adhere to the vision of "creating an excellent brand of LED Driver,Light up the Word" and committed to provide global customers with high-efficiency, energy-saving, stable and reliable LED Driver and solutions,make outstanding contributions to global energy saving and emission reduction, and a cleaner living environment!
Exhibition
Certifications
Product packaging
Why Choose Us
1.What is the watt do u have
Tbwtek led driver power supply has many different watts , 30w 35w 50w 100w 120w 150w 200w 240w 320w 400w 500w 650w 730w 800w 1000w 1200w 1500w led power supply
2.What is the classification of the protection (IP) level of the LED driver?
1. IP20: Protected against the ingress of solid objects over 12mm in diameter, but not protected against liquids.
2.IP44: Protected against the ingress of solid objects over 1mm in diameter and splashing water.
3.IP65: protected against the ingress of solid objects over 1mm in diameter, but also protected against water spray from any direction.
4.IP67: Protected against the ingress of solids and complete protection against the immersion of the LED driver in water for short periods.
5.IP68: Complete protection against the ingress of solids and water-proofing against water immersion for extended periods.
3.How is Tbwtek led driver power supply?
Tbwtek led driver power supply has many different watts , 30w 35w 50w 100w 120w 150w 200w 240w 320w 400w 500w 650w 730w 800w 1000w 1200w 1500w led power supply
2.What is the classification of the protection (IP) level of the LED driver?
1. IP20: Protected against the ingress of solid objects over 12mm in diameter, but not protected against liquids.
2.IP44: Protected against the ingress of solid objects over 1mm in diameter and splashing water.
3.IP65: protected against the ingress of solid objects over 1mm in diameter, but also protected against water spray from any direction.
4.IP67: Protected against the ingress of solids and complete protection against the immersion of the LED driver in water for short periods.
5.IP68: Complete protection against the ingress of solids and water-proofing against water immersion for extended periods.
3.How is Tbwtek led driver power supply?
[High Efficiency and Stability]: TBWTEK TBW-LFA series 30W TO 1200W LED Driver has high efficiency and stable performance, using advanced electronic technology and high quality components, to ensure that in a long time use to maintain high efficiency and stability.
【Waterproof Performance】：Products with IP67 waterproof rating, able to withstand moisture and dust in harsh environments, providing all-round protection for your equipment.
【Multi-Voltage Output】：Supporting a variety of output voltage choices such as 28V-56V, 24V ,36V and48V, it meets the needs of a variety of LED lighting, including LED strips, LED bulbs and LED panel lights.
【Dimmable Function】：Supporting PWM, 0-10V and resistor dimming, you can flexibly adjust the brightness according to the environment and needs to create the perfect lighting effect.
[High Efficiency]: The product has up to 96% efficiency, compared with the traditional power supply, the energy saving effect is remarkable, effectively reducing the waste of electricity.
[High Quality Service]: We provide comprehensive lighting solution services, including lighting and circuit design, project installation, etc.. At the same time, our products enjoy a 5-year warranty service, so you have no worries.
[Wide range of applications]: The product is suitable for a variety of LED lighting fields, including LED plant grow lights, etc.
[Comprehensive Certifications]: Our products comply with RoHS, CE, FCC, CCC, SAA and TUV and many other international certifications, quality is guaranteed.
【Waterproof Performance】：Products with IP67 waterproof rating, able to withstand moisture and dust in harsh environments, providing all-round protection for your equipment.
【Multi-Voltage Output】：Supporting a variety of output voltage choices such as 28V-56V, 24V ,36V and48V, it meets the needs of a variety of LED lighting, including LED strips, LED bulbs and LED panel lights.
【Dimmable Function】：Supporting PWM, 0-10V and resistor dimming, you can flexibly adjust the brightness according to the environment and needs to create the perfect lighting effect.
[High Efficiency]: The product has up to 96% efficiency, compared with the traditional power supply, the energy saving effect is remarkable, effectively reducing the waste of electricity.
[High Quality Service]: We provide comprehensive lighting solution services, including lighting and circuit design, project installation, etc.. At the same time, our products enjoy a 5-year warranty service, so you have no worries.
[Wide range of applications]: The product is suitable for a variety of LED lighting fields, including LED plant grow lights, etc.
[Comprehensive Certifications]: Our products comply with RoHS, CE, FCC, CCC, SAA and TUV and many other international certifications, quality is guaranteed.
FAQ
Q1. Are you manufacturer or trade company ?
A1: We are the real manufacturer focus on switch powersupply and led driver
Q2:What is the warranty for your products ?
A2:5 years. After steady cooperations, we can support LIFETIME WARRANTY, the failed parts can be replaced with the next order.
Q3:Does your company accept OEM&ODM?
A3:Yes, we support OEM/ODM, with 12 years experienceof R&D to serve you.
Q4:Is it OK to print my logo on led driver & lightproduct and use my own package and trade mark?
A4:Yes. Normally we offer white inner box and cartonbox. Use your own design is ok. Please inform us.
Q5:Can I get a sample?
A5:Sure, If you need sample, pls tell me your spec needor tell me your led power supply info, then i will recommend you.
Q6:What's your leadtime ?
A6: The delivery time is 1 to 15days, which depends onyour quantity.
A1: We are the real manufacturer focus on switch powersupply and led driver
Q2:What is the warranty for your products ?
A2:5 years. After steady cooperations, we can support LIFETIME WARRANTY, the failed parts can be replaced with the next order.
Q3:Does your company accept OEM&ODM?
A3:Yes, we support OEM/ODM, with 12 years experienceof R&D to serve you.
Q4:Is it OK to print my logo on led driver & lightproduct and use my own package and trade mark?
A4:Yes. Normally we offer white inner box and cartonbox. Use your own design is ok. Please inform us.
Q5:Can I get a sample?
A5:Sure, If you need sample, pls tell me your spec needor tell me your led power supply info, then i will recommend you.
Q6:What's your leadtime ?
A6: The delivery time is 1 to 15days, which depends onyour quantity.
Похожие товары

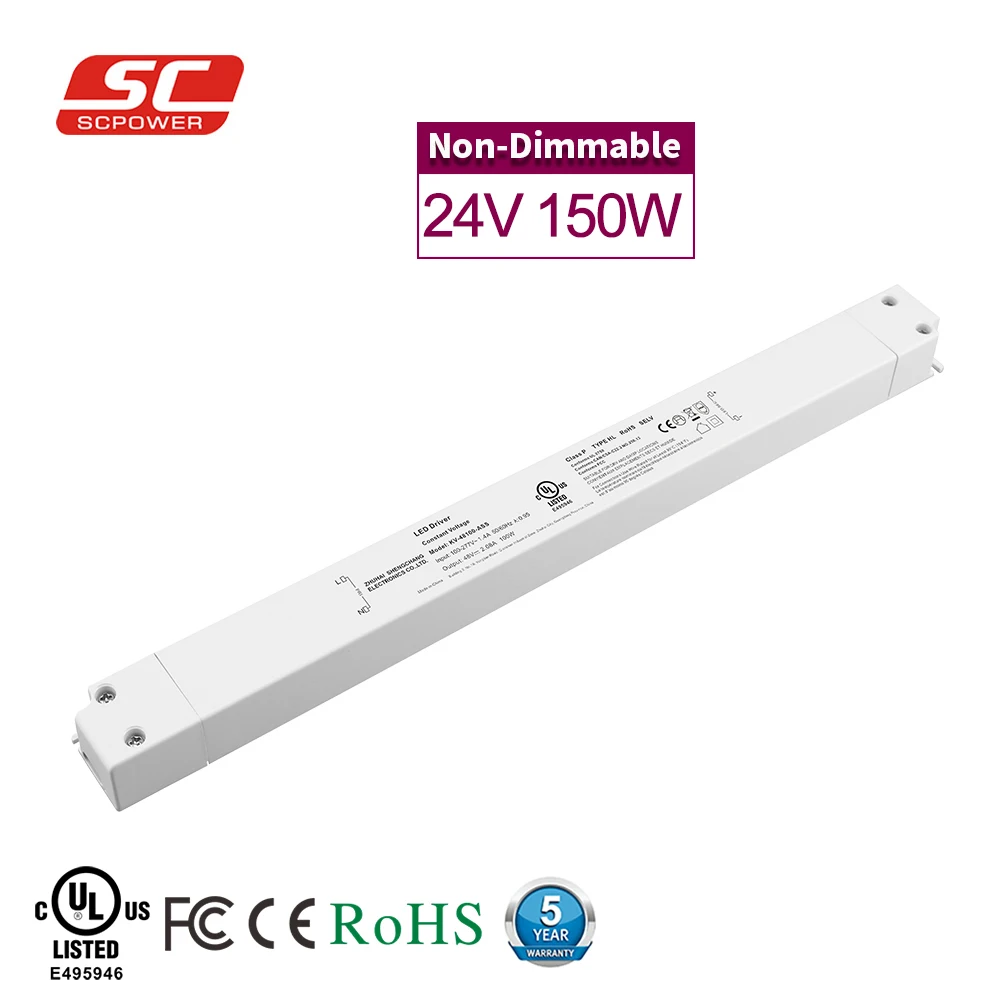

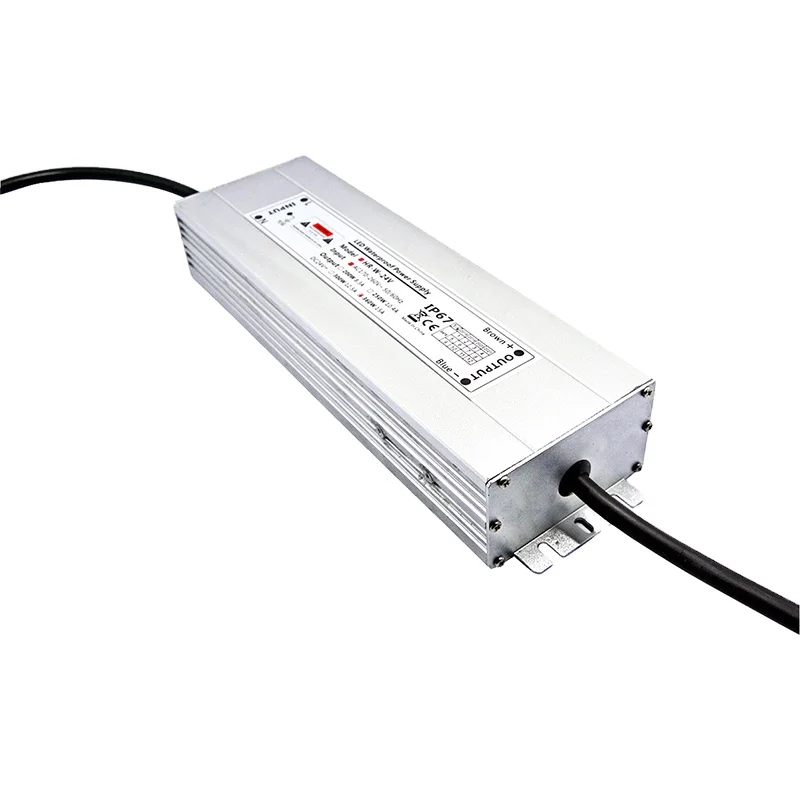

Водонепроницаемый Светодиодный источник питания 100 Вт 120 150 30-56 В без мерцания светодиод

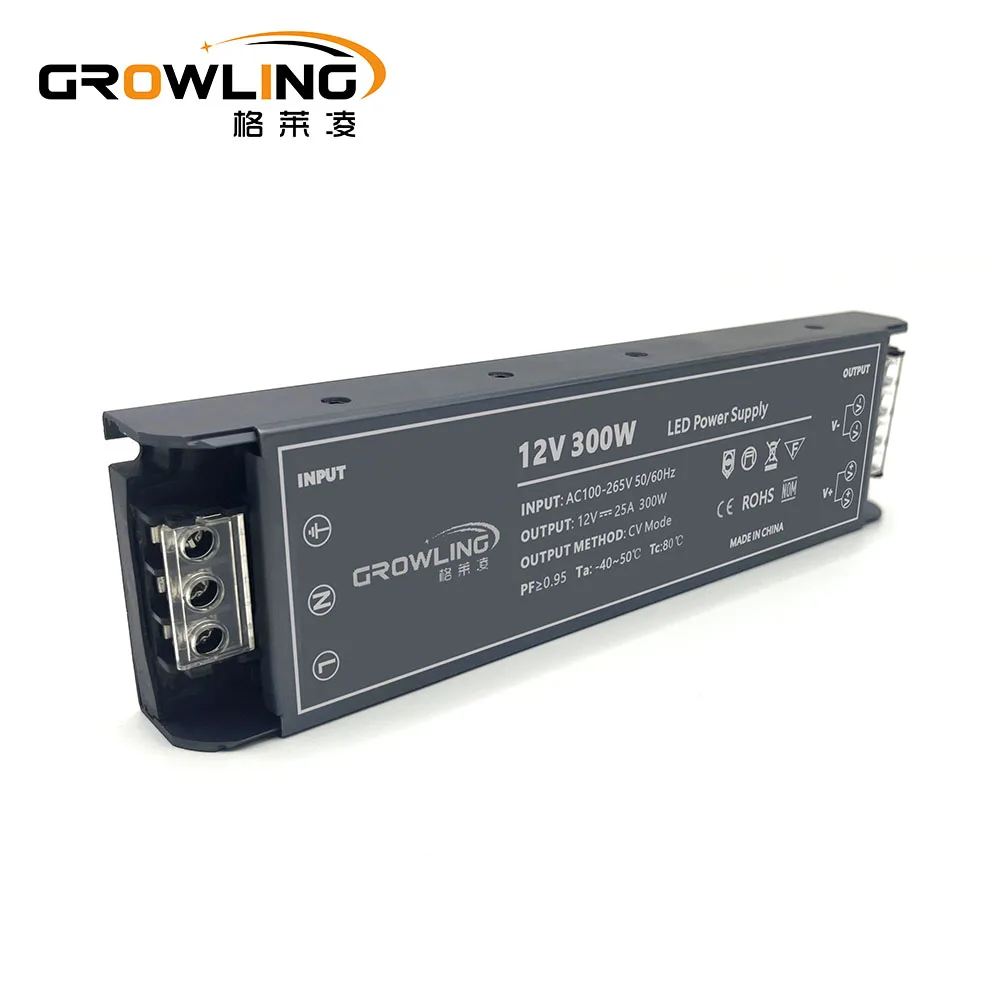

Источник питания 25 Вт 50 75 100 120 150 250 350 400 500 650 800 1200 12 В 24 36 48 Светодиодный драйвер для светодиодной световая лента
