Станок для лазерной резки CO2 1000 Вт Китай
1 432 746,90 ₽ - 1 653 169,50 ₽
Широкоформатная текстильная Лазерная резка для теплопередачи полиэфирной ткани с CCD камерой
- Категория: >>>
- Поставщик: Wuhan Golden Laser Co. Ltd.
Сохранить в закладки 1600896831686:
Описание и отзывы
Характеристики
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.;-)
Product Description
Polyester Fabric Laser Cutting Machine
__
CJGV-320400LD CO2 laser cutter is designed specifically for the digital print industry and print service providers - producing unparalleled capabilities for finishing wide format digitally printed or dye-sublimated textile graphics, banners and soft signage. The system is equipped with an industrial class CO2 liquid cooled laser for cauterized finishing of polyester textiles. This method of sealing edges lends itself to a reduction in additional finishing steps such as hemming and sewing.
Now it's time for you to consider using a laser solution and giving your company an edge over the competition.
Machine Pics
__
Specification
CJGV-320400LD Technical Parameters | ||
Working area | 3.2m×4m (10.5 ft×13.1ft) | |
Camera scanning area | 3.2m×1m (10.5 ft×3.2ft) | |
Working table | Conveyor working table | |
Laser tube | CO2 glass laser tube / CO2 RF metal laser tube | |
Laser power | 70W / 100W / 150W | |
Control system | Servo motor system | |
Cooling system | Constant temperature water chiller | |
Exhaust system | 3KW exhaust fan×4 | |
Power supply | Laser cutter: 220V,50Hz or 60Hz/ single phase | |
Exhaust fan: 380V,50Hz or 60Hz/ three phase | ||
Software | Goldenlaser CAD scanner software package | |
Space occupation | 6.7m(L)×4.8m(W)×2.3m(H) / 21.9ft×15ft×7.5ft | |

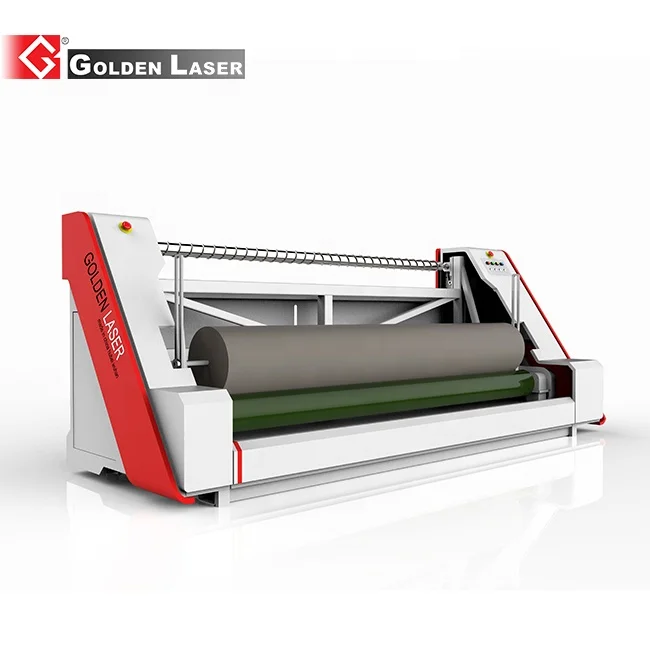

Other option | Auto feeder, red dot | |
Advantages
__
* Detection of printed fabrics directly from rolls, without any preparation;
* Fully automatic process, not required human intervention;
* High precision detection;
* Fast. Comparing with other systems with detection cameras installed on cutting head, situation in which the scanning is an extremely time consuming process. A major advantage, compared with systems using projectors, is that the process is fully automatic, no human intervention is required and is extremely fast (less than 5 seconds for an entire cutting window), while systems using video projectors are entirely manual, time consuming and less precise.
* Detection of printed fabrics directly from rolls, without any preparation;
* Fully automatic process, not required human intervention;
* High precision detection;
* Fast. Comparing with other systems with detection cameras installed on cutting head, situation in which the scanning is an extremely time consuming process. A major advantage, compared with systems using projectors, is that the process is fully automatic, no human intervention is required and is extremely fast (less than 5 seconds for an entire cutting window), while systems using video projectors are entirely manual, time consuming and less precise.
Work Flow

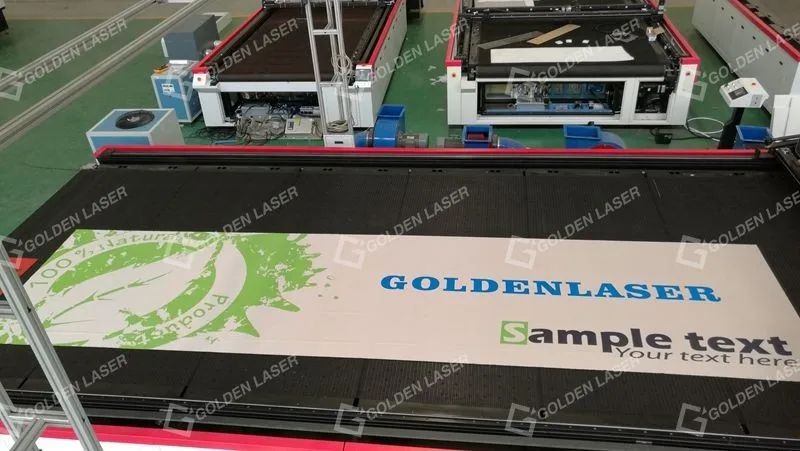

① Place the roll of printed fabric on the feeder and lay it on the laser cutter.

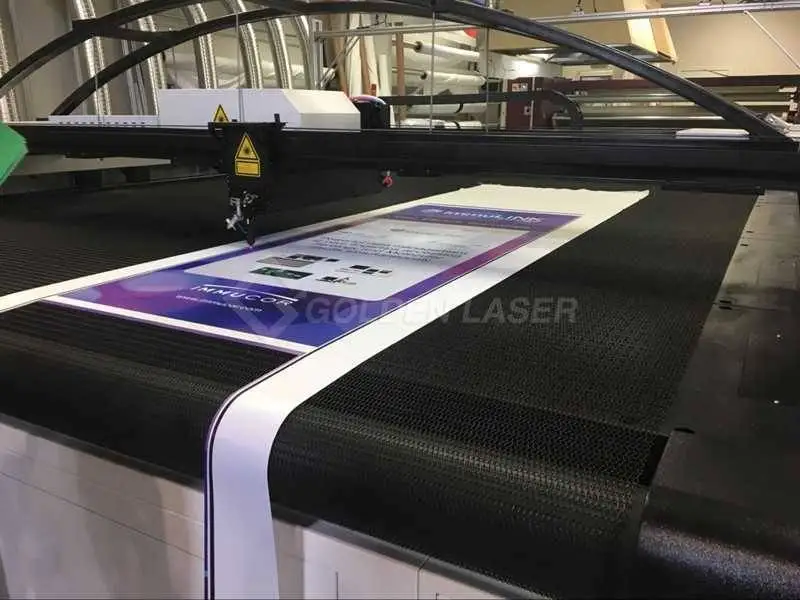

② Vision laser system for scanning and cutting.
Applications
Digital printed advertising fabrics, dye-sublimated textile graphics, banners, flags, outdoor displays, soft signage, etc.
Suitable for cutting polyester fabric, nylon, micro fiber, etc.
Suitable for cutting polyester fabric, nylon, micro fiber, etc.
Packing & Delivery
Company Profile
GOLDEN LASER, China's first GEM listed company (stock code: 300220)! Accumulated 20 years of experience in laser equipment manufacturing and exporting. Providing the best cost-effective laser solutions!
► Laser innovative application service platform
► Leading laser solution provider
► 20 years experience in laser industry
► Laser-World of Photonics Exhibitor since 2005
► Strict quality control and exclusive after-sales service team
► Providing customized laser machines for users and distributors globally
Golden Laser - Golden Service
• Installation Service
Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.
• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Machine warranty is 1 year. We offer flexible extended warranties if needed.
► Laser innovative application service platform
► Leading laser solution provider
► 20 years experience in laser industry
► Laser-World of Photonics Exhibitor since 2005
► Strict quality control and exclusive after-sales service team
► Providing customized laser machines for users and distributors globally
Golden Laser - Golden Service
• Installation Service
Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.
• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Machine warranty is 1 year. We offer flexible extended warranties if needed.
FAQ
Q1. How does a laser work?
A1. LASER stands for ‘Light Amplification by Stimulated Emission of Radiation’. In the resonator of a laser source – in material processing, these are often CO2 lasers – a special kind of light beam is generated by the action of electric energy. With closed CO2 gas mix laser beam sources, the laser is maintenance-free and uses no laser gas - similar to a
fluorescent tube.
Q2. Which advantages do laser systems have compared to conventional processing methods?
A2. Every day, more application possibilities arise for the use of laser technology in the textile market. Our laser systems for cutting, engraving and marking are meanwhile being used efficiently across all sectors of industry, both for short runs and for industrial mass production runs.
Q3. How does non-contact cutting affect cutting results?
A3. There is more to non-contact machining than meets the eye. In contrast to mechanical processing, there is no physical contact with the material being processed at any time during laser cutting. While knifes, routing machines or punches cause stress to the material, which can lead to undesirable consequences such as damage, laser cutting offers many advantages thanks to this extraordinary property.
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.
fluorescent tube.
Q2. Which advantages do laser systems have compared to conventional processing methods?
A2. Every day, more application possibilities arise for the use of laser technology in the textile market. Our laser systems for cutting, engraving and marking are meanwhile being used efficiently across all sectors of industry, both for short runs and for industrial mass production runs.
Q3. How does non-contact cutting affect cutting results?
A3. There is more to non-contact machining than meets the eye. In contrast to mechanical processing, there is no physical contact with the material being processed at any time during laser cutting. While knifes, routing machines or punches cause stress to the material, which can lead to undesirable consequences such as damage, laser cutting offers many advantages thanks to this extraordinary property.
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.
Contact
Please contact GoldenLaser for more info. Your response of following questions will help us recommend the most suitable machine.
1. What is your main processing requirement? Laser cutting or laser engraving (laser marking) or laser perforating or ...?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. What is your application industry? / What is your final product?
5. Your company name, website, Email, Tel (WA...)
1. What is your main processing requirement? Laser cutting or laser engraving (laser marking) or laser perforating or ...?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. What is your application industry? / What is your final product?
5. Your company name, website, Email, Tel (WA...)
Похожие товары

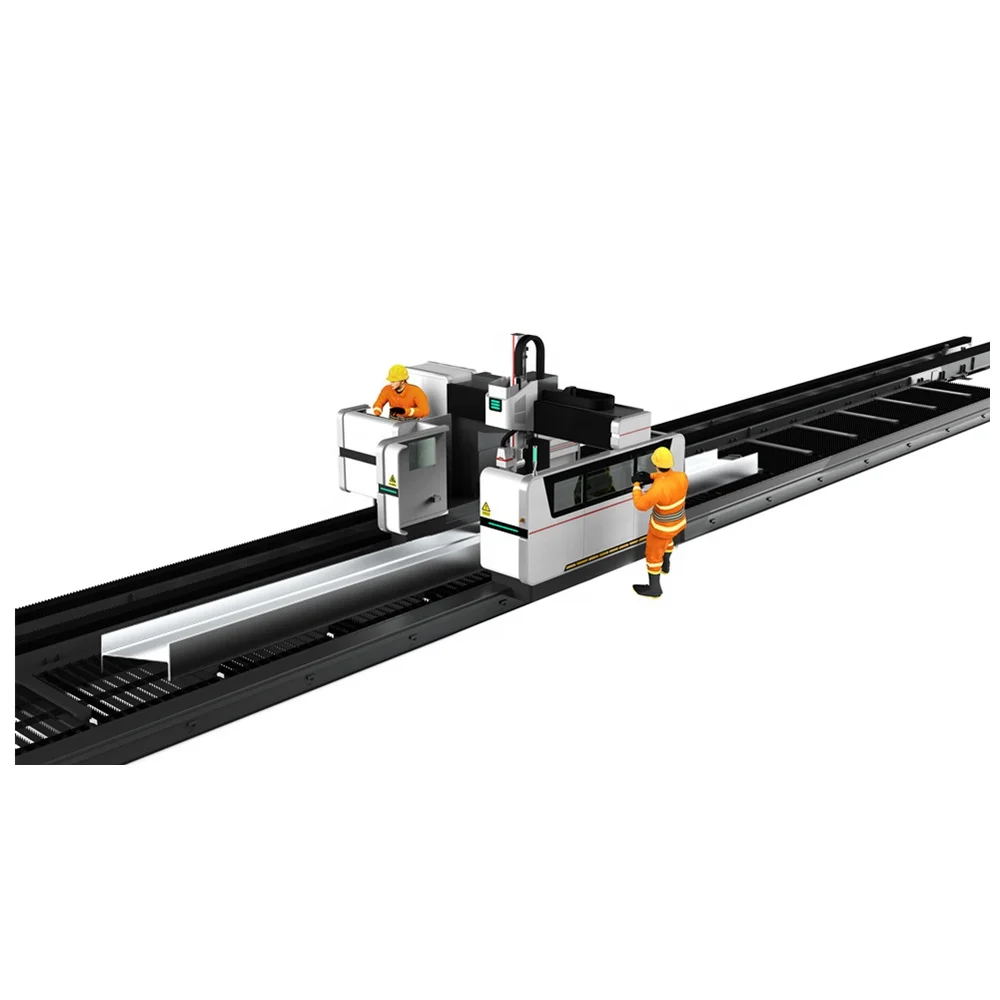

Новый 3D лазерный станок для резки металла 12 кВт-30 кВт двигатель с водяным охлаждением стальных балок поддерживает формат AI
15 209 159,40 ₽
Эксклюзивная Заводская JT-0506 Прецизионная Лазерная Взрывозащищенная пленка для неметаллической резки
2 204 226,00 ₽
Металлический лист из нержавеющей стали точность лазерной резки
1 023 642,56 ₽ - 1 034 663,69 ₽

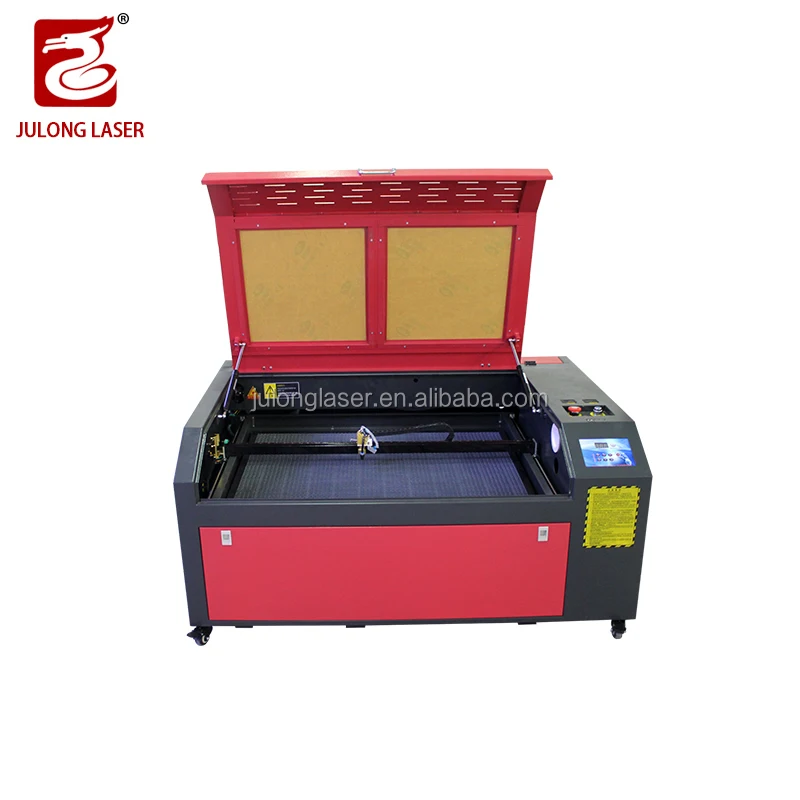

CO2 лазерная трубка JL-K6090 80W гравировальная машина резка
281 038,82 ₽ - 286 549,38 ₽

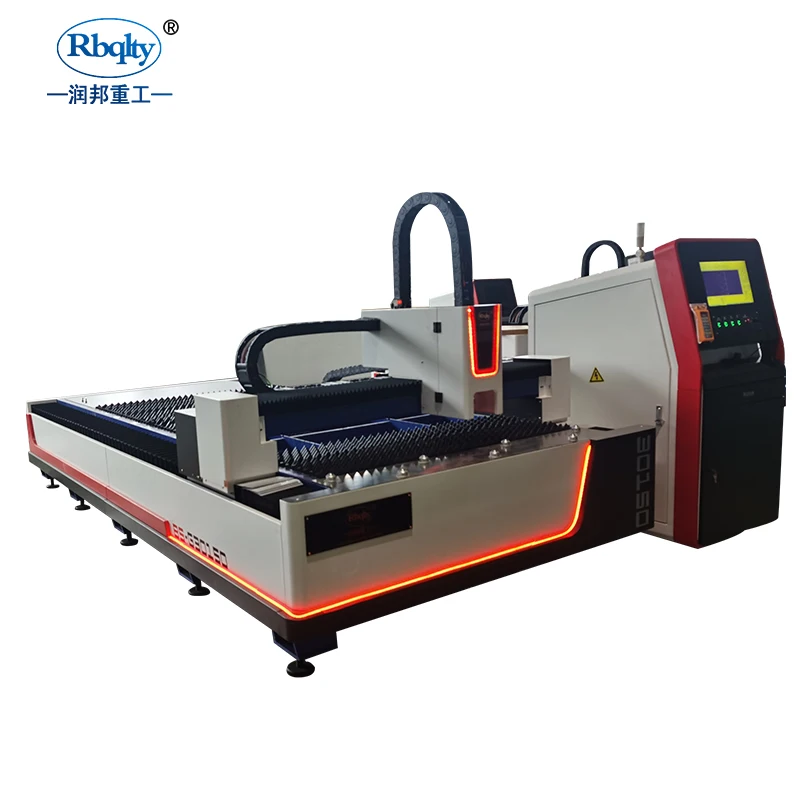

Заводская цена простая в эксплуатации одноплатформенная лазерная резка высококачественное оборудование для лазерной резки металла 1500 6000 Вт 12000
1 388 552,17 ₽ - 1 608 974,77 ₽

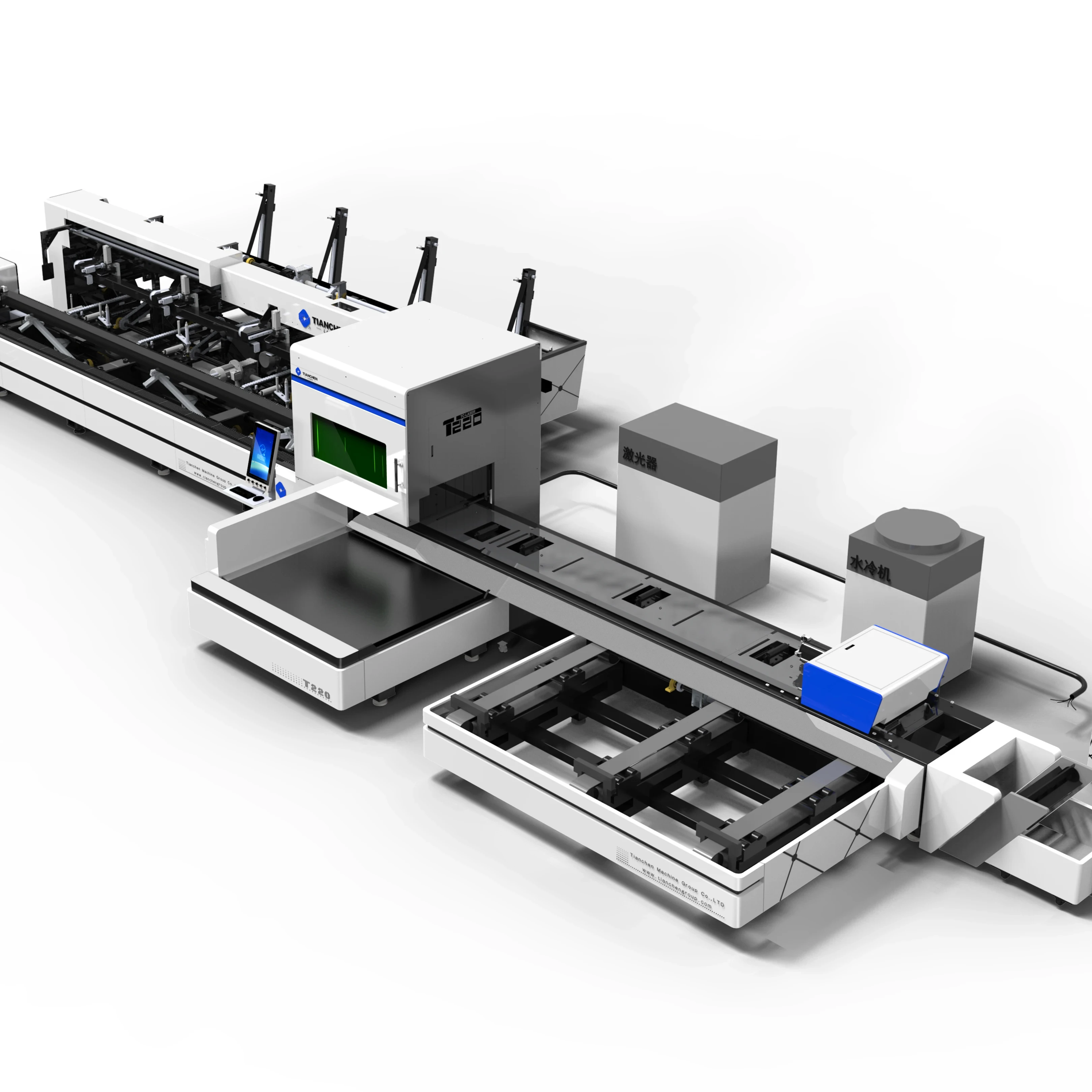

Волоконно-лазерная резка квадратная и круглая трубка пневматическая режущая труба металлическая оборудование для лазерной резки японский мотор
4 408 452,00 ₽

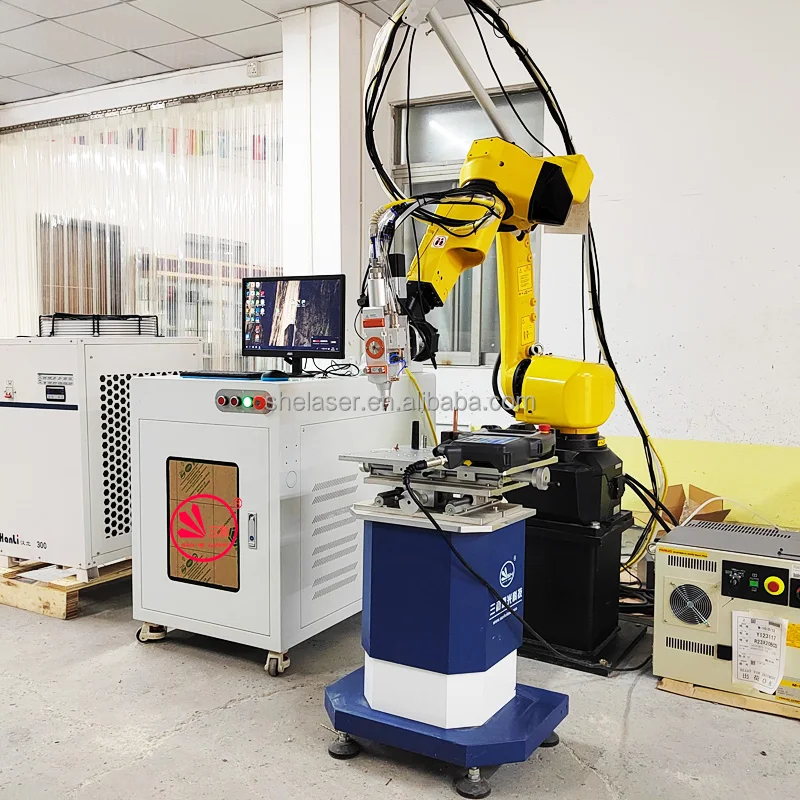

Горячая продажа завод 3D робот волоконный лазерный станок для резки металла железа стальной лист и трубы оборудование лазерной
