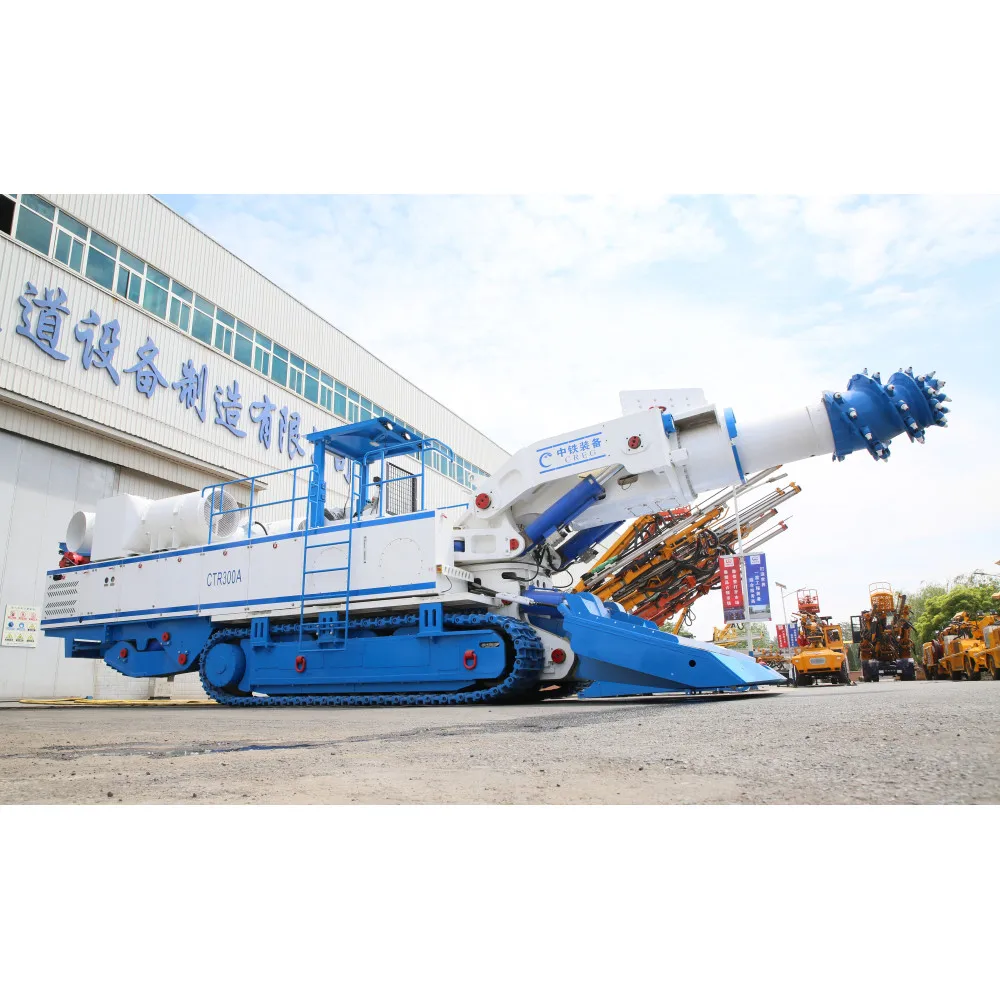

Cummins генератор туннельный экскаватор туннельная Расточная машина гидравлический мини-коллектор
231 647 291,12 ₽

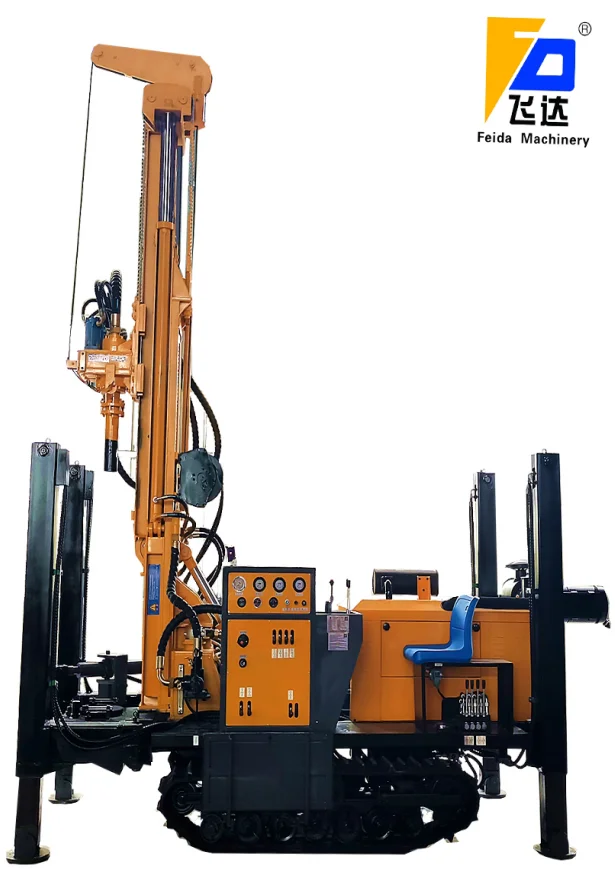

Гидравлическая буровая установка для бурения скважин глубиной 200 м распродажа магазин прочности
- Категория: >>>
- Поставщик: Shandong Wogong Technology Co. Ltd.Shandong Ltd.
Сохранить в закладки 1600897572223:
Описание и отзывы
Характеристики
Products Description
1. Equipped with a 65KW Yuchai brand turbocharged engine with strong power;
2. Patented design compound boom, double cylinder lifting;
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
4. Drilling rig chassis: professional excavator chassis, strong and durable, heavy-duty, wide chain plate, the drilling rig uses rubber tracks to cause little damage to hard roads;
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost;
6. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump.
2. Patented design compound boom, double cylinder lifting;
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
4. Drilling rig chassis: professional excavator chassis, strong and durable, heavy-duty, wide chain plate, the drilling rig uses rubber tracks to cause little damage to hard roads;
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost;
6. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump.
Show details
FYX200 Crawler Water Well Drilling Rig Specification | ||||||
The weight (T) | 5 | Drill pipe diameter (mm) | Φ76 Φ89 | |||
The hole diameter (mm） | 140-254 | Drill pipe length (m) | 1.5m 2.0m 3.0m | |||
Drilling depth (m) | 200 | Rig lifting force (T) | 13 | |||
One-time advance length (m) | 3.3 | Rapid rise speed (m/min) | 30 | |||
Walking speed (km/h) | 2.5 | Fast feeding speed (m/min) | 60 | |||
Climbing angles (Max.） | 30 | Width of loading (m) | 2.6 | |||
Equipped capacitor (kw) | 65 | Hoisting force of winch (T) | 1.5 | |||
Using air pressure (MPA) | 1.7-2.5 | Swing torque (N.m) | 3400-4700 | |||
Air consumption (m3/min) | 17-31 | Dimension (mm) | 3950*1750*2250 | |||
Swing speed (rpm) | 45-70 | Equipped with hammer | Medium and high wind pressure series | |||
The penetration efficiency (m/h) | 10-35 | High leg stroke (m) | 1.4 | |||
The engine brand | Quanchai engine | |||||
Application
Company Profile
Shandong Wogong Technology Co., Ltd. is affiliated to Shandong
Mengyin Feida Mining Engineering Machinery Co., Ltd. The main products are: FY180, FY200, FY280, FY350 and other drilling rig series, drill pipe drilling tool series, high, medium and low pressure air compressors and excavation machine series. The company's products have passed ISO9001 international quality management system certification, which can guarantee high-quality products and the best after-sales service. The main customers are located in Southeast Asia, the Middle East and South America.Welcome to visit our factory and send us inquiries.
Mengyin Feida Mining Engineering Machinery Co., Ltd. The main products are: FY180, FY200, FY280, FY350 and other drilling rig series, drill pipe drilling tool series, high, medium and low pressure air compressors and excavation machine series. The company's products have passed ISO9001 international quality management system certification, which can guarantee high-quality products and the best after-sales service. The main customers are located in Southeast Asia, the Middle East and South America.Welcome to visit our factory and send us inquiries.
Certifications
Contact us
FAQ
1.what can you buy from us?
Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor,Excavator
2. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
3.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
4.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in ShanDong,China.
5.Do you have any certificates for your machine?
All of our products coming with the certificates of CE,ISO9001、EPA.
6. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cas
LanguageSpoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor,Excavator
2. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
3.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
4.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in ShanDong,China.
5.Do you have any certificates for your machine?
All of our products coming with the certificates of CE,ISO9001、EPA.
6. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cas
LanguageSpoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
Jinke JK600 гусеничный гидравлический буровой станок 600 м
1 454 568,97 ₽

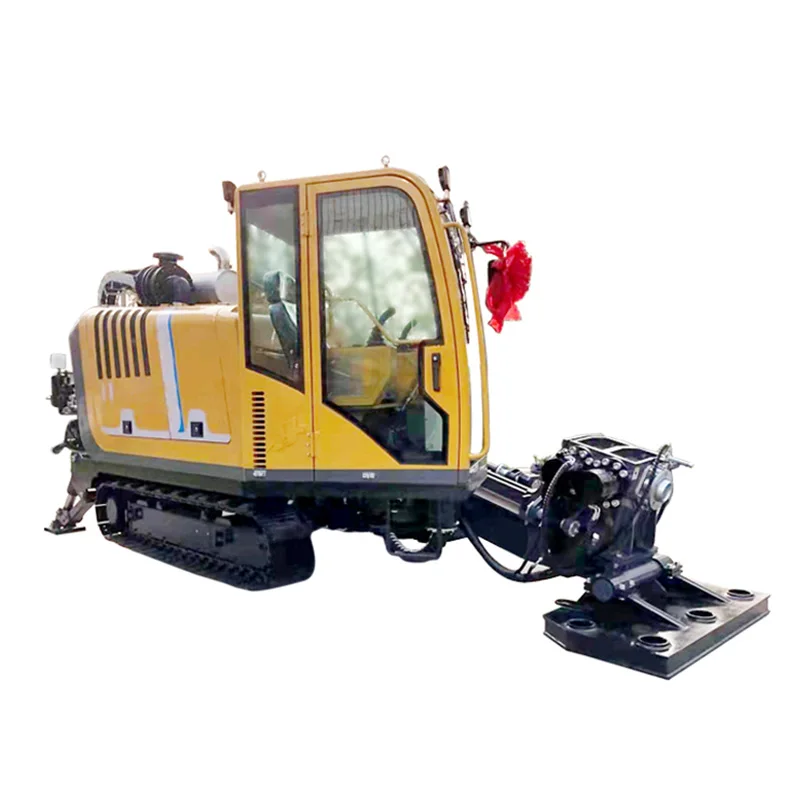

Высокое качество Hdd машина маленькая 18 тонн Машина Лучшая цена
1 561 133,28-2 126 761,28 ₽
Китай производит недорогой гидравлический двигатель силовой агрегат дизельный сердечник мобильные водяные буровые установки сверлильный станок глубина 100 метров
192 313,52-214 938,64 ₽
300 м грузовик монтируется водяная скважина буровая установка для продажи
Мини-портативная буровая установка для бурения скважин
124 325,04 ₽
Мини-буровая установка для бурения скважин воды хорошего качества по низкой цене

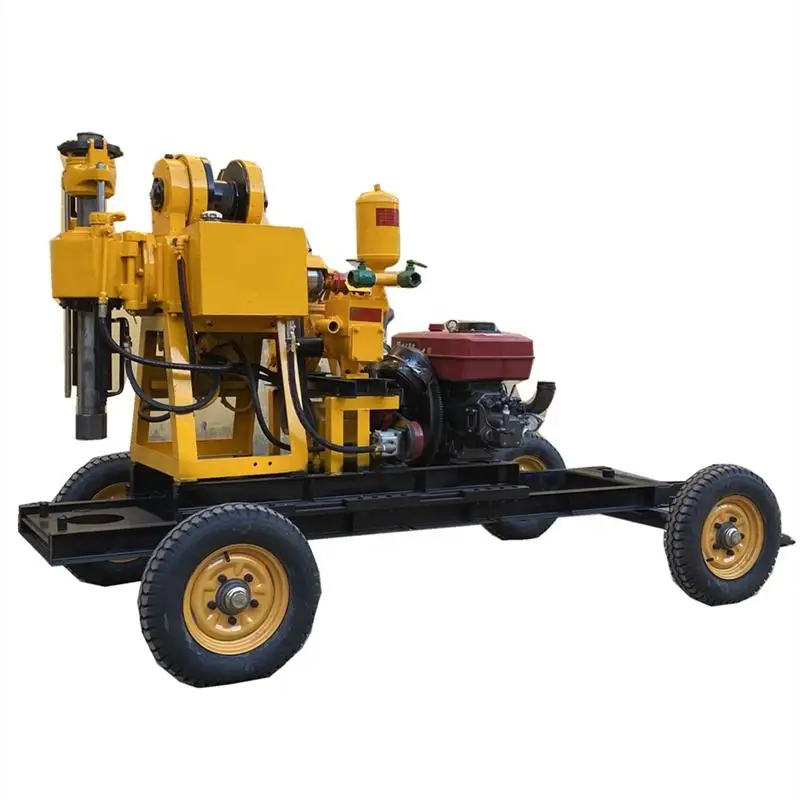

Beidan GK-200 геологоразведочная установка для отбора проб керна буровой установки XY200m дизельная гидравлическая буровая водяных скважин
