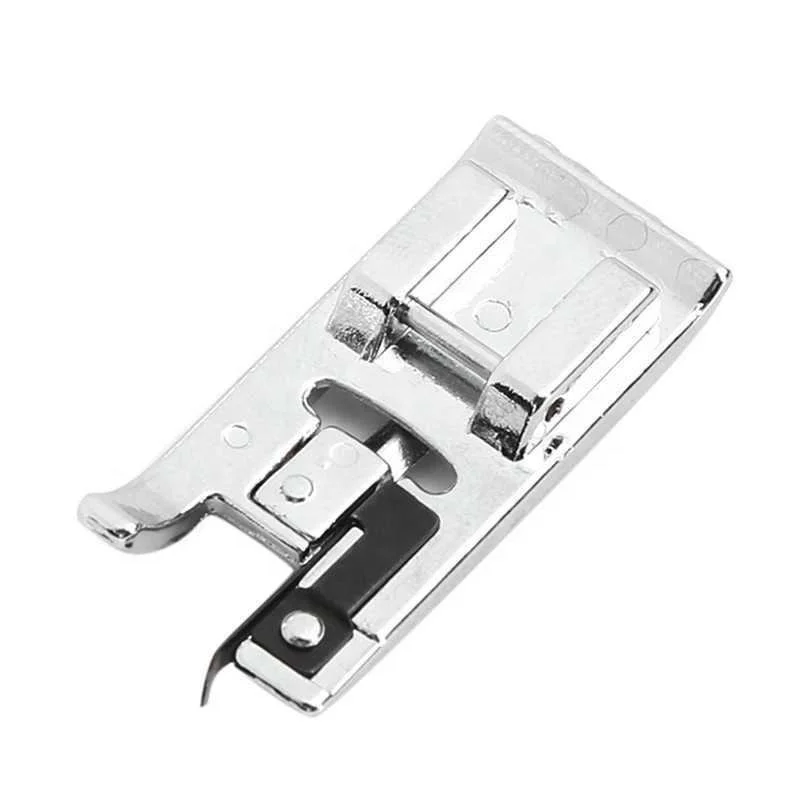

Ножка для ног, пасмурная, для брата, Janome Snap On Foot # SA135 5BB5256, аксессуары для швейной машины, оверлок, вертикальный прижим
133,46 ₽ - 166,28 ₽

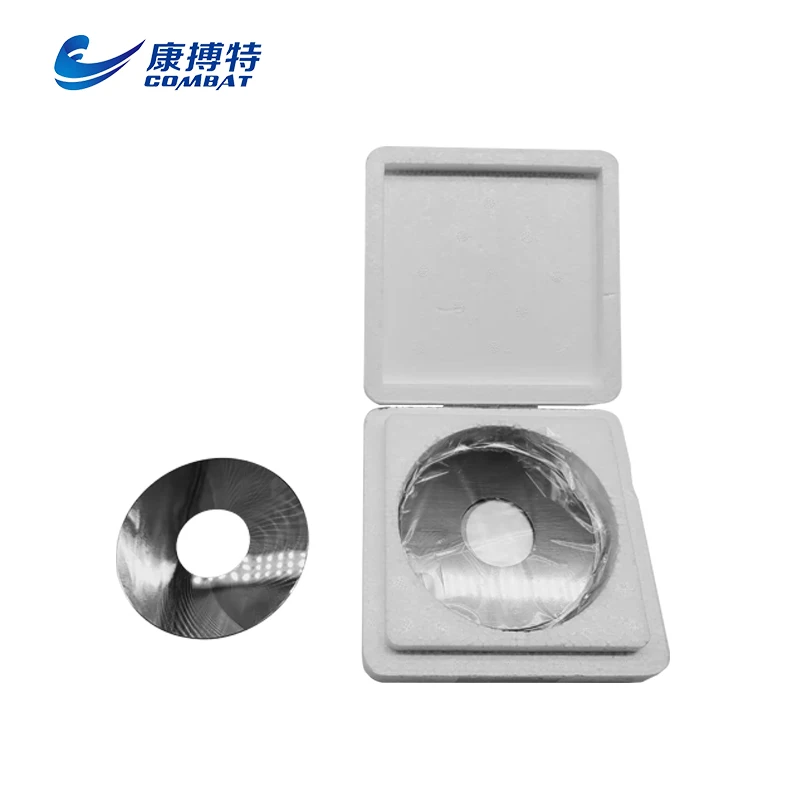

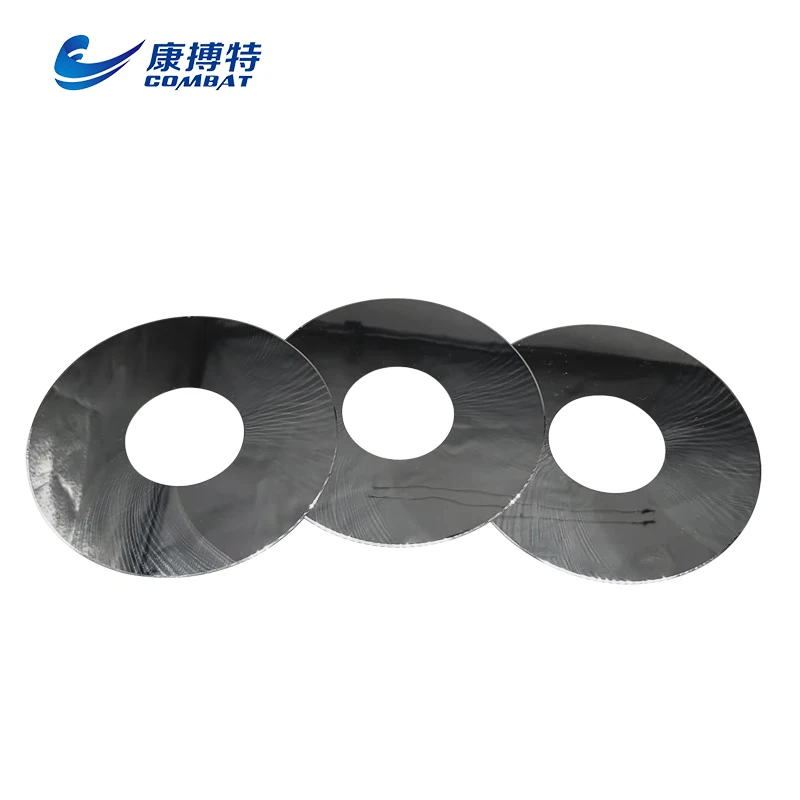

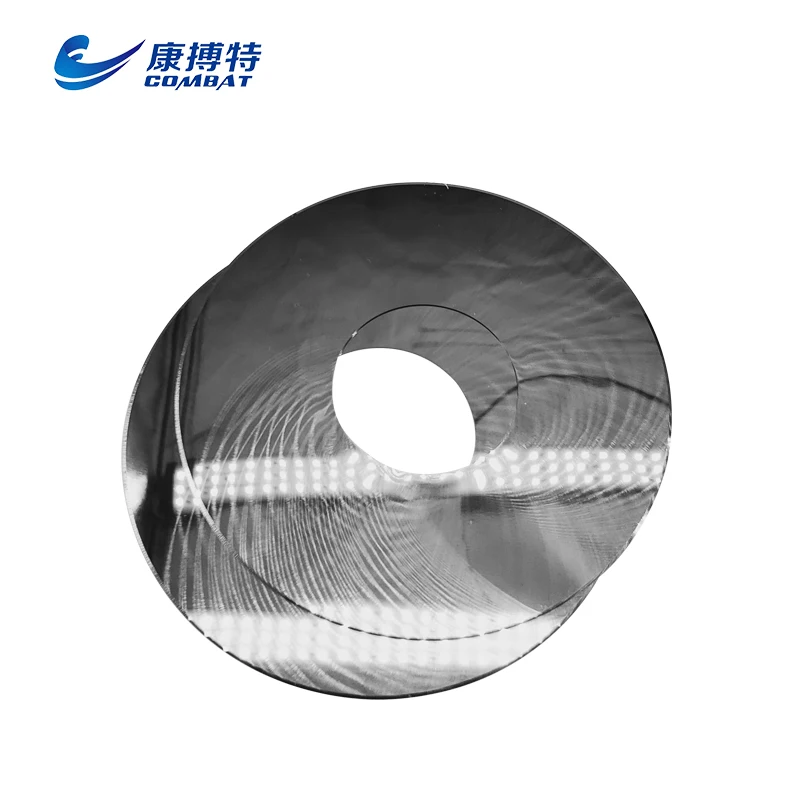

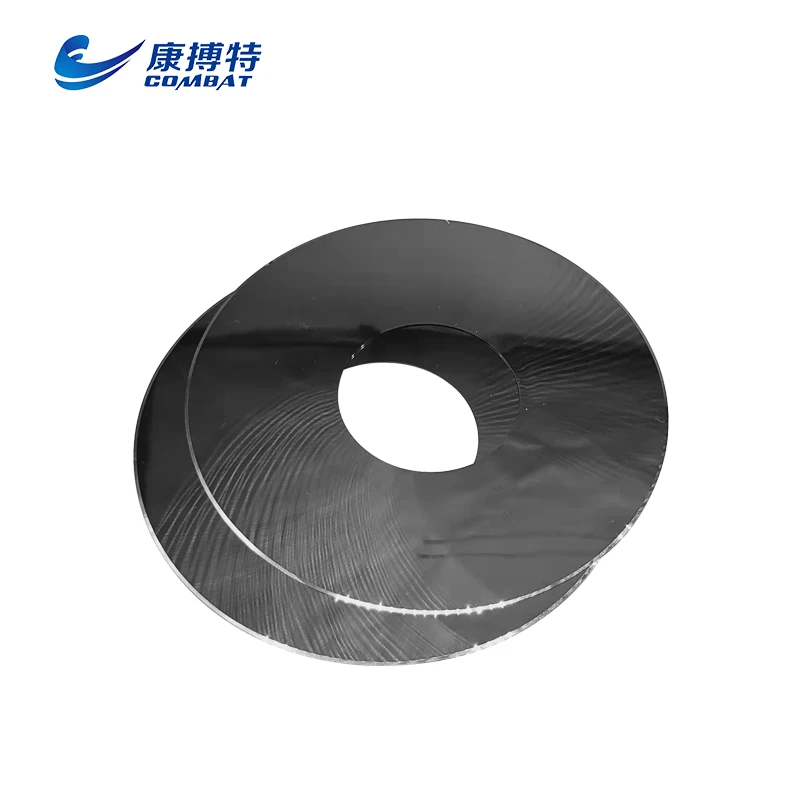

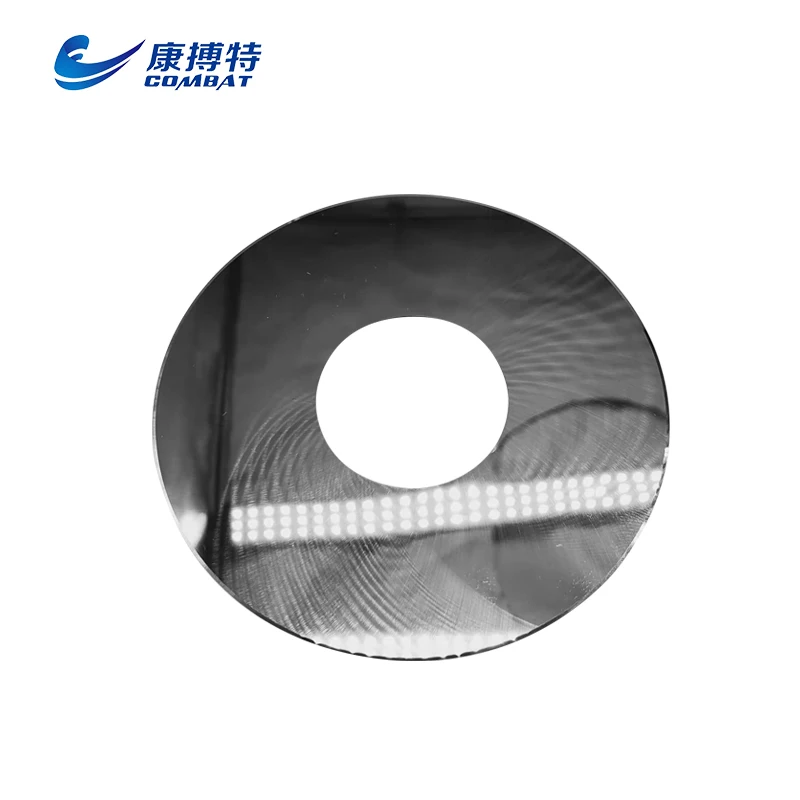

Индивидуальные карбид вольфрама Круглые режущие лезвия высокой точности используемые для Обработки Режущего Инструмента
- Категория: >>>
- Поставщик: Luoyang Combat Tungsten & Molybdenum Material Co. Ltd.
Сохранить в закладки 1600897602949:
Описание и отзывы
Характеристики
Specification
Item | Value |
Place of Origin | China |
Province | Henan |
Brand | Combat |
Product name | Tantalum carbide |
Grade | K10, K20, etc. |
Surface | Grounding suface |
Material | WC, Co, TiC, etc. |
Introduction
Grade | ISO | Density | Hardnes | T.R.S | Performance & application recommended | |||||
g/cm³ | HRA | MPa | ||||||||
YG3X | K01 | 14.6-15.2 | 92 | 1320 | Suitable for high speed finishing of small cutting section of cast iron, non - ferrous metal and alloy hardened steel | |||||
YG6 | K10 | 14.90 | 90.5 | 2400 | Good wear resistance, suitable for machining hard wood, raw wood, aluminum section bar, brass rod and cast iron. | |||||
YG6A | K10 | 14.85 | 92.5 | 2000 | Wear resistance higher than YG6, suitable for machining hard wood, raw wood, aluminum section bar, brass rod and cast iron | |||||
YG6X-1 | K20 | 14.6-15.0 | 90 | 1500 | Suitable for continuous cutting of cast iron, non-ferrous metals and non-metallic alloy materials of fine turning, interrupted cutting of semi-fine turning, fine turning, small section fine turning, coarse thread, continuous section of semi-fine milling and finishing milling, hole coarse expansion and finishing expansion. | |||||
YG8 | K20 | 14.70 | 89.8 | 2800 | High wear and impact resistance，suitable for machining dry wood, soft wood and non-ferrous metal section bar. | |||||
YG8N | K30 | 14.5-14.8 | 90 | 2000 | Suitable for high speed cutting of cast iron, white cast iron, ductile cast iron, chromium, nickel stainless steel and other alloy materials. | |||||
YG10X | K35 | 14.3-14.7 | 89.5 | 2200 | Suitable for manufacturing fine diameter micro drill, end mill, rotary file, etc. | |||||
YS2T | K30 | 14.25 | 92 | 2400 | Fine grain alloy, with high wear resistance, bending strength,bonding resistance and thermal strength. It is suitable formmachining refractory alloys, stainless steel, high manganese steel, etc. | |||||
YL10.2 | K30 | 14.45 | 91.8 | 3000 | Wear resistance and strength comparatively higher,suitable for machining cast iron,non-ferrous metal and non-metallid materials. | |||||
Other grades and size can be offered as per customers’ requirements | ||||||||||
Product Description
Tungsten carbide strip / tungsten carbide square bars /rod/ blocks / plates:
1.Common material: K10, K20, K30, YG6, YG8, YG10, YG11, YG13, YG15, YG20, etc.
2.Main products: Customized moulds & dies, rod, plate, strips, cutting tools, TC ring and roller, mining buttons, carbide tips.
3.Dimension: Customized
4.Certification: ISO9001
2.Main products: Customized moulds & dies, rod, plate, strips, cutting tools, TC ring and roller, mining buttons, carbide tips.
3.Dimension: Customized
4.Certification: ISO9001
Applications：
tungsten carbide alloy is widely used as tool material, such as turning tool, milling tool, planing tool, drill bit, boring tool, etc., for cutting cast iron, nonferrous metal, plastic, chemical fiber, graphite, glass, stone and ordinary steel, also can be used for cutting heat-resistant steel, stainless steel, high manganese steel, tool steel and other difficult to process materials.The cutting speed of the new carbide cutter is hundreds of times that of carbon steel.
Related products
Certificate of inspection
Packing & Delivery
Packaging:
• Carton with water proof paper and protective foam inside
• Standard wooden case
• As consumers' requirements
Shipping: China Manufacturer tungsten alloy plate price
• Transport: TNT, EMS, UPS, FED, DHL, Air transport, Sea Transport, Railway Transport.
• Consumers' request for shipment is available.
• We will recommend the most appropriate transport way for reference.
The track number will be sent promptly after we send the tungsten plates, and we will track the order until you receive successfully.
• Carton with water proof paper and protective foam inside
• Standard wooden case
• As consumers' requirements
Shipping: China Manufacturer tungsten alloy plate price
• Transport: TNT, EMS, UPS, FED, DHL, Air transport, Sea Transport, Railway Transport.
• Consumers' request for shipment is available.
• We will recommend the most appropriate transport way for reference.
The track number will be sent promptly after we send the tungsten plates, and we will track the order until you receive successfully.
Company Profile
VR
Luoyang Combat Tungsten & Molybdenum Material Co., Ltd. is located in Luoyang. Based on abundant resources, our company is professionally manufacturing & trading tungsten, molybdenum and their alloy products.
Main products:
1. Molybdenum products:
1) Pure molybdenum products: molybdenum powder, slabs, bars, rolling plates, sheets, rods (electrodes), wires, crucibles, boats, funnels and other special shape molybdenum products.
2) Molybdenum alloy products: MLR plates, MLR rods, TZM plates, wires and other molybdenum alloy products.
2. Tungsten products:
1) Pure tungsten products: tungsten powder, slabs, bars, rolling plates, sheets, rods (electrodes), wires, crucibles, boats, funnels and other special shapes.
2) Tungsten alloy products: alloy wires, alloy rods (electrodes), alloy crucibles, and other special shape tungsten alloy.
3. Alloy products:
1) Tungsten-copper alloy, silver-tungsten alloy, molybdenum-copper alloy, molybdenum-tungsten alloy.
2) Tungsten nickel copper alloy and tungsten nickel iron alloy.
Combat Company has a young, energetic, and creative team, committed to producing high-quality products, offering competitive prices and timely delivery. We sincerely hope to cooperate with all partners to seek common development and achieve win-win and mutually beneficial purposes.
Main products:
1. Molybdenum products:
1) Pure molybdenum products: molybdenum powder, slabs, bars, rolling plates, sheets, rods (electrodes), wires, crucibles, boats, funnels and other special shape molybdenum products.
2) Molybdenum alloy products: MLR plates, MLR rods, TZM plates, wires and other molybdenum alloy products.
2. Tungsten products:
1) Pure tungsten products: tungsten powder, slabs, bars, rolling plates, sheets, rods (electrodes), wires, crucibles, boats, funnels and other special shapes.
2) Tungsten alloy products: alloy wires, alloy rods (electrodes), alloy crucibles, and other special shape tungsten alloy.
3. Alloy products:
1) Tungsten-copper alloy, silver-tungsten alloy, molybdenum-copper alloy, molybdenum-tungsten alloy.
2) Tungsten nickel copper alloy and tungsten nickel iron alloy.
Combat Company has a young, energetic, and creative team, committed to producing high-quality products, offering competitive prices and timely delivery. We sincerely hope to cooperate with all partners to seek common development and achieve win-win and mutually beneficial purposes.
Luoyang Combat Tungsten & Molybdenum Material Co., Ltd. established in 2008, is a professional engaged in the research, development, sale and service of tungsten, molybdenum, titanium, tantalum, niobium as well as alloy products. Our products are widely used in lighting, glass, medical, welding, aerospace, aviation, machinery, and furnace etc.
The factory has established a one-stop production line of wires, plates, bars, rods, etc. We are located in luoyang with convenient transportation access. The factory have a general investment of 50 million RMB and a plant area of 10,000 Square meter. Our sales volume reached 380 million RMB in 2019, increasing about 20% year by year. Combat sticks to the spirit of unity and hard work, pursuing healthy development and top grade products and aim to bulid a high customer satisfaction enterprise.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained I S O 9 0 0 1 certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as America, Canada, Korean, Japan, German, Switzerland, Mexico, etc.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
FAQ
Q: what is the size of your tungsten products?
A:For tungsten wire， the diameter is from 0.008mm~3.2mm.
For tungsten rod, the diameter is from 2mm~100mm, length is from 50mm~2000mm.
For tungsten sheet, the thickness is from 0.05mm~2mm, the width is from 50mm~600mm, the max length is 600mm.
For tungsten plate, the thickness is from 2.1~25mm, the width is from 30mm~600mm, the max length is 600mm.
For tungsten boat, the thickness is from 0.2mm~0.5nn, the width is from 5mm~25mm, the max length is 100mm.
For tungsten tube, the diameter is from 25mm~340mm, the max length is 650mm.
For tungsten crucible,the diameter is from 10mm~500mm, the height is from 10mm~750mm, the thickness is from 2mm~20mm.
Q: what is the surface of your tungsten products?
A:For tungsten wire, we have graphite black surface, alkali cleaning surface, electric polished surface.
For tungsten rod, we have balck surface and polished surface.
For tungsten sheet, we have alkali cleaning surface and bright surface.
For tungsten plate, we have polished surface.
For tungsten boat, we have alkali cleaning surface.
Foe tungsten tube, we have machined surface.
For tungsten crucible, we have machined surface.
Q: What is the normal use environment of pure tungsten products? How many degrees of high temperature can tungsten withstand?
A: Normally, pure tungsten products can be used in the high temperature vacuum environment, so that they can exert their superior high temperature performance. If it is used in air condition under the high temperature of over 400 degrees, tungsten will react with oxygen and produce WO2. Because the melting point of tungsten is 3410 degrees, it can withstand up to 3300 degrees. But its normal working temperature is 1800~2600 degrees.
Q:What is the thinnest tungsten sheet?
We can achieve the thinnest thickness of 0.025mm, and only a few factories in China can achieve this thickness.
Q: what is the properties of tungsten heavy alloy?
A:(1)High density: 17-18.5g/cc;
(2) High hardness and high strength;
(3) High thermal conductivity and low coefficient of thermal expansion;
(4) Good electrical and thermal conductivity;
(5) Excellent machining performance;
(6) Absorption capacity for X-rays and gamma rays;
(7) For W-Ni-Cu tungsten heavy alloy, it is non-magnetic.
Q:Can you produce WL20 tungsten electrode as per our physical properties and chemical composition requirements?
A:Regarding WL20 tungsten electrode products, The standard we generally implement is ISO 6848-2004. We can also produce customized products. If you have special requirements for physical properties and chemical composition, please send them to us, our technical staff will evaluate your requirements.
Q:How long is the service life of your tungsten crucible?
A:Usually it is about half a year to a year. In addition, the service life also depends on your use environment and temperature. If the contact temperature is too high, it will affect the service life of the crucible.
We will recommend suitable material & sizes for you according to your requirements.
Q：What are the types or grades of tungsten copper alloy?
A：According to different chemical composition content, divide into different product grade levels: For example, if the tungsten content is 70 percent and the copper content is 30 percent, we will call the grade name W70Cu30. And so on, we have W75Cu25, W80Cu20,W90Cu10 etc.
All types of tungsten copper alloys vary in density, hardness, electrical conductivity, bending strength and other aspect.
Q： What are the advantages of your tungsten copper alloy products?
A：High quality products, the most preferential lowest price, strong productivity and supply capacity, quality after-sales service.
Q: What’s the best selling of Tungsten Copper alloy items?
A:We often export W50/Cu50, W75/Cu25n W70/Cu30, W80/Cu20, W90/Cu10. Also can customized according to your detail requirements.
Q:What is the normal average grain size of tungsten and molybdenum targets we supply?
A:For tungsten target, average grain size is less than 100μm normally between 50~60μm;
For molybdenum target, average grain size is less than 50μm.
A:For tungsten wire， the diameter is from 0.008mm~3.2mm.
For tungsten rod, the diameter is from 2mm~100mm, length is from 50mm~2000mm.
For tungsten sheet, the thickness is from 0.05mm~2mm, the width is from 50mm~600mm, the max length is 600mm.
For tungsten plate, the thickness is from 2.1~25mm, the width is from 30mm~600mm, the max length is 600mm.
For tungsten boat, the thickness is from 0.2mm~0.5nn, the width is from 5mm~25mm, the max length is 100mm.
For tungsten tube, the diameter is from 25mm~340mm, the max length is 650mm.
For tungsten crucible,the diameter is from 10mm~500mm, the height is from 10mm~750mm, the thickness is from 2mm~20mm.
Q: what is the surface of your tungsten products?
A:For tungsten wire, we have graphite black surface, alkali cleaning surface, electric polished surface.
For tungsten rod, we have balck surface and polished surface.
For tungsten sheet, we have alkali cleaning surface and bright surface.
For tungsten plate, we have polished surface.
For tungsten boat, we have alkali cleaning surface.
Foe tungsten tube, we have machined surface.
For tungsten crucible, we have machined surface.
Q: What is the normal use environment of pure tungsten products? How many degrees of high temperature can tungsten withstand?
A: Normally, pure tungsten products can be used in the high temperature vacuum environment, so that they can exert their superior high temperature performance. If it is used in air condition under the high temperature of over 400 degrees, tungsten will react with oxygen and produce WO2. Because the melting point of tungsten is 3410 degrees, it can withstand up to 3300 degrees. But its normal working temperature is 1800~2600 degrees.
Q:What is the thinnest tungsten sheet?
We can achieve the thinnest thickness of 0.025mm, and only a few factories in China can achieve this thickness.
Q: what is the properties of tungsten heavy alloy?
A:(1)High density: 17-18.5g/cc;
(2) High hardness and high strength;
(3) High thermal conductivity and low coefficient of thermal expansion;
(4) Good electrical and thermal conductivity;
(5) Excellent machining performance;
(6) Absorption capacity for X-rays and gamma rays;
(7) For W-Ni-Cu tungsten heavy alloy, it is non-magnetic.
Q:Can you produce WL20 tungsten electrode as per our physical properties and chemical composition requirements?
A:Regarding WL20 tungsten electrode products, The standard we generally implement is ISO 6848-2004. We can also produce customized products. If you have special requirements for physical properties and chemical composition, please send them to us, our technical staff will evaluate your requirements.
Q:How long is the service life of your tungsten crucible?
A:Usually it is about half a year to a year. In addition, the service life also depends on your use environment and temperature. If the contact temperature is too high, it will affect the service life of the crucible.
We will recommend suitable material & sizes for you according to your requirements.
Q：What are the types or grades of tungsten copper alloy?
A：According to different chemical composition content, divide into different product grade levels: For example, if the tungsten content is 70 percent and the copper content is 30 percent, we will call the grade name W70Cu30. And so on, we have W75Cu25, W80Cu20,W90Cu10 etc.
All types of tungsten copper alloys vary in density, hardness, electrical conductivity, bending strength and other aspect.
Q： What are the advantages of your tungsten copper alloy products?
A：High quality products, the most preferential lowest price, strong productivity and supply capacity, quality after-sales service.
Q: What’s the best selling of Tungsten Copper alloy items?
A:We often export W50/Cu50, W75/Cu25n W70/Cu30, W80/Cu20, W90/Cu10. Also can customized according to your detail requirements.
Q:What is the normal average grain size of tungsten and molybdenum targets we supply?
A:For tungsten target, average grain size is less than 100μm normally between 50~60μm;
For molybdenum target, average grain size is less than 50μm.
Why Choose Us
Our Service
1. Competitive price.
2. Our strengths over other suppliers.
3. Reliable quality on the base of the same price.
4. 100% Timely delivery as your as your requirements.
5. Professional service to cut much purchasing costs down.
6. We offer discount for old customers.
7. We do our best to meet the requirements of customers.
8. Faced with problems related with products, please feel free to contact us.
We will try our best to help you.
1. Competitive price.
2. Our strengths over other suppliers.
3. Reliable quality on the base of the same price.
4. 100% Timely delivery as your as your requirements.
5. Professional service to cut much purchasing costs down.
6. We offer discount for old customers.
7. We do our best to meet the requirements of customers.
8. Faced with problems related with products, please feel free to contact us.
We will try our best to help you.
Похожие товары

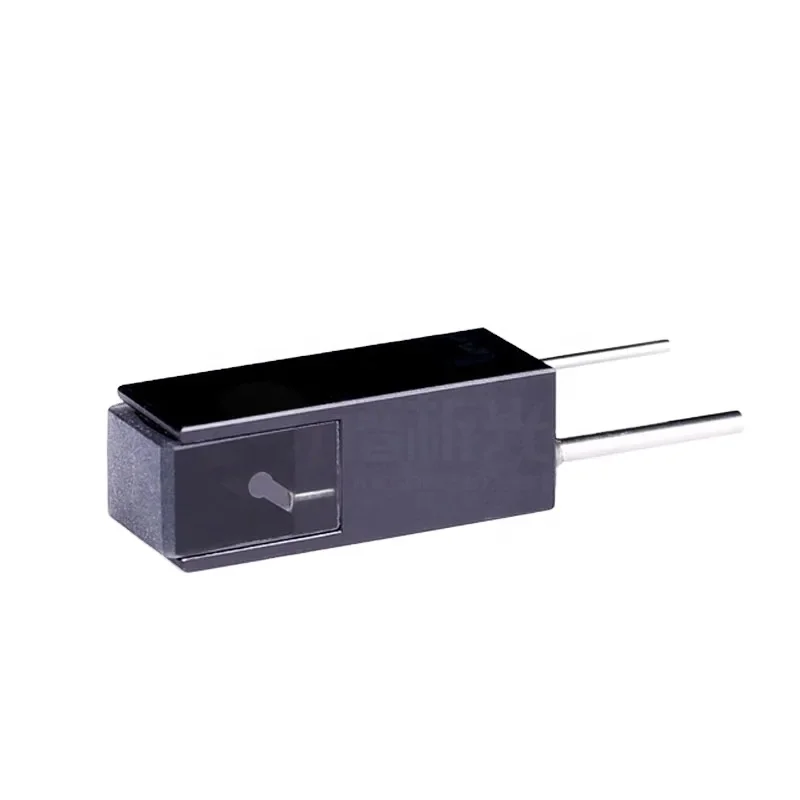

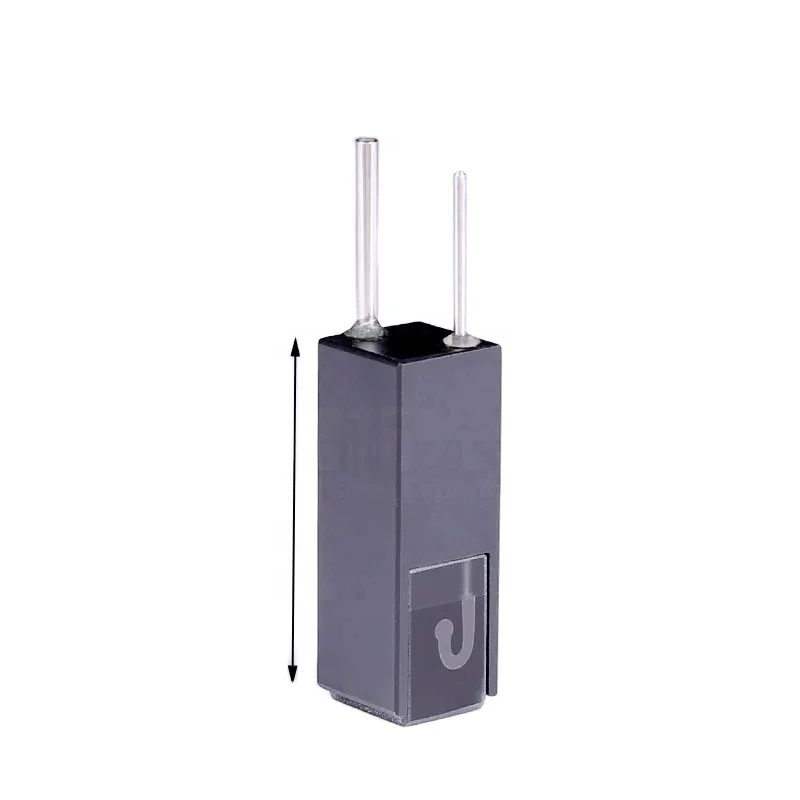

Кварцевая кювета для Ba88a 6V10W, новые и высококачественные кюветы для BA-88A, химический анализатор
Кварцевая кювета для Ba88a 6V10W, новая и высококачественная кювета для BA-88A Mindray, химический анализатор
Кварцевая кювета для Ba88a 6V10W, новая и высококачественная кювета, BA-88A, химический анализатор, кюветы

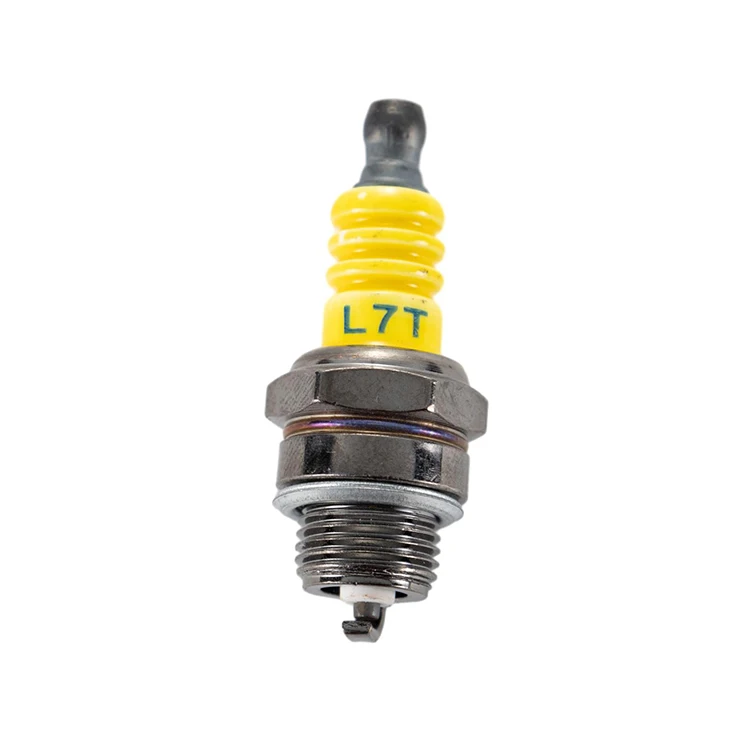

Лазерные двойные Иридиевые свечи зажигания L7T для двухтактного электрода бензопилового двигателя 2500 3800 4500 5200 замены аксессуаров
24,07 ₽ - 26,26 ₽

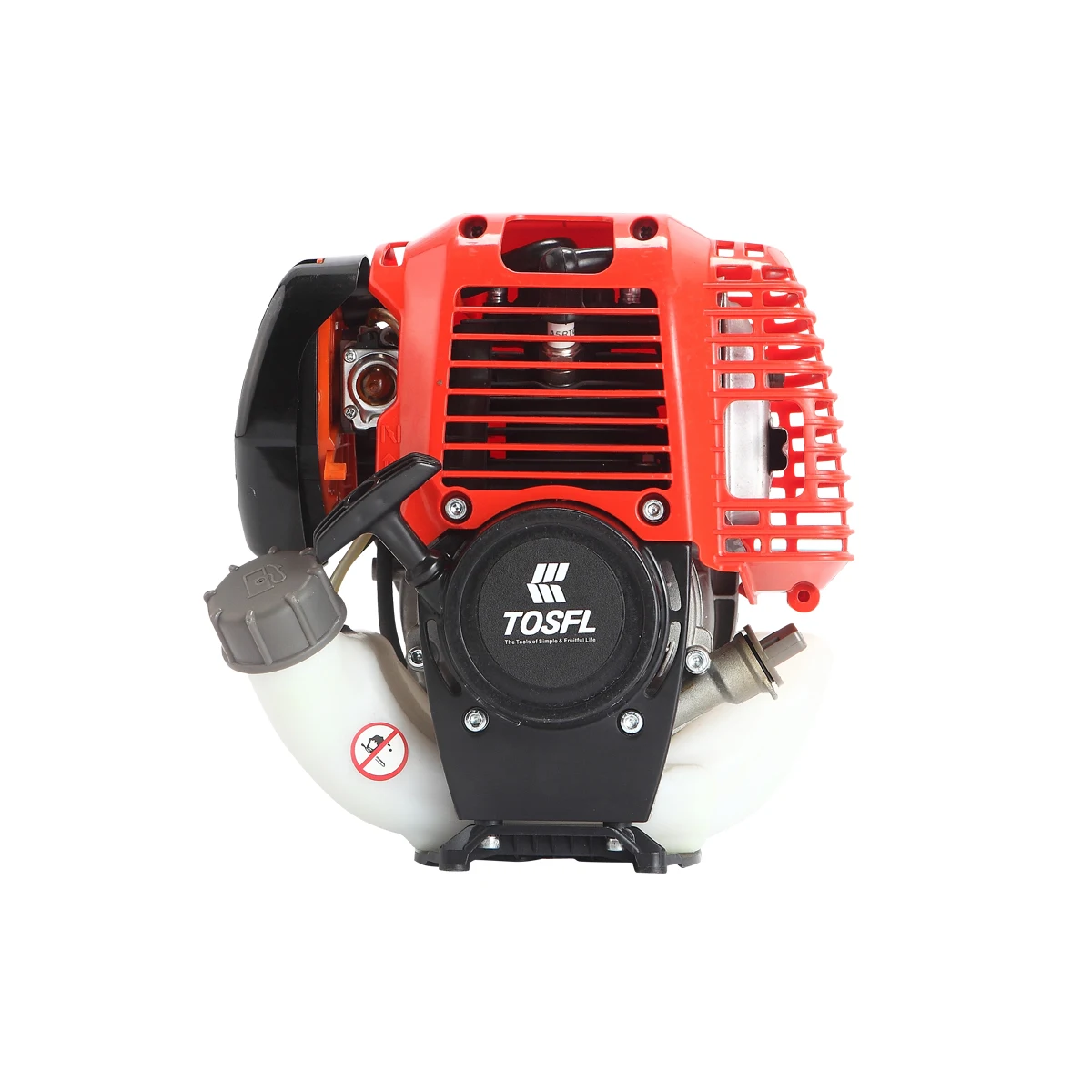

4-тактный 139F с воздушным охлаждением ручная газонокосилка, работающая на бензине двигатель

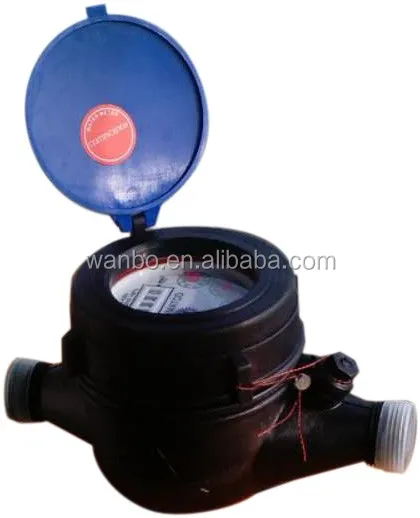

Пластиковый счетчик воды
546,97 ₽ - 601,67 ₽

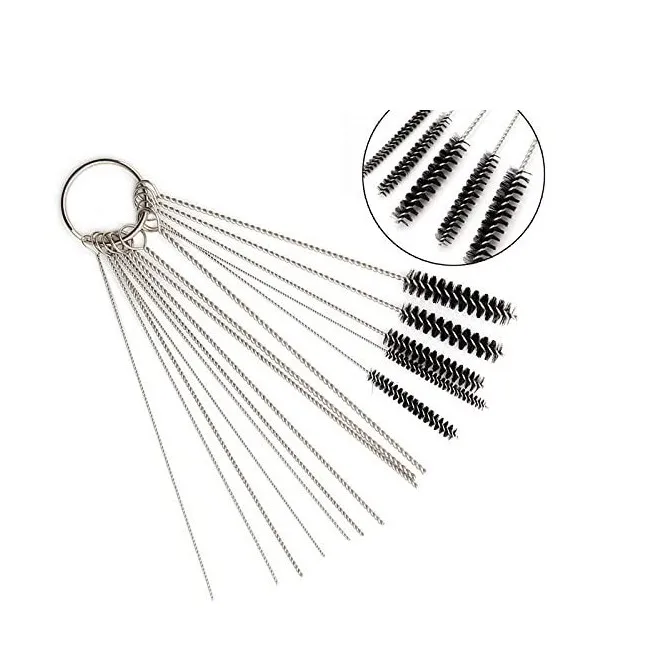

Высокое качество в наличии карбюратор углерода грязи Джет чистого набор инструментов 10 очистки игл 5 щеток
96,27 ₽ - 109,40 ₽
Новые поступления
Новинки товаров от производителей по оптовым ценам
Hantek щупы осциллографа автоматический Тестовый Кабель Ht30a Bnc к банану двойная Банановая головка многоцелевое автомобильное
3,10-3,44 $
Горячая распродажа ручная работа традиционная деревянная урна для домашних животных квадратная коробка золы собак и кошек персонализированная Лучшая цена
Промышленная серия CL Бесшумная цепь стальная зубчатая Фланцевая контактная звездочка соединяющая бесшумные цепи
1-1,50 $
Irdmco экологически чистый минималистичный прямоугольный деревянный ящик для хранения стеллаж поделок и детских игрушек Домашняя мебель гостиной
Технология сенсорных перчаток и аксессуары для детей от дождя холода M725132-334
1,07-1,40 $
GY6 6 Pin AC гоночный CDI для CG125 CG250 двигателя Dirt Pit Bike ATV Quad
Парик из синтетического волокна для косплея
9,85-12,66 $
Прямая Продажа с фабрики 65 см Модернизированный подвесный стерео голографический проектор светодиодный вентилятор высокой четкости экран 3D дисплей
155-185 $
