SW 205 с раздвижной головкой токарный станок ЧПУ швейцарского типа для сложной геометрии
- Категория: >>>
- Поставщик: Foshan Sds Smart Tech Co. Ltd.
Сохранить в закладки 1600897930153:
Описание и отзывы
Характеристики
Product Description
Product Specifications
Processing parameters | ||
Max. Length of Workpiece | 190mm | |
Max. Turning Diameter | Φ20mm | |
Max. Axial Drilling Diameter | Φ10mm | |
Max. Axial Tapping Size | M8 | |
Rated Spindle Speed | Main: 3000rpm Sub: 3000rpm | |
Max. Spindle Speed | Main: 10000rpm Sub: 12000rpm | |
Max. Radial Drilling Diameter | Φ7mm | |
Max. Radial Tapping Size | M6 | |
Max. Speed of Side Living Tool | 7500rpm | |
Rated Speed of Side Living Tool | 4500rpm | |
Max. Extraction Length of Workpiece | 100mm | |
Tool sizes | ||
Number Of Tools Installed | 6 | |
Tool (Turning Tool) | 12X12 | |
Sleeve | Φ25.0 X 12T | |
TRAVELS | ||
Z-Axis | Z1:280mm Z2:170mm | |
X-Axis | X1:185mm X2:520mm | |
Y-Axis | Y1:300mm Y2:62mm (Optional) | |

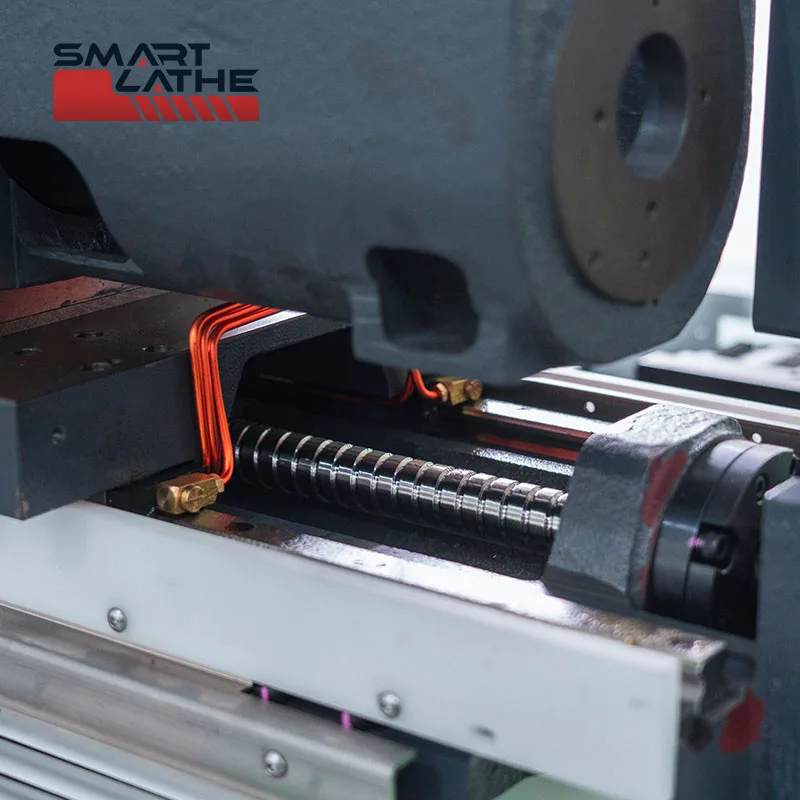

Guideway Type | THK ball screw rod & linear guideway | |
Z1/Z2/X2/Y Axis | Up to 30m/min | |
X1 Axis | Up to 24m/min | |
Machining Accuracy | ±0.005mm | |
Surface Roughness | ≤Ra 1.6μm | |
Chuck guide bush | ||
Spindle Collet | TSUGAMI S20 | |
Living Tool Collet | ER16 | |
Bushing | TSUGAMI BS-20#-B | |
Motor | ||
Spindle Drive Power | 2.5KW/3.7KW | |
Living Tool Drive Power | 1KW | |
Cooling Pump | 0.4KW | |
Spindle Cooling | 0.075KW | |
Lubricating Oil | 0.01KW | |
CNC CONTROL | ||
Controller | Standard: SYNTEC Optional: Mitsubishi/Fanuc | |
POWER SUPPLY | ||
Total Power | 9.6KW | |
Voltage | 380VAC 50Hz | |
DIMENSIONS | ||
Dimensions (L/W/H) | 2250mm*1200mm*2000mm | |
Weight | 2600 kg | |
Motion Axis Assignment
Standard Configuration
Spindle Collet | Tools Box | Cutting Fluid Device |
Spindle Cooling Device | Sub-Spindle Position Block | Finished Product Storage Box |
Sub-Spindle Chuck | Cutting Tool Detection | Lubrication Unit |
Security Door Locks | Lighting, Alarm Light |
Oil Mist Collector
High-Pressure Oil Pump
Synchronous Guide Brush
Product Conveyor Belt
Servo Bar Feeder

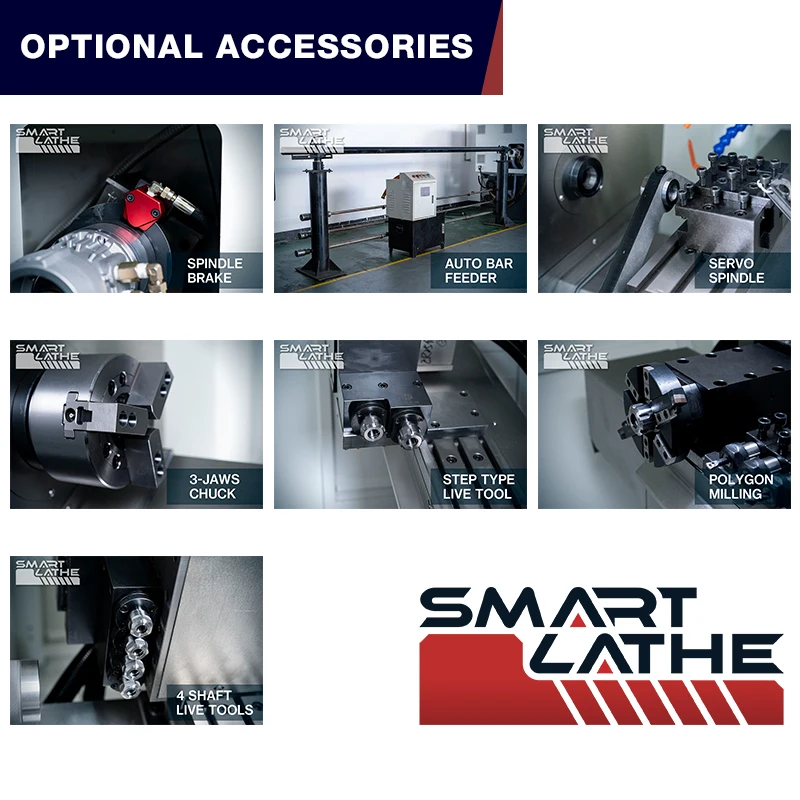

Optional Accessories
Cartridge-type Milling Unit
Y2 Axis Living Tool
Applications
This type of lathe is particularly useful for producing long and slender parts, such as medical instruments, watch components, and aerospace parts, where high precision and accuracy are required. The machine's advanced technology and flexibility make it ideal for mass production, prototyping, and customized production.
Swiss lathes be used extensively to produce parts for the electronics and semiconductor industries, medical technology, aerospace, and high-end industrial markets applications. Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameters up to Φ20 mm.
Swiss lathes be used extensively to produce parts for the electronics and semiconductor industries, medical technology, aerospace, and high-end industrial markets applications. Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameters up to Φ20 mm.
Features
Company Profile
FAQ
1:How can I choose machines?
A: for the model selection, please send us the drawing of the turning part and our engineer will evaluate it and provide the suitable configuration of the CNC lathe fit for your needs.
2: What's the main products of your company?

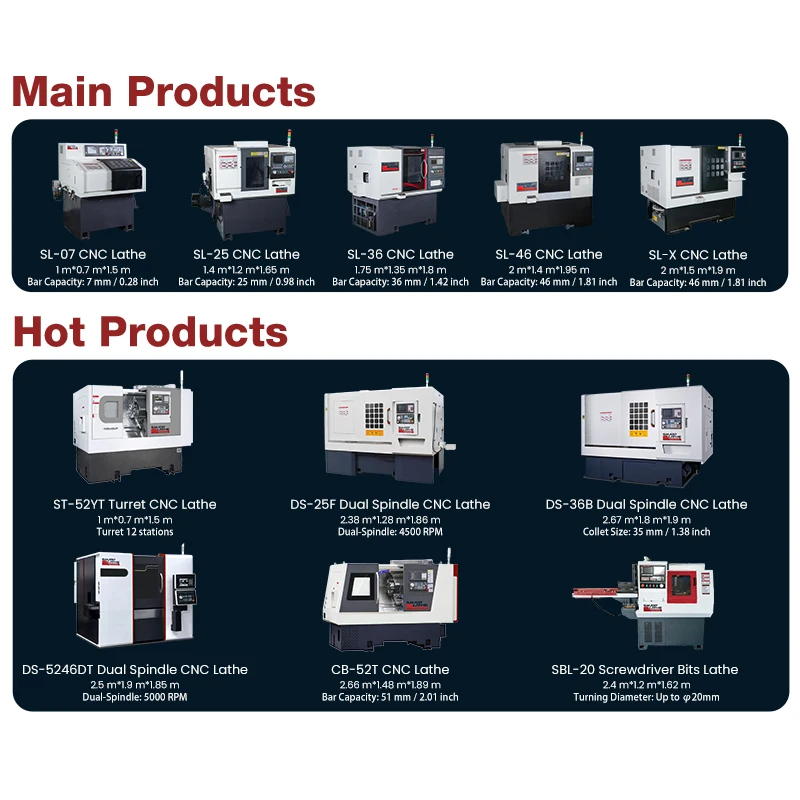

A: SmartLathe concentrated all its resources to develop successfully the SL series of the CNC slant bed lathes including the SL-07, SL-25, SL-36, SL-46, and the CNC Turning-Milling machines to help our customers in the field of prototyping, entry-level business, and the craftsman with a bootstrap budget.
3: Where is our factory located? How can I visit there?
A: Our factory is located in Foshan City, Guangdong Province, 528300 China. You are warmly welcome to visit our factory.
4: What are the Trade & Payment Terms?
A: FOB, CFR, and CIF are all acceptable. T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC at sight.
5: What's the MOQ?
A: 1 set. We will offer you’re a better price if you order more.
6. What is the delivery time?
A: The full series of standard models are in stock. For a customized one, it depends.
7. Do you have any certificates?
A: Yes, our machine is CE-compliant, and our factory is ISO 9001 accredited.
8. What is the warranty period?
A: The warranty period is generally 13 months after B/L date.
9. Machine installation
A: SmartLathe could assign the technician to the place for the on-site installation if requested by the purchaser.
10. Technical Support
A: The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
A: for the model selection, please send us the drawing of the turning part and our engineer will evaluate it and provide the suitable configuration of the CNC lathe fit for your needs.
2: What's the main products of your company?
A: SmartLathe concentrated all its resources to develop successfully the SL series of the CNC slant bed lathes including the SL-07, SL-25, SL-36, SL-46, and the CNC Turning-Milling machines to help our customers in the field of prototyping, entry-level business, and the craftsman with a bootstrap budget.
3: Where is our factory located? How can I visit there?
A: Our factory is located in Foshan City, Guangdong Province, 528300 China. You are warmly welcome to visit our factory.
4: What are the Trade & Payment Terms?
A: FOB, CFR, and CIF are all acceptable. T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC at sight.
5: What's the MOQ?
A: 1 set. We will offer you’re a better price if you order more.
6. What is the delivery time?
A: The full series of standard models are in stock. For a customized one, it depends.
7. Do you have any certificates?
A: Yes, our machine is CE-compliant, and our factory is ISO 9001 accredited.
8. What is the warranty period?
A: The warranty period is generally 13 months after B/L date.
9. Machine installation
A: SmartLathe could assign the technician to the place for the on-site installation if requested by the purchaser.
10. Technical Support
A: The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
11. Demo and Testing
A: SmartLathe built a training center for the clients and employees to study the operation of the machine. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could demo per your drawing of turning parts.
A: SmartLathe built a training center for the clients and employees to study the operation of the machine. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could demo per your drawing of turning parts.
Похожие товары
Встраиваемый светодиодный линейный светильник, потолочный встраиваемый линейный светильник, Встраиваемый светодиодный линейный светильник 3-4-5-6-8 футов
Аминокислотный усилитель иммунитета Tyrosine в стиле жевательной железы для улучшения
4,00 $ - 4,80 $
Новый креативный пакет для красного вина, Рождественский набор для украшения бутылки вина, рождественские крышки для бутылок вина, Санта-Клауса, украшения для дома
0,37 $ - 0,51 $
Полипропиленовый тканый пустой мешок 100% новый материал мешок для риса 50 кг
0,06 $ - 0,08 $
Роликовые подшипники LONK, цилиндрические роликовые подшипники NJ406, роликовая мельница по заводской цене, подшипник Nj406
Тонкие волосы Детские сырье для отбеливания и окрашивания натуральные человеческие

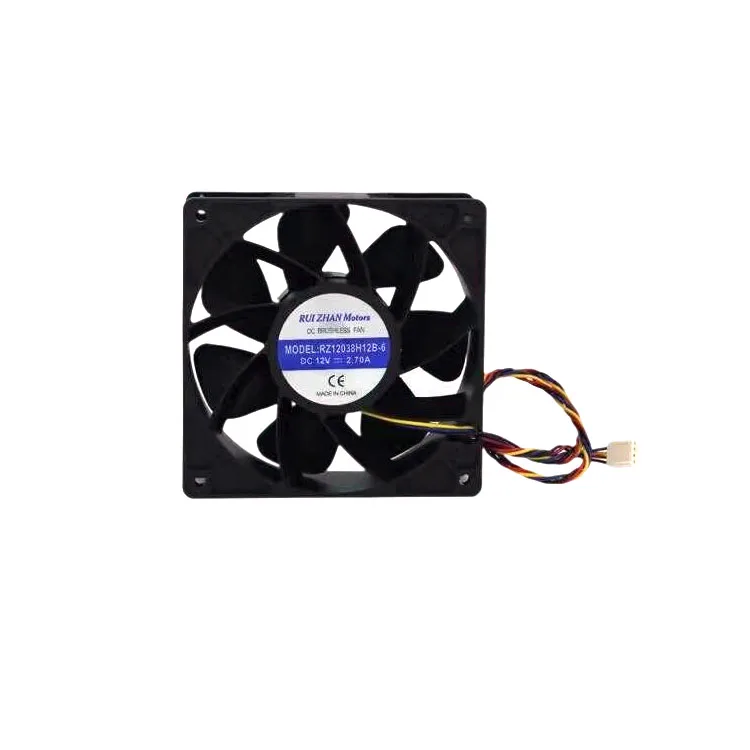

Компьютерный радиатор 12 В постоянного тока, 6000 об/мин, кулер для процессора, вентилятор охлаждения 120*120*38 мм
