Высокочастотный сварочный аппарат для конвейерных лент
6 000,00-11 000,00 $
Простой в эксплуатации двухсторонний гидравлический высокочастотный сварочный аппарат для изготовления стельки спортивной обуви
- Категория: >>>
- Поставщик: Dongguan Jingyi High Frequency Machinery Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1600898483314:
Описание и отзывы
Характеристики
Product Overview

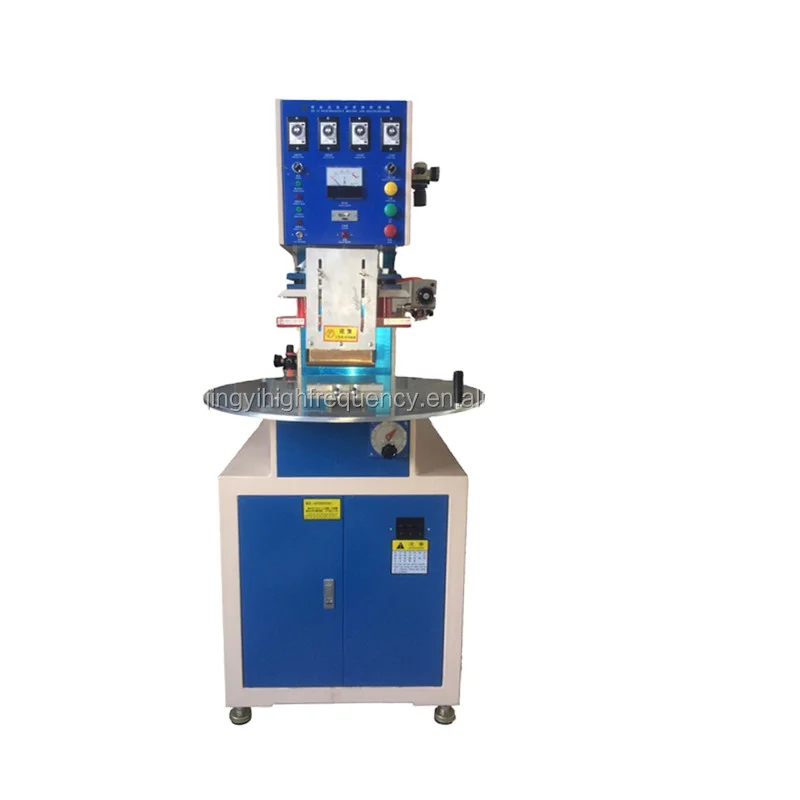

Double Head Hydraulic High Frequency Machine
1. Anti-spark machine, The anti-spark system can cut off the high frequency to minimize the impact towards the material and moulds at the same time,the alarm will alsolight in that case.
2. Jamming prevention device,equipped with frequency stabilizer and high frequency magnetic leakage suppressor,this device previce leakage of electromagnetic radiation to anoid jamming other electrical instruments such as televisions and radios ,etc.
3. Safety device,when the current exceeds its limits,the overload relay functions automaticaly to protect oscillation tubes and rectifier,frequency deviation caused by misoperation is also prevented.
4. Mechanical structure of the special,thanks to the excellent design and structure,our machine enjoy very fine precision and intensity.
3. Safety device,when the current exceeds its limits,the overload relay functions automaticaly to protect oscillation tubes and rectifier,frequency deviation caused by misoperation is also prevented.
4. Mechanical structure of the special,thanks to the excellent design and structure,our machine enjoy very fine precision and intensity.
5. Oil pressure device,this machine with hydraulic pressurizing device which can adjust the pressure if practical,greatly decrease the operation difficulty and improve equipments,change the controlling method may modify the high frequency processing technology.
Model | JY5000TY | JY8000TY | JY10000TY | ||
Output Power | 5KW | 8KW | 10KW | ||
Voltage | AC 220/380/415/440V 3P 50/60HZ (Customized) | ||||
Input Power | 8.5KVA | 15KVA | 18KVA | ||
Oscillation Frequency | 27.12MHz | 27.12MHz | 27.12MHz | ||
Oscillation Tube | 7T85RB | 7T69RB | E3069 | ||
Anti-spark System | NL-5557 | NL-5557 | NL-5557 | ||
Max Pressure | 1500kg | 1500kg | 1500kg | ||
Gap Of Electrodes | 80mm | 80mm | 80mm | ||
Working Space | 60mm | 60mm | 60mm | ||
Size Of Workin g Table | 350*700mm | 350*700mm | 350*700mm | ||
Machine Size | 1650*1100*1850mm | 1650*1100*1850mm | 1650*1100*1850mm | ||
Machine Weight | 440kg | 630kg | 830kg | ||
Application Ranges:
Suitable for hot water bag, car visor welding and cutting,footwear, trademarks, leather bags, nameplate,logo, costume,
gloves,outdoor products and other products embossing,PVC,PU,TPU leather embossing etc.
gloves,outdoor products and other products embossing,PVC,PU,TPU leather embossing etc.
SIMILAR PRODUCTS
Our Customers
We have customers from global market,such as USA,Canada,Europe,Southest Asia,Middle Esat,South Americas,welcome to visit our factory and test our quality machines.
Company Profile
Dongguan Jing Yi High Frequency Machinery Co., Ltd. was set up in 1991, and since then we have mainly focused our attention on the production of high frequency electronic equipment with outputs 1,000 units annually. Our products have been very popular throughout the country and overseas. In order to upgrading our products, we have already gotten the certification of ISO9001system qualify in Feb.2004 and obtained two national patents in August.2008. We have an outstanding team and there are strong technically enough.Ten senior developers of our team have developed the latest products to meet the needs of the market, Also keeping our company in the leading position.
Our company attaches great importance to future development and after-sales service,all of which have won the great reputation from customers."To be perfect ,Customer First, Scientific Management, Keeping Improving for Excellence" is the quality policy of our company. "Complaint-free from Customers" is the main goal we will always strive for.
Packing & Delivery
We use international standard plywood case pack the machine to protect machine being damaged during shipping period
FAQ
Q: Are you trading company or manufacturer ?A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
