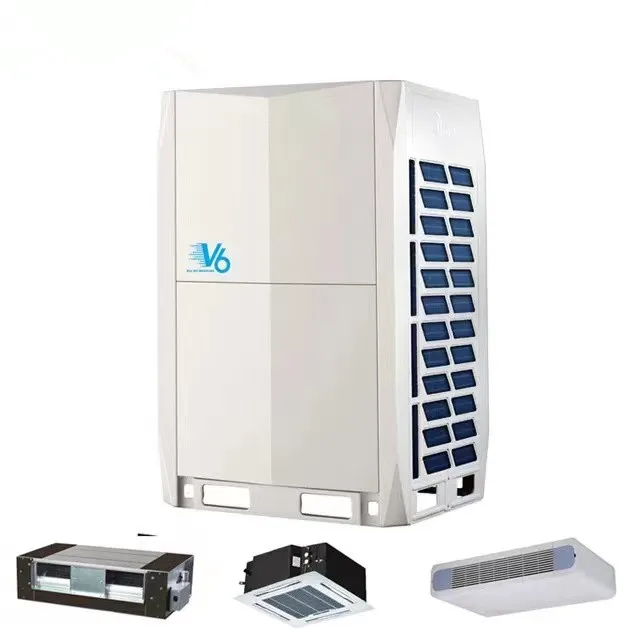

8/10/12HP 220 В 50 Гц V6 коммерческая система кондиционирования воздуха VRF
- Категория: >>>
- Поставщик: Henan Shangfeng Hvac Engineering Co. Ltd.Henan Ltd.
Сохранить в закладки 1600899448947:
Описание и отзывы
Характеристики
Product introduction
how to get a quick quotation
1. project drawing，building layout
2. Project name：building name or building type，such as residential house prokect，xx office project etc.
3. Expected shipping date of this project.
4.Project type:tender of self-owner
2. Project name：building name or building type，such as residential house prokect，xx office project etc.
3. Expected shipping date of this project.
4.Project type:tender of self-owner
Specification
Outdoor Unit Lineup | |||||||||||||||||
HP | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | |||||||||
Power supply | 380-415v 50hz | ||||||||||||||||
Cooling Capacity（kw） | 25.20 | 28.00 | 33.50 | 40.00 | 45.00 | 50.00 | 56.00 | 59.00 | |||||||||
Dimension (mm) | 990*1740*845 | 1340*1740*845 | |||||||||||||||
Fan quantity | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |||||||||
Compressor quantity | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |||||||||
HP | 24 | 26 | 28 | 30 | 32 | |||||
Power supply | 380-415v 50hz | |||||||||
Cooling Capacity（Kw） | 67.00 | 73.00 | 75.50 | 85.00 | 85.00 | |||||
Dimension (mm) | 1990*1740*845 | |||||||||
Fan quantity | 2 | 2 | 2 | 2 | 2 | |||||
Compressor quantity | 2 | 2 | 2 | 2 | 2 | |||||
Outdoor Unit Lineup | |||||||||
Type | Mini VRF | Large VRF | |||||||
Capacity | HP | 3HP-12HP | 8HP-22HP | ||||||
Power supply | V/Ph/Hz | 220-240V/1PH/50Hz 208-230V/1PH/60Hz 380-415V/3PH/50Hz & 60Hz | 208-230V/3PH/60Hz 380-415V/3PH/50Hz & 60Hz | ||||||
Cooling | Capacity | kW | 8KW~33.5KW | 25.2KW-61.5KW | |||||
kBtu/h | 27.3-60kBtu/h | 86-209.8kBtu/h | |||||||
Power input | kW | 5.78-14.4KW | 17-27.65KW | ||||||
EER | kW/kW | 3.32-3.69 | 3.02-4.72 | ||||||
Heating | Capacity | kW | 9KW-37.5KW | 27.4KW-69KW | |||||
kBtu/h | 92-191kBtu/h | 215-341kBtu/h | |||||||
Power input | kW | 5.41-14KW | 15.8-26.08KW | ||||||
COP | kW/kW | 3.56-4.27 | 4.11-5.5 | ||||||
Comperssors | Type | / | DC inverter | ||||||
Fan motor | Type | / | DC inverter | ||||||
Max.ESP | Pa | 85 | 85 | ||||||
Refrigerant | Type | R410A | |||||||
Aiflrow rate | m³/h | 3300-8000 | 15000-17000 | ||||||
dB(A） | 45-60 | 58-63 | |||||||
Ambient temp. operation range | Cooling | ℃ | -5-50℃ | -5-55℃ | |||||
Heating | ℃ | -20-19℃ | -30-19℃ | ||||||
Domestic hot water | ℃ | -20-43℃ | -20-43℃ | ||||||
Indoor units
including:wall mounted type;cassette type;duct type;
floor ceiling type;console type;
floor standing type;fresh air ventilation......YOU can choose one kind or combination of them to meet your need.
floor ceiling type;console type;
floor standing type;fresh air ventilation......YOU can choose one kind or combination of them to meet your need.
Wall-mounted
2.2-7.1kW
2.2-7.1kW
4-way Cassette
2.2-16kW.
2.2-16kW.
Round-flow cassette
5.6-16kW
5.6-16kW
Two-way Cassette
3.6-8.0kW
3.6-8.0kW
One-way Cassette
2.2-7.1kW
2.2-7.1kW
Floor Ceiling
3.6-16kW
3.6-16kW
Short ducted
2.2-7.1kw
2.2-7.1kw
Medium ESP ducted
7.1-15kw
7.1-15kw
High ESP ducted
7.1-56kw
7.1-56kw
Product packing
Package:Pallet + PE Bag + Carton + Corner ProtectorRecommend shipping: LCL, Full container
Company Profile
Trusted Professionals
We have professional HVAC designers, sales and after-sales installers. Specializing in HVAC for more than 20 years, and
successfully completed more than 200 HVAC projects. The industries involved include education, medical care, factories,
agricultural planting, precision industry, shopping malls, etc.
We are a reliable supplier,good quality and your all requirements are the most importance
to us .we will bring you the competitive price,the best service and the continous benefits.
successfully completed more than 200 HVAC projects. The industries involved include education, medical care, factories,
agricultural planting, precision industry, shopping malls, etc.
We are a reliable supplier,good quality and your all requirements are the most importance
to us .we will bring you the competitive price,the best service and the continous benefits.
Certifications

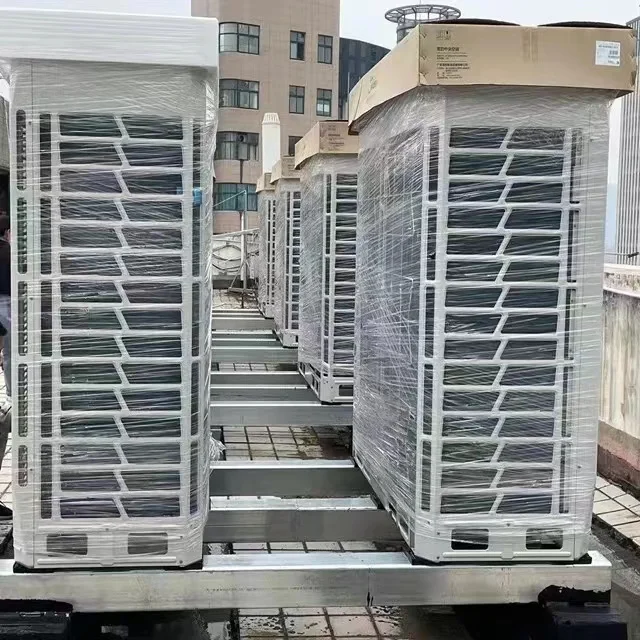

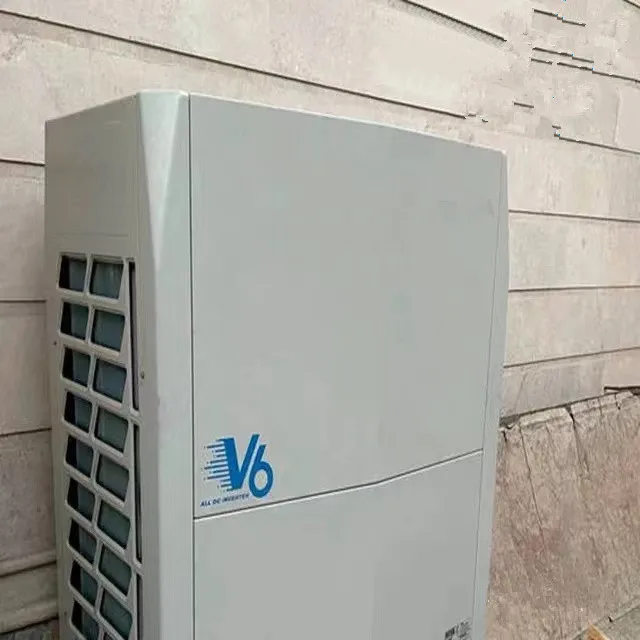

Customer Photos
FAQ
1. who are we?
We are based in Henan, China, start from 2021,sell to South Asia(30.00%),Southeast Asia(25.00%),North
America(20.00%),Africa(10.00%),Eastern Europe(10.00%),South America(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Central Air-conditioning,Commercial VRF Air Conditioners,Water Cooled Chiller,Air Cooled Chiller,AHU Units,Integrated Unit
4. why should you buy from us not from other suppliers?
VRF Chillers technology,installation,core value:honesty, speciality, innovation been central industry since 1980s,export since
2004.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2021,sell to South Asia(30.00%),Southeast Asia(25.00%),North
America(20.00%),Africa(10.00%),Eastern Europe(10.00%),South America(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Central Air-conditioning,Commercial VRF Air Conditioners,Water Cooled Chiller,Air Cooled Chiller,AHU Units,Integrated Unit
4. why should you buy from us not from other suppliers?
VRF Chillers technology,installation,core value:honesty, speciality, innovation been central industry since 1980s,export since
2004.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
