Product Overview

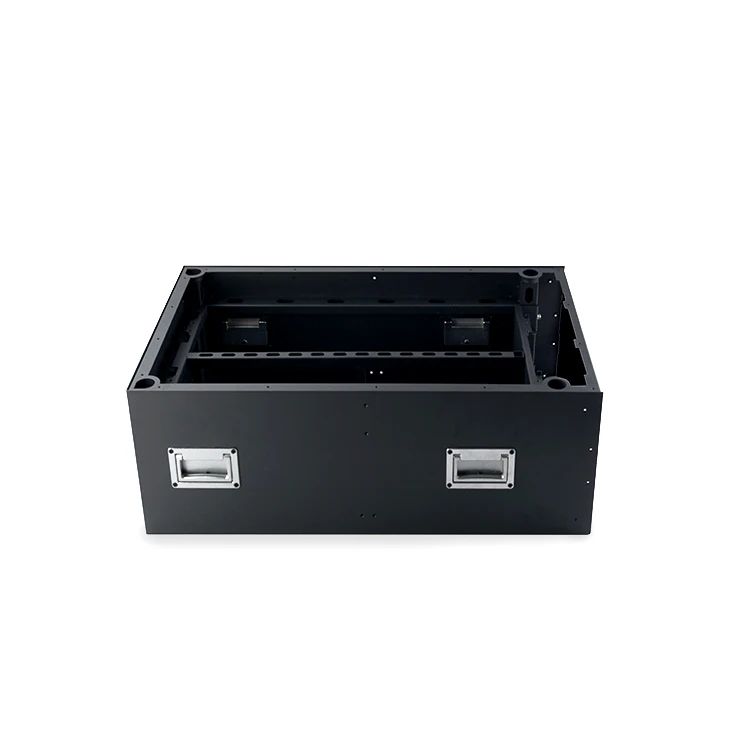

48V Metal box for Rack Mounted Server battery pack
OEM 48V 200Ah 280Ah 304ah 560Ah Metal box for diy Lifepo4 Batteries Lithium cell Pack Energy Storage Rack Mounted Empty Box
FEATURES AT A GLANCE

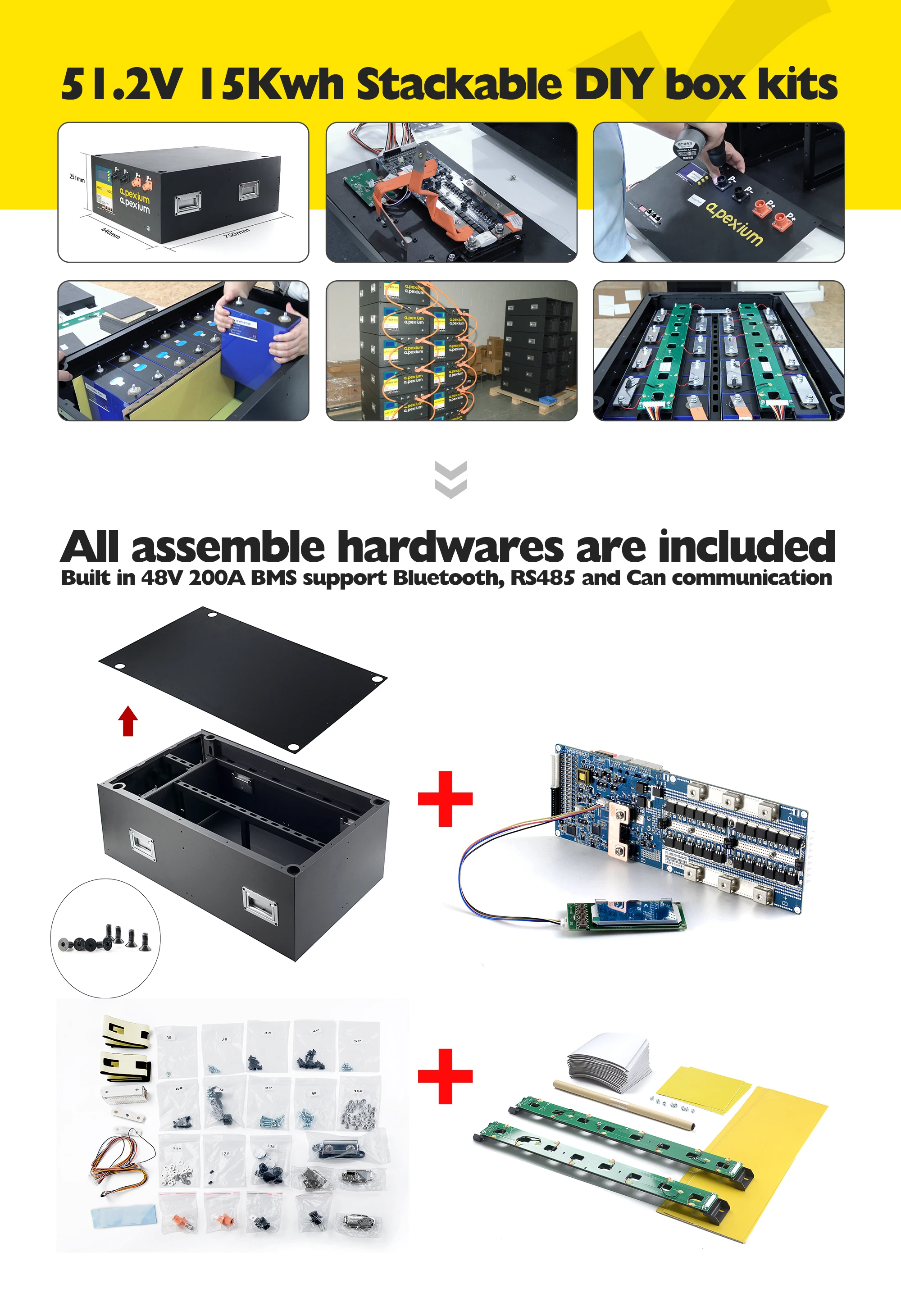

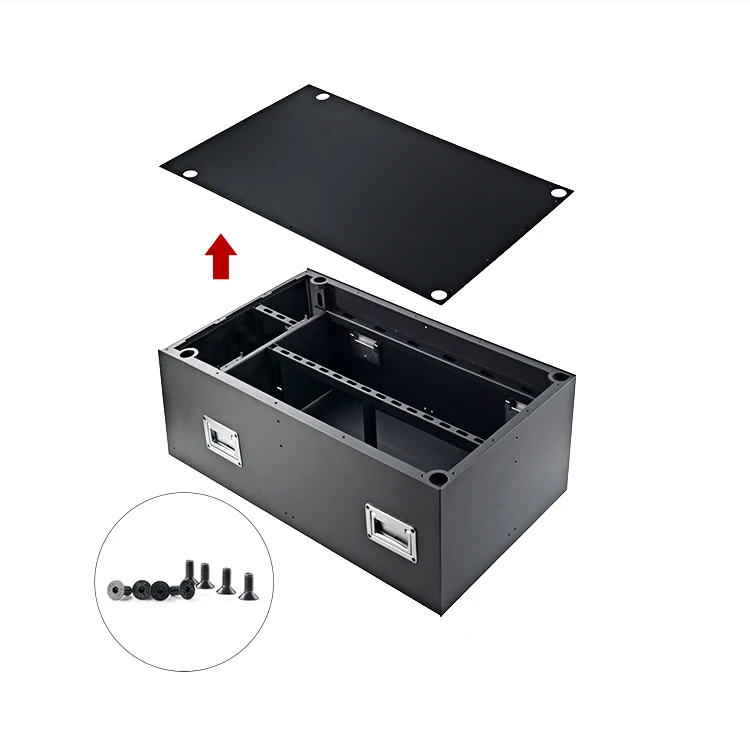

* 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
* 1 * 48V 200A 16S BMS
* 1 * 58V 400A Fuse
* 4 * Handle
* 2 * PCB Board for BMS and Cell Connection
* 3 * Upper and Lower Latch lock
* 1 * LCD Screen
* 1 * LCD Screen Sticker
* 4 * Button Cap
* 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
* 2 * Battery Terminals (P+ Terminal and P- Terminal)
* 1 * 48V 200A 16S BMS
* 1 * 58V 400A Fuse
* 4 * Handle
* 2 * PCB Board for BMS and Cell Connection
* 3 * Upper and Lower Latch lock
* 1 * LCD Screen
* 1 * LCD Screen Sticker
* 4 * Button Cap
* 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
* 2 * Battery Terminals (P+ Terminal and P- Terminal)
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Brand | DOCAN | ||||||
Model | 48V 16S LFP Stainless Steel BOX | ||||||
Application | Solar energy household system | ||||||
Battery type | 230Ah 280Ah 302Ah Lifepo4 battery pack | ||||||
Communication | CANBUS and RS485 | ||||||
Built-in BMS | 48V 16S 200A BMS | ||||||
Weight | 29kg | ||||||
Nominal Voltage | 48V/51.2V | ||||||
Battery Pack Type | Stackable | ||||||
Sample OEM/ODM | Acceptable | ||||||
Weight | 29kg | ||||||
Dimensions (L*W*H) | 820*510*332mm | ||||||
Applications | Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on. | ||||||
Parts List * 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover) * 1 * 48V 200A 16S ENJ BMS * 1 * 58V 400A Fuse * 4 * Handle * 2 * PCB Board for BMS and Cell Connection * 3 * Upper and Lower Latch lock * 1 * LCD Screen * 1 * LCD Screen Sticker * 4 * Button Cap * 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector) * 2 * Battery Terminals (P+ Terminal and P- Terminal) Other components includes: * 6 * Copper bus bars (BMS connection) * 15 * Aluminum bus bars (Cell connection) * 10 * Epoxy sheet (Between cell and the case) * 26 * EVA Tape (Between cells) * 1 * PC sheet (Top cover) Screws Details: * 12 * Phillip Hex M4 * 8mm (PCB board fix) * 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix) * 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix) * 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix) * 12 * Phillip Pan M5 * 10mm (Latch fix) * 16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix) * 42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case) * 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix) * 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix) * 8 * Phillip Round M5 * 10mm + Washer | |||||||
How we guarantee TOP quaity for you?
The built-in CANBUS communication board supports these brands of inverters, and the BMS has a built-in CANBUS protocol of matching.Inverter brands, which can be automatically matched or manually switched: The default is the Pylontech CANBUS protocol ,Goodwe,Growatt(The default is SPF(off-grid) protocol. If your inverter is SPH(on-grid), Victron,LUXPOWER,Sofar,Deye,Sermatec,Renac,TBB POWER,Solis,SMA,Foxess,IMEON
If the inverter brand is not listed, please ask your inverter supplier for the protocol definition. And sent it to us, we'll help confirm that.To get the assemble video,Welcome to contact with Amy Zheng directly:
TEL/WA/Wechat ID: + 86 13530412339
Email: amy@docanpower.com
If the inverter brand is not listed, please ask your inverter supplier for the protocol definition. And sent it to us, we'll help confirm that.To get the assemble video,Welcome to contact with Amy Zheng directly:
TEL/WA/Wechat ID: + 86 13530412339
Email: amy@docanpower.com
SIMILAR PRODUCTS
Details Images
Application
Customers feedbacks and reviews
Ready to ship stocks from EU and USA Stocks！
24H Shiping /48H tracking number update/ 7days delivery
24H Shiping /48H tracking number update/ 7days delivery
Related products you May need,Welcome to contact DOCAN AMY (click here) to more details:
Why Docan the BEST supplier for you?
★ Your Expert For Power Supply
With 14 years of battery industry experience,we have been served more than 80 countries with 5 overseas warehouses and keep more than 90% repurchase rate& 96% good feedbacks rated by alibaba proved.
★ Direct distribributor: CATL,EV,Lishen,REPT,CALB,BYD,Ganfeng,Gotion, HiGee, Yinlong,....
Only supply 100% original Grade A New brand cells
Weekly Fresh Date Stocks,New produced cell.
Keep Long-term supply for your project. no worry about stocks problem.
★ Guaranteed Quality service
International standard inspection, 100% testing guaranteed.
QC checking by pictures or videos before shipping are avaliable.
★ Fully Warranty service guaranteed.
100% technical support & 100% after-sales service.
Support fully refund if used cell or bad quality cell received from us!
★ OEM / ODM welcome.
Support customized Lifepo4 battery pack as you required. 100% guarantee the quality as you expected.
With 14 years of battery industry experience,we have been served more than 80 countries with 5 overseas warehouses and keep more than 90% repurchase rate& 96% good feedbacks rated by alibaba proved.
★ Direct distribributor: CATL,EV,Lishen,REPT,CALB,BYD,Ganfeng,Gotion, HiGee, Yinlong,....
Only supply 100% original Grade A New brand cells
Weekly Fresh Date Stocks,New produced cell.
Keep Long-term supply for your project. no worry about stocks problem.
★ Guaranteed Quality service
International standard inspection, 100% testing guaranteed.
QC checking by pictures or videos before shipping are avaliable.
★ Fully Warranty service guaranteed.
100% technical support & 100% after-sales service.
Support fully refund if used cell or bad quality cell received from us!
★ OEM / ODM welcome.
Support customized Lifepo4 battery pack as you required. 100% guarantee the quality as you expected.
Shipping and Payment
* Use high hardness custom sponge to strengthen the battery* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
